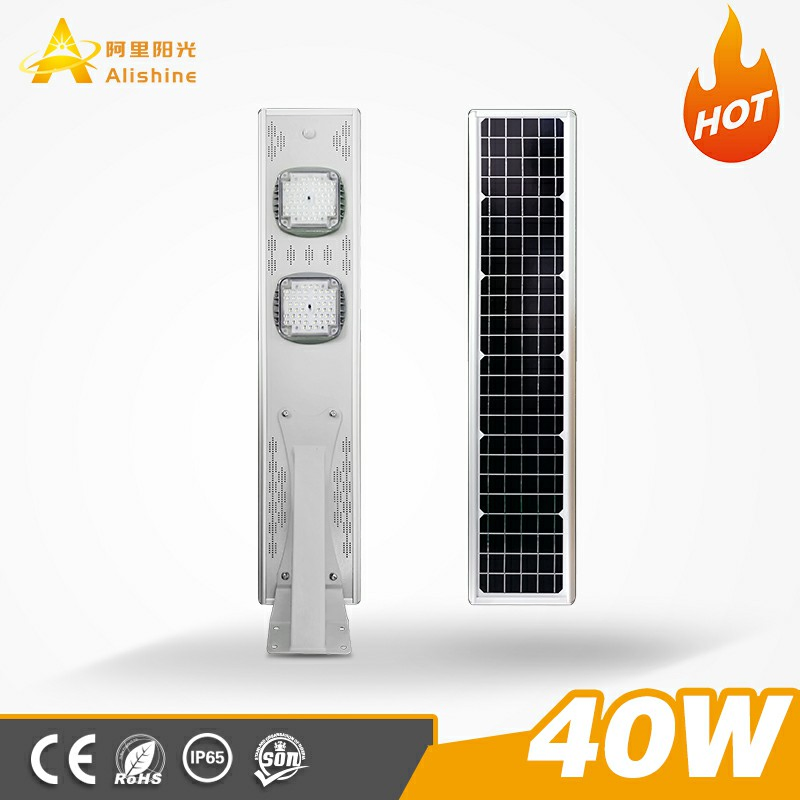

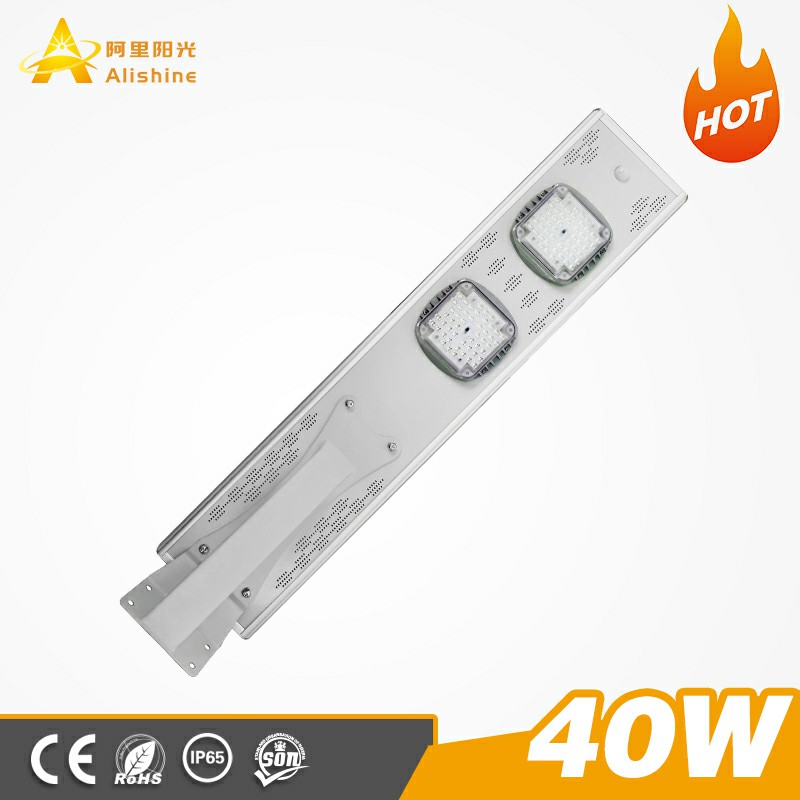

Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
1 / 5
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting
Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting

Factory Wholesale Outdoor New Solar Energy Saving Power System Street Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
AL-CH40
Light Type
Energy Saving
Color Temperature
Warm White
Power
≥30W
Technics
Painted Matte
Illumination Time
12h
Cell Type
LiFePO4 Lithium Battery
Charging Time (H)
6
Usage
Garden, Street
IP Rating
IP65
Certification
CE, RoHS
Solar Panel

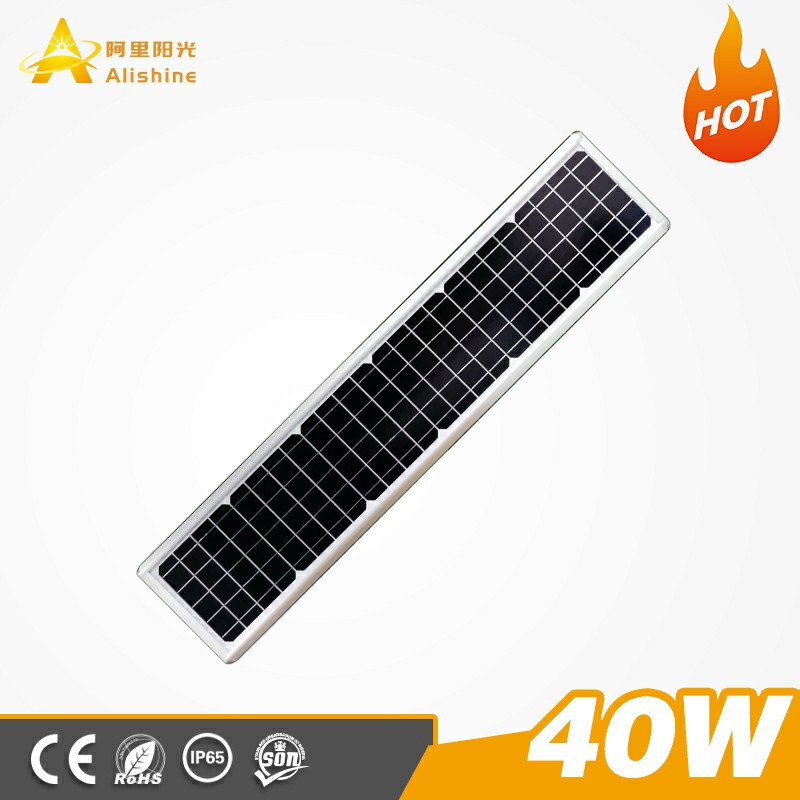

18V 50W (Monocrystalline Silicon)

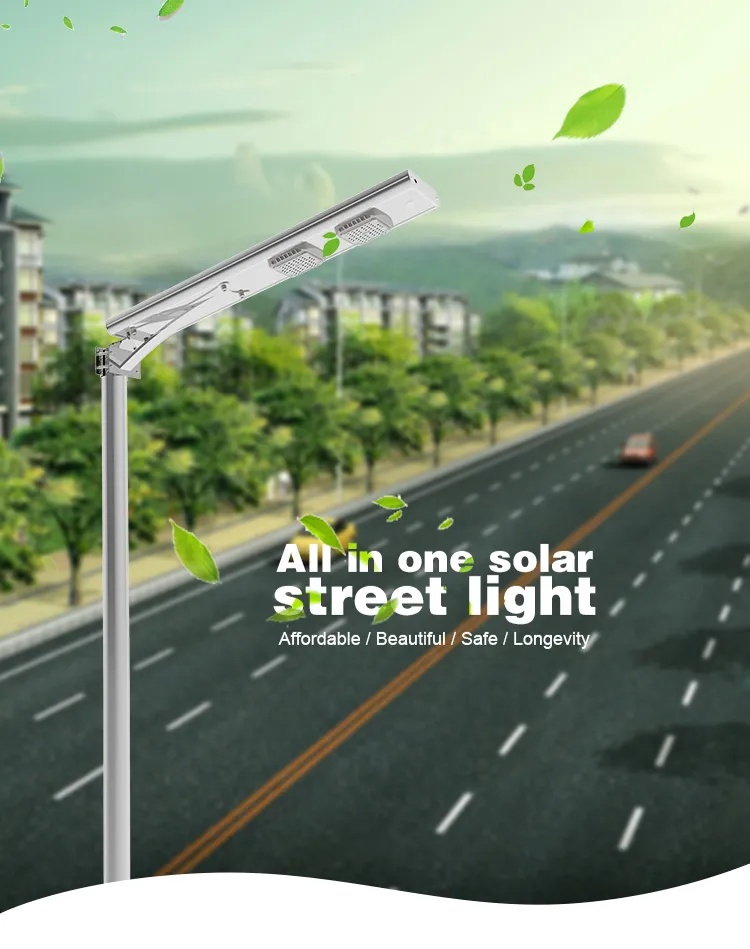

Solar Energy Saving Street Lighting
Product Parameters
Technical Specifications Physical & Installation
ModelAL-CH40 Lamps MaterialAluminium
Solar Panel18V 50W (Monocrystalline) Mounting Height5-6M
Battery TypeLiFePO4 12.8V 21AH Space Between Light20-25M
LED Power12V 40W Unit Size1060*205*60mm
Lumen150-160lm/W Working TEMP-25~+65ºC
CCT6500k-7000k Warranty3 Years
Working Mode Auto turn on after sunset, off at sunrise. Default mode: 100% capacity when movement detected, 30% when no movement.

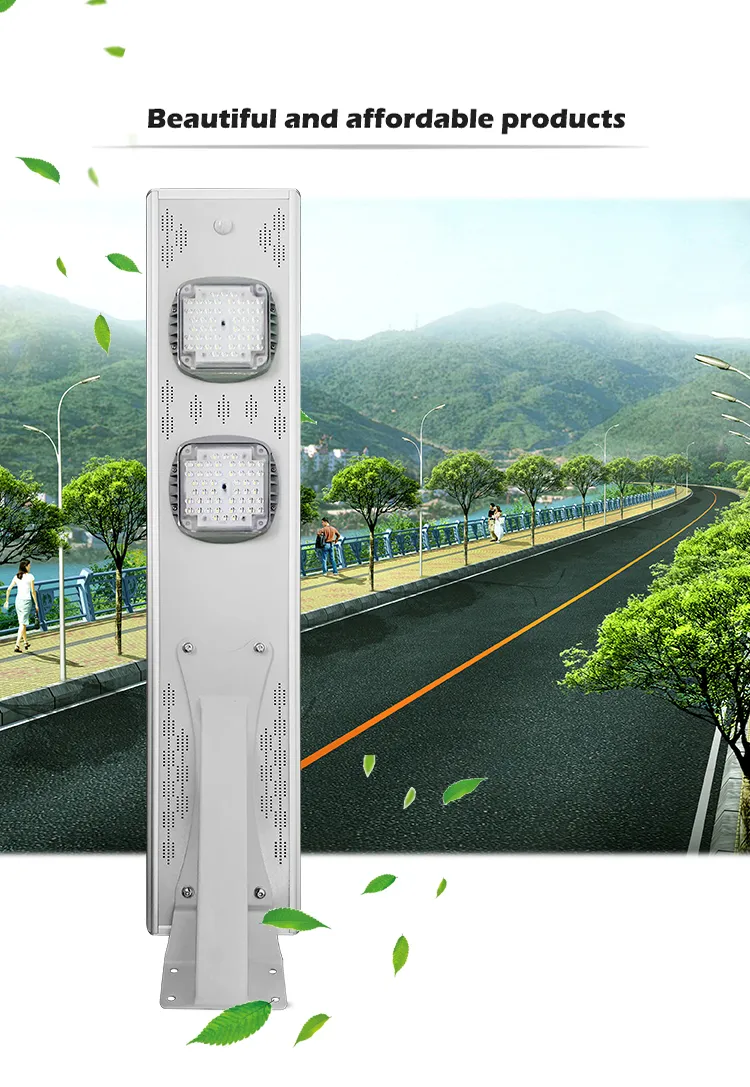

Key Features
Features
  • All-in-one integrated compact design; No external wires or cables needed.
  • High brightness chips with efficiency up to 125LM/W.
  • Professional optical lens with light transmittance over 92%.
  • High efficiency monocrystalline solar panel with over 22% conversion efficiency.
  • High quality lithium Iron phosphate (LiFe PO4) battery with lifetime over 2000 cycles (5~8 years).
  • 100% solar powered green renewable energy.
  • Automatic operation: turn on at dusk and turn off at dawn.
  • PIR motion sensor included to optimize power saving.
  • Elegant design with corrosion protection.

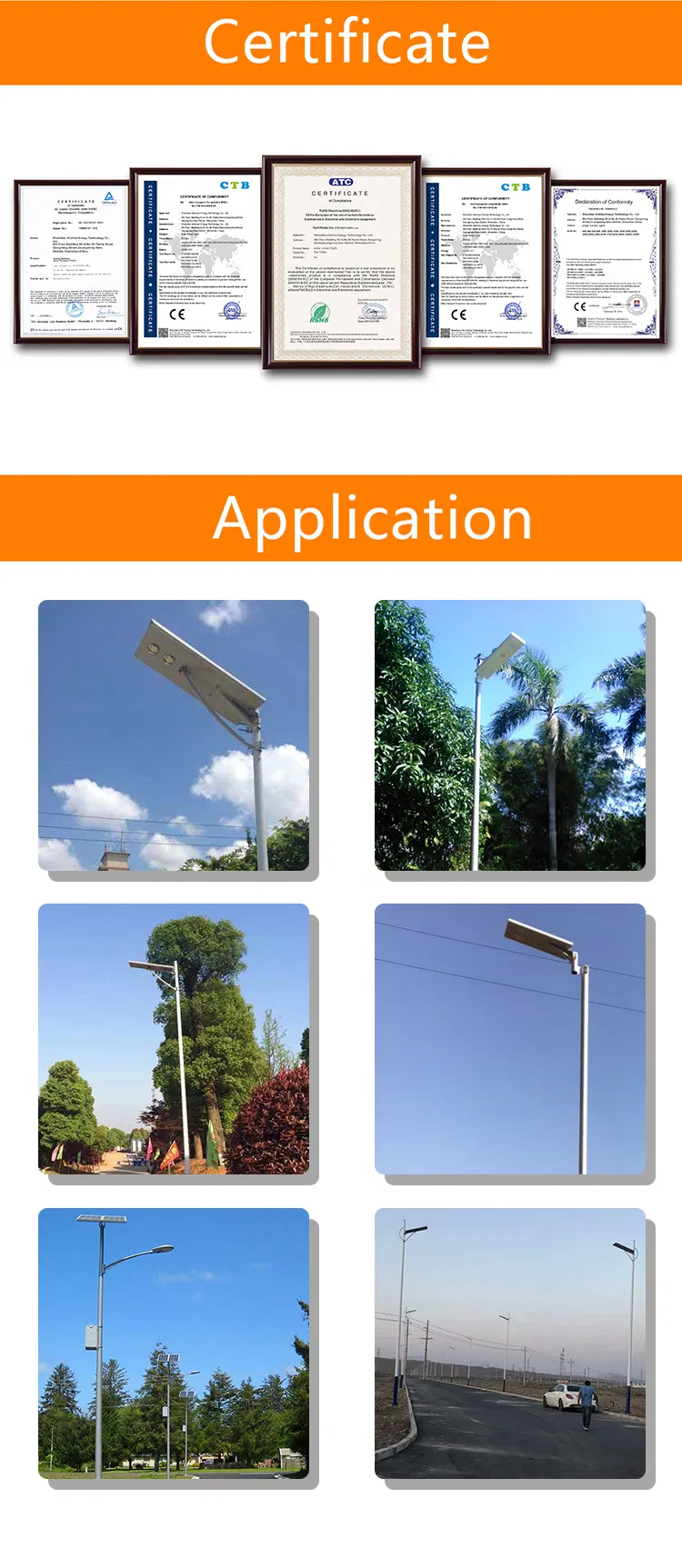

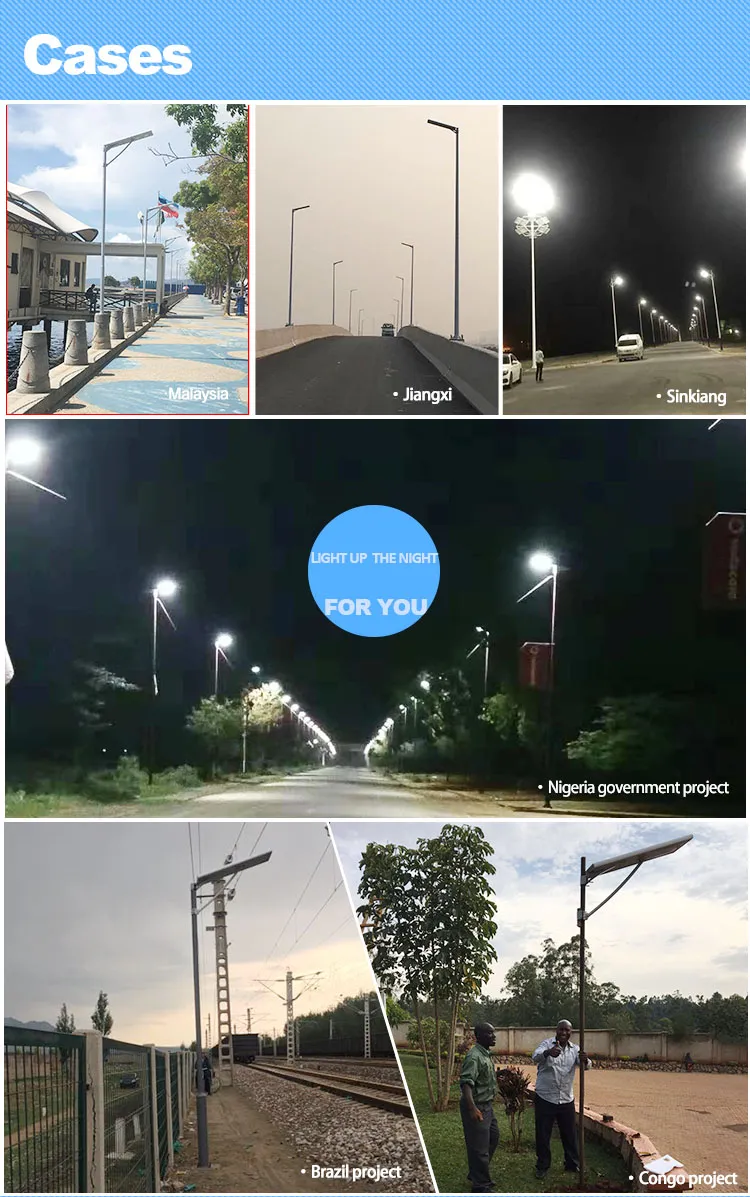

Applications

Suitable for residential roads, parking lots, pathways, ramps, farms & ranches, wildlife areas, docks & piers, personal gardens, plazas, and streets—any exterior area with sufficient sunlight.

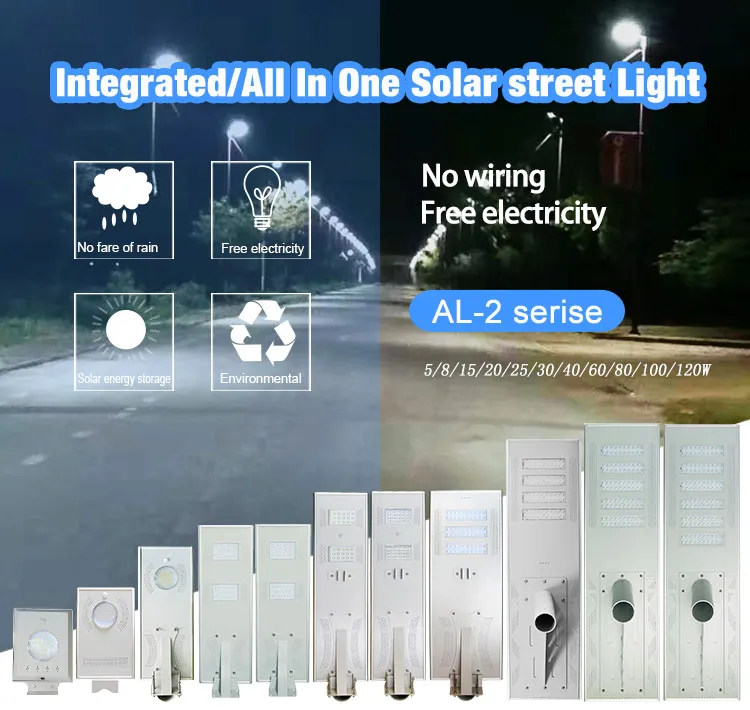

Application 1
Application 2

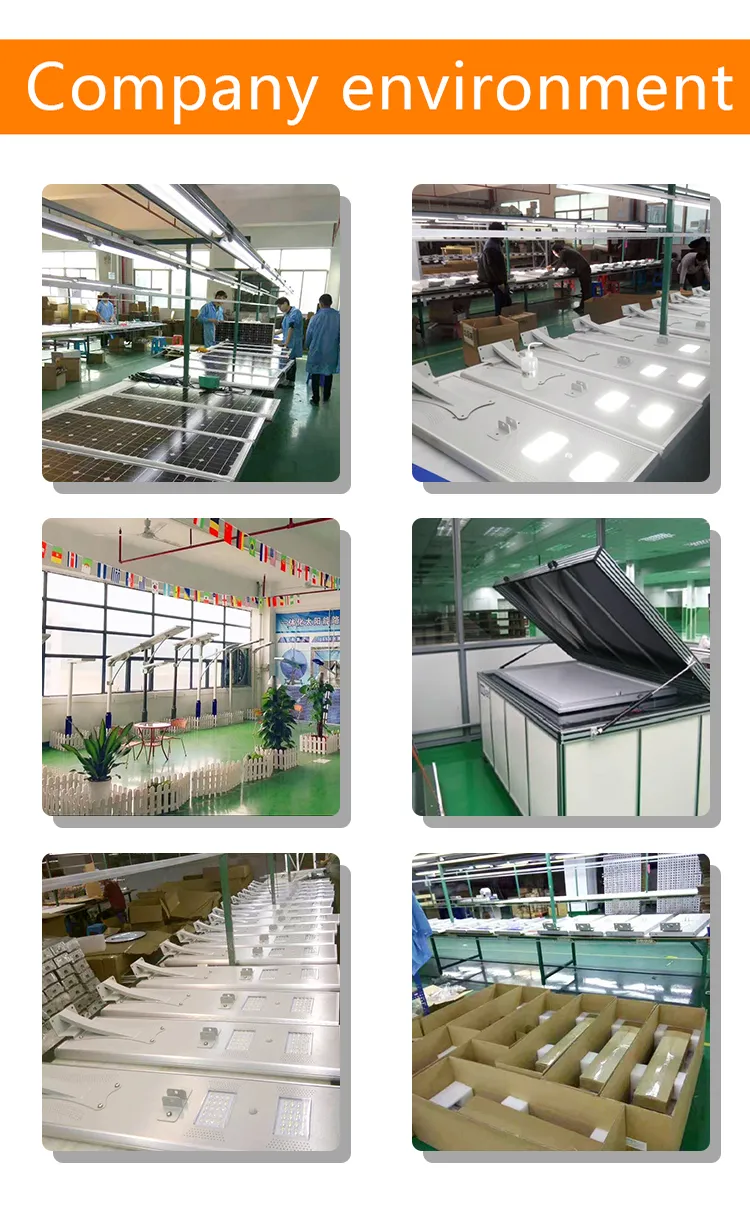

Product Display
Display 1
Display 2
Frequently Asked Questions
Q1: What type of battery is used in the AL-CH40 solar light?
The AL-CH40 uses a high-quality LiFePO4 (Lithium Iron Phosphate) battery, which offers a long lifetime of over 2000 cycles, typically lasting between 5 to 8 years.
Q2: How long does the light operate on a full charge?
At full power, the light provides 15 hours of illumination. In energy-saving mode, it can last for over 30 hours.
Q3: What is the charging time required?
The solar panel requires approximately 6 to 7 hours of strong direct sunlight to reach a full charge.
Q4: Is the solar street light waterproof for outdoor use?
Yes, the product has an IP65 rating, making it highly resistant to dust and water, suitable for all outdoor environments.
Q5: How does the PIR motion sensor work?
By default, the lamp operates at 100% capacity when movement is detected. When there is no movement, it automatically dims to 30% capacity to save power.
Q6: What is the recommended installation height for this model?
The AL-CH40 is designed for a mounting height of 5 to 6 meters, with an ideal spacing of 20 to 25 meters between lights.
