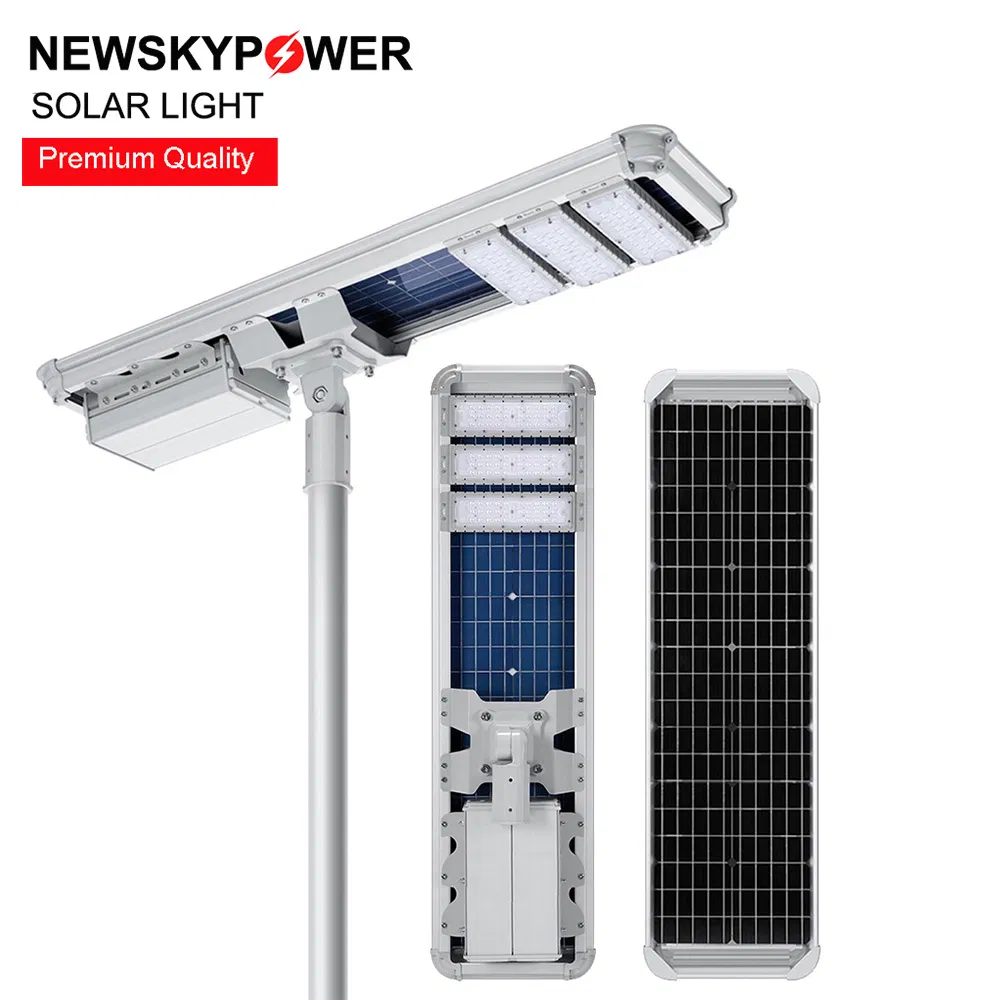

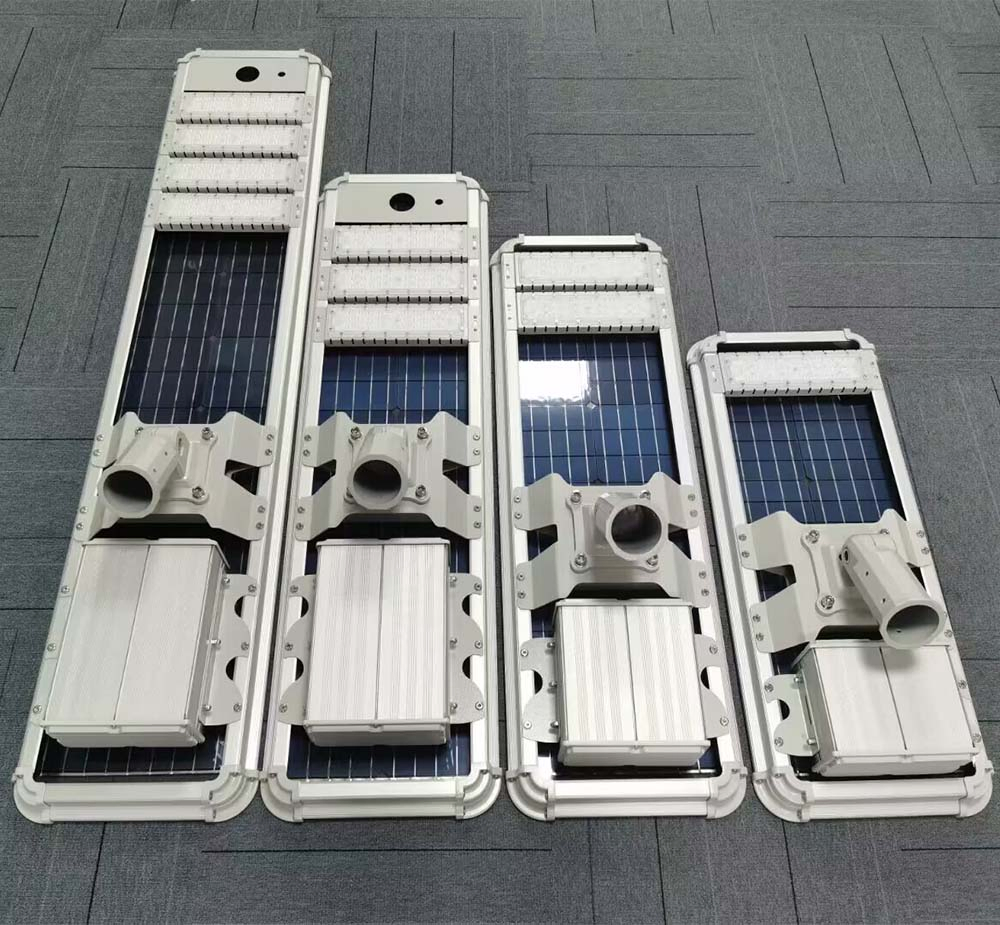

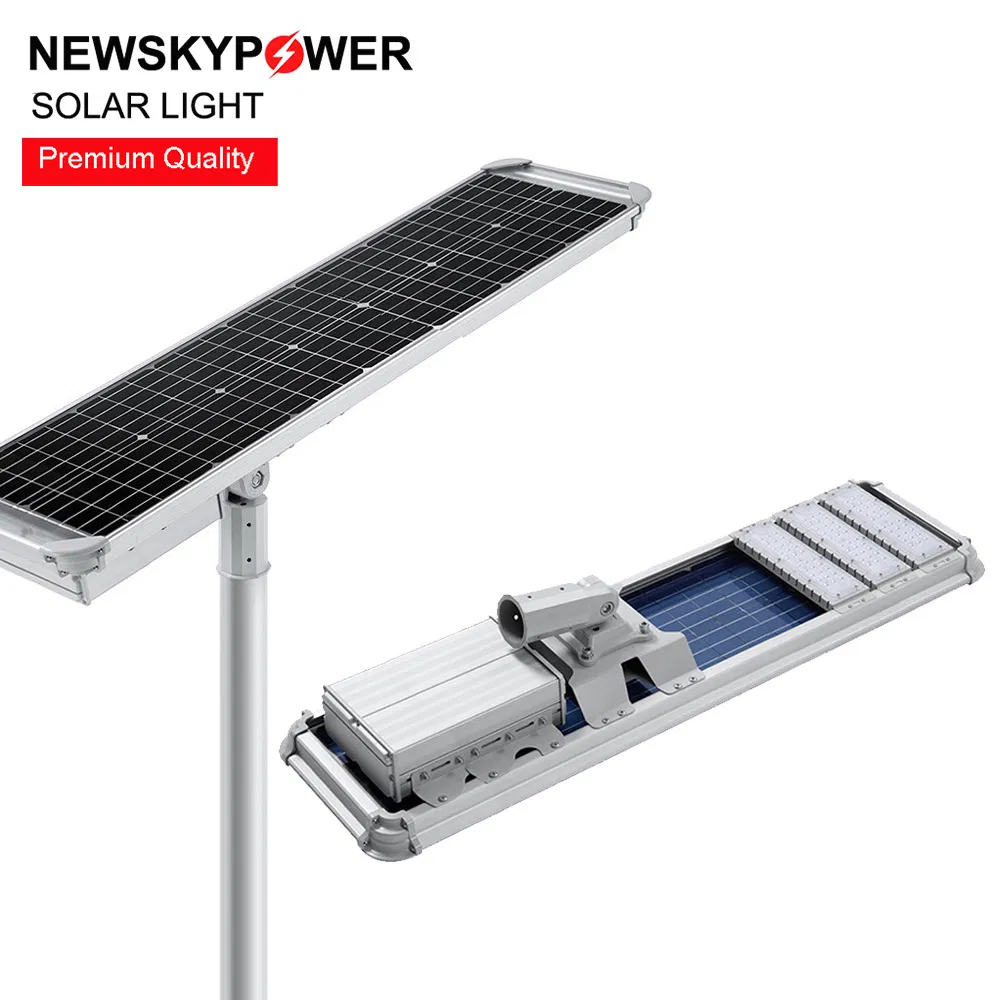

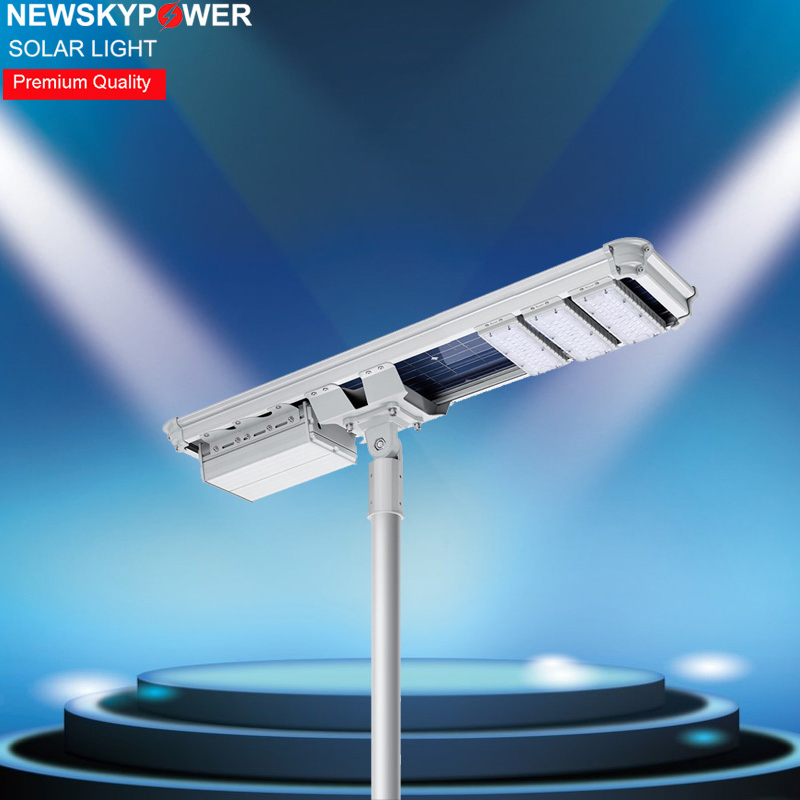

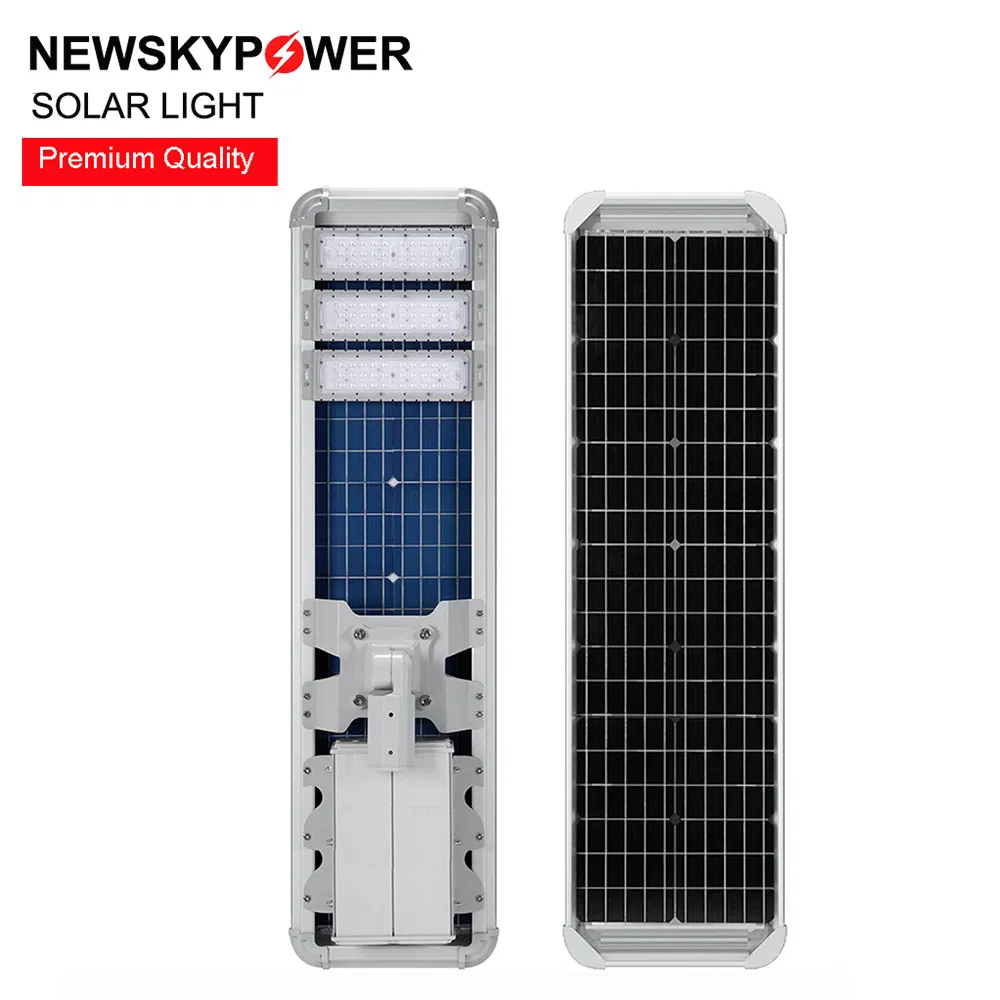

Double-Sided Charging Outdoor Waterproof Integrated LED All in One Solar Street Lamp 40W-120W

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.NS-80W
Light TypeSolar
Color TemperatureCool White (6500K)
Power≥30W
TechnicsElectroplating
Illumination Time12h
Cell Type42ah/12.8V, LiFePO4 Battery
Charging Time6-8h
UsageGarden, Street
IP RatingIP67
CertificationCE, RoHS
Voltage12/24V
Lumen11200lm
Solar Panel80W(+16W)/18V, Mono
Lamp Size1322*367*50mm
Work Temp.-20℃ ~ +60℃
LED Chip80W, Bridelux 3030
Mounting Height8-9m
Spacing24-27m
Pole Diameter60mm
OriginChina
P

Packaging & Delivery

Package Size140.00cm * 40.00cm * 12.00cm
Package Gross Weight17.000kg
Transport PackageCartons
D

Product Description

Double-sided Charging Outdoor Waterproof Integrated Led All in One Solar Street Lamp NS Series 40w-120w

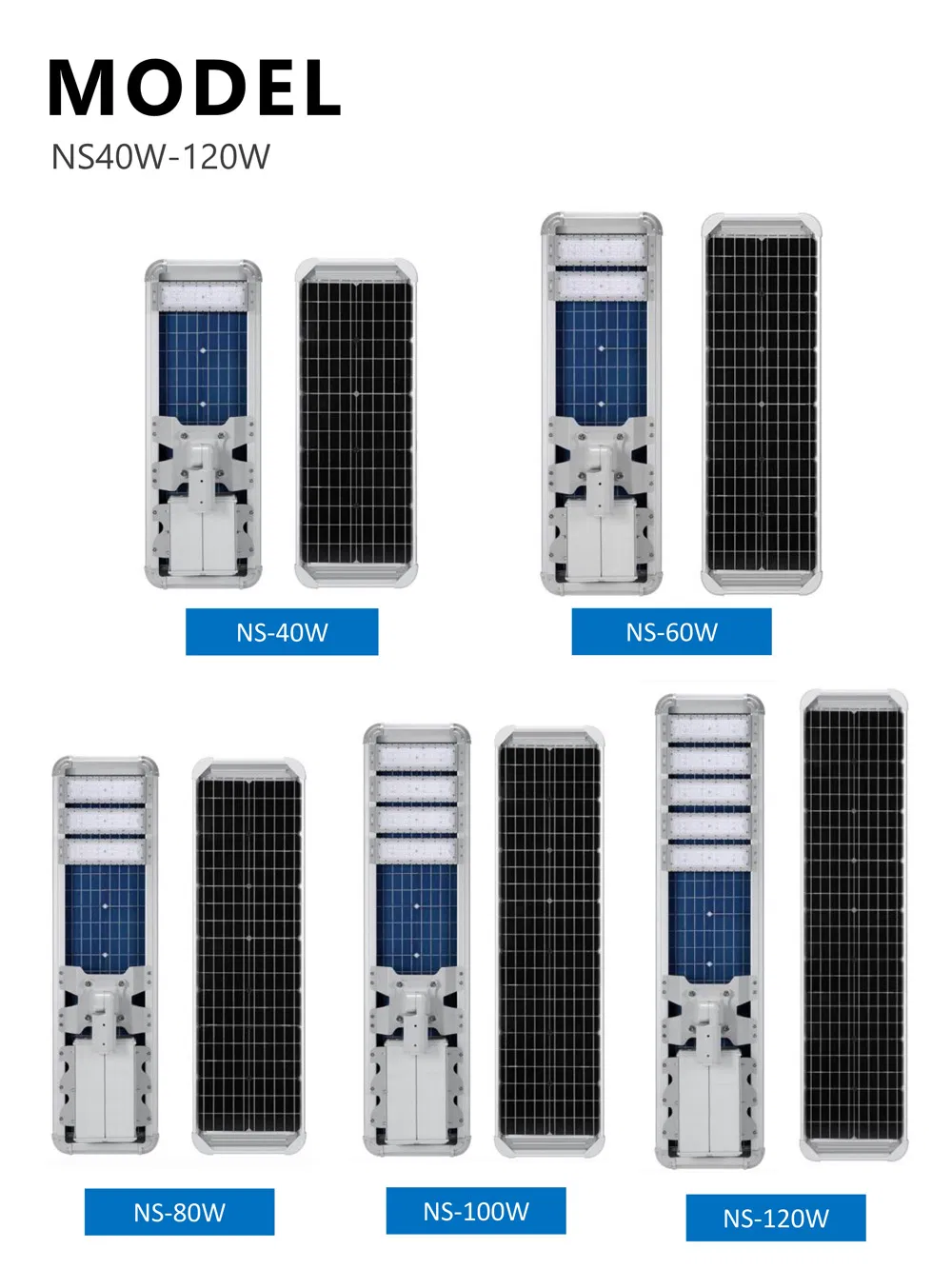

Model NS-40 NS-60 NS-80 NS-100 NS-120
Rated power 40W 60W 80W 100W 120W
Lumens 5600LM 8400LM 11200LM 12000LM 14000LM
Solar panel 50W(+10W) 60W(+12W) 80W(+16W) 100W(+20W) 120W(+24W)
LiFePO4 battery 24AH/12.8V 30AH/12.8V 42AH/12.8V 54AH/12.8V 66AH/12.8V
Install height 6-7M 7-8M 8-9M 9-10M 10-11M
Spacing 18-21M 21-24M 24-27M 27-30M 30-33M
Pole diameter 60mm
Color temp. 6500K
Work temp. -20ºC ~ +60ºC
Water proof IP67
CRI >85
Charge time 6-8H

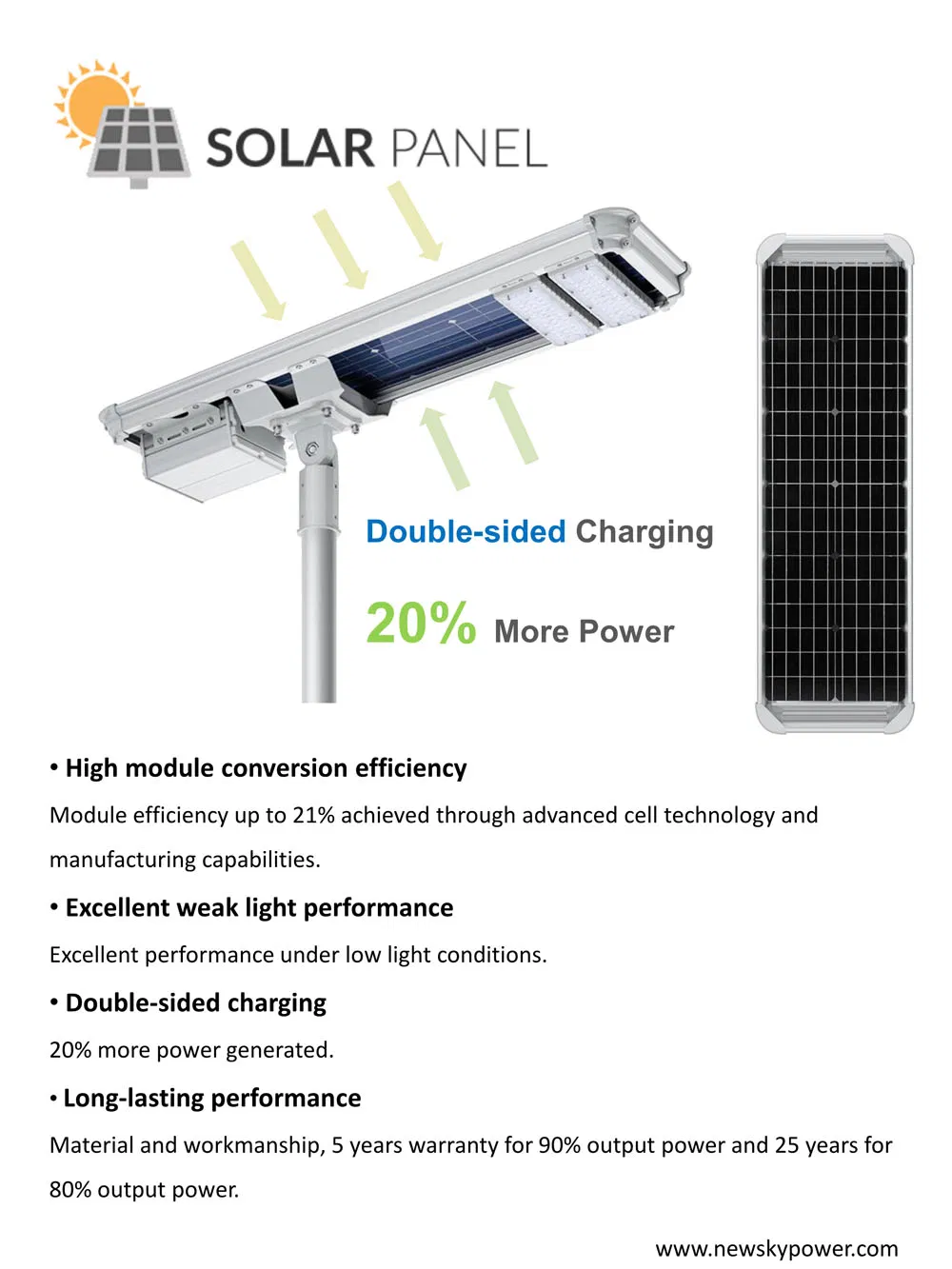

Solar Street Lamp NS Series

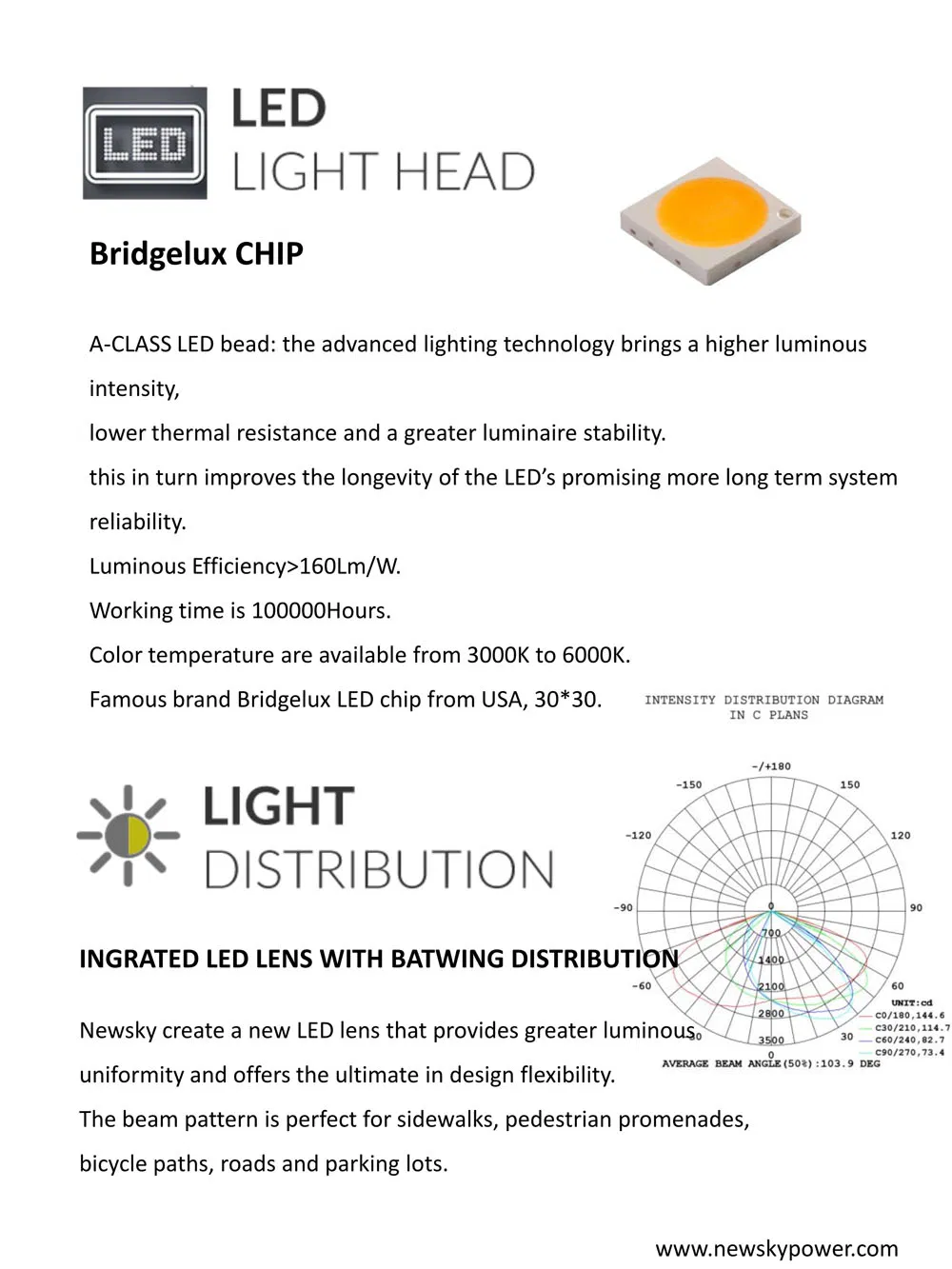

Solar Street Lamp NS Series
Solar Street Lamp NS Series

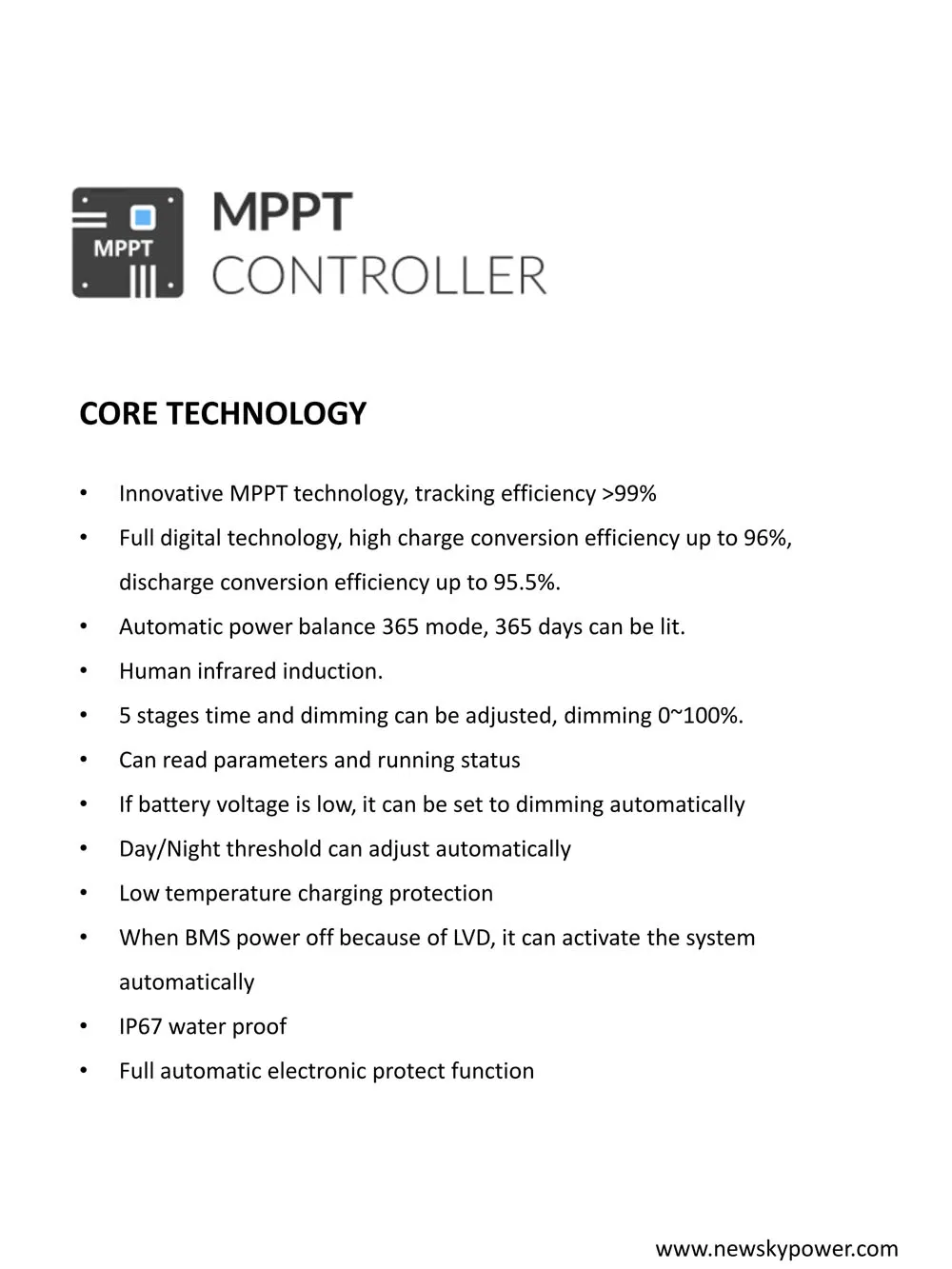

Solar Street Lamp NS Series Detail

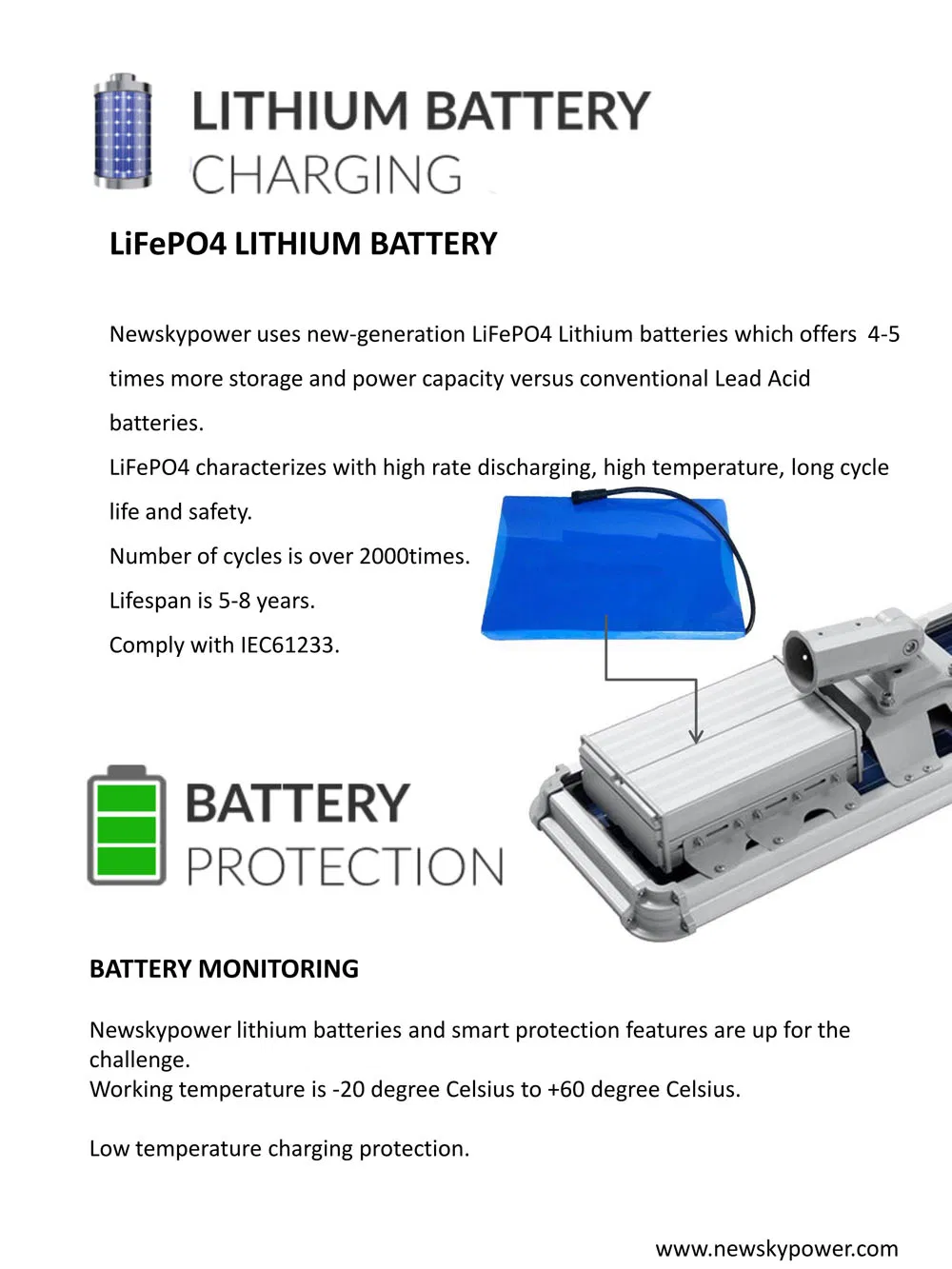

Solar Street Lamp NS Series Detail
Application Scenario
Night View Application
Technical Drawing 1
Technical Drawing 2
?

Frequently Asked Questions

What is the charging time and illumination duration for the NS-80W?
The system requires 6-8 hours of sunlight for a full charge and provides up to 12 hours of continuous illumination at night.
How does the double-sided charging feature benefit the lamp?
The double-sided integrated design maximizes solar energy absorption, ensuring higher efficiency even in varying weather conditions.
What type of battery is used in the NS series?
The series utilizes high-quality LiFePO4 (Lithium Iron Phosphate) batteries, known for their long life cycle and safety. For example, the NS-80W uses a 42ah/12.8V battery.
Is the lamp suitable for extreme weather conditions?
Yes, the lamp features an IP67 waterproof rating and can operate effectively in temperatures ranging from -20ºC to +60ºC.
What is the recommended installation height and pole diameter?
For the NS-80W model, the recommended mounting height is 8-9 meters with a spacing of 24-27 meters. The standard pole diameter required is 60mm.
