100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
1 / 5
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System
100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System

100W 150W Smart LED Urban Street Lighting IP67 Parking Lot Lighting with NB-IoT System

Customization: Available
Power Supply: AC
Color Temperature: 3000K 4000K 5000K 5700K 6500K
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.
ELS-ST14
Material
Aluminum
Power
50W - 240W
IP Rating
IP67 / IP66
LED Chips
CREE SMD3030
Voltage
AC100-277V
CCT
3000K - 6500K
Lifetime
>100,000 Hours
Protection
IK10
Warranty
5 / 10 Years
!

Product Description

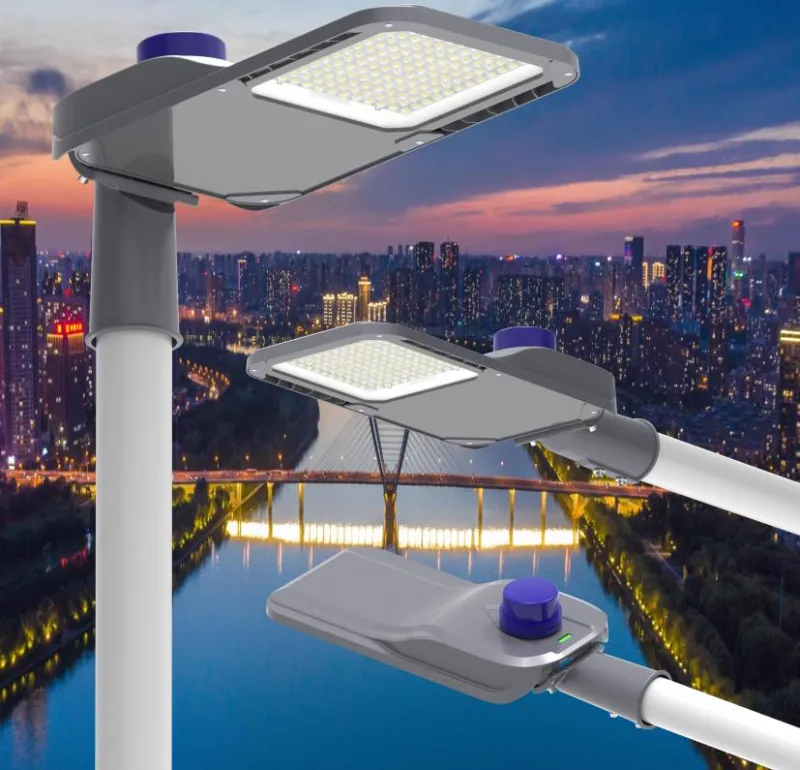

Smart LED Street Lighting

The ST14 series of luminaires has been developed to meet the needs of the most progressive smart cities. Designed specifically for lighting high traffic urban and suburban roads, the sleek, sculpted design fits perfectly with contemporary cityscapes while offering unrivalled functionality, versatility, and performance.

  • Slim and compact profile for maximum wind resistance
  • Circuit interrupter for maintenance access
  • Adjustable installation angle
  • IP66/IP67 for all weather conditions
  • IK10 Mechanical resistance
T

Technical Parameters

Power 50W60W100W120W150W180W200W240W
LED QTY 96pcs96pcs144pcs144pcs240pcs240pcs320pcs320pcs
Input Voltage AC100-277V / 50-60Hz
Materials Die casting aluminum housing + PC lens + Tempered glass
Driver Brand Meanwell / Inventronics
Working Temp -30ºC ~ +50ºC
P

Detailed Photos

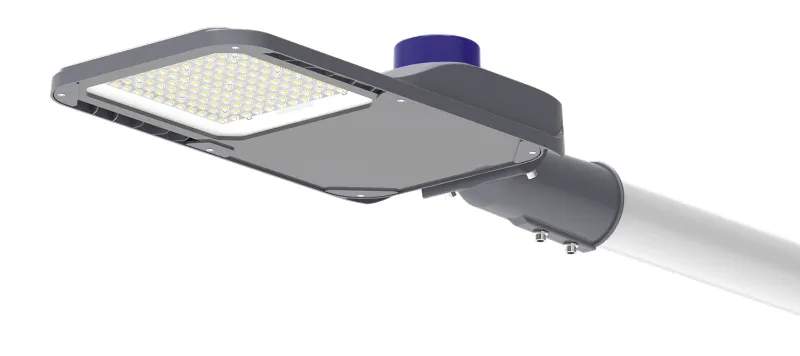

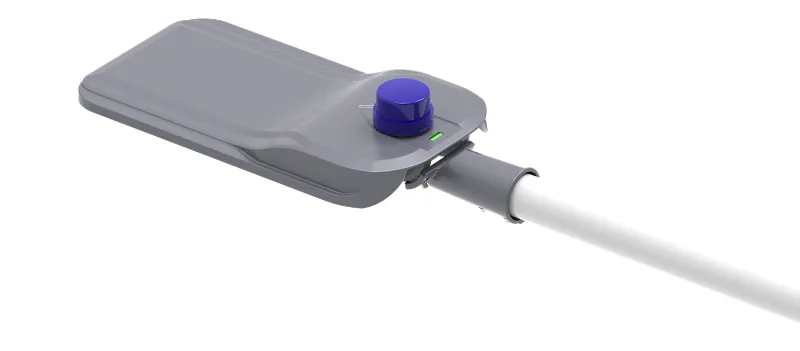

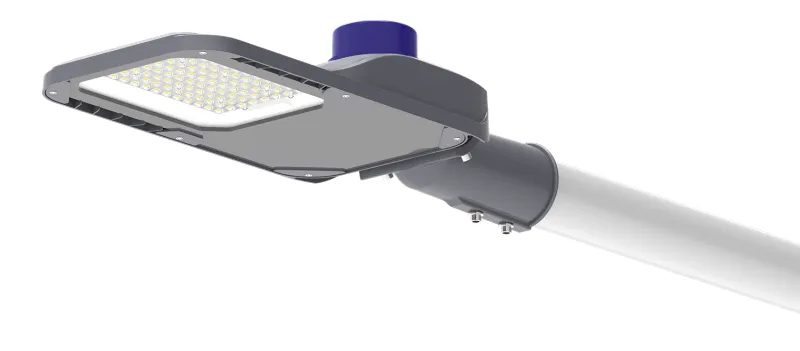

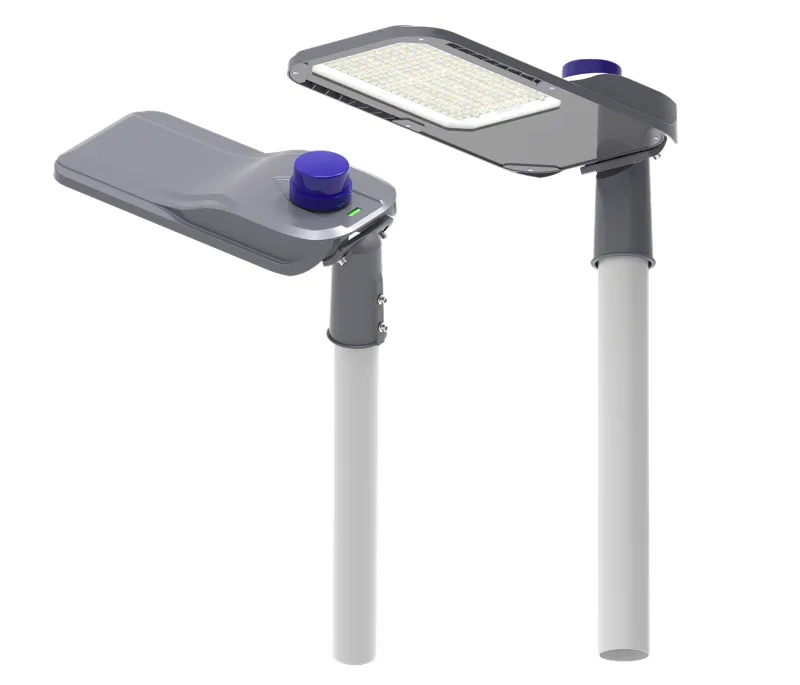

Street Light Detail 1 Street Light Detail 2 Street Light Detail 3 Street Light Detail 4

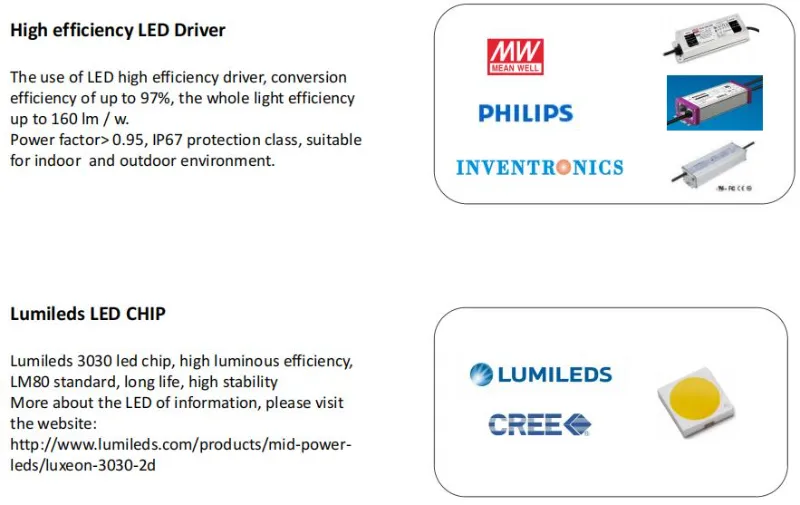

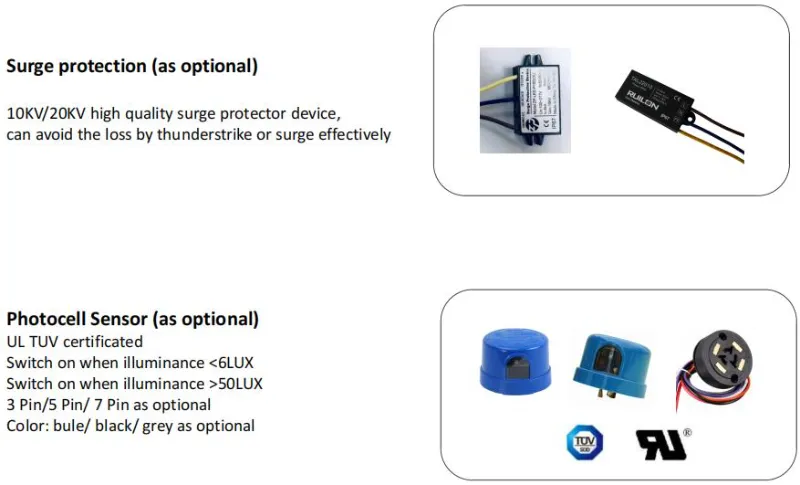

Component View Angle Adjustment

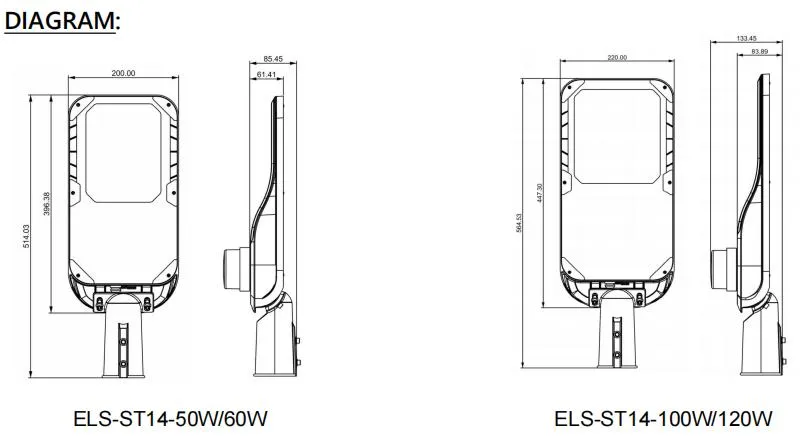

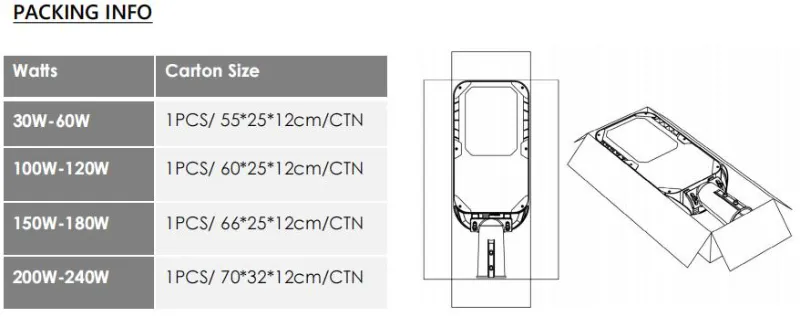

Module View Driver View
A

Application & Production

Widely used for various applications, perfectly meeting the demanding performance and lighting needs of roadway engineers, landscape architects, and outdoor lighting professionals.

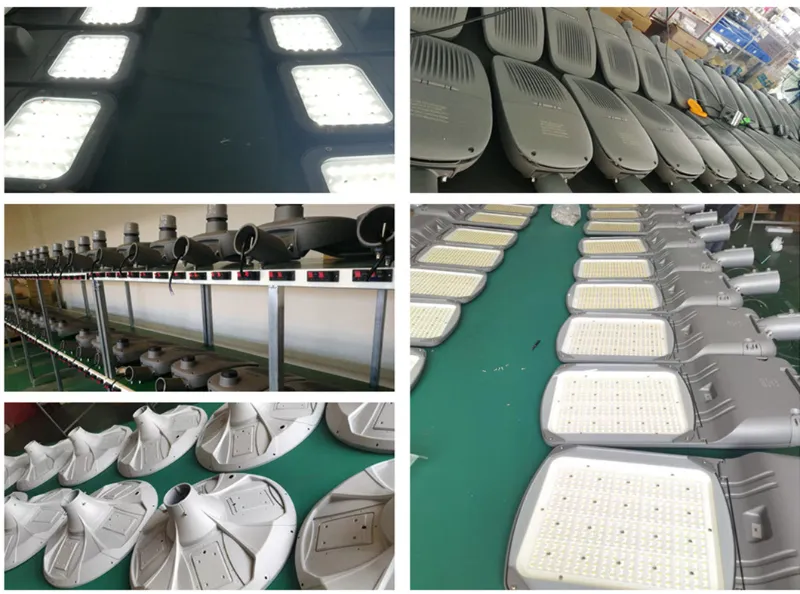

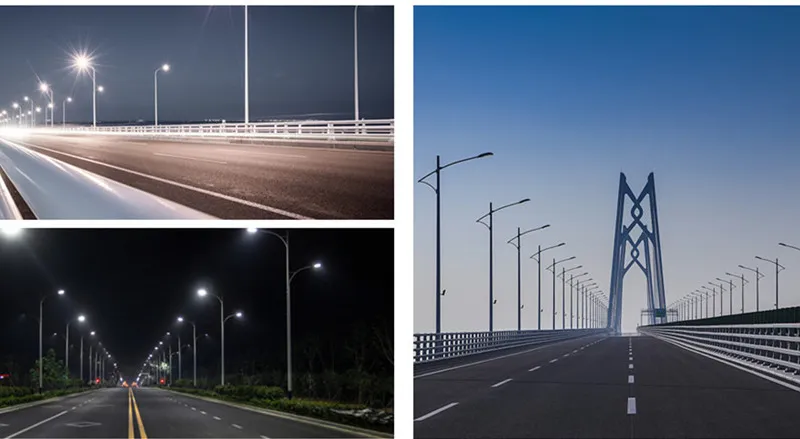

Application Scenario Production Line
C

Certifications & Quality

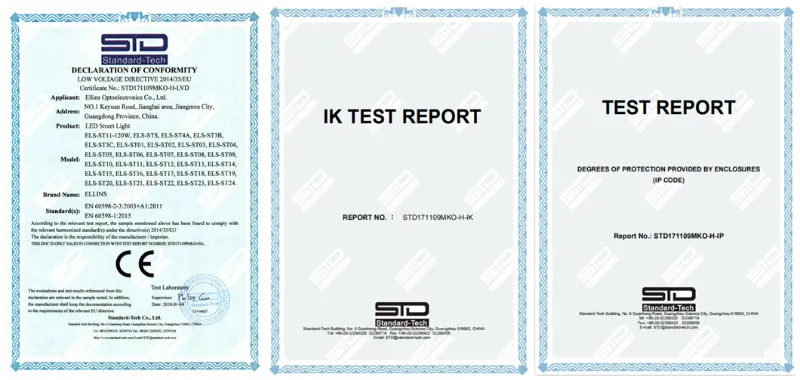

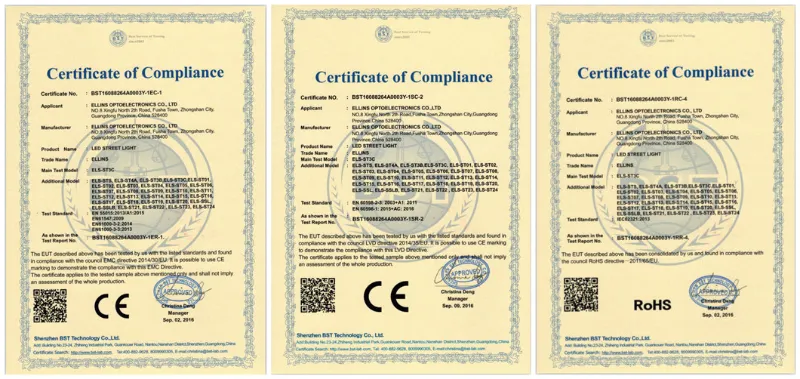

Certificate 1 Certificate 2

High-performance LEDs are used as the lighting source (CREE), all with LM-80 testing reports and more than 160 LM/W luminous flux performance. Drivers used include reliable Meanwell & Inventronics with CE, ROHS, TUV, and SAA certifications.

?

Frequently Asked Questions

What is the lifespan of these LED street lights?
The luminaires are designed for long-term durability with a lifetime rating of over 100,000 hours, supported by high-quality CREE LED chips and Meanwell/Inventronics drivers.
Are the lights resistant to harsh weather conditions?
Yes, they feature an IP66/IP67 rating for superior water and dust resistance, along with an IK10 mechanical resistance rating to protect against impacts.
Can these lights be dimmed?
Yes, multiple dimming options are available including 1-10V dimming, DALI control, and Time Control dimming to optimize energy savings.
What is the standard warranty period?
Depending on the specific configuration and requirements, we offer a limited manufacturer's warranty ranging from 5 to 10 years.
What voltage range do these luminaires support?
The lights support a wide input voltage range of AC100-277V, making them suitable for most global power grids.
What applications are these lights best suited for?
They are ideal for high-traffic urban and suburban roads, highways, squares, gardens, and large parking lots.
