Basic Specifications
Lamp Body Material
Aluminum Alloy
Color Temperature
Warm White / Daylight
Luminous Flux
15000-18000lm
Features & Advantages
✓

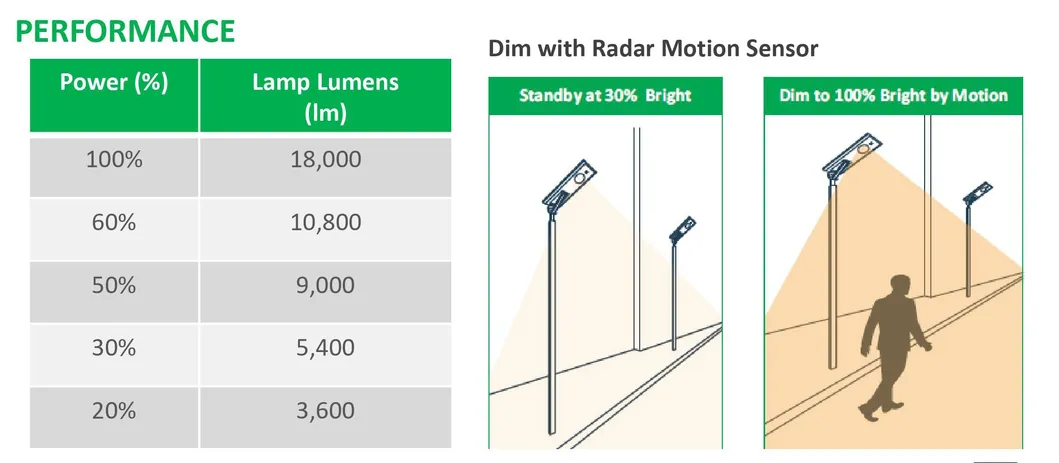

High Brightness: 18,000 LM max lamp lumen output for superior visibility.
✓
Long Lifespan: 100,000+ Hours LED lifespan with professional heat dissipation.
✓
Advanced Battery: 3,000+ Cycles LiFePO4 batteries with inbuilt Micro-BMS.
✓
Efficiency: 99.9% MPPT solar charge efficiency for rapid charging.
✓

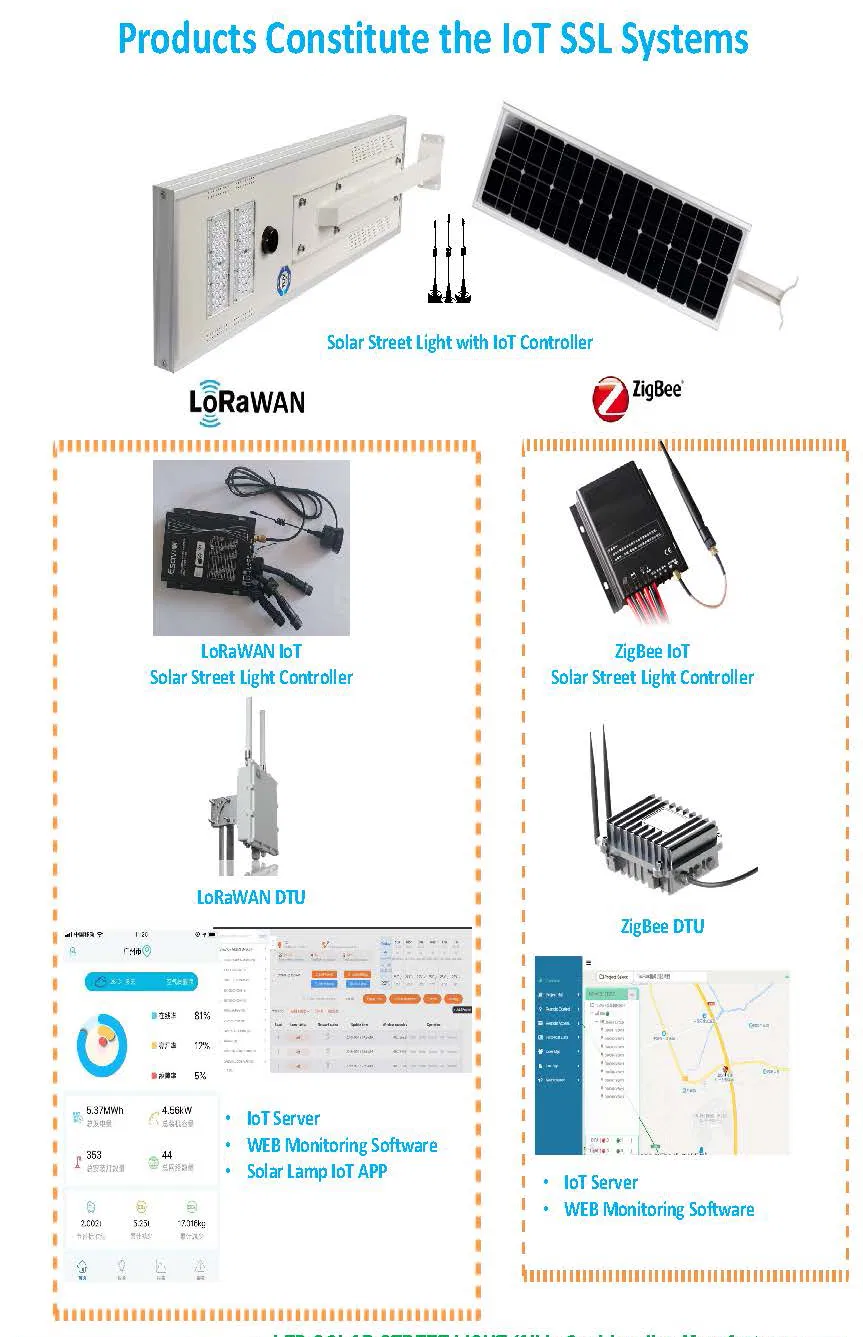

Smart Control: IoT online remote monitoring available via ZigBee or LoRaWAN.
✓
Durability: 5+ Days autonomy during cloudy or rainy weather.
Technical Specifications

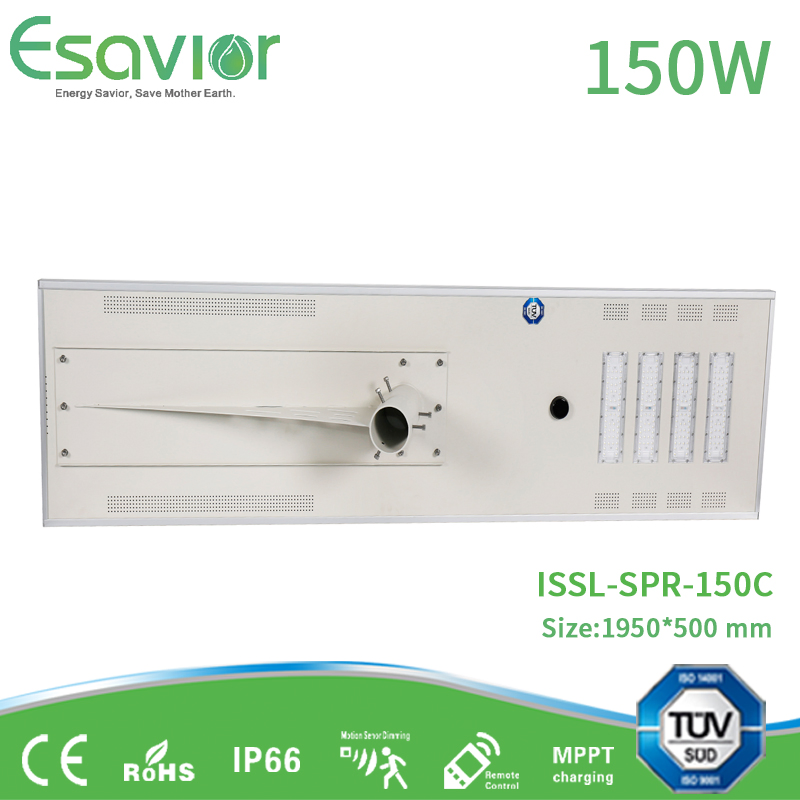

| Superior Series Model: ISSL-SPR-150C |

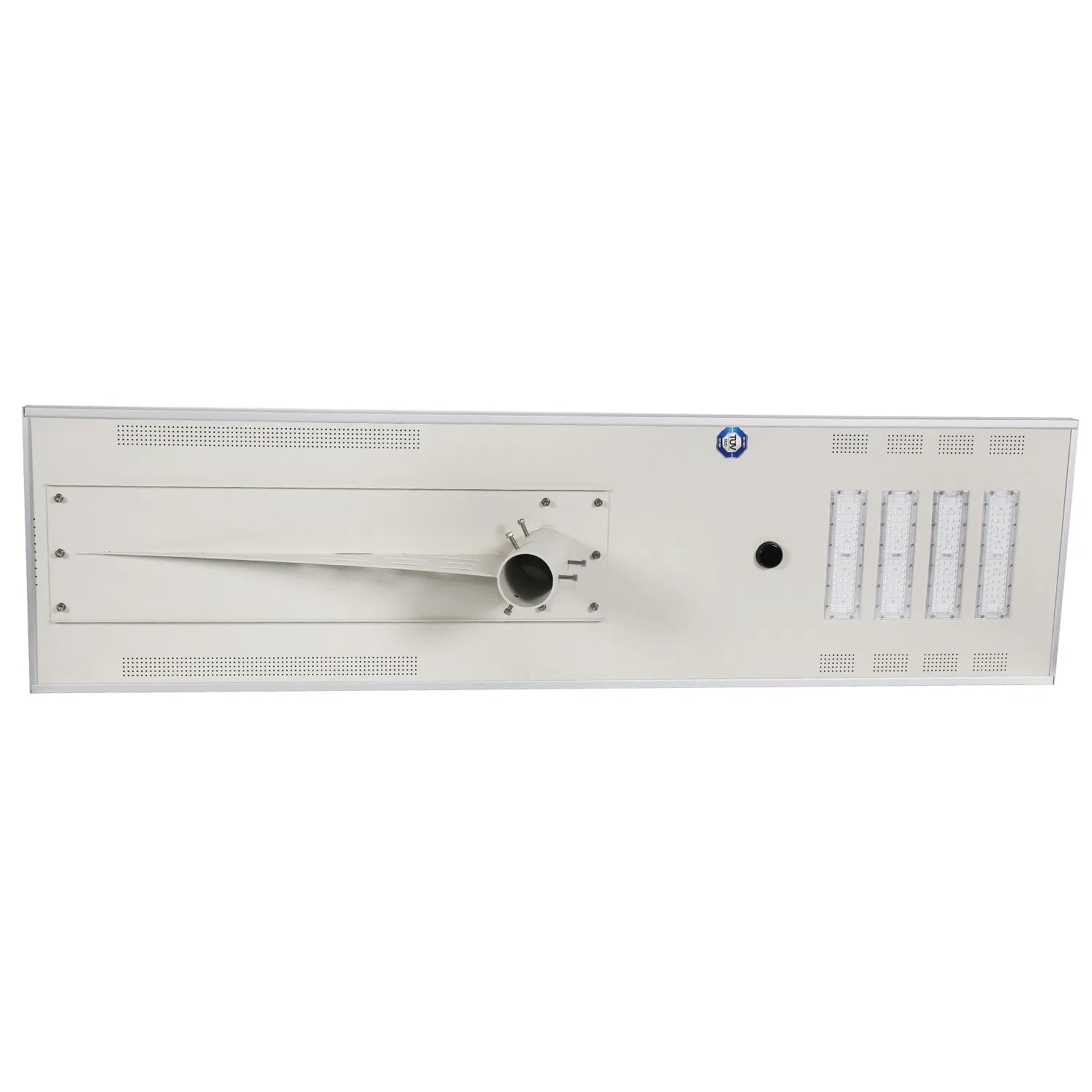

| LED Light Source | 24V/ 150W (56LEDsx4 modules) - 3030 LED (195lm/W) |

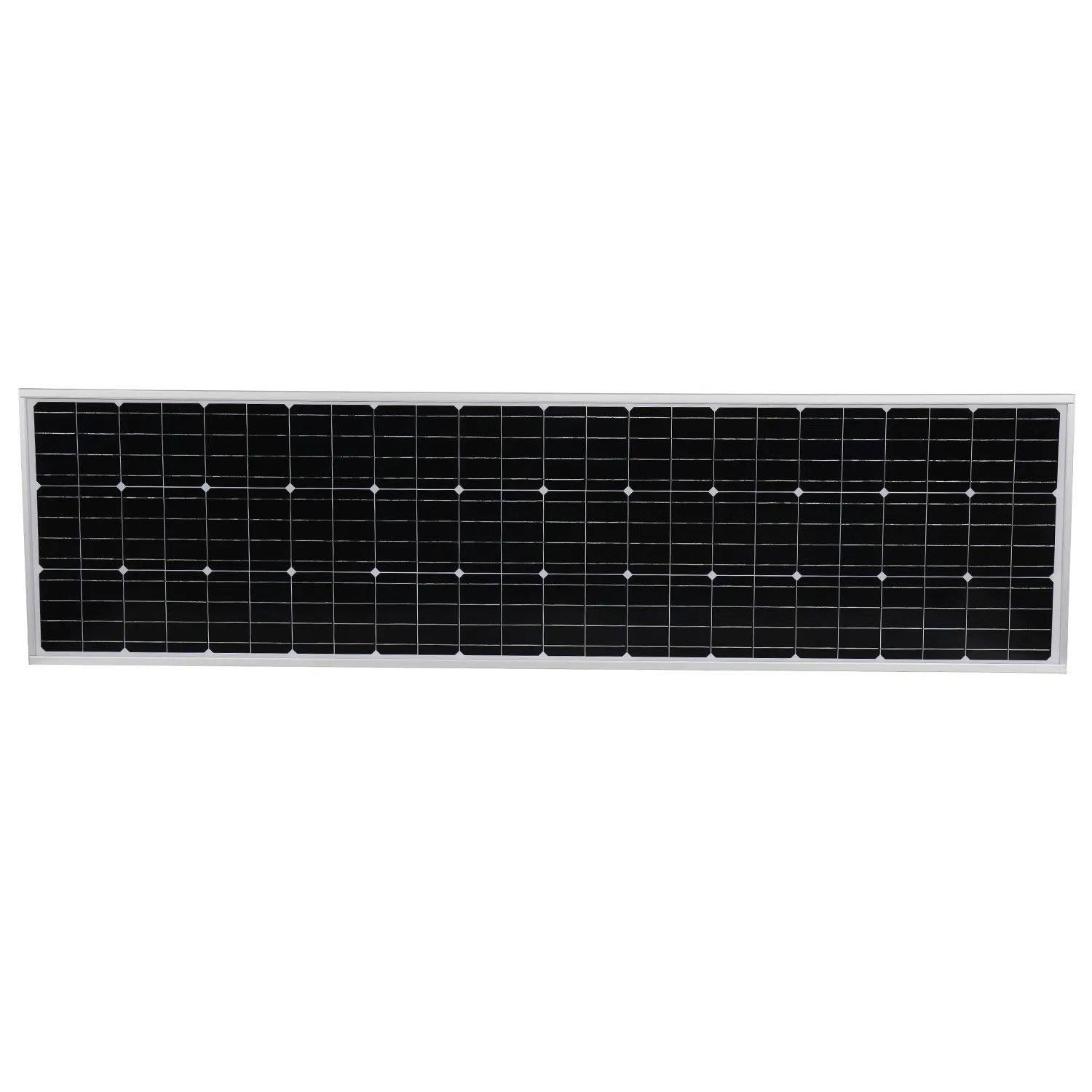

| Solar Panel | 36V/180Wp High Efficiency Monocrystalline (25 years lifespan) |
| Battery Capacity | 25.6V/42AH (1075.2WH) LiFePO4 Lithium |
| Controller Type | MPPT / IP68 with Microwave Radar Sensor |
| Working Temp | -30ºC ~ +80ºC |
| Material | Aluminum Alloy |
| Dimensions | 1970*520*55mm |
| Weight | 35kg (Total) |

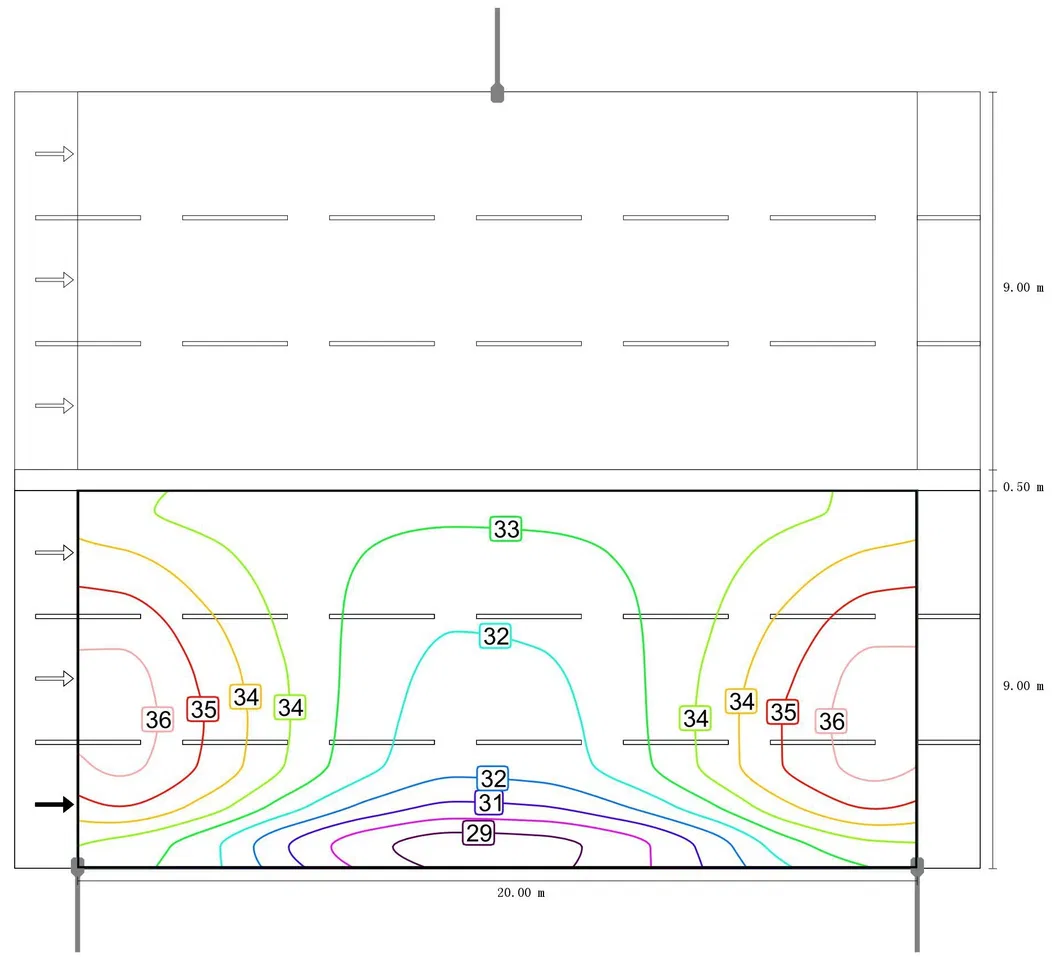

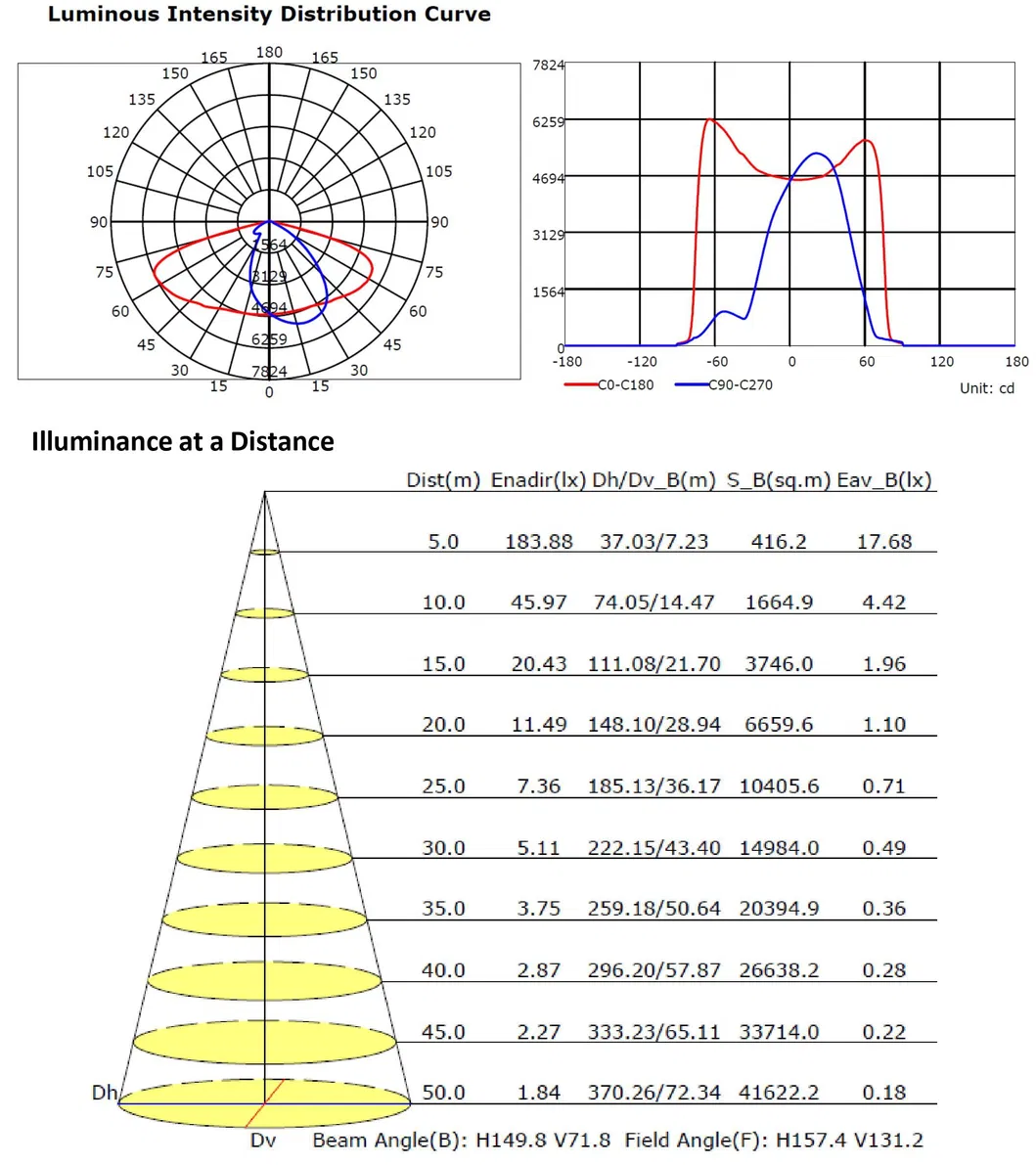

Optical Distribution & Simulation

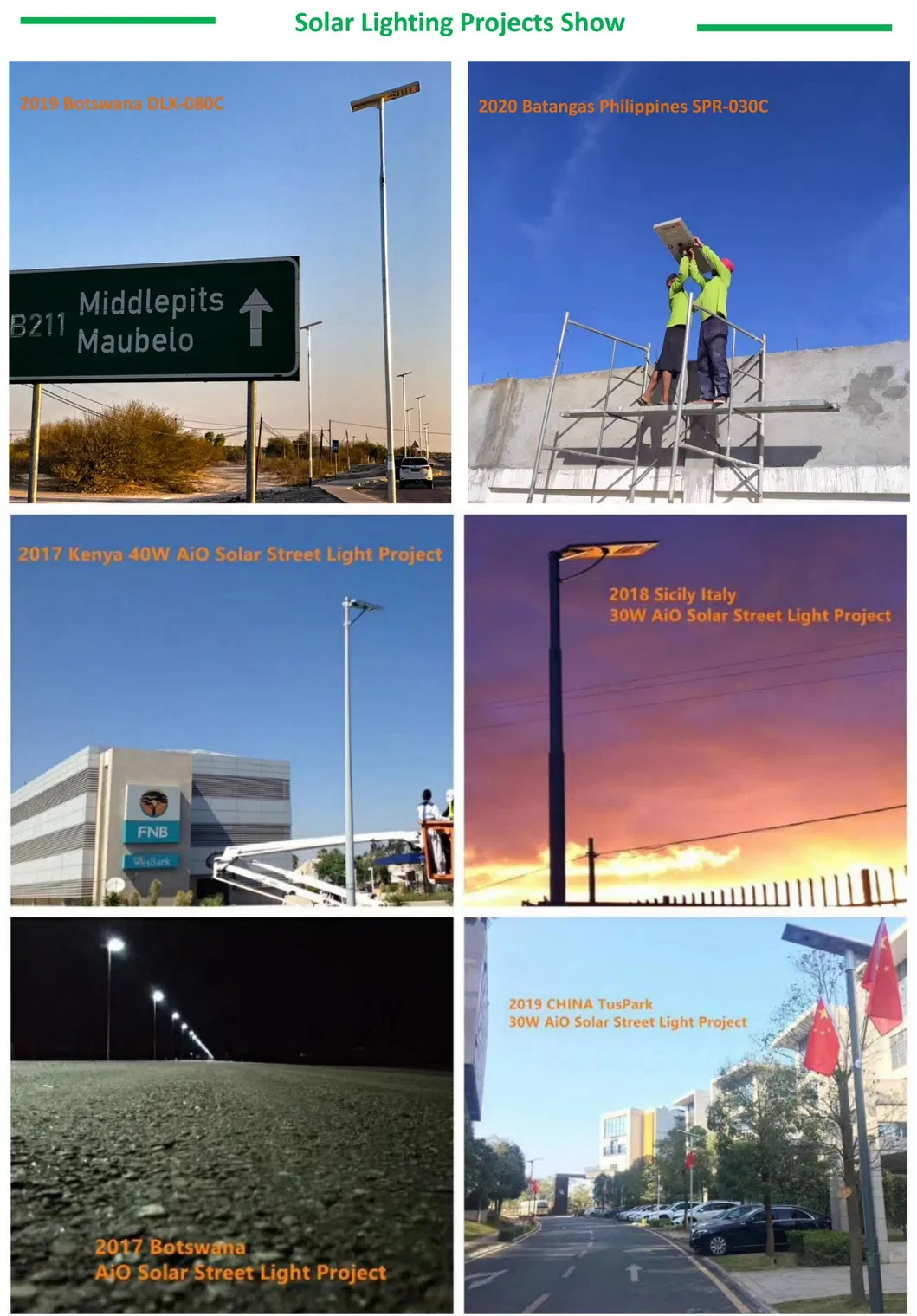

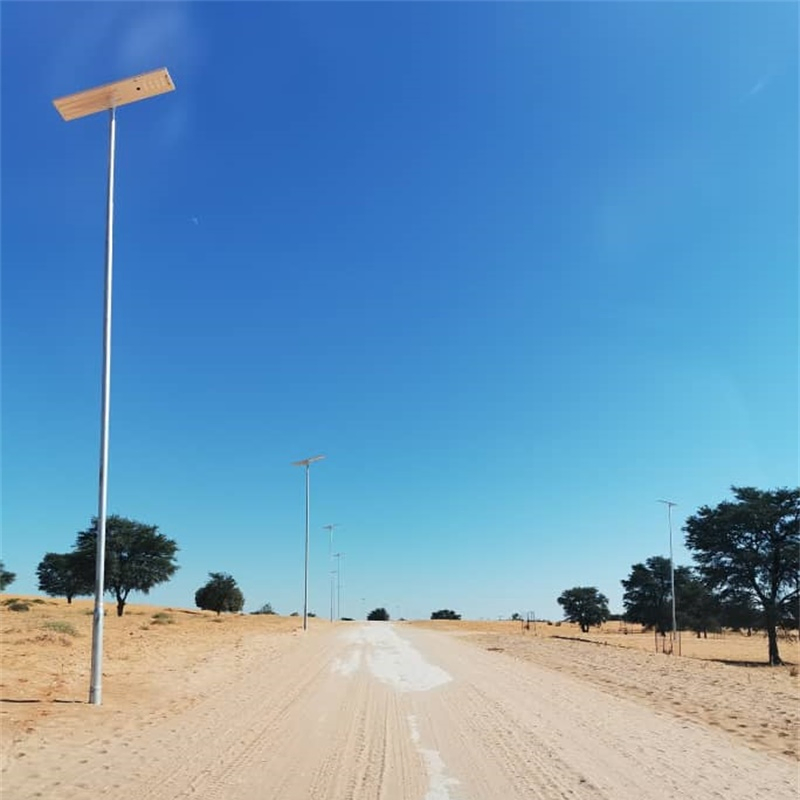

Applications
Highways & Expressways
Urban Main Streets
Public Squares & Theme Parks
Large Parking Lots

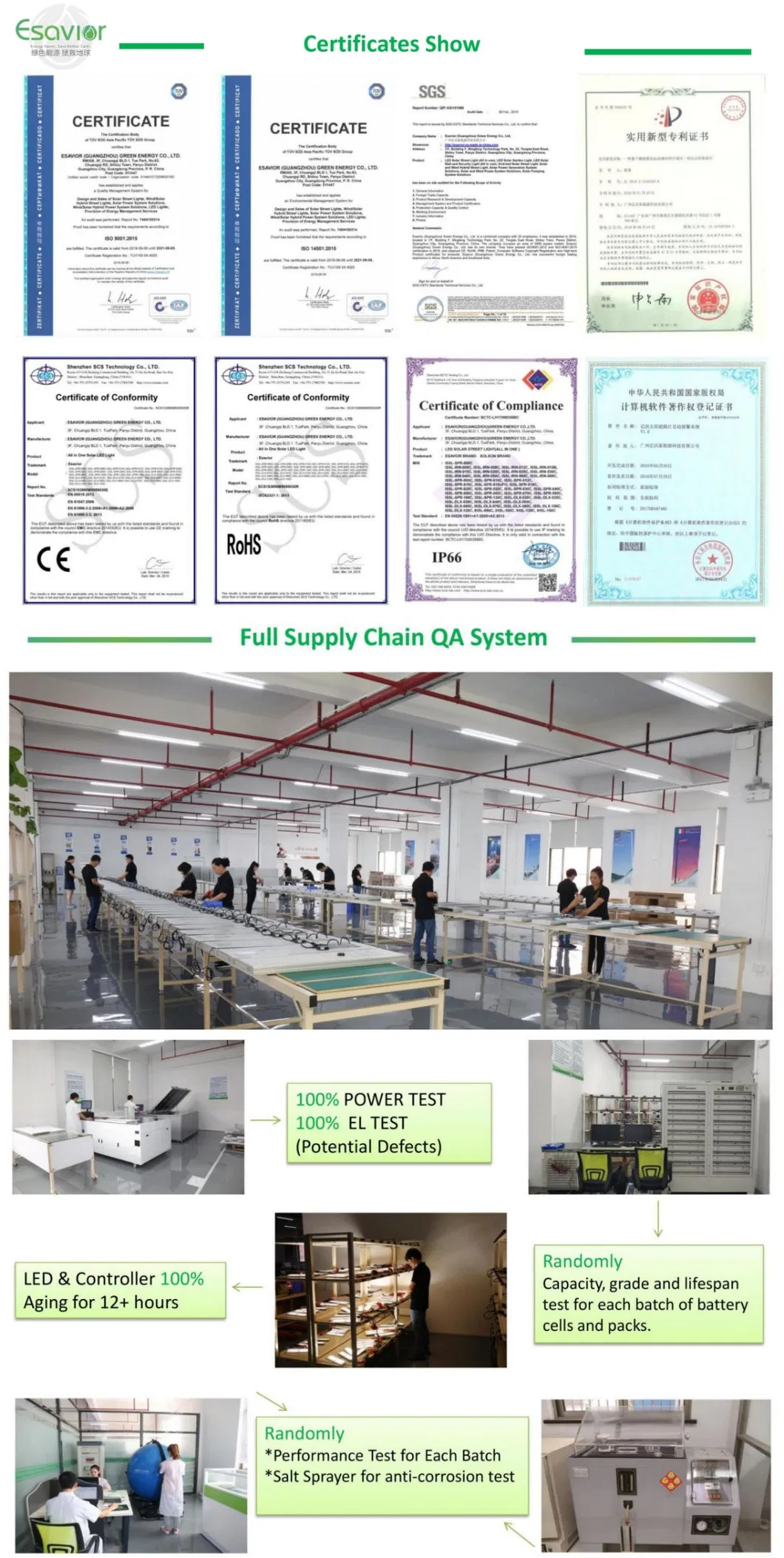

Quality & Certification
Frequently Asked Questions
Does the lamp light on automatically?
Yes, it will light on automatically at darkness in all modes except when manually set to "OFF".
Can the lamp be used in strong wind environments?
Yes. The structure uses an Aluminum-alloy holder with Zinc plating, making it solid, firm, and resistant to rust and corrosion.
What is the difference between Motion sensor and PIR sensor?
Motion (Radar) sensors emit high-frequency electric waves to detect movement up to 10 meters away with high accuracy. PIR sensors detect temperature changes and typically have a shorter range of 3-5 meters.
What is the lead time for orders?
Typically, it takes 3 workdays for samples and 7-15 workdays for batch orders exceeding 100 pieces.
What kind of warranty is provided?
We offer a 3 to 5-year warranty on our products. During this period, replacements for small quantities are sent with new orders if any defects occur.
Are samples available for testing?
Yes, we welcome sample orders to test and check the quality of our solar street lights. Mixed samples are also acceptable.
