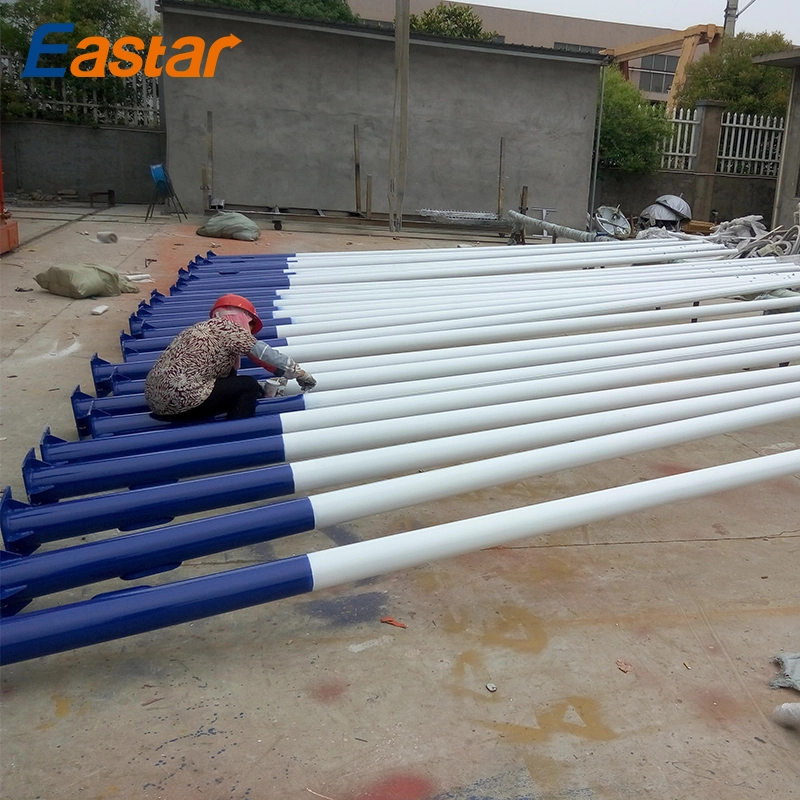

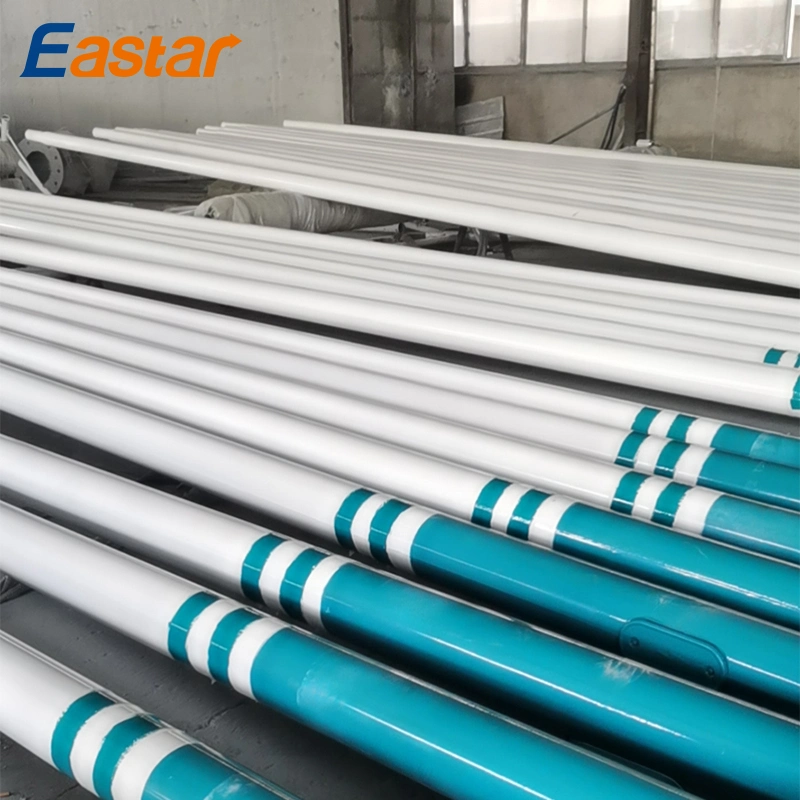

Types of Street Light Pole: Explore our diverse range of street light poles that cater to various urban and rural needs. Each model is designed with precision to enhance aesthetics while ensuring optimum functionality.
Technical Data: Our street light poles come with comprehensive technical data that highlights their robust construction and advanced features.
| Feature | Specifications |
|---|---|
| Mounting Height | 3m ~ 15m |
| Shape | Conical, octagonal, square, tubular |
| Material | Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, SS400, ST52 |
| Thickness | 2mm ~ 14mm |
| Base plate | Square or round with slotted holes for anchor bolt |
| Welding | Advanced submerge-arc welding according to BS EN15614 |
| Surface Treatment | Hot-dip galvanized and powder coating |
| Wind Resistance | Designed against wind speed of 160km/h |
| Application | Street, highway, airport, seaport, plaza, stadium |
| Pole Height | Top Dia. | Bottom Dia. | Thickness | Base Plate |
|---|---|---|---|---|
| 4M | 70MM | 130MM | 2.75MM | 260*260*S14MM |
| 6M | 60MM | 145MM | 3.0MM | 300*300*S16MM |
| 8M | 80MM | 180MM | 3.25~4.0MM | 320*320*S20MM |
| 10M | 90MM | 200MM | 3.5~4.0MM | 400*400*S20MM |
| 12M | 100MM | 220MM | 4.0~5.0MM | 400*400*S20MM |

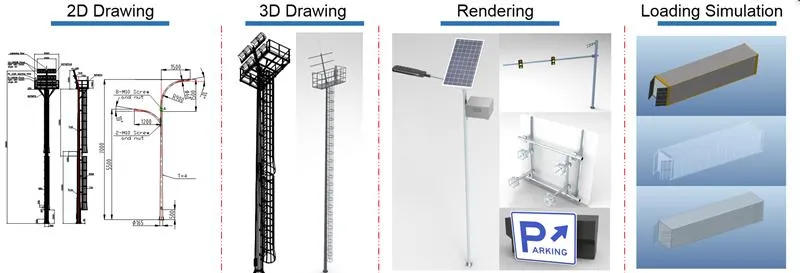

Design Ability: We harness the latest design technologies to develop lighting poles that offer both aesthetic appeal and structural integrity.

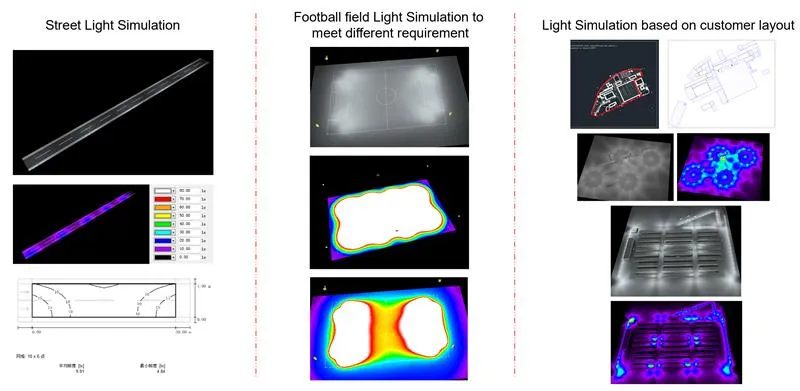

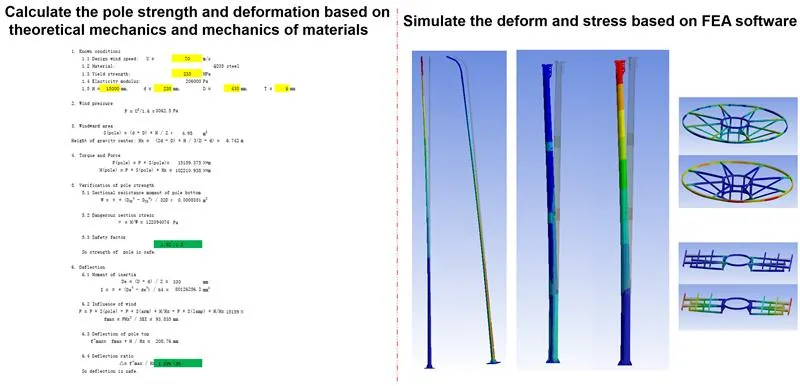

Analysis & Simulation: Utilizing sophisticated tools for calculation and light simulation to ensure optimal performance and safety.
