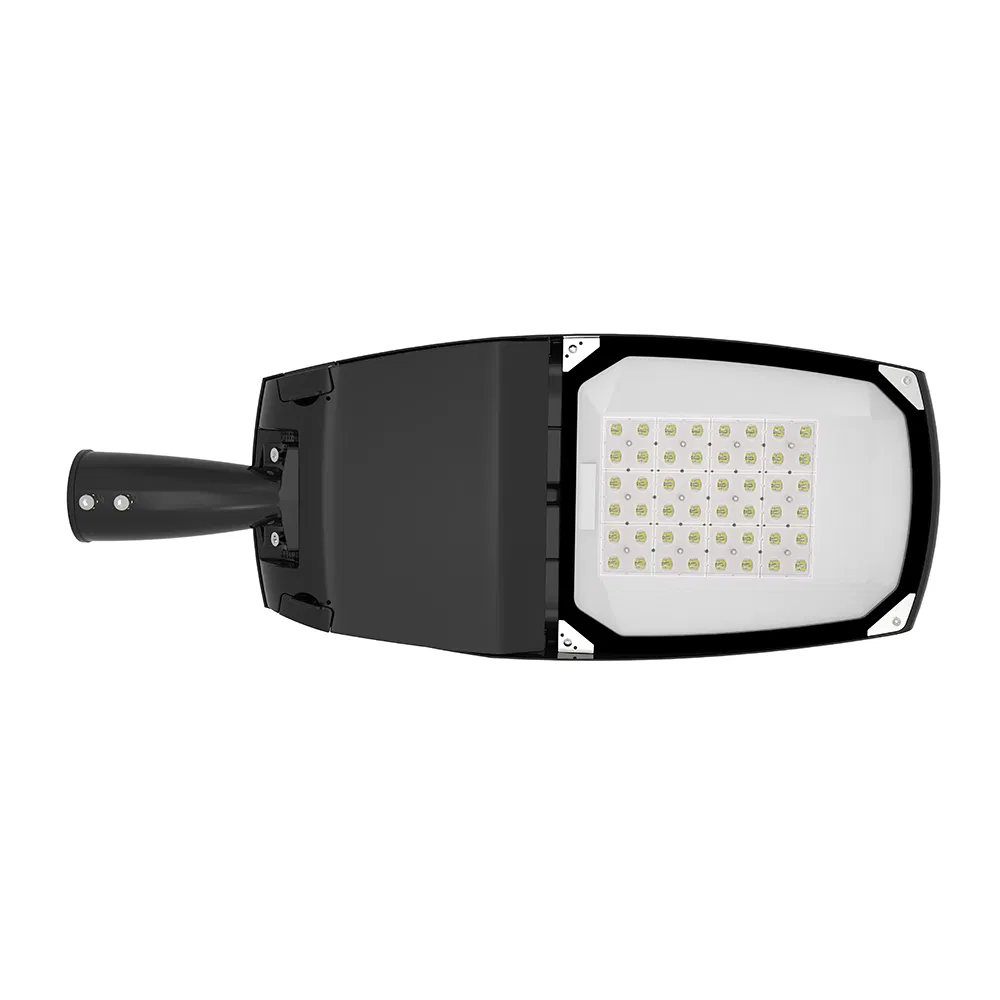

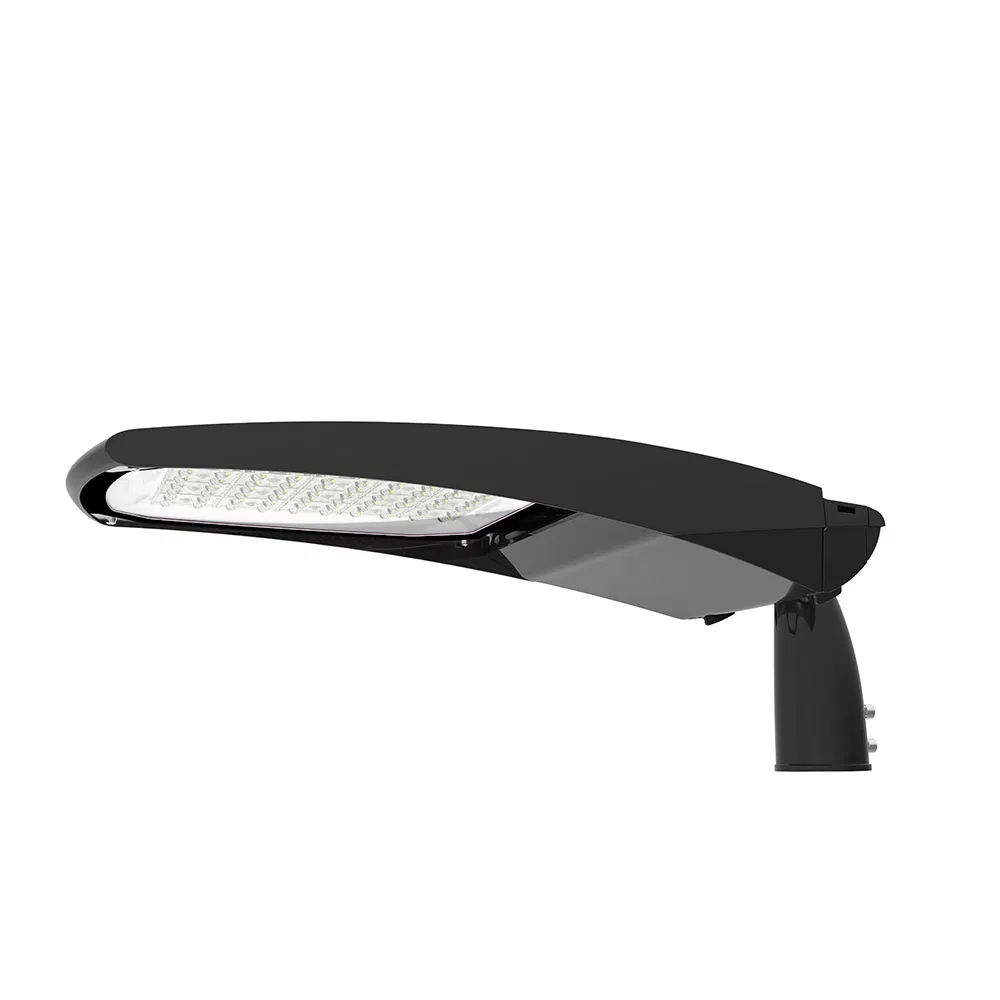

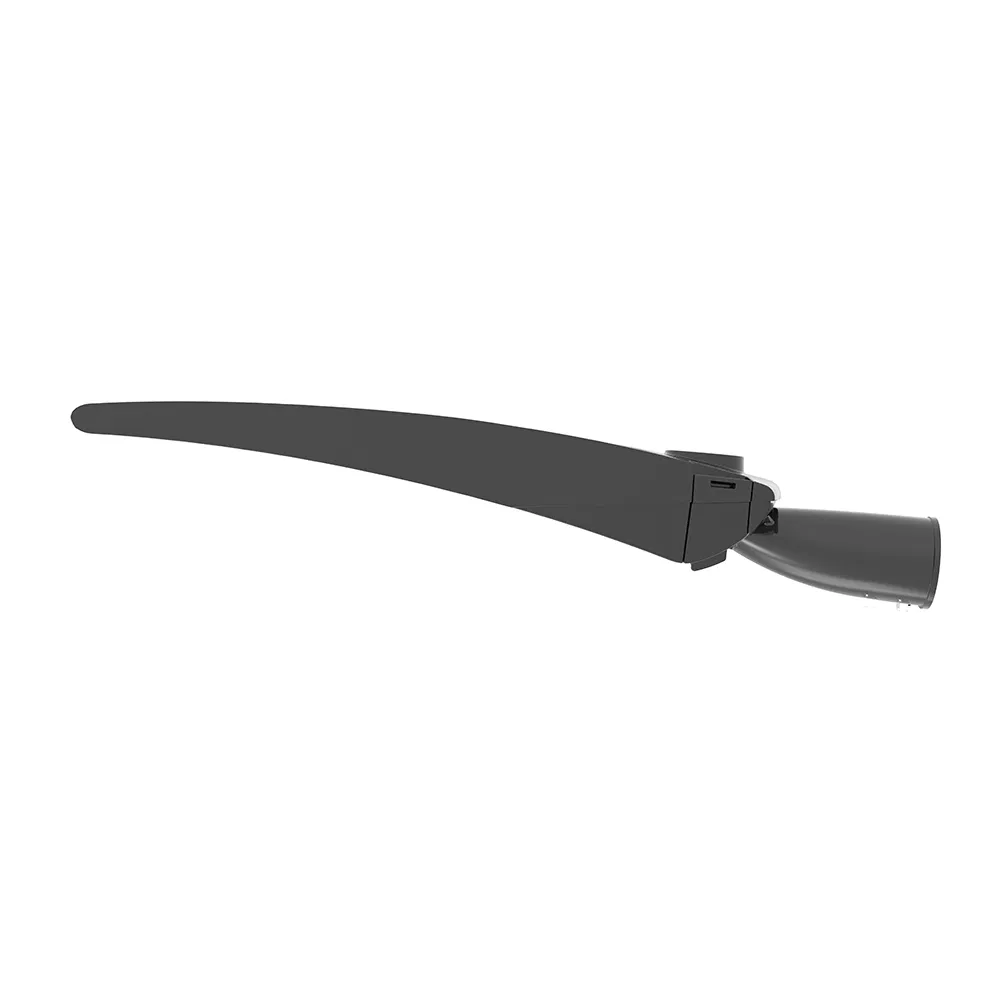

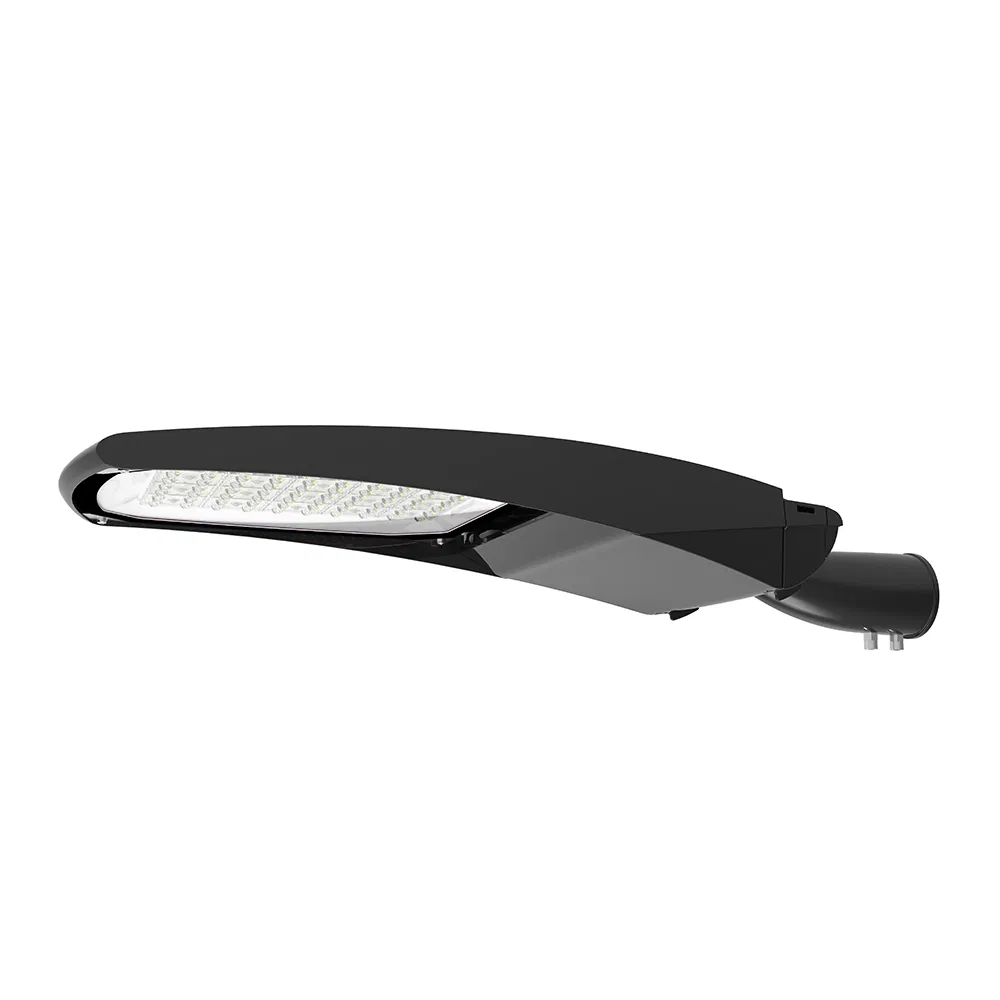

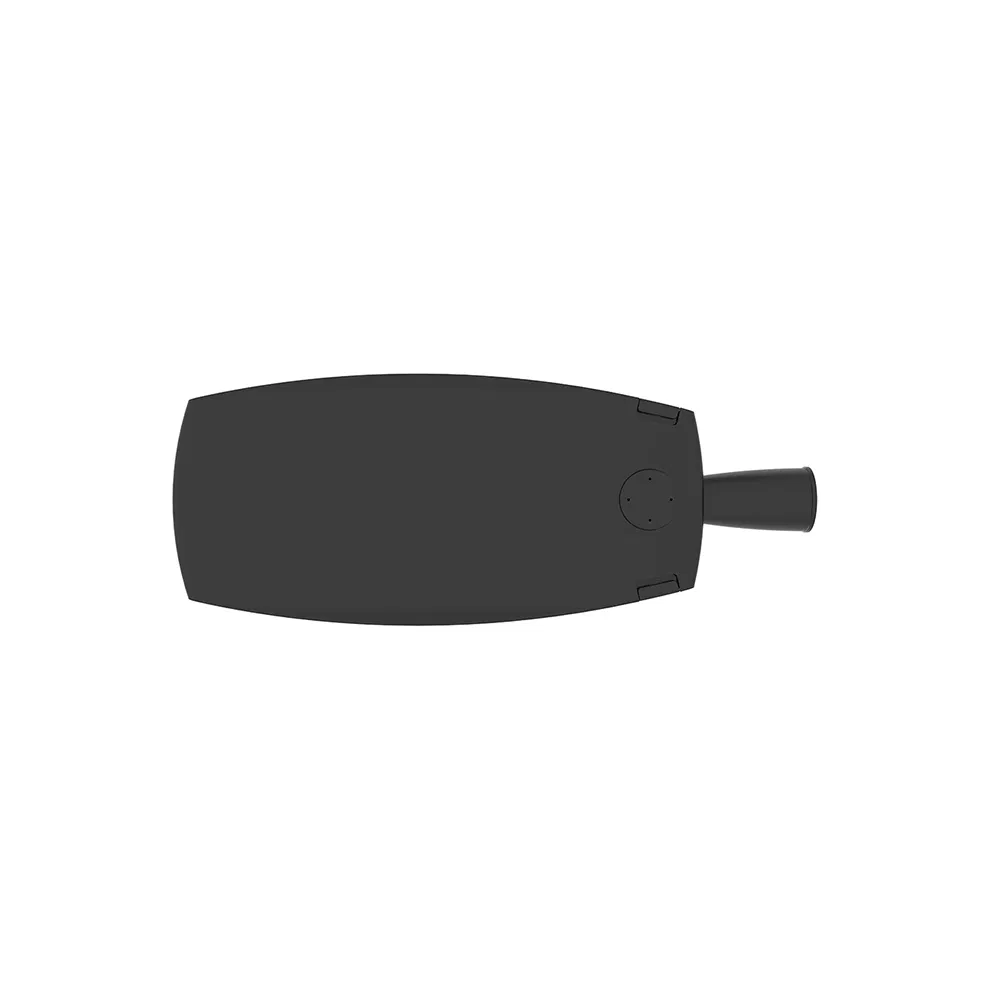

LED Street Light YASL-25

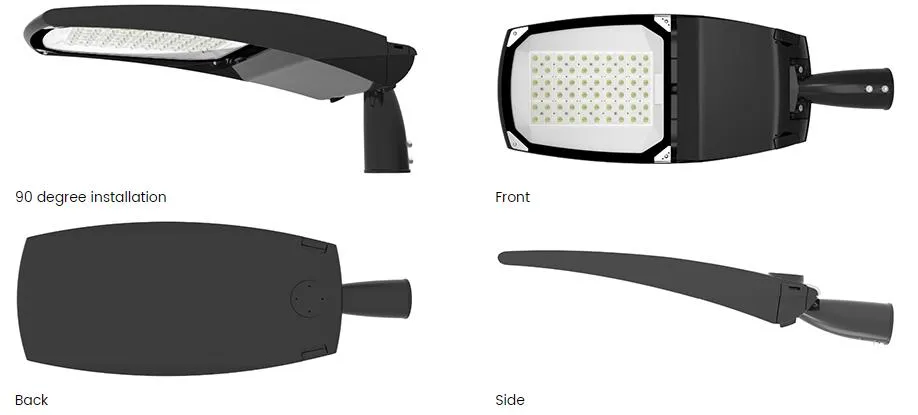

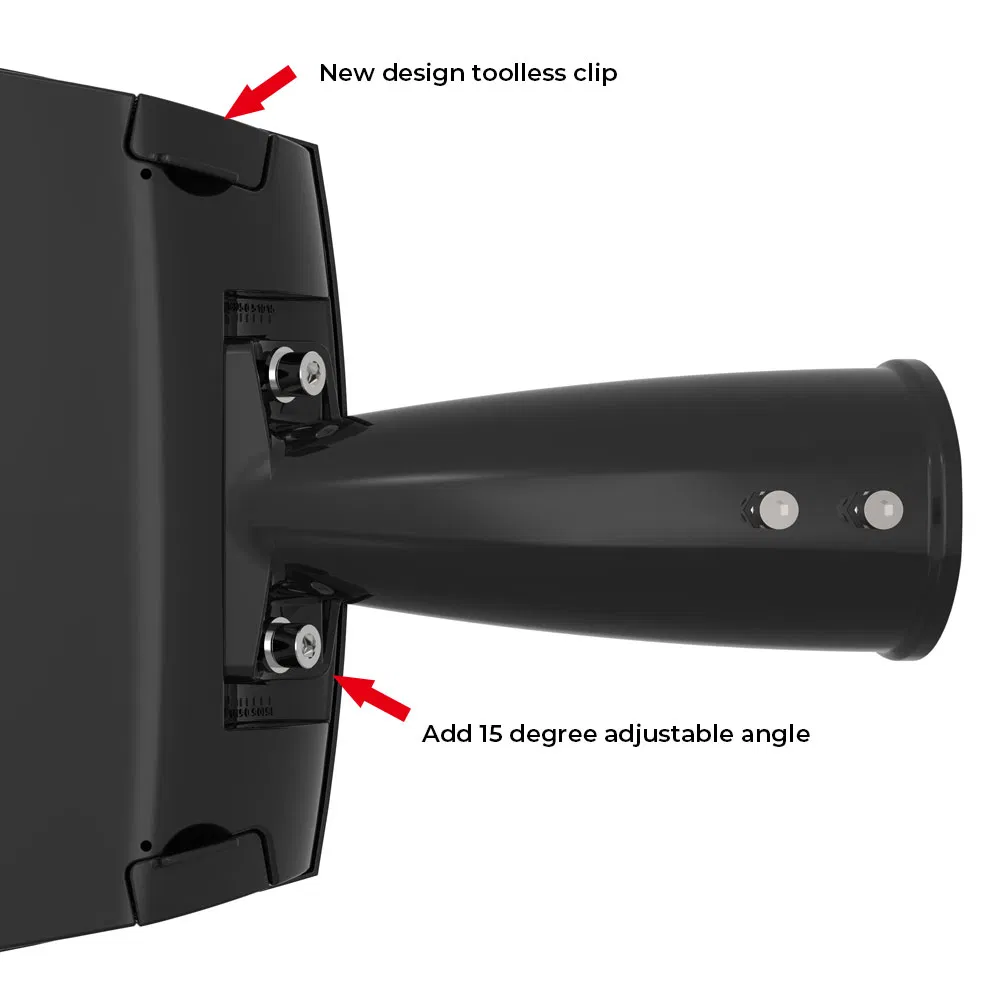

Installing Ways: Both Horizontal and Vertical available and adjustable angle -15° to +15°.
This series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum. It features a LED efficiency up to 130 lm/w, producing up to 26000 luminaire lumens at 4000K.
IP66 CE ROHS

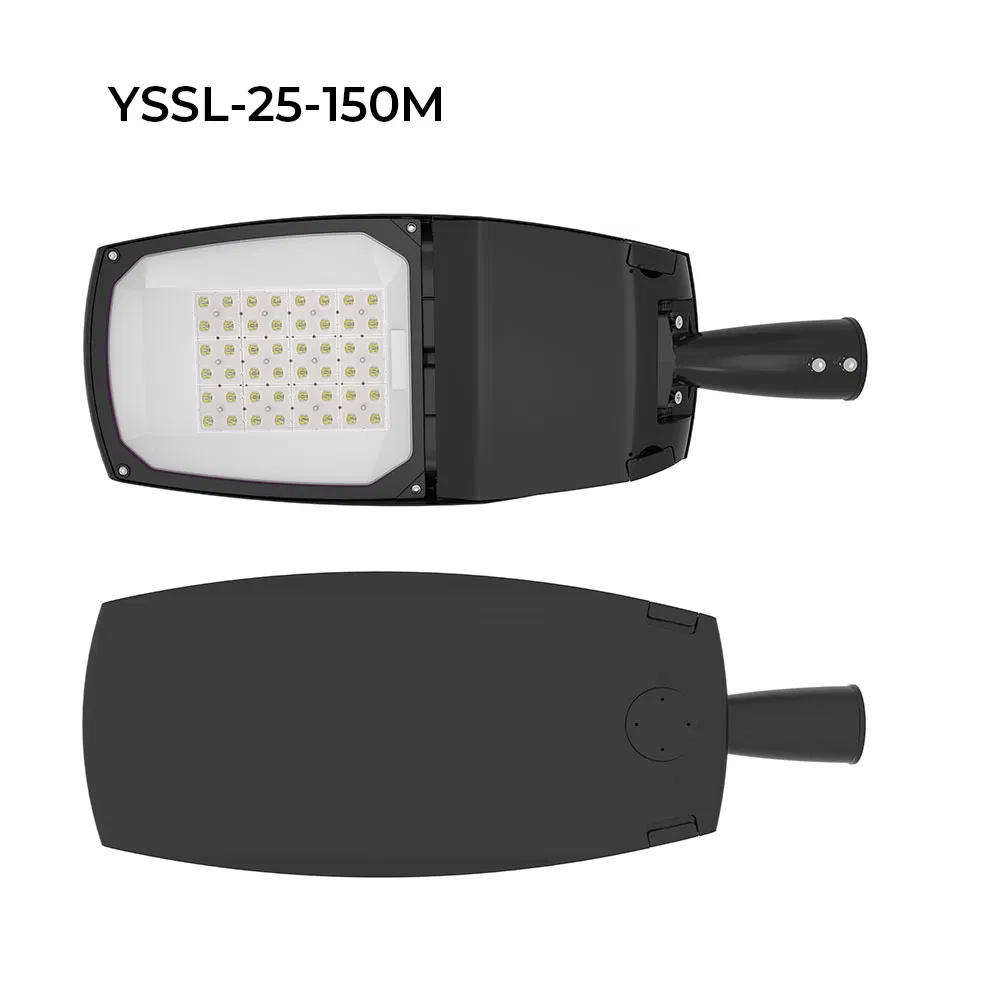

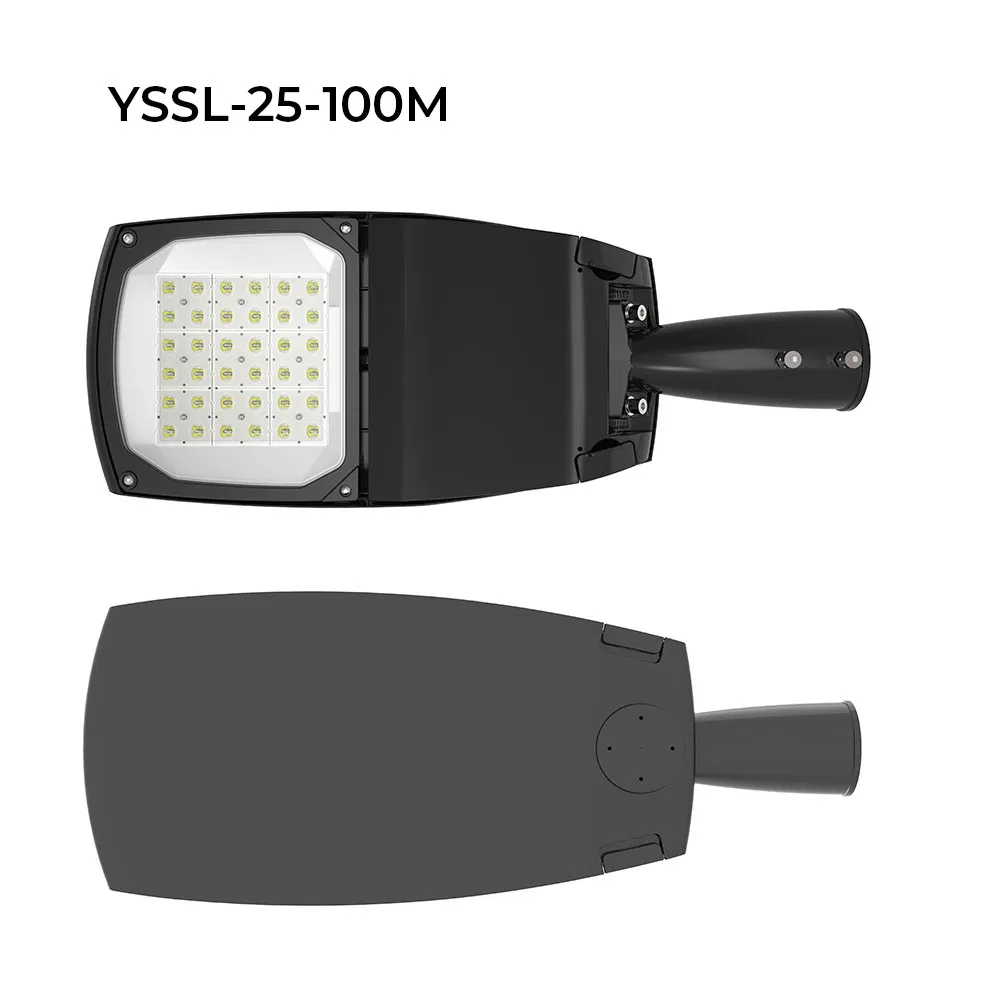

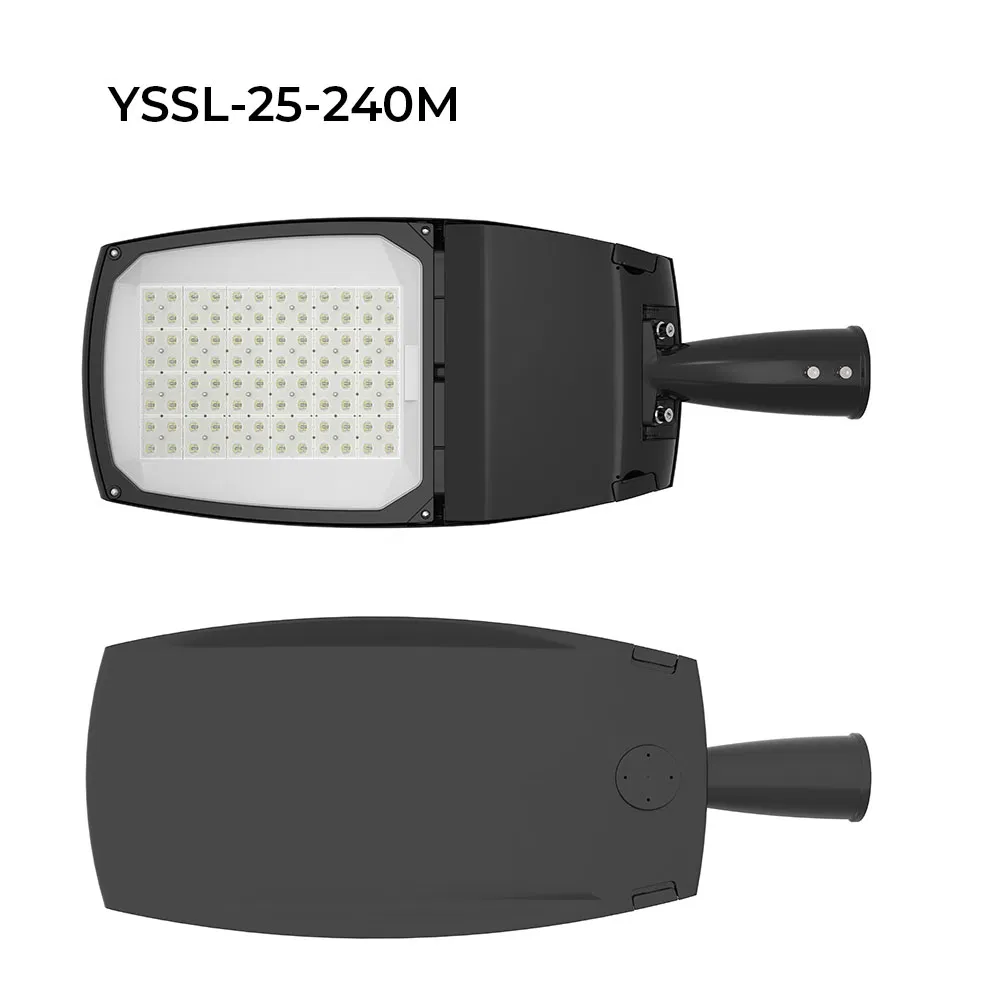

| Product Code | YASL-25-40M | YASL-25-100M | YASL-25-150M | YASL-25-240M |
|---|---|---|---|---|
| Input Wattage | 30W / 40W / 50W | 60W / 100W | 120W / 150W | 200W / 240W |
| Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60/76mm |
| Luminous Flux | 3900-7500lm | 7800-15000lm | 15600-22500lm | 26000-36000lm |
| Installation Height | 3-6m | 4-8m | 8-12m | 10-14m |
| Physical Requirements | ||
| Housing | Pressure die-cast aluminium alloy | ISO 3522 |

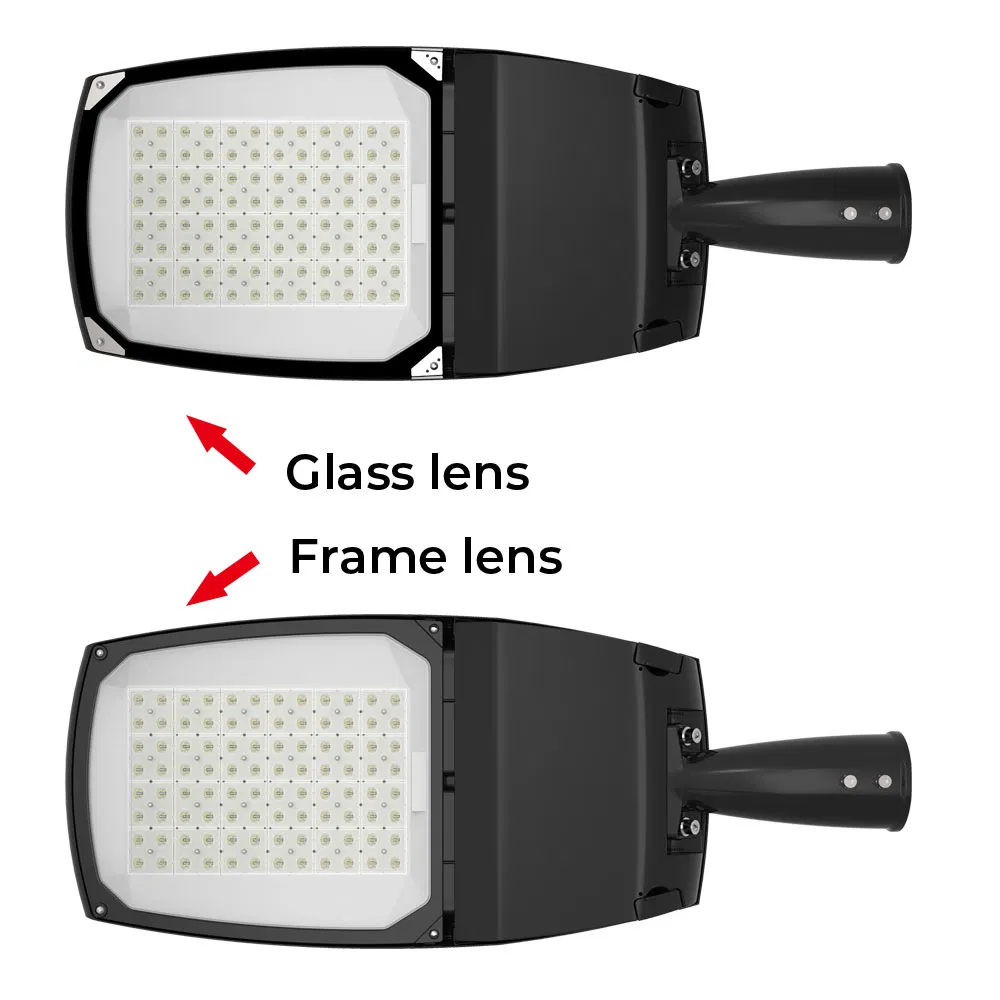

| Cover | Tempered Glass | - |
| Protection | IP66 / IK08 | IEC 60529/62262 |
| LED & Optics | ||
| LED Type | Osram/CREE High power LED | - |
| LED Life | >100,000 hours @L95 | LM80 / TM21 |
| Distributions | Type I, II, III, IV | - |
| Performance | ||
| Input Voltage | 110V-305VAC 50/60Hz | IEC 60598 |
| Surge Protection | 10KV | - |
| Efficacy | ≥ 160lm/W | LM-79 |

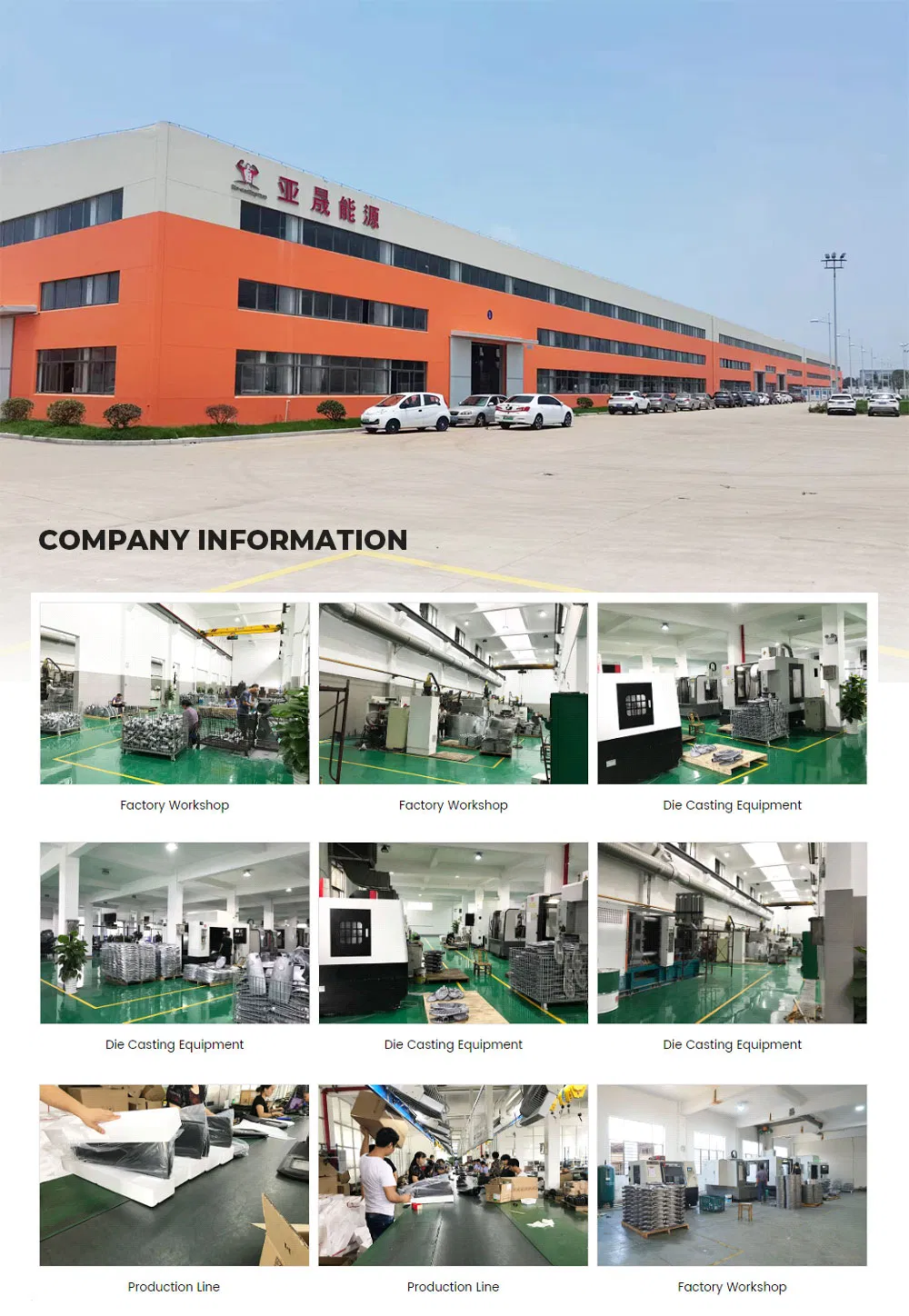

Established in 1996, we specialize in lighting design, development, production, and testing. Our core range includes street lights, high bay lights, and die-casting OEM products. We offer full-service manufacturing or SKD supply based on client requirements.

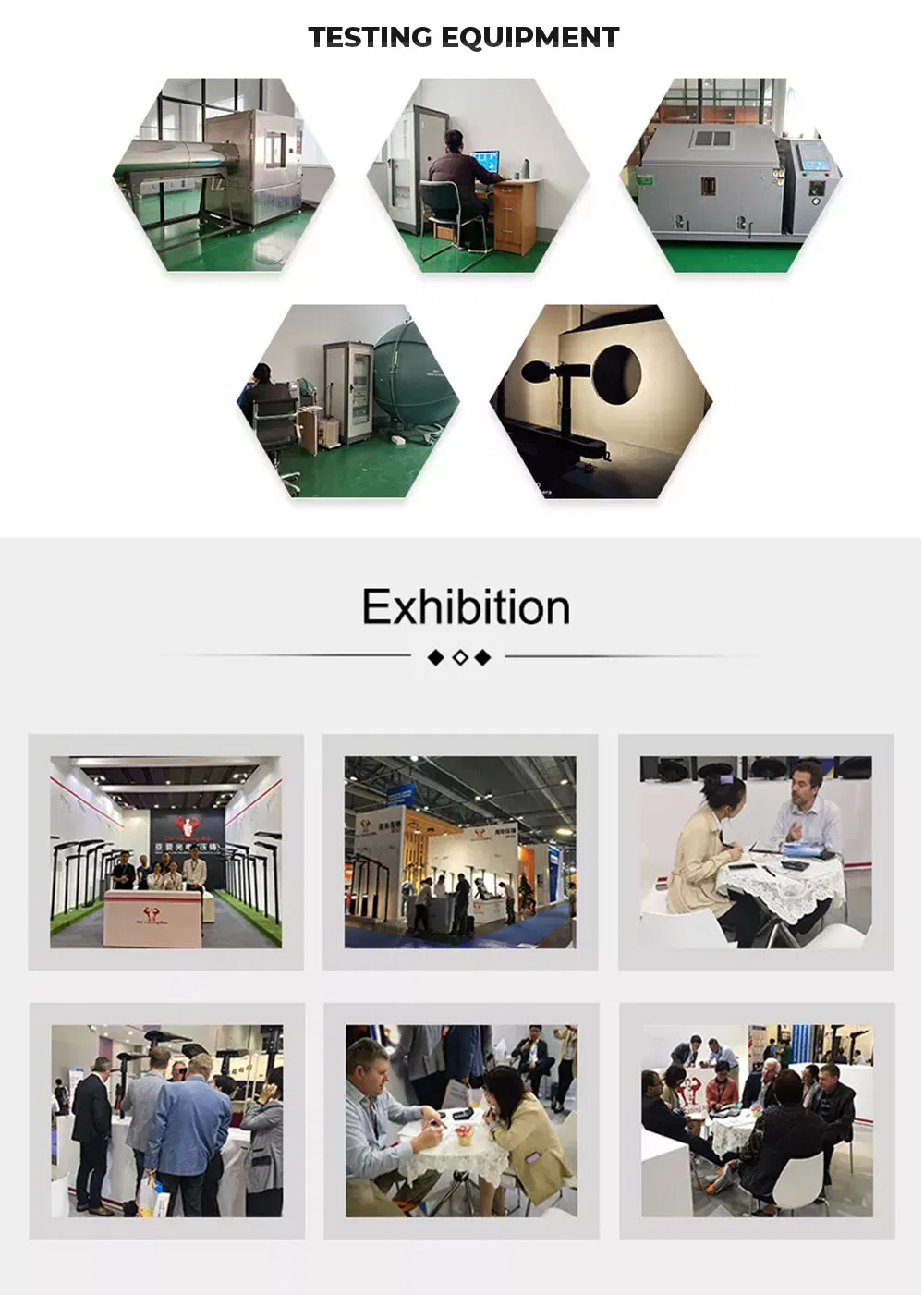

Our engineering team ensures all products are practical, affordable, and reliable. All luminaries are developed to meet stringent international standards and undergo rigorous performance testing in recognized laboratories.
