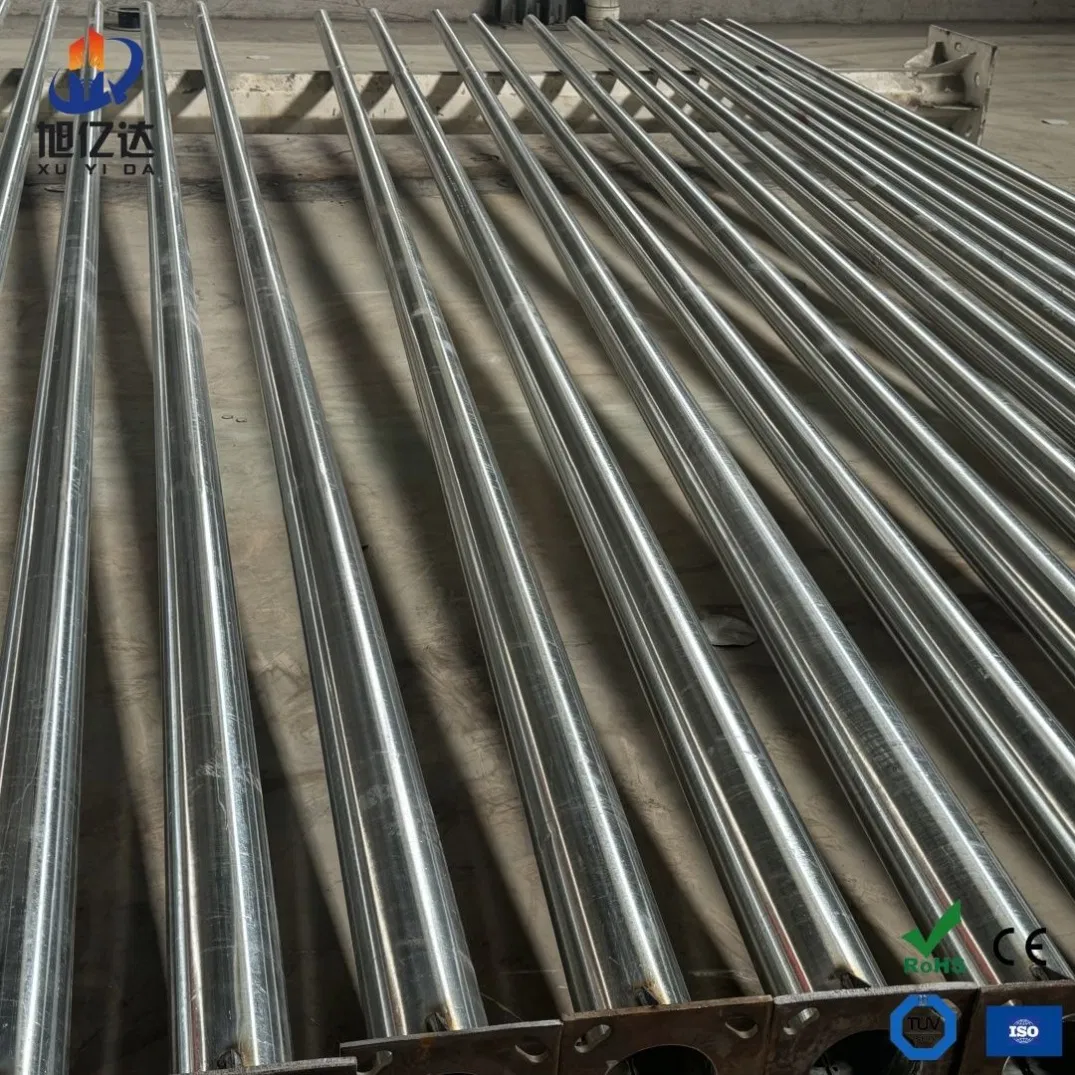

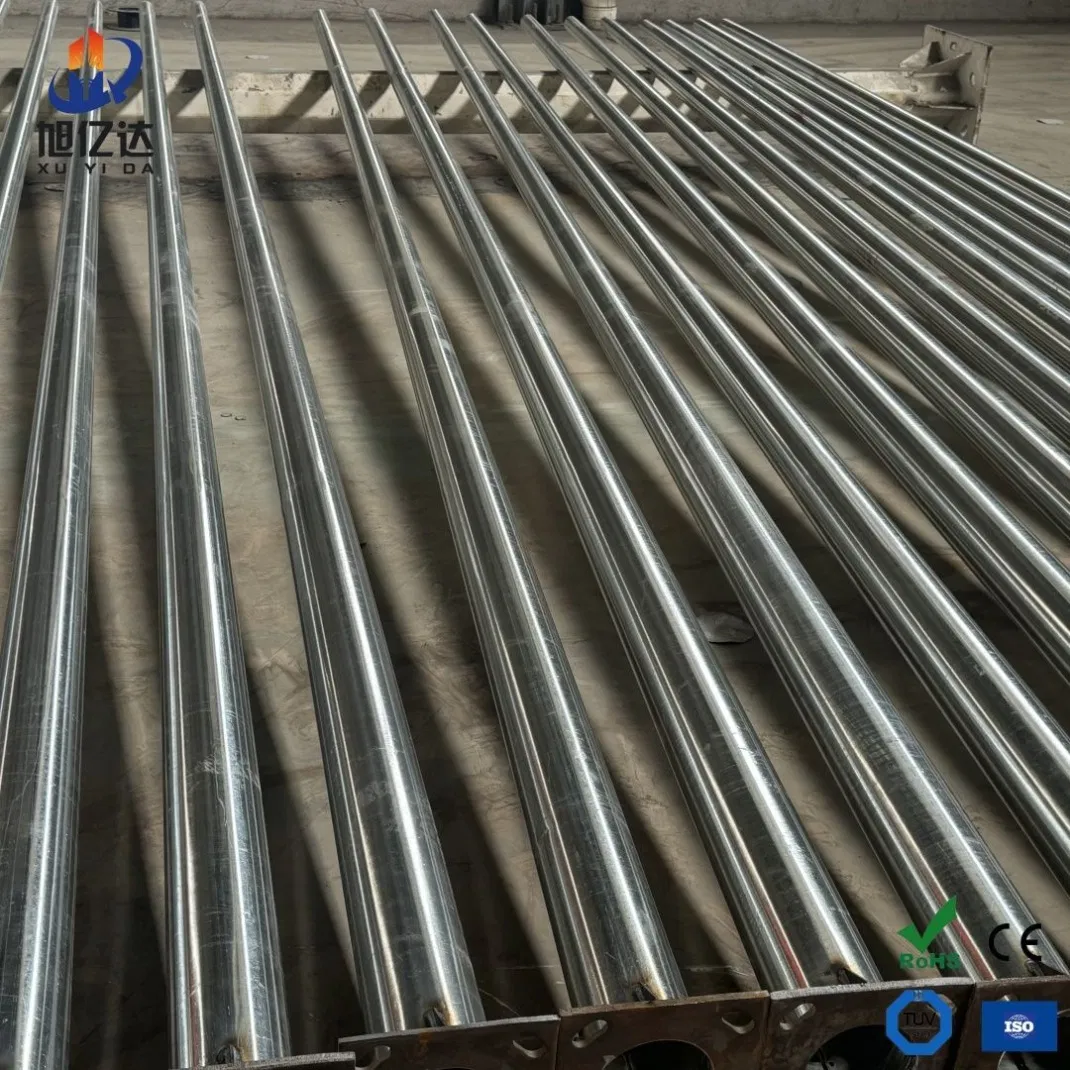

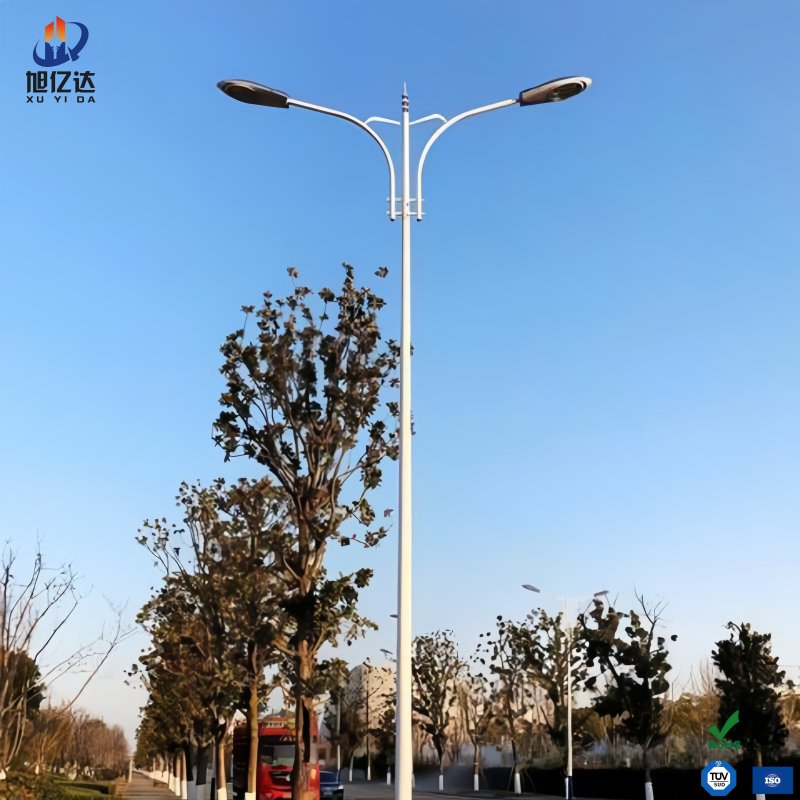

Outdoor Hot DIP Galvanized 5m-12m Road Lighting Pole with Arm

1 / 5

Outdoor Hot DIP Galvanized 5m-12m Road Lighting Pole with Arm

Customization:	Available
Certification:	ISO, RoHS, CE
Application:	Highway

Send Inquiry

Product Description

Overview & Specifications

Model NO.

1120

Material

Steel (Q235/Q345/Stainless)

Type

Round / Conical

Surface Treatment

Hot-dip Galvanized / Powder Coated

Welding

Two Oxygen Welding

Origin

China

HS Code

9405409000

Capacity

5000 pieces/Month

Product Description

Outdoor Hot Dip Galvanized 5m-12m Road Lighting Pole with Arm

Material Quality

Usually Q235B/A36 (minimum yield strength >=235n/mm2) or Q345B/A572 (minimum yield strength >=345n/mm2). We utilize Q235 Grade A steel plate (Si≤0.04%, yield strength >245Mpa), confirming to standard GB699-88.

Broad Applications

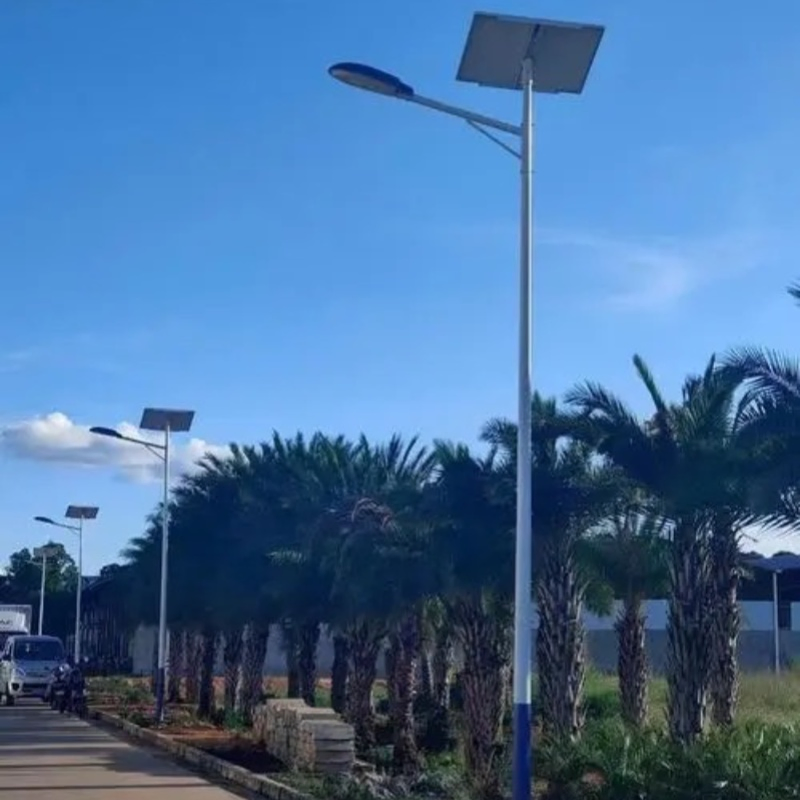

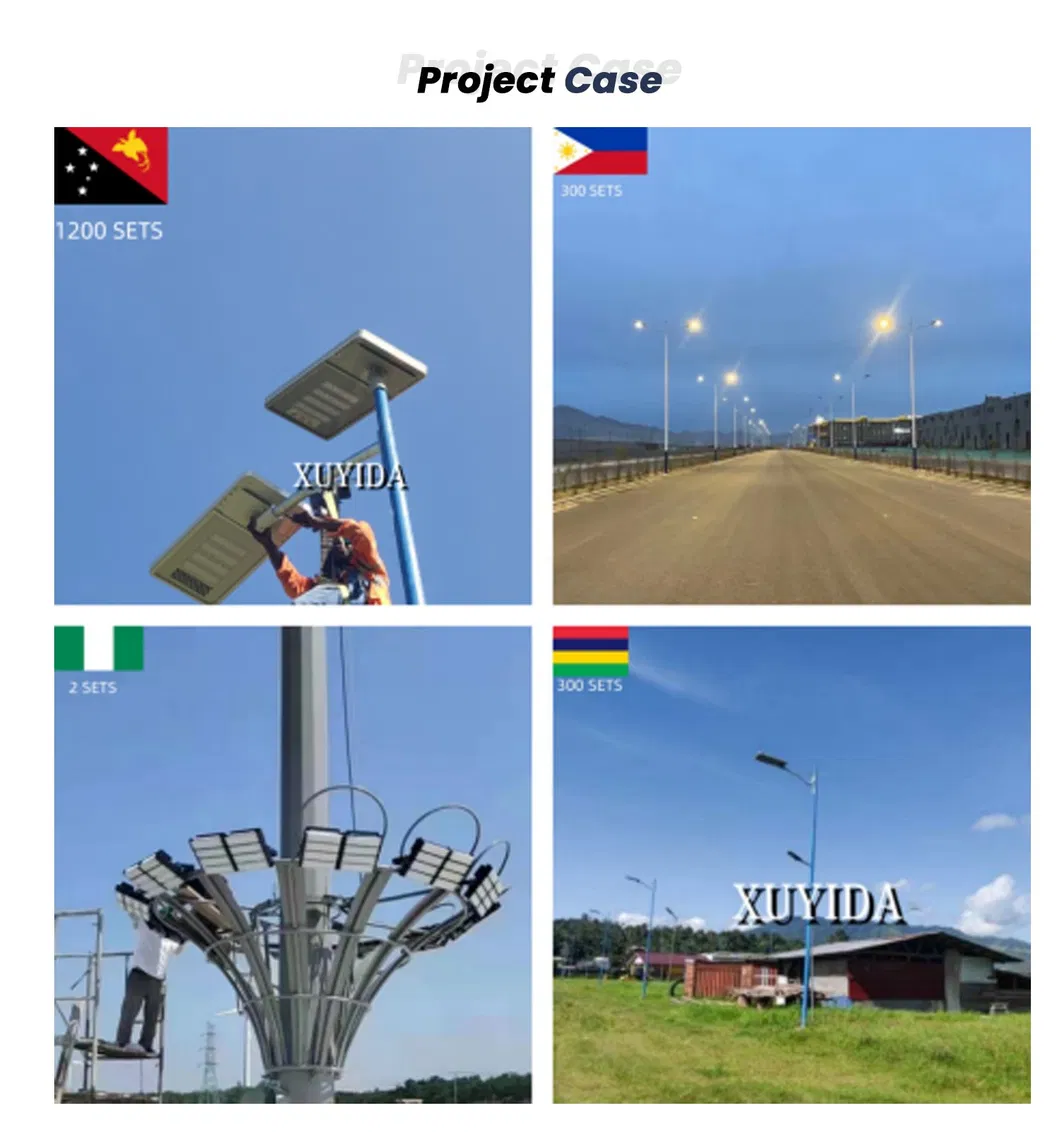

Ideal for Airport, seaport, plaza, stadium, highway, street way, school, residential subdivisions, and village lighting projects.

Design & Shape

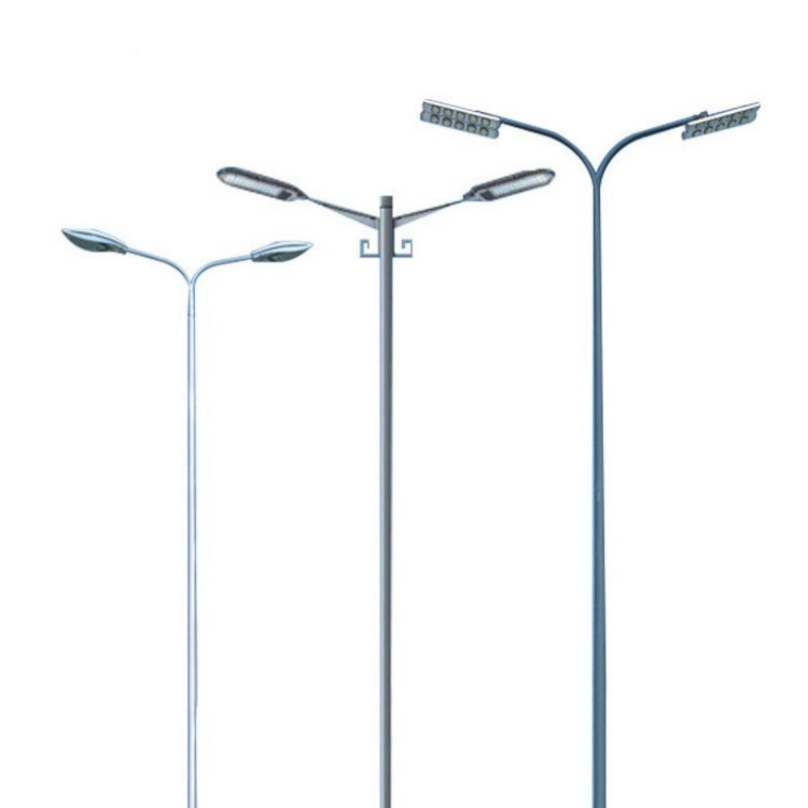

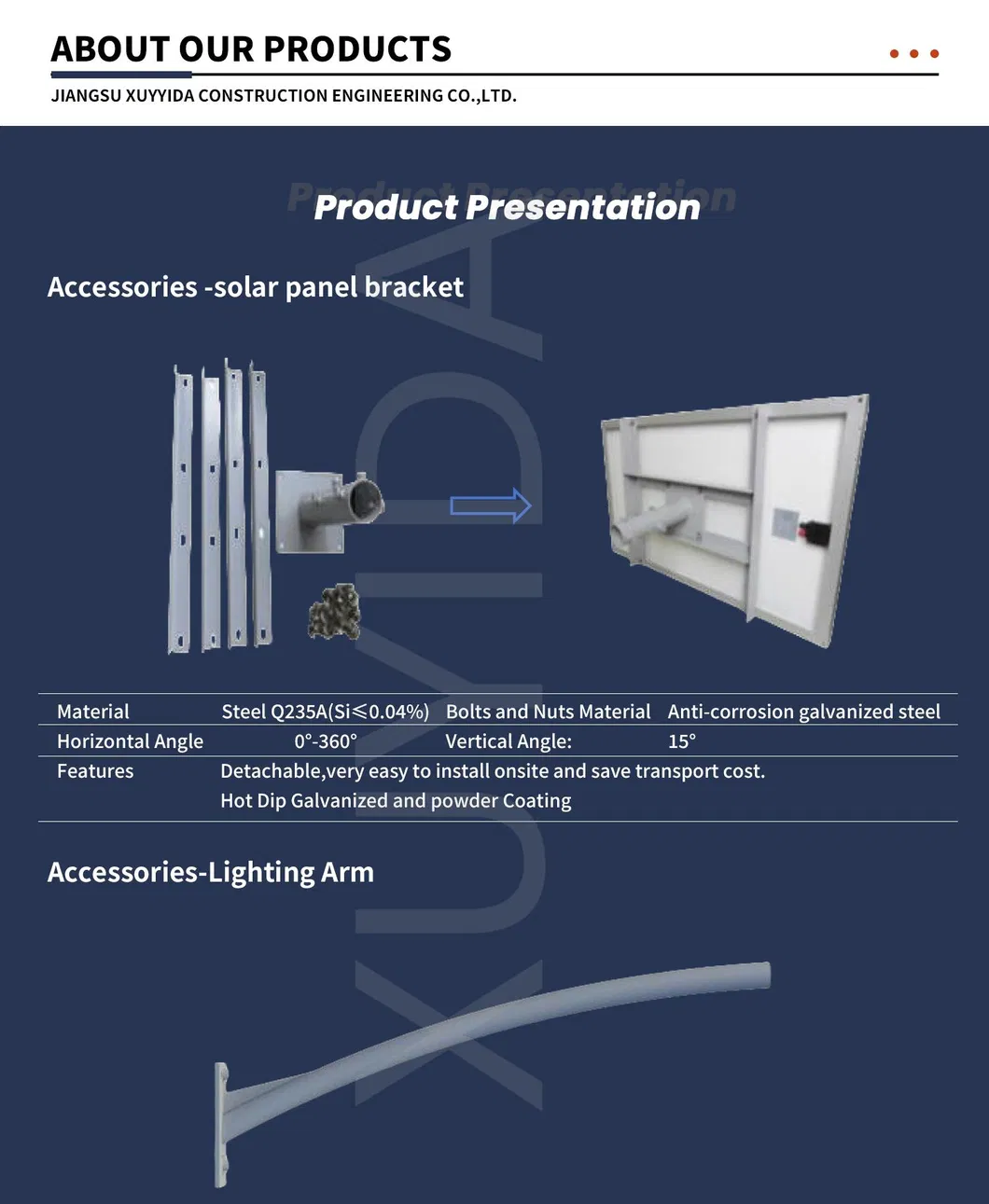

Available in Conoid, Multi-pyramidal, Columniform, Polygonal, or Conical shapes. Flange type includes variable arm lengths from 0.125m to 3.0m (single or double) with spigot sizes from 35mm to 60mm.

Advanced Galvanization & Painting

Hot-dip galvanization (thickness ≥75um) complies with GB-/T13912-92, ensuring a lifespan of over 30 years. Outdoor pure polyester powder coating provides strong adhesion and UV resistance, suitable for coastal and high-salinity environments.

Technical Specification of Conical Pole

Pole Height	Top Diameter	Bottom Diameter	Pole Thickness	Base Plate
5M	60MM	140MM	3.0MM	260260S14MM
6M	60MM	145MM	3.0MM	300300S16MM
7M	76MM	160MM	3.0MM	300300S16MM
8M	80MM	180MM	3.25~4.0MM	320320S20MM
9M	80MM	180MM	3.25~4.0MM	350350S20MM
10M	90MM	200MM	3.5~4.0MM	400400S20MM
11M	100MM	205MM	3.75~4.0MM	400400S20MM
12M	100MM	220MM	4.0~5.0MM	400400S20MM

Frequently Asked Questions

What is the standard lifespan of these lighting poles?

Our hot-dip galvanized poles are designed for a lifespan of no less than 30 years, thanks to their anti-corrosion treatment which complies with GB-/T13912-92 standards.

Can the pole height and arm length be customized?

Yes, we offer pole heights ranging from 5m to 12m, and variable arm lengths from 0.125m to 3.0m to meet specific project requirements.

What materials are used in production?

We primarily use high-quality steel such as Q235B/A36 or Q345B/A572, ensuring high yield strength and structural integrity.

Are the poles suitable for coastal areas?

Absolutely. Our outdoor pure polyester powder painting process is designed to resist intensive UV rays and high salinity, making them perfect for coastal cities.

What is the quality standard for welding?

Our welding process ensures no cracks, leakage, or undercut. All seams are smooth, and we conduct flaw detection according to GB/T3323-1989III and safety standard GB7000.1.

What colors are available for the final finish?

The powder-coated colors are selectable and fully customizable to match the aesthetic needs of your installation site.
