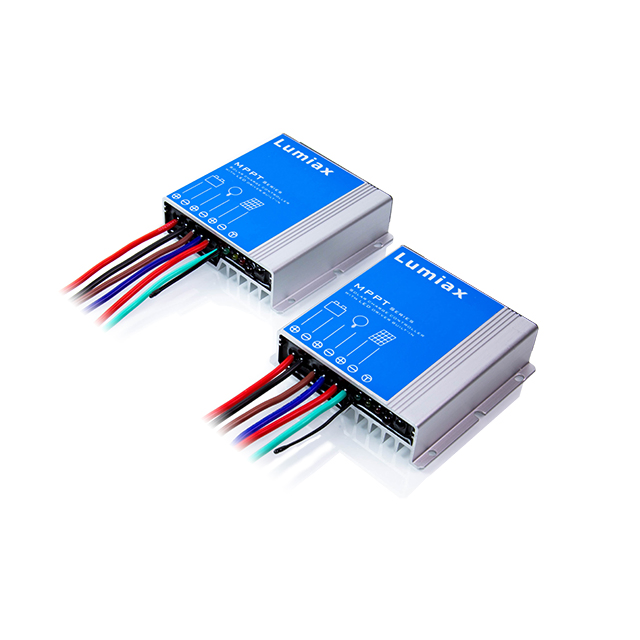

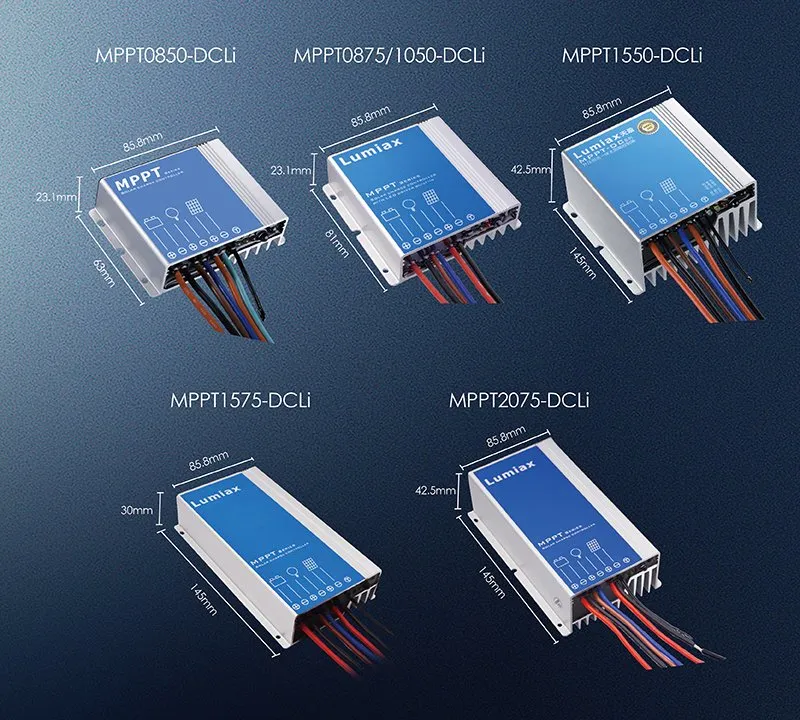

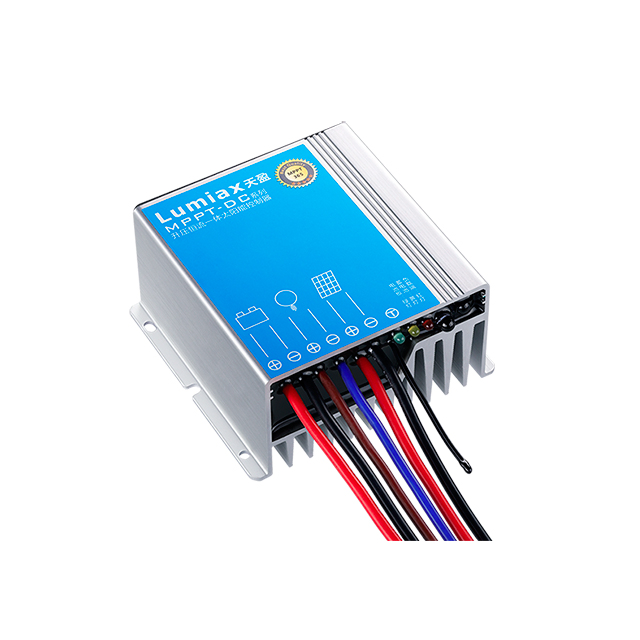

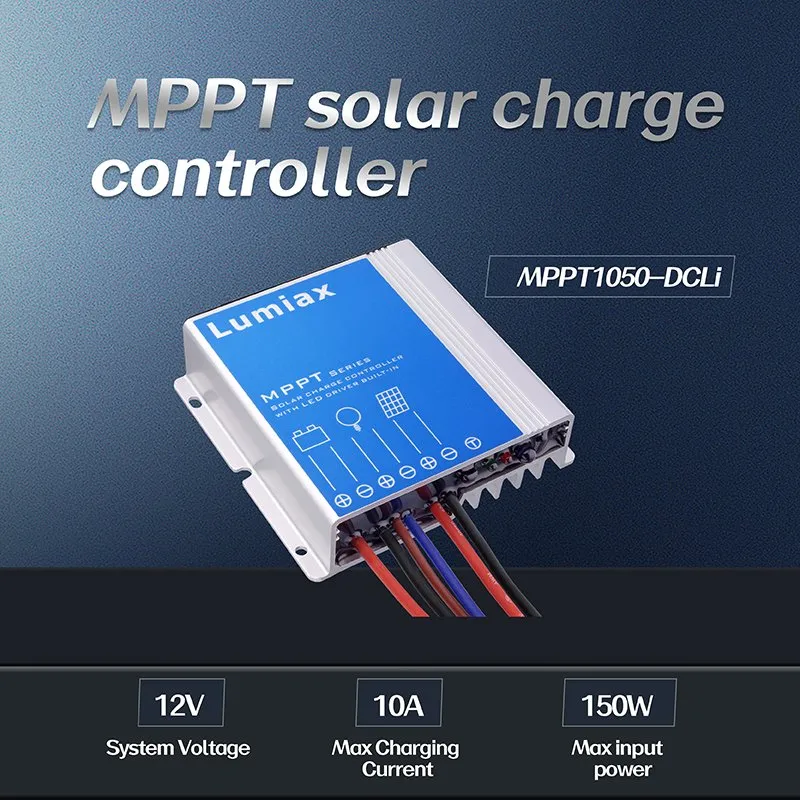

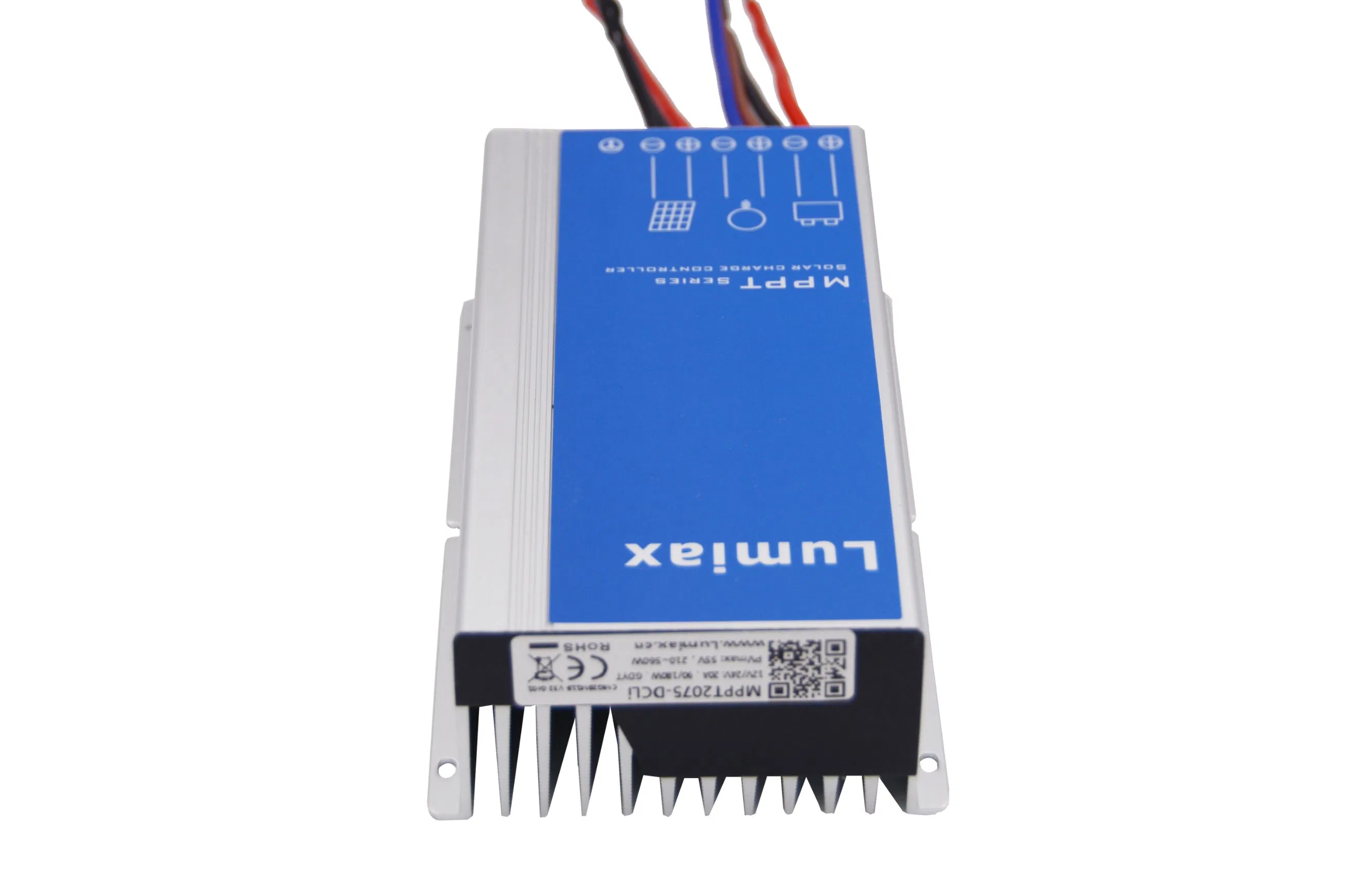

Model NO.MPPT-DC Series
ConditionNew
CertificationISO, CE, RoHS
Protection DegreeIP67
Max Tracking Efficiency>99.9%
Max PV Power Input100W-520W
Max PV Voltage35V-60V
Battery TypeLiquid, Gel, AGM, Lithium
Package Size20.00cm * 15.00cm * 10.00cm
Package Gross Weight1.000kg

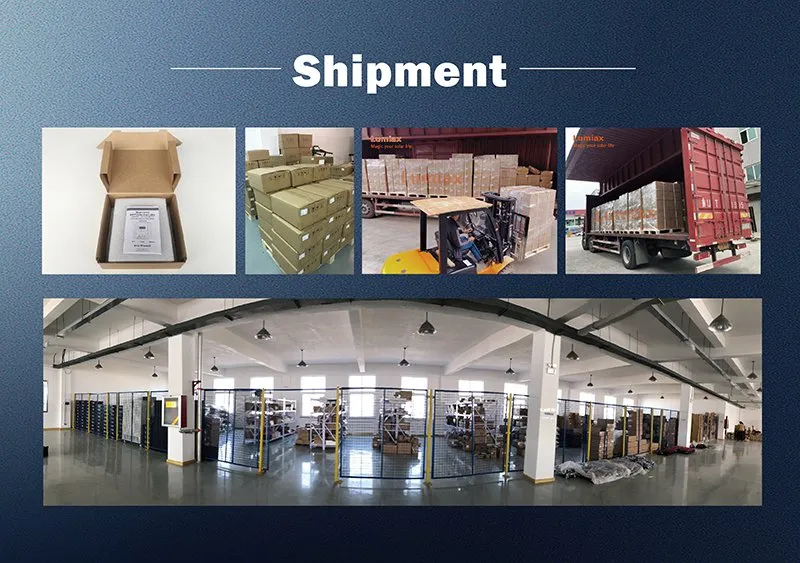

Transport PackageCarton
?
Frequently Asked Questions

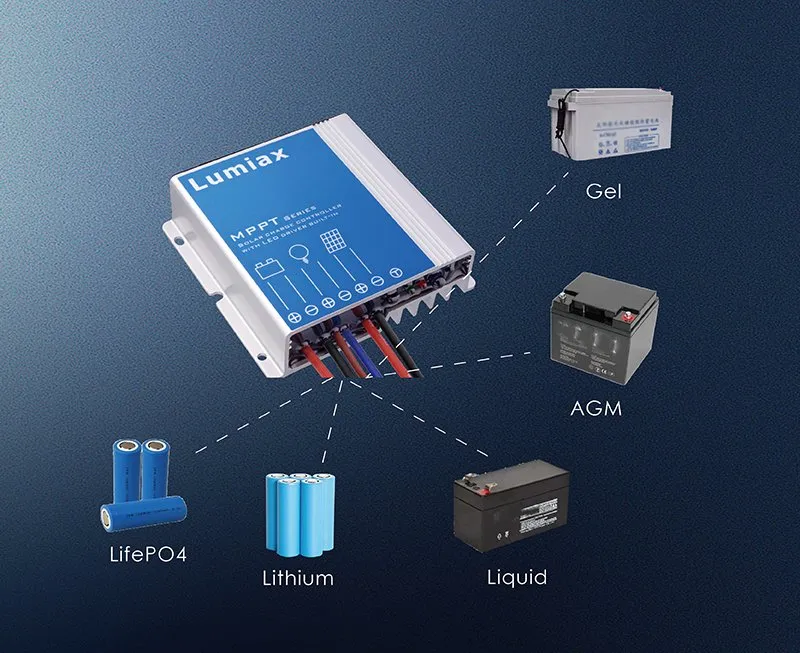

What types of batteries are compatible with this MPPT controller?
The controller is compatible with Liquid, Gel, AGM, and Lithium batteries. Most charging parameters are programmable to suit specific battery requirements.

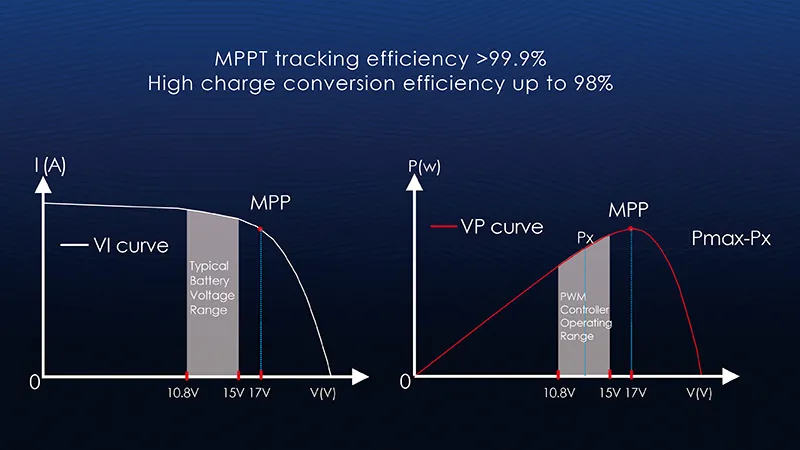

How high is the tracking efficiency of the MPPT technology?
This series features advanced MPPT technology with a tracking efficiency of greater than 99.9%, ensuring maximum energy harvest from your solar panels.
Is the controller suitable for outdoor use?
Yes, the controller has an IP67 protection degree rating, meaning it is fully dust-tight and can withstand temporary immersion in water, making it ideal for solar street light environments.

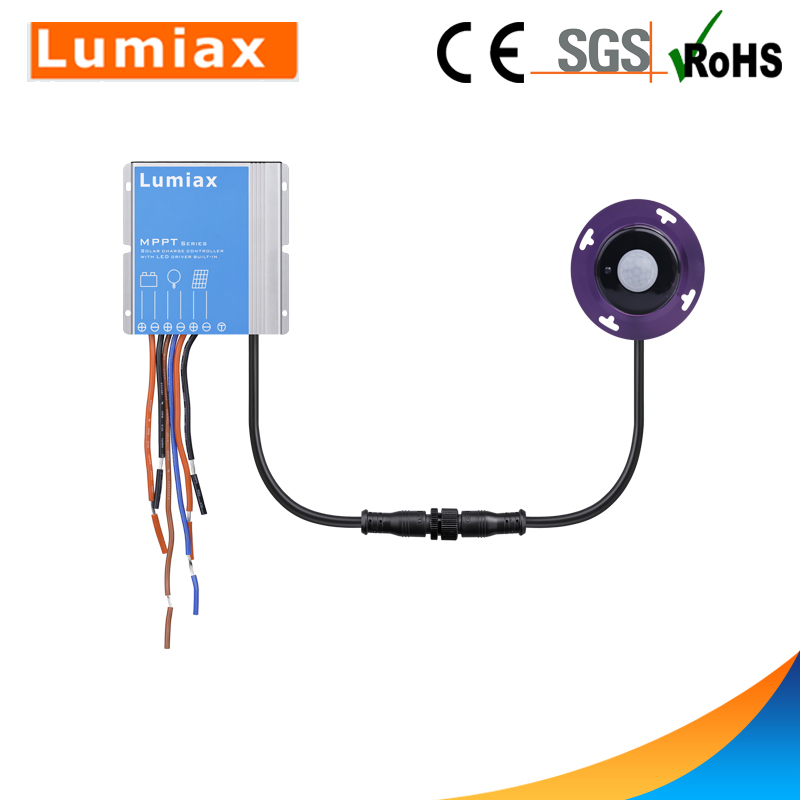

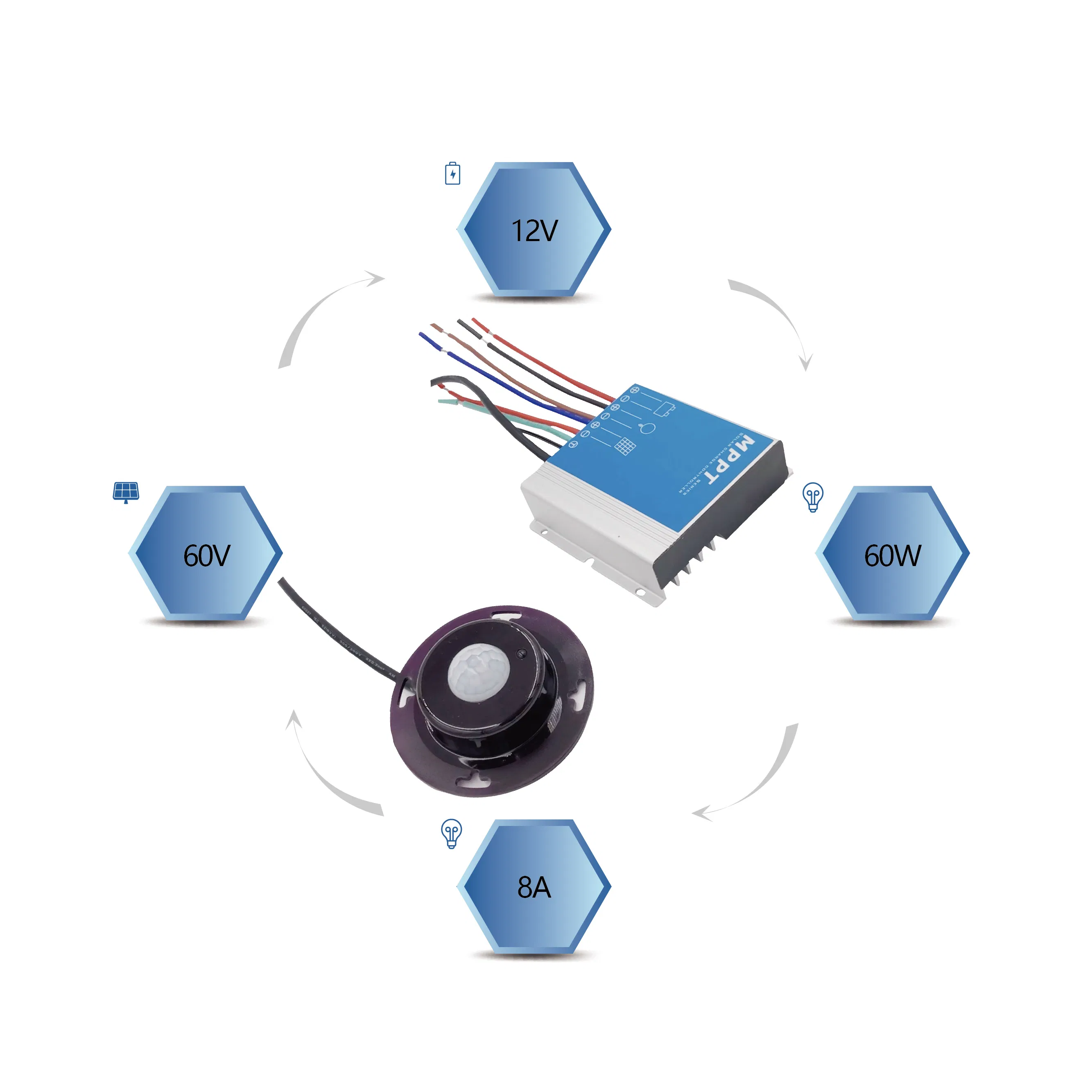

Does the controller support motion sensors?
Yes, it supports both Infrared Human Sensing and Microwave Sensing induction modes, allowing for smart dimming and energy saving.
Can I program the controller remotely?

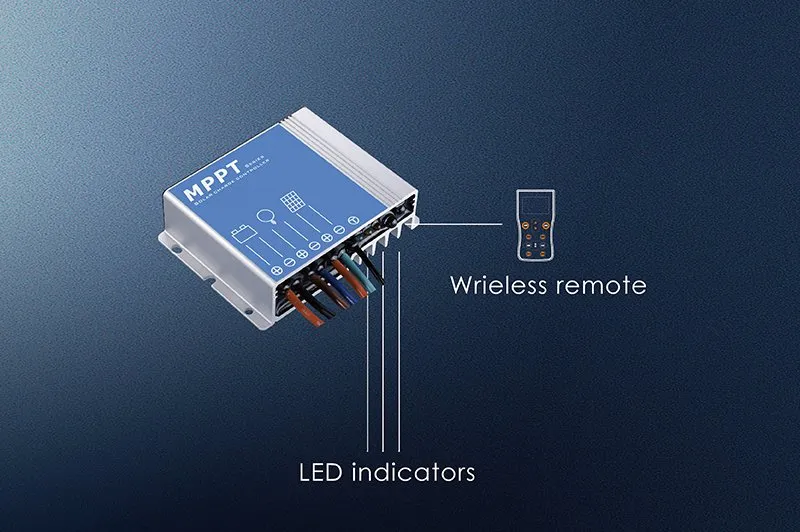

The controller supports communication via Infrared, 2.4G, and IOT modes, enabling convenient parameter adjustment and monitoring.
What is the ambient temperature range for operation?
The device is designed to operate reliably in ambient temperatures ranging from -35°C to +60°C.
