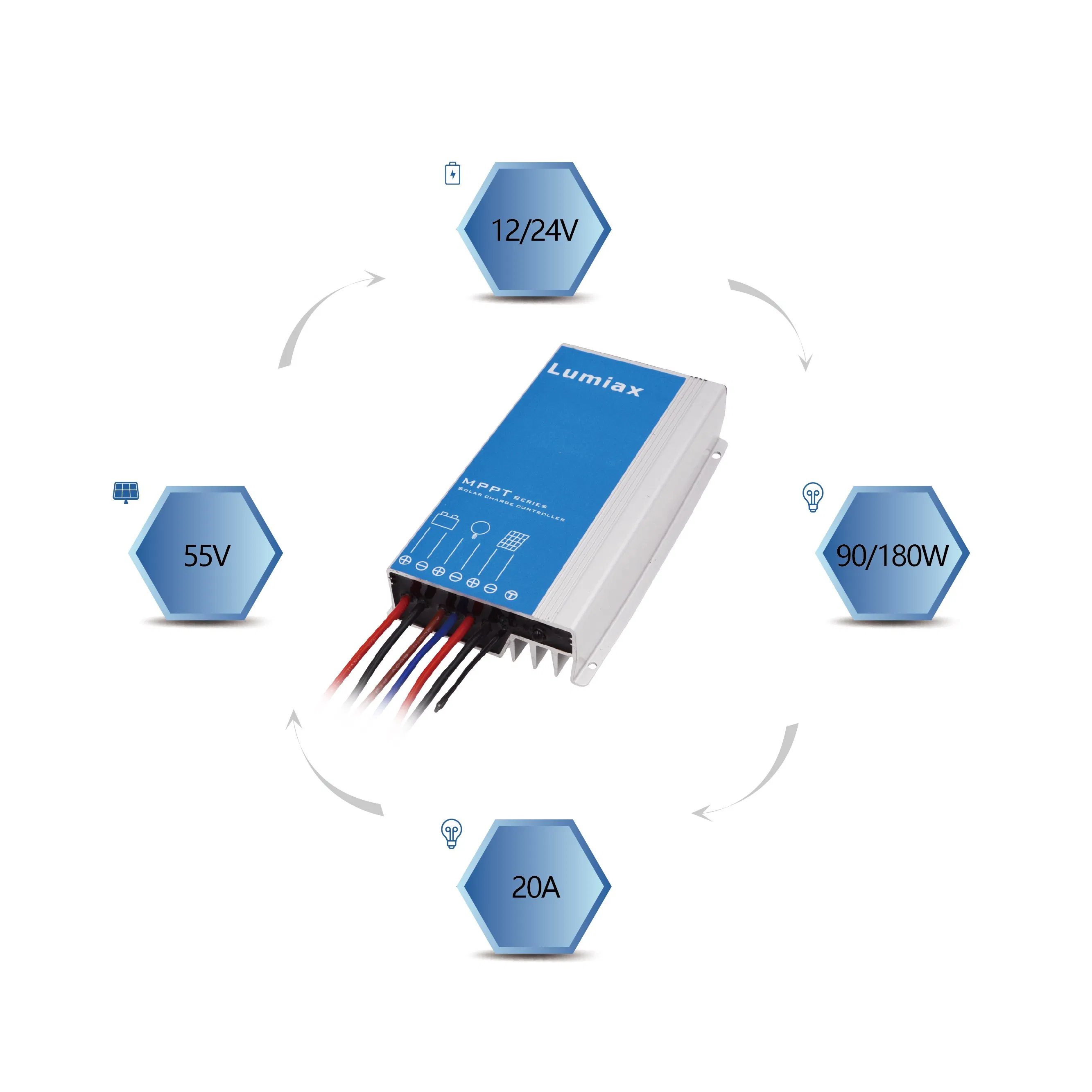

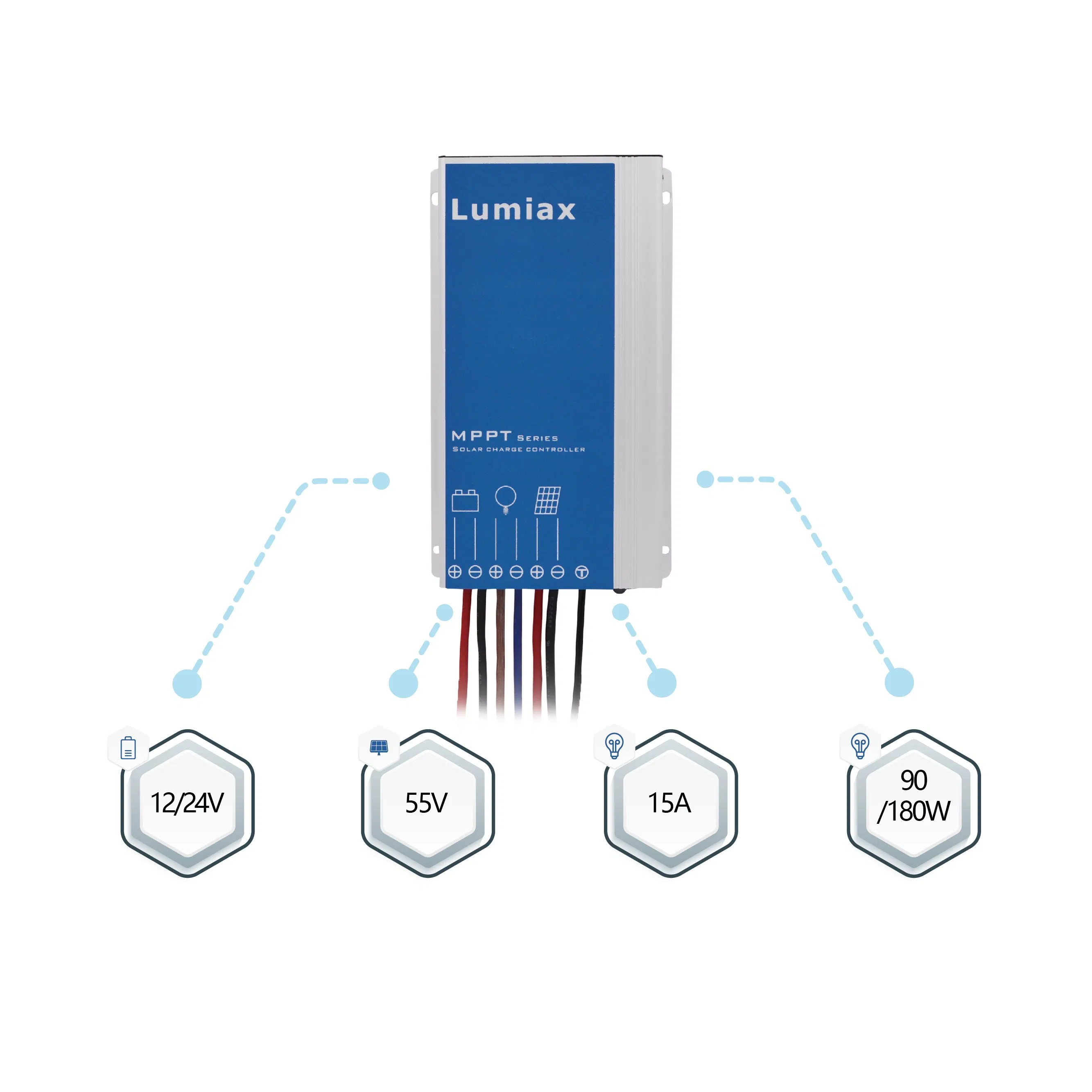

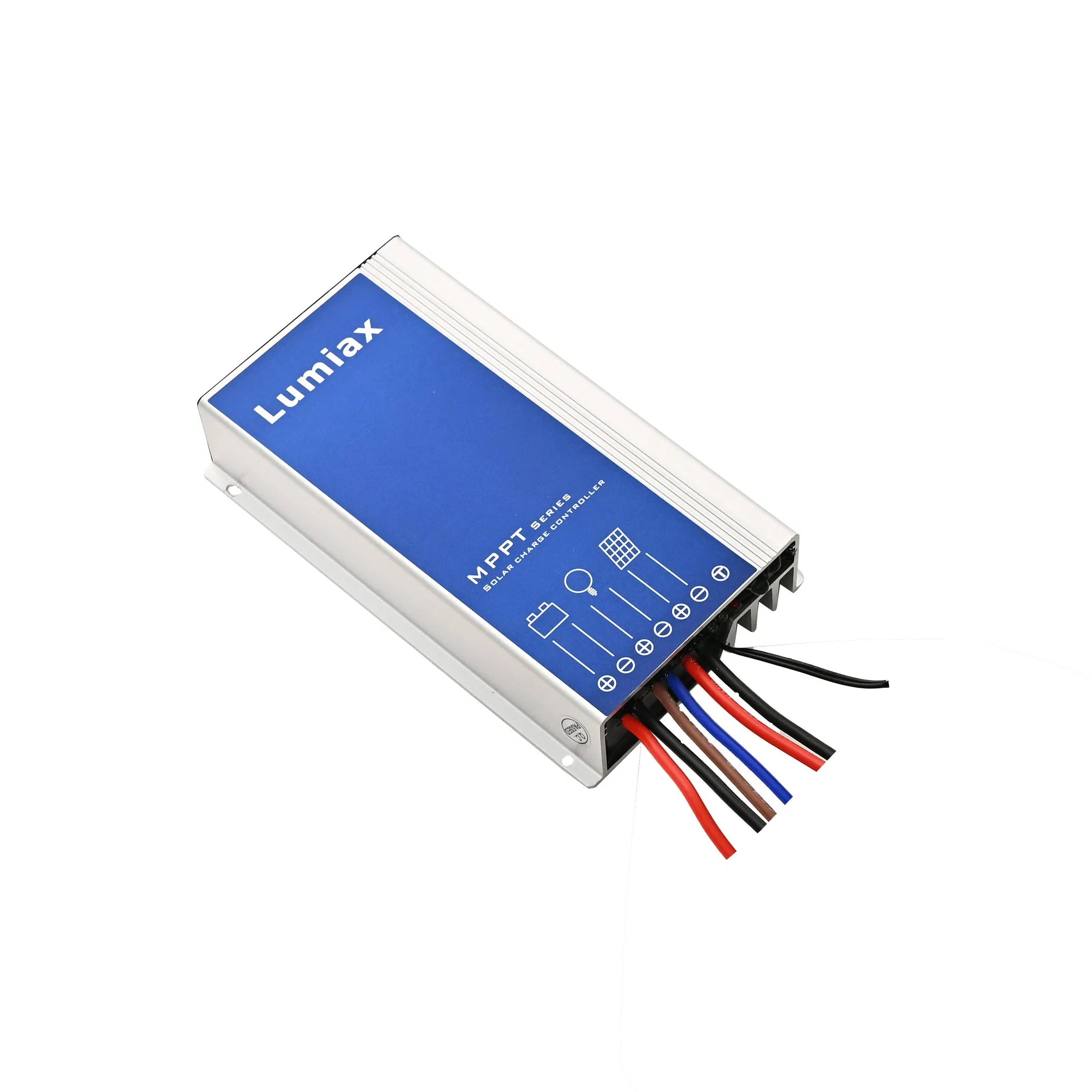

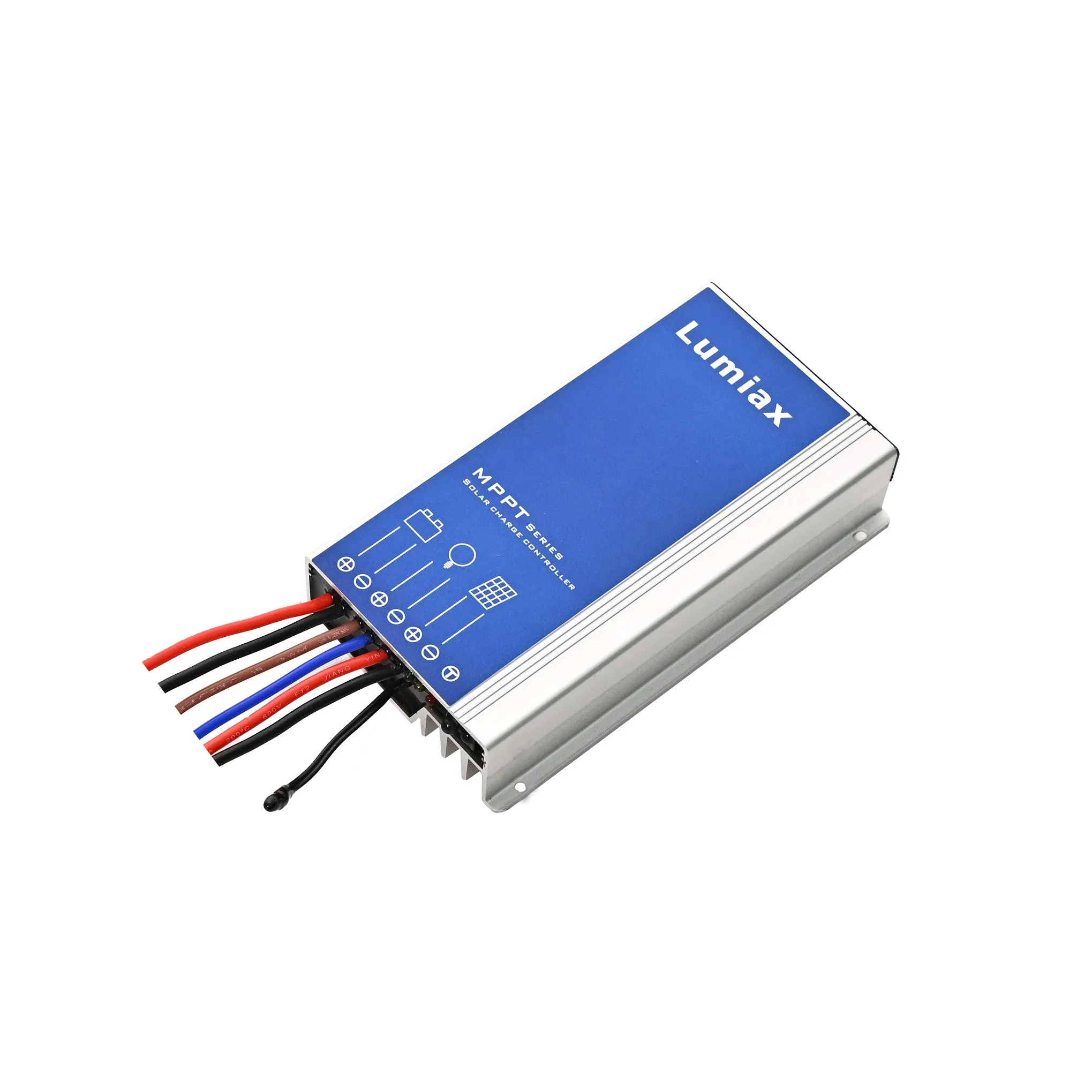

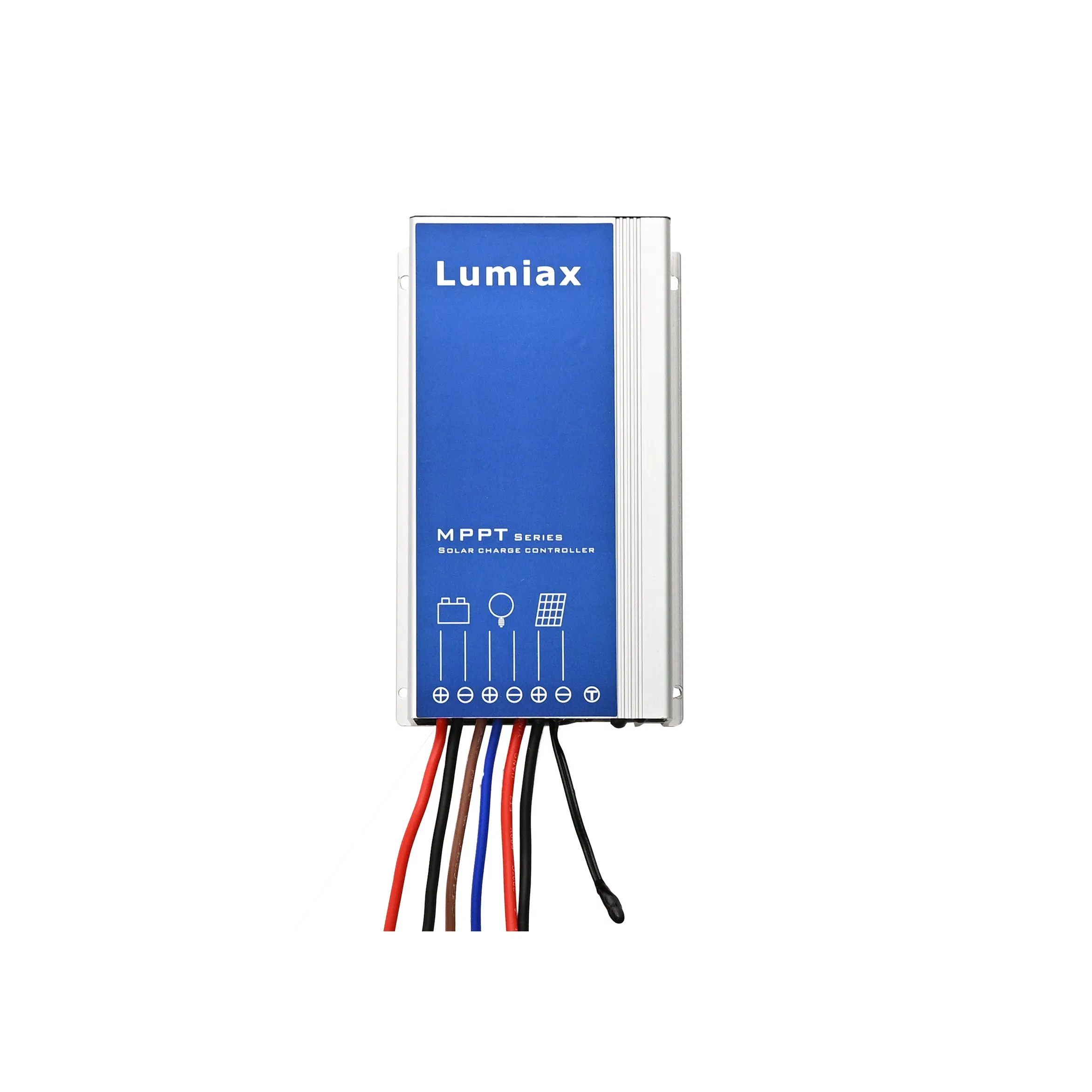

15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
1 / 5
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller
15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller

15A 20A 12V 24V MPPT LED Solar Panel Street Light Charge Controller

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

i

Basic Information

Model NO.
MPPT1575/2075-DC
Condition
New
Certification
ISO, CE, RoHS
Application
Charger Controller, Lighting Controller, Solar Working Station
Rated Voltage
12V/24V
Max Tracking Efficiency
99.9%
Max Charge Conversion
97.5%
Working Temperature
-35~+60℃
Protection Degree
IP67
Battery Type
Liquid, Gel, AGM and Lithium
Max Input Power
200W-520W
Max Volt on PV
55V

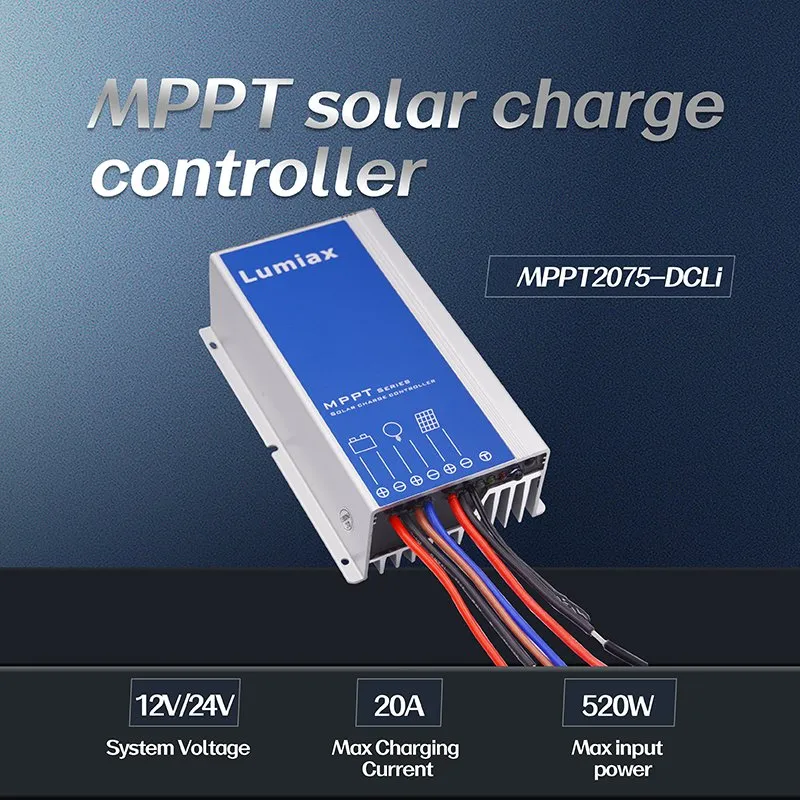

MPPT LED Solar Controller

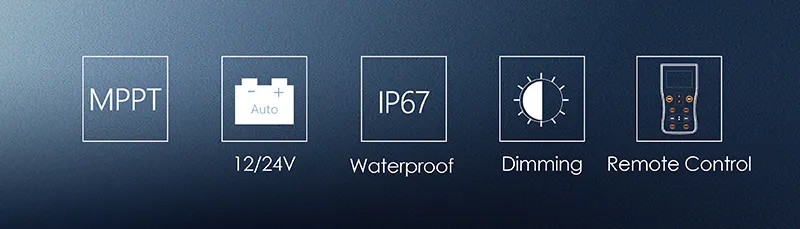

MPPT LED Solar Controller Details
⚙

Product Parameters

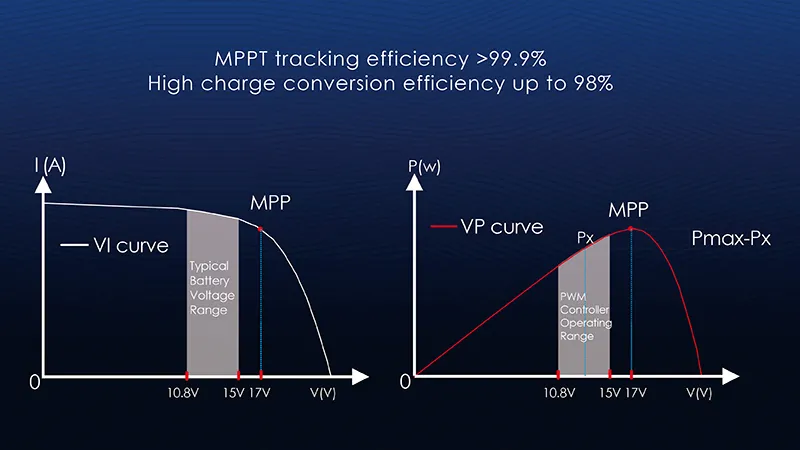

Technical Parameters Overview
Item MPPT1075-DCLi MPPT1575-DCLi/G MPPT2075-DCLi/G
System Voltage 12V/24V automatical recognization
Max Charging Current 10A 15A 20A
Max Volt on Bat. Terminal 35V
Battery Type Liquid, Gel, AGM and Lithium (Programmable)
Max Volt on PV terminal 60V 55V
Max Input Power 130W/260W 200W/400W 260W/520W
Max Tracking Efficiency >99.9%
Protection Degree IP67
☰

Product Description

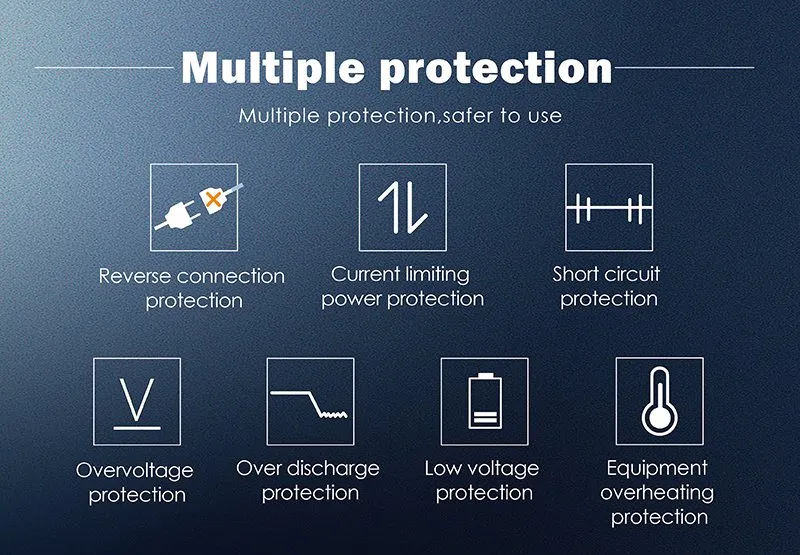

Controller Features 1

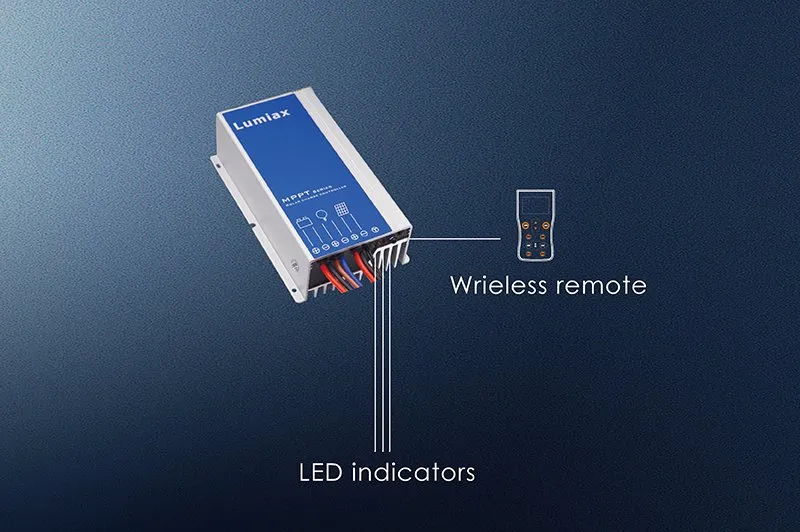

Controller Features 2

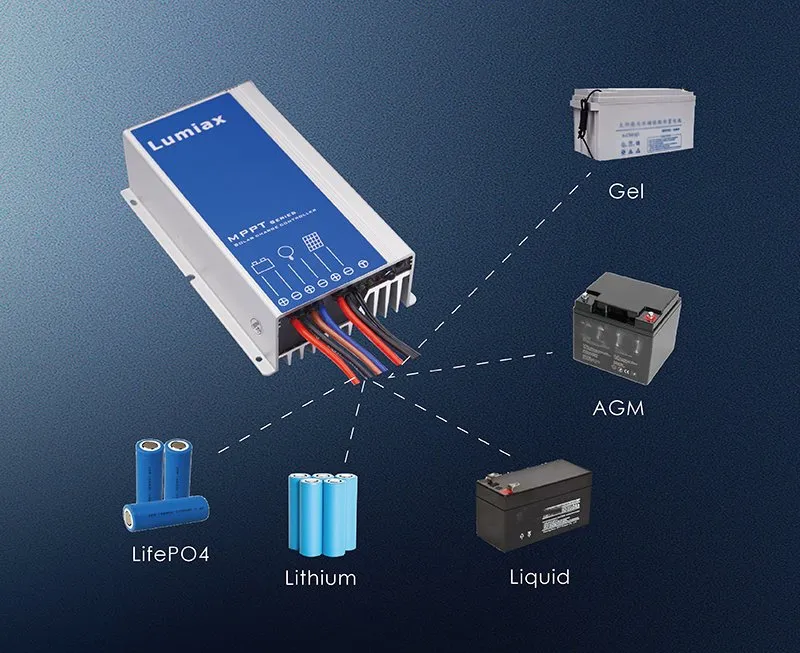

Controller Features 3

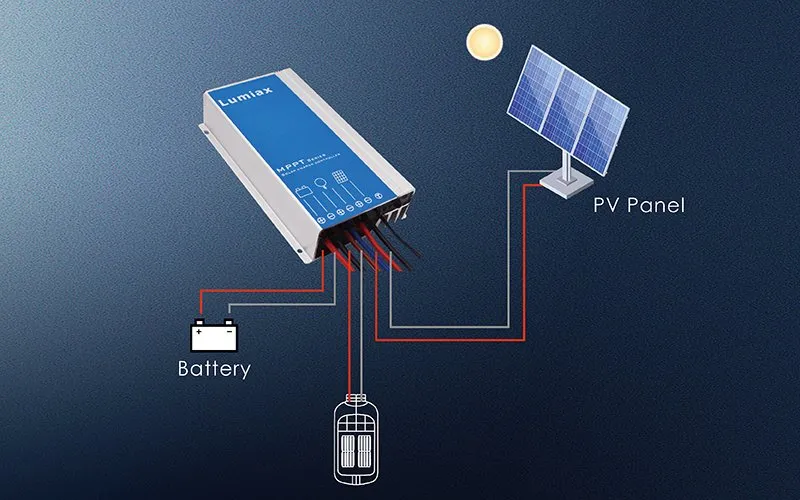

Controller Features 4
✔

Our Advantages

Efficiency Advantages

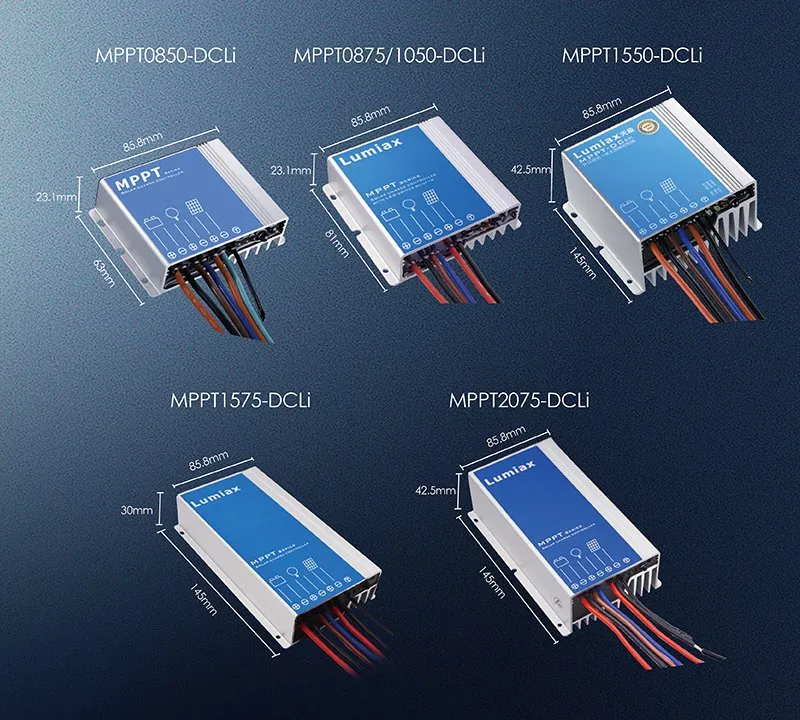

Design Advantages
★

Certifications

Product Certifications
🏢

Professional Environment

Facility 1

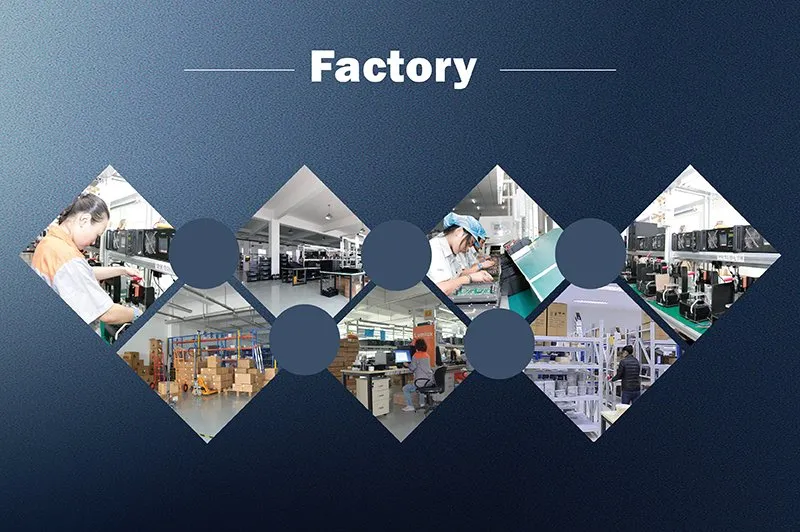

Facility 2

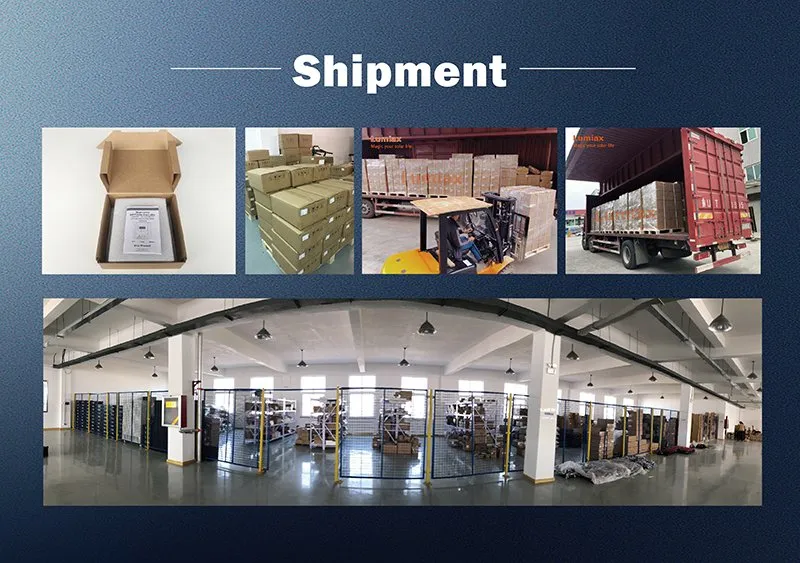

Facility 3
Facility 4
Quality Control
Testing Process

Frequently Asked Questions

What is the maximum tracking efficiency of this MPPT controller?
The controller features an advanced MPPT algorithm with a maximum tracking efficiency of over 99.9%.
Is this controller waterproof for outdoor use?
Yes, it has an IP67 protection degree, making it suitable for harsh outdoor environments and street light applications.
Which battery types are compatible with this device?
It supports Liquid, Gel, AGM, and Lithium batteries. Parameters are programmable to fit specific battery requirements.
Can it work in extreme temperature conditions?
Yes, the operating temperature range is wide, from -35°C to +60°C, ensuring stable performance in various climates.
Does the system automatically recognize voltage?
The controller supports 12V and 24V system voltages with automatic recognition for efficient installation.
What are the main applications for this controller?
It is ideal for charger control, solar street lighting, solar working stations, and voltage regulation systems.
