Basic Info.
Pole Height15-35m
Power400W to 2000W
Projection Distance80m
UsageHigh Way/Airport
IP RatingIP66
CertificationCCC, CQC, FCC, SASO
Input Voltage220V
LED Chips BrandHPS/Metal Soudium
Lamp SourceLED/Sodium/Metal Halide
ShapeRound/Conical/Polygonal
MaterialSteel Q235/SS400
Production Capacity50000PCS/Month
Product Description
Introducing Our Calming and Soothing Galvanized Street Light Poles
Experience the beauty and functionality of our hot galvanized street light poles. With their good looks and customizable powdered painting, these poles are the perfect addition to any street lighting project. Available in various heights ranging from 3m to 12m, our poles are designed to meet your specific needs.
Manufacturing Excellence & Capacity
With 14 years of experience in producing galvanized street light poles, our expertise and dedication to quality have made us a trusted manufacturer in the industry. Our production capacity of 20,000 poles per month ensures that your project is completed on time. Vertical production lines allow us to maintain strict control over both quality and cost.
Technical Excellence and Durability
Crafted from high-quality steel Q235/SS400 sourced from the renowned BAOSTEEL Group, this tower is built to withstand the test of time. Our automatic submerged arc welding technique ensures seamless and sturdy construction, while the hot dip galvanizing and powder painting surface treatment provide exceptional protection against corrosion.
- Anti-wind Capacity: 36.9m/s for guaranteed stability and safety.
- Lifespan: Anti-corrosion lifetime of ≥20 years.
- Coating Quality: Zinc coating thickness ≥ 86um; coating layer thickness ≥100um and hardness ≥2H.
- Versatile Design: Available in conical and polygonal designs for sophisticated outdoor spaces.
| Height (m) |
Dimension (mm) |
Thickness (mm) |
Flange Size (mm) |
| 6 | 60/140 | 2.75 | 240*240*12 |
| 7 | 60/170 | 3 | 280*280*12 |
| 8 | 70/180 | 3 | 280*280*14 |
| 9 | 70/170 | 3.5 | 300*300*16 |
| 10 | 70/170 | 3.5 | 300*300*16 |

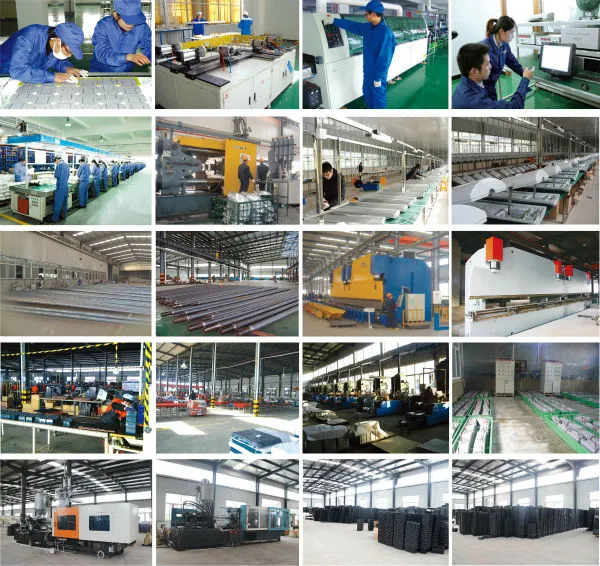

Advanced Manufacturing Process
Our facility features an advanced plate cutting line, plate bending line, automatic welding line, polishing line, and spray painting line. This ensures every step of the manufacturing process is carried out with expertise, guaranteeing the longevity of our galvanized steel light poles. Delivery for 100 poles is generally achieved within 20 working days.
Frequently Asked Questions
Q1: What materials are used for the street light poles?
Our poles are crafted from high-quality steel Q235/SS400 sourced from the renowned BAOSTEEL Group, ensuring maximum durability.
Q2: What is the expected anti-corrosion lifespan of the poles?
Thanks to our hot-dip galvanizing and powder painting surface treatments, the poles have an anti-corrosion lifetime of at least 20 years.
Q3: Can these towers withstand high wind speeds?
Yes, our LED High Mast Towers are designed with an anti-wind capacity of 36.9m/s, ensuring stability in harsh weather conditions.
Q4: What is the production capacity and lead time?
We have a production capacity of 50,000 pieces per month. For a standard order of 100 galvanized poles, the delivery time is approximately 20 working days.
Q5: What height and shape options are available?
We offer pole heights ranging from 3m to 35m. Shapes include Round, Conical, Octagonal, and Polygonal designs to suit various architectural needs.
Q6: How are the poles packaged for safe transport?
For FCL goods, poles are wrapped in bulb wrappings. For LCL orders, we use felt wrapping followed by bulb wrappings to ensure safe delivery.
