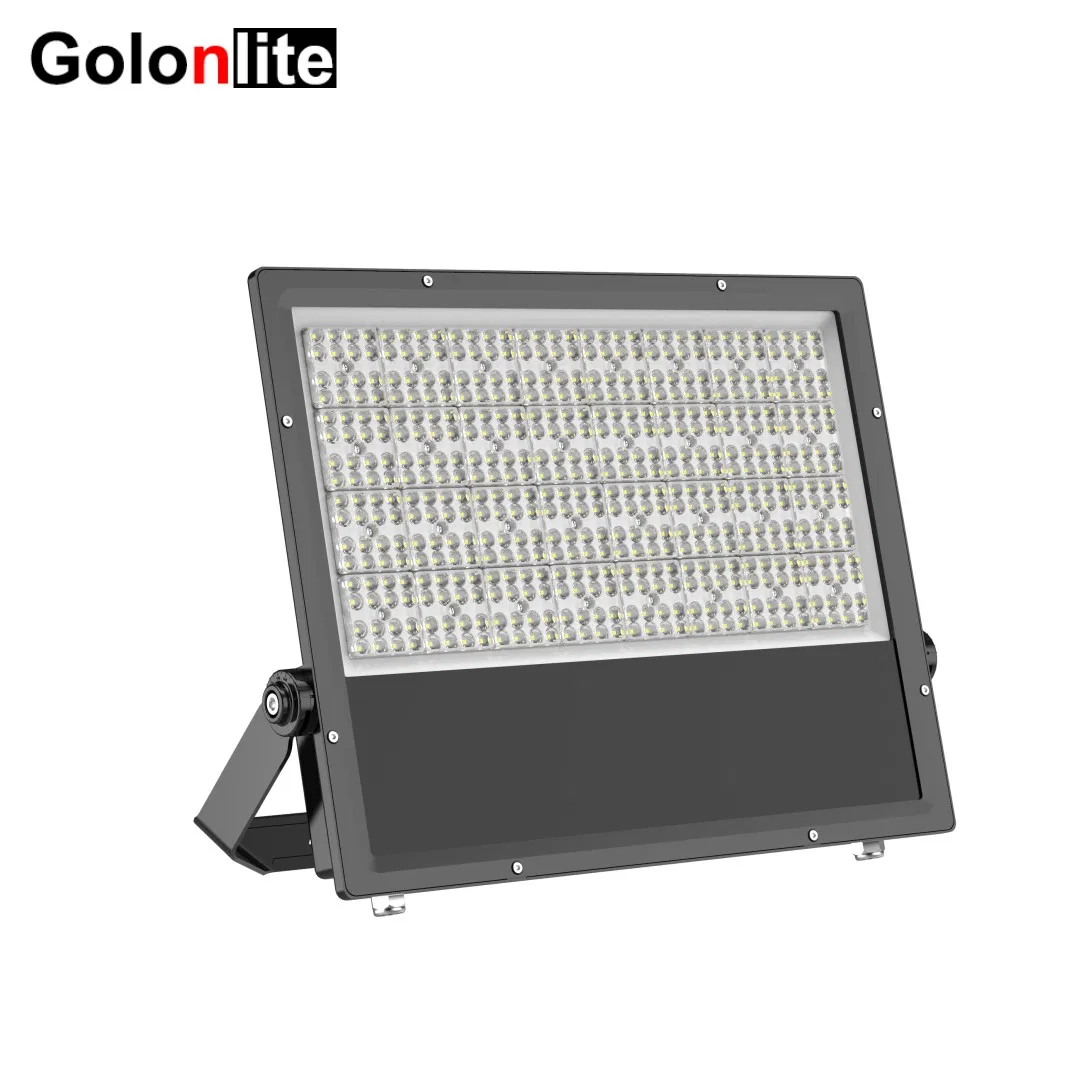

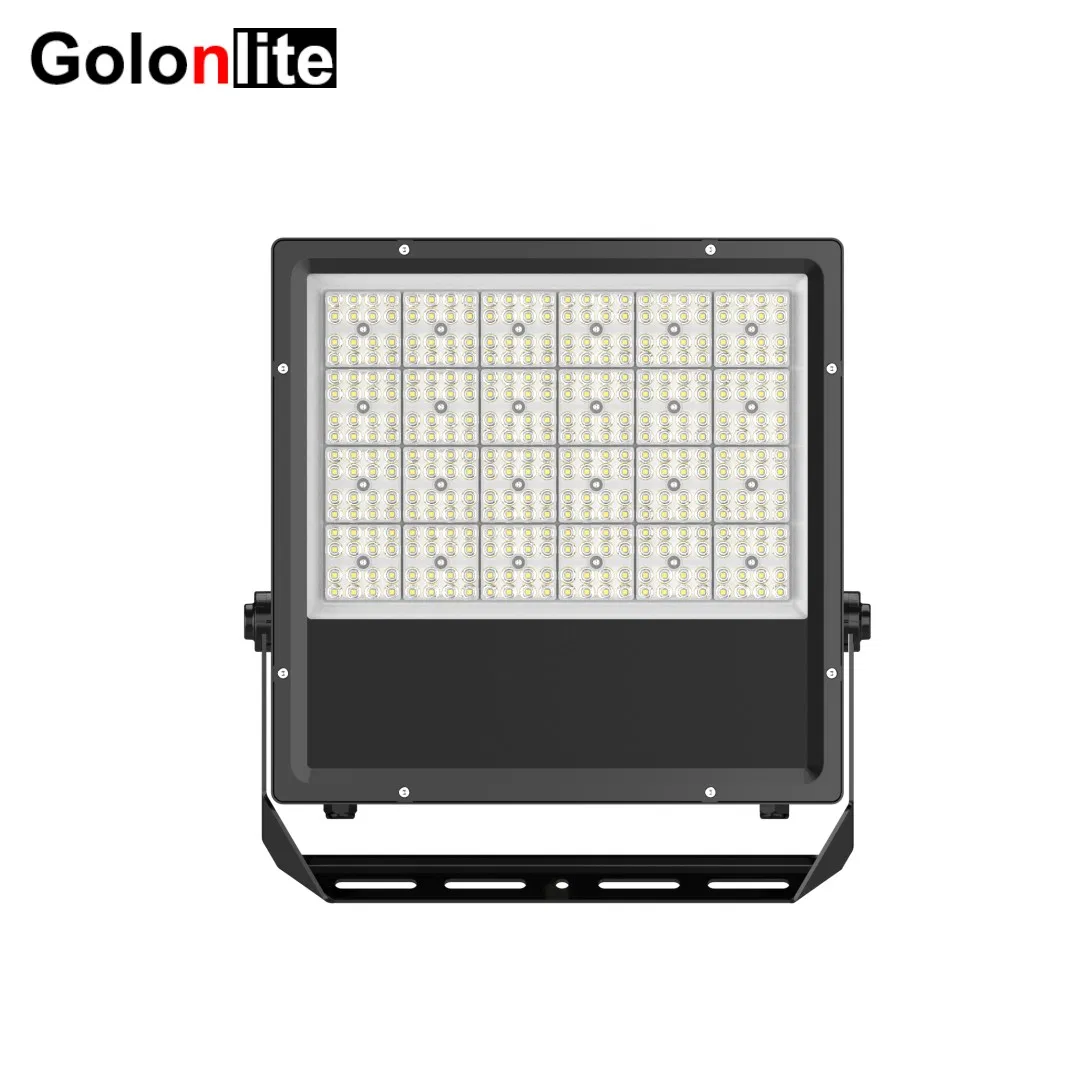

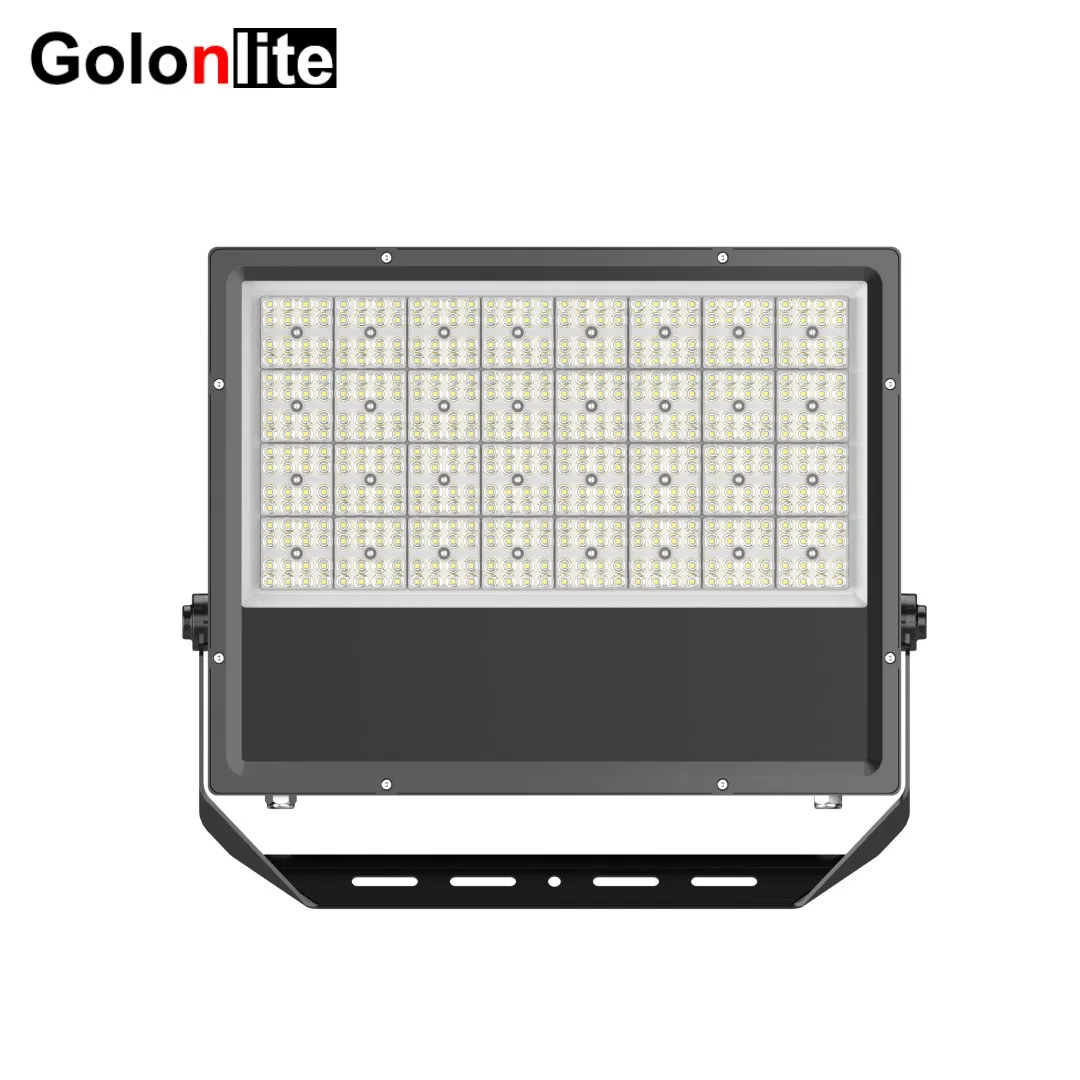

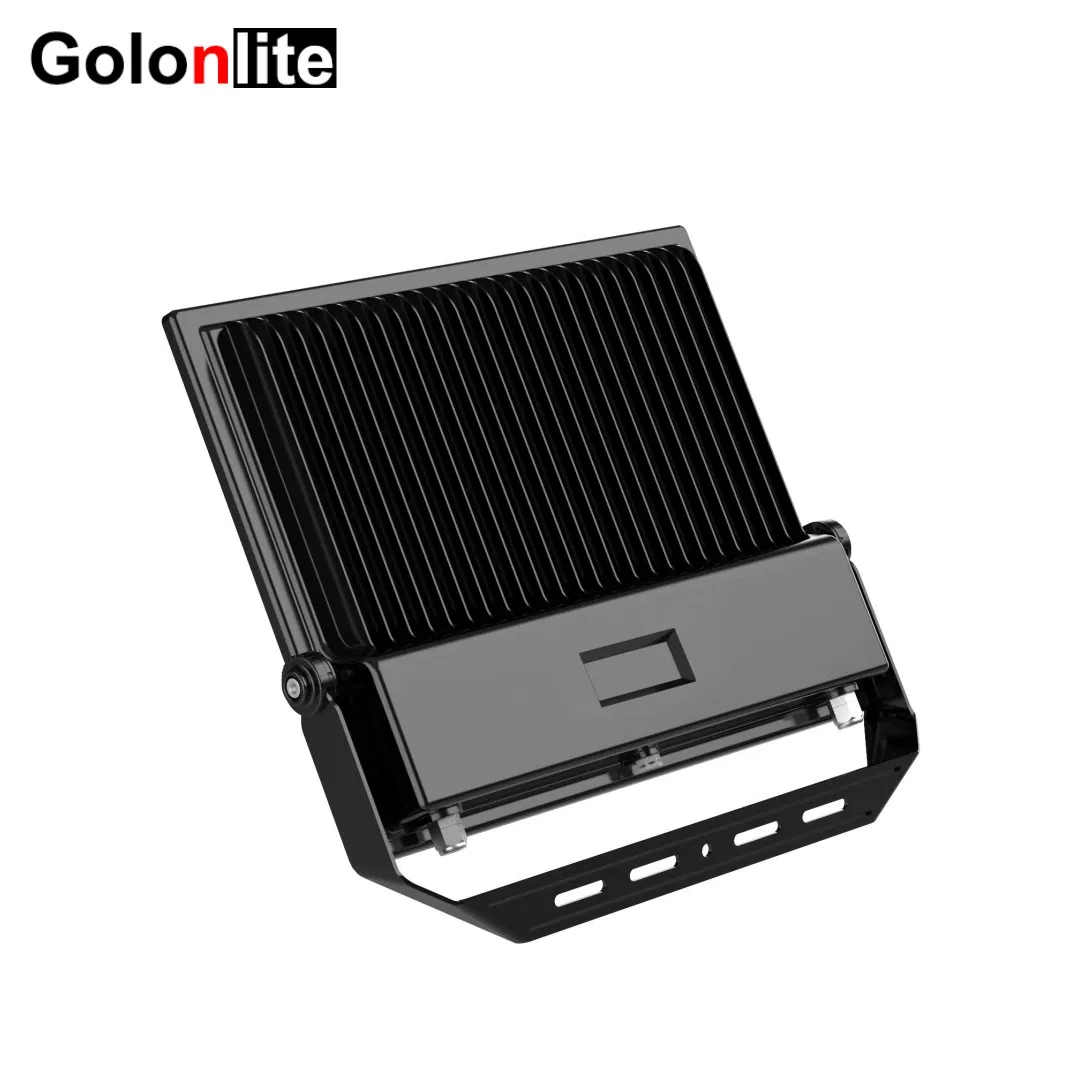

180lm/W Outdoor IP66 Waterproof 50W 75W 100W 150W 200W 240W 300W LED Flood Luminaire

1 / 5

180lm/W Outdoor IP66 Waterproof 50W 75W 100W 150W 200W 240W 300W LED Flood Luminaire

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Power50W - 400W Range

Efficiency180lm/W High Output

IP RatingIP66 Waterproof

CertificationCE, EMC, LVD, RoHS

Voltage100-277VAC 50/60Hz

LED ChipsSMD3030 High Brightness

Lifespan> 50,000 Hours

MaterialDie Casting Aluminum

Professional Outdoor LED Flood Luminaire

Outdoor IP66 Waterproof 50W 75W 100W 150W 200W 240W 300W 400W LED Solution

⭐ High Efficiency Performance: Reaching up to 180Lm/W for maximum energy savings.
⭐ Lighting Design: Free Dialux lighting simulation and study available for your projects.

Feature	Technical Detail
Item Number	GL-FL Series (50W-400W)
Luminous Efficiency	160Lm/W - 180Lm/W Options
Color Temperature (CCT)	3000K / 4000K / 5000K / 5700K / 6500K
CRI	> Ra80
Power Factor	> PF0.95
Beam Angle	15° / 30° / 60° / 90° / 120° / P50 / T2 / T3
Housing Material	Die casting Aluminum + Optical Lens + Tempered Glass
Warranty	5 Years Professional Warranty

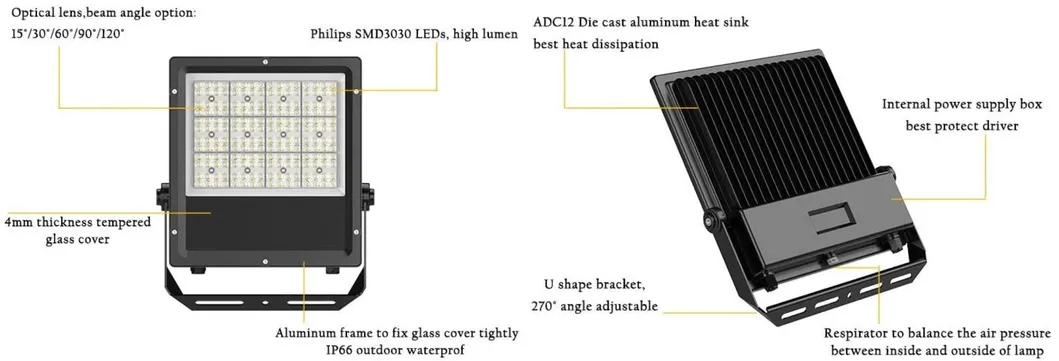

Key Product Features

✓World-class driver options: Meanwell / Inventronics / Sosen / Moso.
✓Super bright SMD3030 LEDs with efficiency up to 180Lm/W.
✓Professional Die-casting design for superior heat dissipation.
✓Anti-dust and flushable design for easy maintenance.
✓Multiple PMMA optical lens options (Symmetric & Asymmetric).
✓Anti-UV protection with high-strength tempered glass.
✓Slim design for freight efficiency and easy installation.
✓IP66 Waterproof rating for harsh outdoor environments.

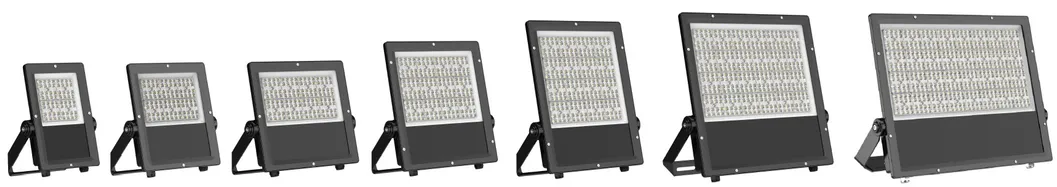

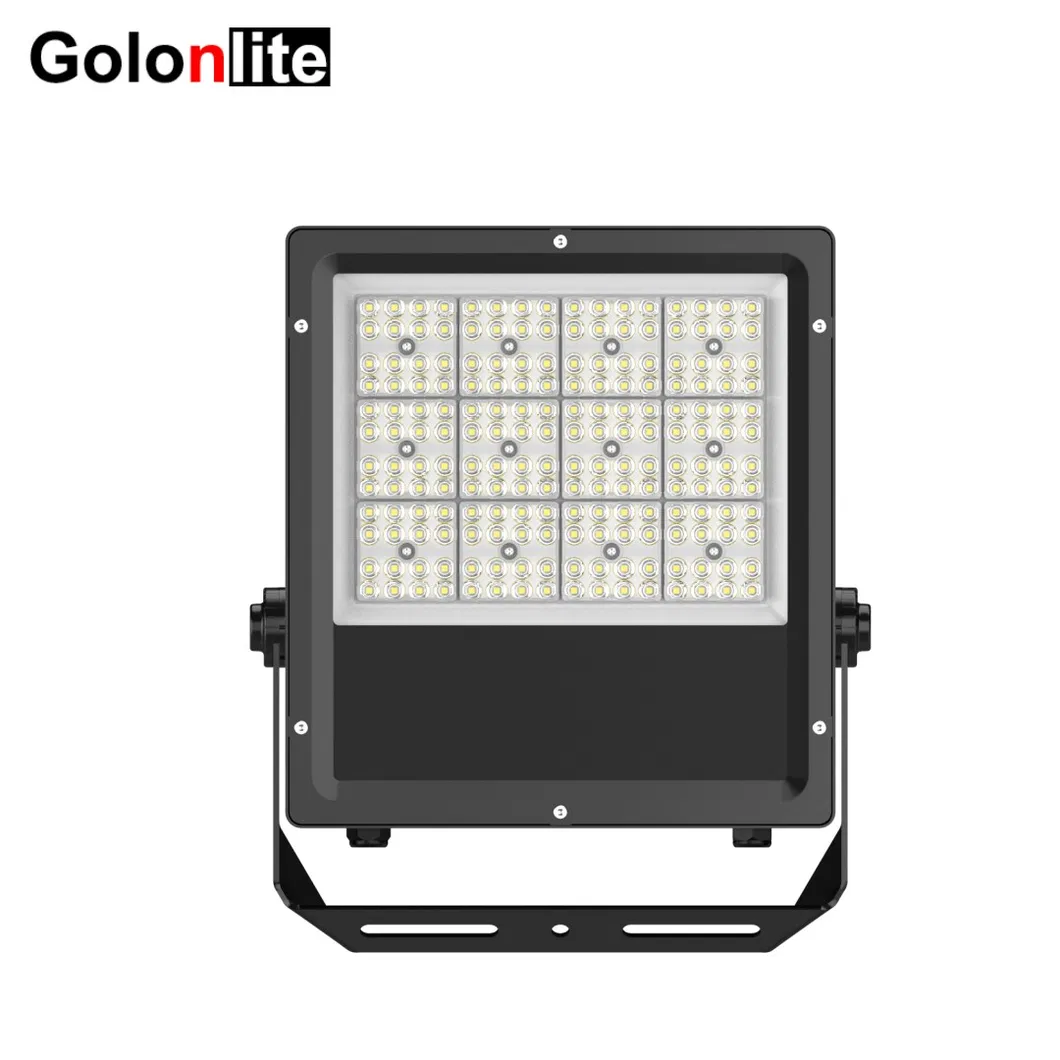

Product Visualization

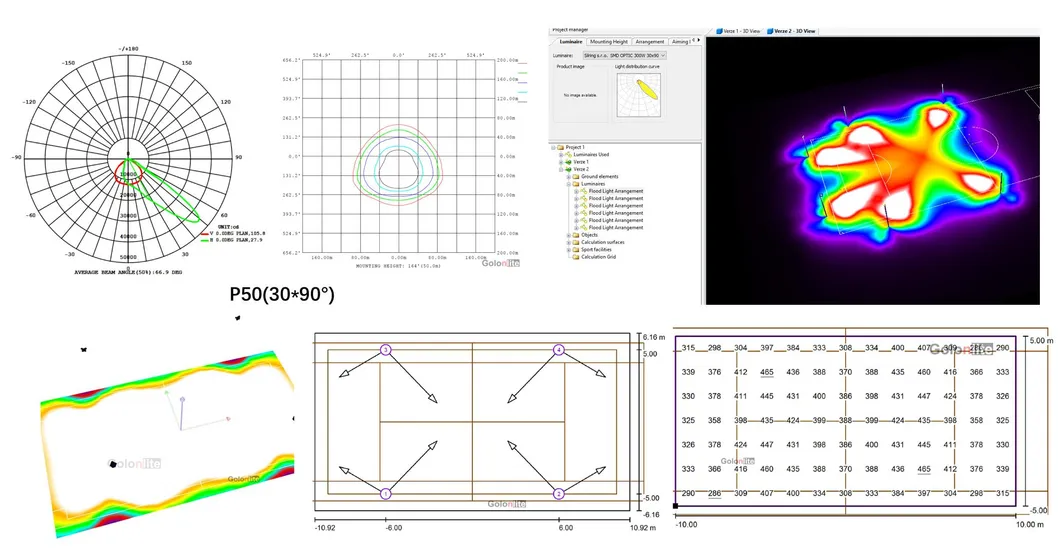

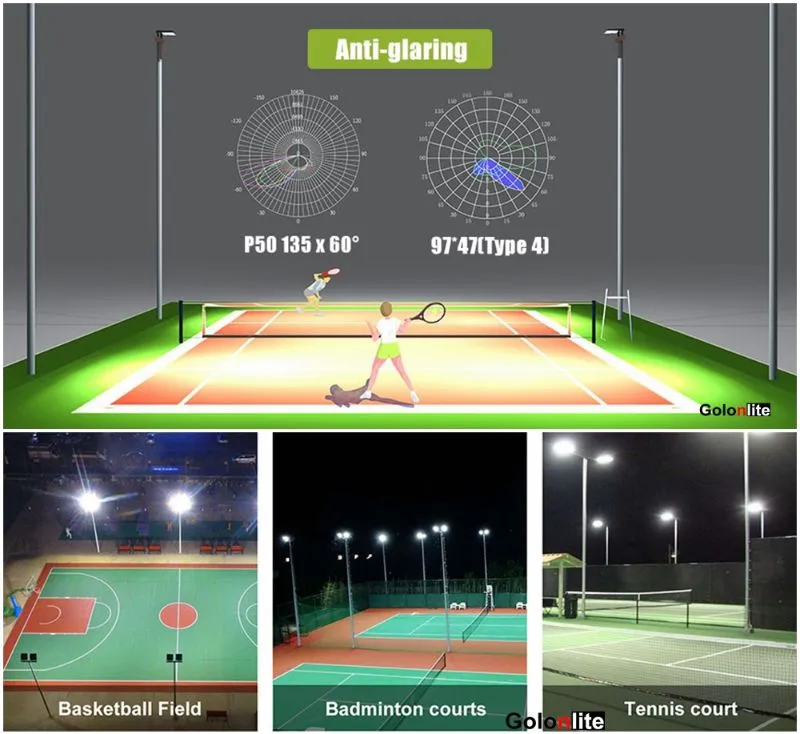

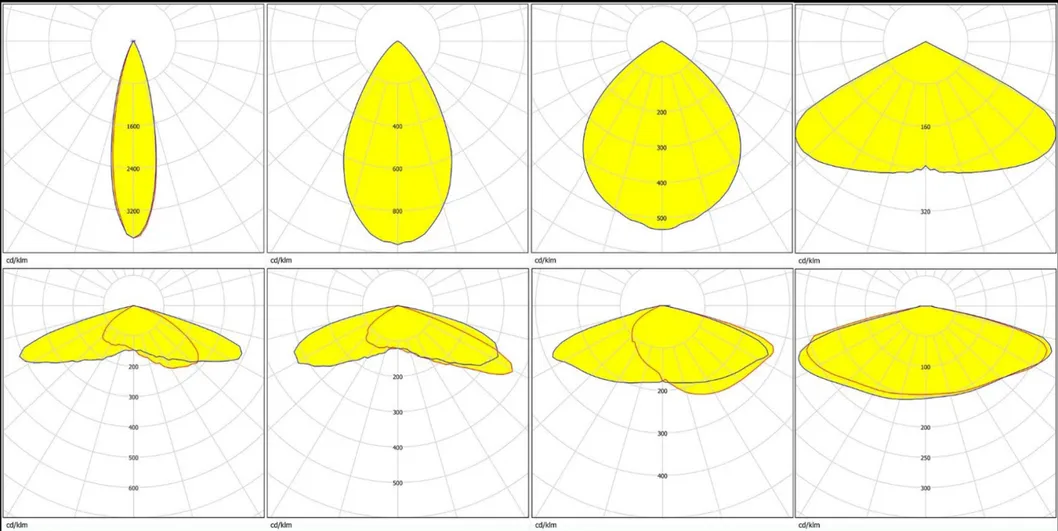

Lighting Simulation & Beam Angles

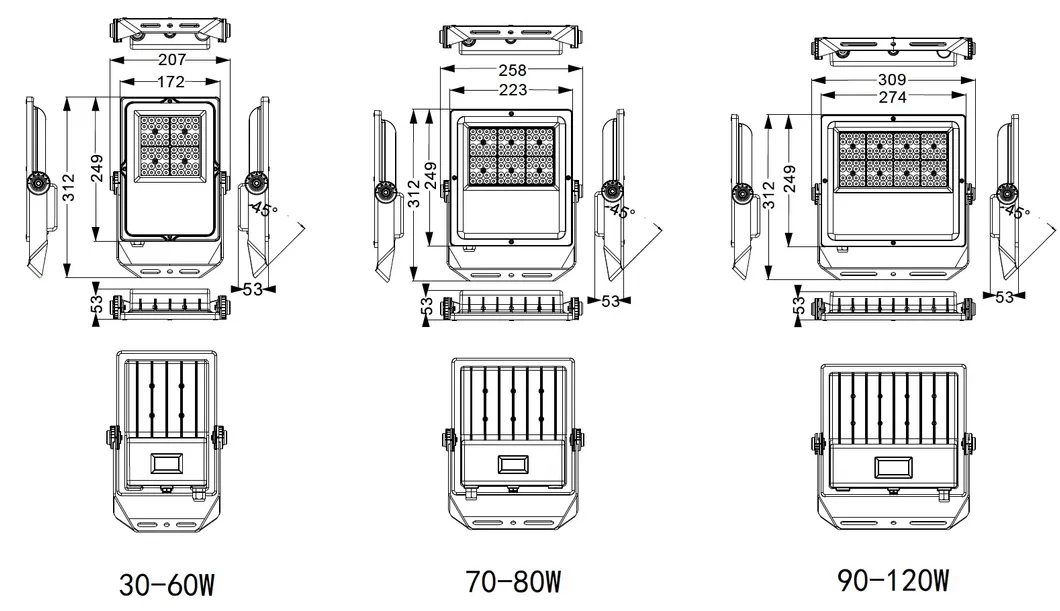

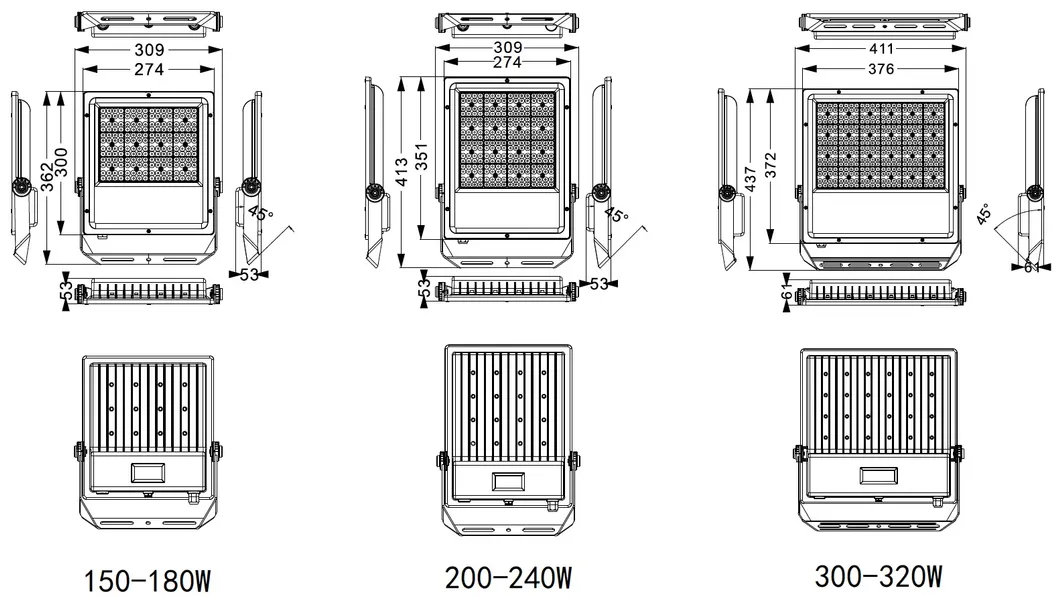

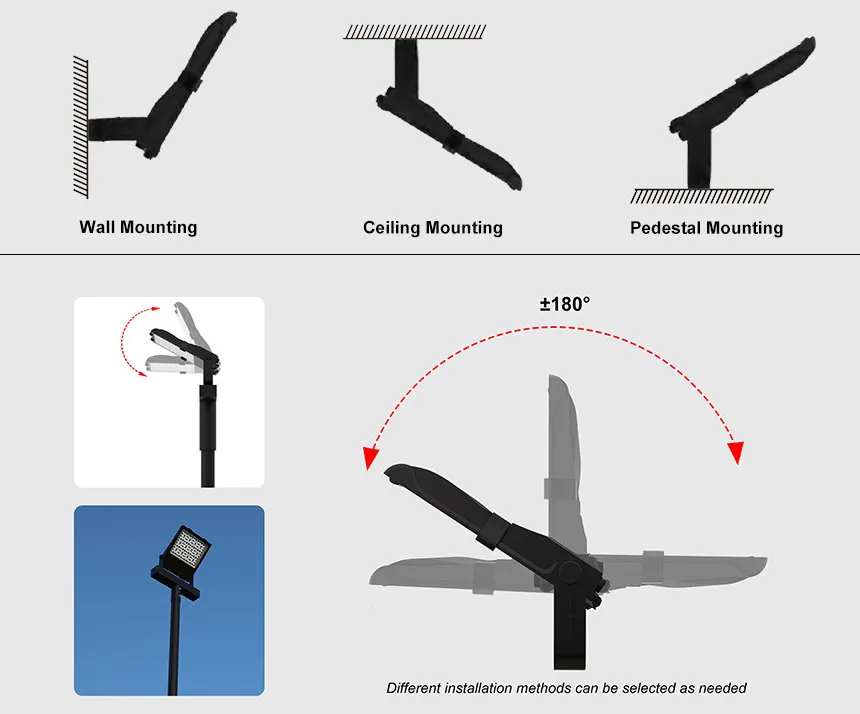

Installation & Dimensions

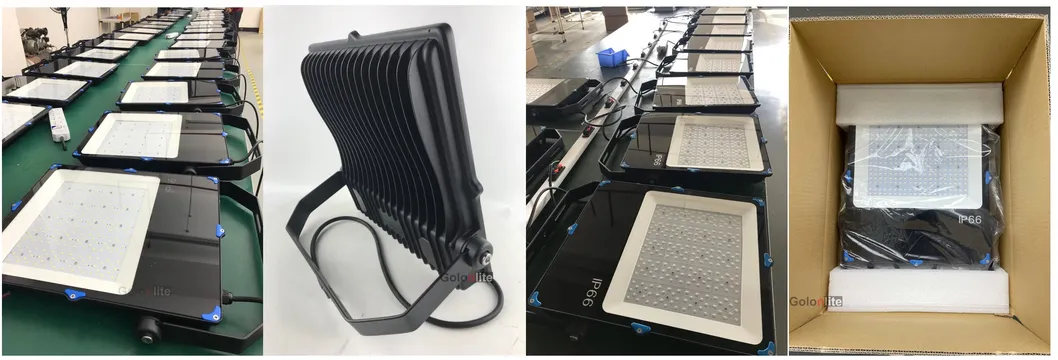

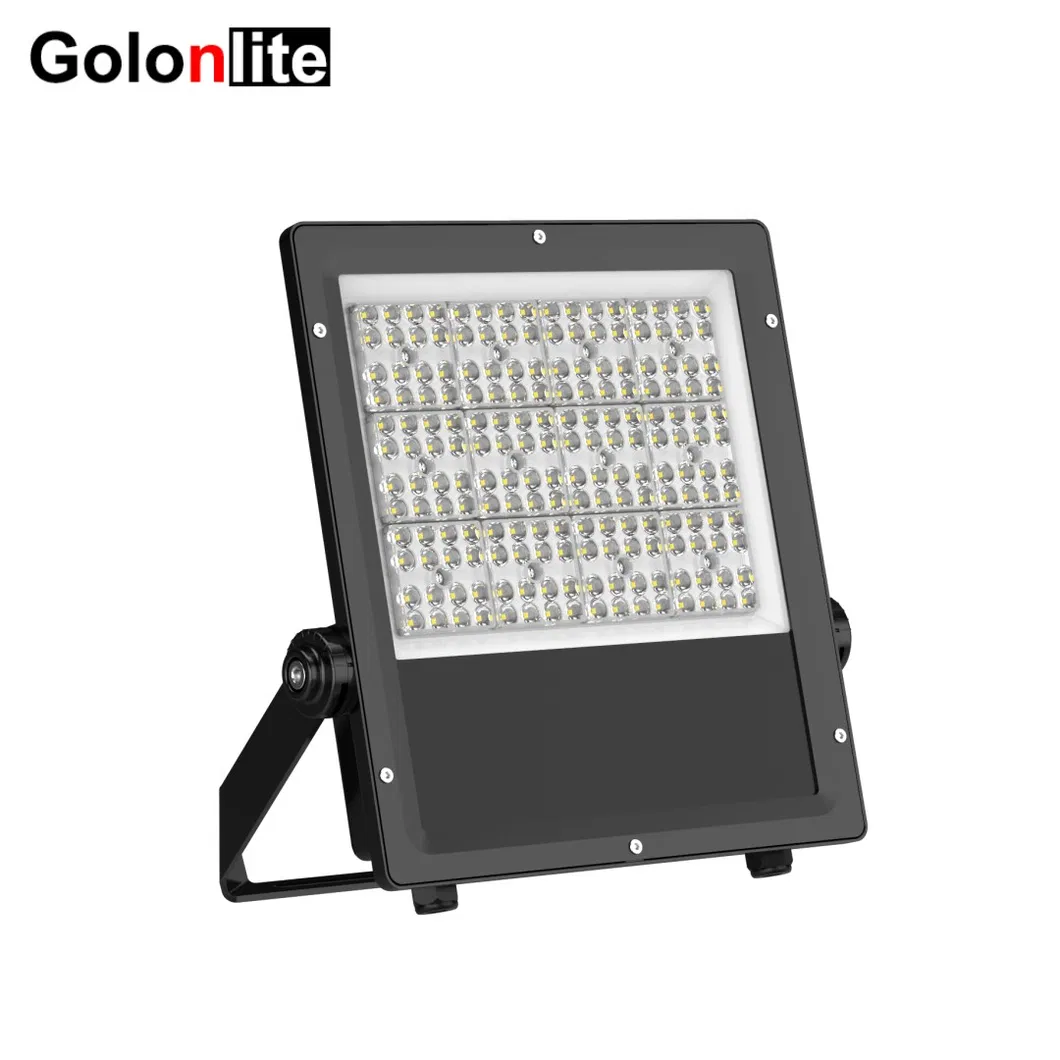

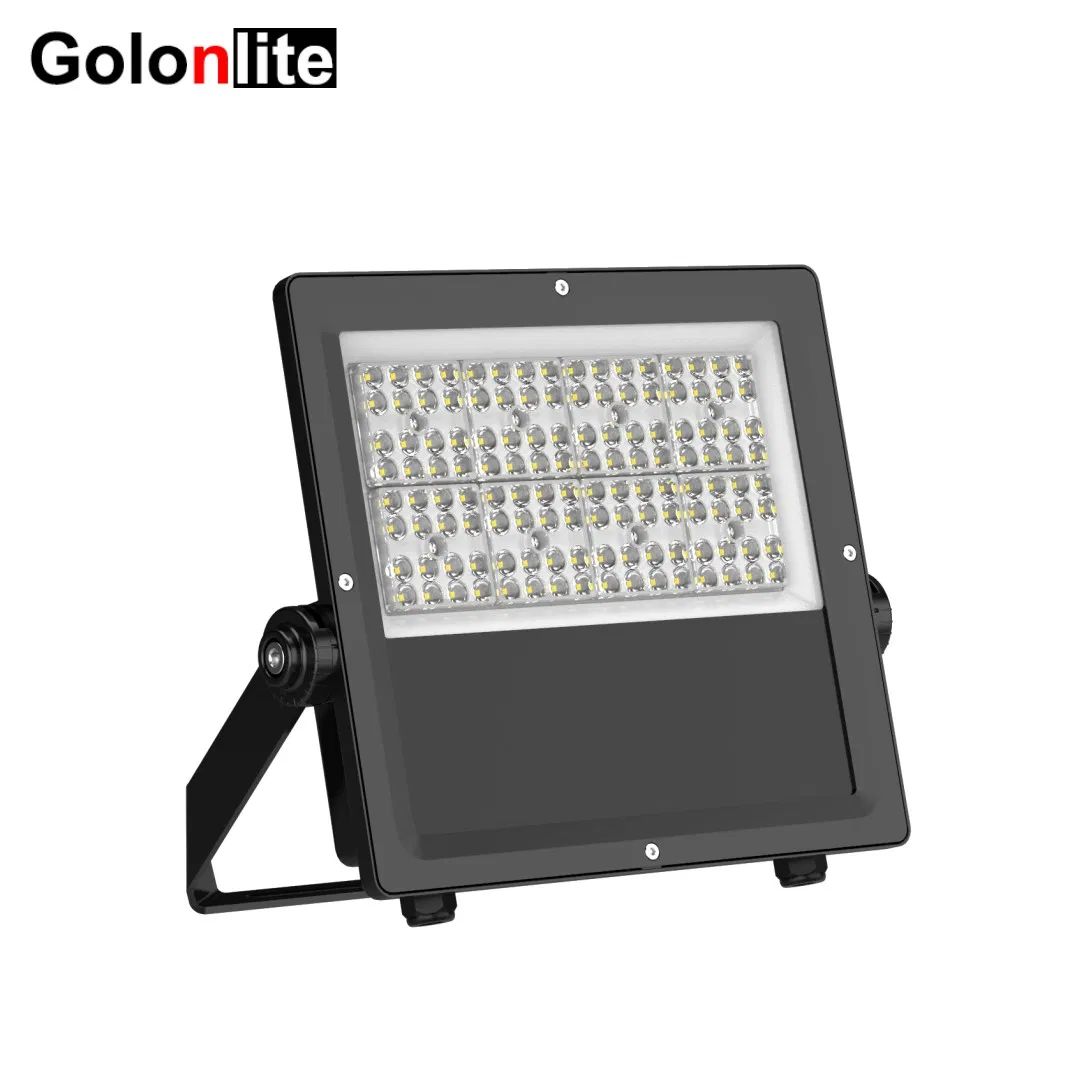

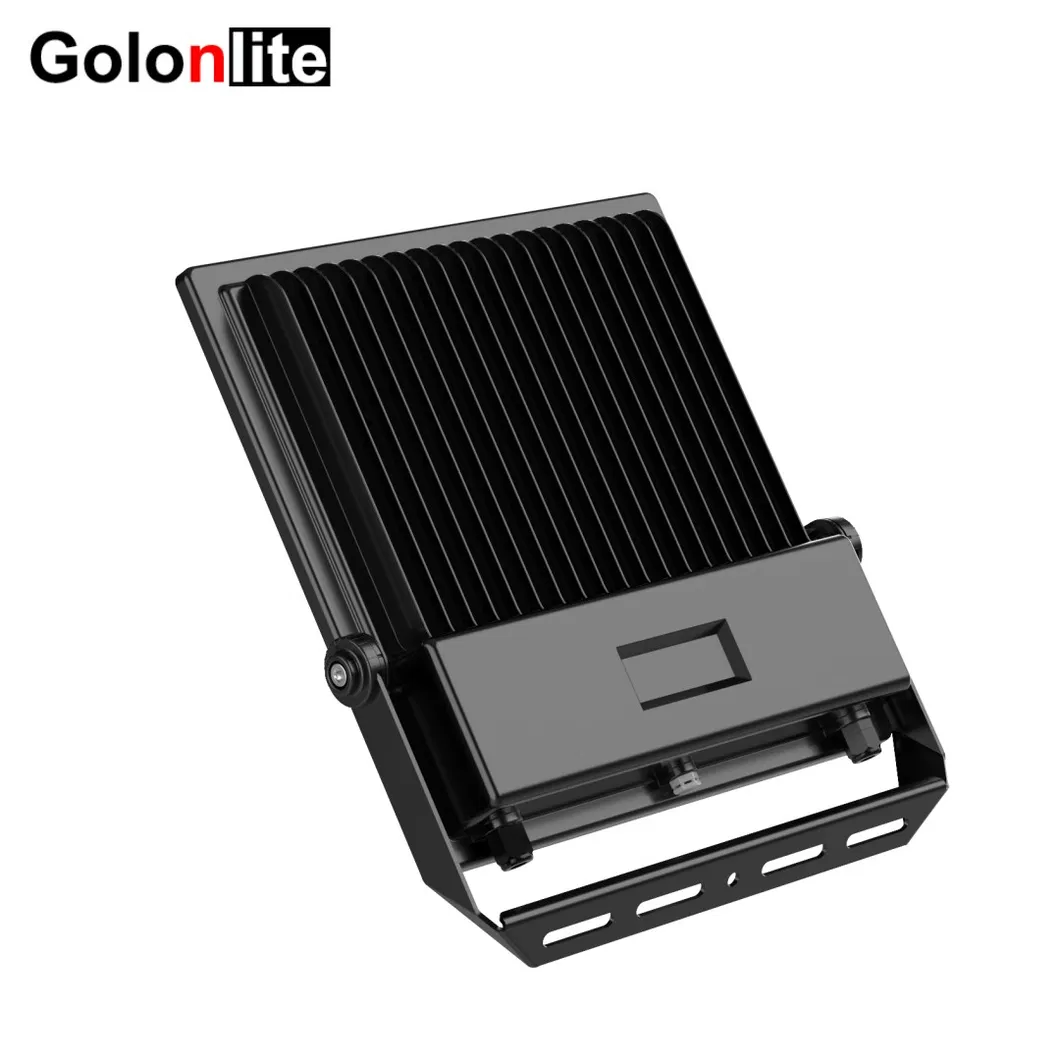

Real Product Images

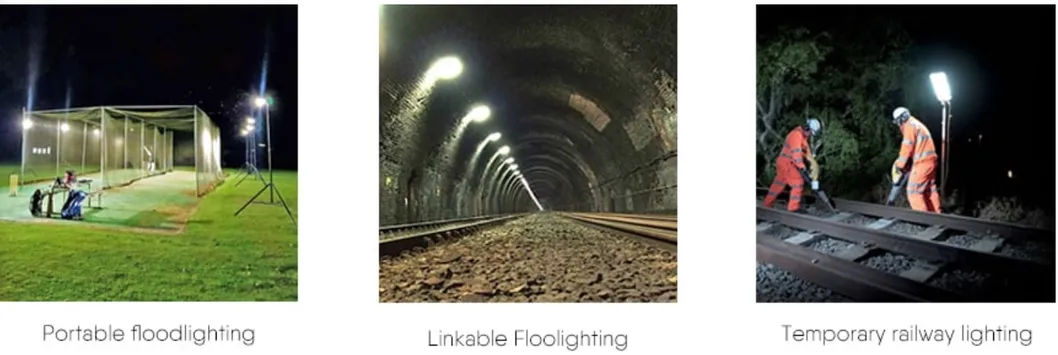

Wide Range of Applications

This high-output LED luminaire is ideal for:

Sports Courts (Tennis, Basketball)

Industrial Parks & Factories

Billboards & Square Lighting

High Mast & Security Zones

Gardens & Public Parks

Frequently Asked Questions (FAQ)

Q1: What is the maximum luminous efficiency of these LED flood lights?

The high-efficiency series can reach up to 180Lm/W, providing superior brightness with minimal energy consumption.

Q2: Are these lights suitable for extreme outdoor weather?

Yes, these fixtures are rated IP66 waterproof and feature a die-casting aluminum body with tempered glass, making them perfect for all outdoor conditions.

Q3: Do you provide support for lighting projects?

Absolutely. We offer free Dialux lighting simulations and studies to help you determine the best layout and wattage for your specific application.

Q4: What dimming options are available?

Our lights support multiple dimming protocols including 1-10V, PWM, Resistance, and DALI dimmable systems.

Q5: What is the warranty period for the LED flood luminaires?

We provide a 5-year professional warranty, ensuring long-term reliability and performance for your investment.

Q6: Can these replace traditional metal halide lamps?

Yes, our LED flood lights (depending on wattage) can effectively replace 1000W to 2500W metal halide, HPS, or HID lamps, saving significant energy costs.
