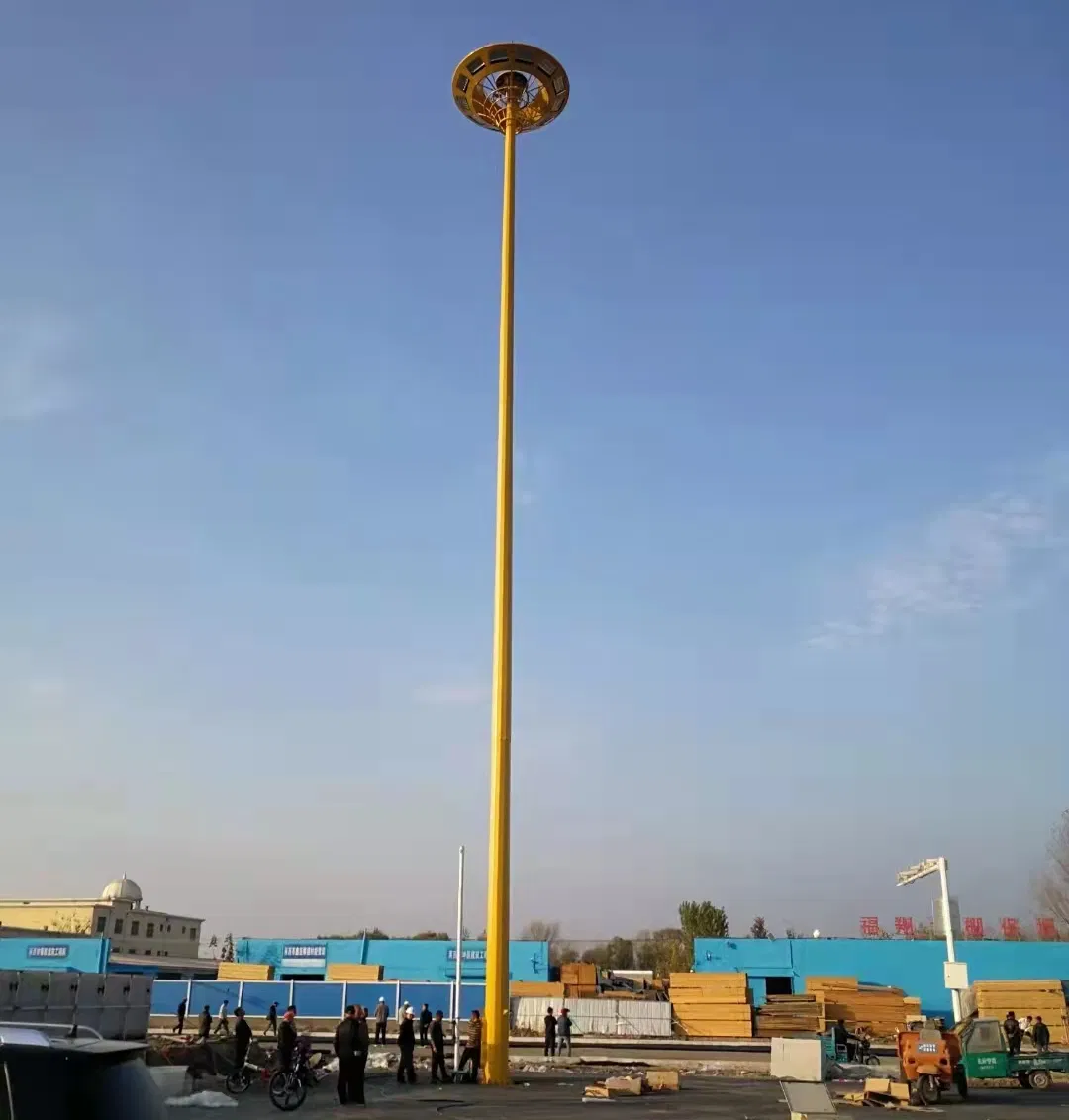

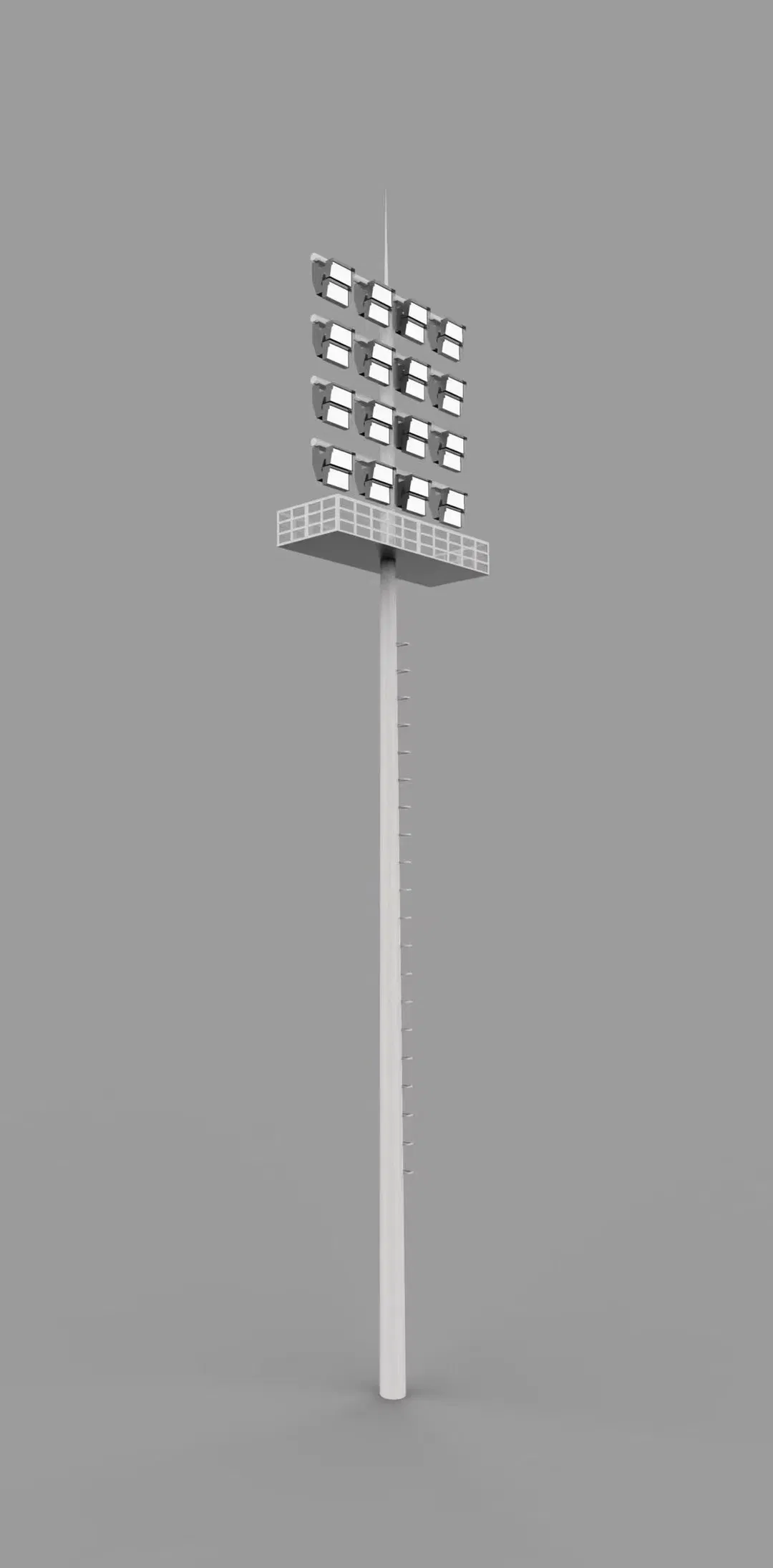

IP66 Waterproof Factory Price 30m Airport High Mast Tower Pole with LED Flood Lightging

1 / 5

IP66 Waterproof Factory Price 30m Airport High Mast Tower Pole with LED Flood Lightging

Customization:	Available
Color Temperature:	White, Warm,or as Per Request
Lamp Body Material:	Aluminum Alloy

Send Inquiry

Product Description

Basic Information

Model NO.

HM12

Pole Height

13-50m

Power

400W or Customized

Projection Distance

80m+

IP Rating

IP66

Certification

CCC, CE, FCC, RoHS

Input Voltage

220V / Local Condition

Wind Resistance

Over 250km/Hour

Surface Treatment

Hot DIP Galvanization

Galvanizing Thick

85um

Material

Q345B/A572, Q235B/A36

Capacity

500set/Month

Product Overview

🛡️

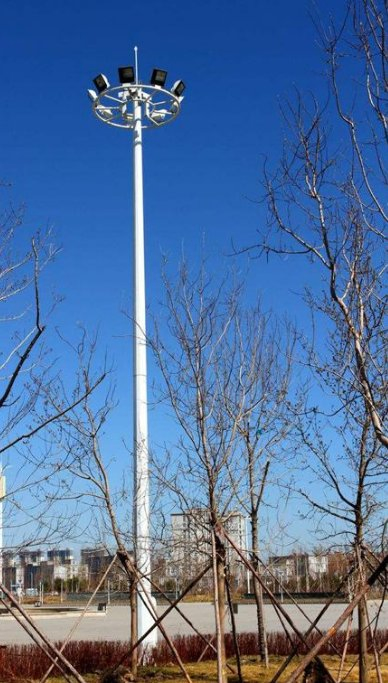

High Mast Lighting Solution: High mast lighting is designed to illuminate large areas from high mounting heights, ensuring safety and visibility for transportation, industrial sites, and pedestrian zones.

🏗️

Structural Design: Features a continuously tapered polygonal cross-section. Constructed from high-strength steel with hot-dip galvanized surfaces for maximum durability against environmental factors.

⚙️

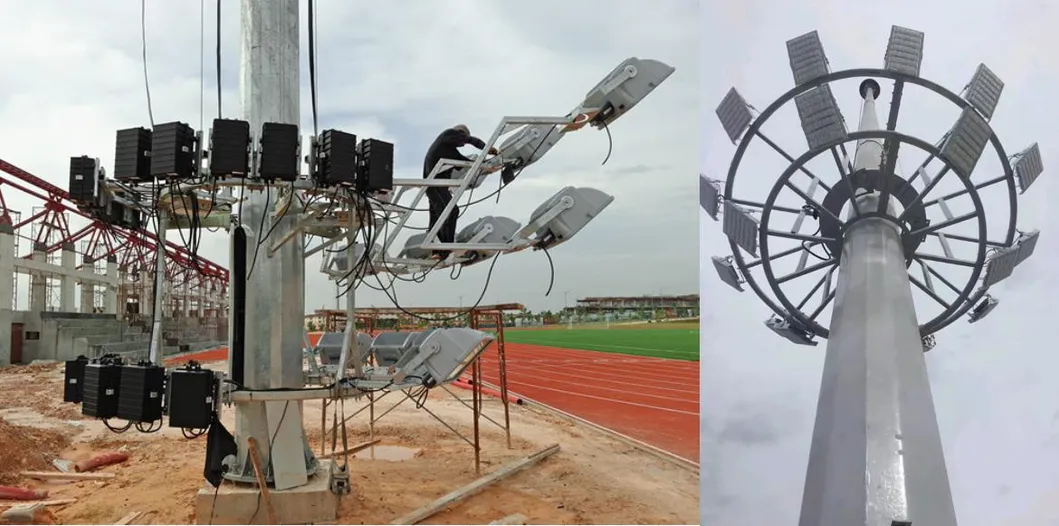

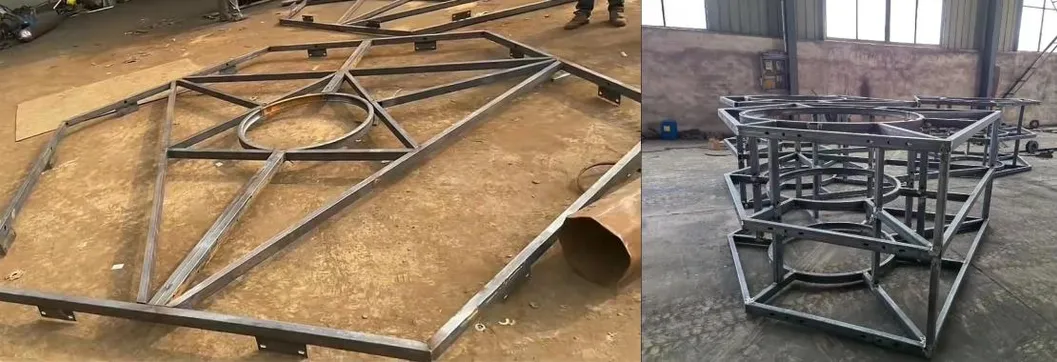

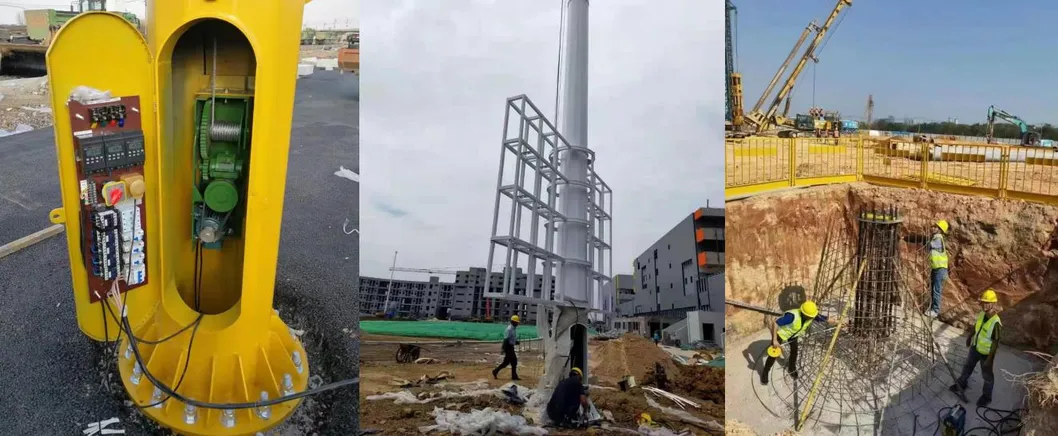

Latching Mechanism: Includes an inner mounting bracket locker and mast-top pulley assembly. Steel cables are internally protected, and the latching system reduces strain on cables when in the operating position.

Technical Specifications

Height	13m - 50m

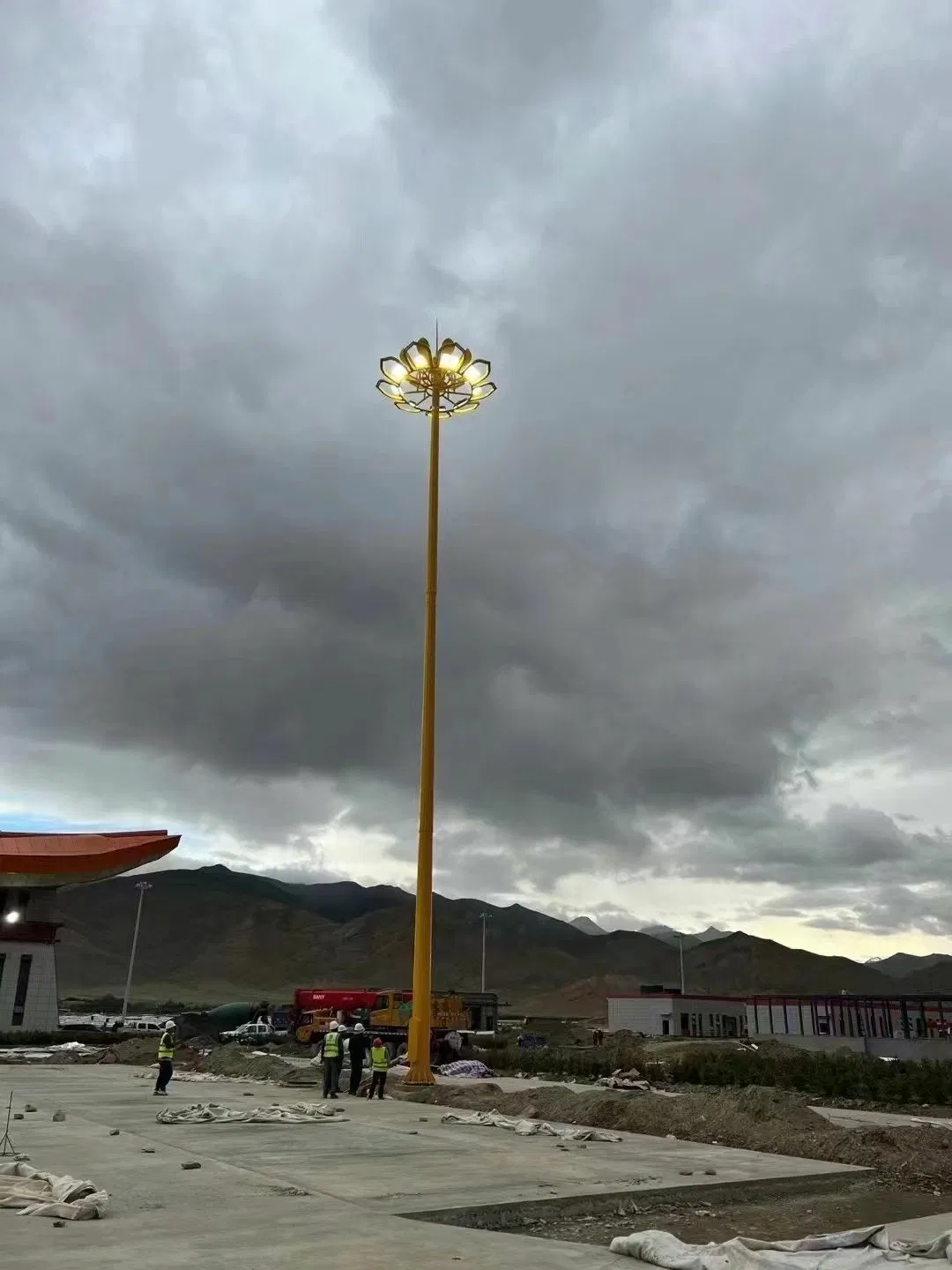

Applications	Highways, airports, ship docks, stadium race courses, industrial sites, and international borders.

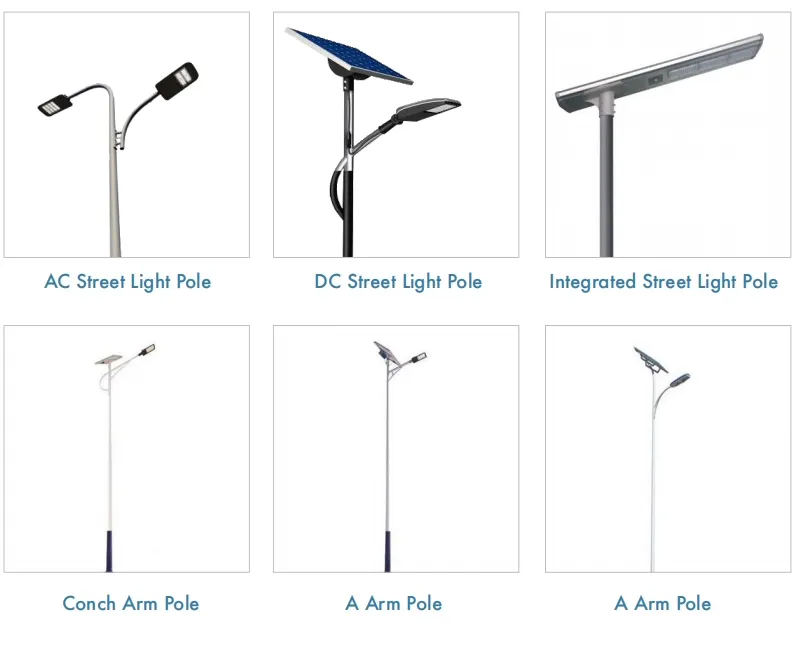

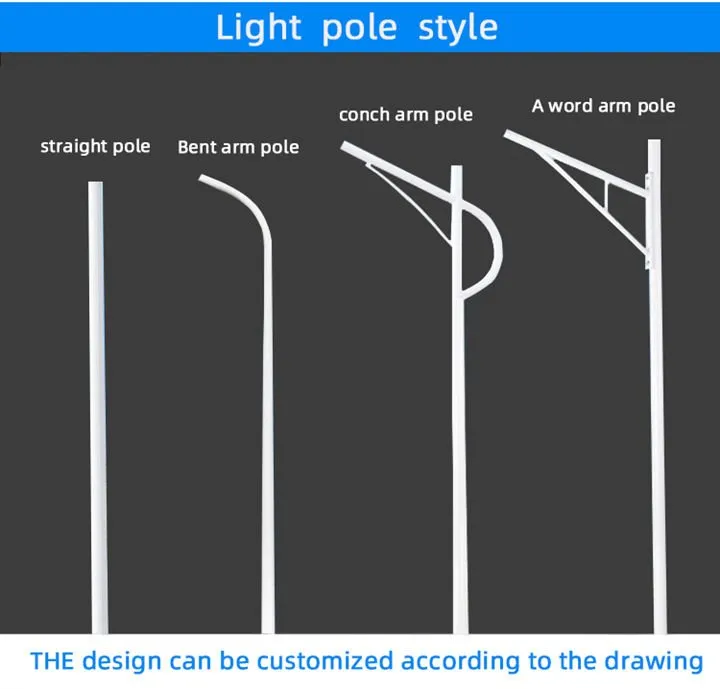

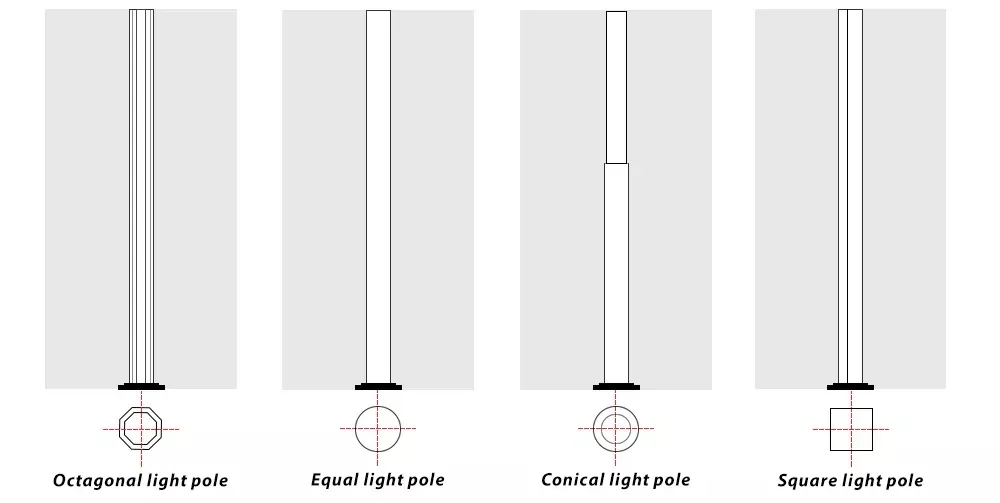

Shape	Conical, Round, Polygonal (8, 12, 16, 18, 20 sided)
Material	Q345B/A572 (Yield strength >=345n/mm2); Q235B/A36 (Yield strength >=235n/mm2)
Surface Treatment	Hot dip galvanization (GB/T 13912-2002 / ASTM A123). Optional powder coating.
Wall Thickness	6mm - 30mm
Welding Standard	Complies with AWS D1.1 standard; CO2 or submerged arc auto methods.
Joint Mode	Insert mode, flange mode, or face-to-face mode.
Life Span	More than 25 years (dependent on environment).

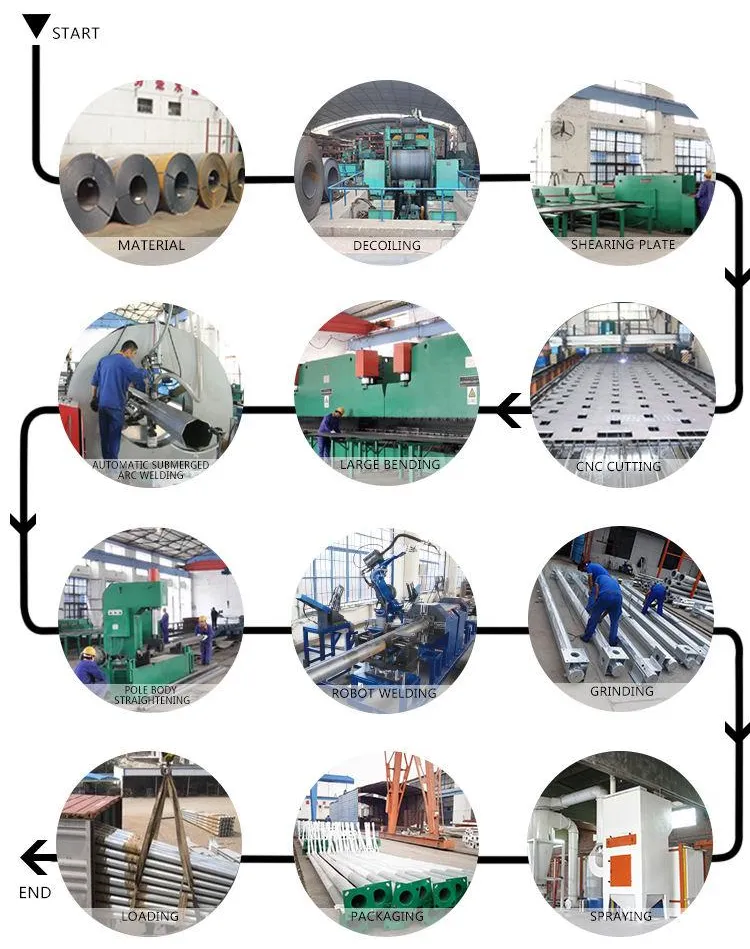

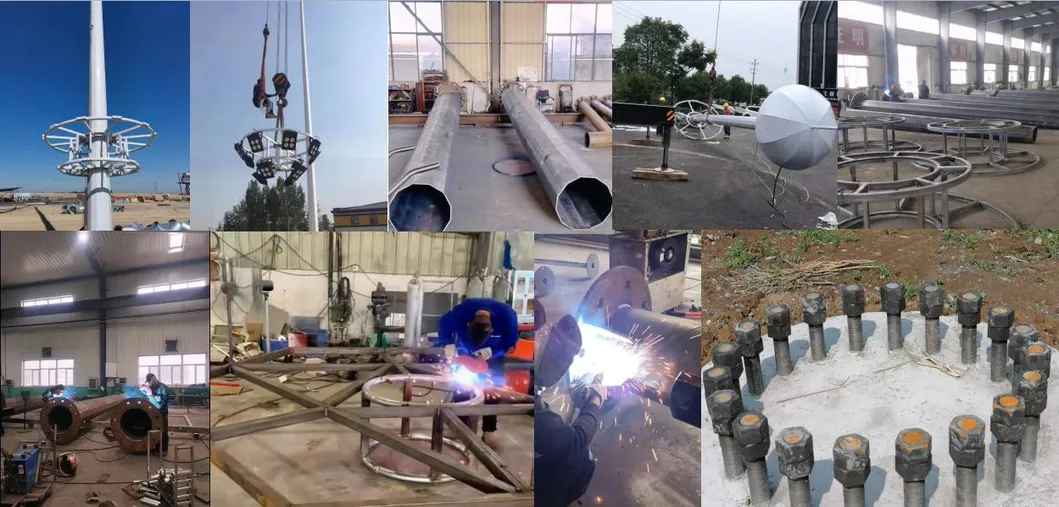

Design & Manufacturing Process

📐

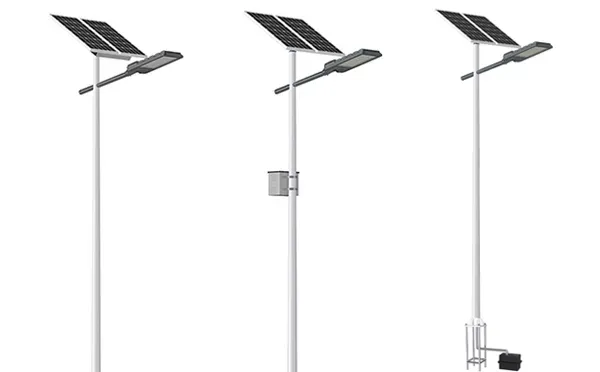

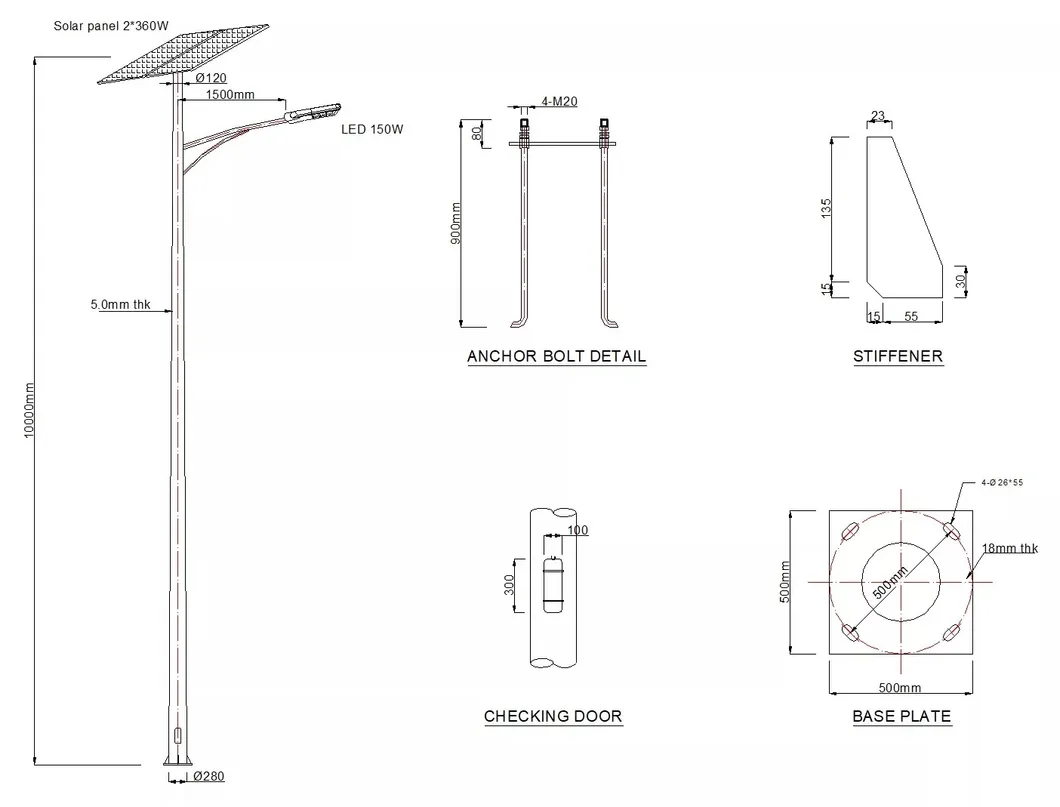

Advanced Design: CAD and 3D design software are utilized to analyze load, tower weight, and wind speeds for optimal safety.

🔥

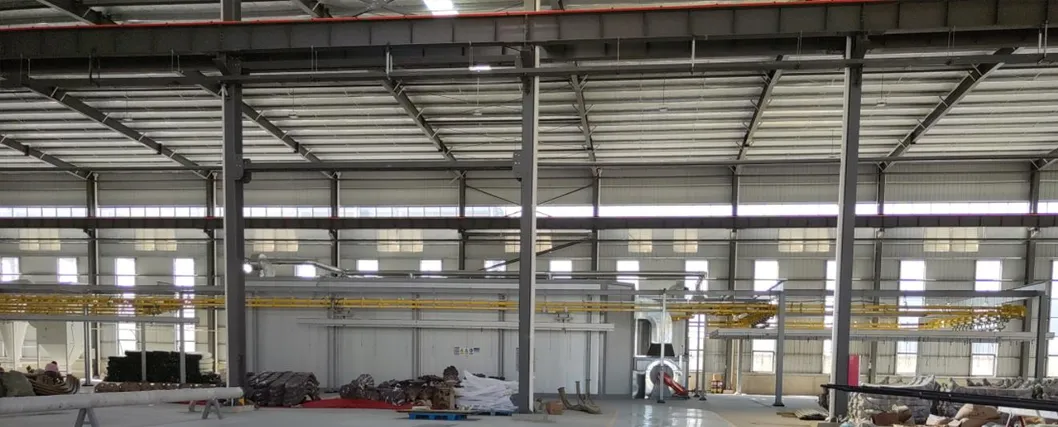

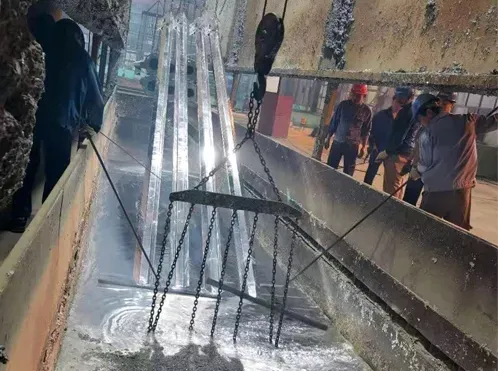

Galvanizing & Coating: Antiseptic treatment with a galvanized layer no less than 86 microns. Powder coating uses high-quality pure polyester for a service life of 20+ years.

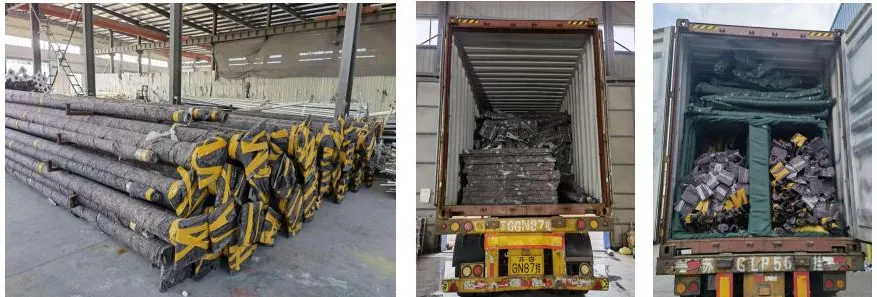

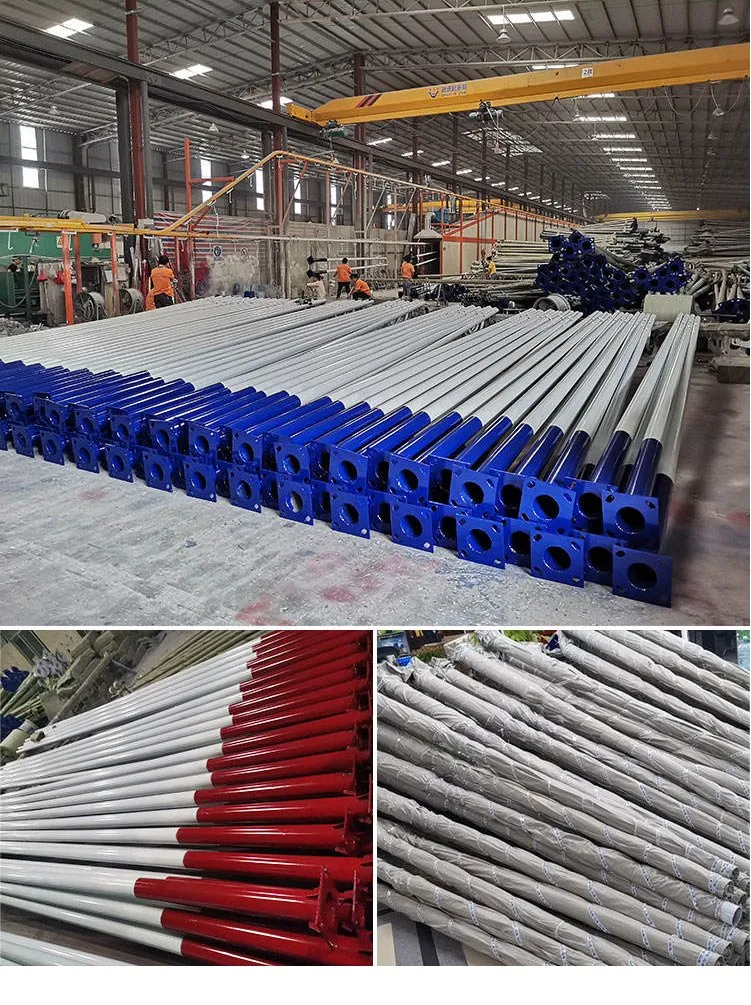

Production & Logistics

Frequently Asked Questions

What is the standard height range for high mast poles?

High mast poles are typically manufactured in heights ranging from 13 meters to 50 meters, depending on the specific illumination requirements of the area.

What materials are used to ensure structural integrity?

We use high-grade steel such as Q345B/A572 and Q235B/A36. The poles feature a continuously tapered polygonal design to provide superior strength against wind and weight.

How are the poles protected against rust and corrosion?

All poles undergo hot-dip galvanization in accordance with ASTM A123 or GB/T 13912-2002 standards, providing a protective layer of at least 86 microns for a lifespan of over 20 years.

Can these towers withstand extreme weather conditions?

Yes, our high mast towers are engineered for wind resistance exceeding 250km/hour, making them suitable for coastal and high-wind environments.

What type of lighting can be mounted on these masts?

They are designed to hold high-power LED floodlights, typically ranging from 400W to 700W, mounted on a specialized carriage that can be raised or lowered for maintenance.

What welding standards are followed during production?

All welding complies with the AWS D1.1 international standard, utilizing CO2 welding or submerged arc automatic methods to ensure no defects like fissures or overlaps.
