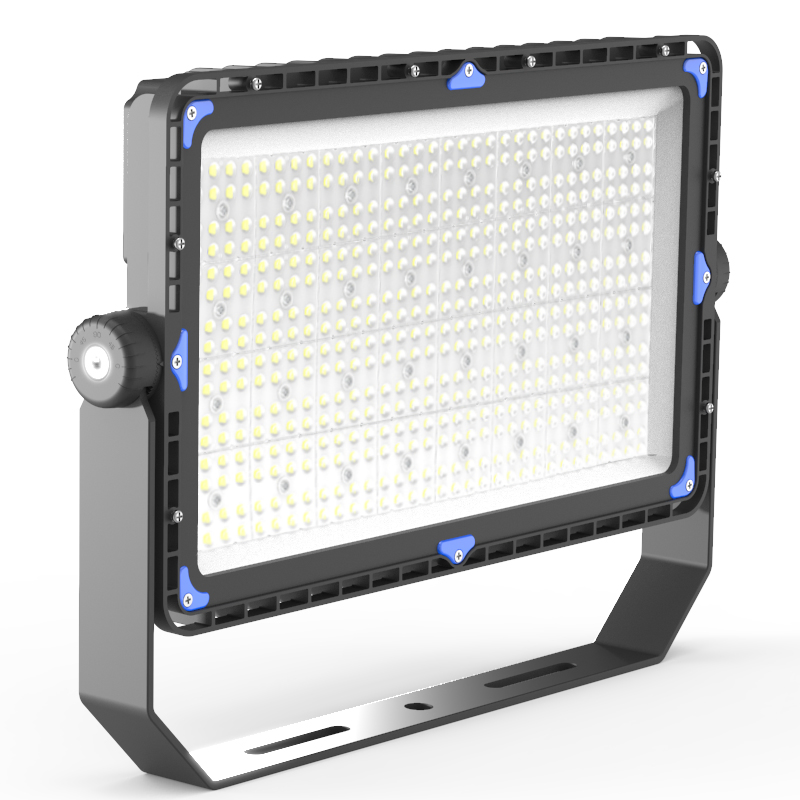

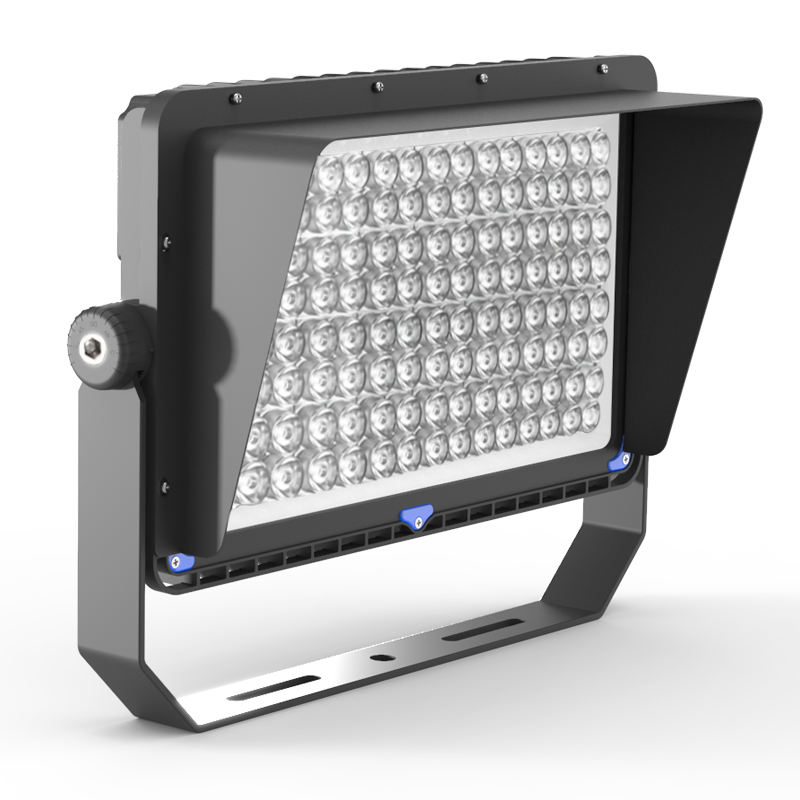

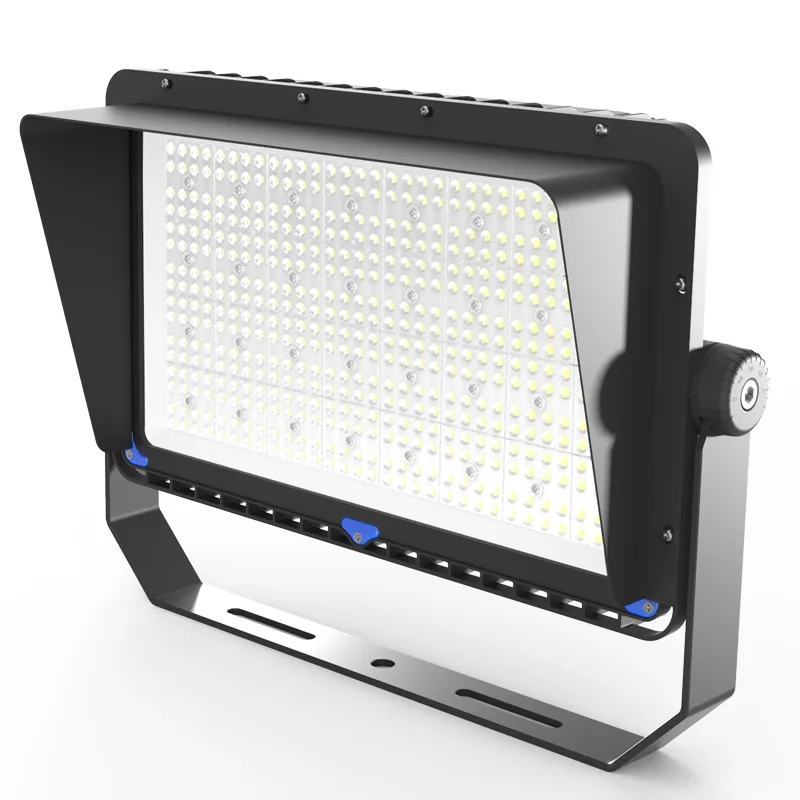

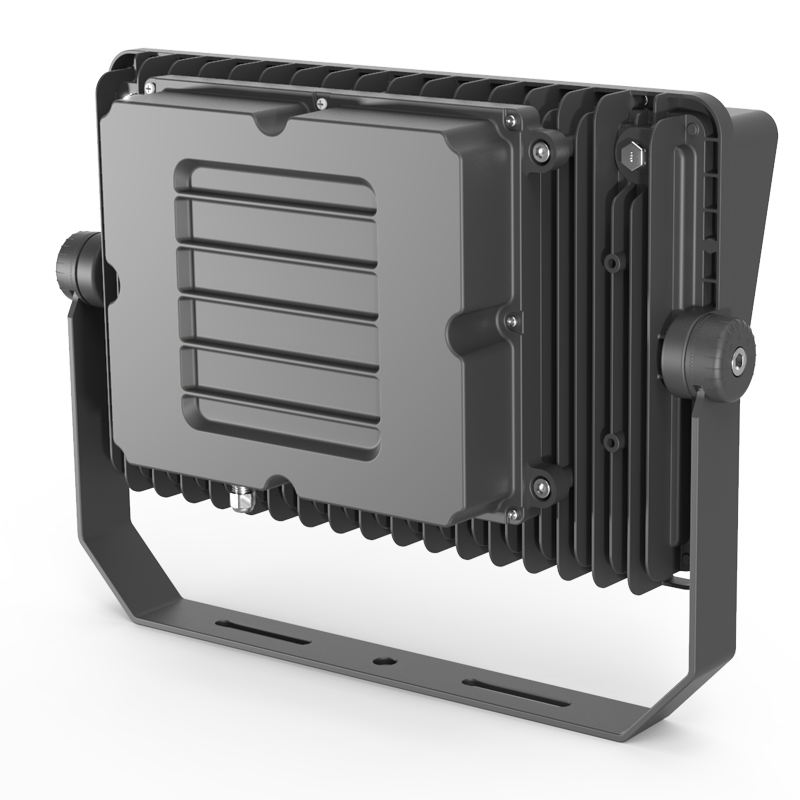

IP66 150lm/W Asymmetric Angle 400W LED Outdoor Stadium Football Field Lighting Flood High Mast Luminaire

i

Basic Specifications

Model NO.

QH-FLHS-400W

Power

400W

Projection Distance

>35m

Application

Park, Square, Factory, Garden

IP Rating

IP66

Certification

CE, EMC, ETL, FCC, LVD, RoHS, SAA, VDE

Operating Voltage

110-240V

LED Chips Brand

CREE

Warranty

5 Years

Driver

Meanwell or Inventronics

Item Name

Waterproof 400W LED Flood Light

Power Factor

PF>0.97

Emitting Color

Warm/Pure/Cool White

Replacement

2500W Metal Halide

Body Material

Die-Casting Aluminum

View Angle

10 / 20 / 40 / 60 Degree

★

Product Description

IP66 150LM/W Asymmetric angle 400W LED outdoor stadium football field lighting flood high mast luminaire

Key Features:

IP66 rated LED flood light for superior weather protection.
Rotatable modules offering maximum customisation for specific lighting needs.

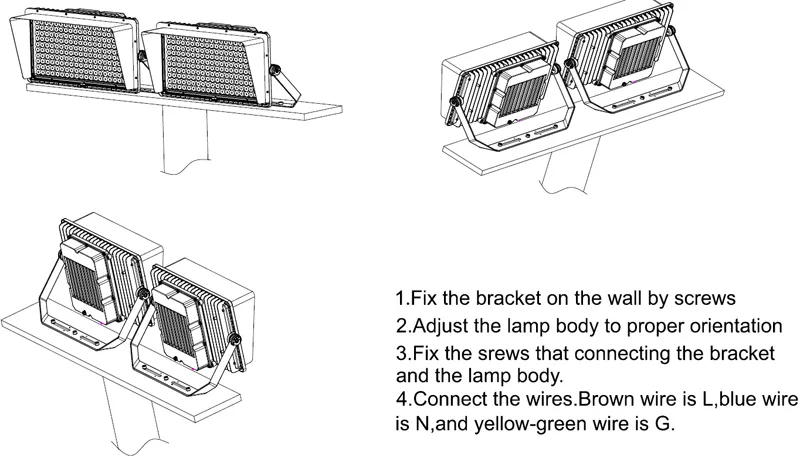

Heavy duty stirrup mounting bracket for secure installation.
Multiple optics available: 10° / 20° / 40° / 60° beam angles.
Illumination equivalent to 250W-5000W metal halide fixtures.
Instant-on, flicker-free cold start with industry-leading 150Lm/W efficiency.
50,000-hour operating life for maintenance-free operation.
Unique heat extraction design extending component and fixture life.
Lightweight design for easy retrofitting of existing HID installations.

T

Technical Datasheet

Model	QH-FLHS-250W	QH-FLHS-500W	QH-FLHS-750W	QH-FLHS-1000W
Power	250W	500W	750W	1000W
Luminous Flux	150-160LM/Watt
LED Source	5050 SMD
LED Qty	96pcs	192pcs	288pcs	384pcs
Input Voltage	90-305V AC 50/60Hz
CCT	3000K, 4000K, 5000K, 6500K (Max 20000K)
CRI	CRI > 80

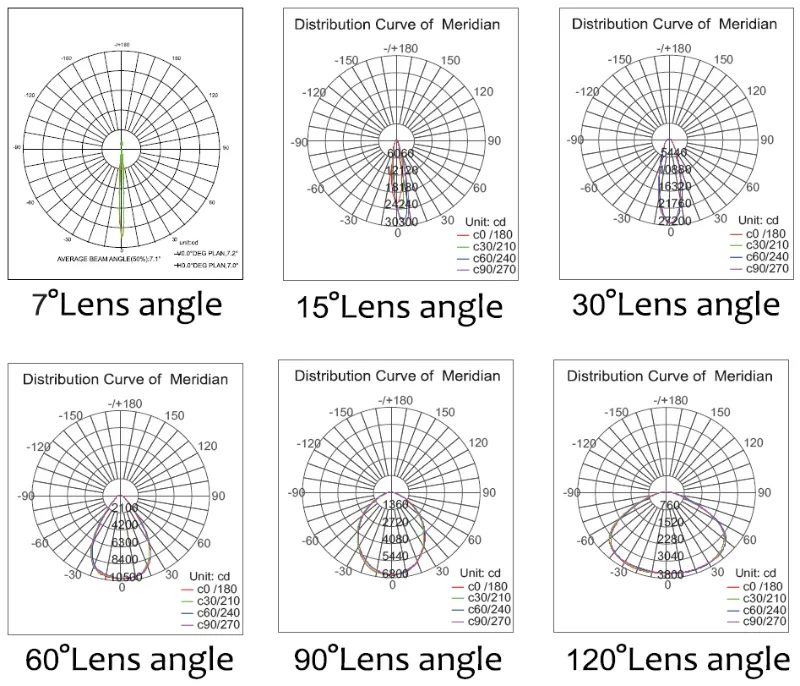

Beam Angle	10° / 20° / 40° / 60°
Working Life	>50,000 hours
Body Material	Die-casting aluminum housing
Gross Weight	6.5Kg/pcs	14Kg/pcs	18.4Kg/pcs	22Kg/pcs

⚓

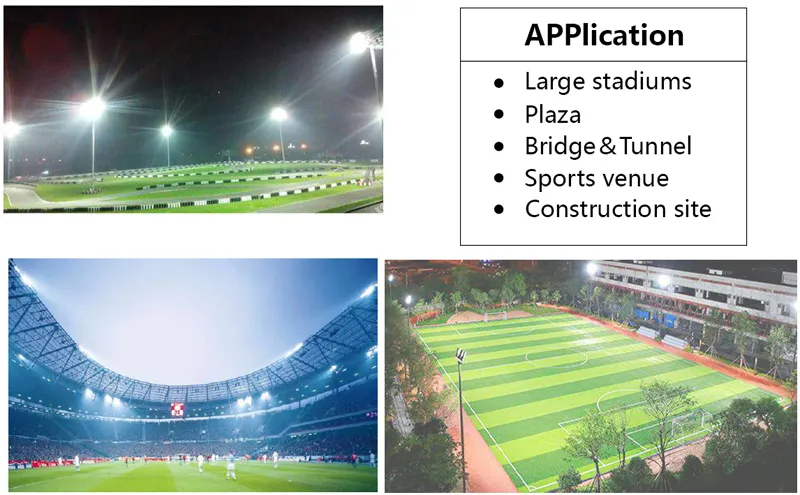

Applications

Wide range of applications including: Square, Park, Port, Airport, Shipyard, Container Wharf, Golf Course, Football Field, etc.

?

Frequently Asked Questions

Q1: What is the luminous efficiency of these flood lights? A: These lights provide industry-leading efficiency of 150-160LM/Watt.

Q2: Can we customize the beam angle for specific stadium needs? A: Yes, you can choose from 10°, 20°, 40°, or 60° beam angles to suit your project requirements.

Q3: What certifications do these products carry? A: Our products have gained CE, UL, DLC, ROHS, FCC, and ISO9001 authentications.

Q4: How long is the warranty period and expected lifespan? A: We provide a 5-year warranty, and the fixtures have an operating life of over 50,000 hours.

Q5: Are these lights suitable for coastal or harsh environments? A: Yes, they are IP66 rated and made of die-casting aluminum housing, suitable for temperatures from -40ºC to +90ºC.

Q6: What payment terms are accepted? A: We accept T/T, L/C at sight, and Western Union.
