Product Description

📋 Basic Info.

Model NO.

MF-SP5-P80W

Body Material

Aluminum

Power

20W-120W Optional

IP Rating

IP66

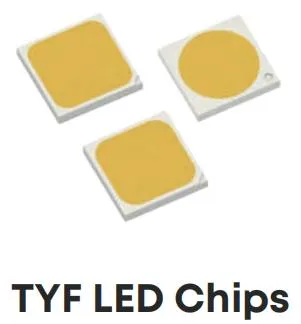

LED Chips

OS-RAM / 3030 / 5050

Battery

LiFePO4 32700

Charging Time

6-7 Hours

Lumen Efficiency

210lm/W

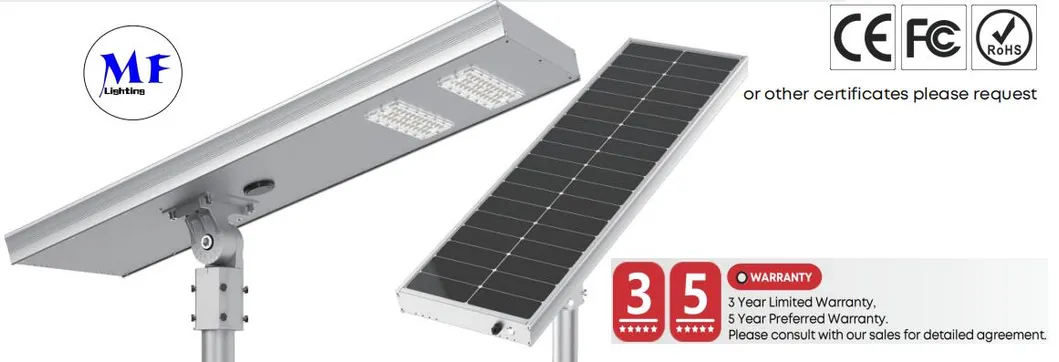

Certification

CE, RoHS, FCC, SAA, ETL

Warranty

2-3 Years

💡 Product Description

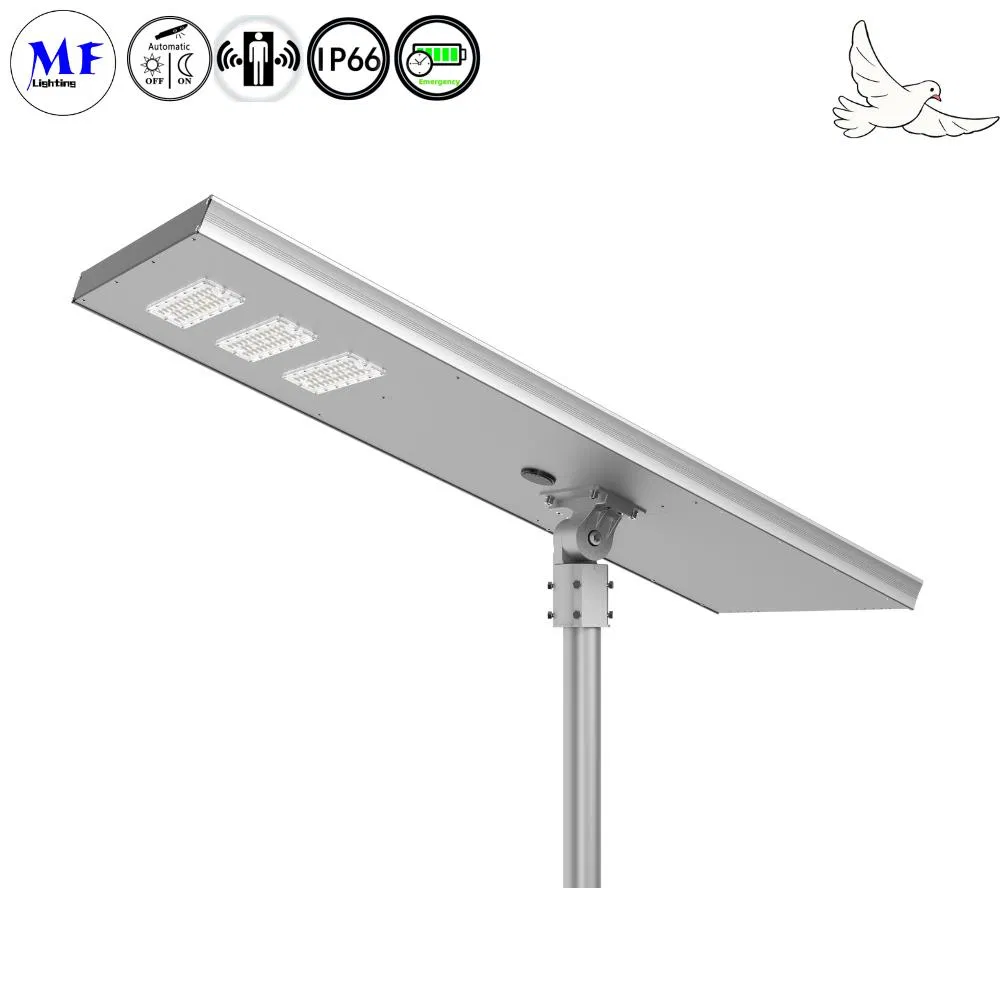

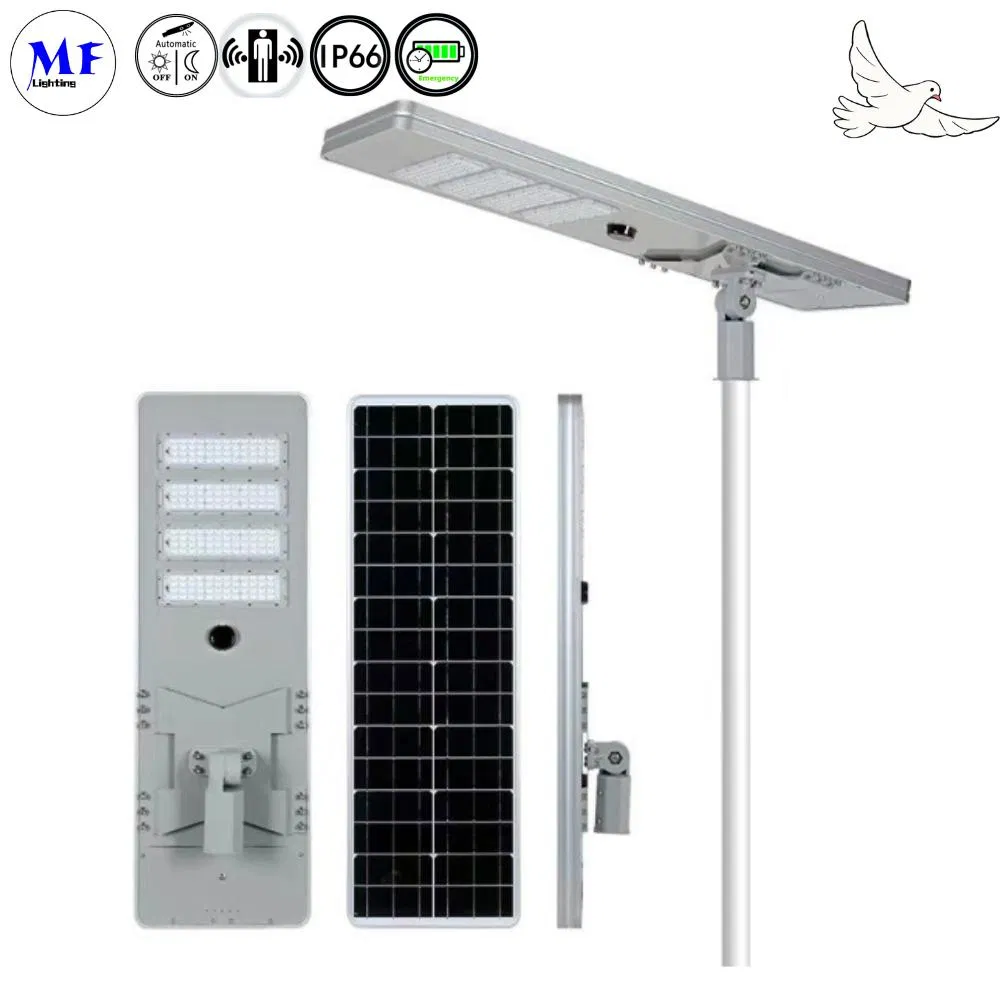

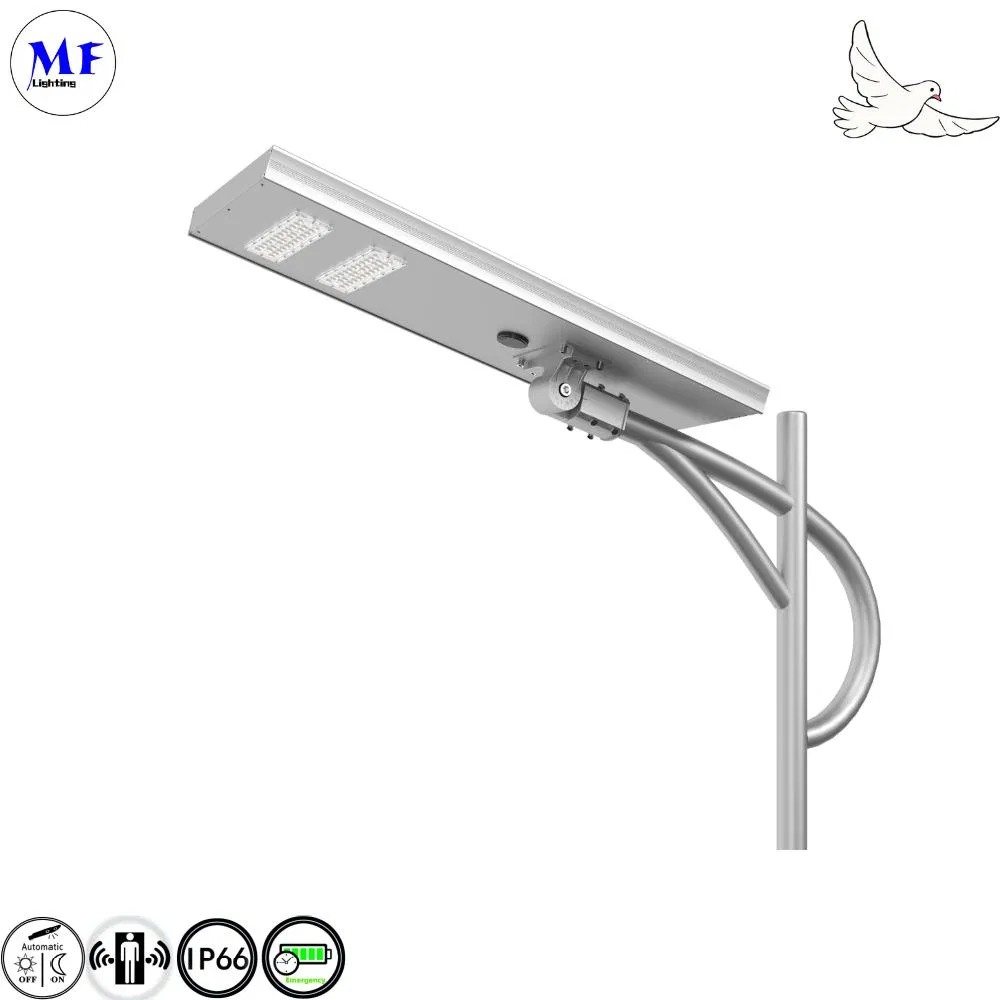

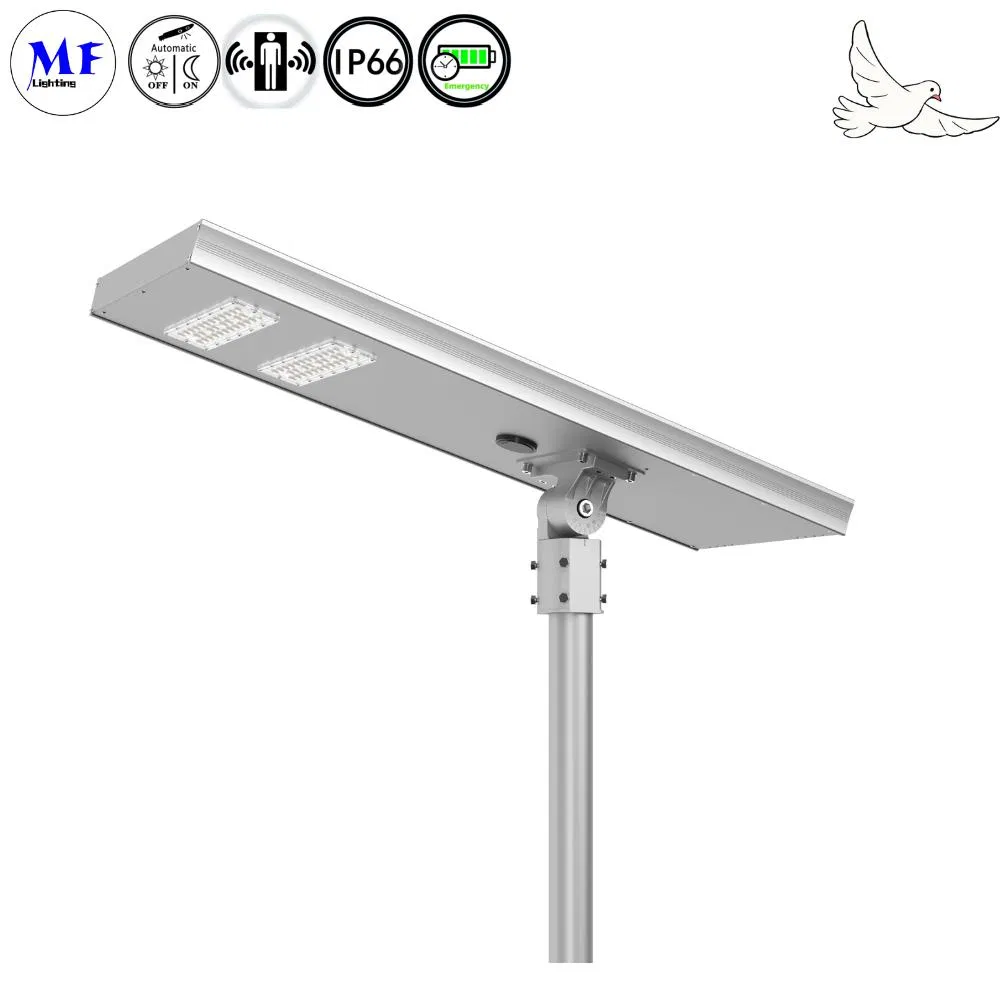

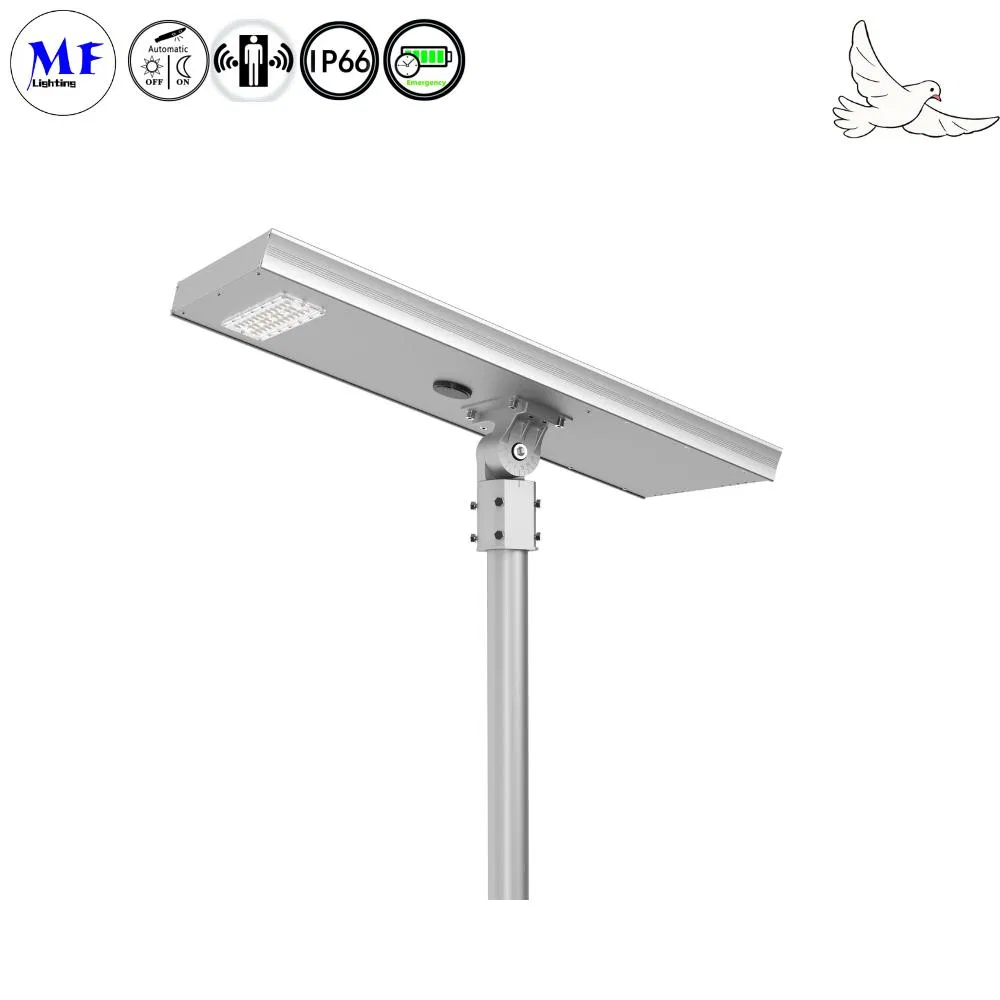

Typical IOT Networking IP67 Waterproof Outdoor LED Light Solar Street Lamp

✔ 200+ Patent Certificates

✔ $1,000,000+ Annual Energy Saving

✔ 10,000+ Projects Successfully Installed

➠ Power range: from 40W to 120W

➠ Built-in/external grid complementary power supply

➠ IP67 waterproof connectors for easy assembly

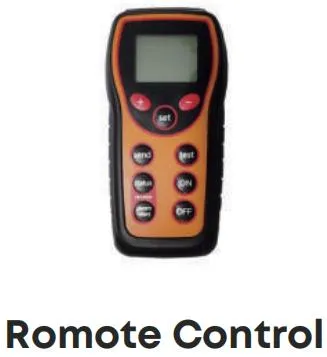

Key Components

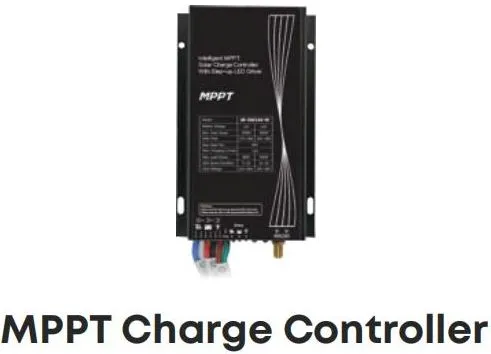

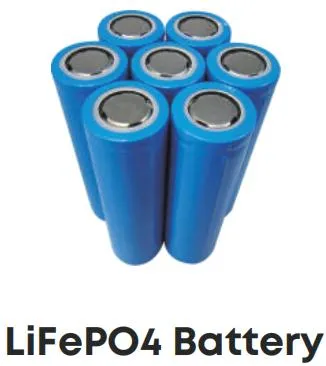

The light fixture includes a high-capacity LifePO4 battery pack, offering over 10 years of maintenance-free use. All street lights use the MPPT solar controller, boosting charging efficiency by 30% compared to PWM.

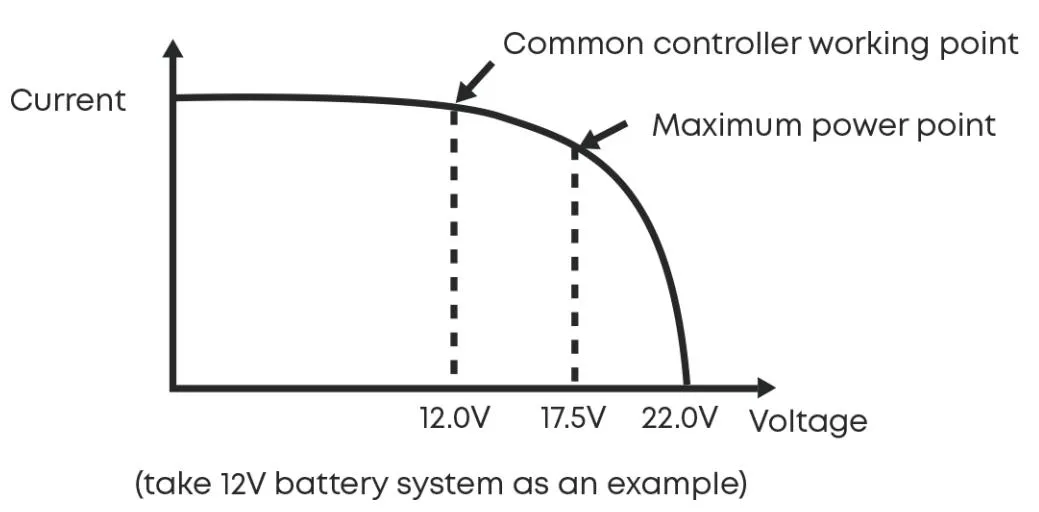

⚡ Controller Advantages

◉ Moving Track MPPT technology improves efficiency by >20%

◉ UltraGreen power control with extremely low static consumption

◉ 10 time-periods programmable load power control

◉ Multiple protection: Reverse connection, short circuit, open circuit

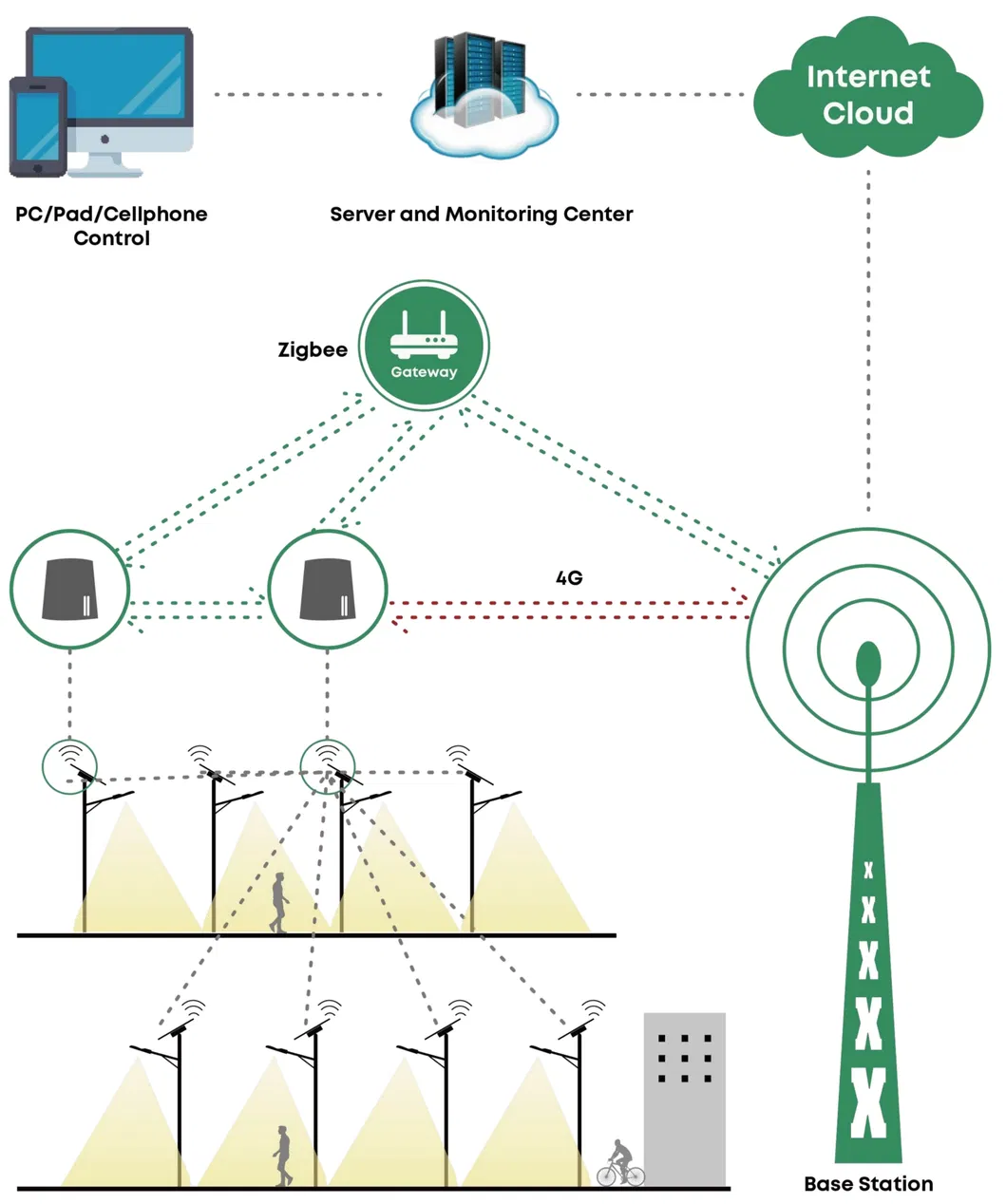

◉ Extensible IoT remote communication monitoring

📊 Specifications

Electrical & Photometric Data
Model	P30W	P40W	P50W	P60W	P80W	P100W
Luminous Flux	6300lm	8000lm	10500lm	12600lm	16000lm	21000lm
Efficacy	200-210 lm/W
Solar Panel	18V 50W	18V 60W	18V 70W	18V 80W	18V 100W	36V 120W
Li-ion Battery	230.4WH	370.2WH	384WH	460.8WH	614.4WH	768WH
IP Rating	IP65 / IP67

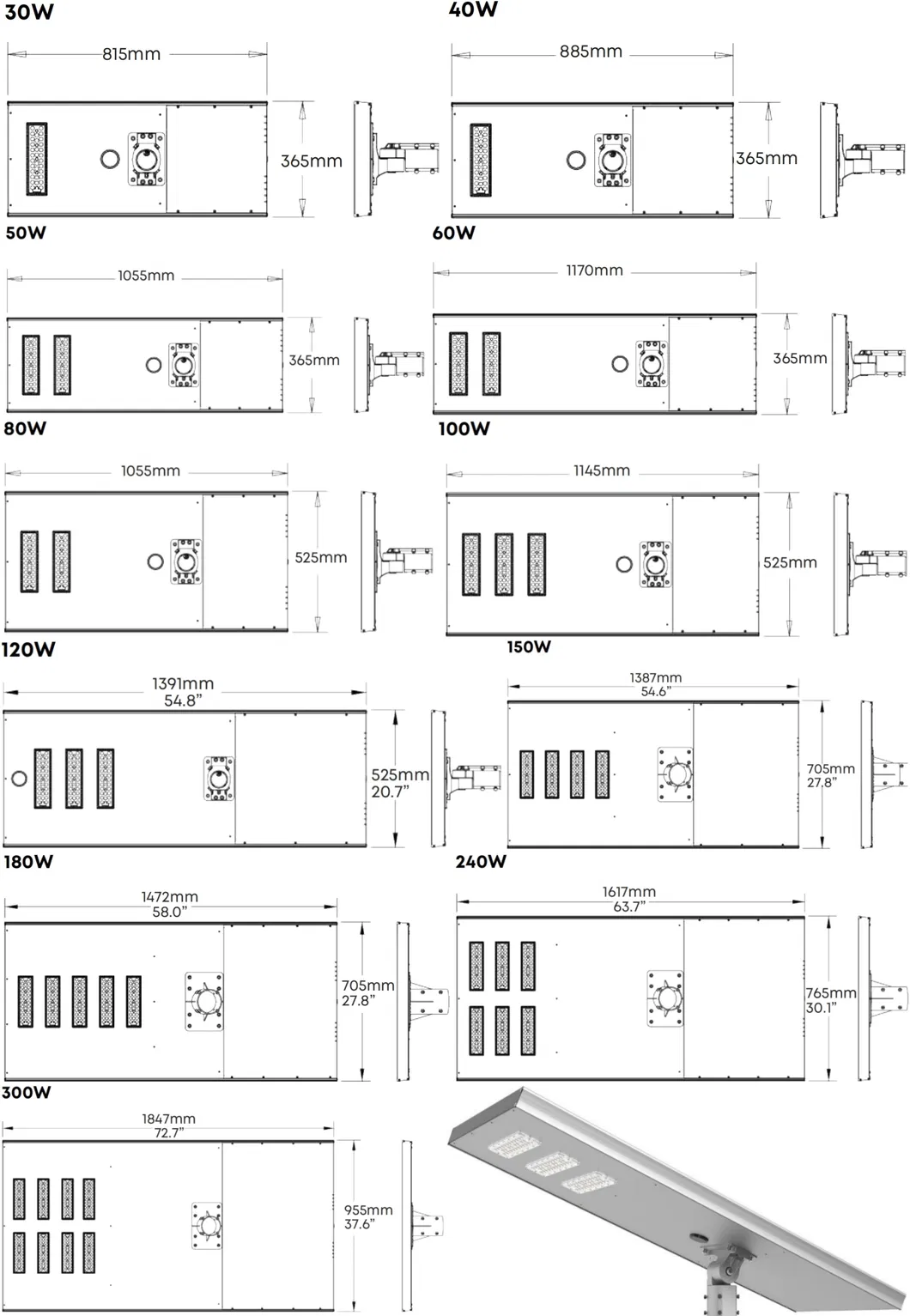

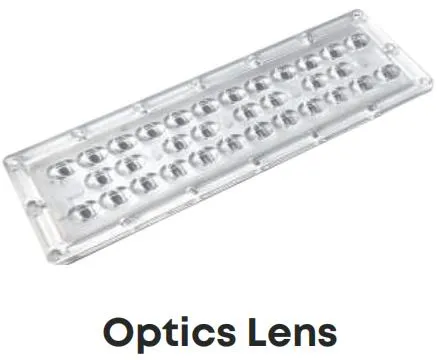

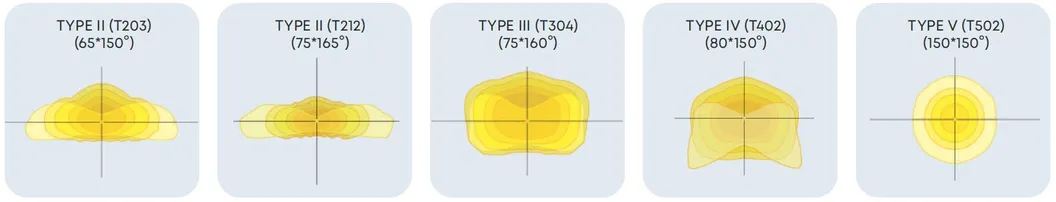

📏 Dimensions & Optics

🌉 Applications

📦 Road & street lighting

📦 Residential area lighting

📦 Garden & parks

📦 Parking lot lighting

📦 Industrial & commercial parks

📦 Railway & stations

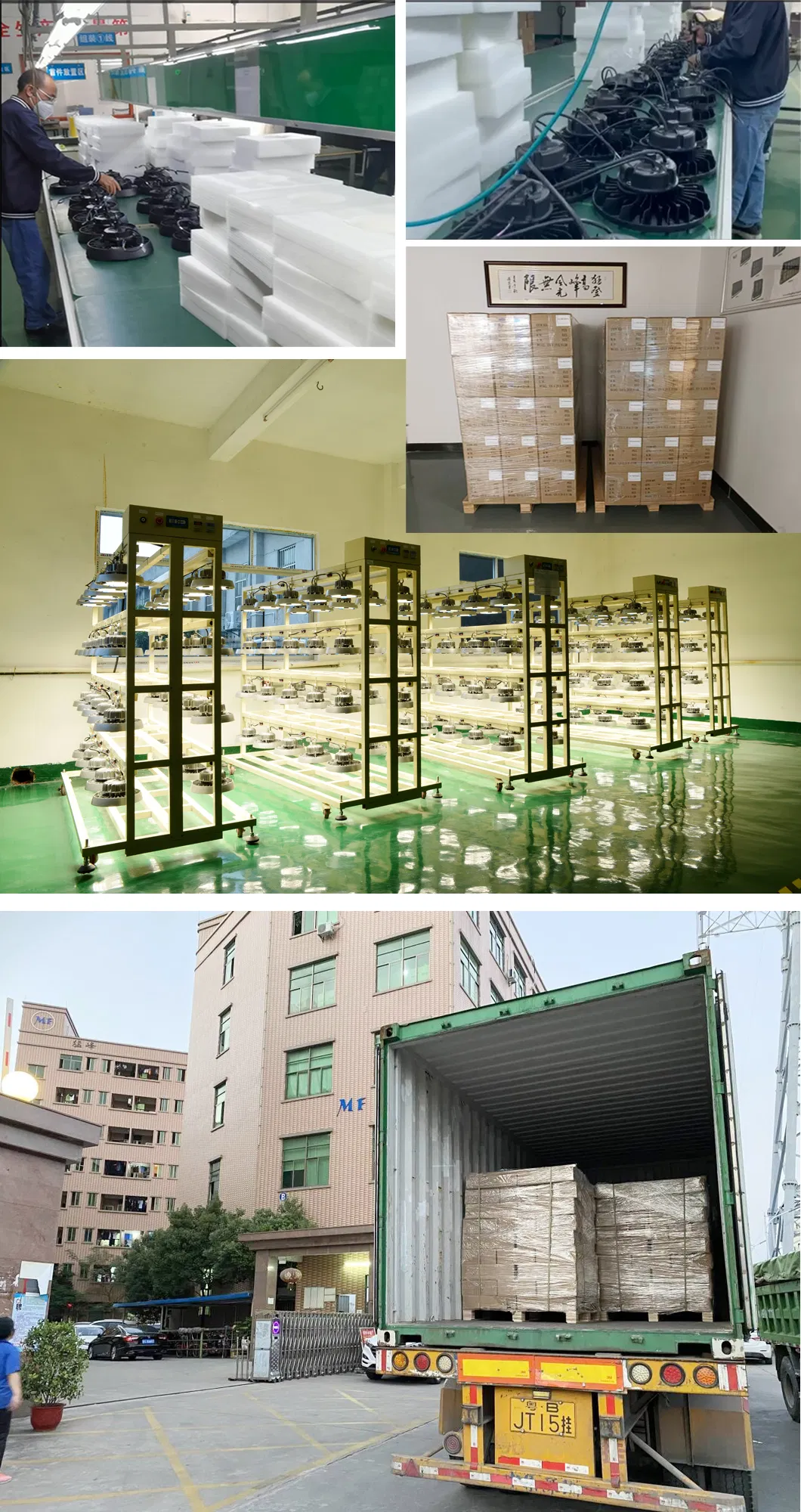

🏭 Manufacturer Overview

A leading LED lighting manufacturer with a dedicated factory. Specialized in the design, production, and distribution of high-quality LED products. With years of experience, our professional team provides top-tier technology and services, ensuring quality and customer satisfaction for both residential and commercial solutions.

❓ Frequently Asked Questions

Q1: What lighting products do you provide?

We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and specialized solar street lighting products.

Q2: Do you support OEM/ODM services?

Yes, we can print your logo and customize designs based on your requirements. Please confirm the design with us before production.

Q3: How do you handle faulty products under warranty?

During the guarantee period, we send new lights for small quantities. For batch defects, we offer repair services or discussed replacement solutions.

Q4: Can I request a sample order?

Yes, we welcome sample orders to check quality. Mixed samples are also acceptable.

Q5: What is the typical lead time for orders?

Generally 7 days for samples or small orders, and 15 working days for bulk orders, depending on the specific quantity.

Q6: What is the IP rating and lifespan of these solar lights?

The lights are IP65/IP67 rated for waterproof performance. The LiFePO4 battery offers over 2000 cycles, translating to over 10 years of maintenance-free use.
