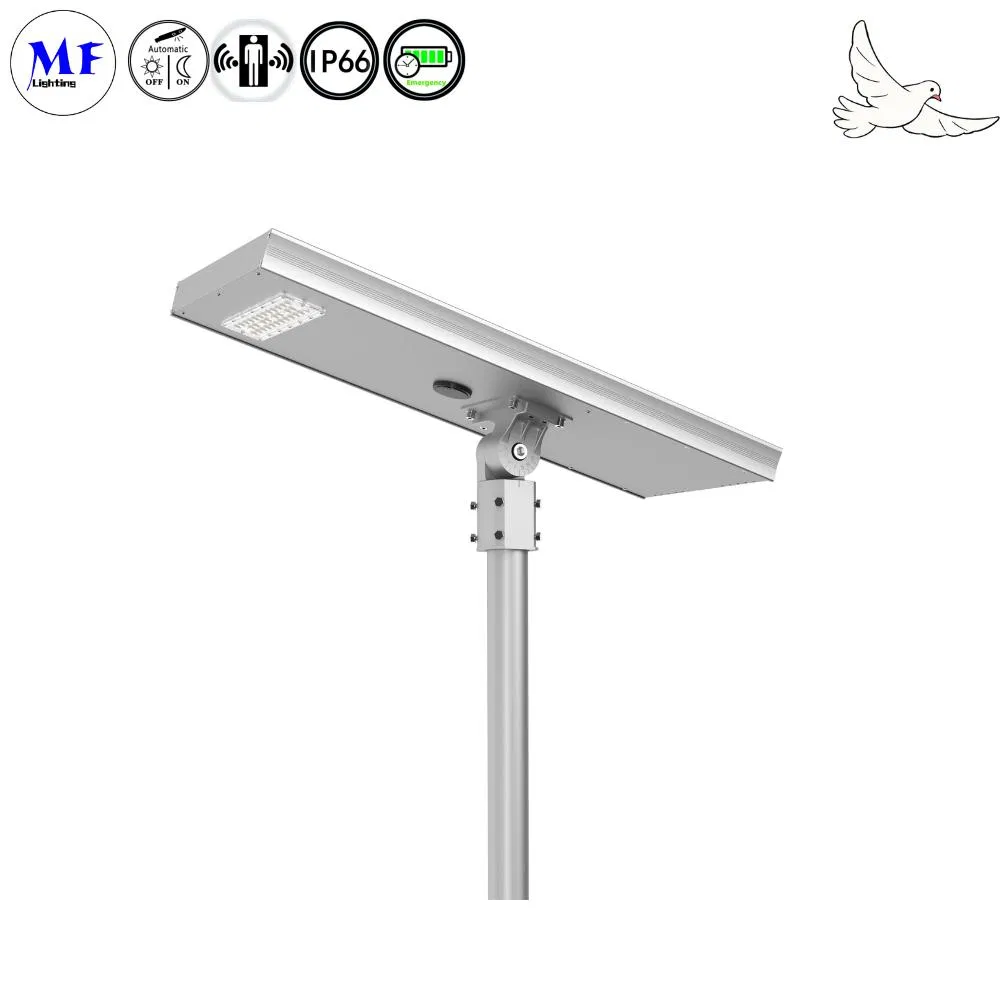

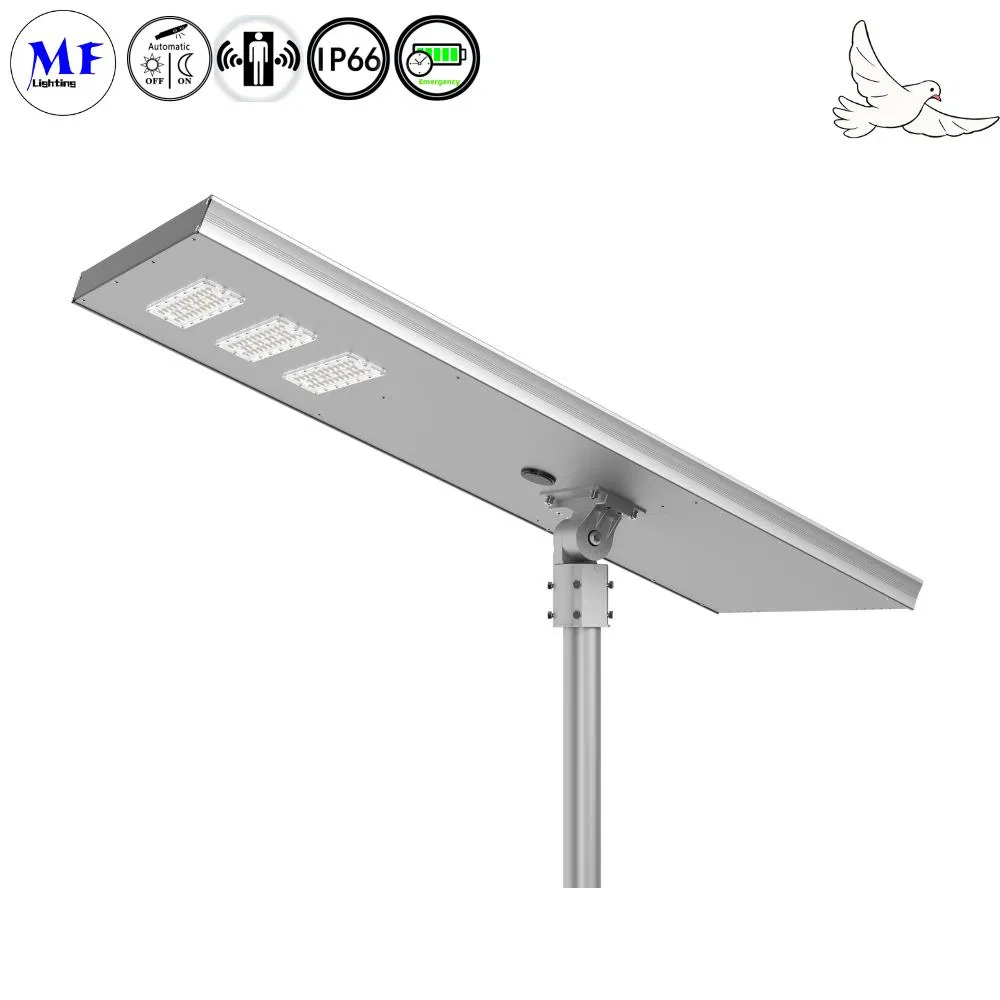

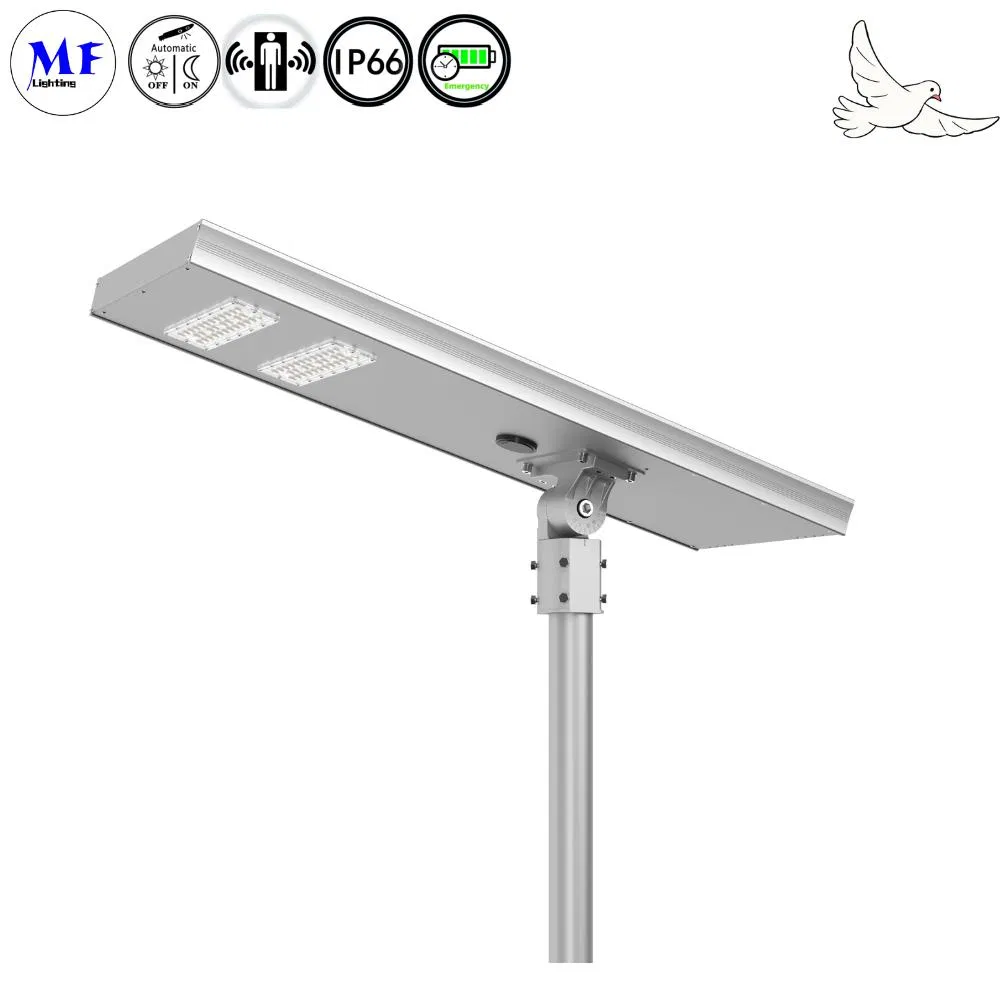

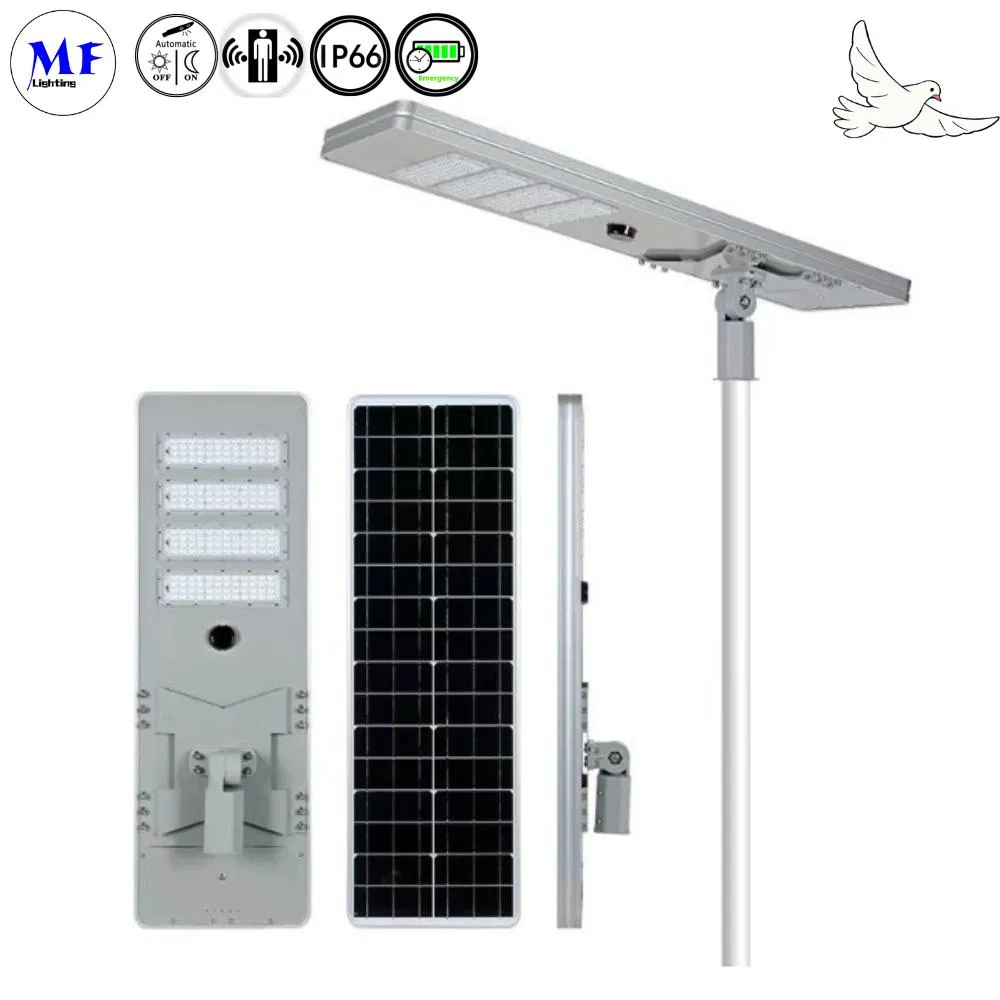

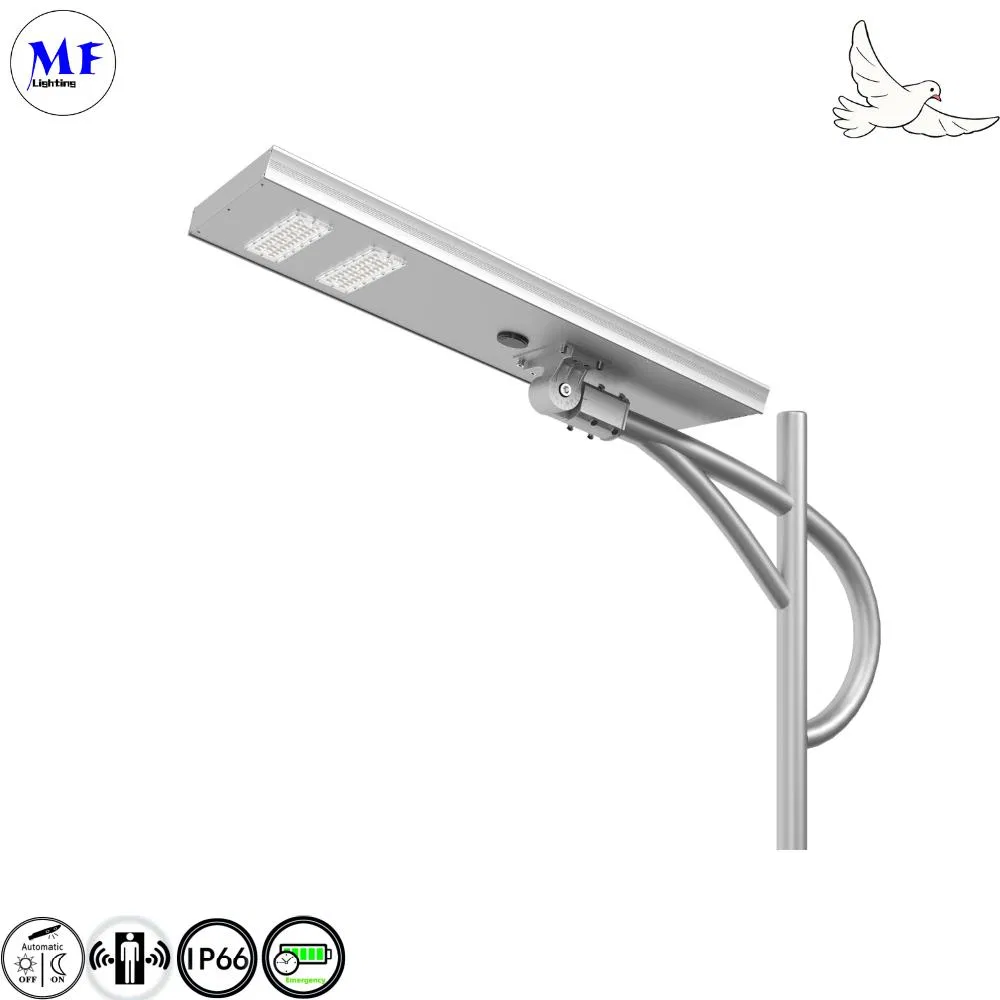

Profession Typical IoT Networking Smart Control System 200lm/W 60W 100W Outdoor IP66 LED Light Solar Garden Lamp All in One Solar Street Light with Sensor

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.MF-SP5-P60W
MaterialAluminum
Power Range20W - 120W
IP RatingIP66
LED ChipsOS-RAM / 3030 / 5050
BatteryLiFePO4 32700
Lumen Efficiency210lm/W
Warranty2-3 Years
Charging Time6-7 Hours
Mounting Height7-10m
Product Description

Professional IoT Networking Smart Control System 200lm/w 60W 100W All in One Solar Street Light

IoT Smart Control Solar Street Light
  • 200+ Patent Certificates
  • $1,000,000+ Annual Energy Saving
  • 10,000+ Projects Successfully Installed
  • Power range: from 40W to 120W
  • External power switch, optional external charging interface
  • Built-in/external grid complementary power supply options
  • IP67 waterproof connectors and MPPT controller technology

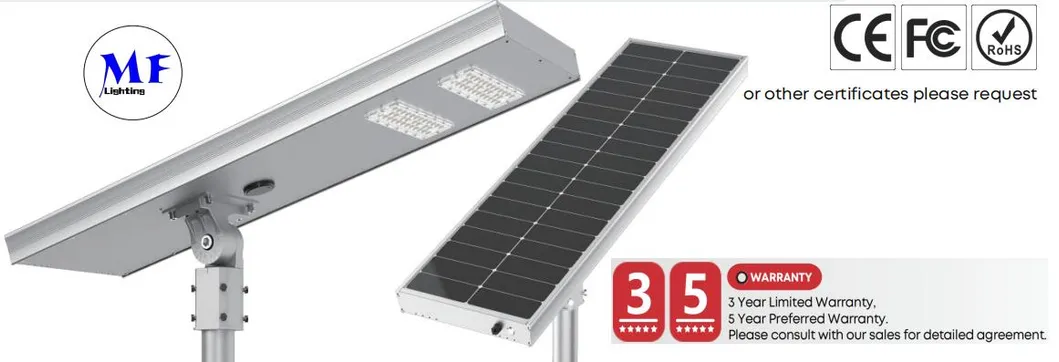

Solar Street Light Features

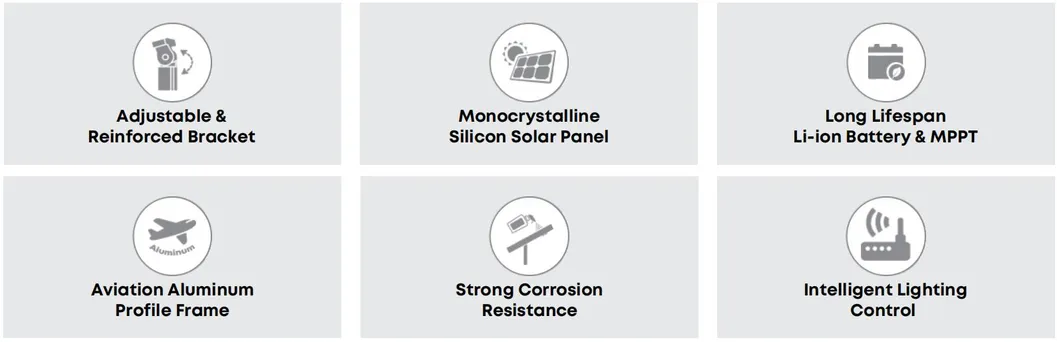

Solar Light Technical Detail
Key Components & Advantages

The light fixture includes a high-capacity LiFePO4 battery pack, offering over 10 years of maintenance-free use. Equipped with MPPT solar controllers, boosting charging efficiency by 30% compared to PWM systems.

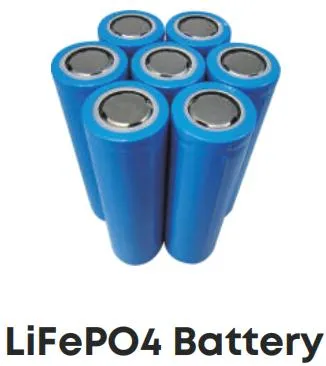

Component 1

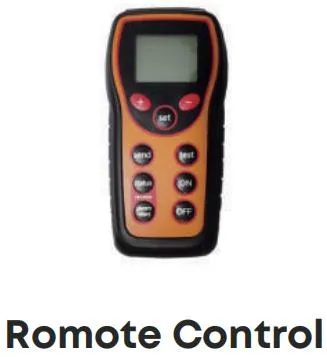

Component 2

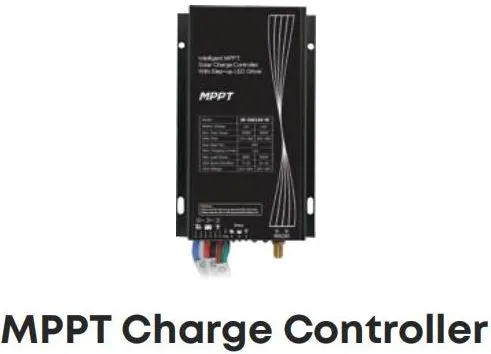

Component 3

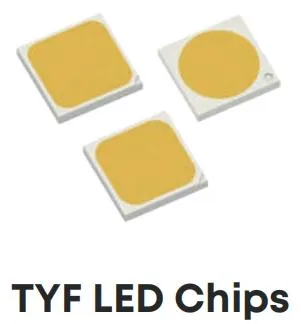

Component 4

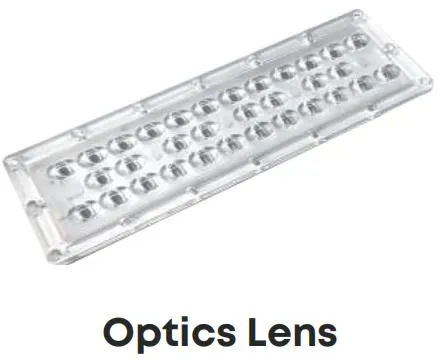

Component 5

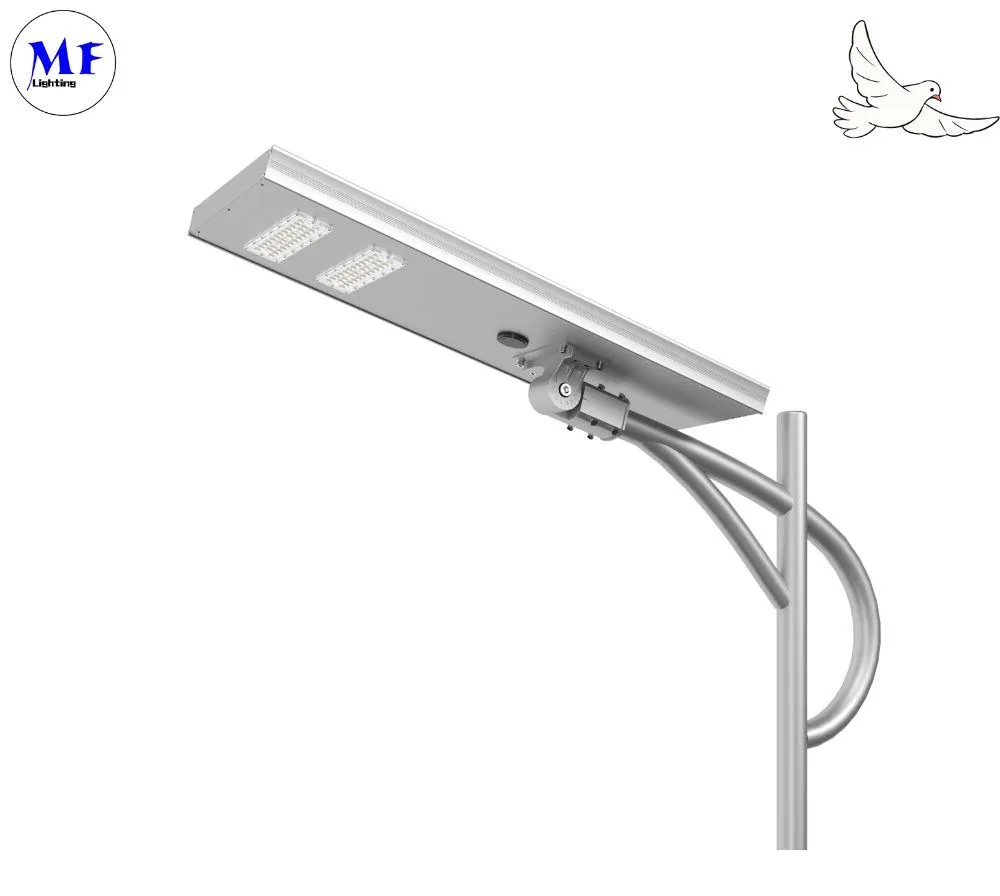

Design 1

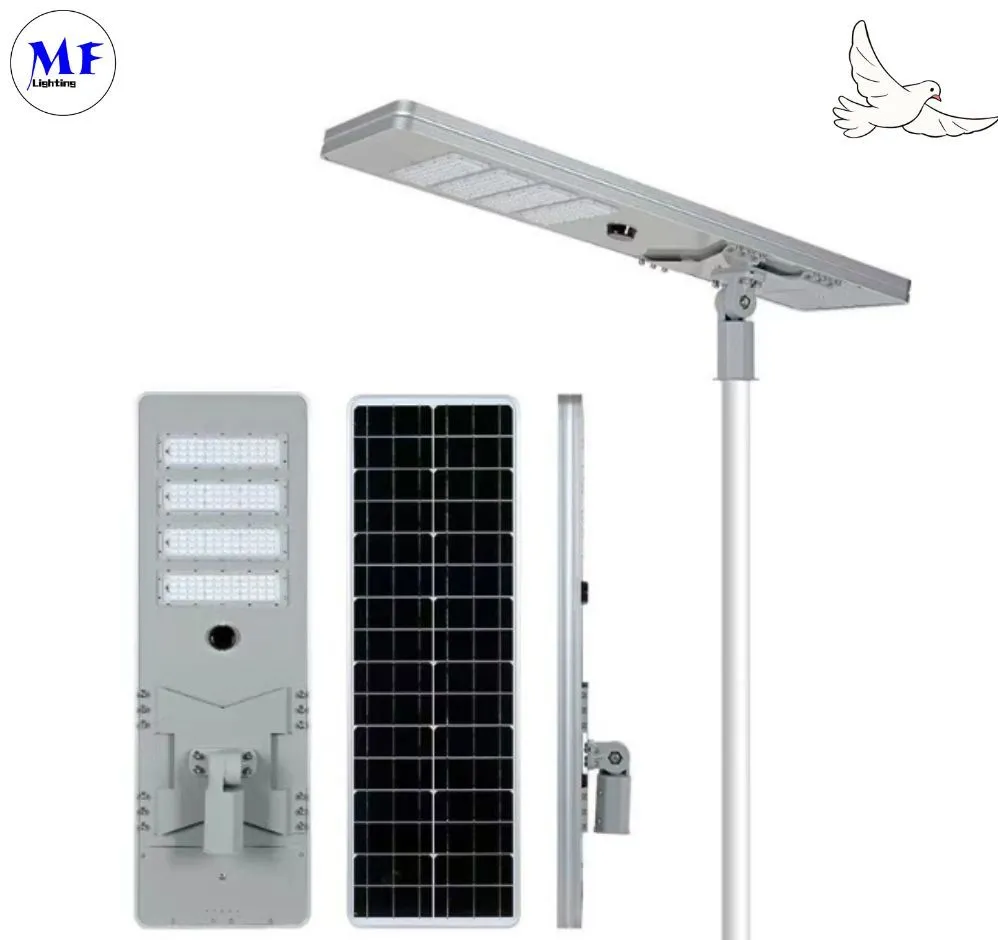

Design 2
Internal Structure
Technical Specifications
Model MF-SP5-P30W MF-SP5-P60W MF-SP5-P100W
Luminous Flux 6300lm 12600lm 21000lm
Solar Panel 18V 50W 18V 80W 36V 120W
Battery Capacity 12.8V 18AH 12.8V 36AH 25.6V 30AH
Efficacy 210lm/W 210lm/W 210lm/W
Beam Angle T203(65*150°) / T212(75*165°) / T304(75*160°)
IP Rating IP65 / IP66
Advanced Controller Features

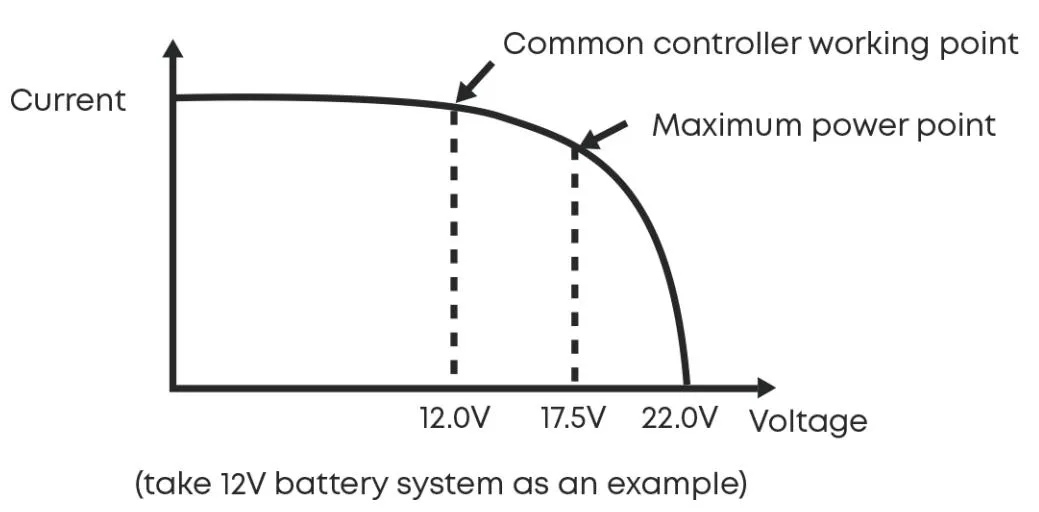

  • Moving Track MPPT maximum power tracking (20% faster)
  • UltraGreen power control with low static consumption
  • 10 time-periods programmable load power
  • IP67 waterproof aluminum housing
  • Extensible IoT remote communication
Controller Board

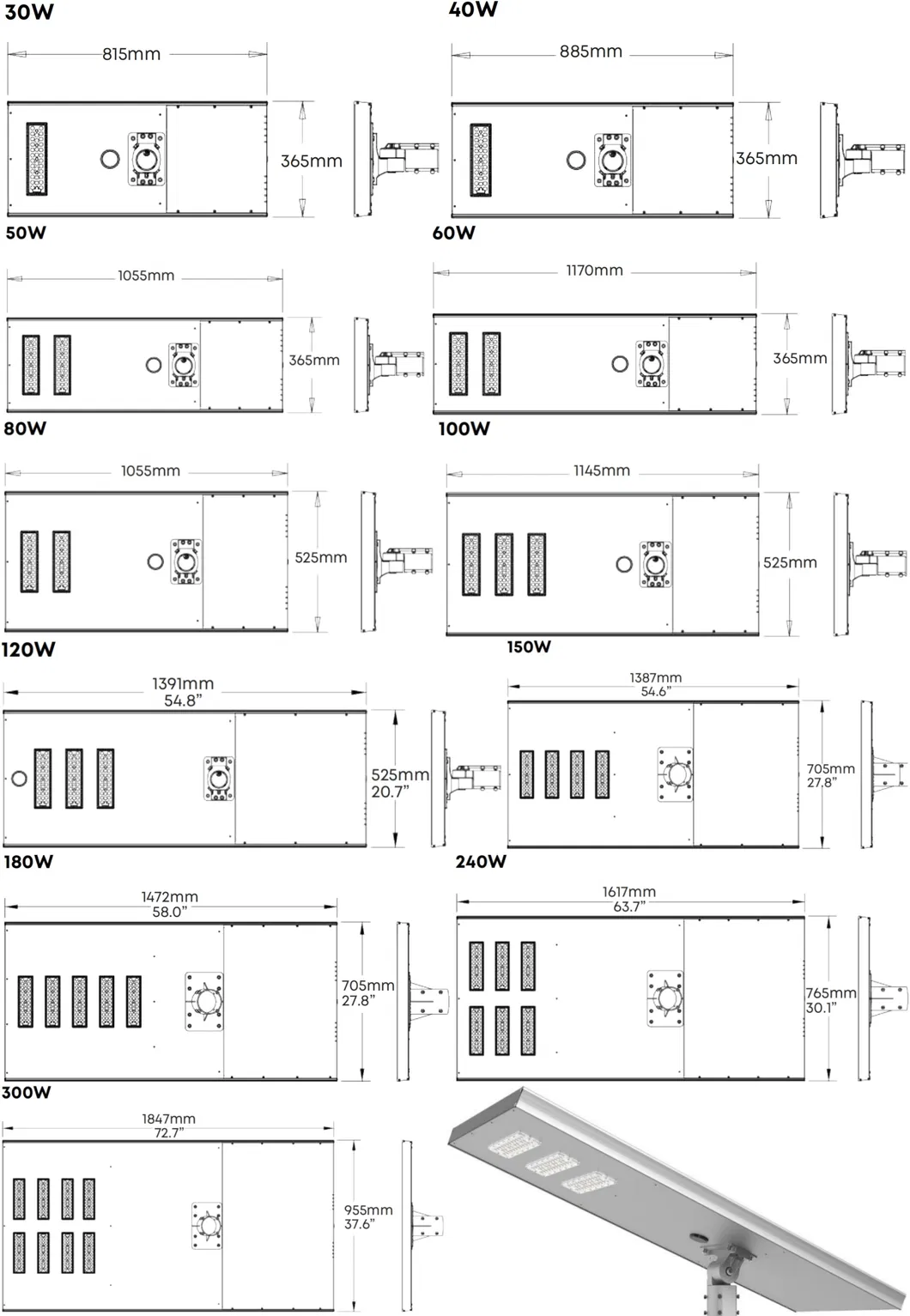

Product Dimensions
Product Dimensions
Applications
Application 1

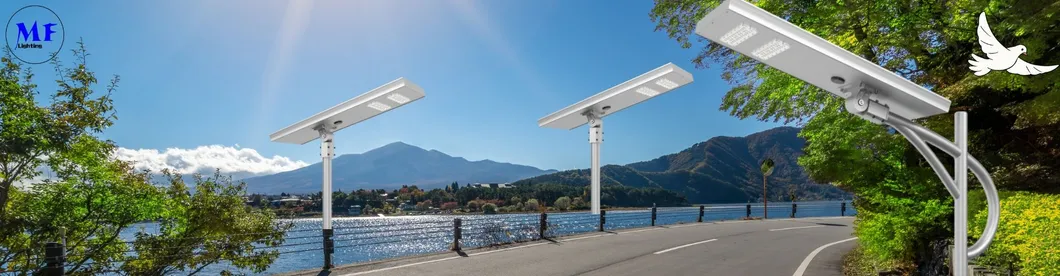

Application 2

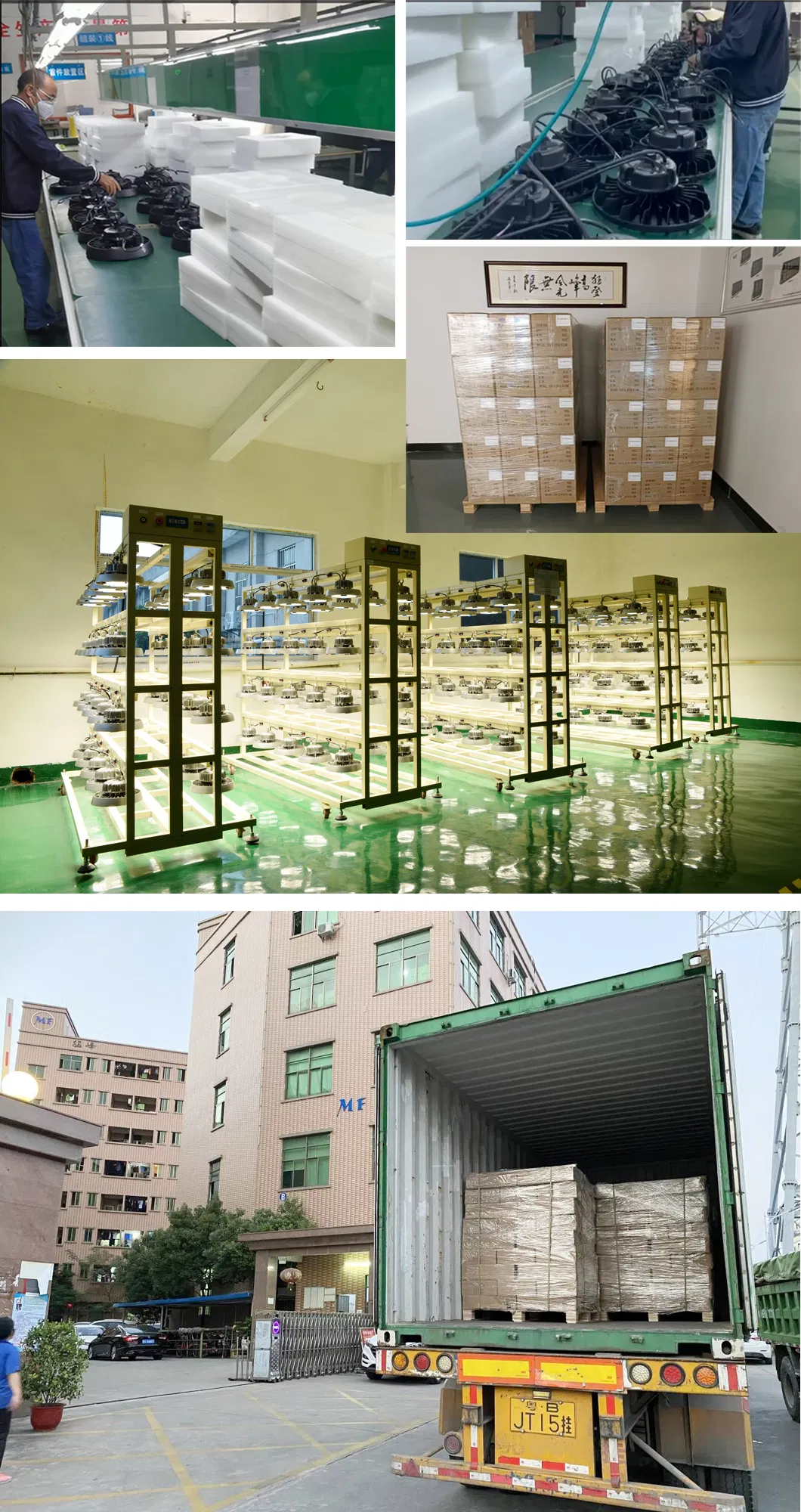

Application Overview
Frequently Asked Questions
What types of lighting products do you provide?
We provide a wide range of high-quality lighting solutions including solar street lights, floodlights, high bay lights, explosion-proof lights, and tri-proof lights.
Do you offer OEM/ODM services?
Yes, we provide full ODM and OEM services, including logo printing and customized design based on your project requirements.
How do you handle product warranty and faulty units?
During the guarantee period, we send replacement lights for small quantities. For batch issues, we repair or discuss the best solution based on the situation.
Can I order a sample for testing?
Yes, we welcome sample orders to test and check the quality. Single or mixed samples are acceptable.
What is the typical shipping time?
Usually 7 days for samples or small orders and 15 working days for bulk orders, depending on the specific quantity.
How should the solar lights be stored long-term?
For long-term storage, it is advisable to fully charge the battery first, then discharge it for 2 to 3 hours. Repeat this every 3 months.
