Hot DIP Galvanized 15m 20m 25m 30m Stadium Airport Street Light Pole with LED Projection Light Outdoor High Mast Lighting

1 / 5

Hot DIP Galvanized 15m 20m 25m 30m Stadium Airport Street Light Pole with LED Projection Light Outdoor High Mast Lighting

Customization:	Available
Conductor Circuit:	Single Circuit
Certification:	ISO, GS, RoHS, CE

Send Inquiry

Product Description

📊

Basic Information

Materials

Steel

Standard

Style

Independence Tower

Structure

B Type

Size

10m-20m

Surface Treatment

Hot DIP Galvanized

Shape

Polygonal

Application

Electric Power Transmission Line Steel Pole

Design

OEM ODM

Thickness

2.5mm~20mm

Welding

Aws D 1.1

MOQ

5PCS

Voltage

10kv-69kv

Current

220kv

Origin

China

Production Capacity

20,000 pieces/Year

⚙️

Product Parameters

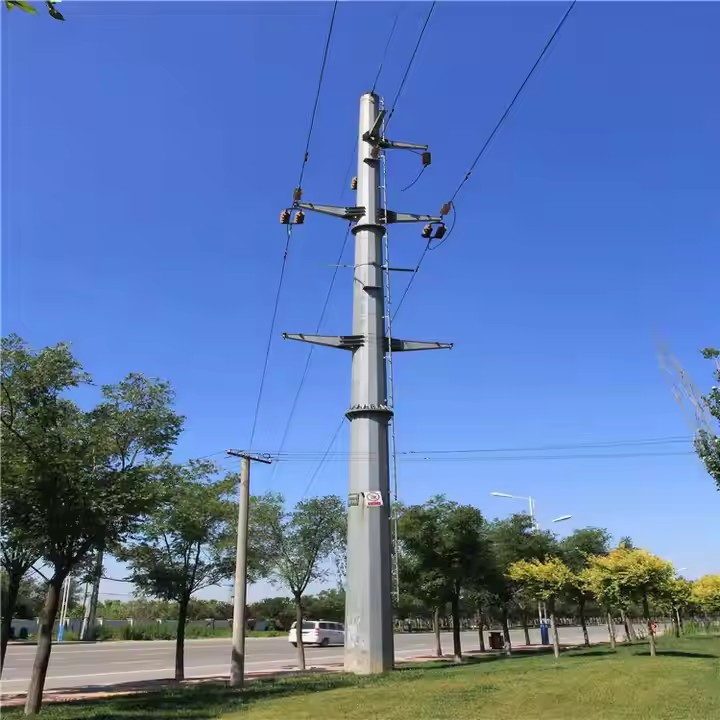

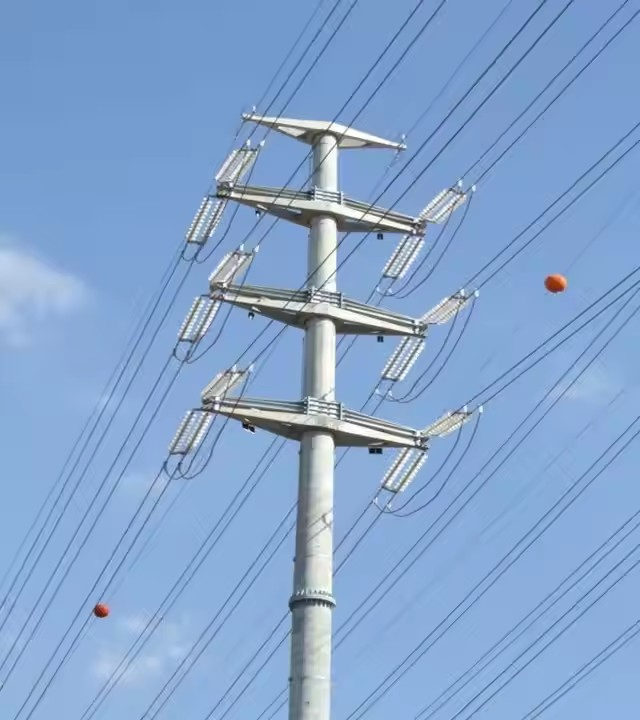

12m 14m 15m 18m 20m 10kv-69kv Voltage transmission pole utility poles galvanized steel electric pole

Height	From 10 meter to 20 meter
Suit for	Electric Power Transmission and Distribution

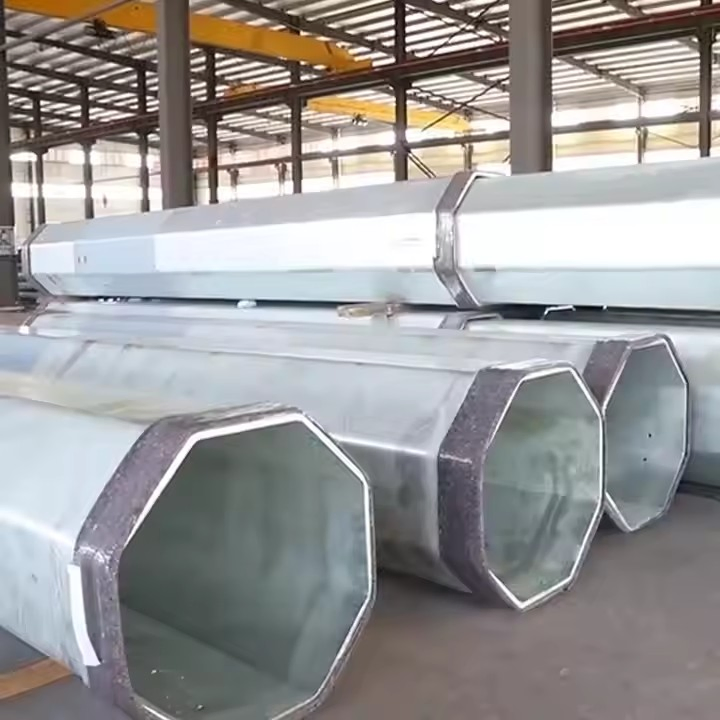

Shape	Polygonal or Conical
Material	Q345B/A572 (Yield Strength ≥ 345 N/mm²), Q235B/A36 (Yield Strength ≥ 235 N/mm²), ASTM A572 GR65, GR50, SS400
Power Capacity	10kV to 220kV
Surface treatment	Hot dip galvanized following ASTM A 123
Joint of Poles	Slip joint, flanged connected
Length per section	Within 14 meter once forming
Welding Standard	AWS (American Welding Society) D 1.1

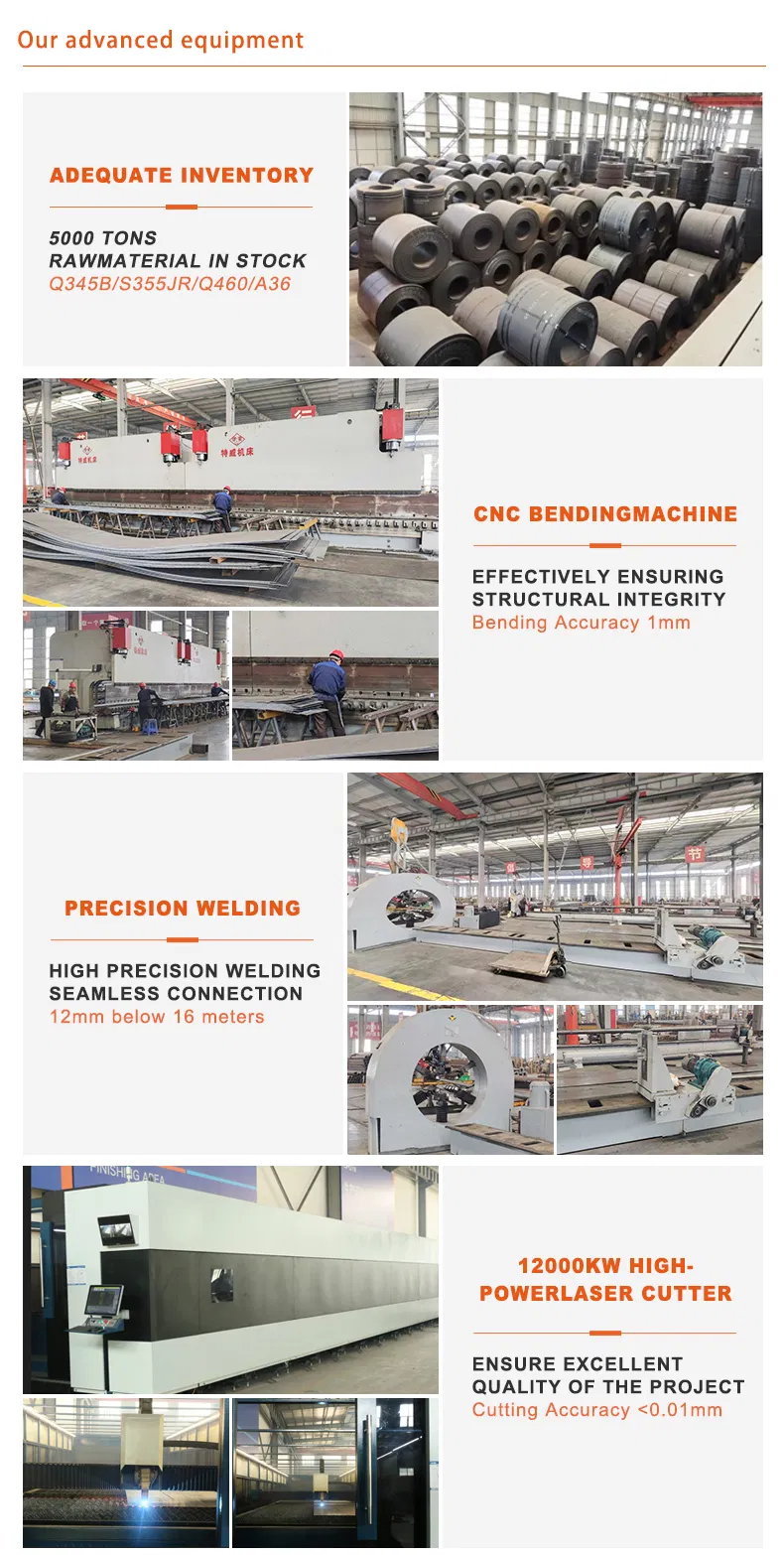

Production Process	Raw material test → Cutting → Bending → Welding → Dimension verify → Flange welding → Hole drilling → Sample assemble → Surface clean → Galvanization → Recalibration → Packages

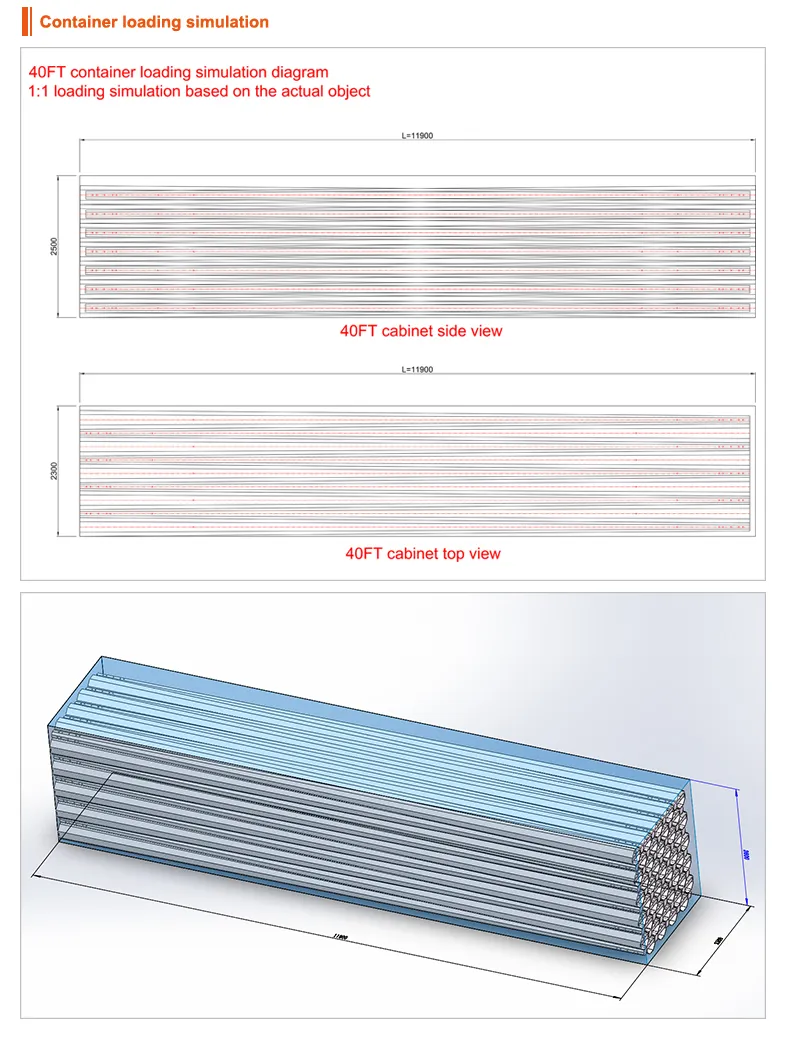

Packages	Packing with plastic paper or according to client's request

🖼️

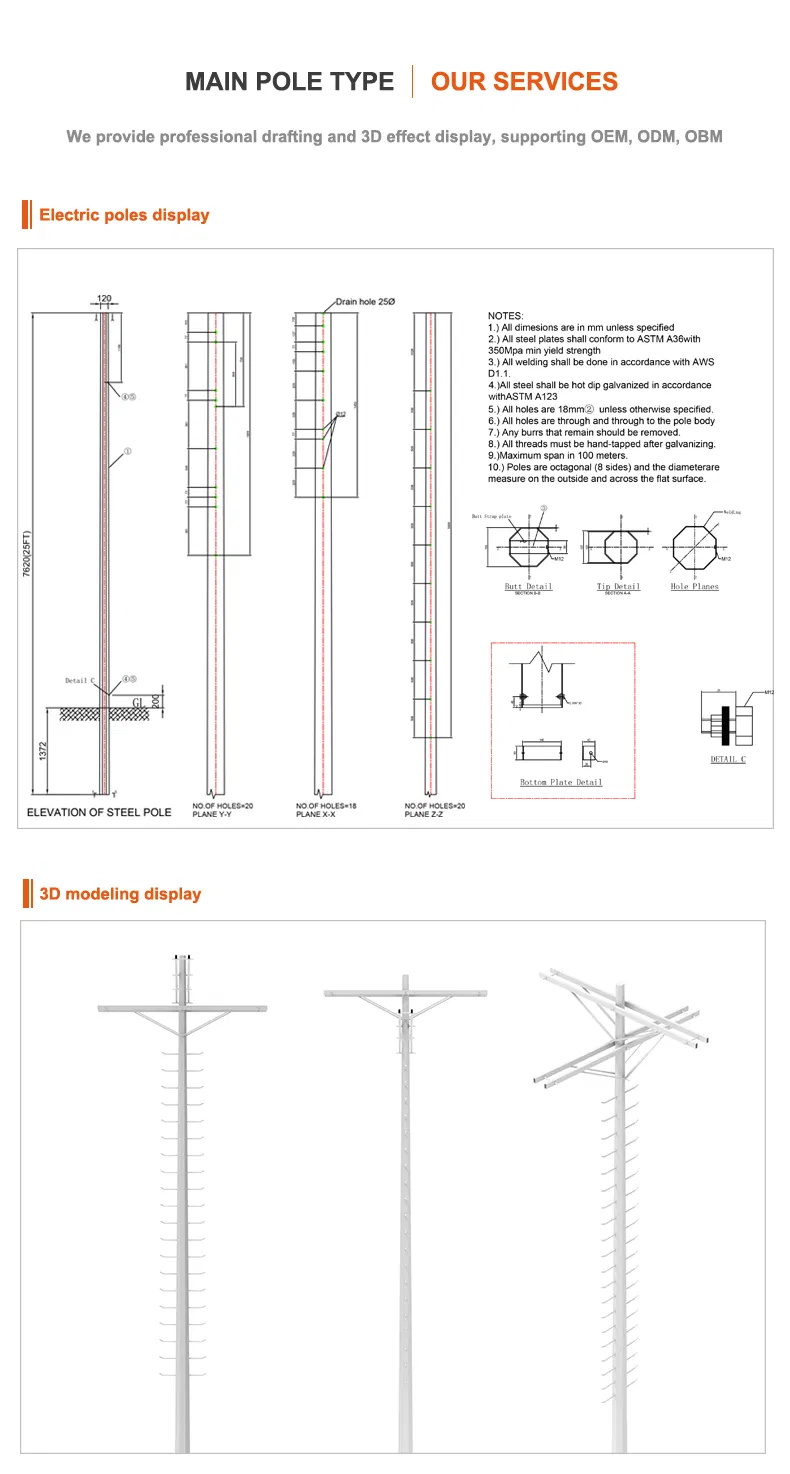

Product Description & Visuals

❓

Frequently Asked Questions

Q1: What materials are used for the transmission poles?

We primarily use high-strength steel including Q345B/A572, Q235B/A36, and Hot rolled coils from ASTM A572 GR65, GR50, or SS400 depending on the project requirements.

Q2: What is the standard height range for these steel poles?

The standard height ranges from 10 meters to 20 meters, but we can customize the length per section within 14 meters once forming.

Q3: How is the surface treated to prevent corrosion?

All poles undergo Hot Dip Galvanization following the ASTM A 123 standard. Powder coating or painting options are also available upon request.

Q4: What voltage levels are these poles suitable for?

Our transmission poles are designed to support electric power transmission and distribution lines ranging from 10kV to 220kV.

Q5: What welding standards do you follow?

We strictly adhere to the AWS (American Welding Society) D 1.1 welding standards to ensure structural integrity and safety.

Q6: Can you provide customized designs?

Yes, we offer both OEM and ODM services. The poles can be designed in polygonal or conical shapes with slip joints or flange connections based on client specifications.
