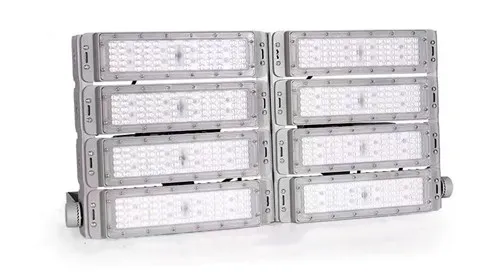

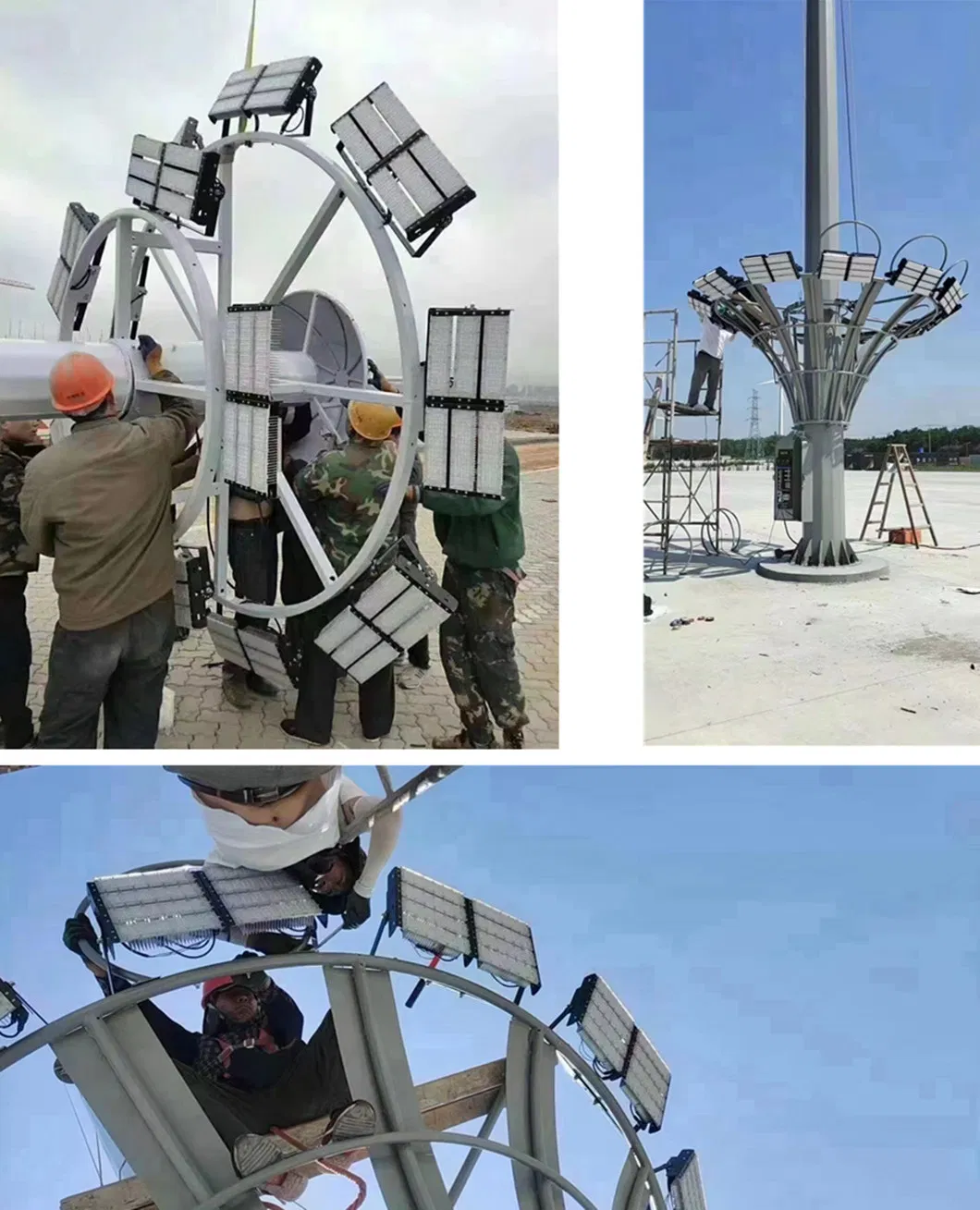

The shape of the lamp head can be determined according to the user's requirements, the surrounding environment and the lighting needs; the internal lights are mostly composed of floodlights and led lights with a lighting radius of 60 meters.

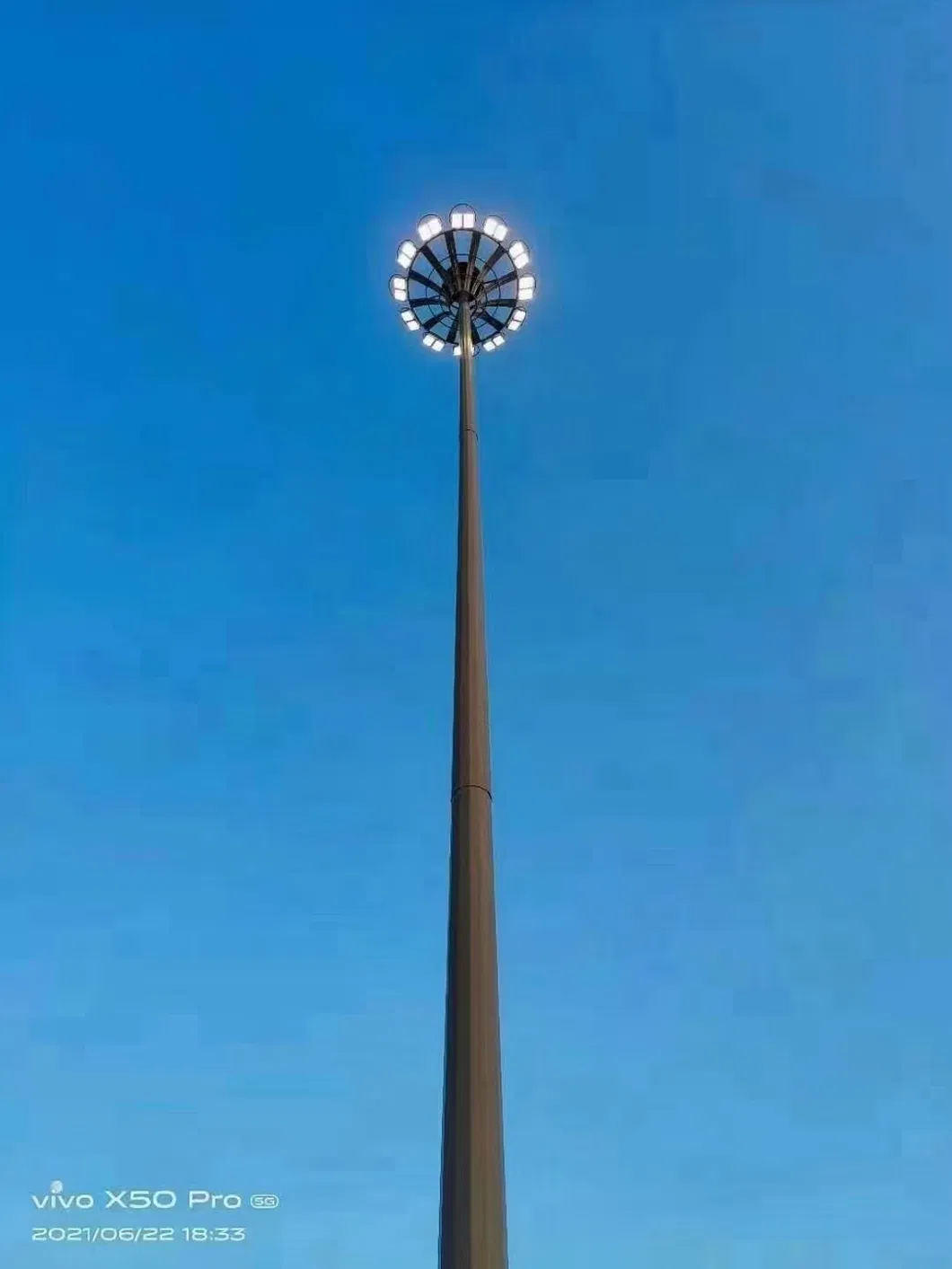

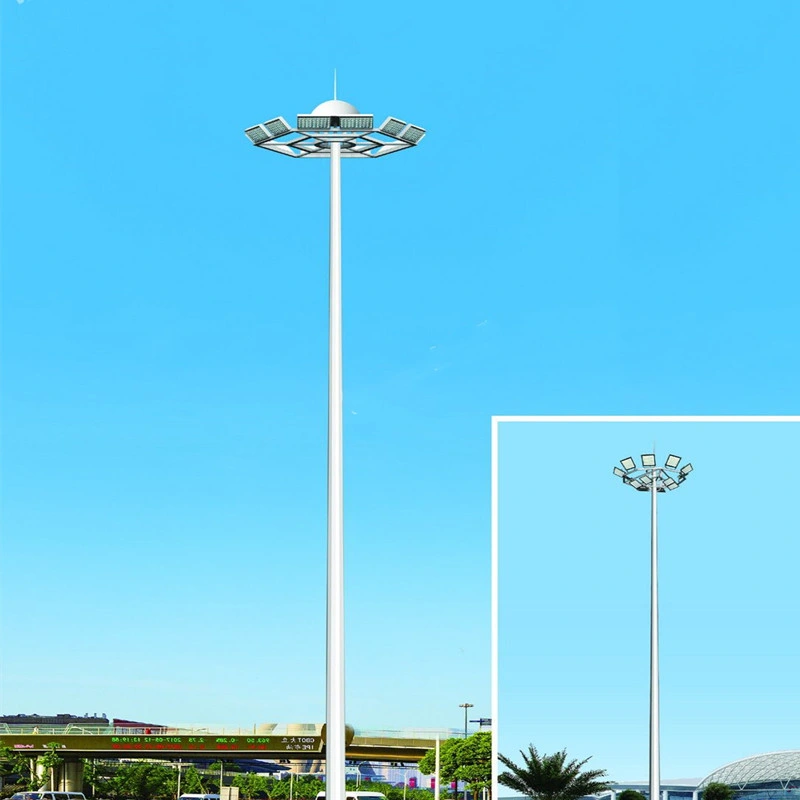

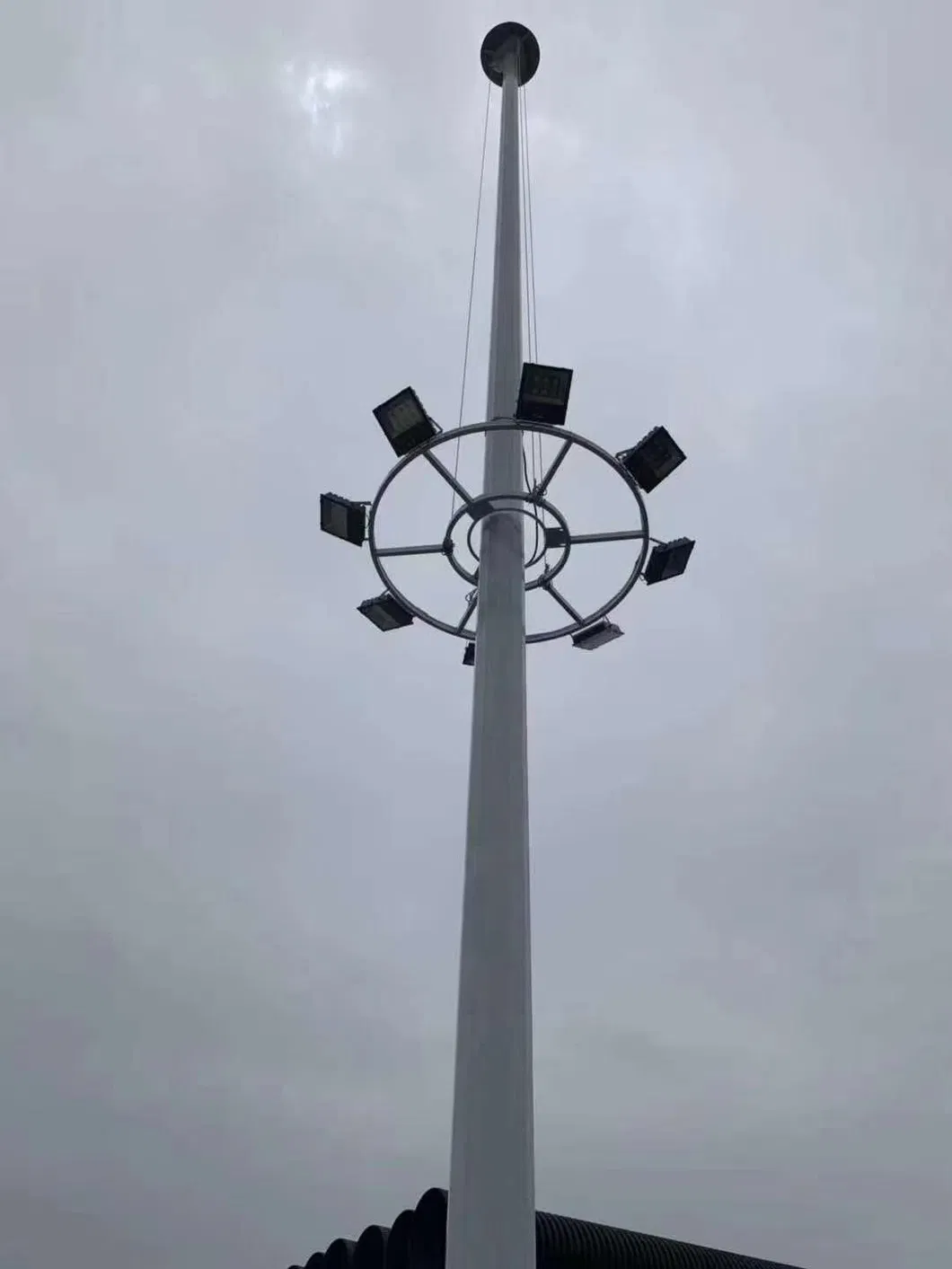

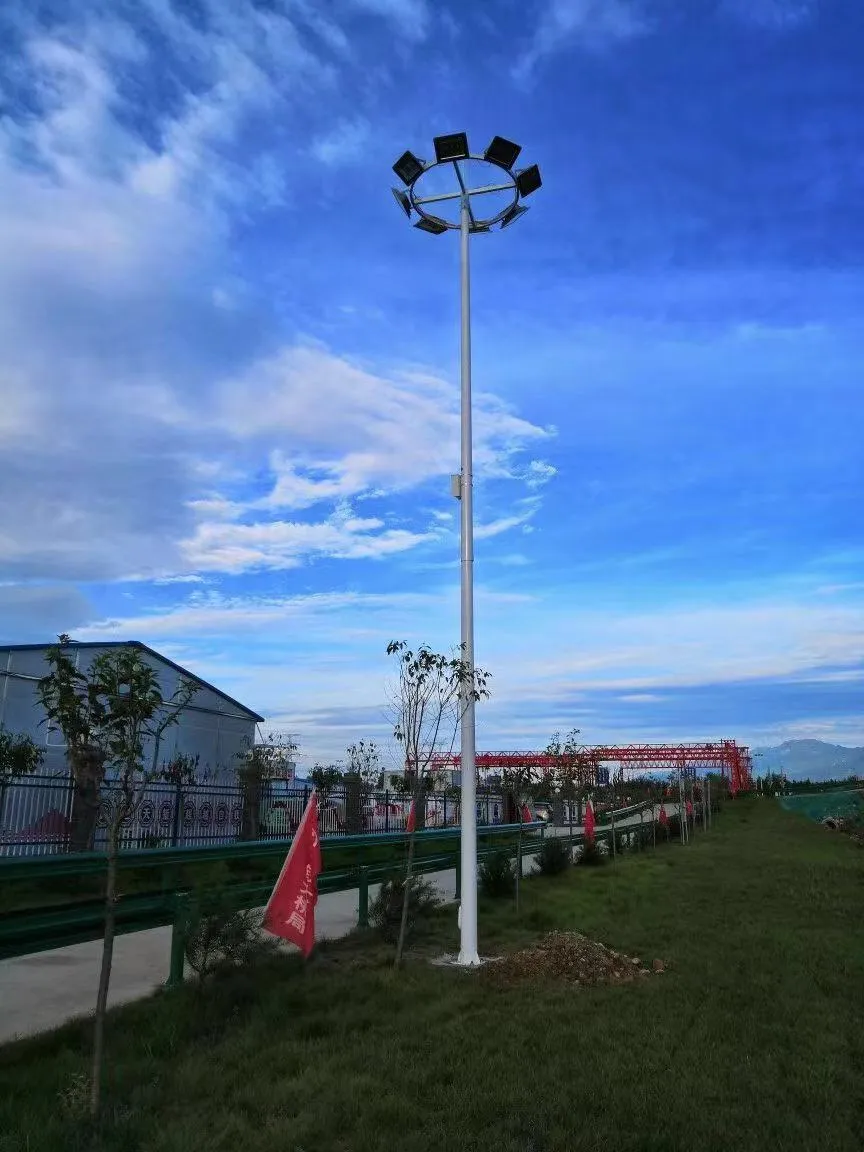

The pole body is generally a pyramidal structure, which is rolled from a steel plate and has a height of 15 to 40 meters and is composed of two to three sections. with good weldability and forming ability. The high mast light pole generally refers to a new type of lighting device composed of a steel conical lamp pole of 15 meters or more and a high power combined lamp holder.

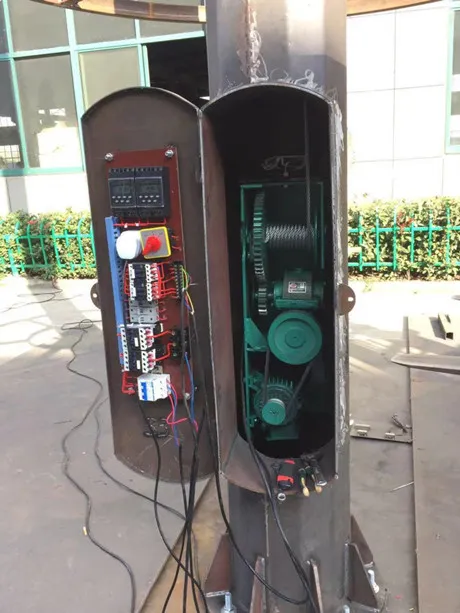

The principle of the automatic lifting system for street lights is to control the lifting and lowering of street lights through a mechanical structure composed of motors, reducers, chains, etc. Specifically, the system is equipped with a motor and a wheel reducer motor to drive the worm gear, and then drive the lifting device to achieve maintenance-friendly operation.
|

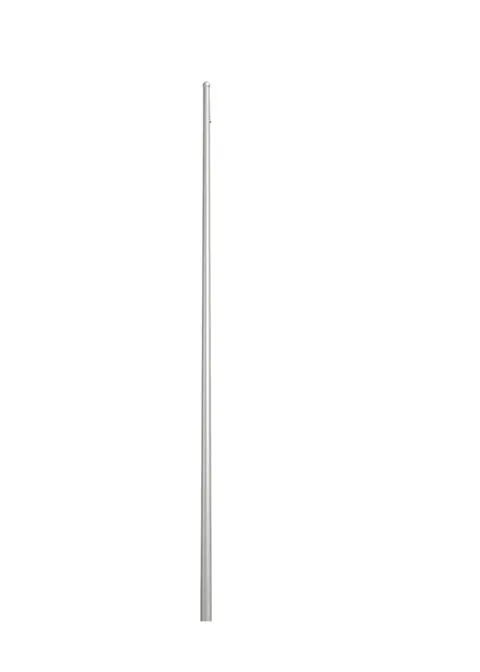

Height: 4m Wall thickness: 2.5mm Diameter: φ60/φ120 Material: Steel Q235 Galvanizing: 80μm Spraying: 100μm Flange: 240*240*14mm |
Height: 5m Wall thickness: 2.5mm Diameter: φ60/φ140 Material: Steel Q235 Galvanizing: 80μm Spraying: 100μm Flange: 260*260*14mm |
|
Height: 6m Wall thickness: 3mm Diameter: φ60/φ180 Material: Steel Q235 Flange: 260*260*16mm |
Height: 7m Wall thickness: 3mm Diameter: φ60/φ180 Material: Steel Q235 Flange: 280*280*16mm |
|
Height: 8m Wall thickness: 3.5mm Diameter: φ80/φ180 Material: Steel Q235 Flange: 280*280*16mm |
Height: 10m Wall thickness: 4mm Diameter: φ80/φ200 Material: Steel Q235 Flange: 300*300*18mm |
