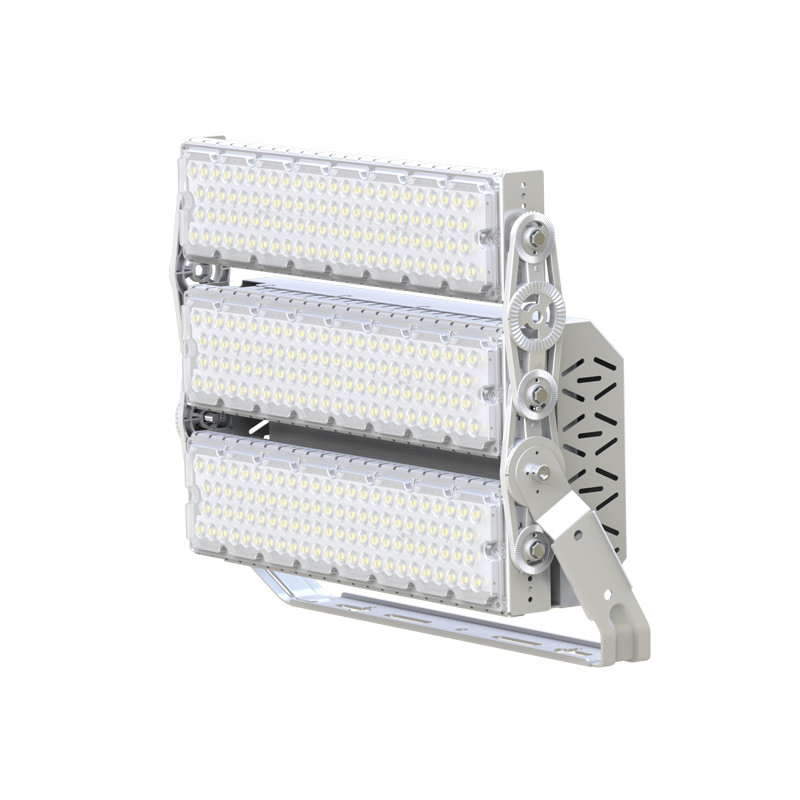

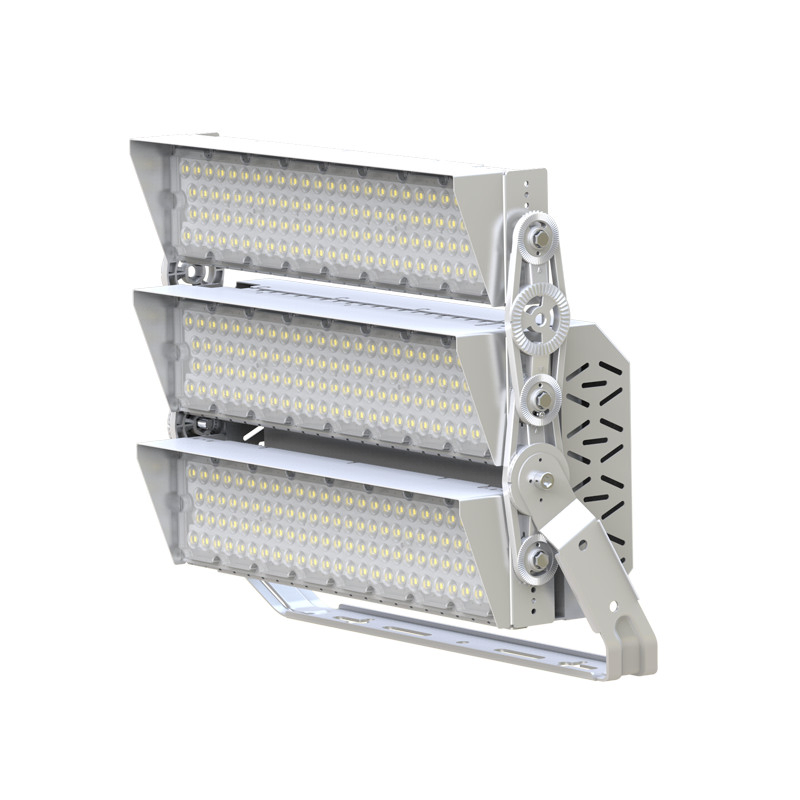

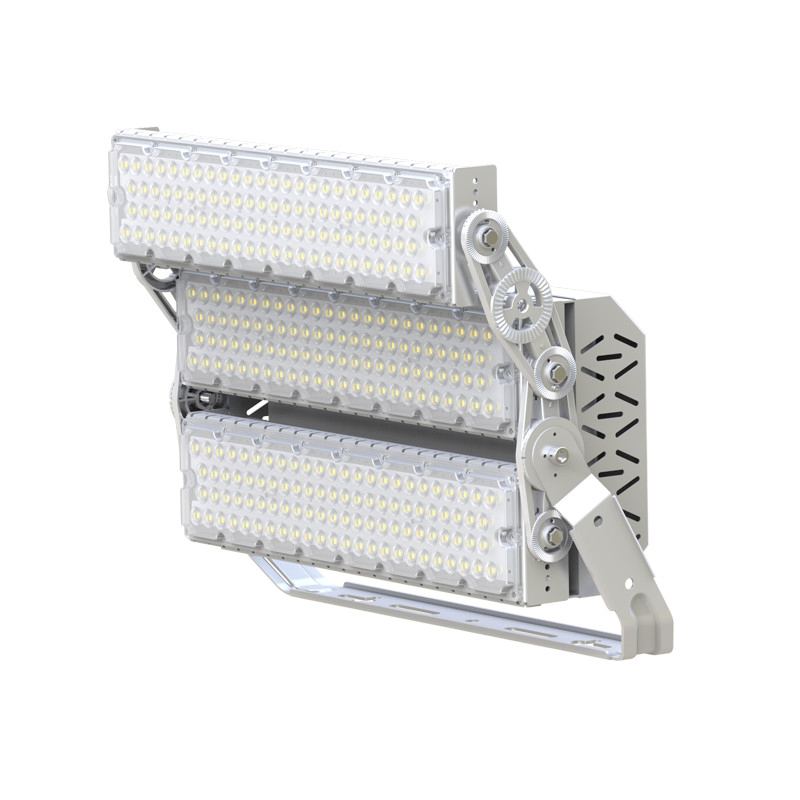

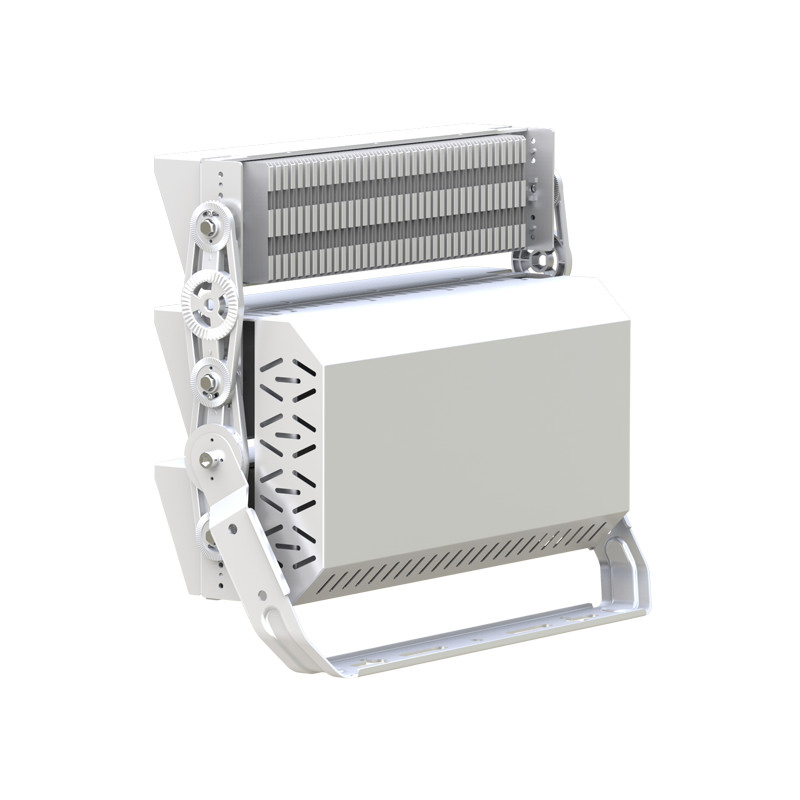

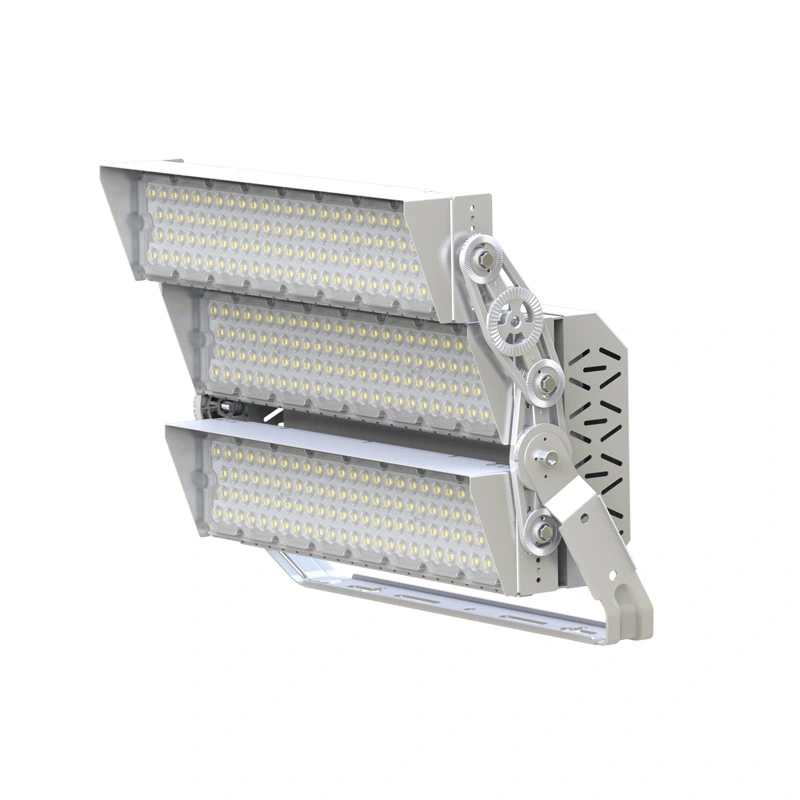

High Power IP66 LED Flood Lights 1000W LED Stadium Lights Waterproof Outdoor Sports 400W 800W Luminaire

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
PL-SD-039M-02- 720W
Power
720W
Projection Distance
>35m
IP Rating
IP66
Voltage
AC90-305V
LED Chips
Lumileds 5050SMD
Application
Park, Square, Factory, Garden, Sports Stadium
Lifespan
>50,000 hours
Product Advantages
  • Best adjustable flood light for project lighting, sport fields, high masts, warehouses, tunnels, and stadiums.
  • Equipped with Meanwell / Inventronics / G-power Brand drives for anti-surge protection and stable performance.
  • Utilizes new generation SMD Lumileds LED as light source: high brightness, low light decay, and long lifespan.
  • Multiple beam angle options available for diverse application scenarios.
  • Full IES files and Dialux program support for professional lighting design.

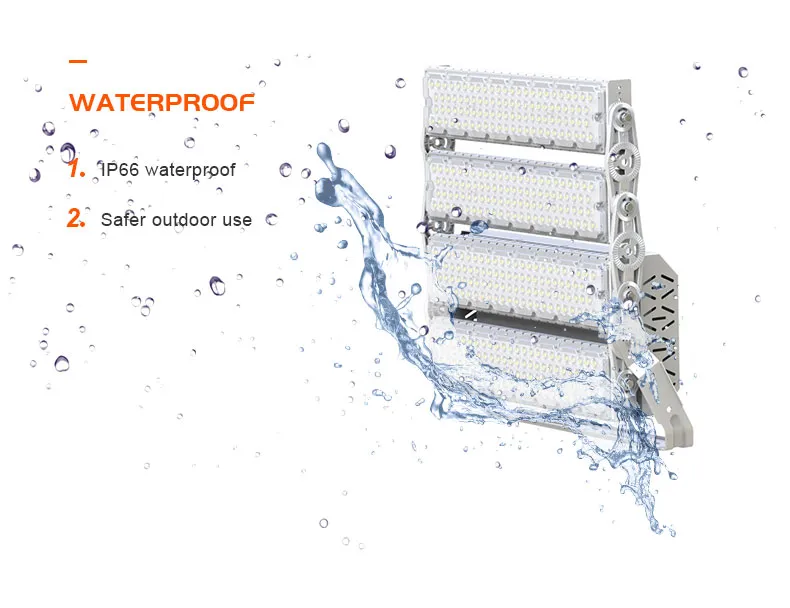

  • Robust Waterproof IP65/IP66 rating for reliable outdoor use.
  • Certified by TUV-CE (EMC LVD ROHS), CB, SAA for global standards.
Technical Datasheet

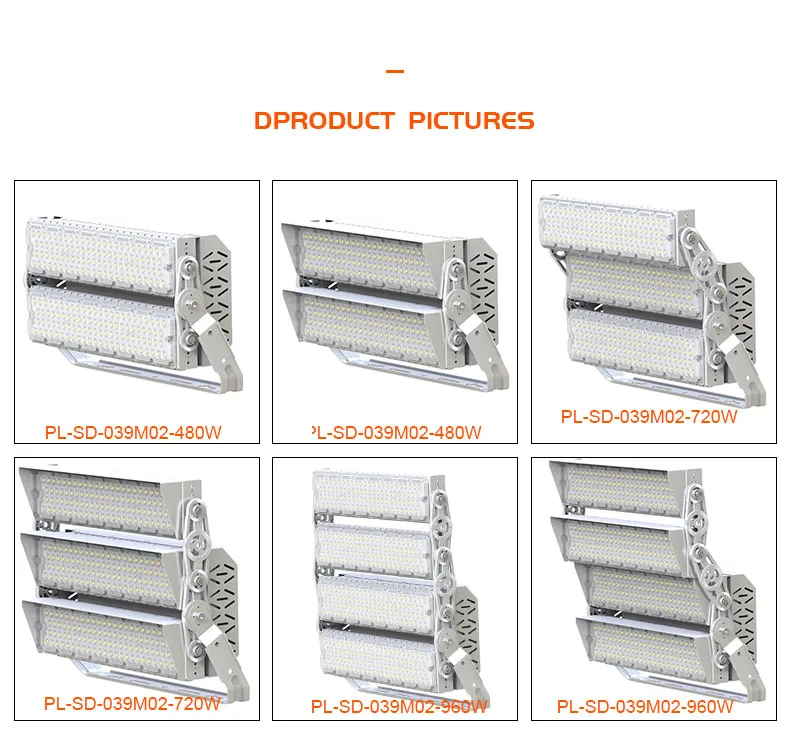

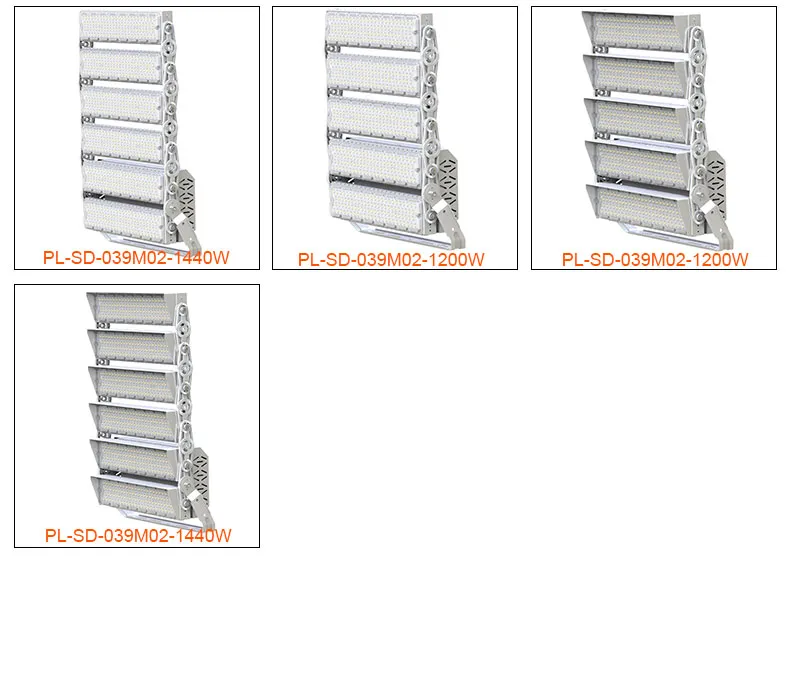

Model Parameter 480W 720W 960W 1200W 1440W

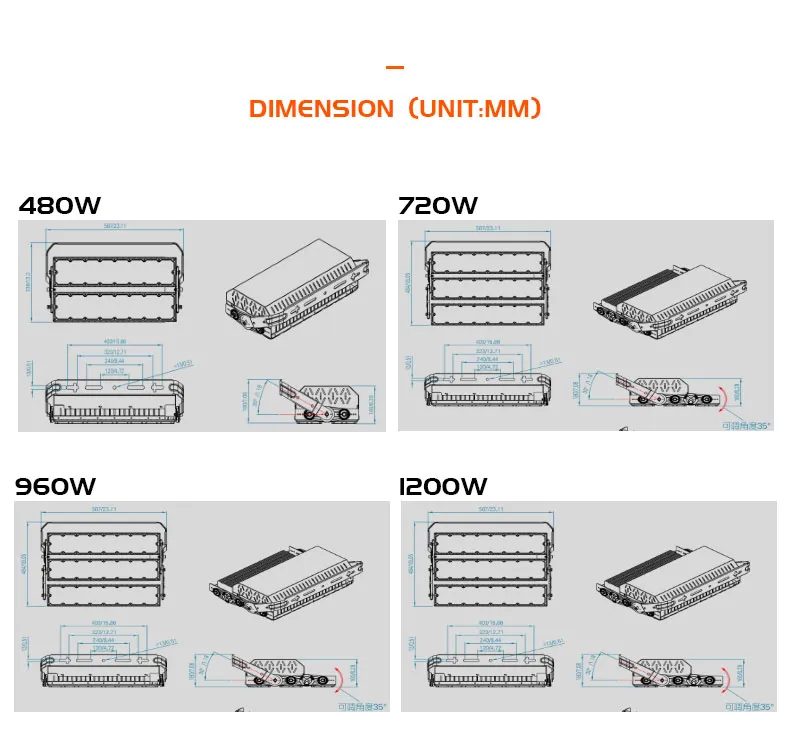

Dimension (mm) 587X338X180 587X484X180 632X587X180 780X587X180 928X587X180

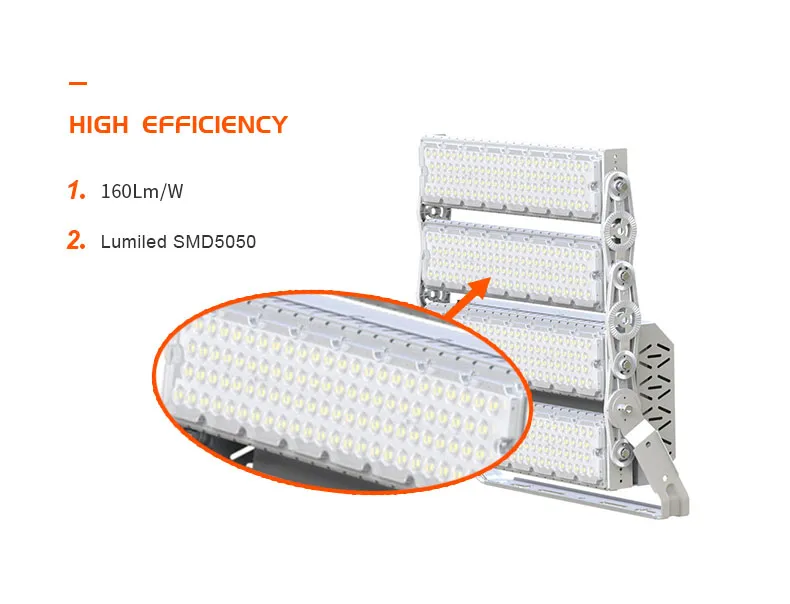

Luminous Flux 160 lm/w ±5%
LED Source (Lumileds 5050) 192 PCS 276 PCS 384 PCS 480 PCS 576 PCS
Input Voltage AC100~277V (50~60Hz)
Color Temperature 2700-6500K

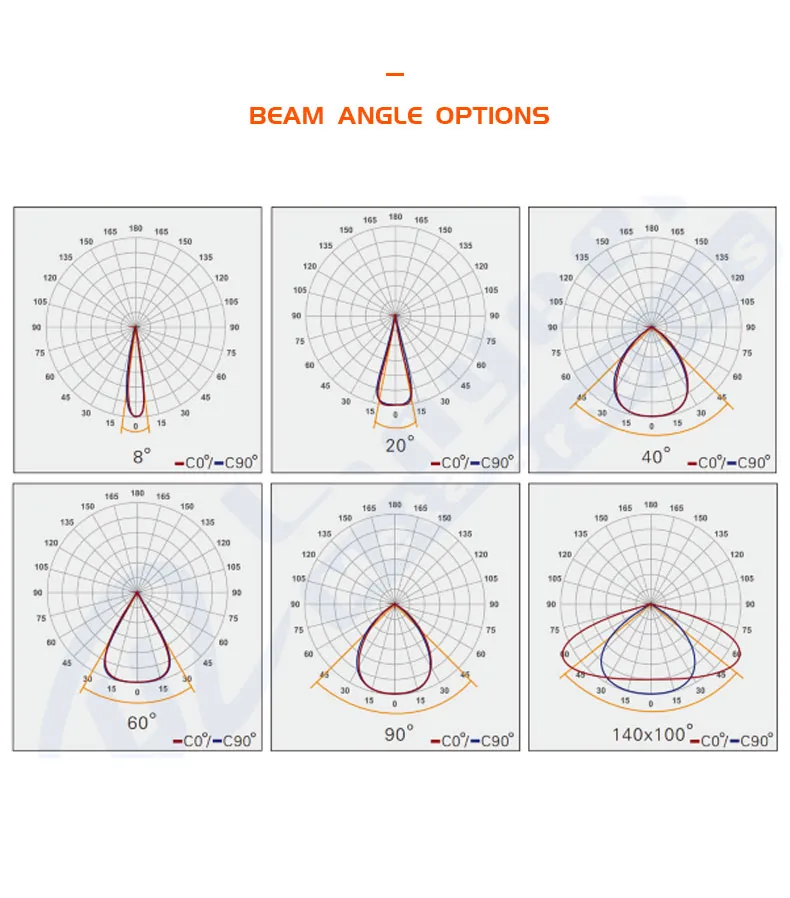

Beam Angle 20° / 40° / 60° / 90° / 100X140°
CRI / IP Rating CRI >70/80 | IP65 & IK08

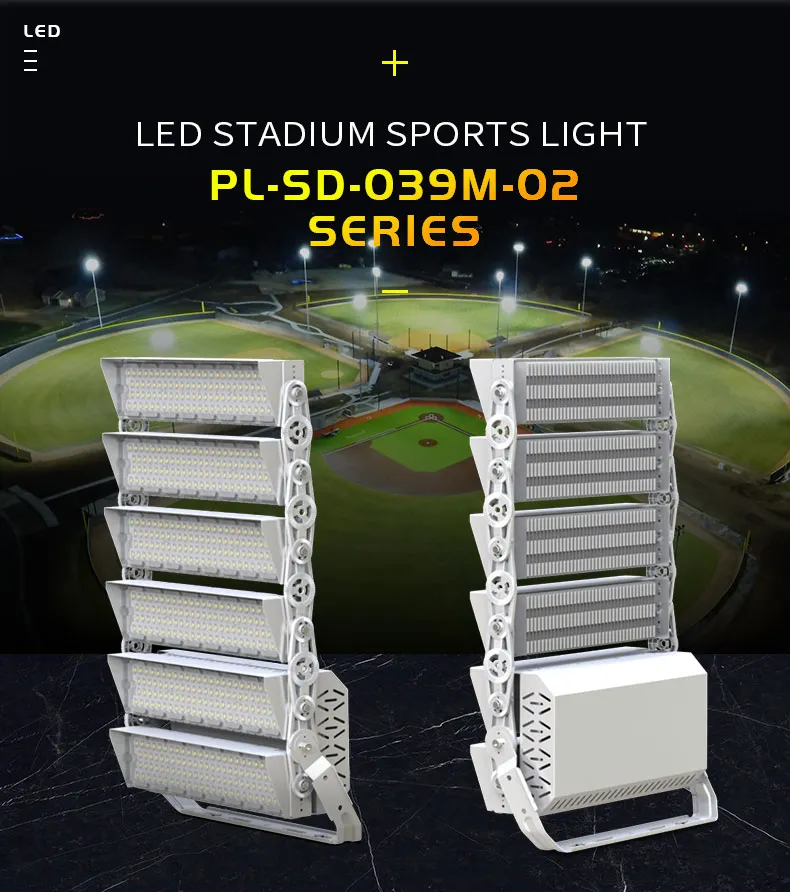

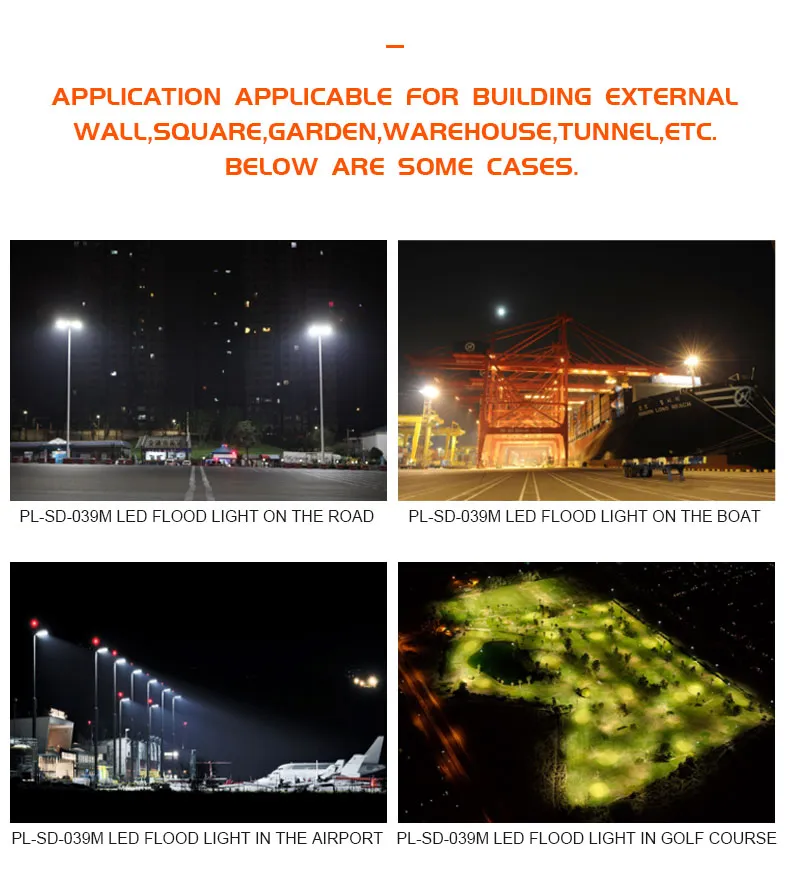

Product Display & Applications
Packaging Information
Item Model Carton Size (mm) N.W (KG) G.W (KG) QTY (PCS)
PL-SD-039M-02-480W636X408X2378.009.001
PL-SD-039M-02-720W636X556X23711.6012.701
PL-SD-039M-02-960W704X636X23715.3016.501
PL-SD-039M-02-1200W852X636X23719.2020.501
PL-SD-039M-02-1440W1000X636X23722.4023.801
Project Case Study
Frequently Asked Questions
Do the LED lights really have a 50,000-hour lifespan?
A 50,000-hour or longer lifespan is a theoretical value from lab tests. Due to different real-world working environments, the actual lifespan is typically >=30,000 hours. However, it can reach 50,000 hours if high-quality materials are adopted.
Why do different suppliers provide different brightness for the same power?
This is due to different LED chips or different brightness versions of the same chip. Even with the same chip, slight differences exist. It is important to distinguish between the brightness of individual LEDs and the overall fixture.
What is color temperature?
Color temperature is measured in Kelvin (K). Lower color temperatures (warmer light) are used in public areas for relaxation, while higher color temperatures (cooler light) enhance concentration in offices or sports venues.
What is CRI?
CRI (Color Rendering Index) represents how accurately the light reflects an object's real colors. A higher CRI provides better color accuracy but often comes at a higher cost.
What are PF and efficiency?
PF (Power Factor) and efficiency represent the electrical performance of the driver. Higher PF and efficiency values indicate better quality and energy usage, usually resulting in a higher cost.
Is this light suitable for extreme outdoor conditions?
Yes, with an IP66 rating and a working temperature range of -30ºC to +50ºC, these lights are specifically designed for harsh outdoor environments like sports stadiums and industrial sites.
