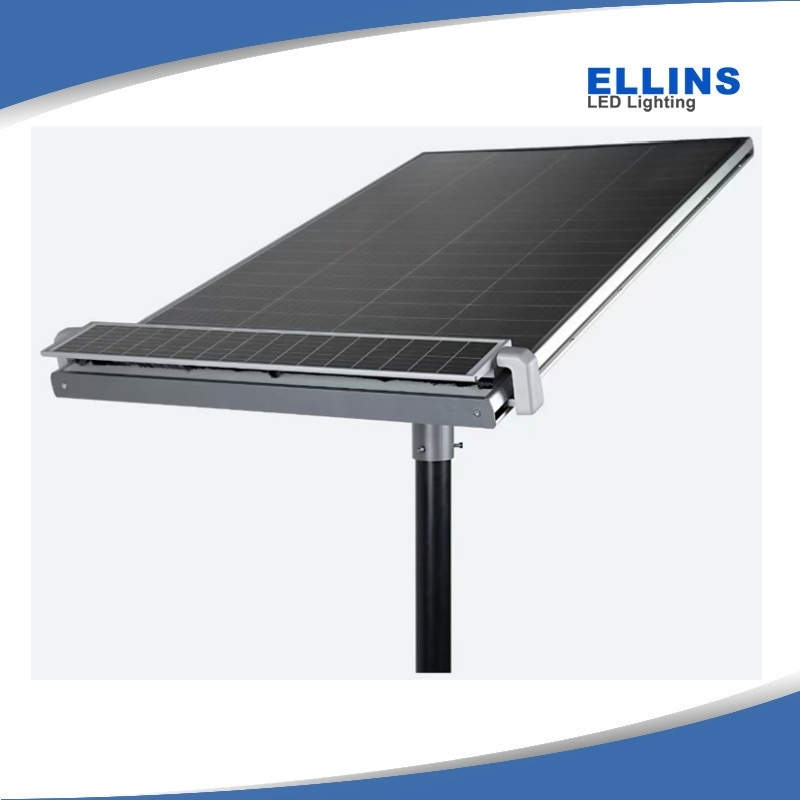

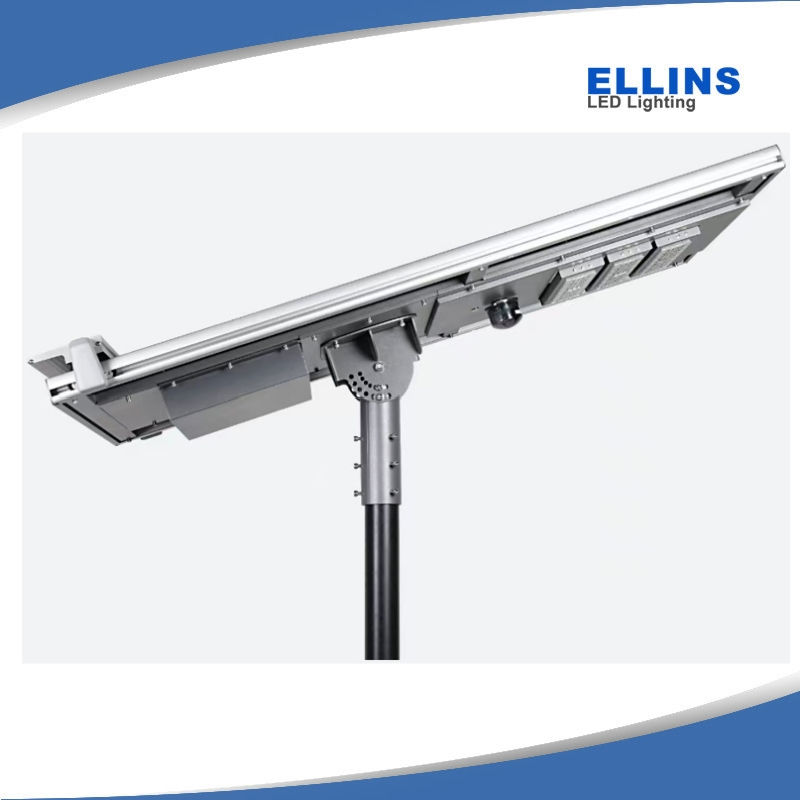

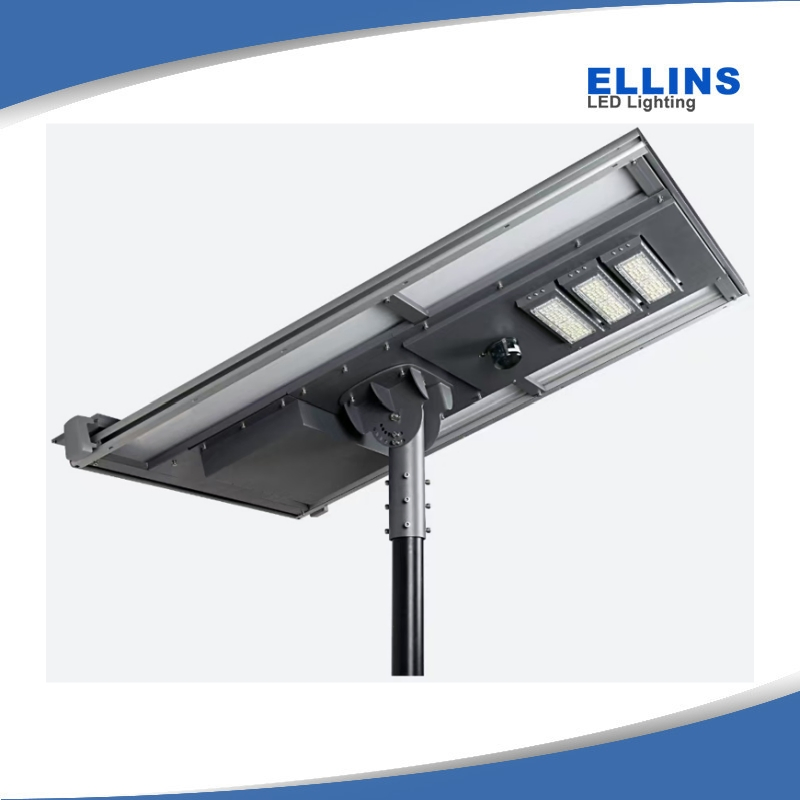

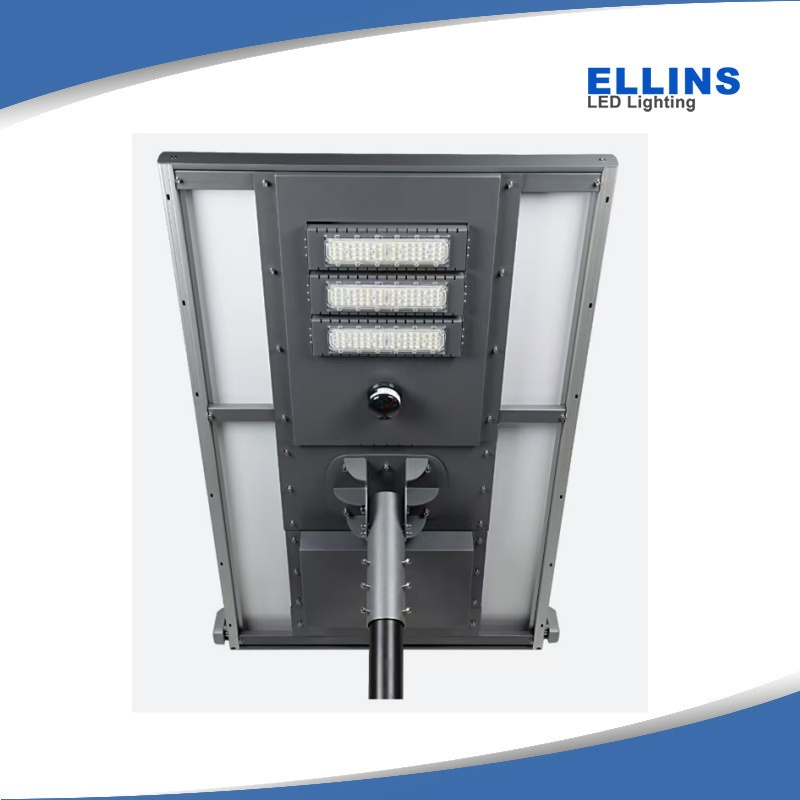

High Performance 120W Smart Solar Street Light Supporting GPRS and Nb-IoT

1 / 5

High Performance 120W Smart Solar Street Light Supporting GPRS and Nb-IoT

Customization:	Available
After-sales Service:	5 Years
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.

ELS-STK

Light Source

LED Lamp

Lamp Body Material

Aluminum

Power

30W - 150W

Color Temperature

Cool White

Cell Type

LiFePO4 Battery

Charging Time

6 Hours

IP Rating

IP66

Chip Lumen

210 Lm/W

Solar Panel

Monocrystalline

Controller

MPPT

Backup Days

3-5 Days

Product Description

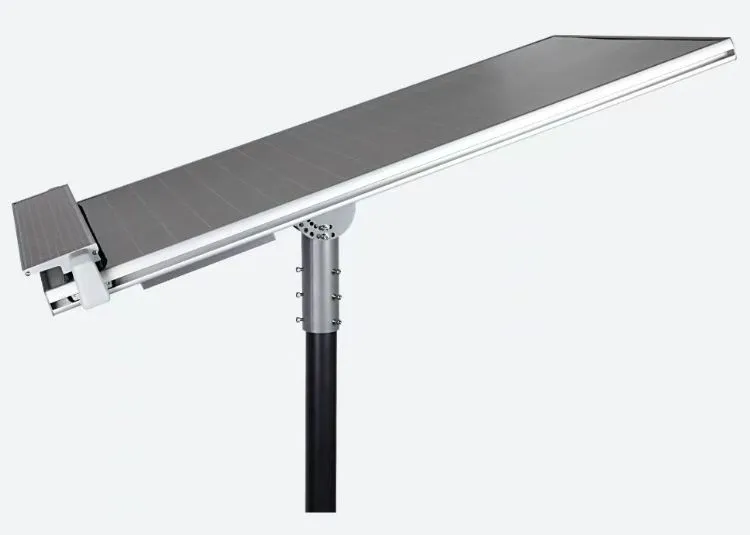

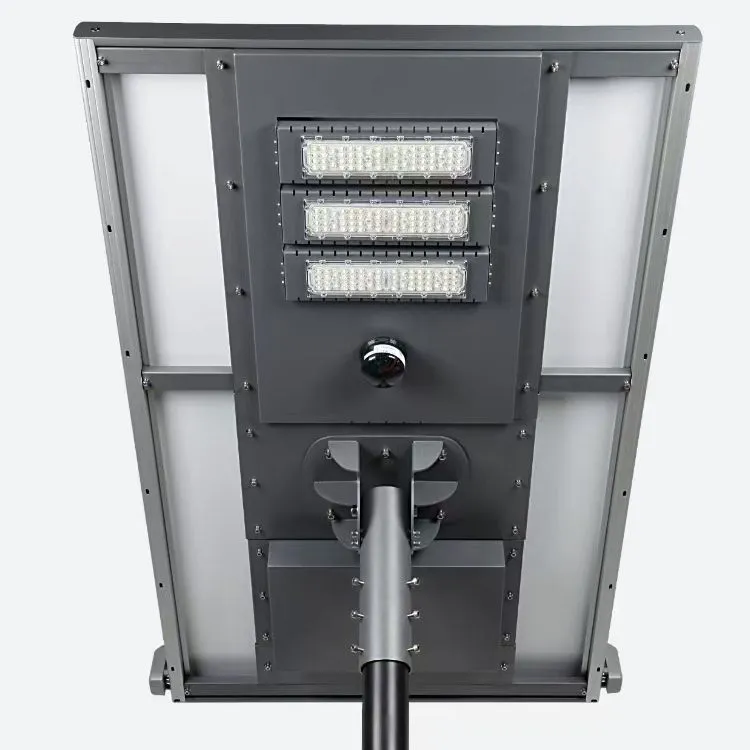

IP67 Auto-cleaning Smart Solar Municipal Road Lights

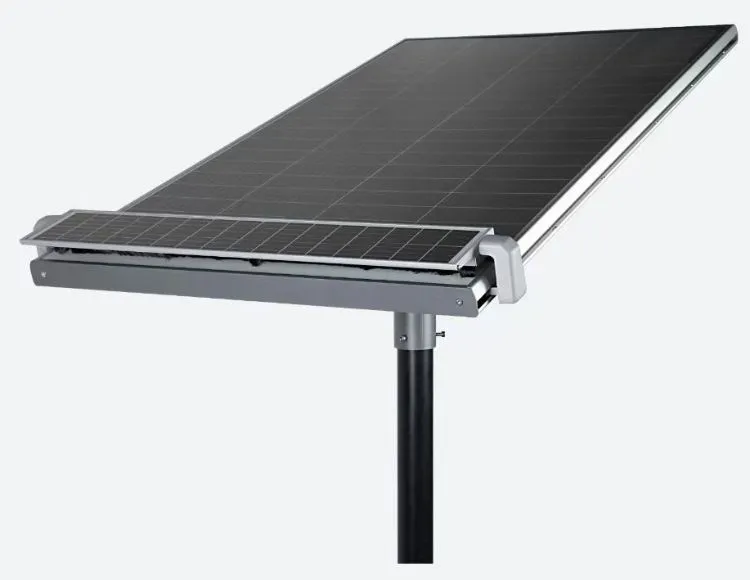

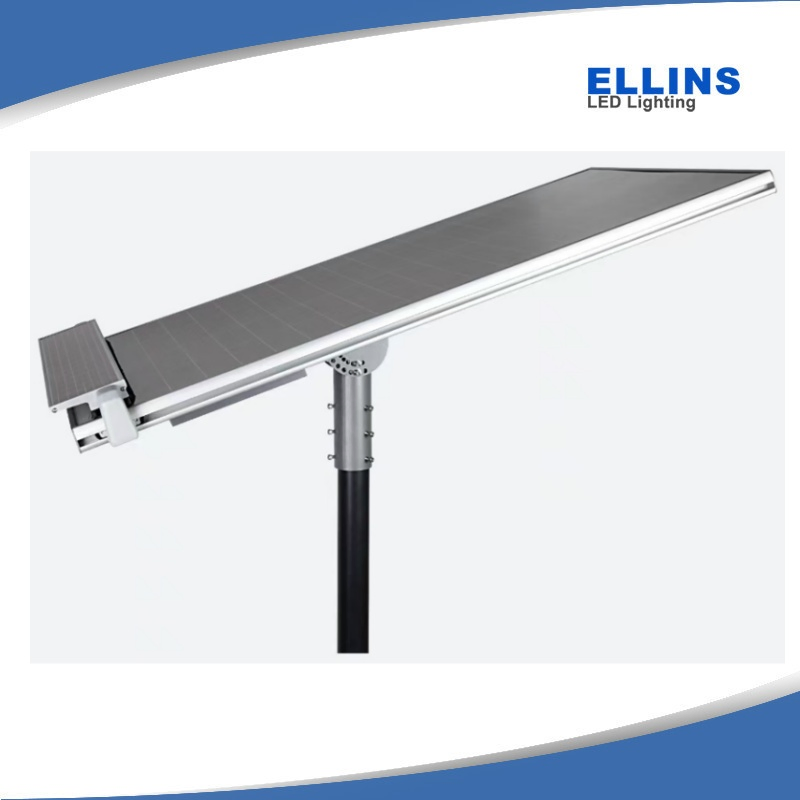

The lighting application part is exactly the same as that of a regular integrated solar street light. A dedicated sliding track for the cleaning module is added on the aluminum profile, ensuring the photovoltaic panel remains free from dust and debris.

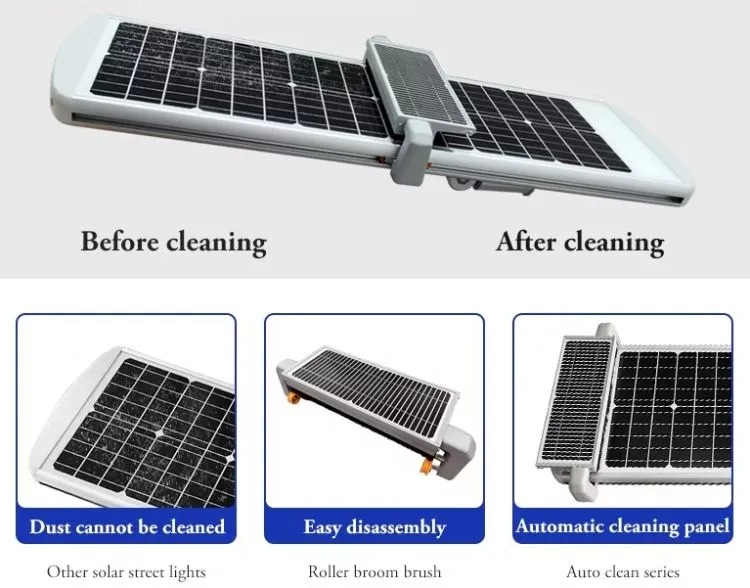

🔧 Self-Cleaning Module: It slides on a dedicated track designed on the main profile. Brushes under this module clean the PV panel automatically. This system is convenient for installation, disassembly, and maintenance.

Product Parameters

Model No.	ELS-STK
LED Power	30W / 40W / 50W / 60W / 80W / 100W / 120W / 150W
Light Efficiency	210 lm/w
Lithium Battery	12.8V/25.6V LiFePO4 battery
Solar Panel	High efficiency mono solar panel, 18V/36V
Working Temperature	-20ºC to +65ºC

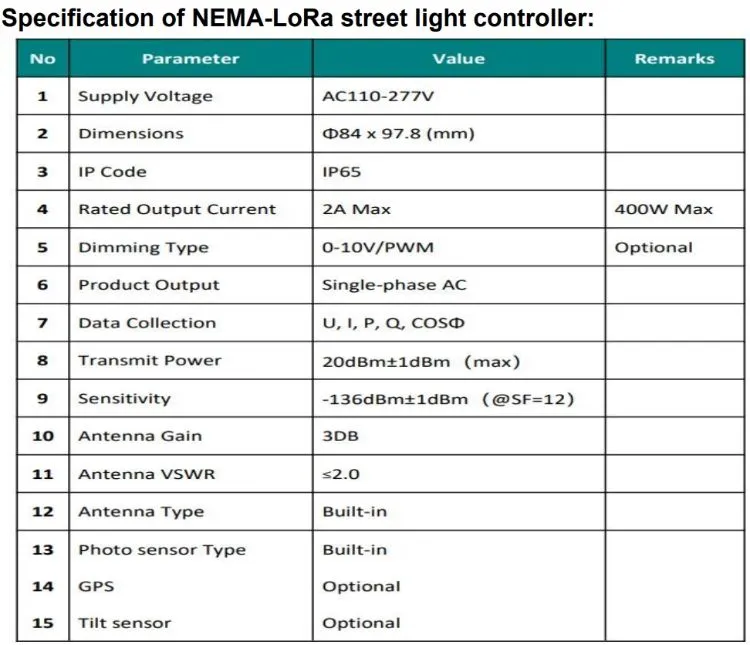

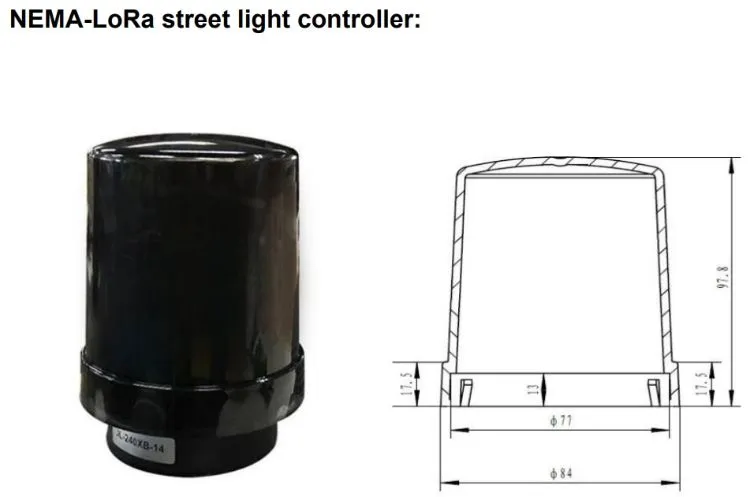

Lighting Mode	NEMA-LoRa controller, remote management
Intelligent Support	LoRaWAN Outdoor Gateway System

Key Features & Smart Support

Self-Cleaning Intelligence

Default cleaning frequency: 3 cycles in the morning and 3 cycles in the evening to maximize solar absorption.

Smart Monitoring: Real-time detection of current, voltage, power, and temperature.
Remote Control: Support for 0-10V / PWM dimming and time control schemes.

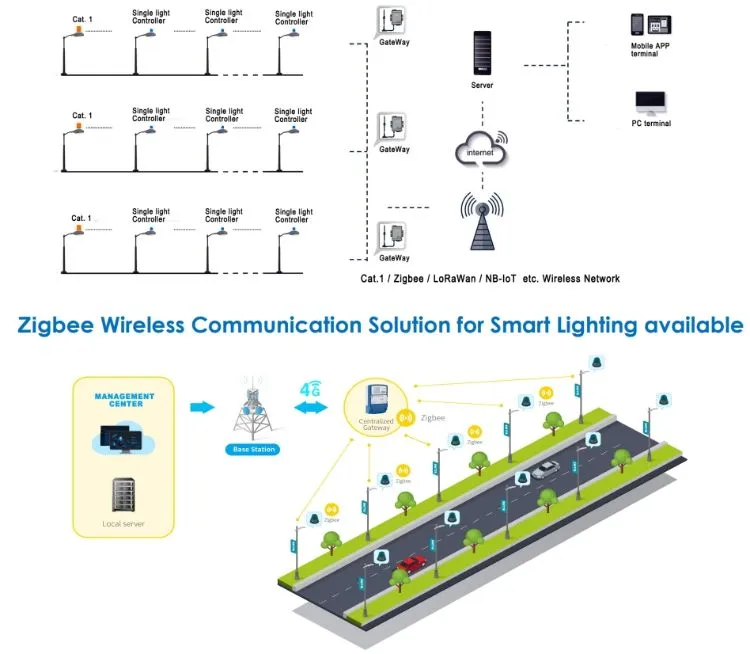

Network Connectivity: Supports 4G, Ethernet, Wi-Fi, GPS, and Zigbee module options.
Industrial Design: Metal case for stable 7x24 hours uninterrupted work in harsh environments.
Wide Voltage: AC110~277V power supply compatibility for various applications.

Application Scenarios

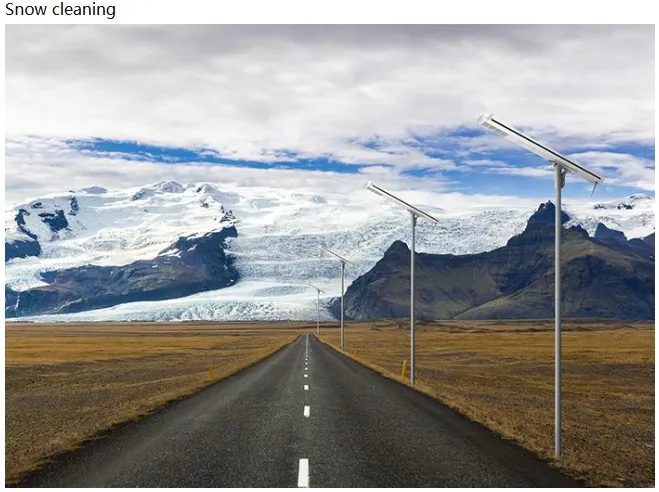

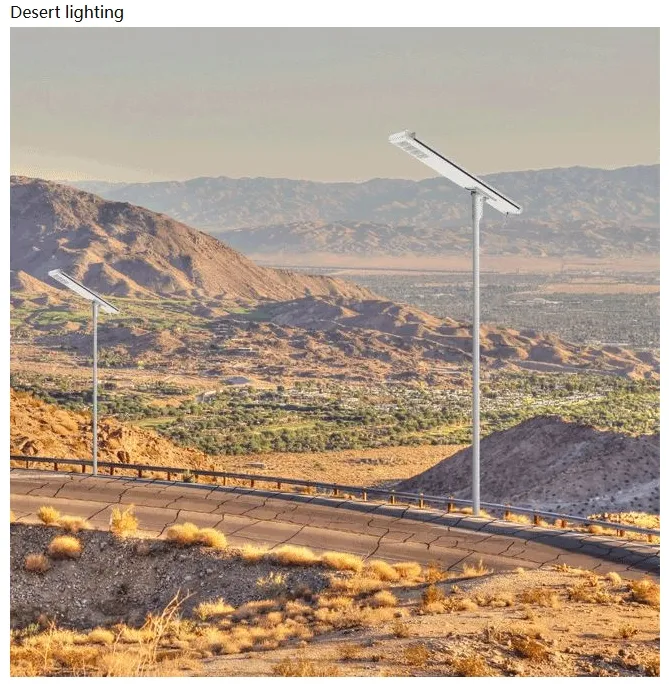

Ideal for Urban & Rural Municipal Road Lighting, ensuring high-performance illumination with minimal maintenance requirements.

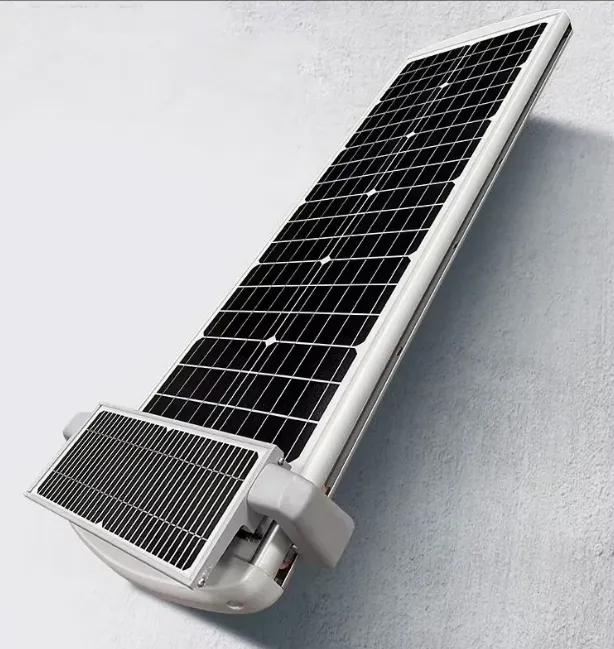

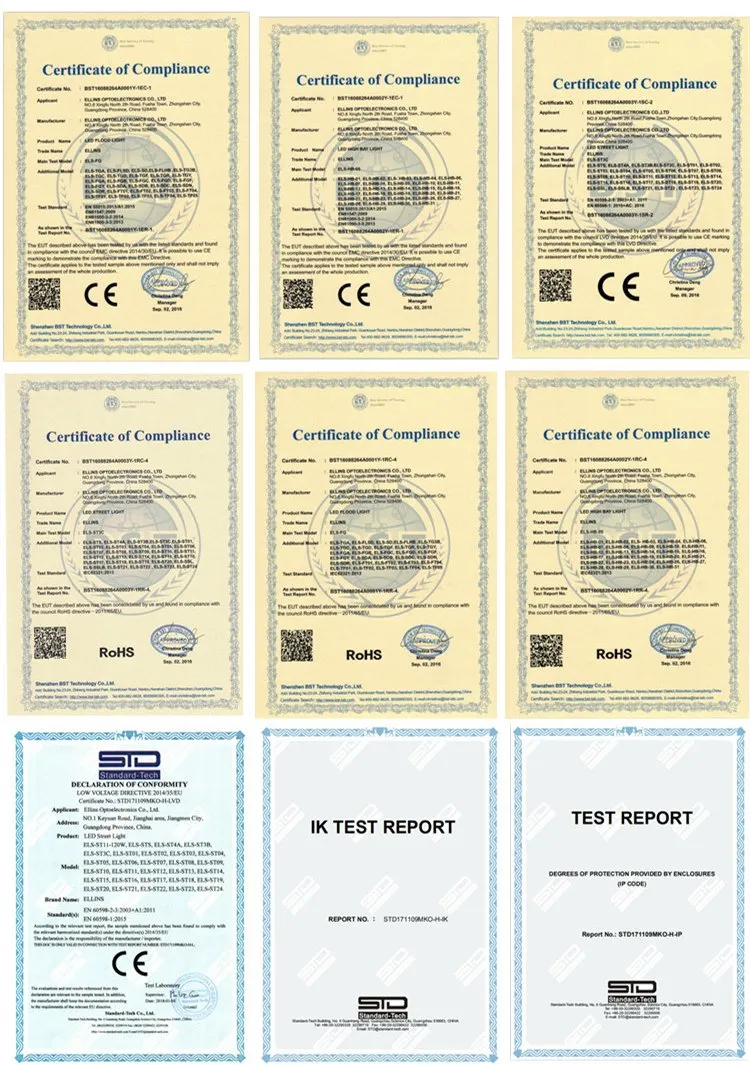

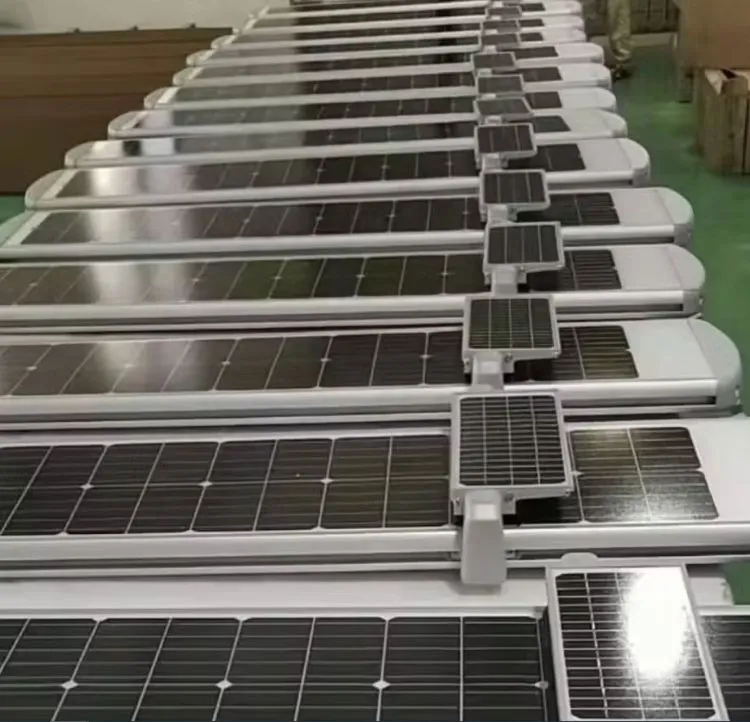

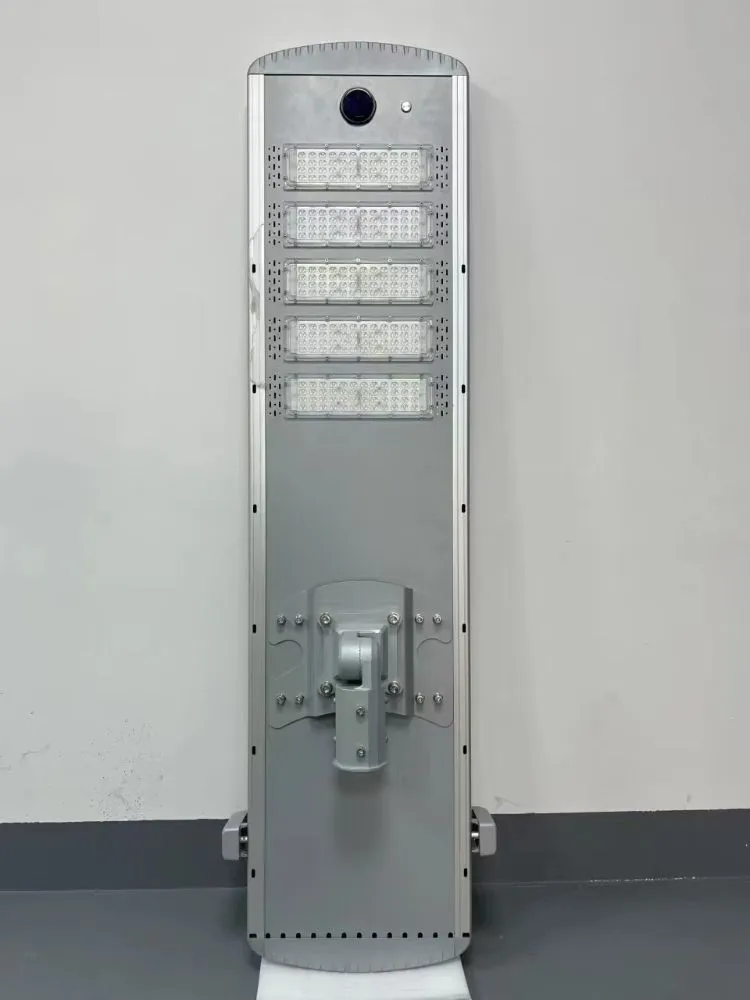

Production & Quality

Frequently Asked Questions

Q1: How does the self-cleaning system work?

The system features an independent cleaning module with built-in brushes that slide along a dedicated track on the solar panel, removing dust and debris automatically at preset intervals (typically morning and evening).

Q2: What is the benefit of the LoRaWAN control system?

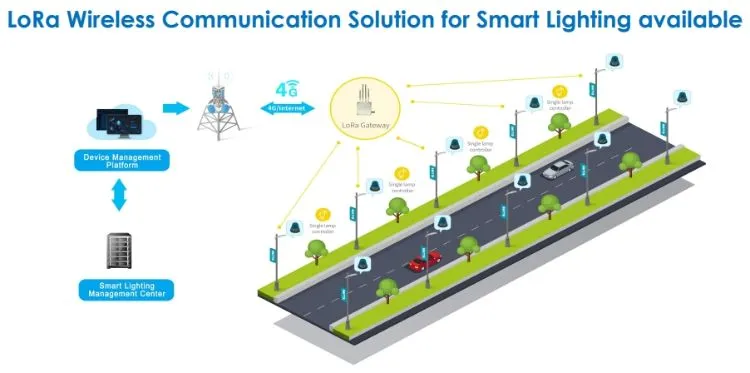

LoRaWAN allows for long-range wireless communication with street light nodes, enabling remote monitoring of power, voltage, and temperature, as well as customized dimming schedules from a central server.

Q3: How long can the light operate during rainy or cloudy days?

Thanks to the high-capacity LiFePO4 battery and MPPT controller, the system provides 3-5 days of backup power ensuring continuous lighting even without direct sunlight.

Q4: What is the lifespan of the components?

The monocrystalline solar panels have a lifespan of up to 25 years, while the high-quality LiFePO4 batteries are designed for over 5000 cycles, lasting up to 10 years.

Q5: Is the light fixture durable enough for industrial environments?

Yes, the body is made of high-end aluminum alloy with anodizing treatment and features an IP66/IP67 rating, making it resistant to corrosion and strong environmental interference.

Q6: Can I remotely adjust the brightness of the lights?

Absolutely. The integrated smart controller supports 0-10V and PWM dimming, allowing users to adjust brightness levels based on time or motion sensor triggers via the management platform.
