Product Description

Basic Information

Model NO.

CFX182600

Power

≥100W

Projection Distance

>35m

Application

Park, Square, Factory, Garden

IP Rating

IP65

Certification

CE, RoHS

Operating Voltage

AC220V

Light Sources

Power LED

Capacity

50000 Pieces/Month

Origin

China

Product Description

Vehicle mobile lighting equipment Roof-Mounted High Mast searchlight tower

This vehicle-mounted mobile lighting equipment features a series of high-performance lighting tools designed for medium-sized special vehicles such as communication command vehicles, rescue vehicles, and fire fighting trucks. The system includes a pneumatic lifting mechanism that reaches a height of 1.8m when fully extended, significantly expanding the irradiation range.

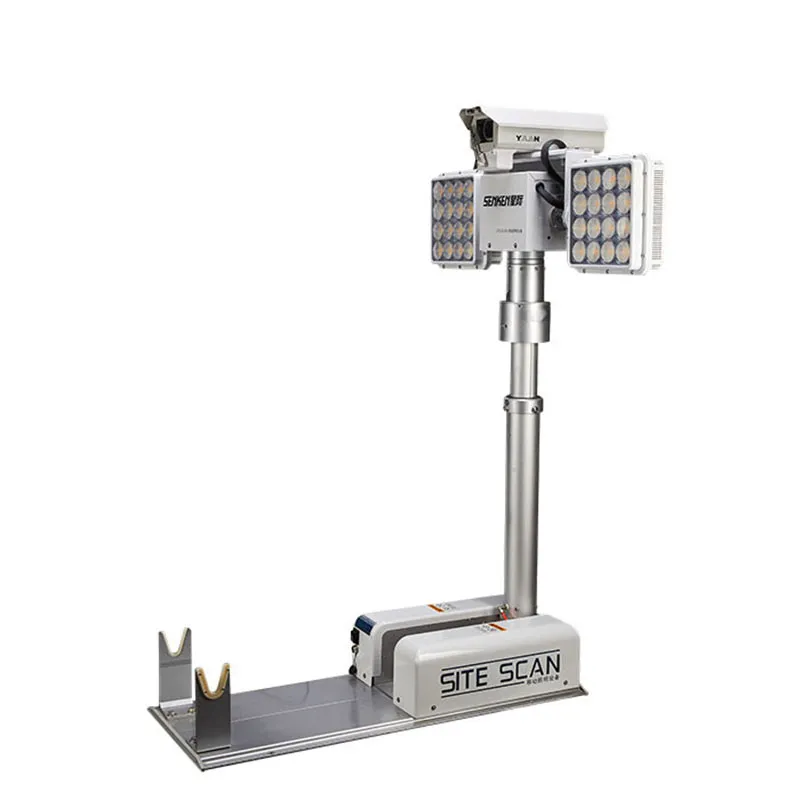

The equipment offers comprehensive functionality including lifting, lowering, and tilting. It can transition from a horizontal storage position to a 90-degree vertical stance, with the mast extending to 1.8 meters via an integrated air pump. The gimbal allows for 380 degrees of horizontal rotation and 330 degrees of vertical rotation to achieve precise positioning.

Utilizing high-efficiency LED solid-state lighting, the system provides long life, energy savings, and superior shock resistance. It is engineered for durability with wind resistance up to 50Km/h and operates on a DC12V system voltage, making it ideal for automotive integration.

Technical Parameters

Lamp working voltage	AC220V
System operating voltage	DC12V
Lamp power	600W*2
Horizontal rotation angle	380°
Vertical rotation angle	330°
Luminous flux	126000lm
Protection grade	IP67
Control mode	Wired and wireless control

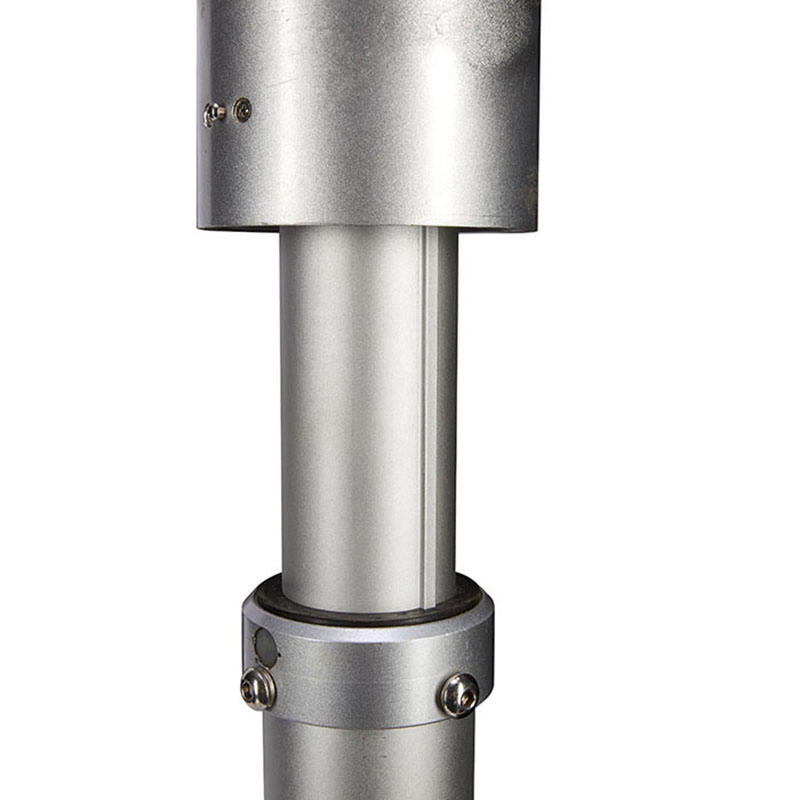

Lifting mast	Three sections / Pneumatic
Working environment temp	-30°~55°

Product Showcase

Frequently Asked Questions

What is the maximum height the lighting tower can reach?

The CFX182600 model features a three-section pneumatic mast that reaches a maximum height of 1.8 meters (approximately 6 feet). Other versions are available in 1.2m, 1m, and up to 16 feet.

Does the system support remote operation?

Yes, the equipment can be controlled via both wired and wireless remote controllers. The wireless remote has a range of over 50 meters and allows for full control of rotation, lifting, and light switching.

Can I mount a camera on this light tower?

Absolutely. The rotating platform includes a reserved bracket and pre-routed cables for camera installation, allowing the camera to rotate synchronously with the lights for video surveillance.

How does the automatic reset function work?

The system includes a one-button reset feature. When activated, the mast will automatically fold back down to its original horizontal position for safe vehicle transit.

What is the wind resistance and durability rating?

The equipment is designed to withstand wind speeds up to 50km/h and has an IP67 rating for the lamps (IP65 for the system), making it suitable for harsh weather conditions in emergency scenarios.

What kind of power source is required?

The system operates on a DC12V vehicle power supply for the control and lifting mechanisms, while the LED lamps typically operate on AC220V.
