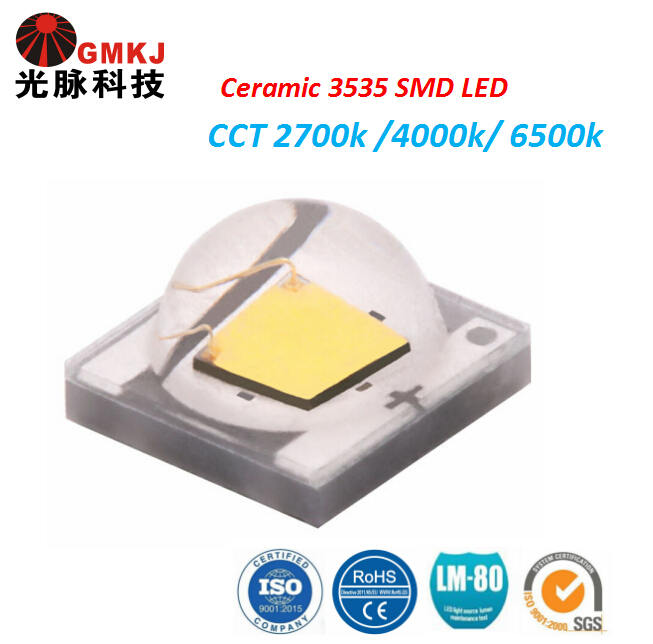

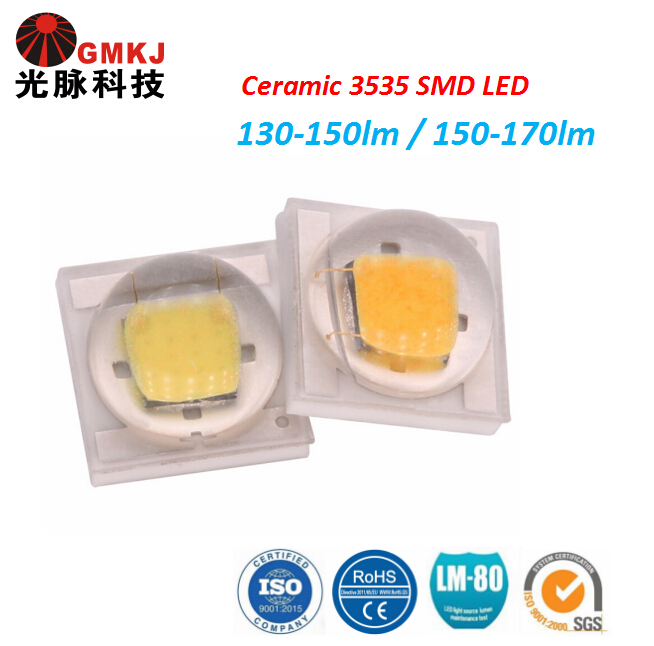

New Type High Lumen 3000K 5000K 6000K 8000K White High Power SMD 3535 LED Chip 3W for Outdoor Lighting
Luminous Intensity
Standard

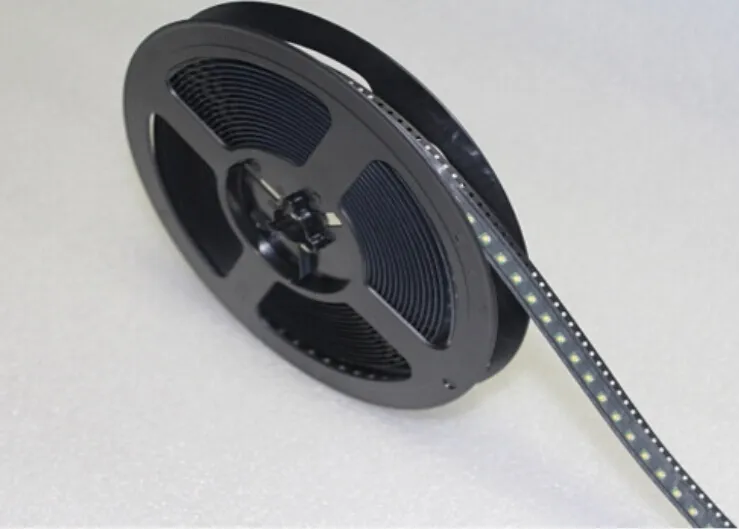

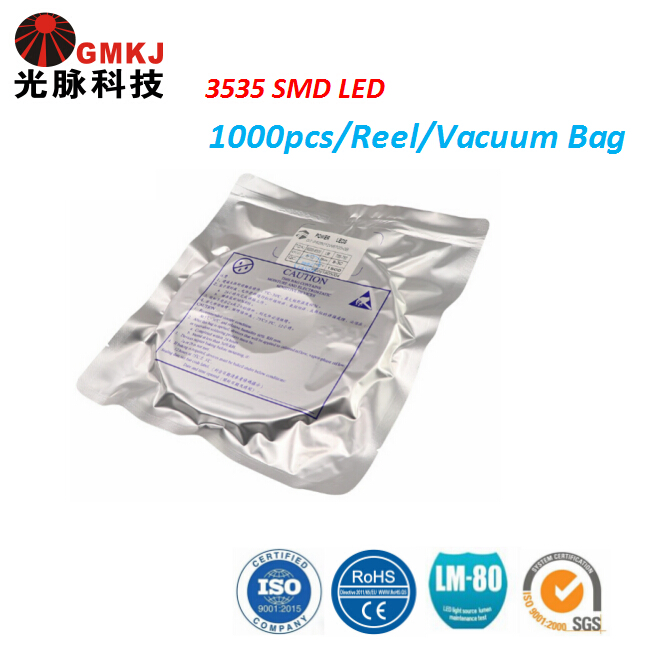

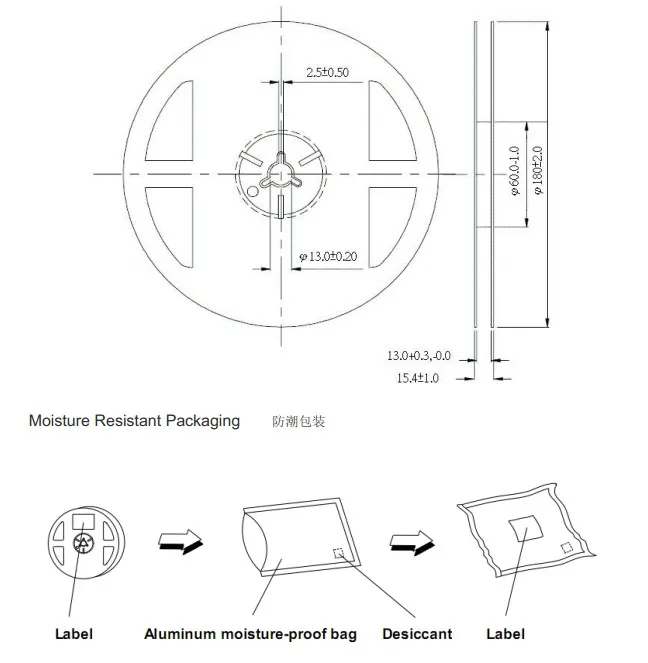

Transport Package
Box, Carton
Specification

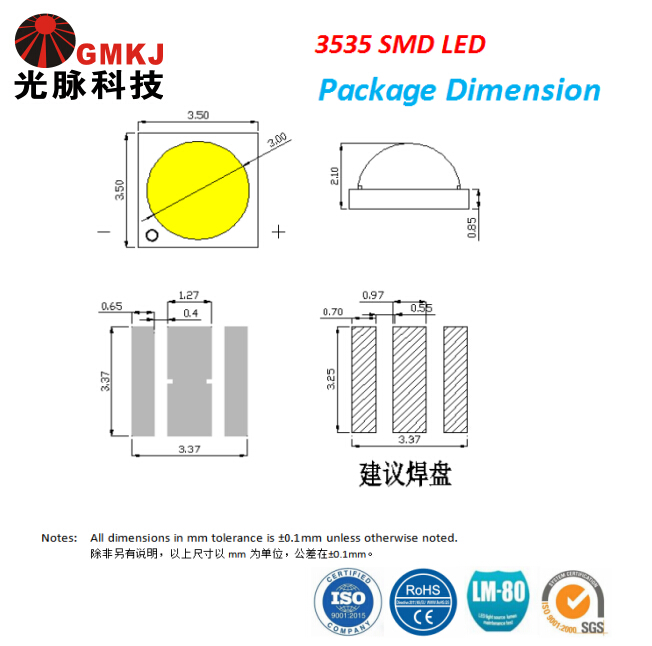

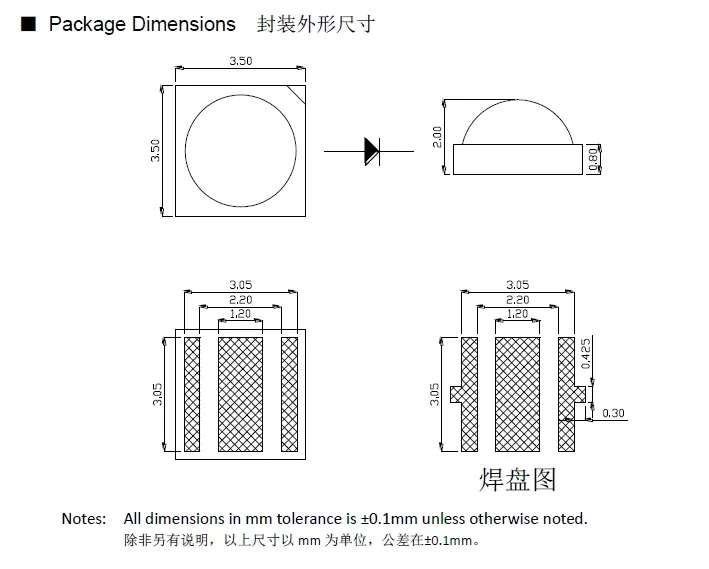

chip size: 35*35mm
Production Capacity
100,000 Per Day

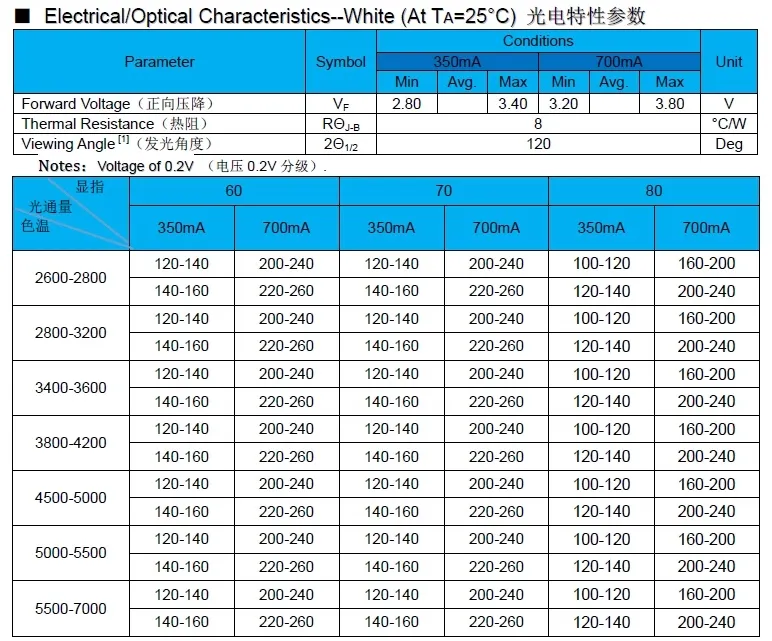

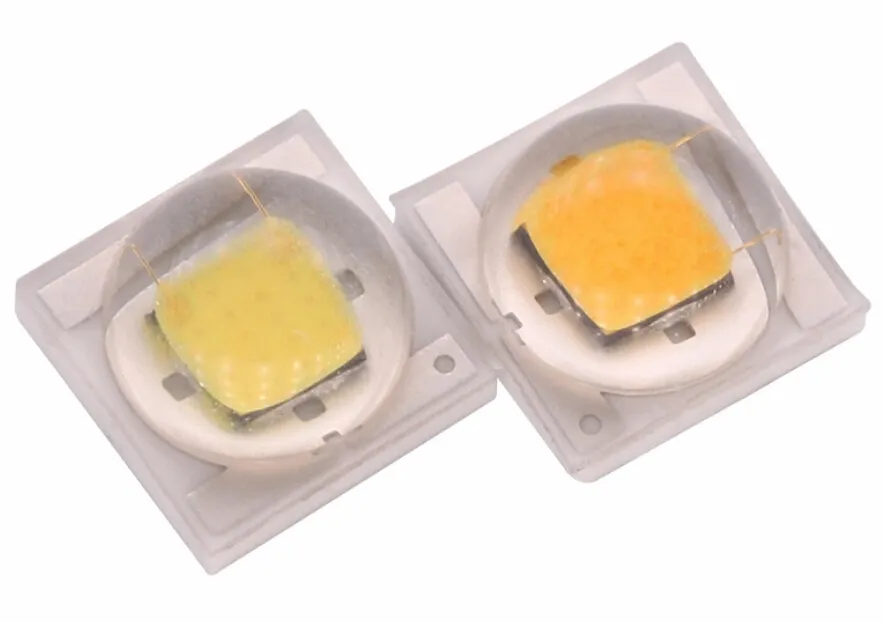

| Type: | 3535 SMD LED Diode |
Model Number: | GS-3535W6 |
Chip Material: | AlGaInP, Plcc |
| Emitting Color: | Warm/Natural/Cool White |
Lumens: | 250-280lm |
Fluorescent Powder: | Intematix |
| Optical Attenuation: | 0.3% |
Power: | 3W |
Gold Thread: | Heraeus |
| Viewing Angle: | 120° |
CRI (Ra): | >70 |
Color Temp: | 2000-20000K available |
| Operating Temp: | -40 - +65°C |
Support: | Black copper heatsink |
Certification: | CE, RoHS, FCC |
| Drive Voltage: | 3.0-3.4V |
Current: | 700mA |
Chip Brand: | Bridgelux |
- Brilliant packaging technology for superior reliability.
- Low lighting attenuation; conversion factor can reach 90%.
- Excellent glare control for high-quality light output.
- Specialized design for efficient heating output and thermal management.
- Long lifespan of up to 50,000 hours.
- Equipped with original chips from Taiwan Epistar and USA Bridgelux.
- Fully certified with CE and ROHS standards.
- 100% tested before shipping to ensure quality.
- Top-quality raw materials, strictly tested before usage.
- Long-term reliability with 4-year warranty support.
- Heraeus 1.0 gold wires for stable connectivity.
- High-performance black copper heatsink.
- Intematix fluorescent powder for precise color rendering.
- Dow Corning silicon for durable encapsulation.
Our products are widely accepted across the USA, Canada, Mexico, and the Middle East (Turkey, UAE, Egypt, Iran). We also have a strong presence in Europe (Italy, France, Poland, Ireland, UK, Germany) and Asia (India, Pakistan, Singapore, Malaysia, Japan).
Payment: T/T (30% deposit, 70% before delivery), 100% T/T for samples.
Lead Time: Approximately 5-7 days.
Shipping Methods: Express (DHL, EMS, FedEx, UPS, TNT), Air, or Marine transport.
Discounts: Available based on order quantities.
- 3 Years Warranty for all products.
- Replacement or refund policies for quality issues.
- Full technical support for LED integration.
- OEM lamp order availability.
- Factory visit support.
?
Frequently Asked Questions
What are your supported payment methods?
We accept T/T, Paypal, Western Union, and HKHSBC.
What shipment options are available?
We offer shipping via Air, Marine vessels, and Express couriers like DHL, EMS, and UPS.
How long is the typical delivery time?
Generally, we require 4-5 days to prepare the goods for dispatch.
What is the warranty period for your LED products?
We provide a comprehensive 3-year warranty on our products.
What are your main product specialties?
We specialize in high-power LEDs (1W-500W), COB LEDs (3W-30W), and various SMD models including 3030, 5050, and 3535.
Which LED chips do you usually use?
We primarily use high-quality chips from Epistar, Bridgelux, and Genesis Photonics for our high-power LED range.
