Basic Specifications
Model NO.
LCD-FK-203-4K-LN60-PLC
Projection Distance
25-35m
Operating Voltage
85-265V / 12V 24V 32VDC
LED Chips Brand
Bridgelux / OSRAM
Certification
CE, ROHS, TUV, SAA, FCC
Application

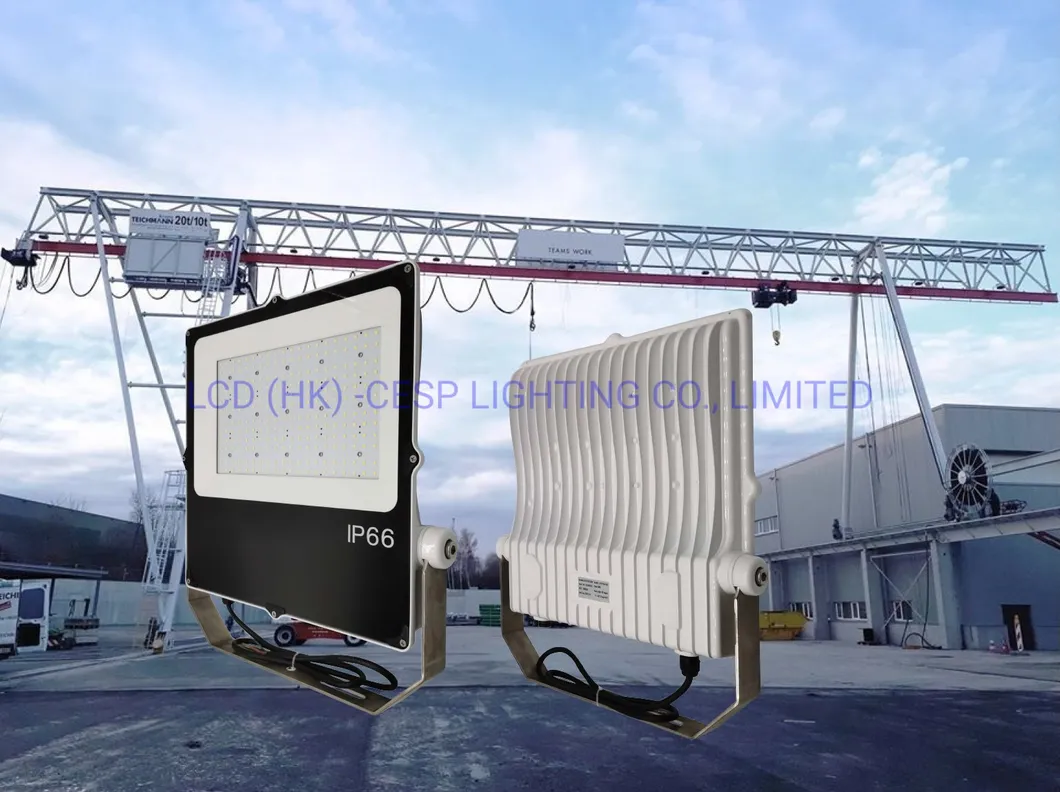

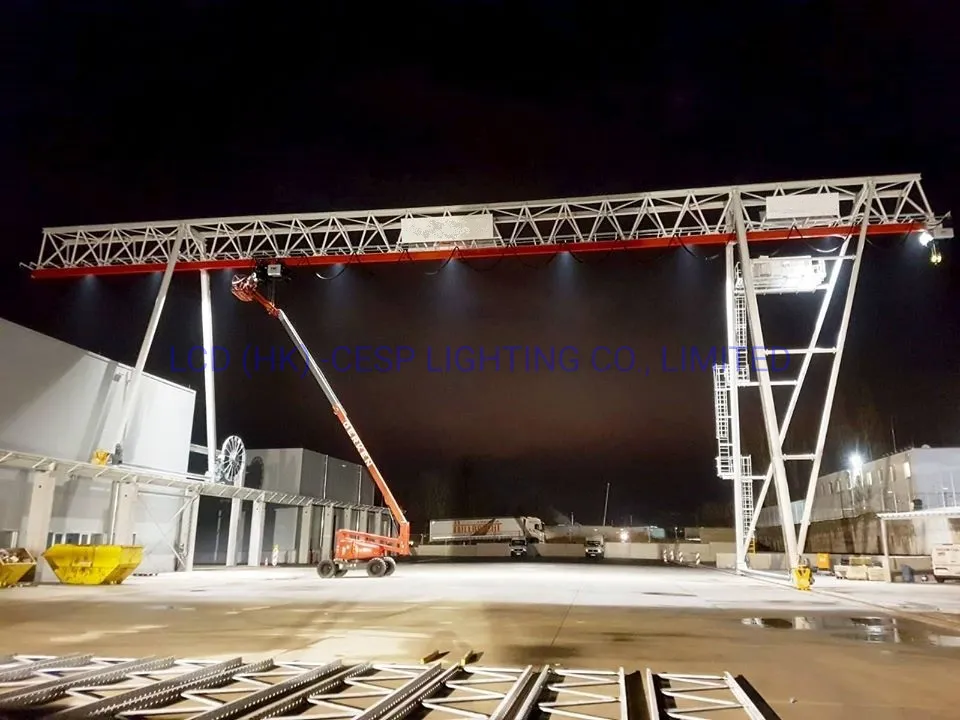

Park, Square, Factory, Garden, Crane, Sea Port
Product Overview
AC 85-265VAC 50/60Hz or 12V 24V 32VDC 2700k-6500K IP66 Waterproof Exterior Outdoor Led Flood Lights
Energy-efficient LED floodlights featuring PLC dimmable control, providing up to 85% energy savings. These fixtures are designed for high-performance outdoor illumination with a 5-year warranty.
🚀 Key Highlights:
- PLC dimmer system for 75-85% power saving
- High quality LED SMD3030 & SMD5050
- Lumen output up to 150lm/w

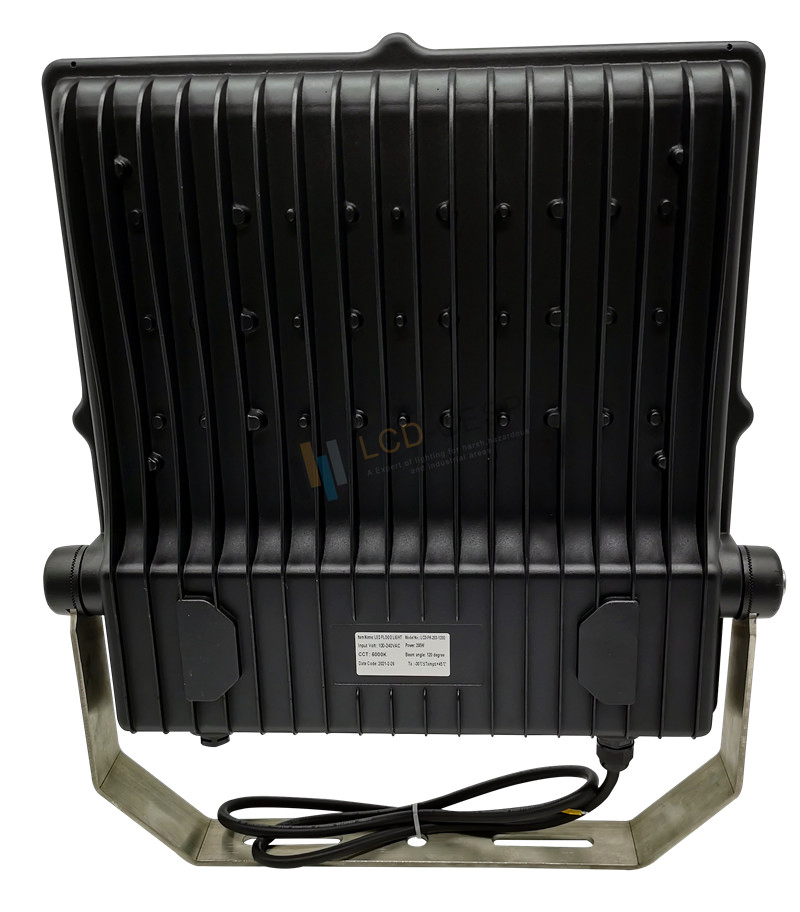

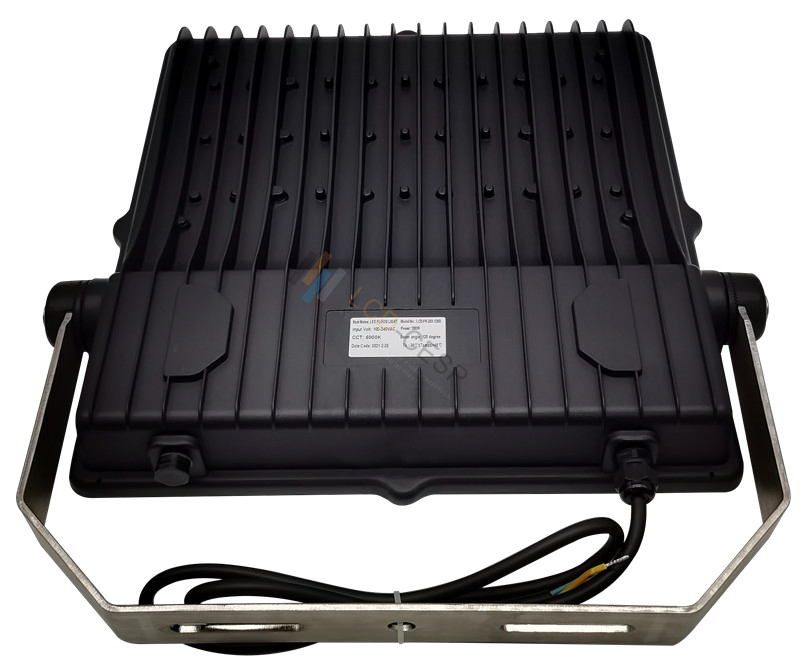

- High efficiency heat-sink housing
- Weatherproof IP66 & IK07 rated
- Dimmable options: PLC / DALI / 0-10V
- Elegant and lightweight design
Detailed Technical Data
| Wattage |
100W |
150W |
200W |
250W |
| Light source |
SMD 3030 or OSRAM SMD5050 |
| Luminous Efficiency |
145- 155 lm/w |
| Luminous Flux (lm) |
14500 |
21750 |
29000 |
36250 |
| Color Temp (CCT) |
2800-3000K, 4000-4500K, 6000-6500K, 7000-7500K |
| CRI (Ra>) |
>70 @ 6500K, >75 @ 4000K, >80 @ 3000K |
| Housing Material |
Copper free die-cast Aluminum alloy ADC12 |
| Working Temp |
-70ºC ~ 60ºC |
| Beam Angle |
10º, 20º, 30º, 60º, 90º, 120º, TYPE I/II/III/IV |
Mechanical & Electrical Specs
Operating and Electrical
| Input Voltage | 220-240 VAC / 110-277VAC or 12V 24V 32VDC |
| Power Factor | >0.97 |
| Controls | PLC dimmer, 0-10V, DALI, Triac, Motion sensor |
Mechanical and Housing
| Housing / Reflector | ADC12 Aluminum / Pure polish aluminum |
| Lens Material | Polycarbonate (Transparent or Frosted) |
| Fixation | Stainless steel #316 & 304 / Corrosion proof powder coating |
| Mounting | Adjustable mounting bracket |
| Colors | White, Black, Grey |
Application & Weight
| Ambient Temperature | -70 to +50 °C |
| Net Weight | 6.1 KG (200W model) |
| Standard Pack | 1 pcs / box |
| Full Product Code | LCD-FK-200-LNXX-4K-PLC |
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of the PLC dimming system?
A: The PLC (Power Line Communication) dimmer system allows for advanced lighting control, enabling energy savings of between 75% and 85% compared to traditional lighting systems.
Q: Is this floodlight suitable for extreme weather conditions?
A: Yes, with an IP66 ingress protection rating and a wide working temperature range of -70ºC to 60ºC, it is designed to withstand harsh outdoor environments, dust, and jet-proof water exposure.
Q: What is the warranty period for these LED flood lights?
A: These high-quality LED floodlights come with a 5-year standard warranty, ensuring long-term reliability and performance.
Q: What type of LED chips are used in the fixtures?
A: We utilize high-lumen SMD 3030 or OSRAM SMD5050 chips to achieve a high luminous efficiency of up to 155 lm/w.
Q: Can the mounting angle be adjusted after installation?
A: Yes, the fixtures feature an adjustable mounting bracket that allows you to focus the light output with precision for different landscaping or architectural needs.
Q: What certifications do these lights hold?
A: Our flood lights are fully certified with CE, ROHS, EMC, LVD, TUV, and SAA, meeting international safety and quality standards.
