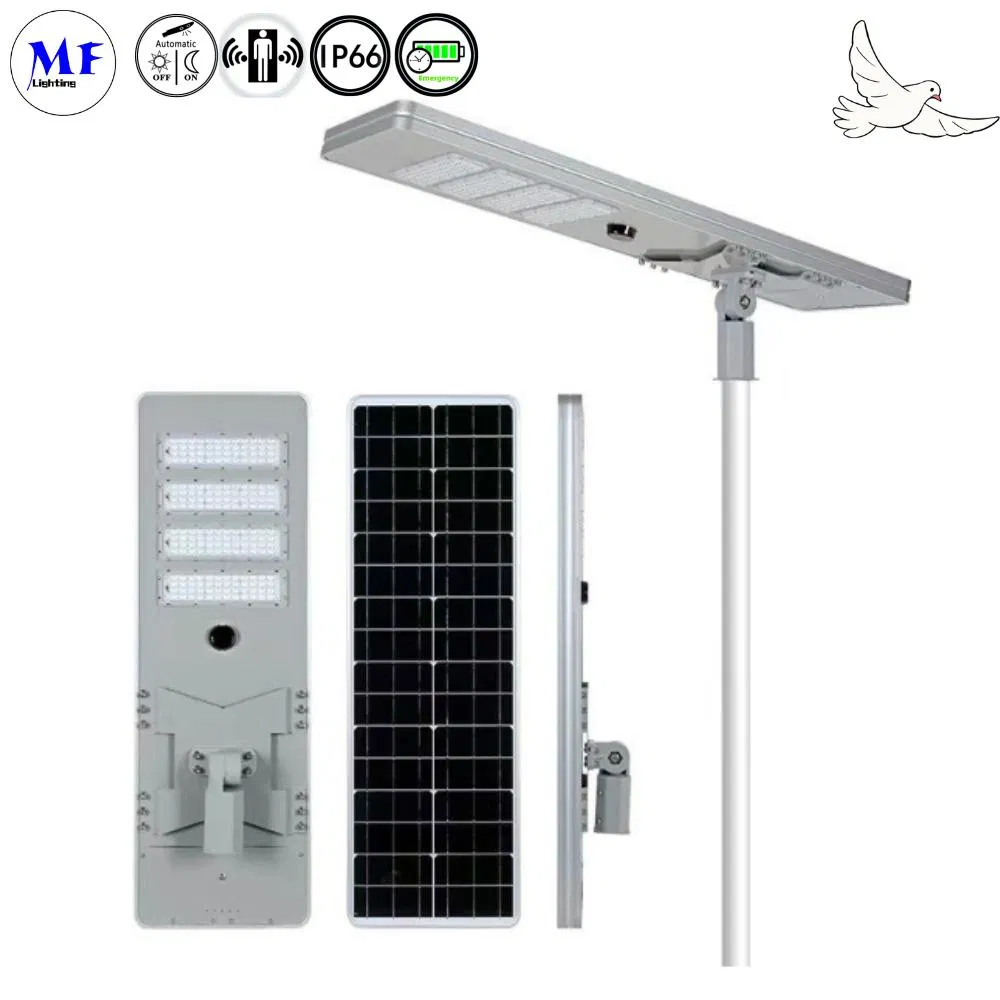

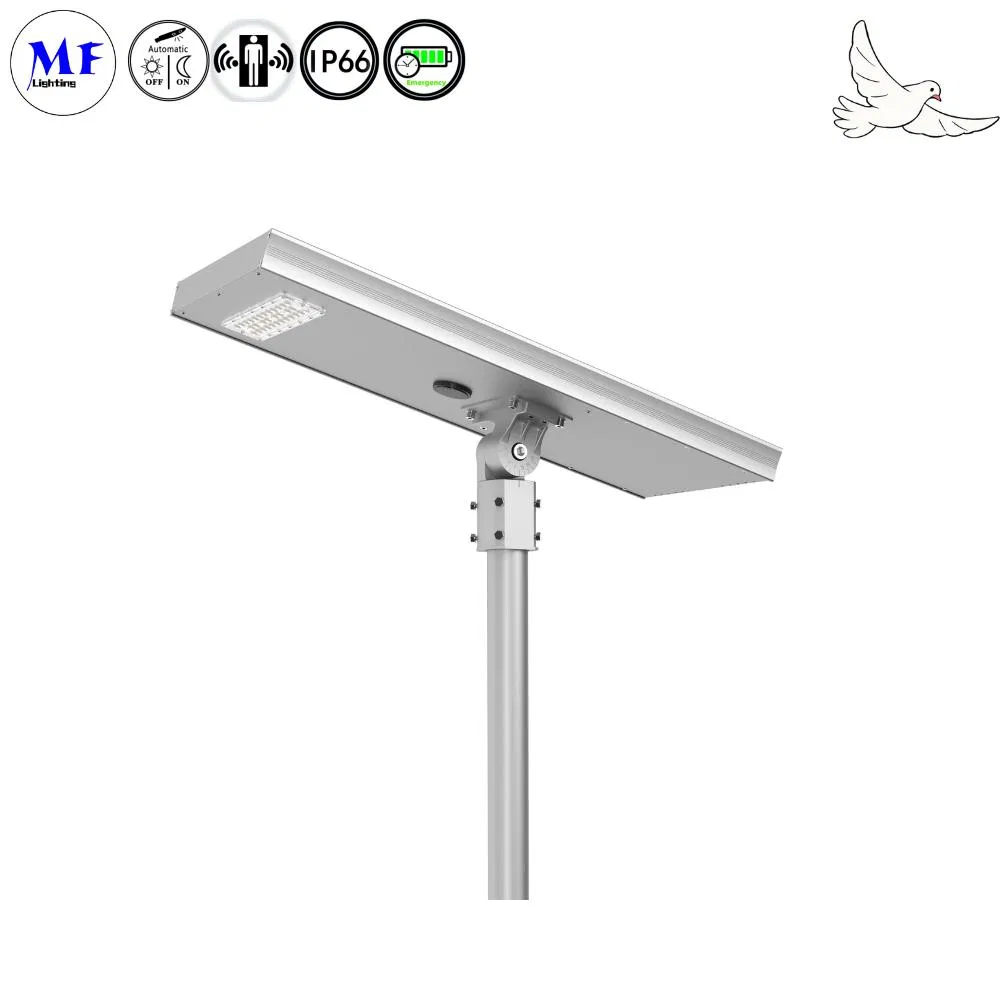

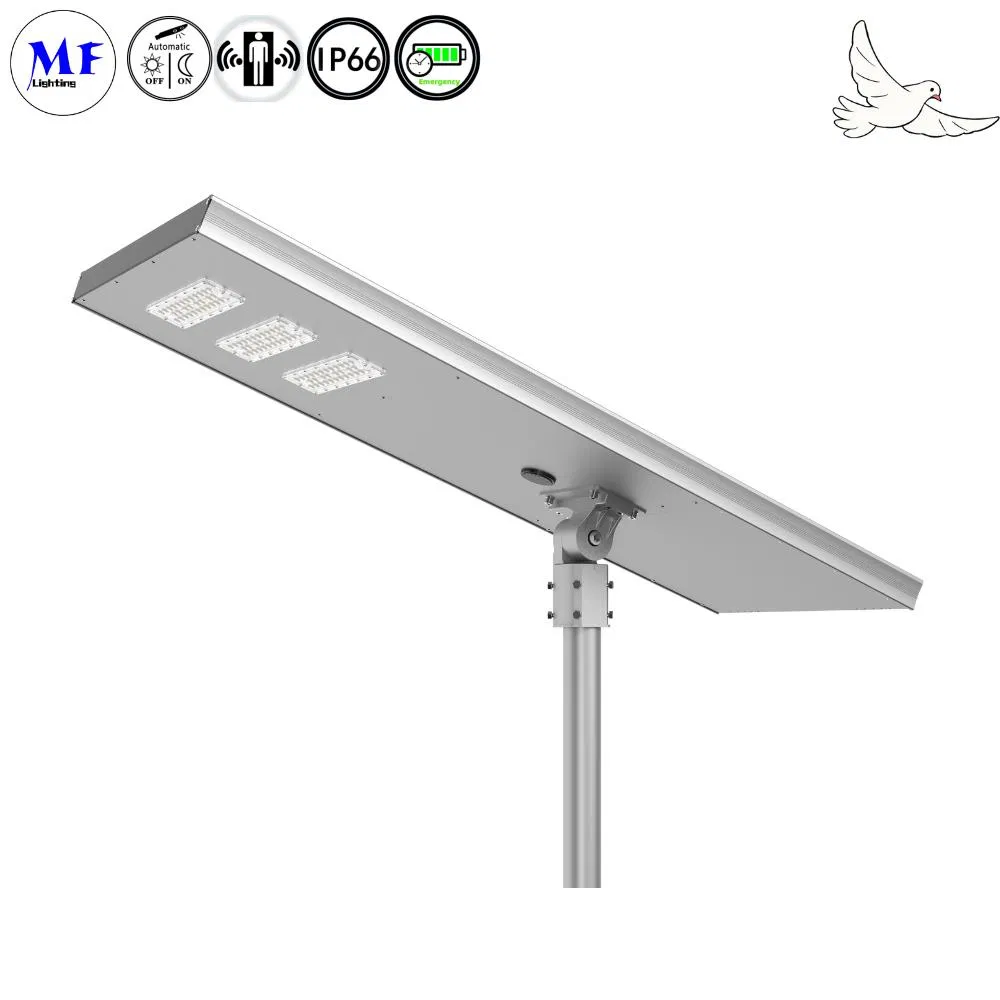

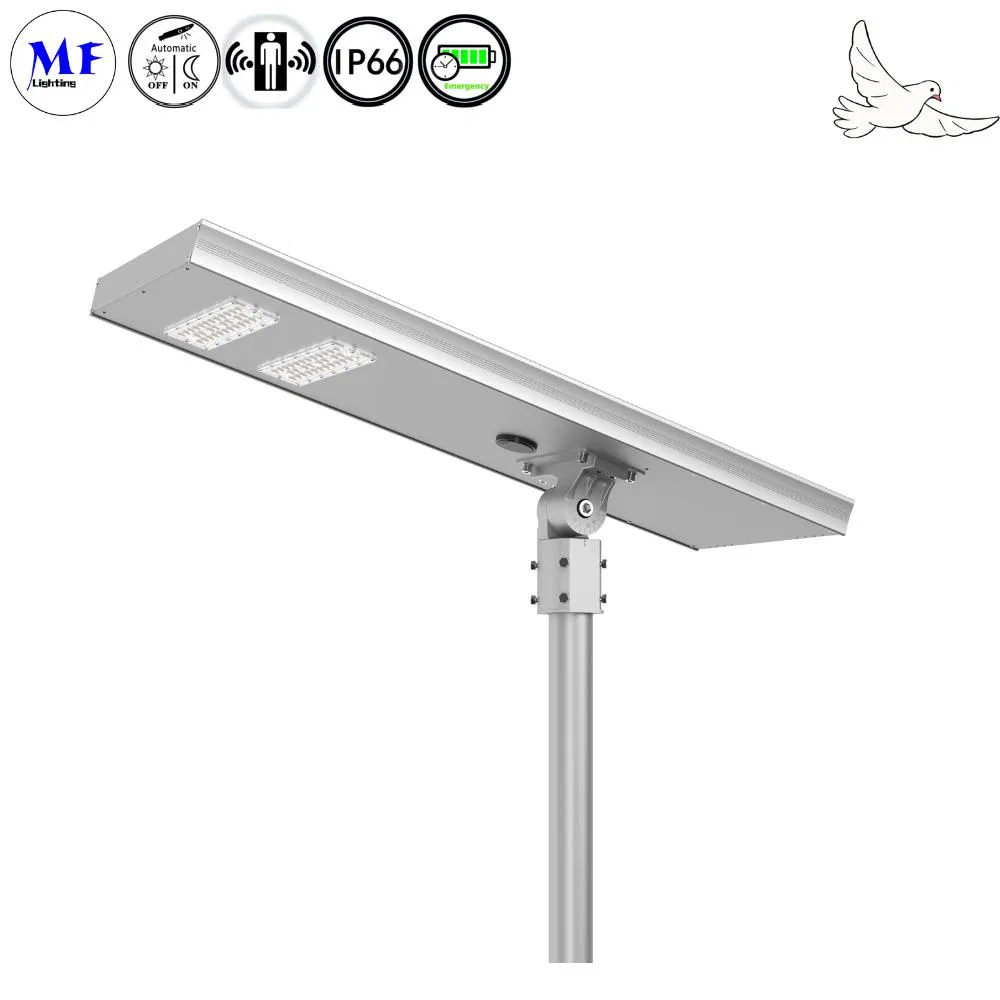

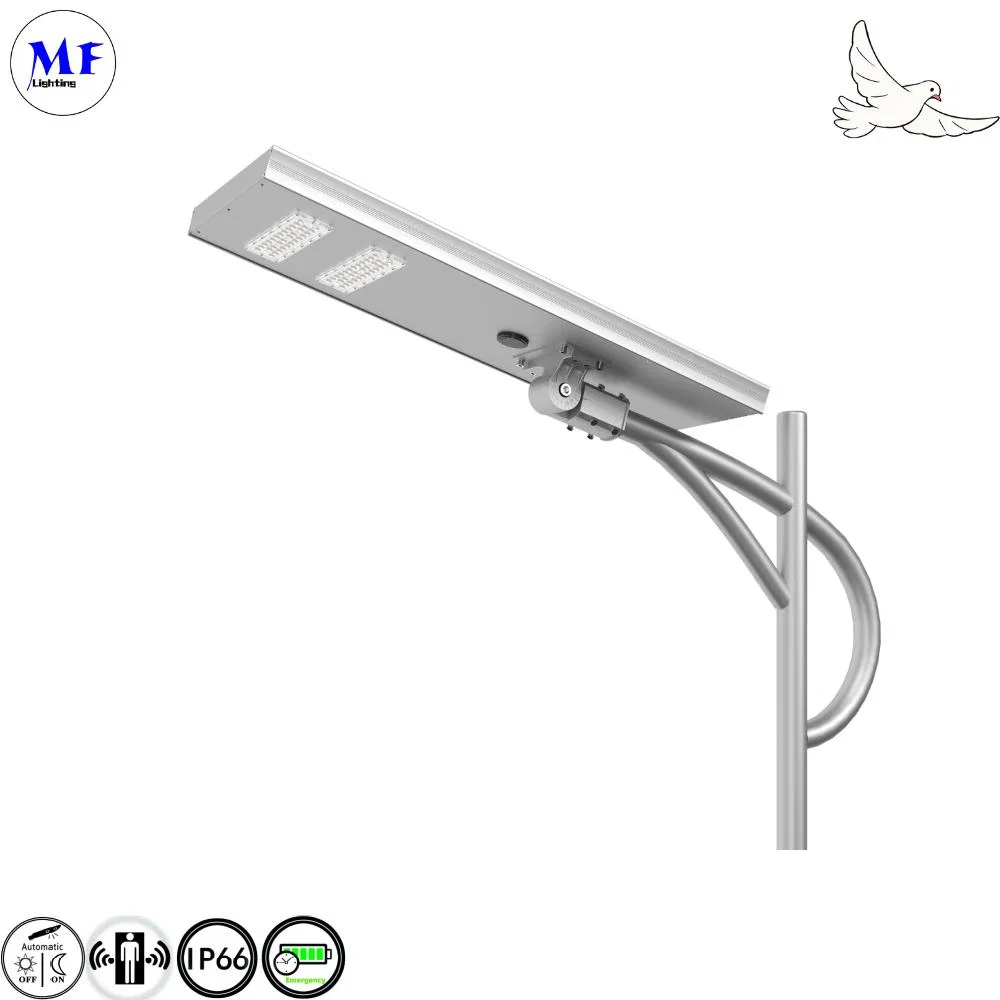

High End Typical IoT Networking Smart Control System 200lm/W 40W Outdoor IP66 LED Light Waterproof Solar Garden Lamp All in One Solar Street Light with Sensor

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview

Model NO.MF-SP5-P40W
Lamp MaterialAluminum
Power Range20W - 120W
IP RatingIP66
LED BrandOS-RAM / 5050
Lumen Efficiency210lm/W
Battery TypeLiFePO4 32700
Charging Time6-7 Hours
CertificationCE, RoHS, FCC, ETL, SAA
Warranty2-3 Years

Product Description

High-End IoT Networking Smart Control System Solar Street Light

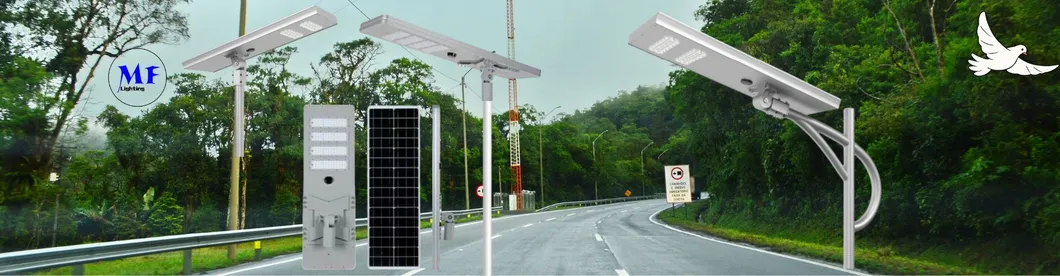

Solar Street Light Overview
  • Power range: from 40W to 120W
  • Charging time: 7.1 to 7.2 hours (standard condition)
  • Advanced MPPT controller: 30% higher charging efficiency than PWM
  • Built-in/external grid complementary power supply compatible
  • Ultra-high brightness TYF LED chips for maximum performance

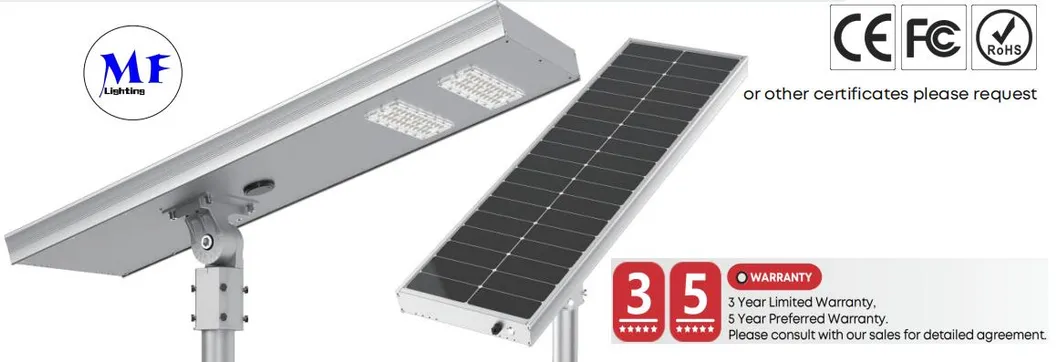

Component 1
Component 2

Key Components

The light fixture includes a high-capacity LifePO4 battery pack, offering over 10 years of maintenance-free use. Lighting programs can be modified to extend working time during low sunlight.

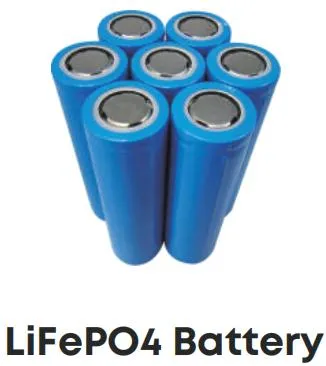

Battery System

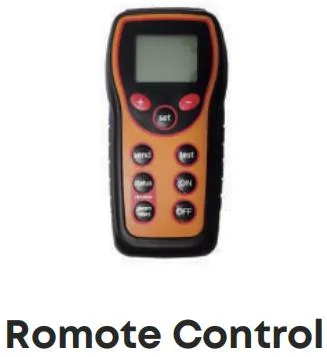

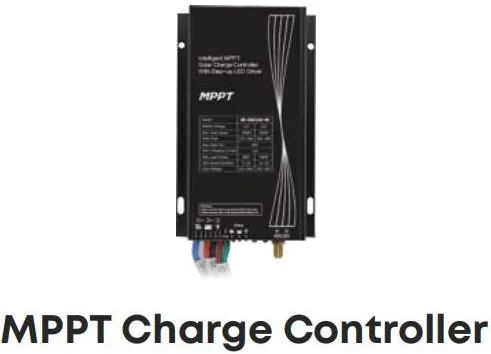

Control System

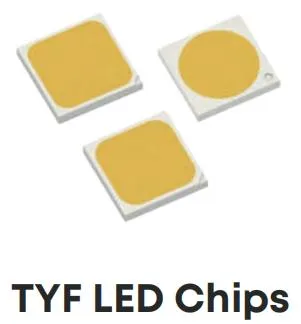

LED Chip

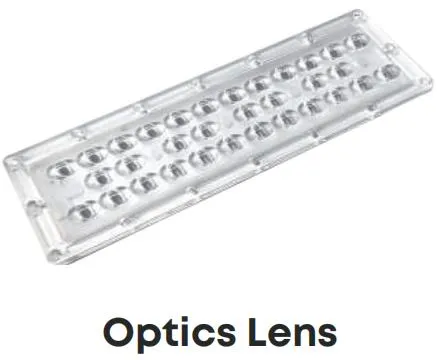

Lens Detail
Housing Design

Controller Advantages

1 MPPT maximum power tracking (20% faster)
2 UltraGreen power control with low static consumption
3 10 time-periods programmable load control
4 Automatic power adjustment based on battery levels
5 Multiple protection (Reverse connection, short circuit)
6 IP67 waterproof aluminum metal housing

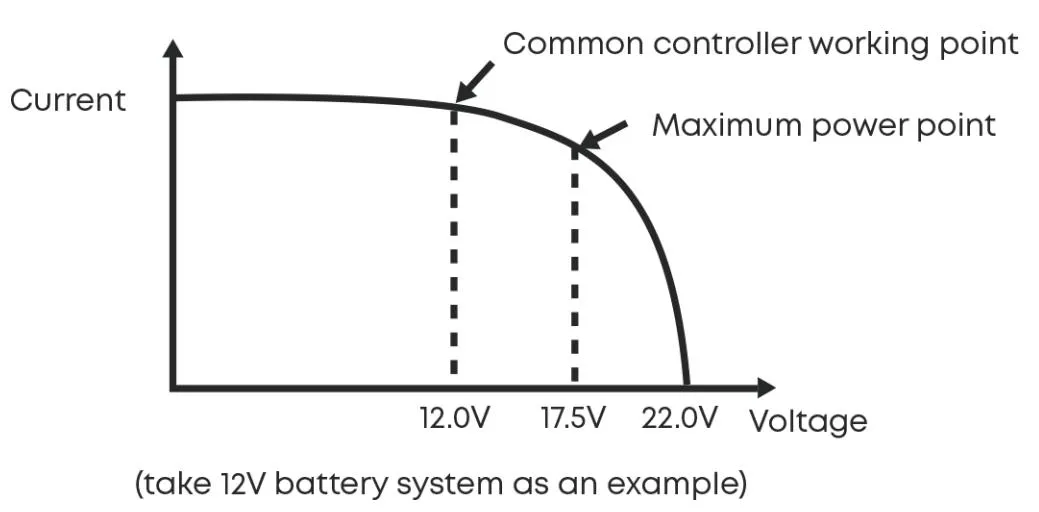

MPPT Controller

Specifications

Model MF-SP5-P30W MF-SP5-P40W MF-SP5-P60W MF-SP5-P80W MF-SP5-P100W
Solar Panel 18V 50W 18V 60W 18V 80W 18V 100W 36V 120W
Battery 12.8V 18AH 12.8V 24AH 12.8V 36AH 12.8V 48AH 25.6V 30AH
Luminous Flux 6300lm 8000lm 12600lm 16000lm 21000lm
Efficacy 210lm/W
IP Rating IP65/IP66

Dimension & Applications

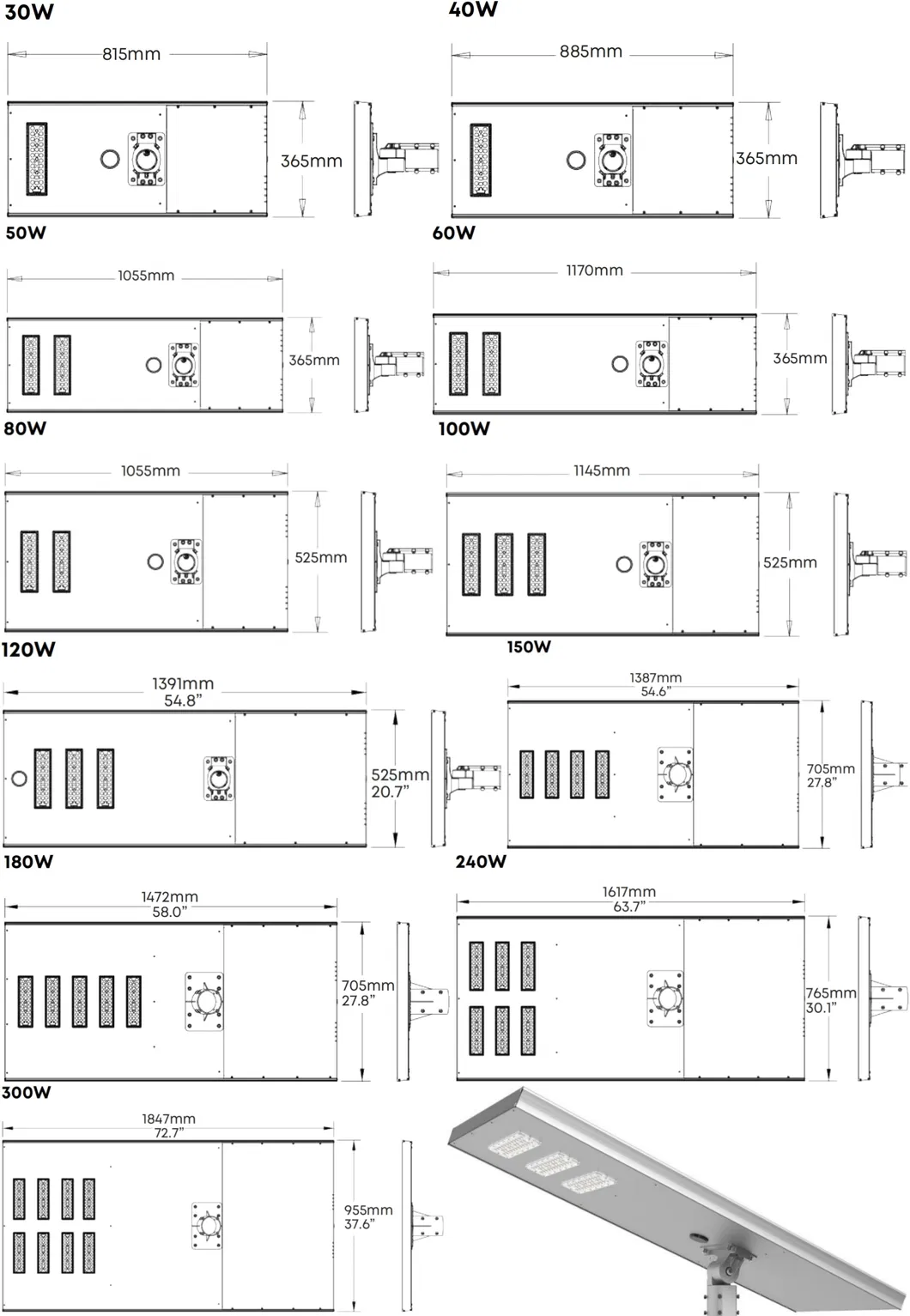

Dimensions

Suitable for various environments:

  • Road & street lighting
  • Residential area & Garden parks
  • Parking lot & Perimeter lighting
  • Industrial and commercial parks
  • Railway & station side lighting

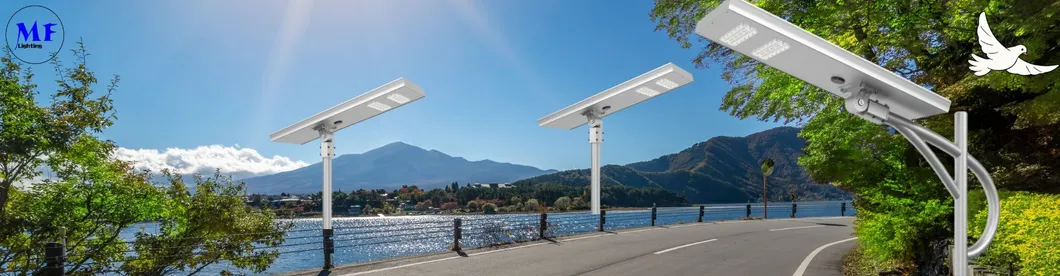

Application 1
Application 2

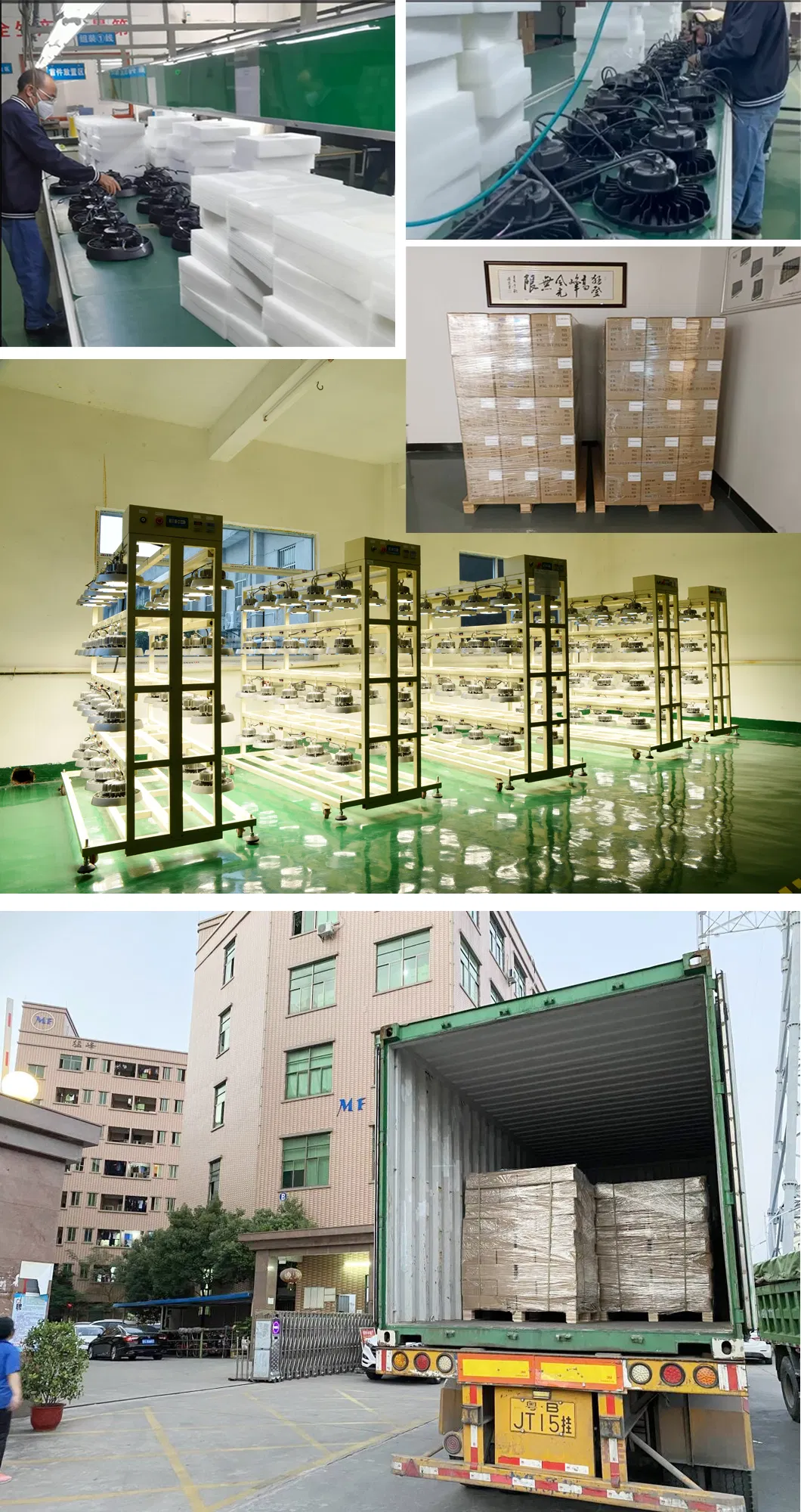

Application Case Study

Frequently Asked Questions

Q1: What are the main lighting products available?

A1: We provide high-quality solar street lights, floodlights, high bay lights, explosion-proof lights, and tri-proof lights with reliable after-sales support.

Q2: Do you offer customization or OEM services?

A2: Yes, we provide ODM and OEM services, including logo printing and custom optical designs based on project requirements.

Q3: What is the typical lead time for an order?

A3: Typically, samples or small orders take 7 days, while bulk orders take about 15 working days depending on the quantity.

Q4: How do you handle faulty products during the warranty?

A4: During the guarantee period, we send new lights for small quantities. For batch defects, we offer repair or replacement solutions based on the situation.

Q5: How long does the battery last in these solar lights?

A5: We use LiFePO4 batteries with over 2000 cycle times, offering over 10 years of maintenance-free service life under normal conditions.

Q6: Are samples available for quality testing?

A6: Yes, sample orders are welcome to test and check the quality. Mixed samples are also acceptable.
