Galvanized Steel Octagonal Round High Mast Electric Power Monopole Transmission Tower

1 / 5

Galvanized Steel Octagonal Round High Mast Electric Power Monopole Transmission Tower

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

▣ Basic Information

Model NO.

LE011

Material

Steel S335/S355

Type

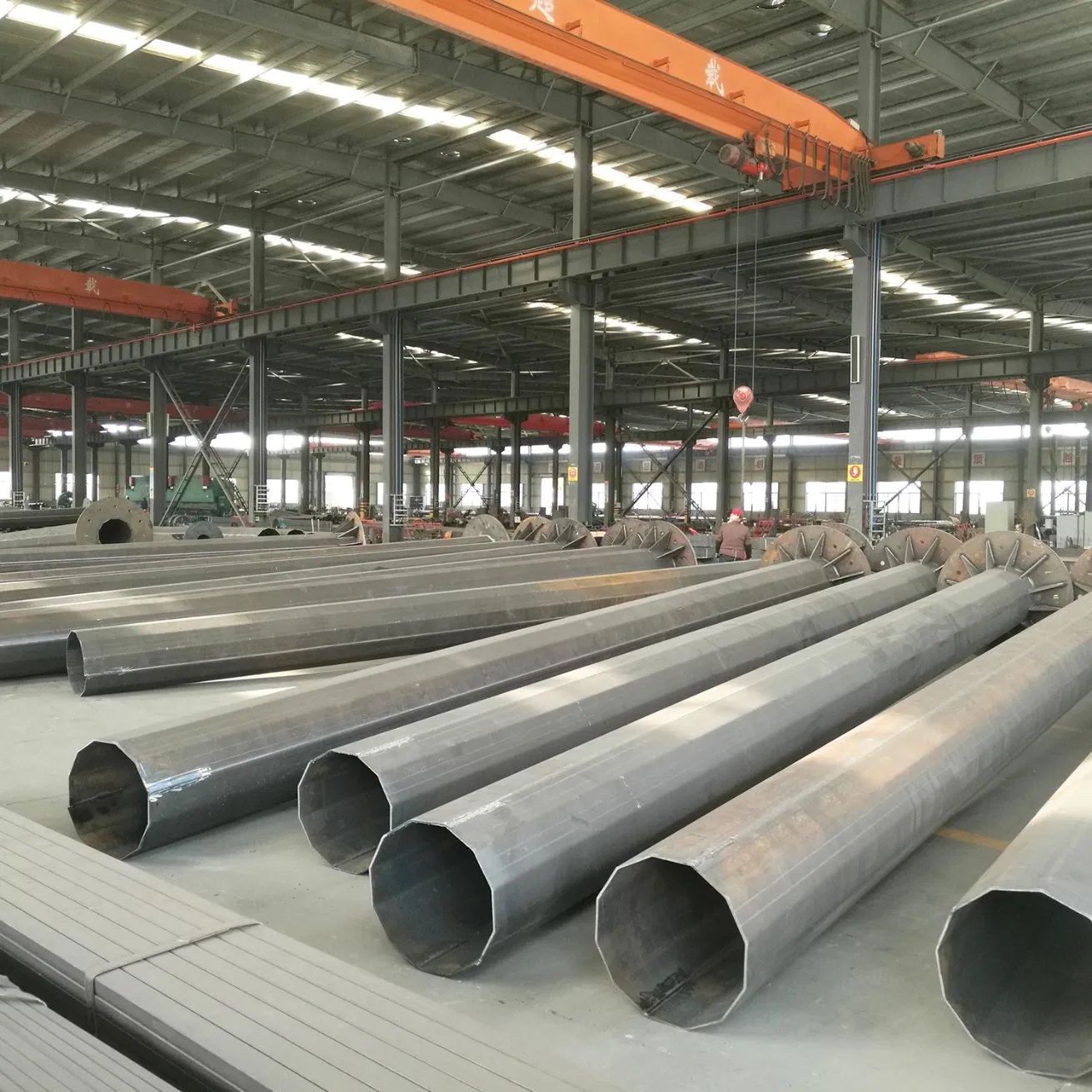

Conical Polygonal Square

Height

6m, 8m, 10m, 11.8m (Up to 30m)

Surface

Hot DIP Galvanized / Powder Coating

Design Life

25 Years

Structure

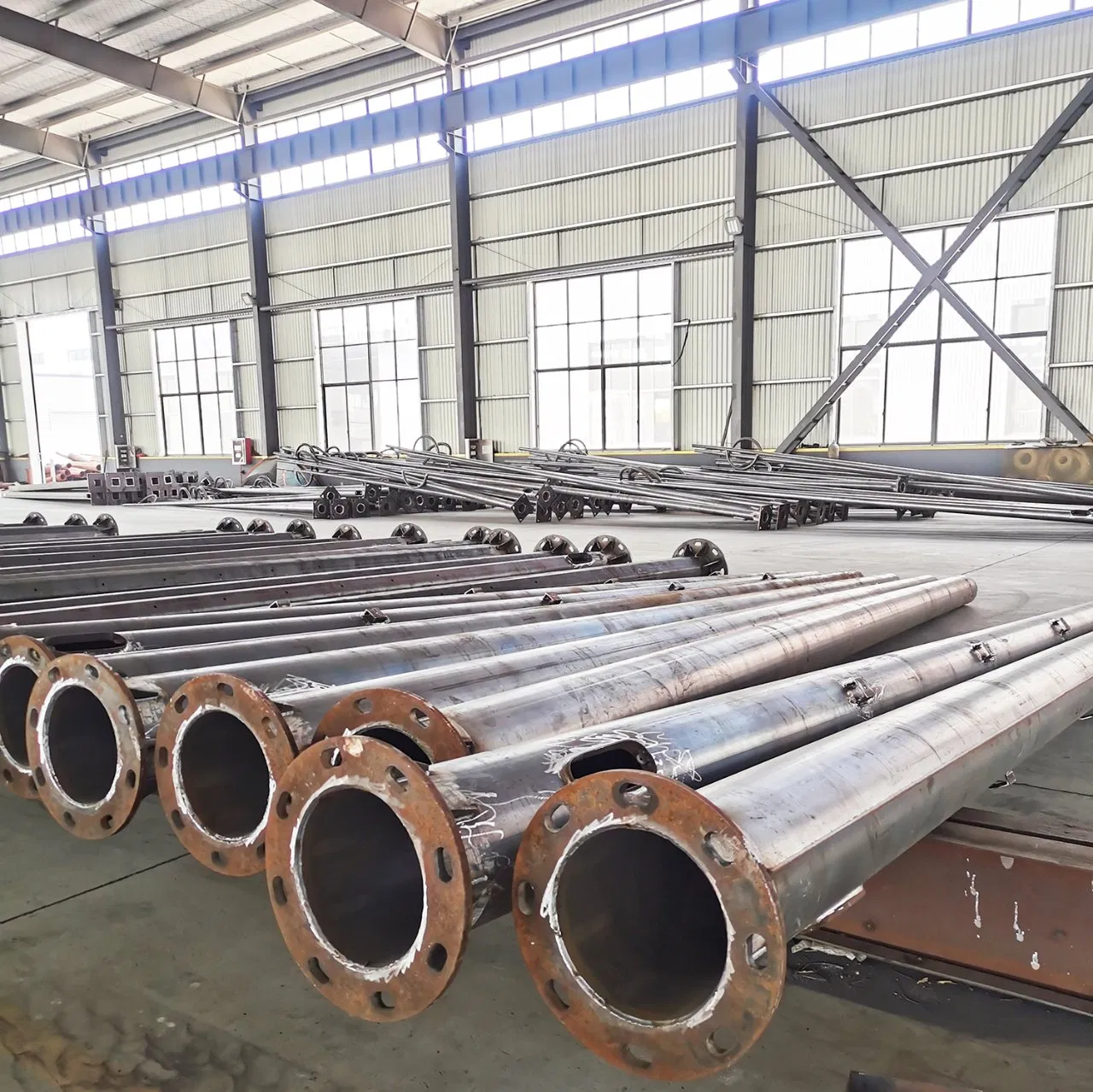

Flange, Base Plate

Capacity

500PCS Per Week

★ Key Features

✔ 6M-12M Tall Conical/Square/Polygonal Lighting Pole
✔ Economical, Tough and Durable construction
✔ Easy to drill for mounting various fixtures
✔ Simple installation process
✔ Large door plate/handle hole for convenient wiring
✔ Steel wall thickness ranging from 3mm to 5mm
✔ Double protection: Powder Coated & Hot Dipped Galvanized

⚙ Technical Specifications

Pole Body: Available in Conical, Square, or Polygonal shapes. Made from high-quality S335/S355 standard steel, conforming to EN 40-3, EN 12767, and BS EN 60529 standards.

Paint Finish: Mechanically cleaned and coated with electrostatically applied powder. Customizable to any RAL color to match brackets and fixtures.

Anchor Bolts: Wholly galvanized bolts made from carbon steel conforming to AASHTO and ASTM Grade-55.

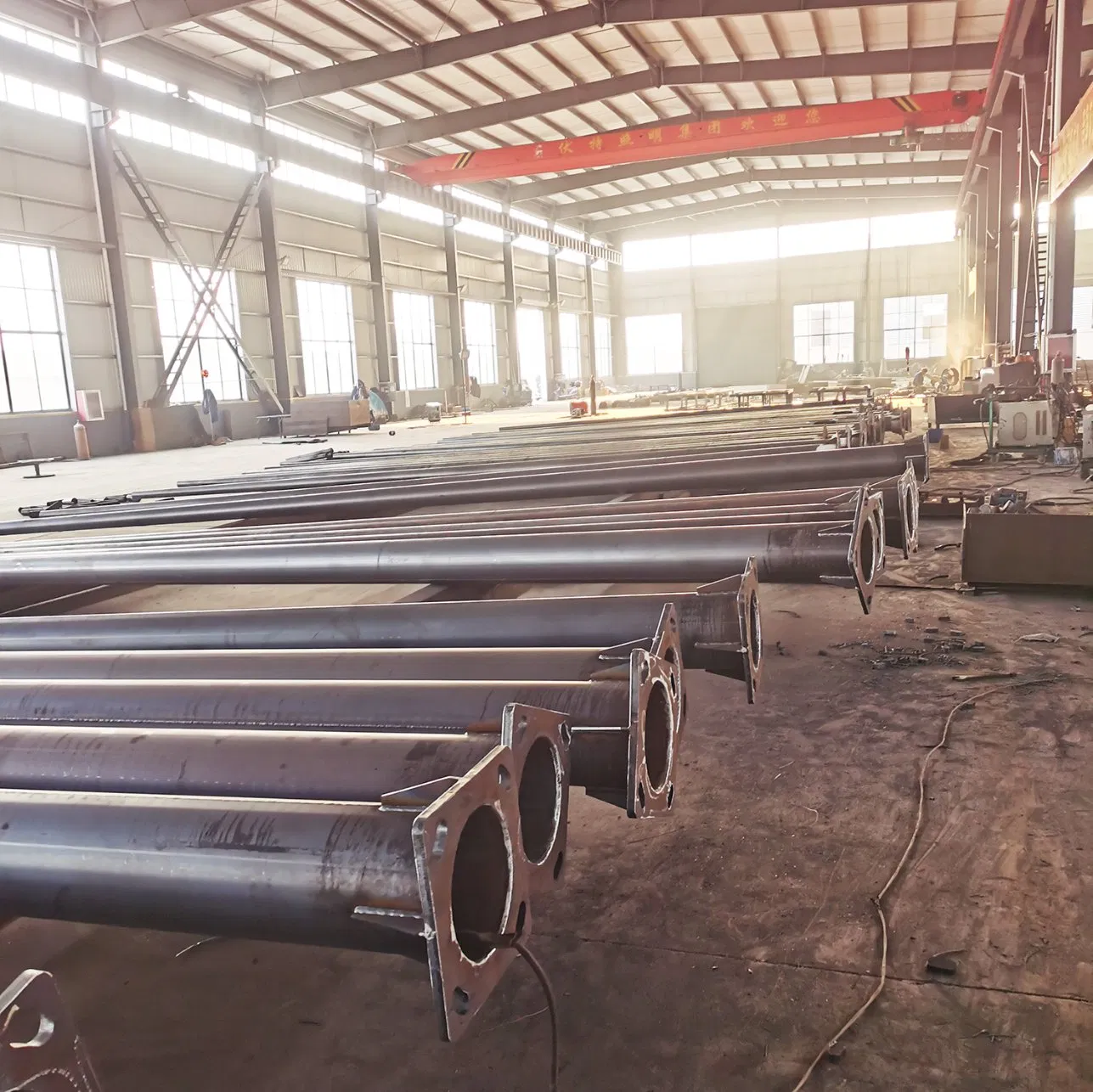

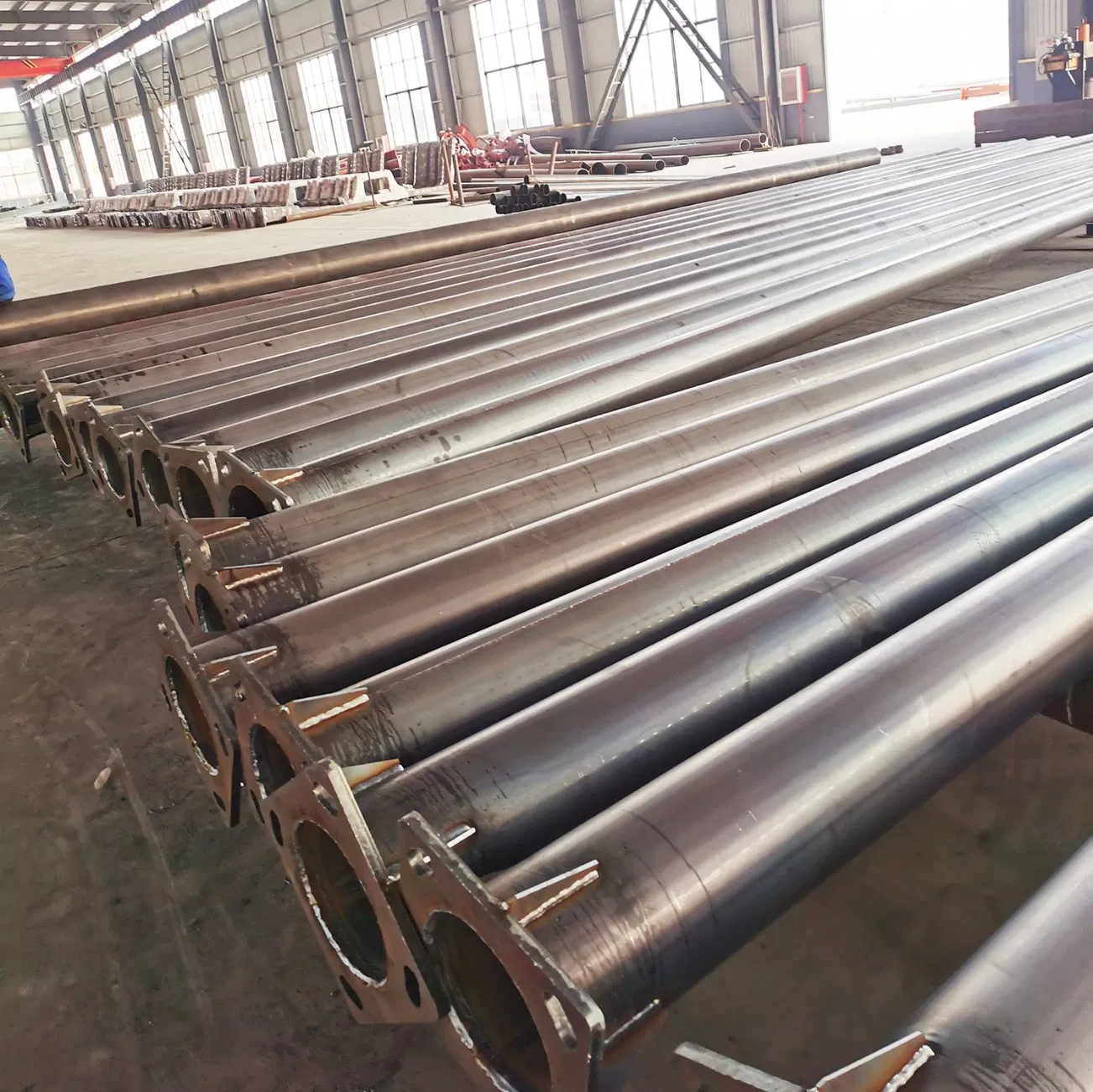

Base & Door: Circumferentially welded base plate with slotted openings. Includes a rectangular door plate located 1M above the base for electrical access.

Electrical Components: Ground lug provided near base-plate. Terminal blocks (fuse box) and DIN rails for circuit breakers can be mounted inside.

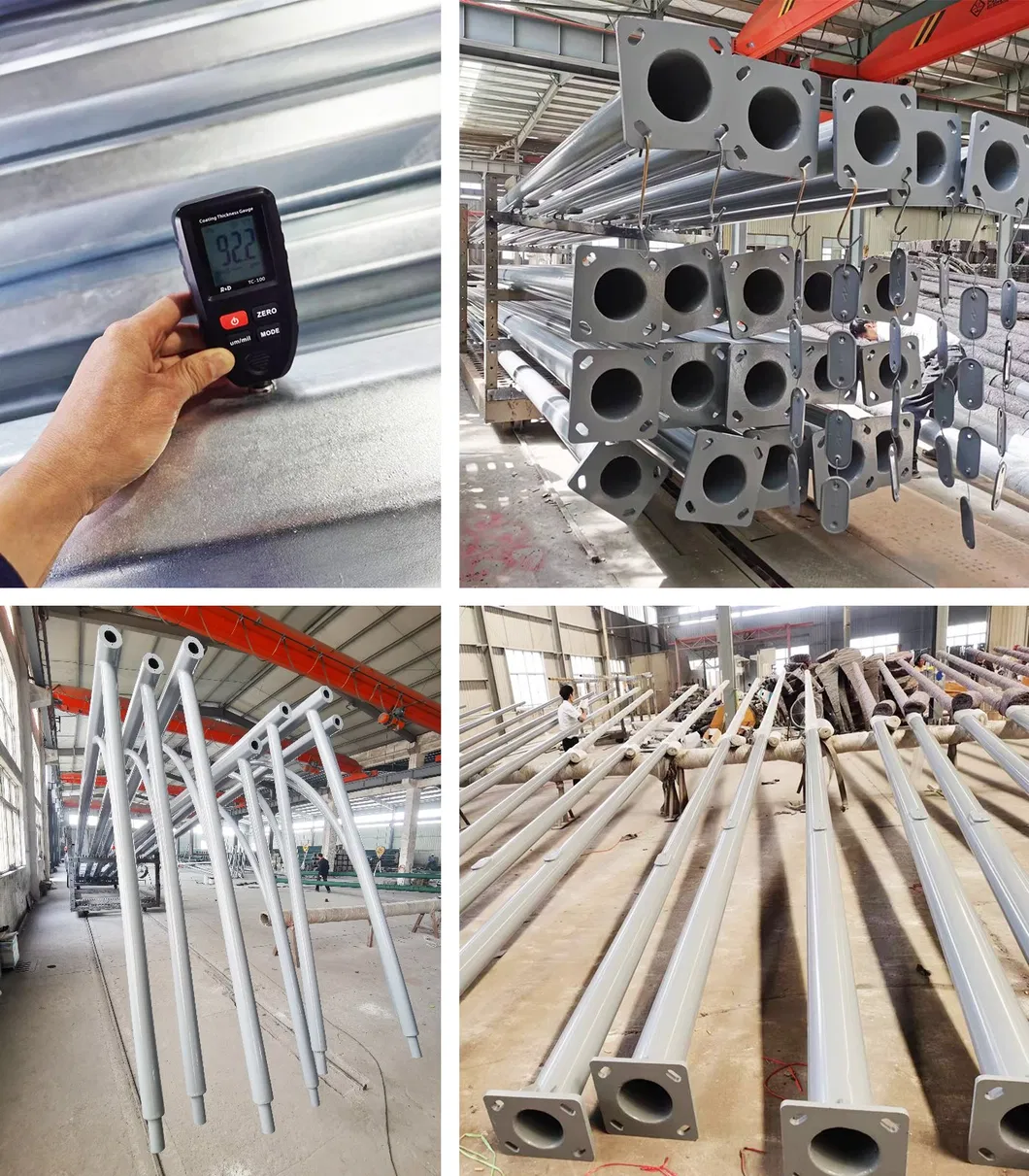

🖼 Product Details Gallery

📋 Accessories & Mounting Options

Type	Description	Series / Specification
Spigot Mounting	Single/Double/Triple/Quadruple entry spigots, hot dipped galvanized	LD-01SA to LD-01QA
Floodlight Mounting	Mounting for single or double floodlights	LD-FLSA / LD-FLDA
Highmast Mounting	Height range from 16 meters to 30 meters	LD-HM Series
Decorative Lantern	2 to 5 arm versions, painted to specify color	Custom Versions
Base Plate	For rooted mounting, sizes 300x300x3mm or 400x400x5mm	Anchor Bolt Kit
MCB	Miniature Circuit Breaker	5A / 10A

📦 Packaging & Delivery

Package Size

10000.00cm * 120.00cm * 120.00cm

Gross Weight

100.000kg

Packing Material

Foam Plastic / Wrapped

❓ Frequently Asked Questions

Q1: What materials are used for the transmission poles?

Our poles are manufactured using high-quality S335/S355 standard steel, ensuring high strength and durability for various environmental conditions.

Q2: What are the available height options for these poles?

We offer standard heights of 6m, 8m, 10m, and 11.8m. For high mast requirements, we can provide mounting heights ranging from 16 meters up to 30 meters.

Q3: How is the surface treated to prevent corrosion?

The poles undergo a hot-dip galvanization process (HDG) and are finished with an electrostatically applied powder topcoat for long-lasting corrosion resistance.

Q4: Can the color of the poles be customized?

Yes, the powder coating can be applied in any RAL standard color to match your specific project requirements or existing fixtures.

Q5: What is the expected lifespan of these steel poles?

Due to the high-quality galvanization and robust steel construction, these poles have a design life of approximately 25 years.

Q6: Are installation accessories like anchor bolts included?

Yes, wholly galvanized anchor bolts, base plates, and necessary hardware are furnished with each pole order to facilitate easy installation.
