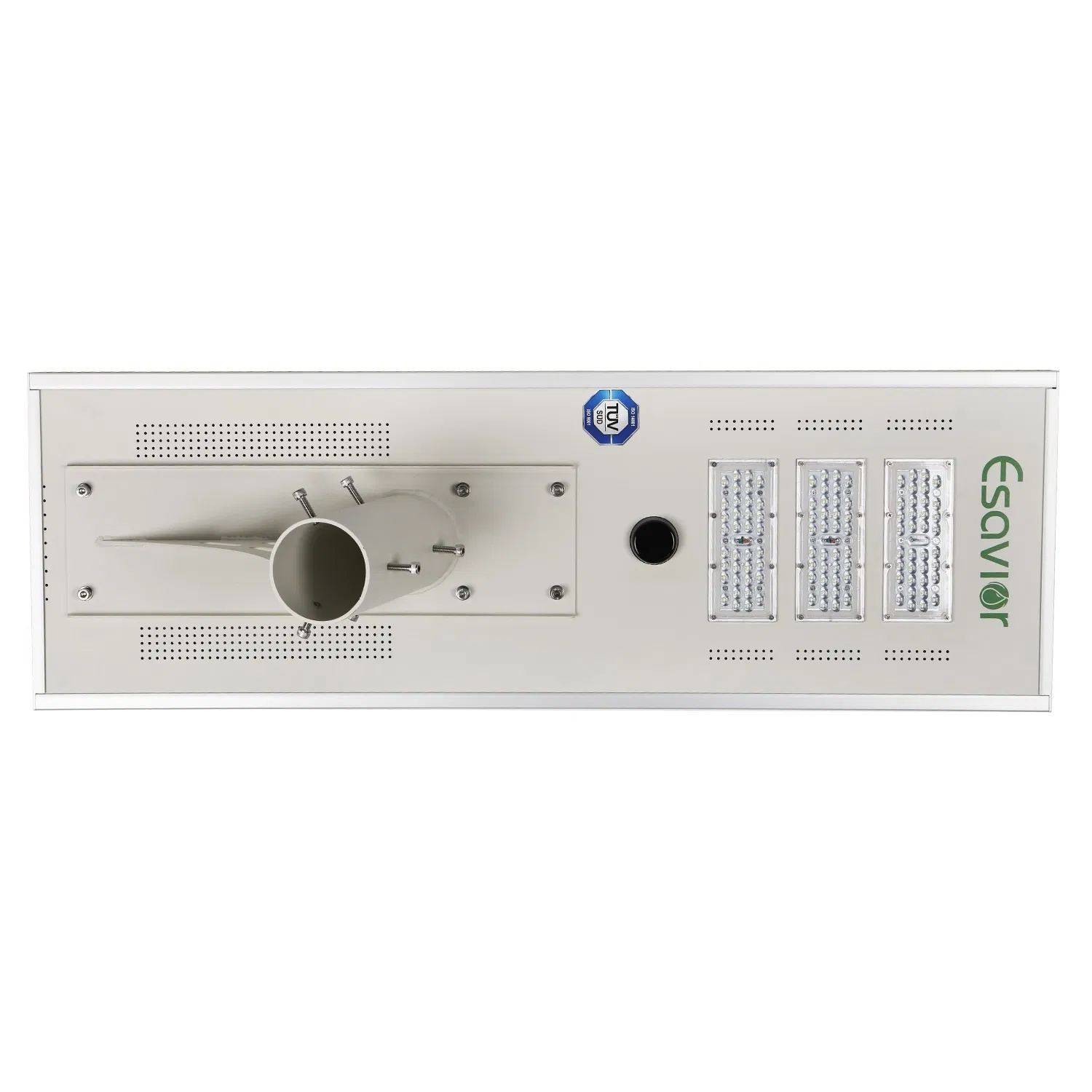

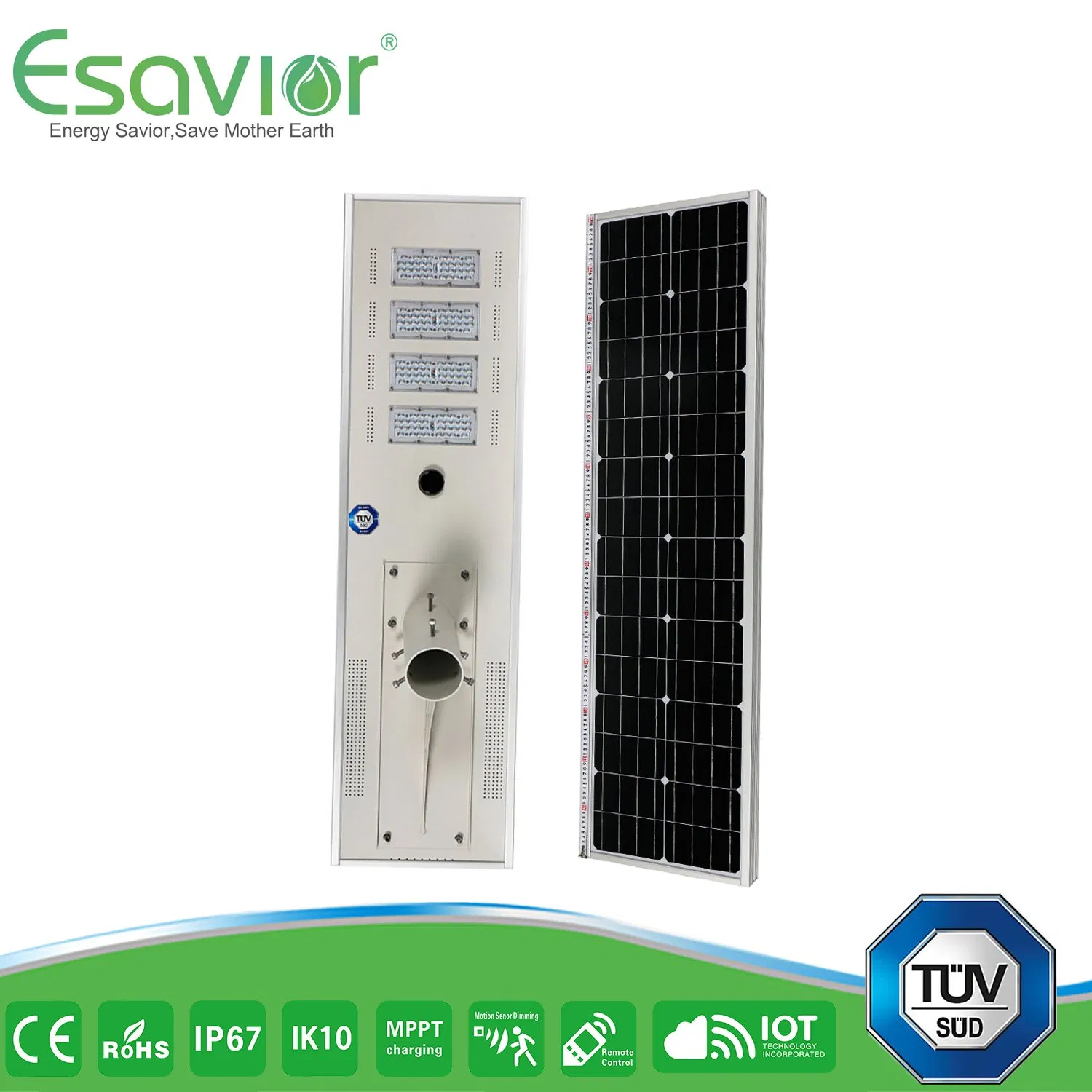

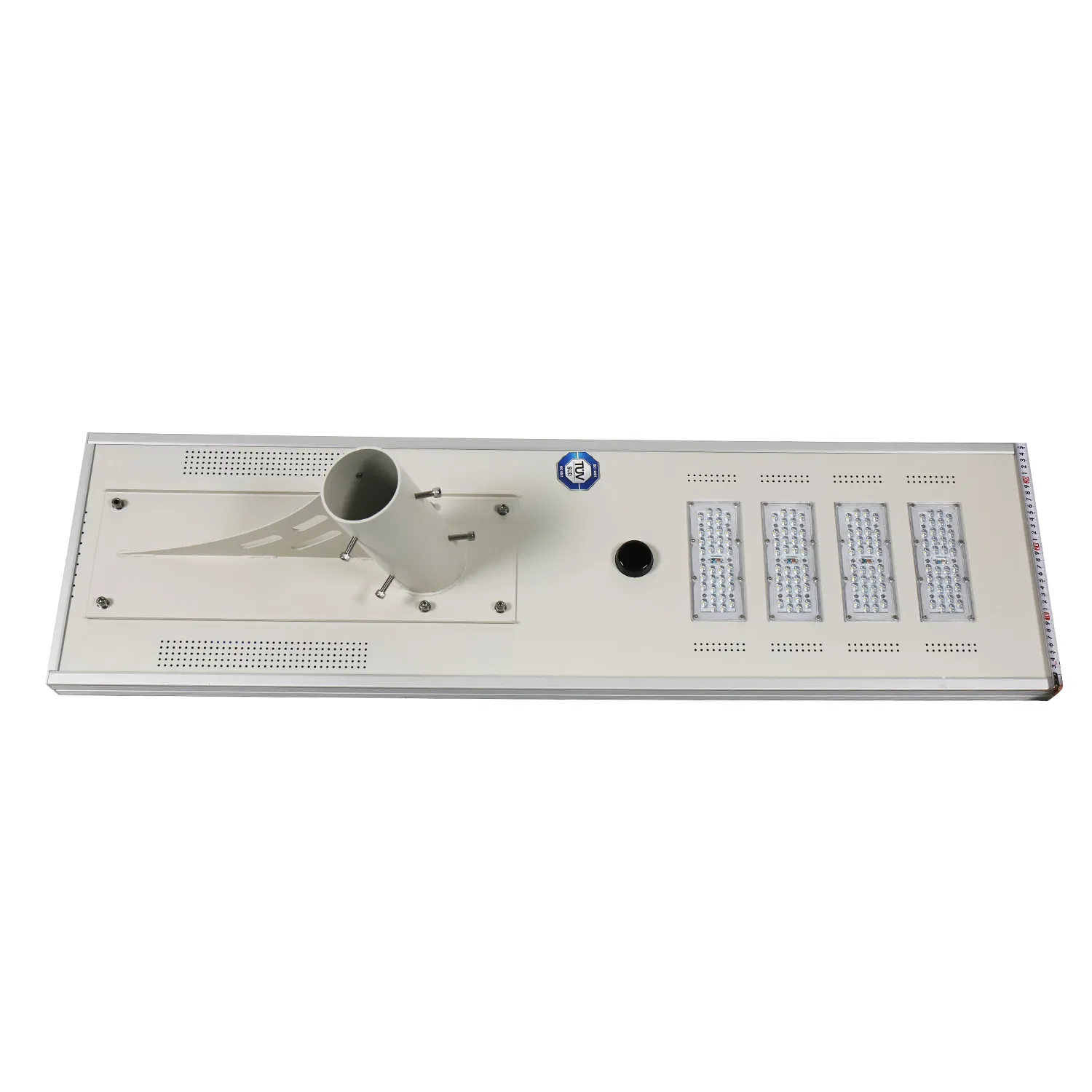

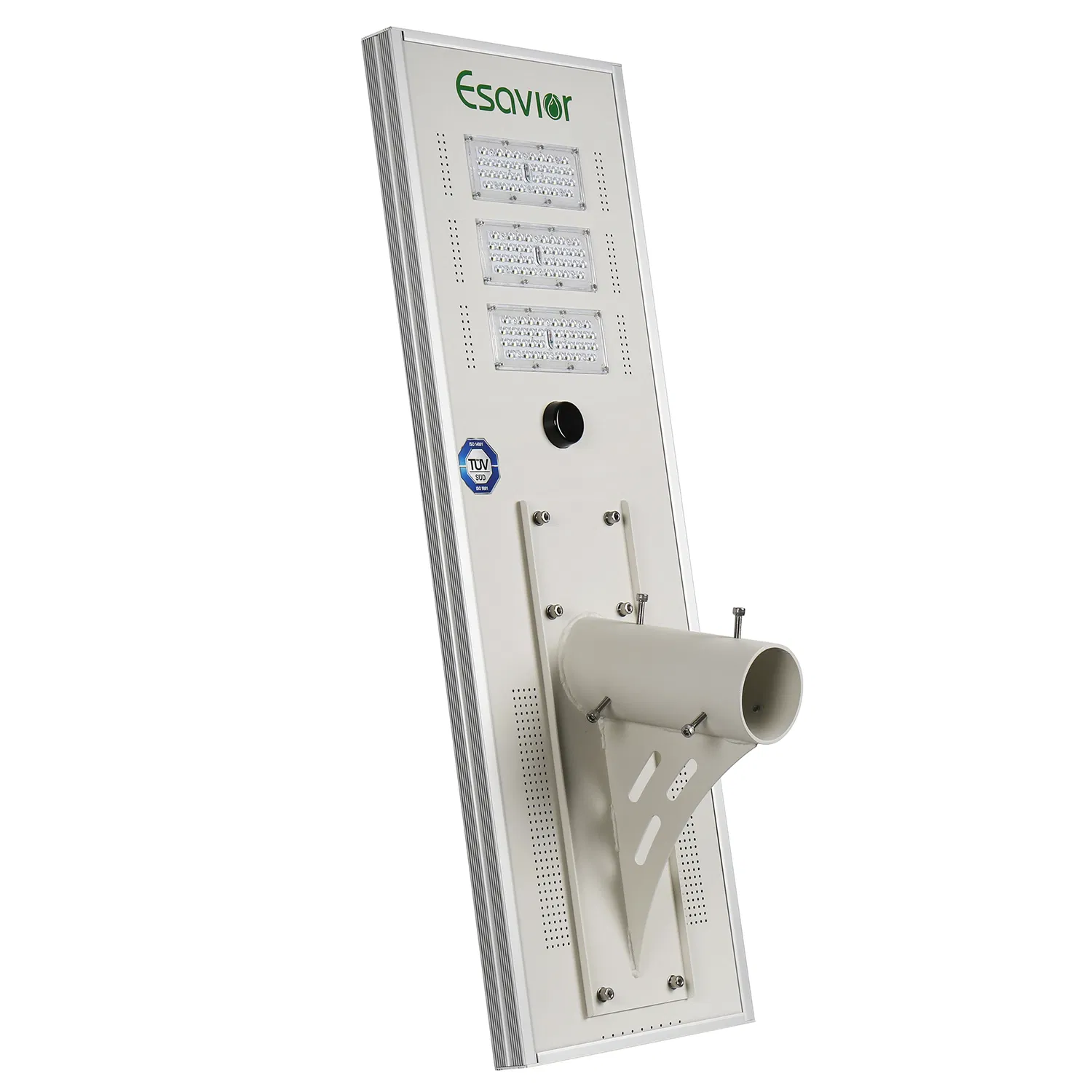

Esavior 80W Iot Online Monitoring as Optional MPPT/IP68 Controller Solar Street Light Solar Lights

Basic Specifications

Model NO.

ISSL-BRZ-80W-220120cH

Light Type

Solar

Color Temp.

Cool White

Power

80W

Illumination

>12h Full Charge

Cell Type

LiFePO4 Battery

Charge Time

6 Hours

IP Rating

IP66

Certification

CE, RoHS, TUV ISO9001 & ISO14001

Voltage

12/24V

80W Solar Road Lamp Features

✓

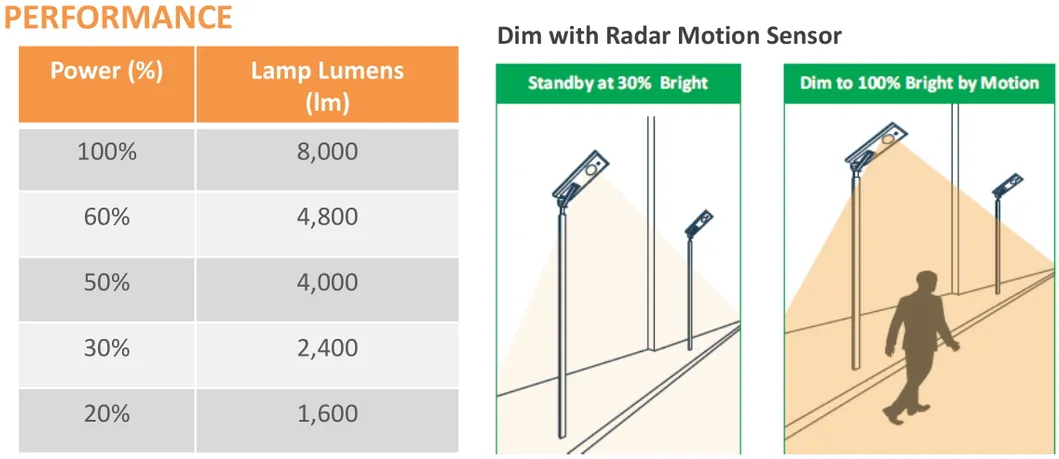

8,000 LMMax lamp lumen high brightness

✓

100,000+ HoursLong LED lifespan with professional heat dissipation

✓

3,000+ CyclesLiFePO4 batteries with inbuilt Micro-BMS

✓

99.9% MPPTHigh tracking efficiency controller

✓

5+ DaysAutonomy for cloudy and rainy days

✓

IoT ControlOnline remote monitoring (ZigBee/LoRaWAN)

Technical Specifications

BRONZE Series		Model: ISSL-BRZ-80W
LED Source	Rated Power	24V/ 80W (36LEDsx4 modules)
	Brand/Lumen	3030 (195lm/W) \| 7200-8000lm
	Lifespan	100,000 hours

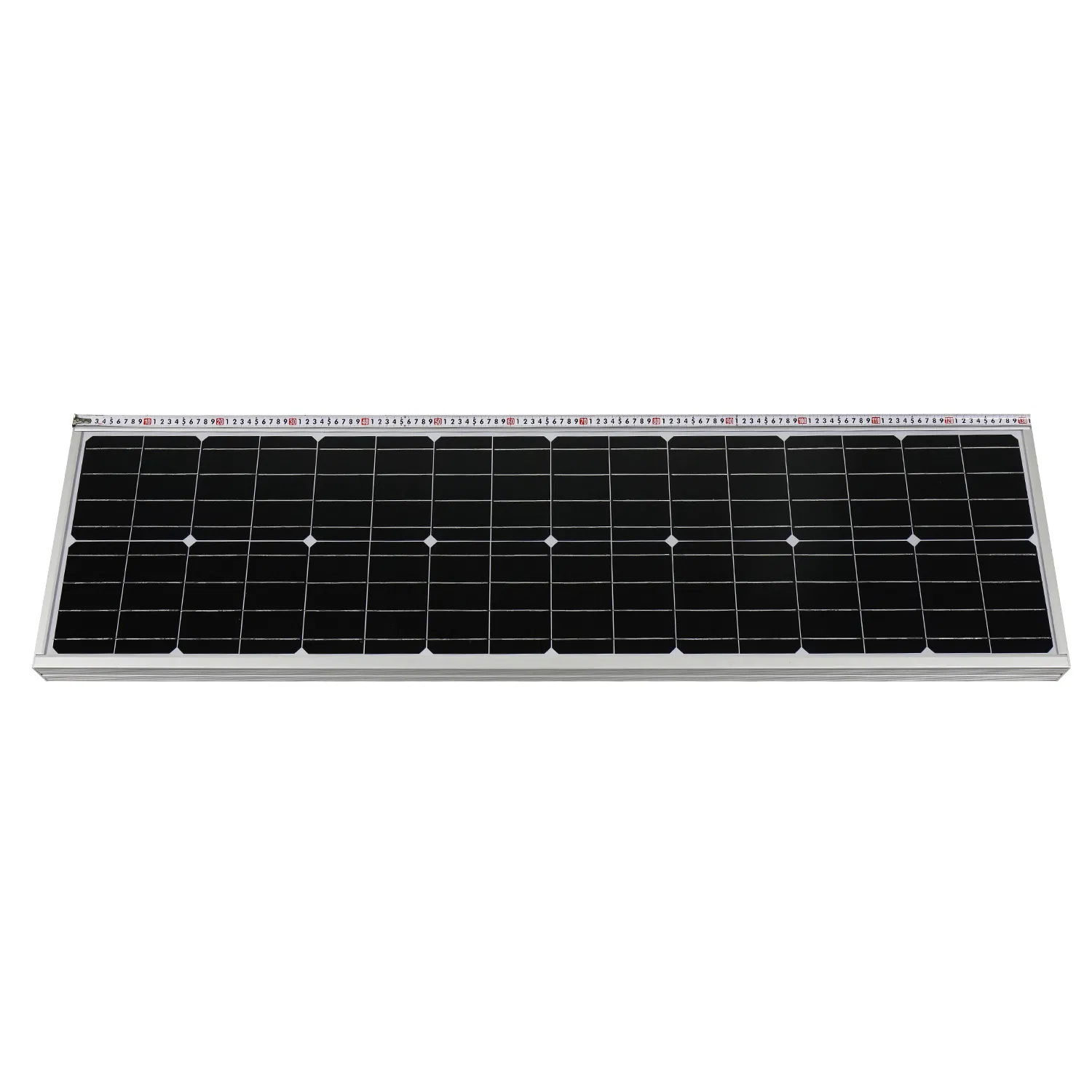

Solar Panel	Power/Type	18V/80Wp High Efficiency Mono PV
Battery	Type/Life	12.8V/36AH LiFePO4 / 8+ Years
Controller	Type/Sensor	MPPT IP68 / Microwave Radar Sensor
Working Temp.	-30ºC ~ +80ºC
Mounting	Height/Space	8~10 m / 30~35 m Space
Warranty	3-5 Years

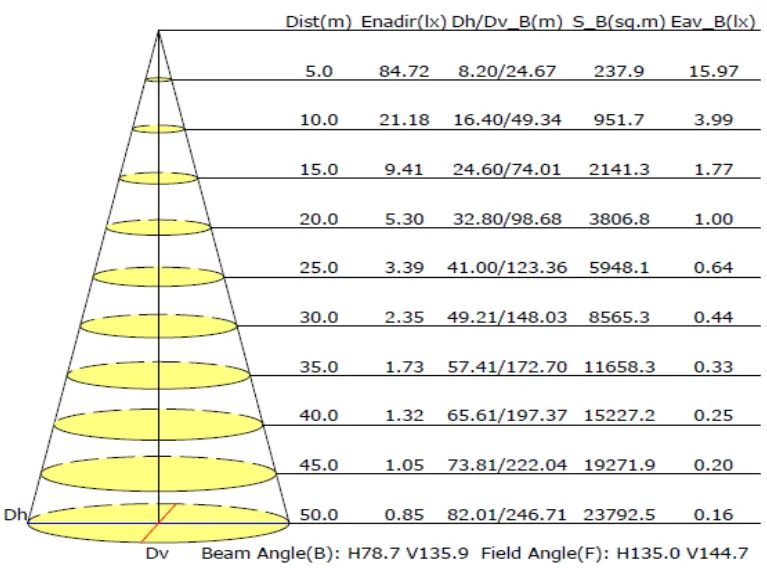

Light Distribution

Key Industry Advantages

01

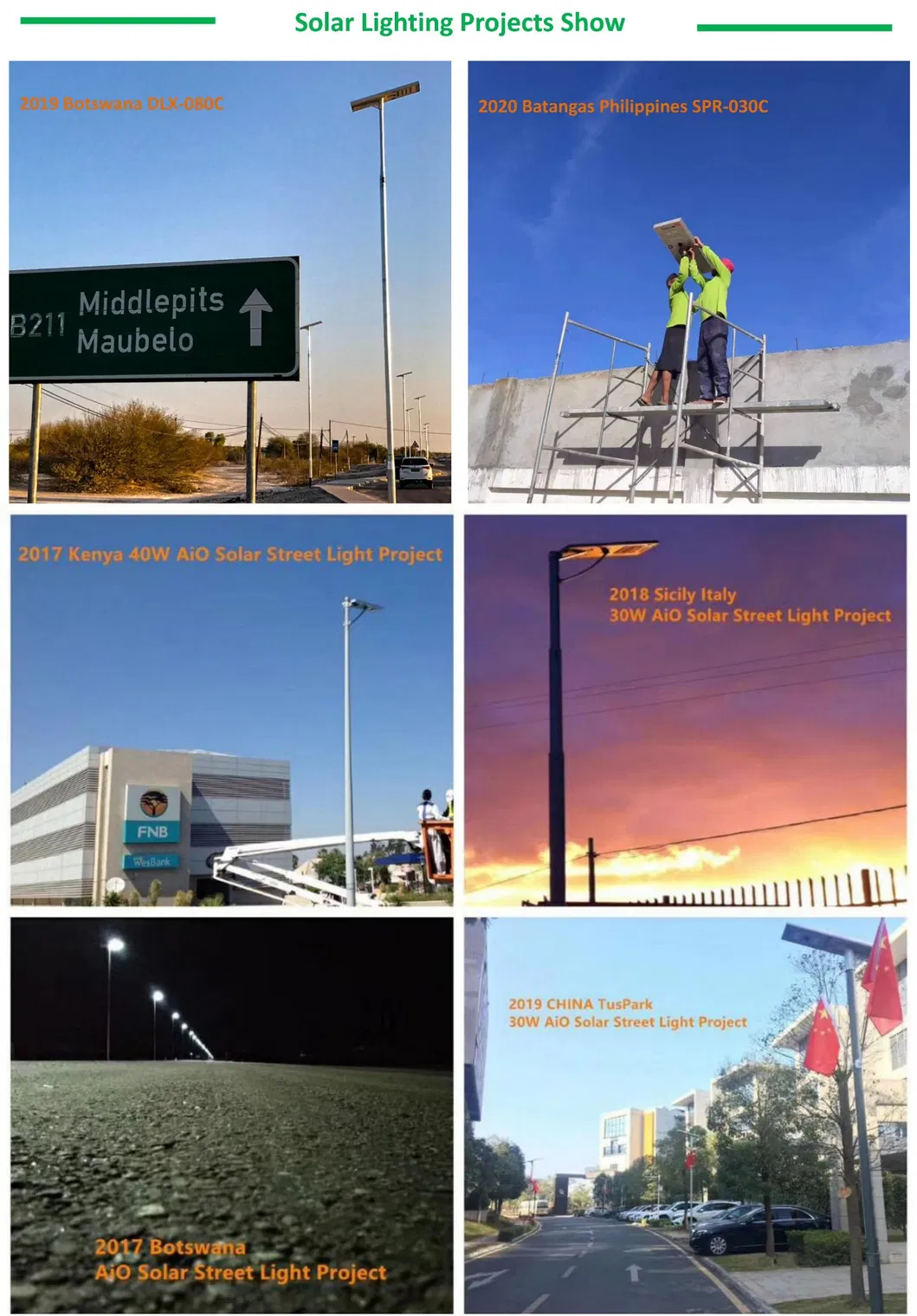

Professional Experience: 12 years of global successful project references in the Solar Lighting field.

02

Core Technology: 13 patents awarded for Solar Street Lights and IoT Monitoring Systems.

03

Certifications: ISO 9001/14001, IEC 60598, TUV-SUD reports, CE, RoHS, and IP66 certified.

04

Global Reach: Trusted by clients in over 100 countries, including high praise from international organizations and governments.

IoT Online Monitoring System

• Real-time Online Monitoring
• Remote Control & Battery Management
• Project Management & Mass Database
• Defective Alarm & Predictive Maintenance

Solar Street Light FAQ

Does the lamp light on automatically?

Yes, it will light on automatically at darkness in all modes except "OFF".

Can I order samples for testing?

Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.

What is the lead time for production?

Approximately 3 workdays for samples and 7-15 workdays for batch orders (over 100pcs).

What is the warranty period?

We offer a 3-5 year warranty on our solar lighting products.

Is the lamp durable in strong winds?

Yes, the units use Aluminum-alloy holders that are solid, zinc-plated, and anti-rust/corrosion.

What is the difference between Motion and PIR sensors?

Motion (radar) sensors emit high-frequency waves to detect movement up to 10 meters accurately. PIR sensors detect temperature changes and typically have a 3-5 meter range.
