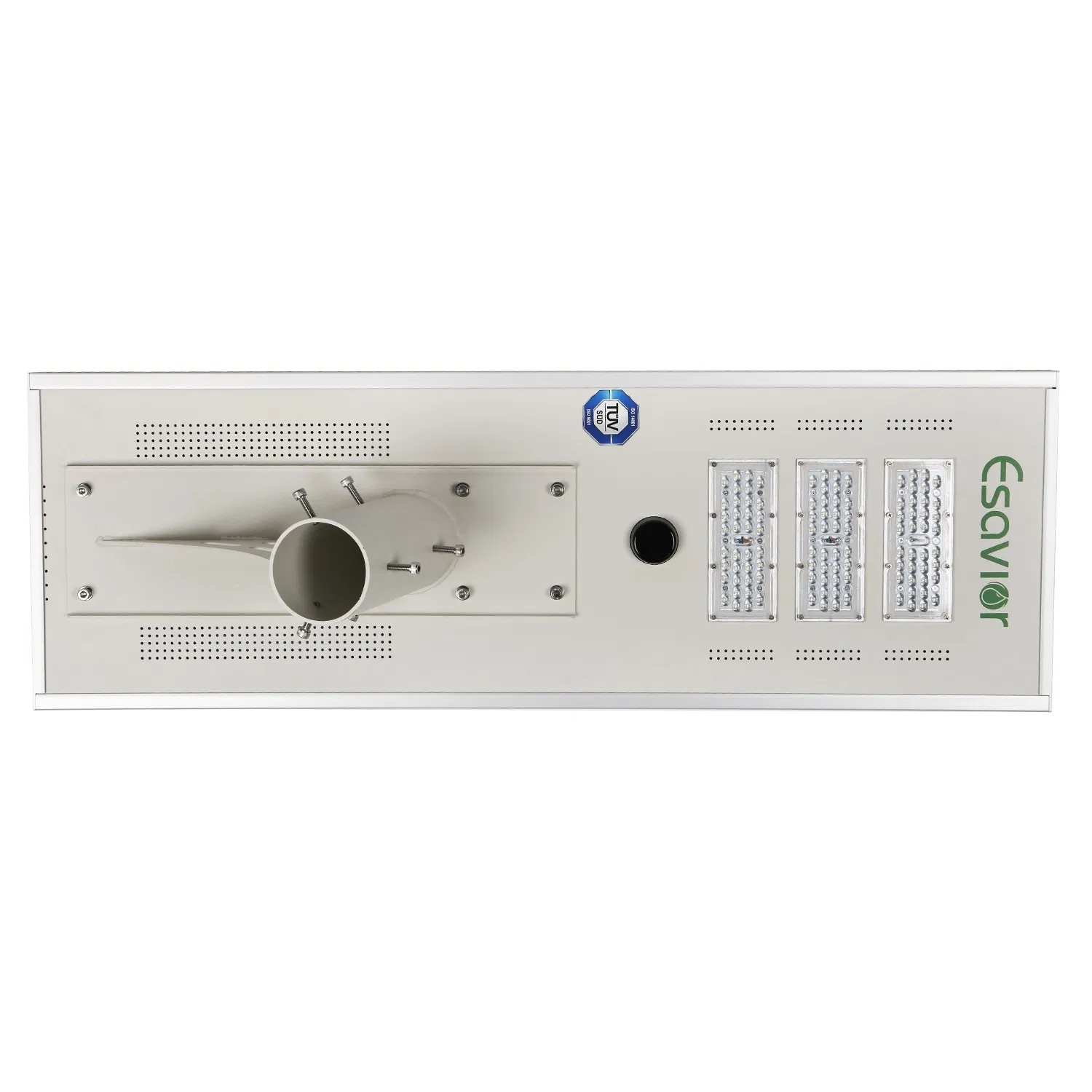

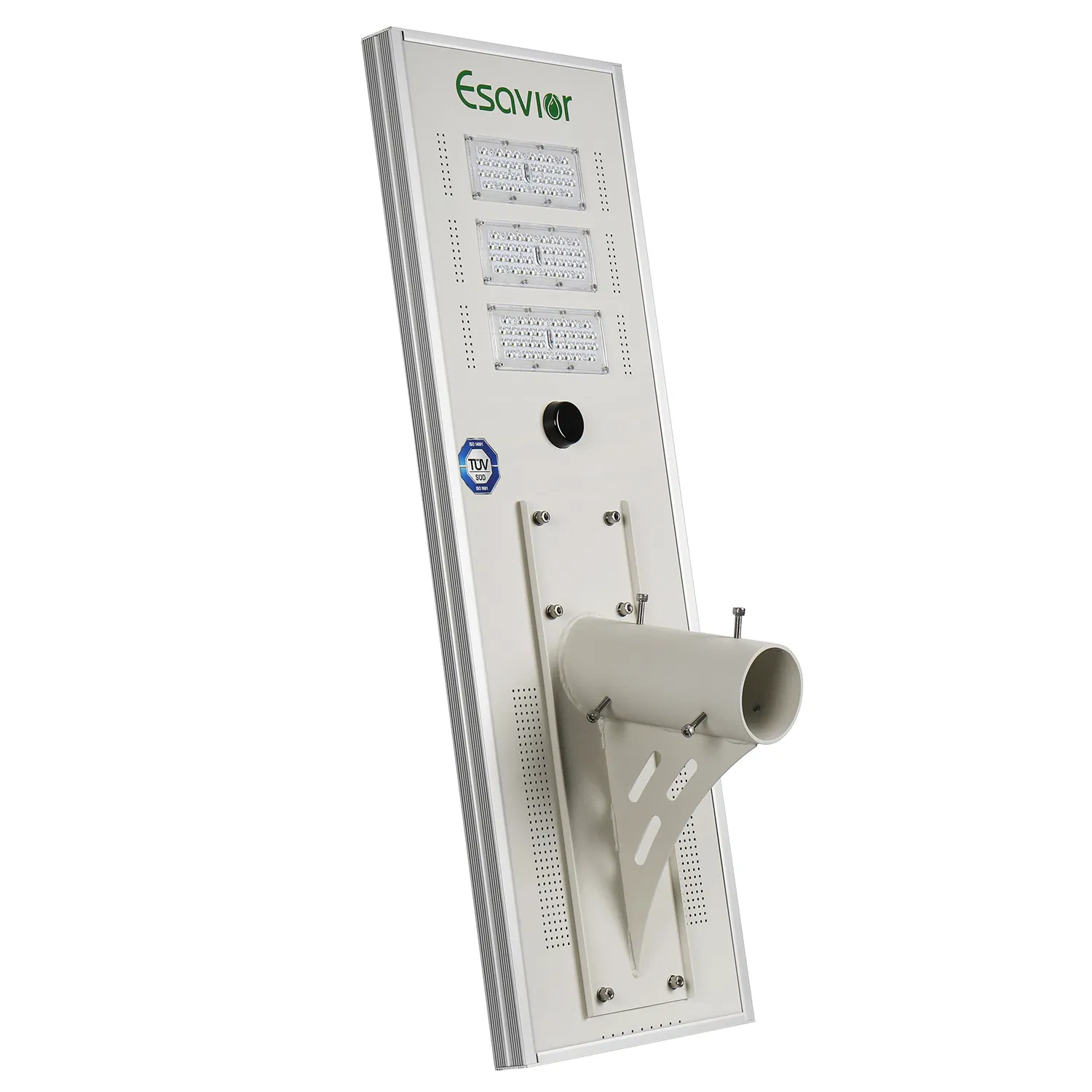

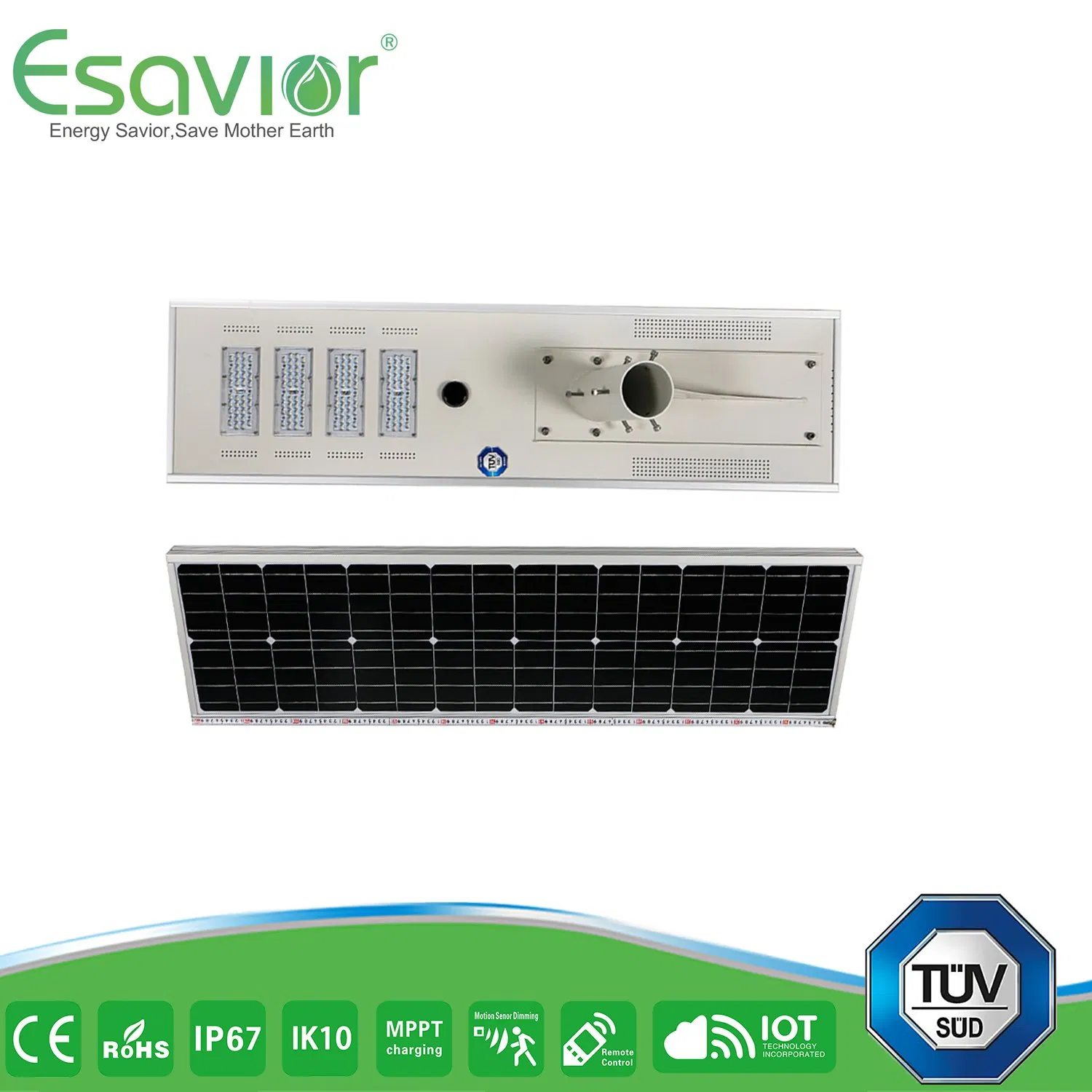

80W Solar Powered Lighting Integrated Solar Road Lamp LED Street Light
Basic Specifications
Model NO.
ISSL-BRZ-80W-220309CR
Illumination
>12h Full Charge
Certification
CE, RoHS, TUV ISO9001
Core Features & Advantages
💡
8,000 LM
Max lamp lumen high brightness for superior visibility.
🔋
3,000+ Cycles
Long life LiFePO4 batteries with inbuilt Micro-BMS technologies.
⏱️
100,000+ Hours
Long LED lifespan with professional heat dissipation design.
🌧️
5+ Days Autonomy
Reliable lighting even during continuous cloudy or rainy days.
⚙️
99.9% MPPT
Maximum Power Point Tracking efficiency for optimal charging.
🛡️
IP68 Controller
High-grade protection against water and dust ingress.
Technical Specifications
| Bronze Series |
Model: ISSL-BRZ-80W |
| LED Source | Rated Power | 24V/ 80W (36LEDsx4 modules) |
| LED Brand | 3030 (195lm/W) |
| Lumens | 7200-8000lm |

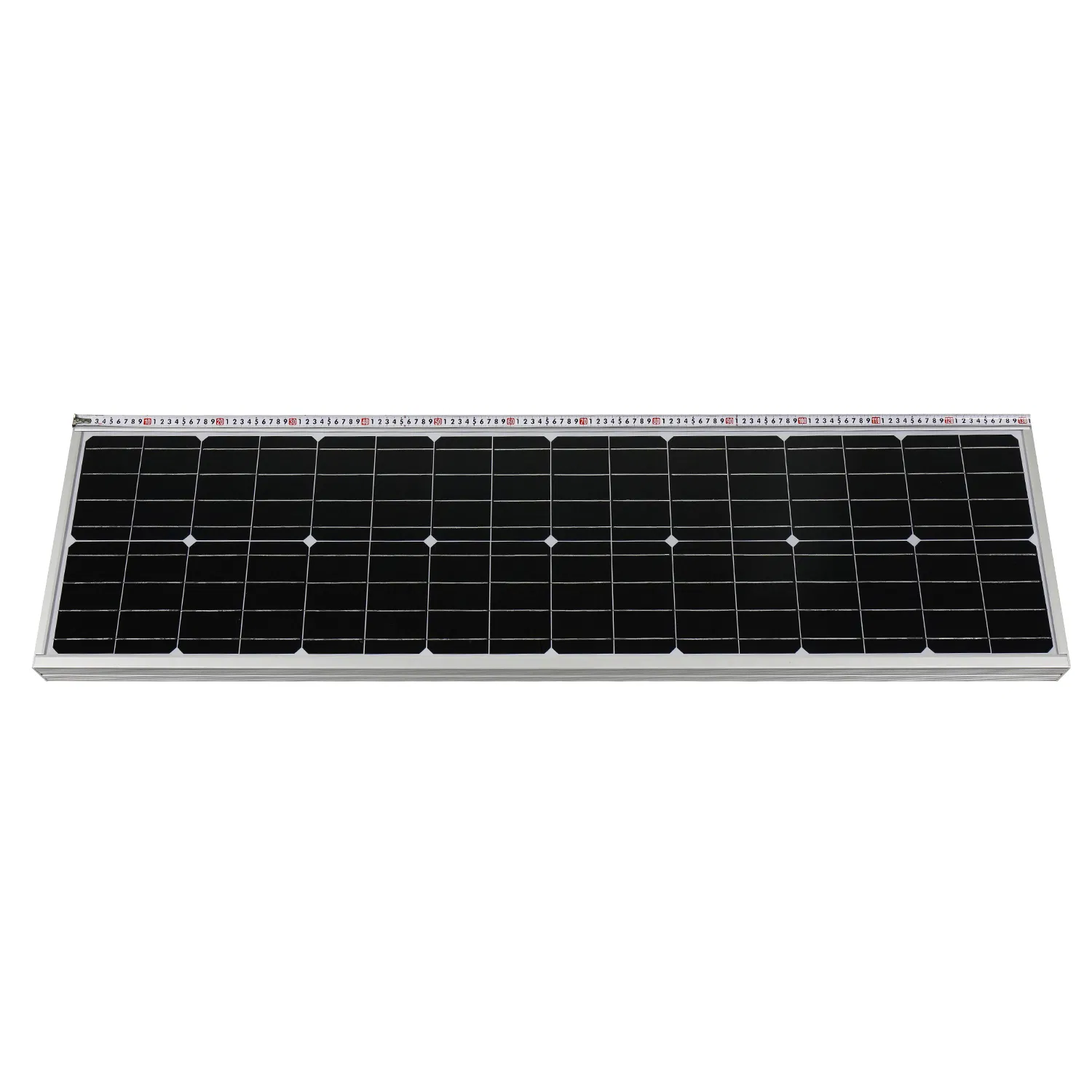

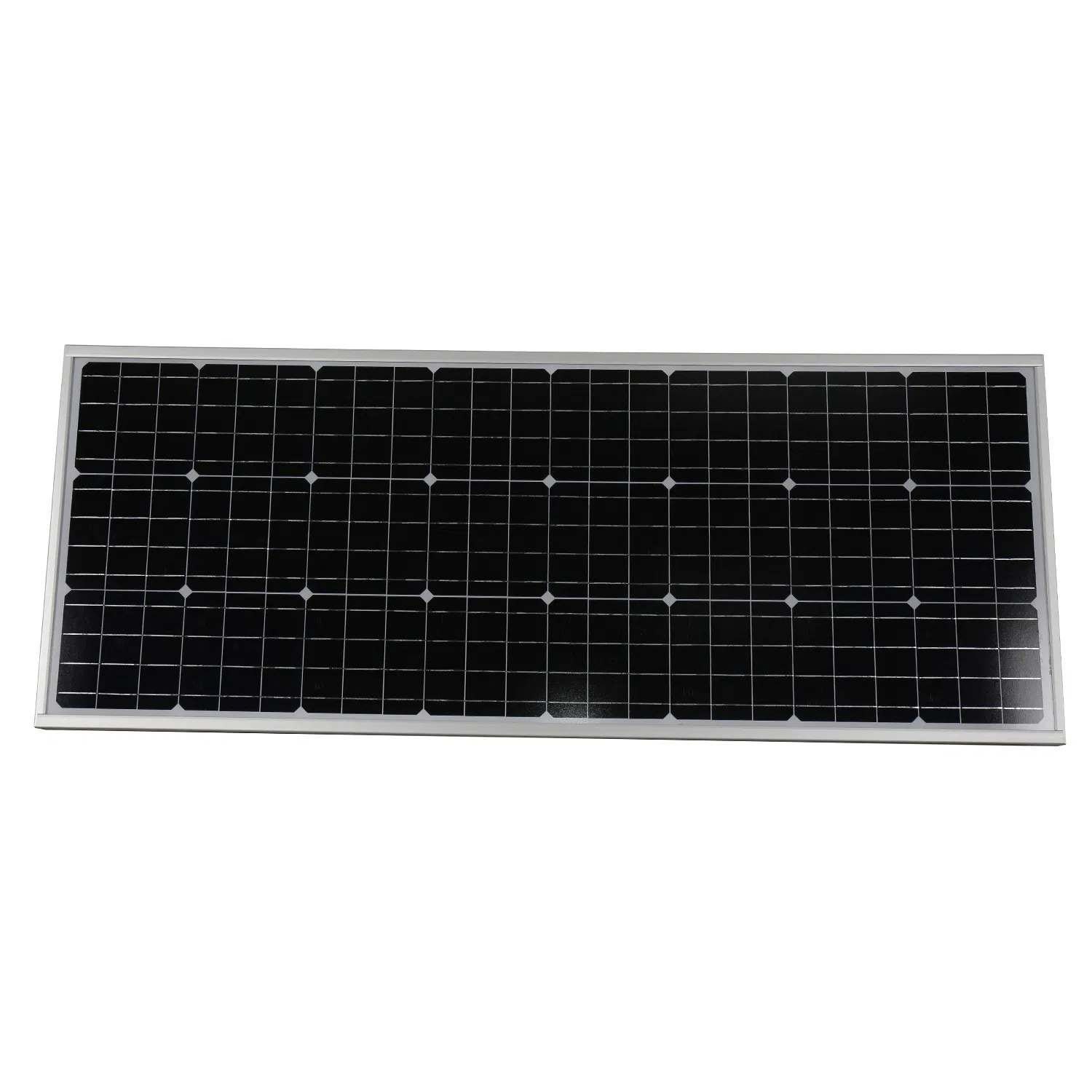

| Solar Panel | Power | 18V/80Wp (High Efficiency Mono) |
| Life-span | 25 Years |
| Battery | Type/Capacity | 12.8V/36AH (406.8WH) LiFePO4 |
| Life-span | 8+ Years (3000 cycles) |
| Control | Type | MPPT / IP68 / IoT Optional |

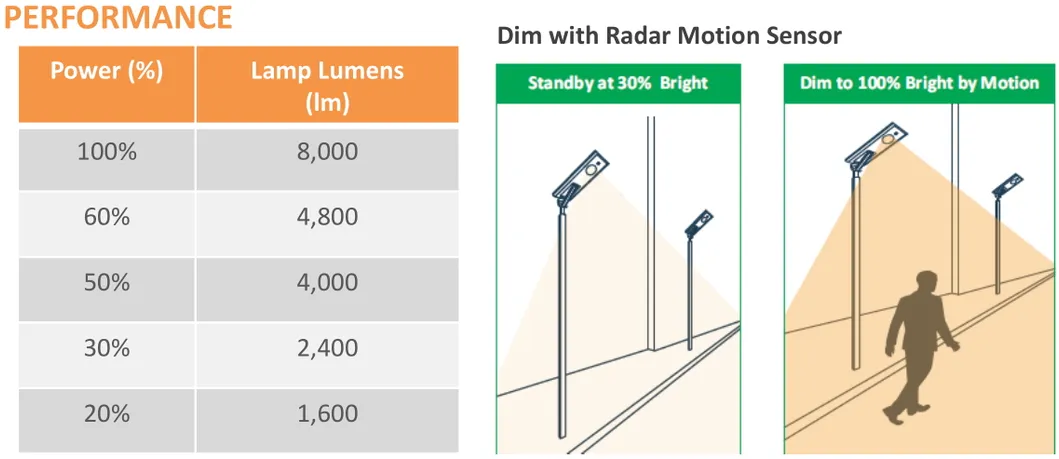

| Sensor | Microwave Radar |
| Height | Mounting | 8~10 m |
| Material | Housing | Aluminium Alloy |
Product Gallery

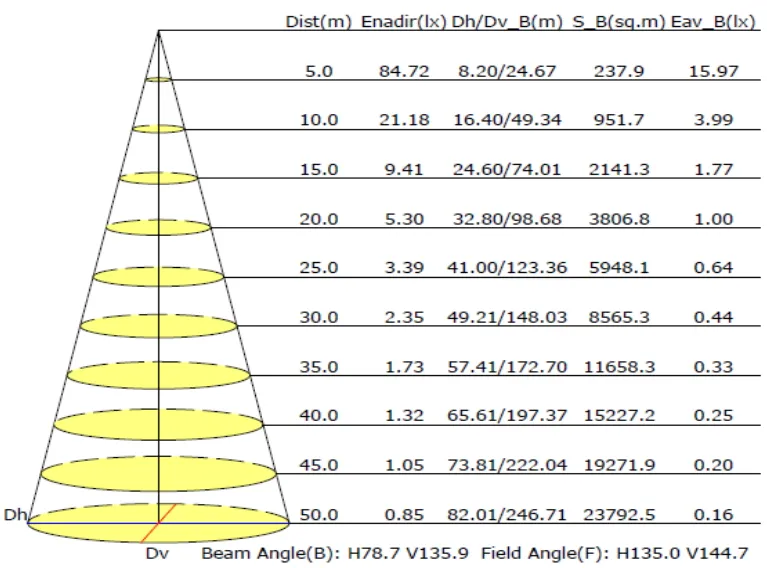

Light Distributions
Quality Assurance

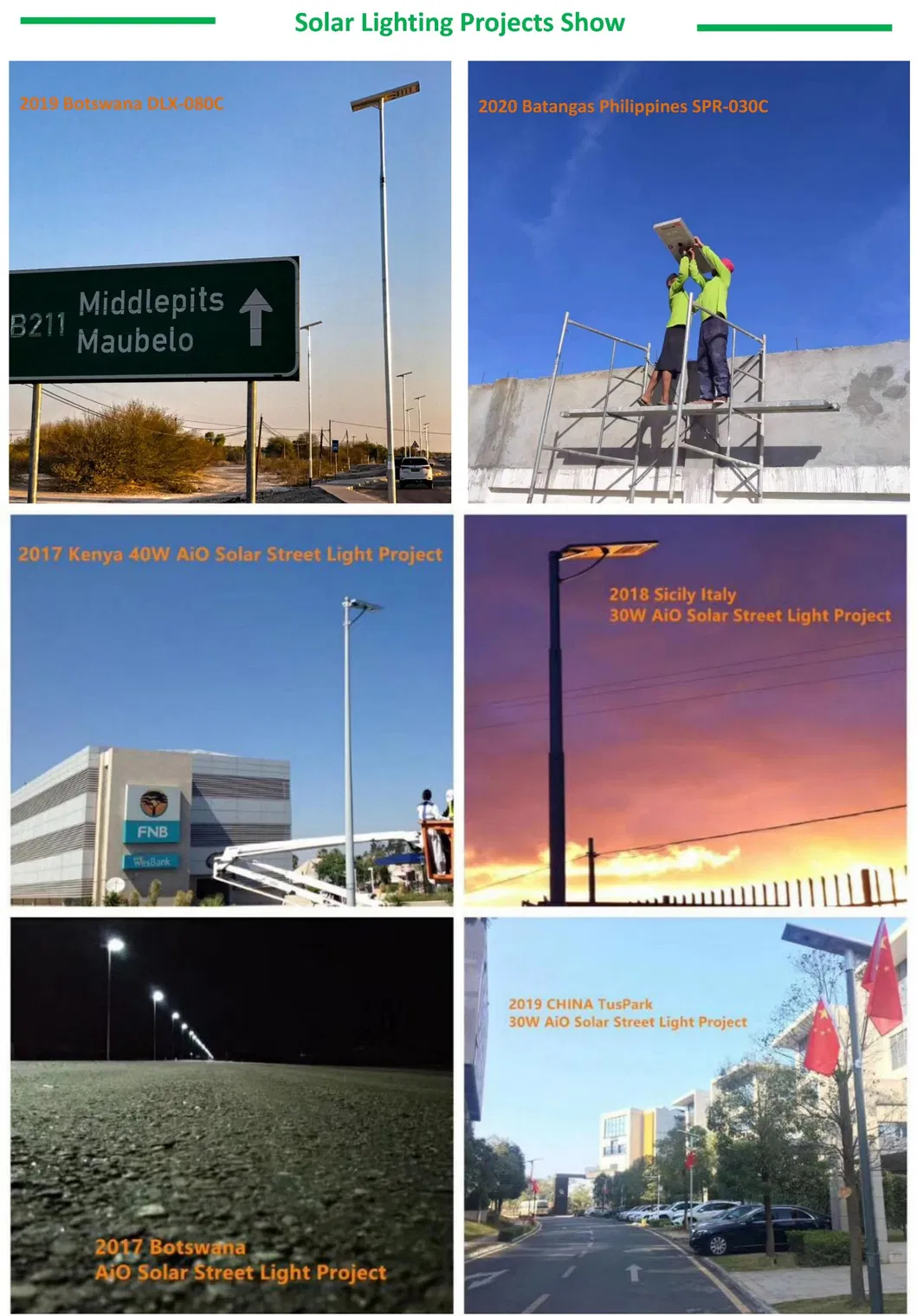

- 🔹 Global Experience: 12 years in solar lighting with successful global project references.
- 🔹 Advanced Technology: 13 patented core technologies for street lights and IoT monitoring.
- 🔹 Certified Quality: ISO 9001/14001, IEC 60598, TUV-SUD, CE, RoHS, and IP66 certified.
- 🔹 Trusted Worldwide: Utilized in over 100 countries and praised by international organizations.
IoT Monitoring System (Optional)
- ✅ Project Management
- ✅ Battery Health Monitoring
- ✅ Online Remote Control
- ✅ Real-time Fault Alarms
Frequently Asked Questions
Q1: Does the solar lamp turn on automatically?
Yes, it features an automatic light sensor that activates the lamp at dusk and turns it off at dawn.
Q2: How long is the lead time for batch orders?
Typically, sample orders take 3 workdays, while batch orders (100+ pcs) take 7-15 workdays.
Q3: What is the difference between Motion and PIR sensors?
Motion (radar) sensors use electric waves with a 10m range and higher accuracy; PIR sensors detect heat changes within 3-5m.
Q4: Can these lights withstand strong winds?
Yes, the brackets are made of high-strength Zinc-plated aluminum alloy, designed for durability and corrosion resistance.
Q5: What kind of warranty do you provide?
We offer a comprehensive 3 to 5-year warranty depending on the specific configuration.
Q6: How does the lamp perform in extreme temperatures?
The system is designed to operate efficiently in a wide temperature range from -30ºC up to +80ºC.
