Biglux Hiskid Solar Trailer Tower with 3kw Backup Generator for Construction Site

1 / 5

Biglux Hiskid Solar Trailer Tower with 3kw Backup Generator for Construction Site

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚙️ Basic Specifications

Model

BL3P-G7EHDL1400

IP Rating

IP65

Lifting Height

5-10m

Power Source

Solar

Solar Panel

3 × 450W Rotatable

Battery Capacity

14400wh Gel Battery

Lamp

4 × 100W with Dimming

Backup Generator

3kw

Running Time

29 Hours (100% Brightness)

Charging Time

8.9 Hours

📝 Product Description

The 3-Panel Mobile Solar Light Tower is an innovative off-grid lighting solution, engineered for users seeking reliable mobile lighting without trailer registration hassle. Its compact skid-base design eliminates the need for license plates or trailer approvals—ideal for countries and regions with strict transportation regulations. Equipped with 3×450W high-efficiency bifacial solar panels, a large-capacity battery, and a 3KW backup generator, this tower delivers 24/7 uninterrupted lighting.

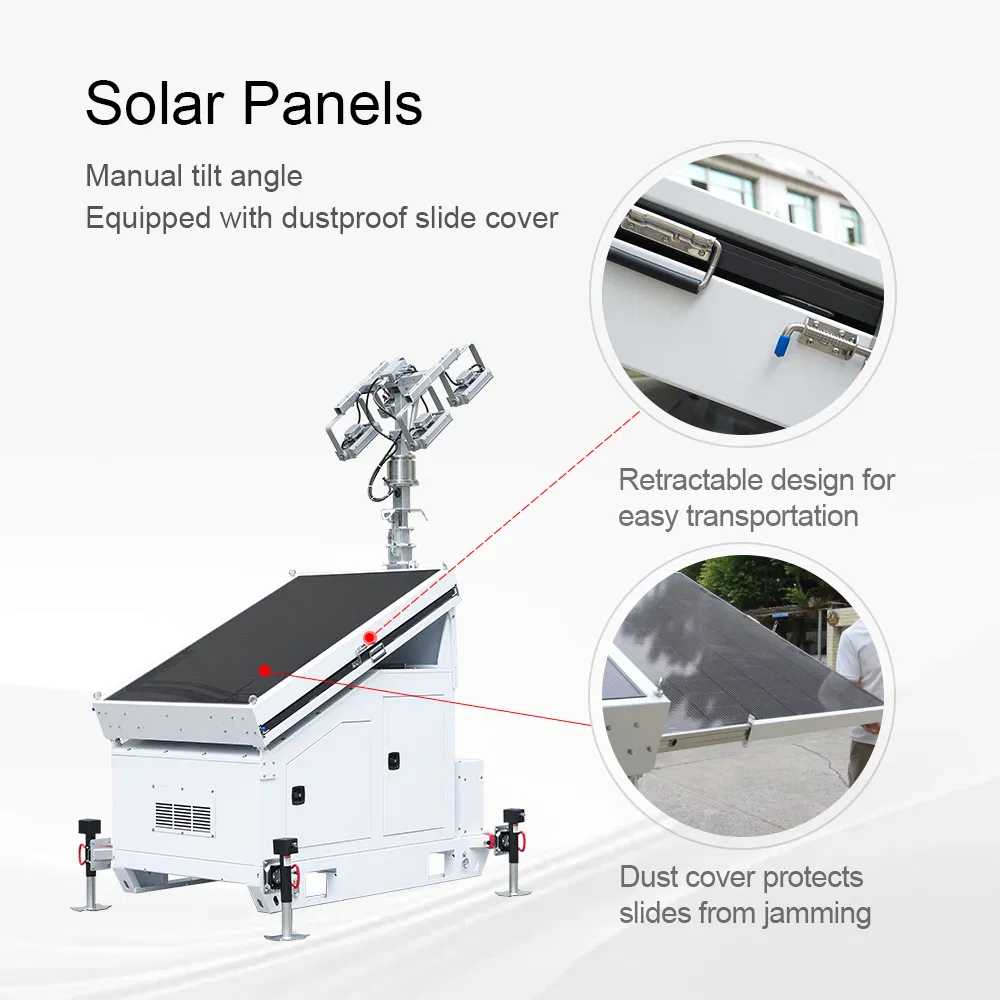

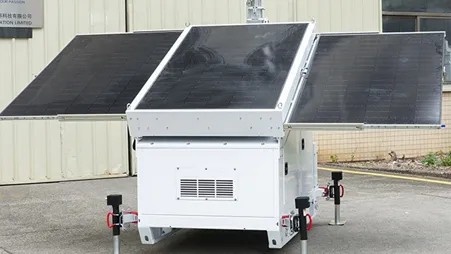

Solar Panels
1350W Power Rating, Maximized Sun Exposure

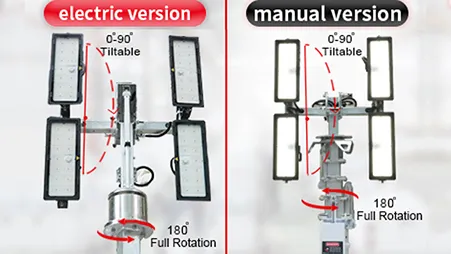

Flexible LED Lights
180° Rotatable, 90° Tiltable

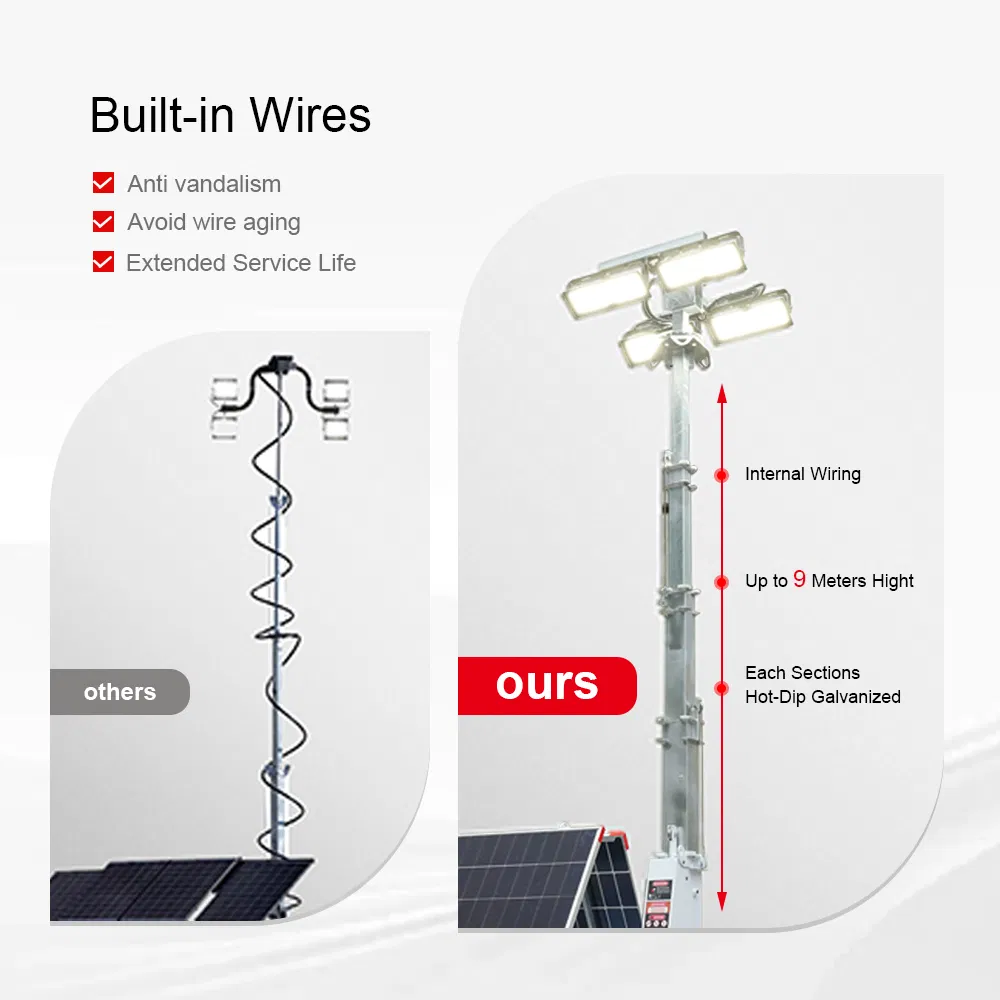

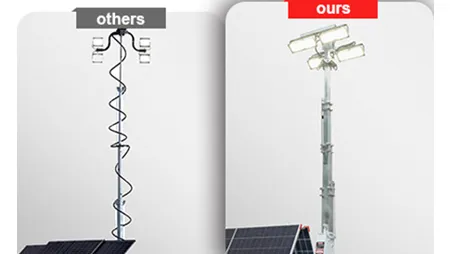

Built-in Wires
Weatherproof & Vandalism Prevention

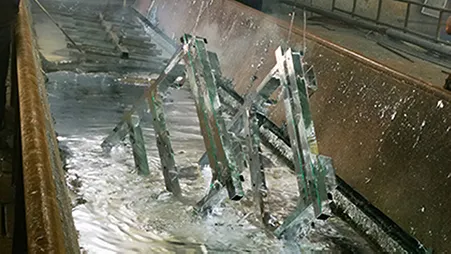

Hot-Dip Galvanized
High Corrosion Resistance

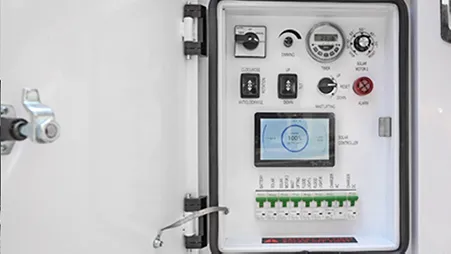

Control Panel
Timed Switch & Brightness Control

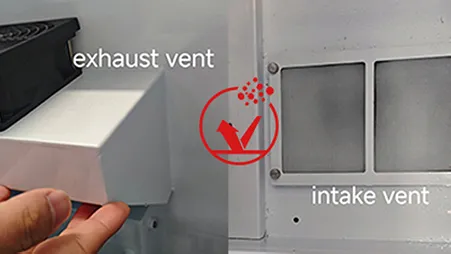

Dust-Proof Design
Sealed Housing with Cooling Fan

📋 Technical Specifications

Feature	Standard Configuration	High-End Configuration
Solar Panel	3×450W Bifacial Monocrystalline (Total 1350W)
MPPT Controller	60A (Remote Monitoring)	150/45A (Remote Monitoring)
Energy Storage	GEL 14400Wh / LFP 14336Wh DC24V
LED Lighting	4×100W (60,000lm)	4×150W (90,000lm)
Telescopic Mast	6.5m Manual Winch	8.5m Electric Winch
Base Design	Skid-Mounted Metal Base, Forklift Holes, 4 Adjustable Jacks

🏗️ Customer Case

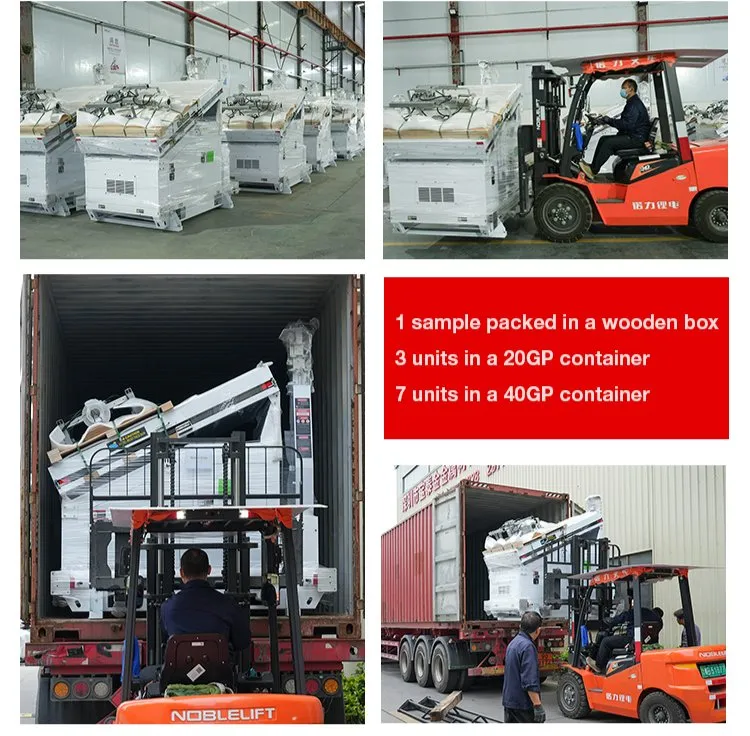

📦 Packaging & Logistics

Bulk Shipment

Standard container packaging with internal reinforcement. 3 units/20GP; 7 units/40HQ.

On-Site Handling

Equipped with forklift holes and lift rings for easy local transport without special equipment.

🏭 Manufacturing & Certifications

❓ Frequently Asked Questions

Is the tilting and rotation of the LED light manual?

Yes, the standard version is manual (180° rotation/90° tilt), but it can be upgraded to an electric kit for more convenient operation.

How long can the light tower illuminate on a full charge?

Lighting duration depends on configuration. For a 400W LED setup with a 14.4kWh battery, it can provide up to 29 hours of continuous light at 100% brightness.

What shipping services do you provide?

We offer comprehensive logistics including DDP (Door-to-Door) for North America and CIF (Factory-to-Port) for Europe, the Middle East, and other global regions.

What is the lead time for production?

Standard samples are generally shipped within 2 weeks. For bulk batch orders, the production timeline is approximately 1 month.

Why choose a skid-base instead of a trailer?

The skid-base design is ideal for sites where trailer registration is difficult or expensive. It avoids license plate requirements while remaining easy to move via forklift or crane.

How many units can fit in a standard container?

Our high loading efficiency allows for 3 units in a 20GP container and 7 units in a 40HQ container, significantly reducing shipping costs per unit.
