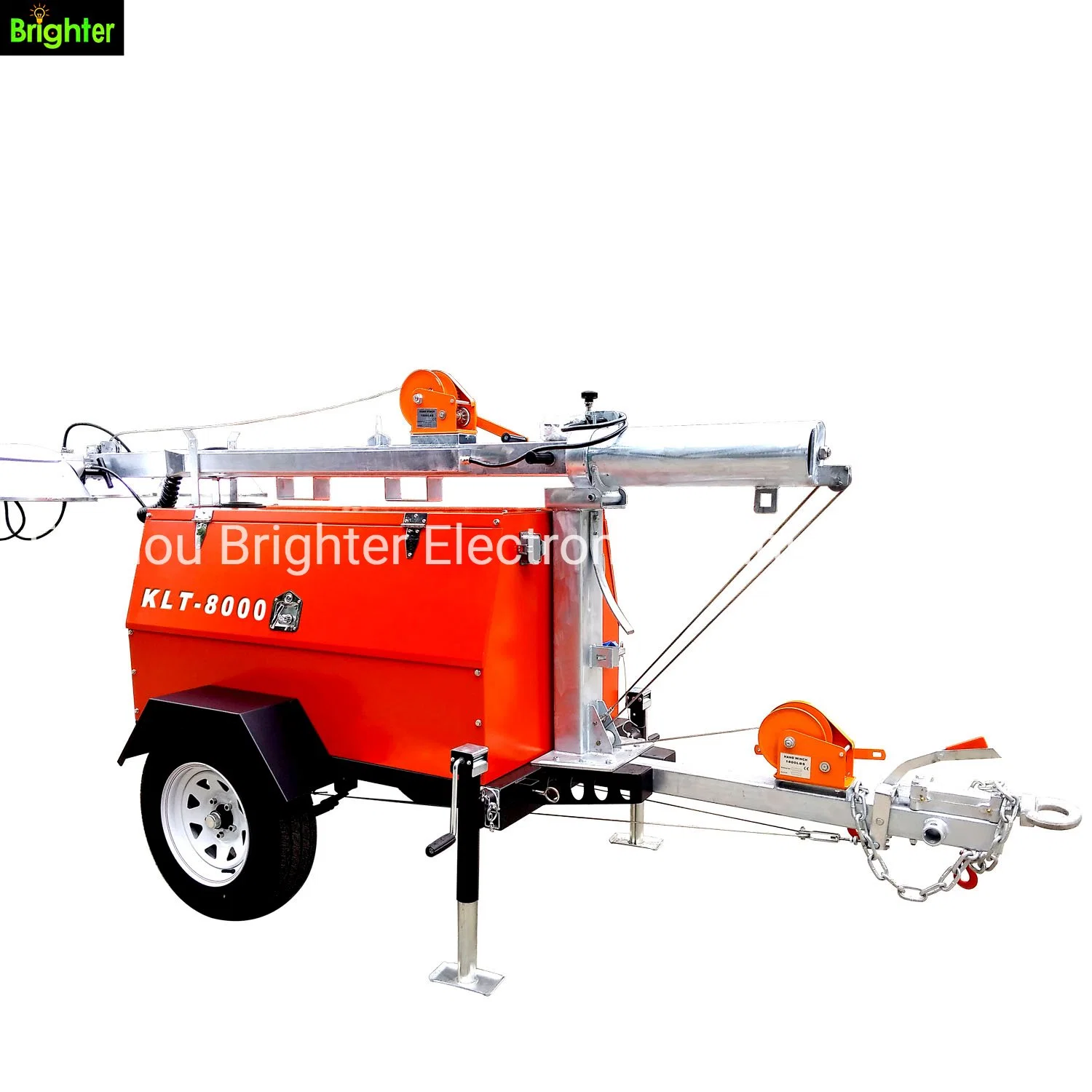

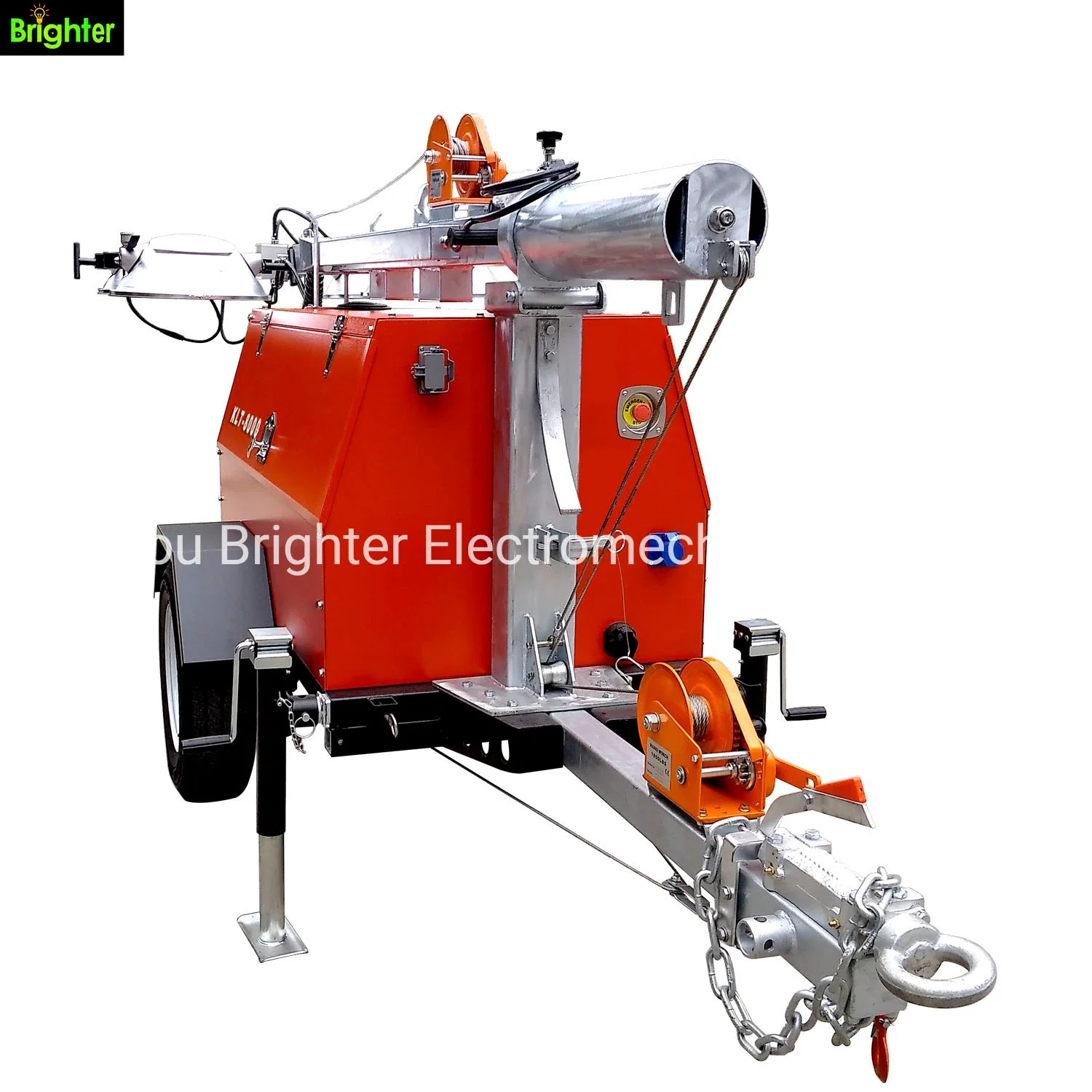

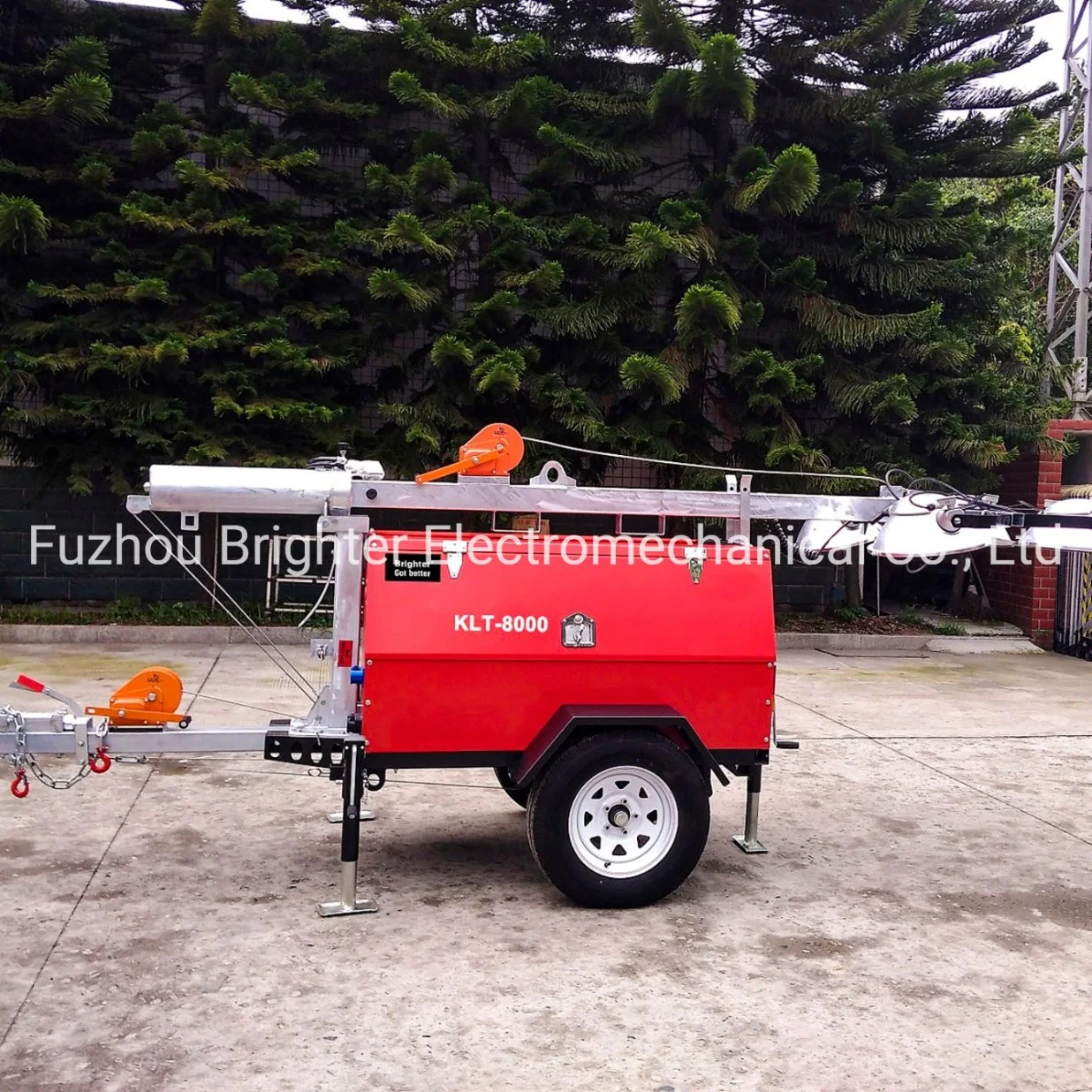

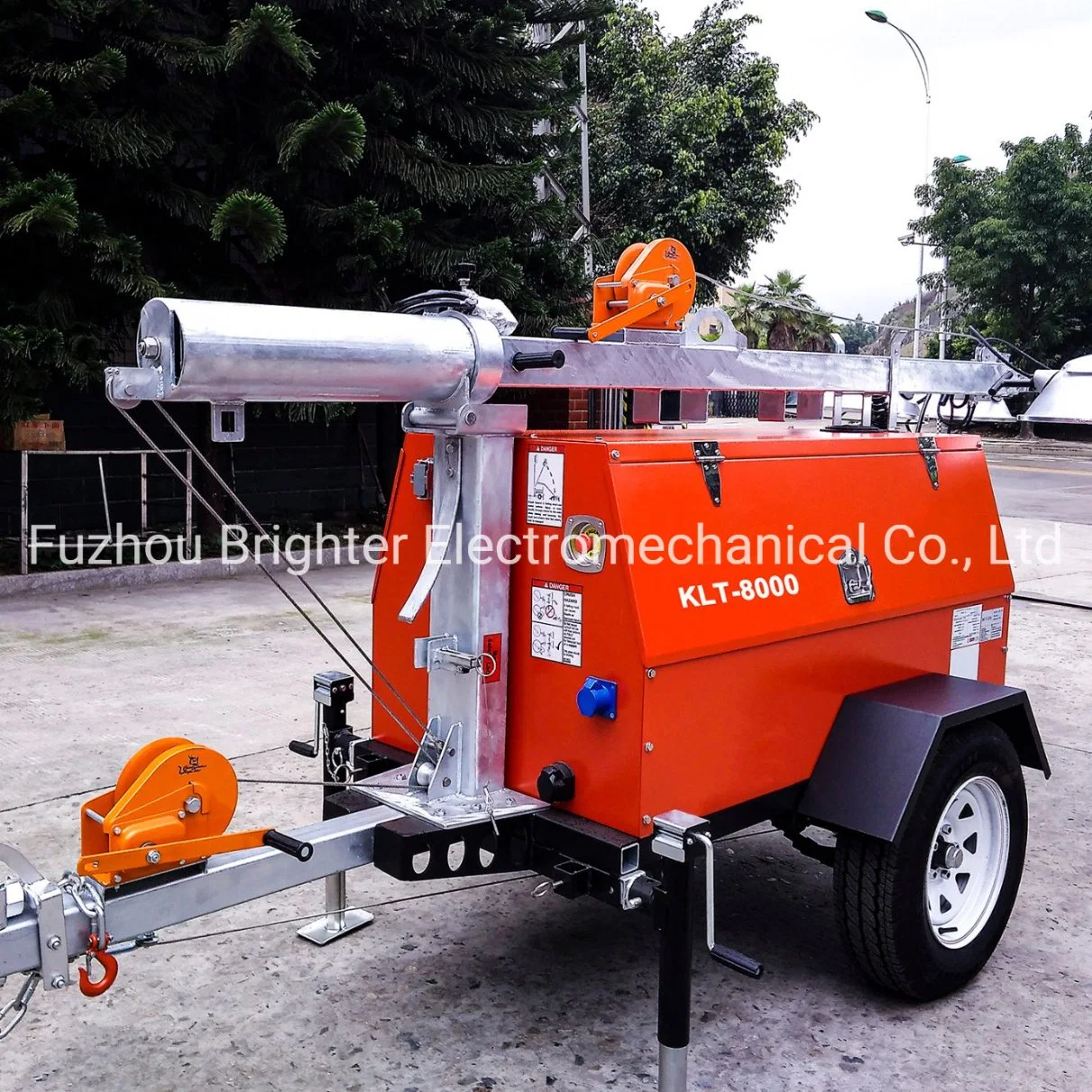

9m Manual Mast Mobile Ligthing Tower with Portable Trailer

1 / 5

9m Manual Mast Mobile Ligthing Tower with Portable Trailer

Customization:	Available
Type:	Trailer
Bulb Type:	Metal Halide

Send Inquiry

Product Description

Basic Info

Model NO.

KLT-8000

Color Temperature(CCT)

Warm White

Material

Aluminium Alloy

Power Source

Diesel Generator

Battery Type

Lead Acid

Operating Voltage

230 120VAC

Lamp Power

4*1000W

IP Rating

IP54

Usage

Emergency Lighting

Certification

CE, CCC

Mast

Manual

Rated Frequency

50 60 Hz

Warranty

12 Months or 1000 Working Hours

Delivery Time

20-30 Days

Transport Package

1.9 X 1.29 X1.63(Lxwxh)

HS Code

9405409000

Production Capacity

1000 Piece/Year

Product Description

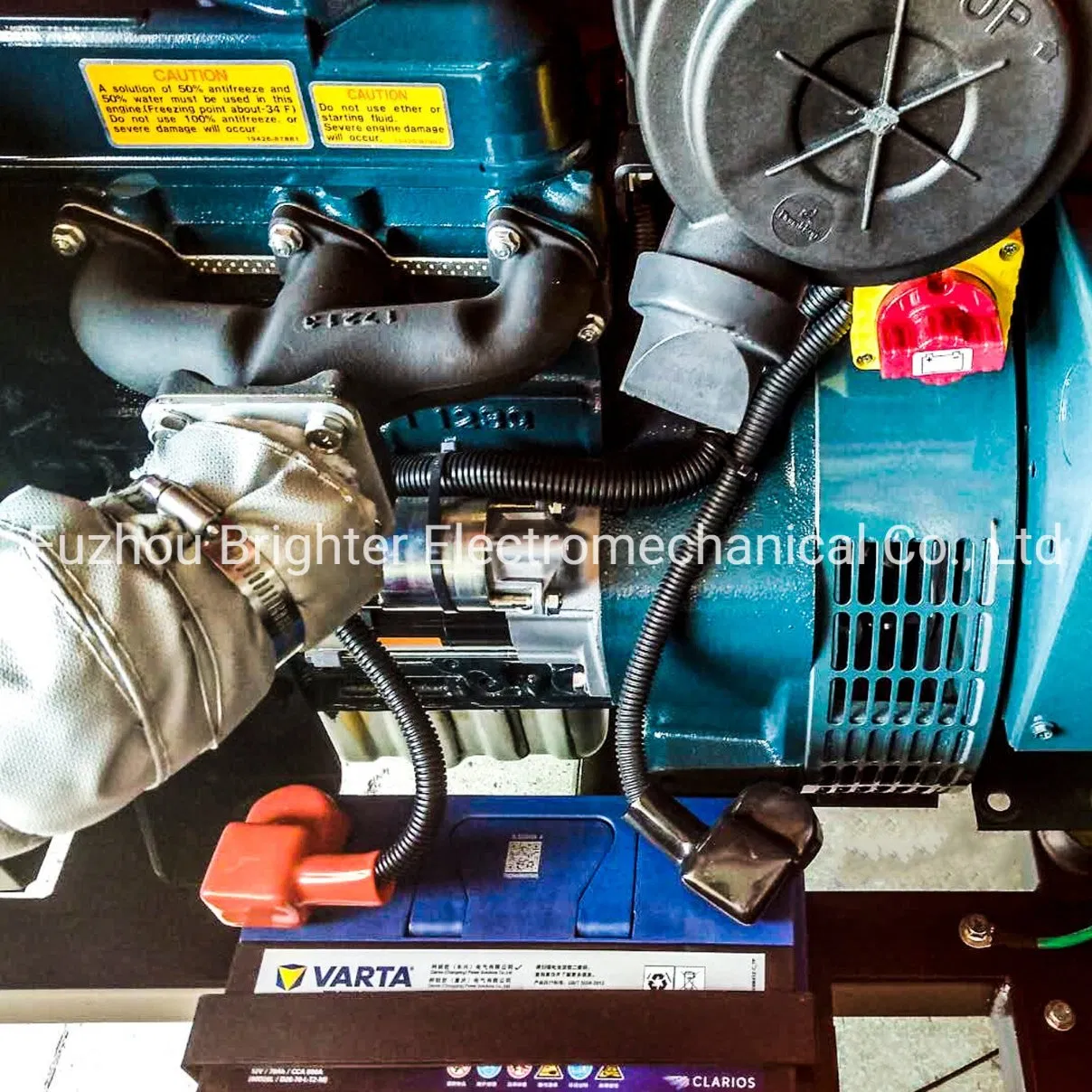

ENGINE SYSTEM

Kubota D1105-E2BG
Diesel fuel
EPA Tier 4 optional
3 cylinders in line 4 stroke
1.123 L displacement
Liquid cool
Power prime: 13.5HP/10.07KW @1800 RPM or 11.4HP/8.4KW @1500 RPM

FUEL SYSTEM

Steel fuel tank 100L
Fuel consumption 100% load 3.1 L/Hour
Exterior fill port
Fuel filter with replacement element

COOLING SYSTEM

Air filter: Dry type cartridge
Cooling system capable of operating at 50 degree ambient

GENERATOR

50/60 HZ engine/generator
Stamford/Leroy-somer/Meccalte/Sinocox brushless
Up to 7kW standby output
115/230V, 120/240V AC
Capacitor or AVR voltage regulator

FLOODLIGHTS

4-1000W MH lamps
Coverage: 4000 square meters
Oval aluminum reflector
Tempered glass lens
Silicone gaskets for moisture and dust protection
Individual flood light on/off switches

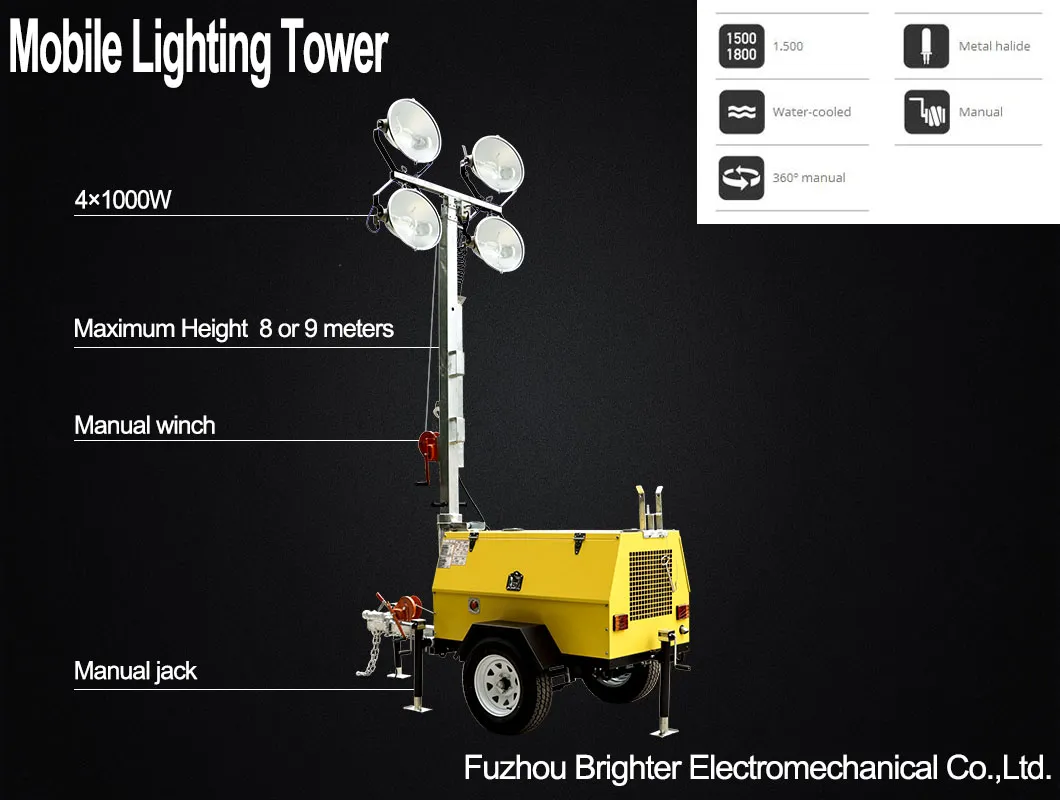

MAST

Wind rating: 80kph
Horizontal mast with extend 3 sections 9 meters
Dual winches allow one person operate
360 degree horizontal rotation

TRAILER

Removable tongue
4 adjustable leveling jacks
Side outriggers
Safety chain with safety hook
Leaf spring axle
185R15 Tyres

Robust and Reliable Performance

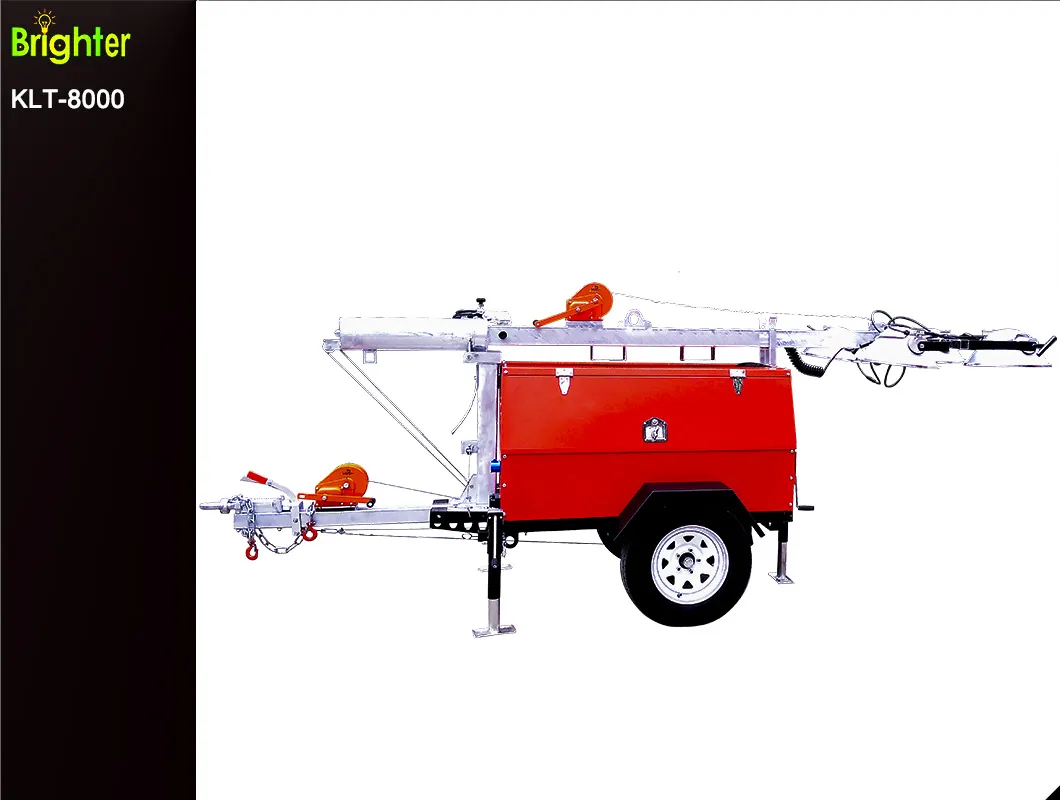

The KLT-8000 mobile light tower uses a manual (electric) winch to operate the tower mast. The tower mast lays down horizontally on the canopy to save space. It uses state-of-the-art technology for superior illumination, shining a uniform light pattern across the entire jobsite and exceeding government regulations for work site illumination.

Choose either LED or metal halide lights when specifying your light tower. Proprietary LED fixtures provide exceptional brightness, while metal halide fixtures feature high-intensity parabolic reflectors that increase illumination. The telescoping tower extends vertically to 9 meters and rotates nearly 360 degrees, eliminating the need to move the trailer frequently.

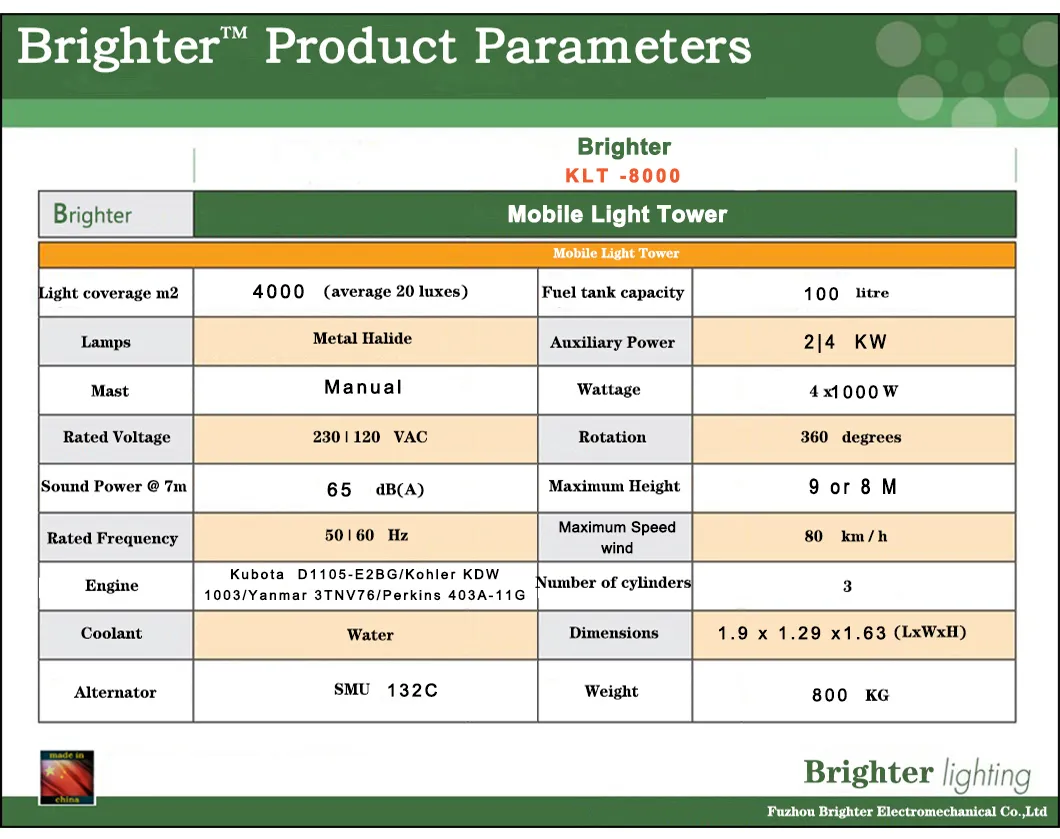

Model	KLT-8000	KLT-10000V	KLT-8000 LED	KLT-10000V LED	KLT-10000	KLT-10000 LED
Light coverage (m2)	4,000	4,000	5,000	5,000	6,000	8,000
Lamps	Metal Halide	Metal Halide	LED	LED	Metal Halide	LED
Mast Type	Manual	Hydraulic	Manual	Hydraulic	Hydraulic	Hydraulic
Rated Voltage (VAC)	230 \| 120	230 \| 120	230 \| 120	230 \| 120	230 \| 120	230 or DC48V
Fuel Tank (L)	100	100	70	70	130	130
Weight (kg)	800	1150	850	1200	1860	1960

Frequently Asked Questions

Q1: What is the maximum height of the KLT-8000 mast? A1: The KLT-8000 features a 3-section telescoping mast that can extend to a maximum height of 9 meters.

Q2: What is the estimated light coverage area? A2: Depending on the specific configuration (LED or Metal Halide), the light tower can cover between 4,000 and 8,000 square meters.

Q3: How long can the unit operate on a full tank of fuel? A3: With a 100L fuel tank and high-efficiency LED fixtures, the unit can run for up to 100 hours between refuelings.

Q4: Can the lighting direction be adjusted? A4: Yes, the tower rotates nearly 360 degrees while upright, and each light fixture can be aimed independently without the use of tools.

Q5: Is the light tower stable in windy conditions? A5: Yes, it has a wind rating of 80kph and is equipped with three telescoping outriggers and four leveling jacks for maximum stability.

Q6: What type of engine powers the generator? A6: The standard model is powered by a reliable Kubota D1105-E2BG industrial diesel engine.
