Basic Info.
Model NO.:AL-CH40
Light Type:Energy Saving
Color Temperature:Warm White
Power:≥30W
Technics:Painted Matte
Illumination Time:12h
Cell Type:LiFePO4 Lithium Battery
Charging Time (H):6
Usage:Garden, Street
IP Rating:IP65
Certification:CE, RoHS
Solar Panel:18V 50W (Monocrystalline Silicon)
Product Description

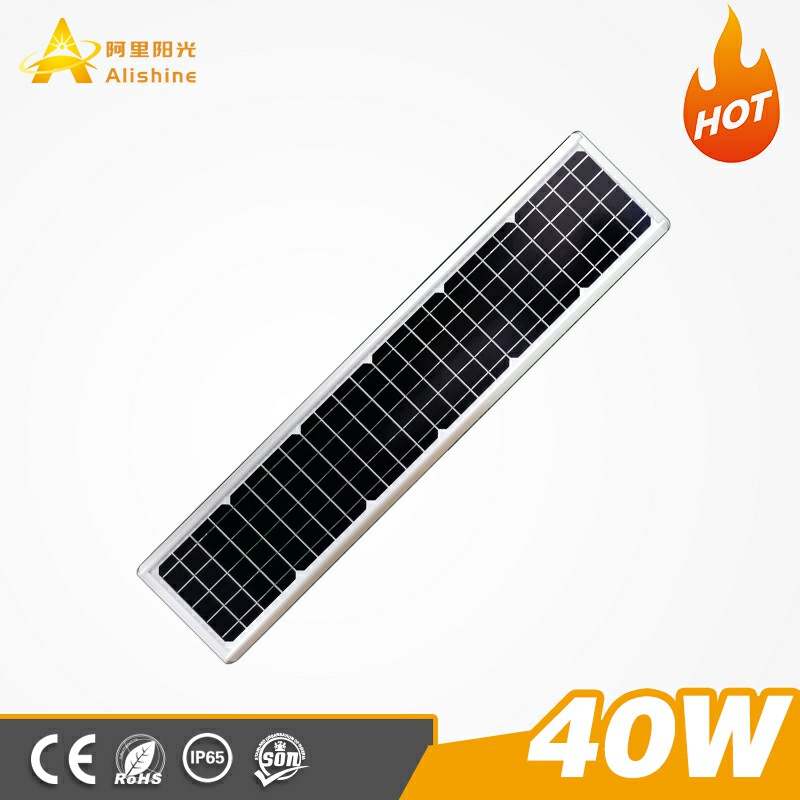

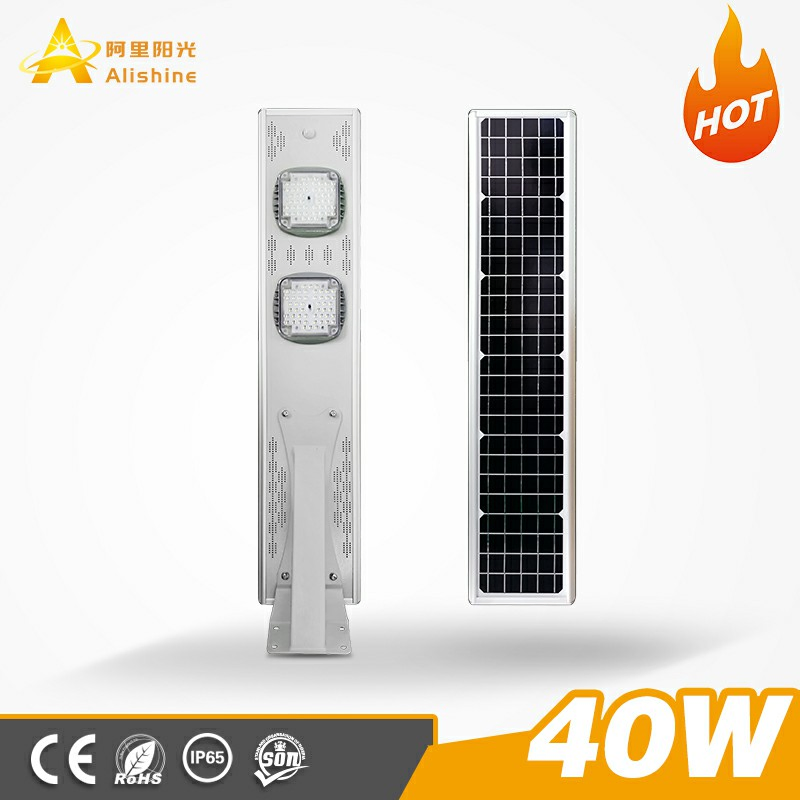

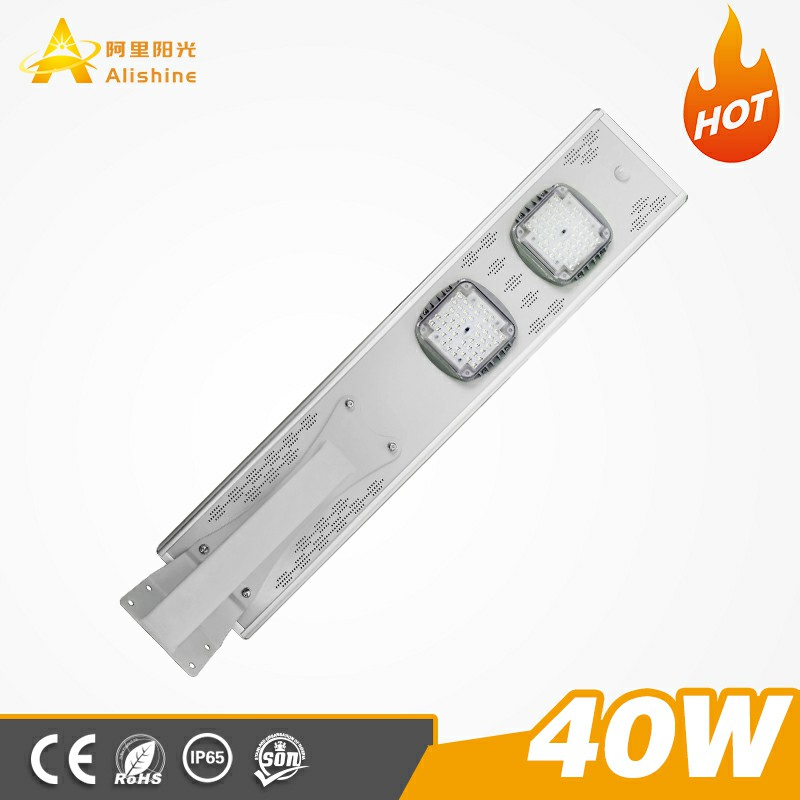

40W Energy Saving LED Solar Street Lighting System Complete Set
High efficiency lighting solution for residential and commercial exterior areas.
| Model: |
AL-CH40 |
CIR |
>70Ra |
| Solar panel Max power: |
18V 50W (Monocrystalline silicon) |
Lamps material: |
Aluminium |
| Battery Type: |
LiFe PO4 12.8V 21AH |
Certificate: |
CE / ROHS / IP65 |
| LED Max power: |
12V 40W |
Warranty: |
3 years |
| Led chip brand: |
High efficiency 3030 chips (100PCS) |
Mounting height: |
5-6M |
| Lumen (LM): |
150-160lm/W |
LED Life time: |
50,000 hours |
| Lighting Angle: |
65°x 120° (Street distribution) |
N.W: |
10.5KG |
| Working TEMP: |
-25~+65ºC |
Unit size: |
1060*205*60mm |

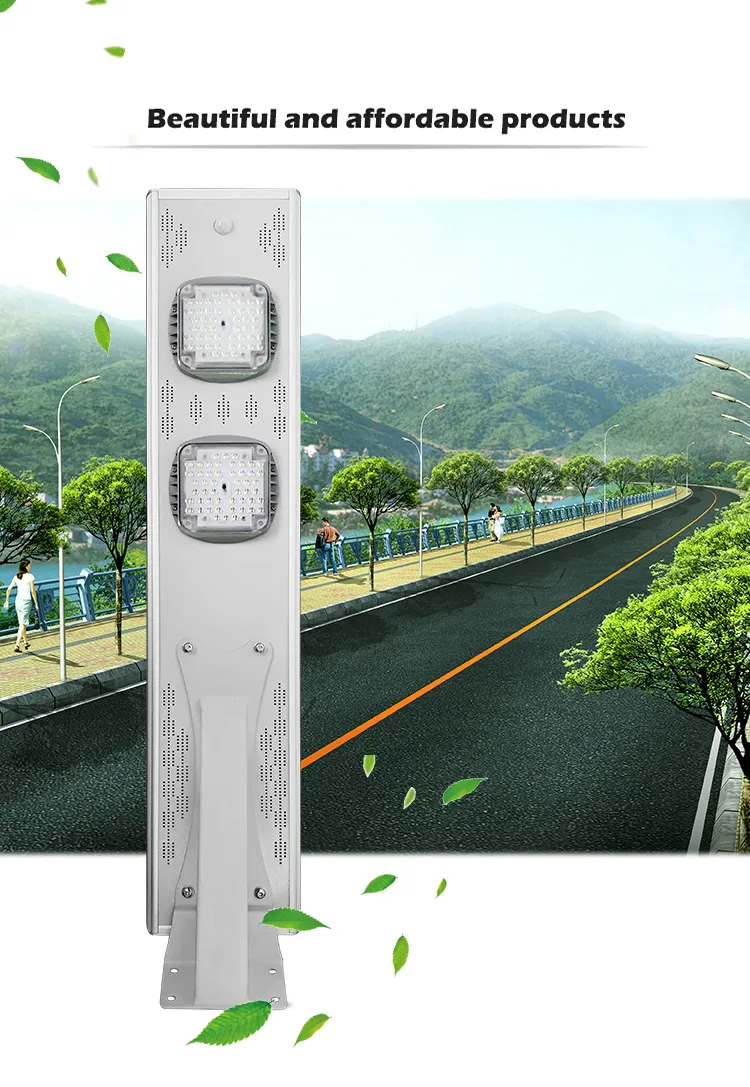

Key Features

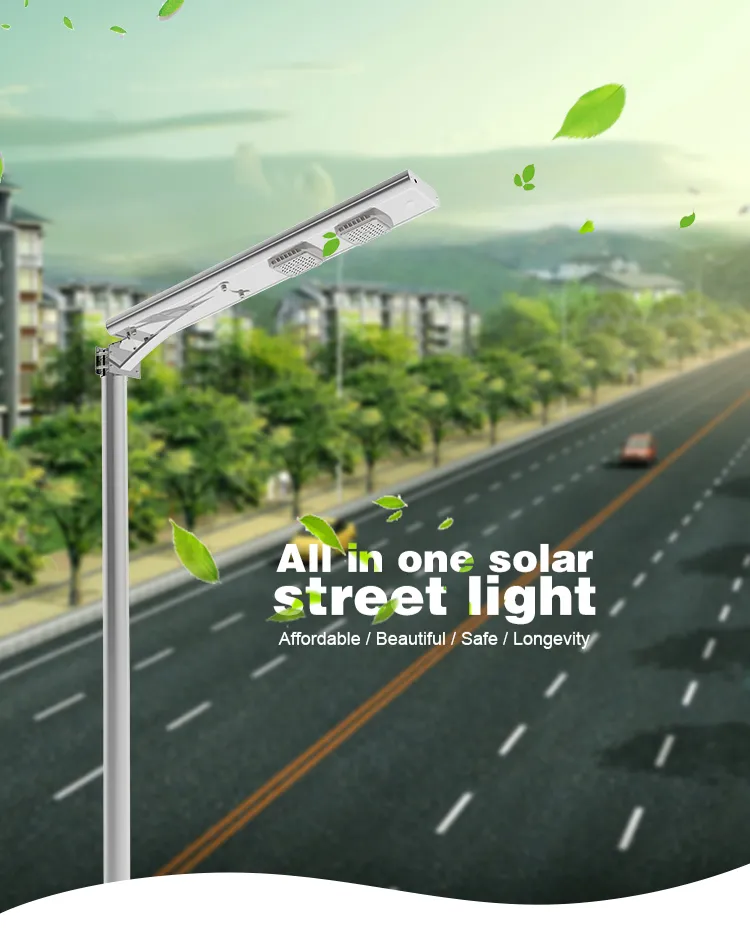

All-in-one integrated compact design; No external wires or cables needed.
Using high brightness Bridgelux chips, efficiency up to 125LM/W.
Professional optical lens design with light transmittance over 92%.
High efficiency monocrystalline SOLAR panel with over 22% conversion efficiency.
High quality lithium Iron phosphate (LiFe PO4) battery with lifetime over 2000 cycles.
100% solar powered green renewable energy; Auto turn on at dusk and off at dawn.
PIR motion sensor optional to save more power.
Patent pended elegant design with corrosion protection.

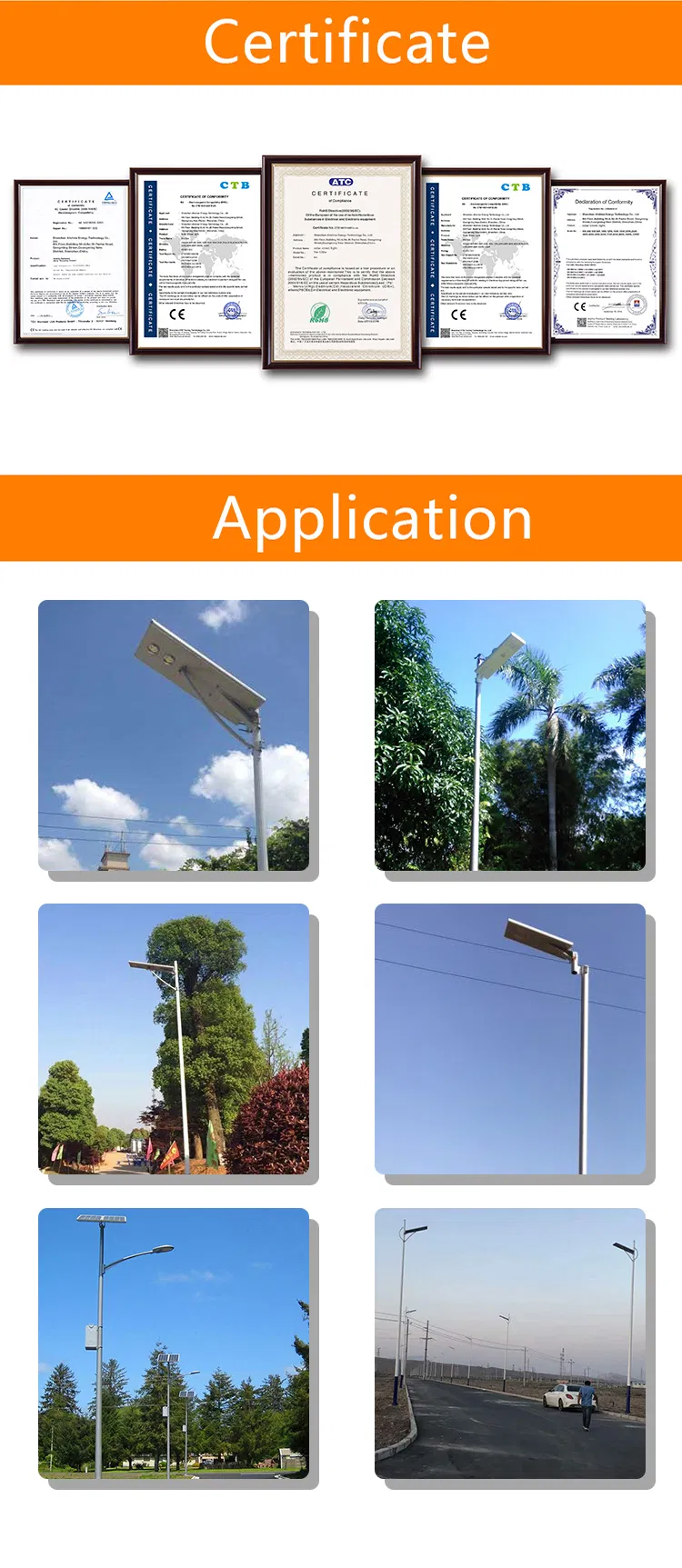

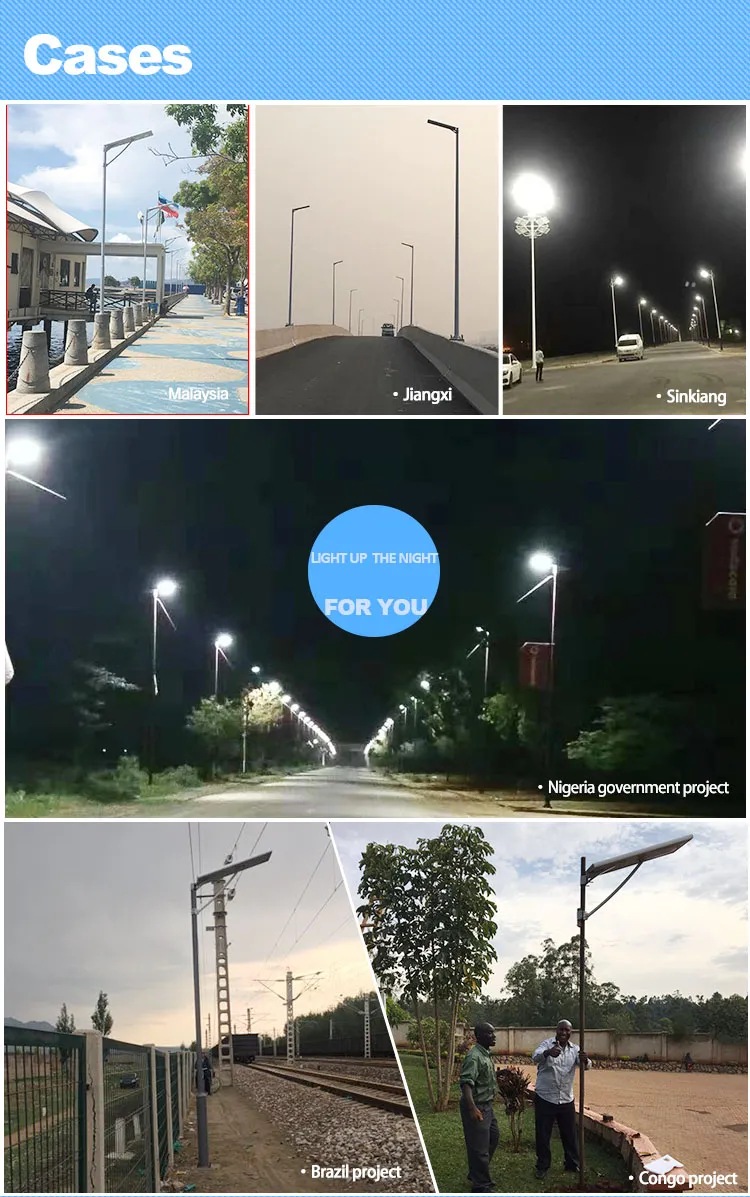

Applications
Ideal for: Residential roads, parking lots, pathways, ramps, farm & ranch lighting, wildlife areas, docks & piers, personal gardens, plazas, and any exterior area with sufficient sunlight.

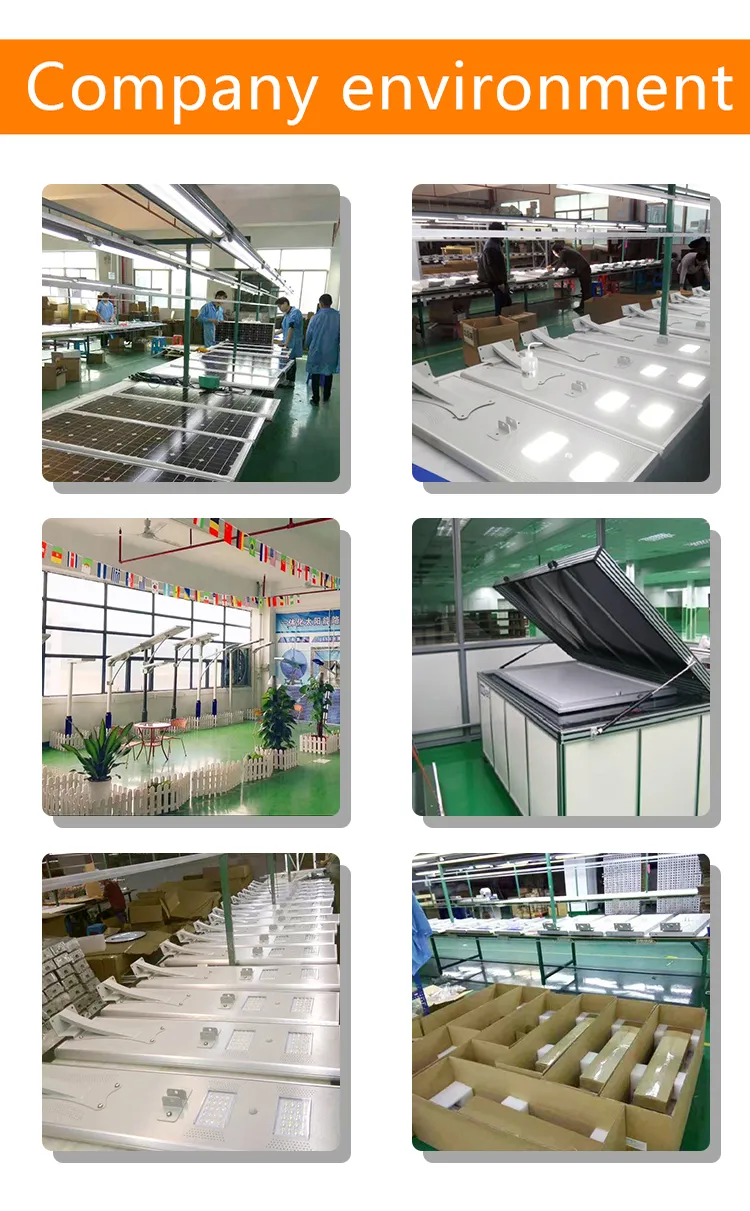

Quality & Production
Frequently Asked Questions
Q1: How long does the solar street light stay illuminated?
The system provides full power lighting for 15 hours and can last over 30 hours in energy-saving mode.
Q2: What is the charging time required for a full battery?
It takes approximately 6-7 hours of strong sunlight to fully charge the LiFePO4 battery.
Q3: Is the light waterproof for outdoor use?
Yes, the product is IP65 rated, making it fully waterproof and suitable for harsh outdoor environments.
Q4: What is the lifespan of the LED chips and Solar Panel?
The high-efficiency LED chips have a lifespan of 50,000 hours, while the monocrystalline solar panel is designed to last up to 25 years.
Q5: Does the light include a motion sensor?
Yes, it features a default working mode where it switches to 100% capacity when movement is detected and dims to 30% when the area is clear to save power.
Q6: What is the recommended mounting height?
The recommended mounting height for this 40W model is between 5 to 6 meters, with a spacing of 20-25 meters between lights.
