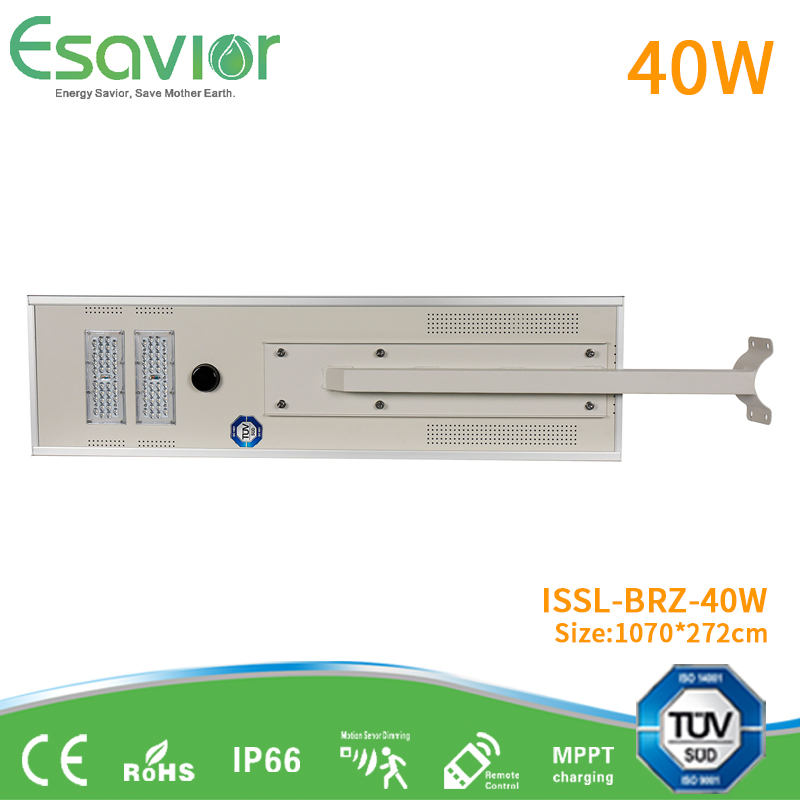

Factory Price High Quality 40W All in One Integrated Solar LED Street Light Lamp

1 / 5

Factory Price High Quality 40W All in One Integrated Solar LED Street Light Lamp

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

ISSL-BRZ-40W-0505JY

Light Type

Solar

Color Temperature

Cool White 6000~6500K

Power

40W (20LEDs X 2 Modules)

Technics

Electroplating

Illumination Time

>12 Hours

Cell Type

LiFePO4 Lithium

Charging Time

5 Hours

Usage

Garden, Street, Highway

IP Rating

IP66

Certification

CE, RoHS, IP66

Voltage

12/24V

Production Capacity

50,000 Sets/Year

Origin

China

Product Description

Integrated LED Solar Street Light

MODEL NO. ISSL-BRZ-40W Technical Data

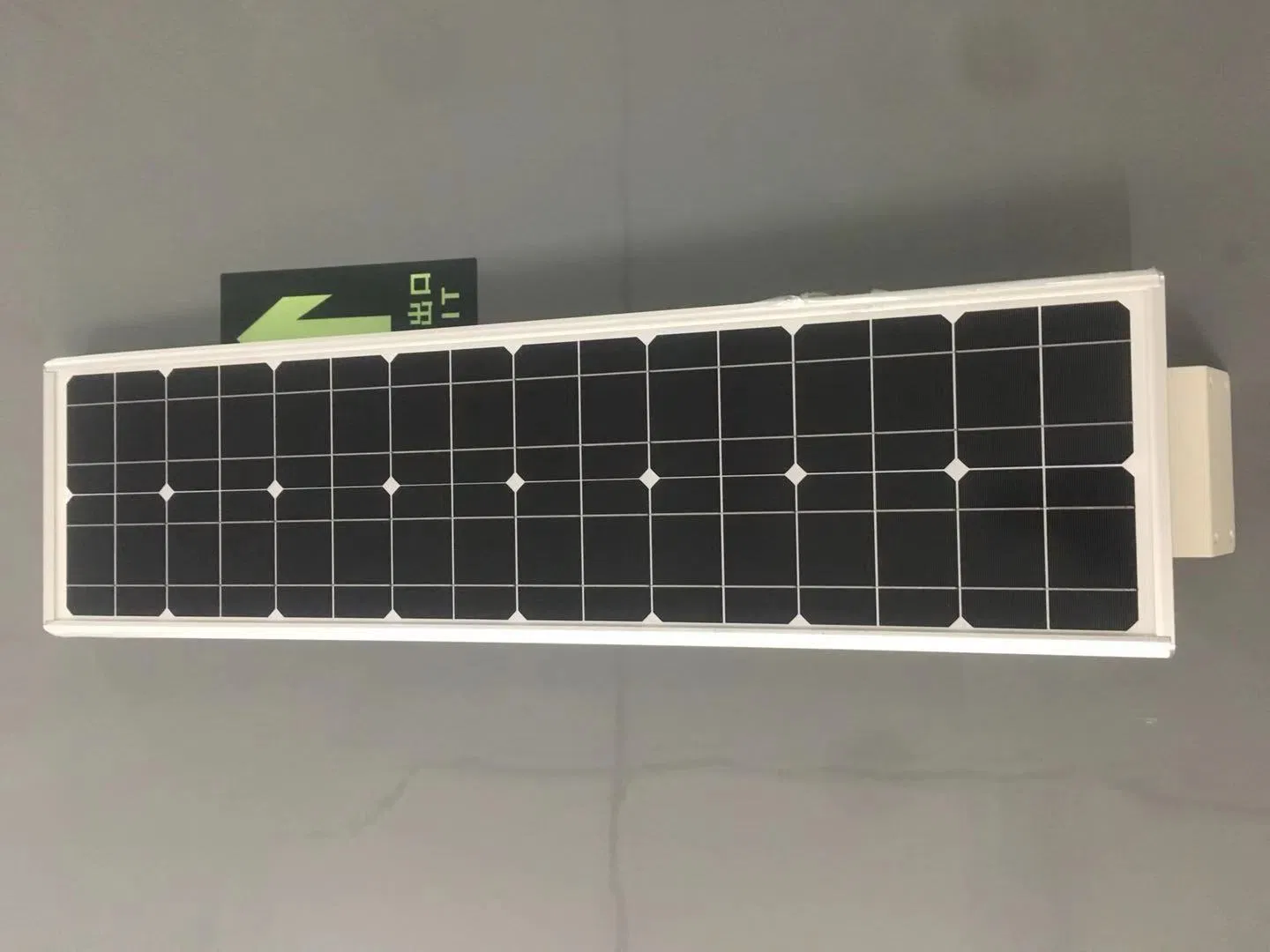

Solar Panel	18V/60Wp (High Efficiency Monocrystalline PV) - 25 years life-span
Batteries	12.8V/18AH (268.80WH) / LiFePO4 Lithium - 8+ years lifespan
Controller	MPPT / Waterproof class: IP68 with Microwave Radar Sensor
LED Source	12V/40W (3600-4000lm) - 100,000 hours lifespan
Working Temp	-30ºC ~ +80ºC
Mounting Height	6-7m
Materials	Aluminium Alloy

Key Advantages

Wireless Application: Integrated solar panel, LED, lithium battery, and micro-controller into one stylish system.
Micro-Computer Controlled: Perfectly combines light and time control systems for maximum energy efficiency.
Easy Installation: No power or cables required; installation takes only 5 minutes.
Superior Heat Dissipation: Aluminum shell with scientific cooling holes and built-in aluminum blocks.
Extreme Light Efficiency: Reaches 195 lm/w for brighter, expanded, and uniform lighting areas.
Modular Design: Standardized production allows for easy component replacement, including batteries.

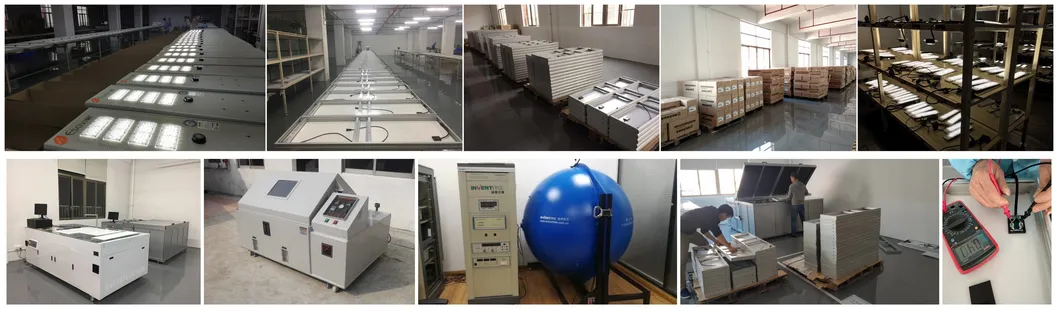

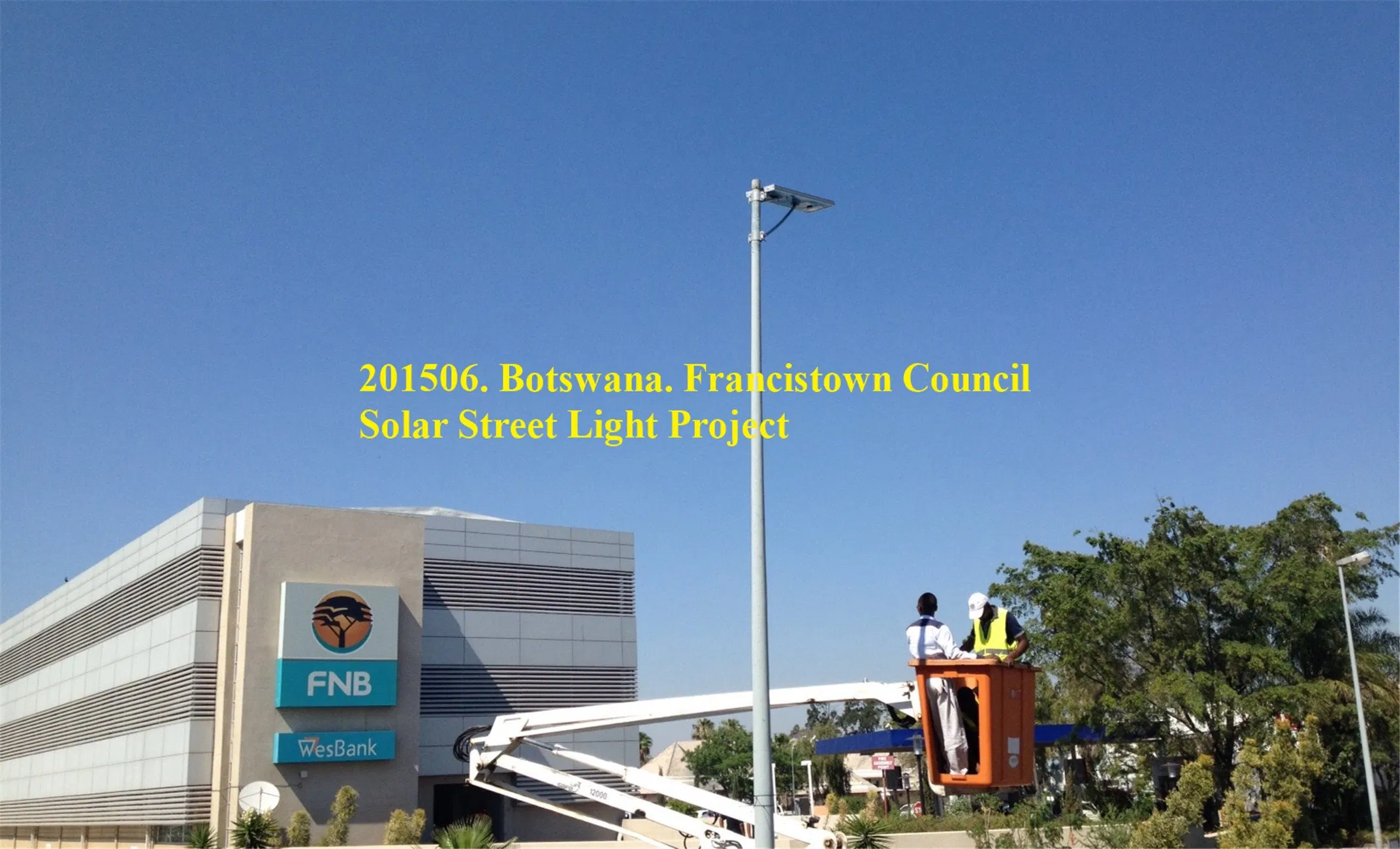

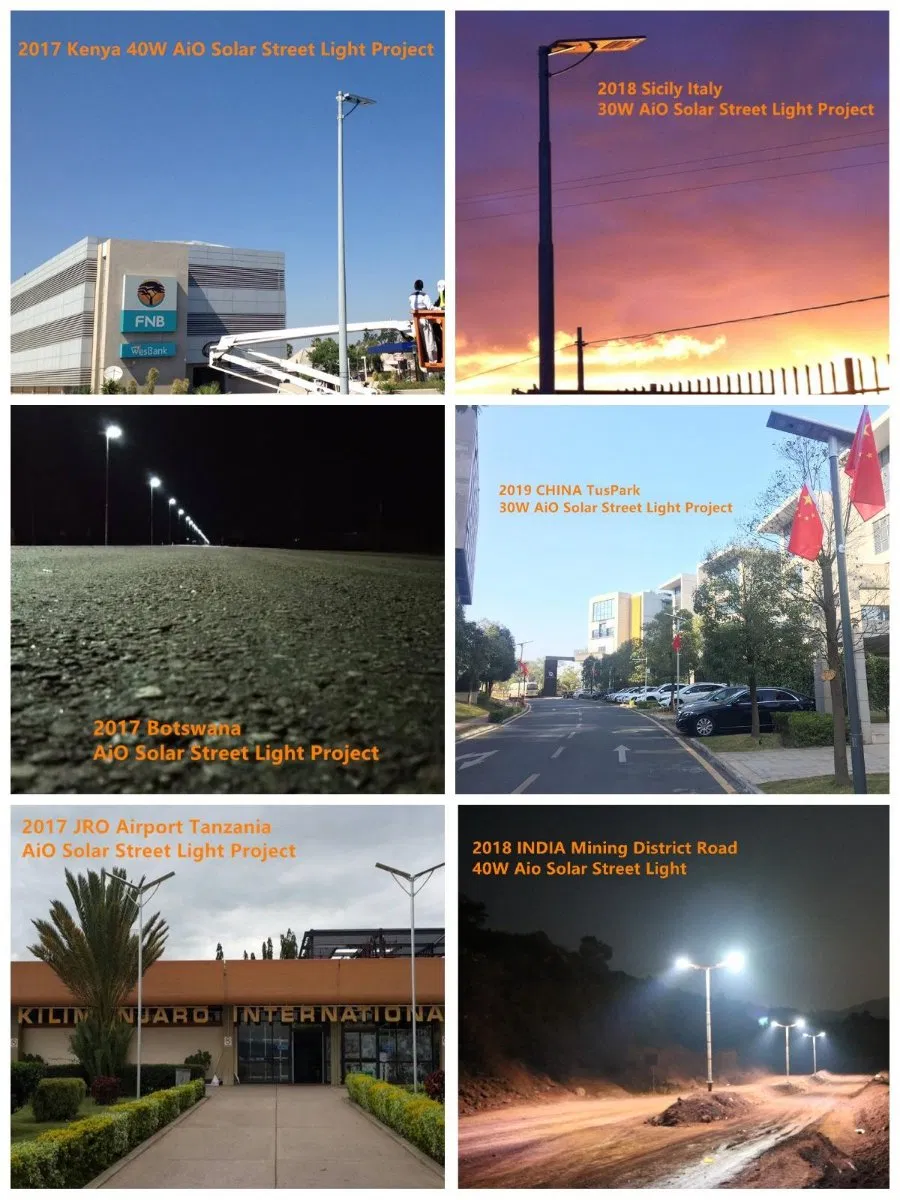

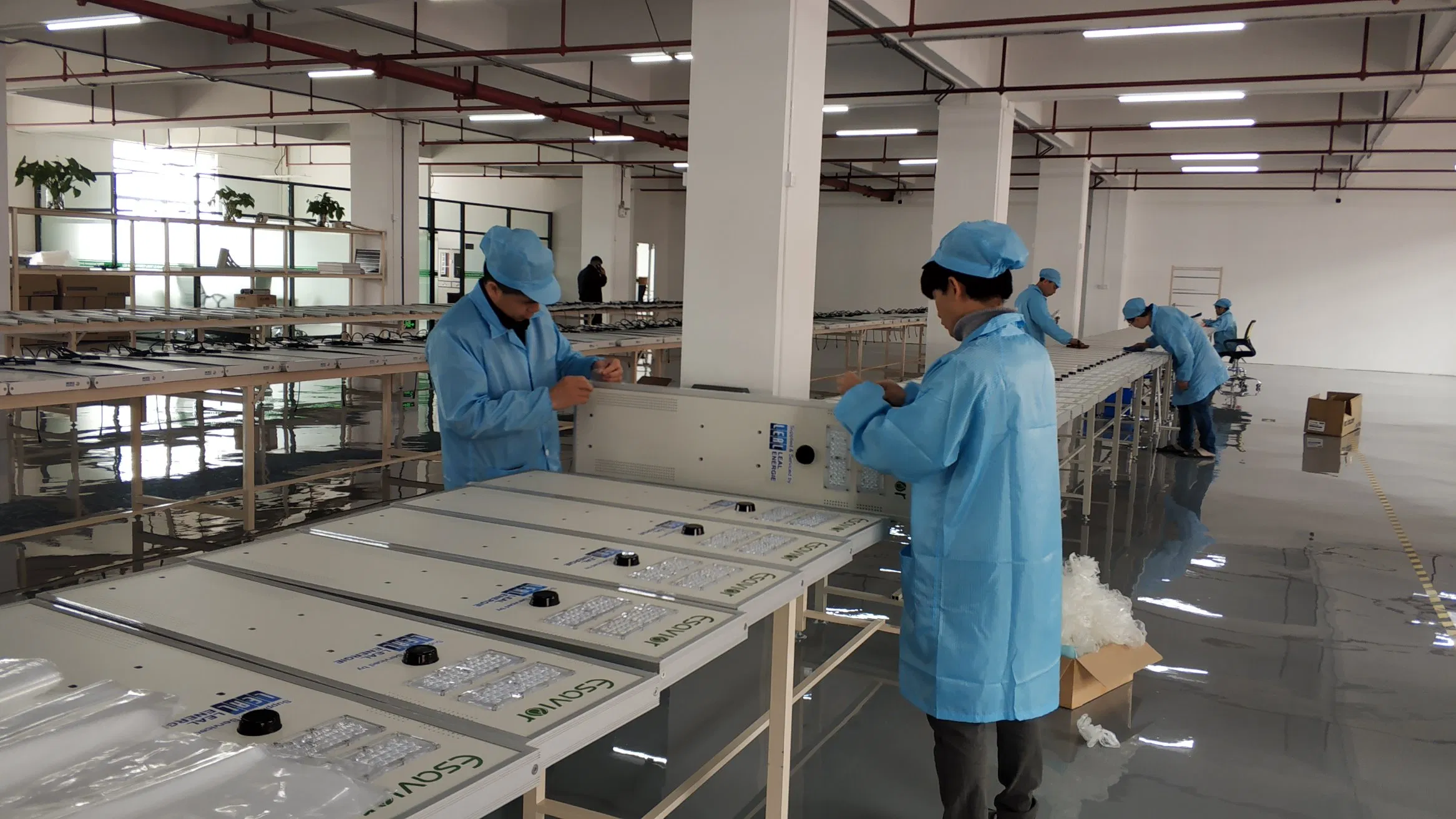

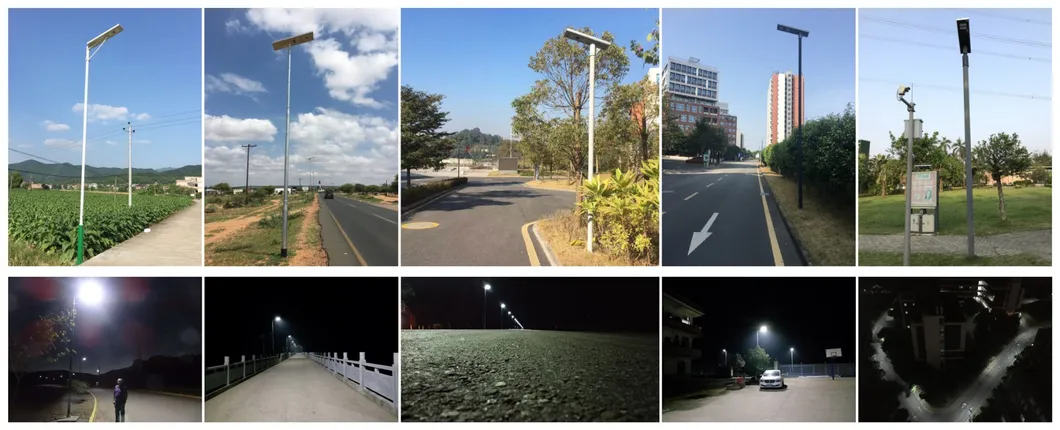

Project & Manufacturing Showcase

Frequently Asked Questions

Q1: Does the lamp turn on automatically?

Yes, it will light on automatically at darkness in any mode except "OFF".

Q2: Can I order samples for testing?

Yes, we welcome sample orders to test and check the quality. Mixed samples are also acceptable.

Q3: What is the expected lead time?

Generally 3 workdays for samples and 7-15 workdays for batch orders (over 100pcs).

Q4: What is the difference between Motion and PIR sensors?

Motion (radar) sensors emit high-frequency waves and can detect movement up to 10 meters away with high accuracy. PIR sensors detect temperature changes and typically have a range of 3-5 meters.

Q5: Can these lamps withstand strong winds?

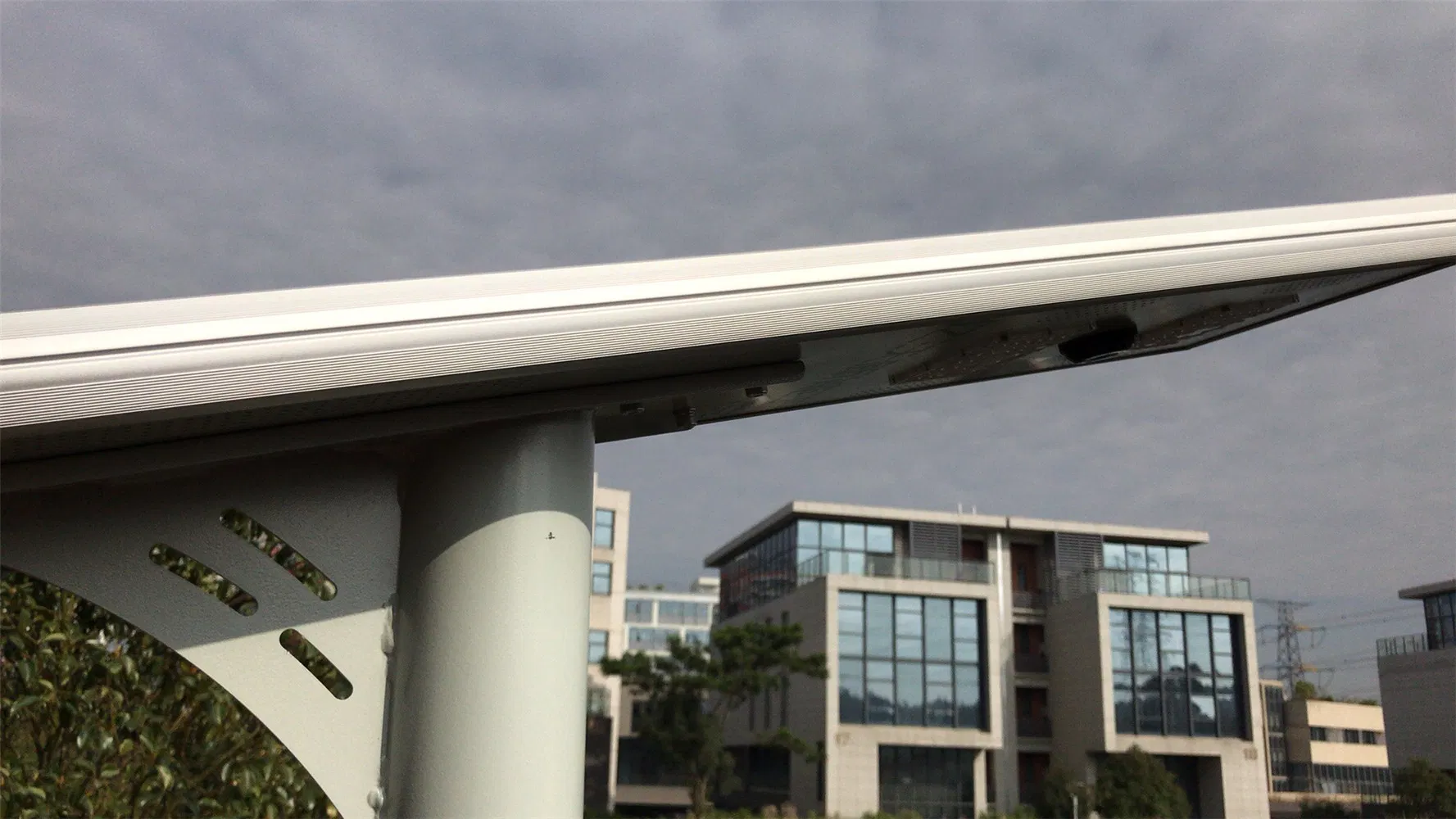

Yes, the units use a solid Aluminum-alloy holder with zinc plating for anti-rust corrosion and high stability.

Q6: How do you handle product warranties?

We offer a 3-5 year warranty. During this period, replacements for small quantities will be sent with your next order if any defects occur.
