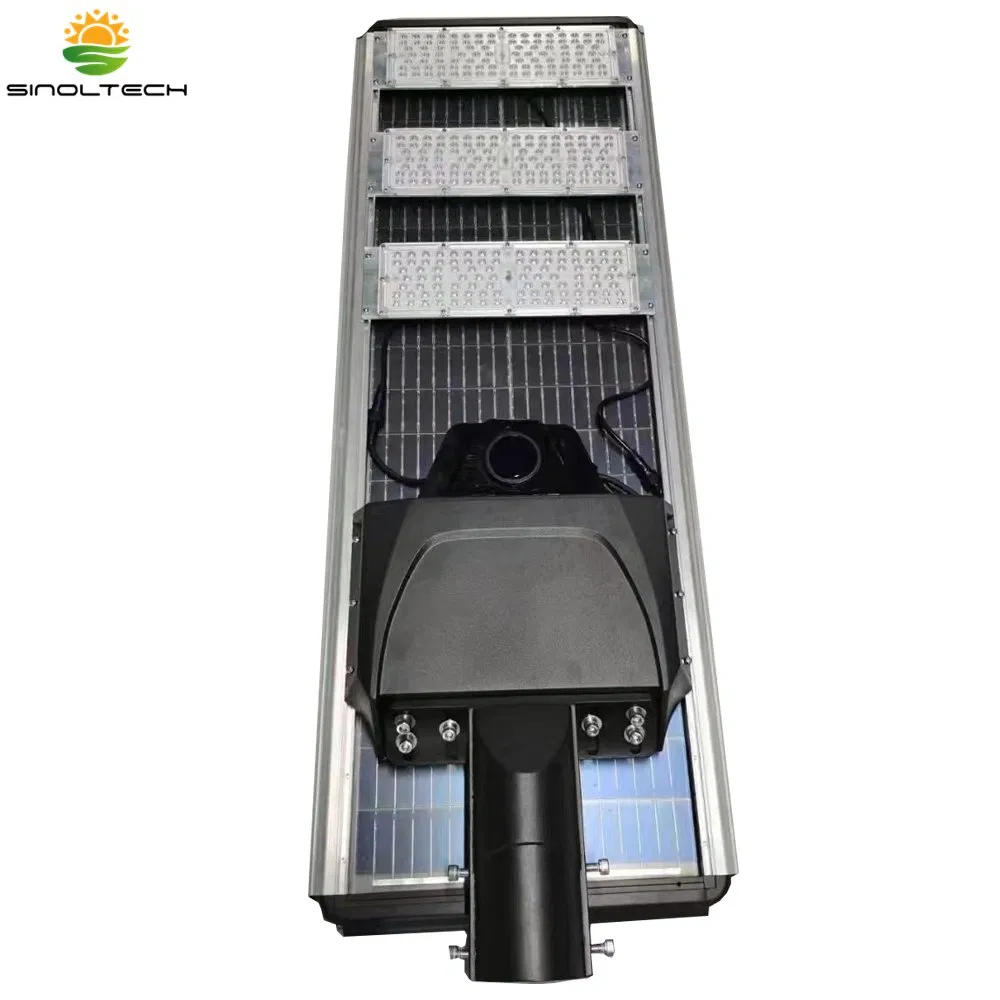

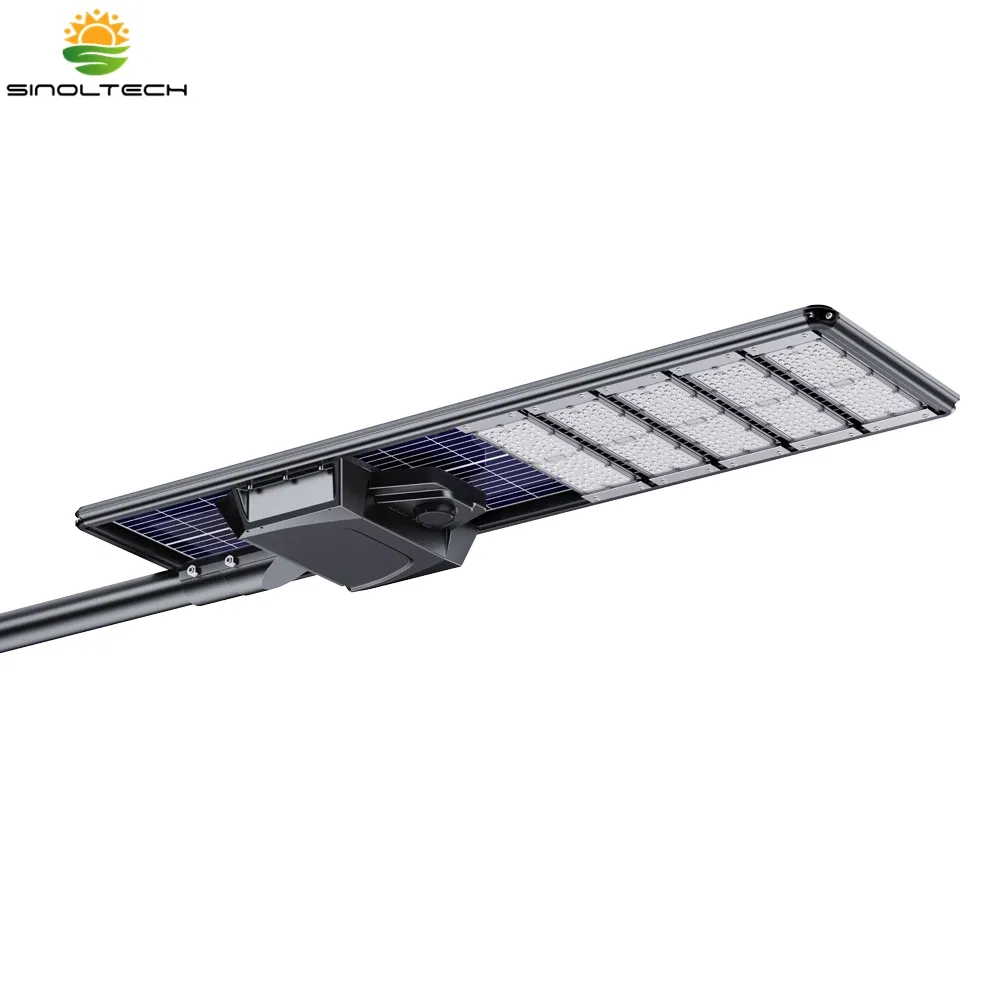

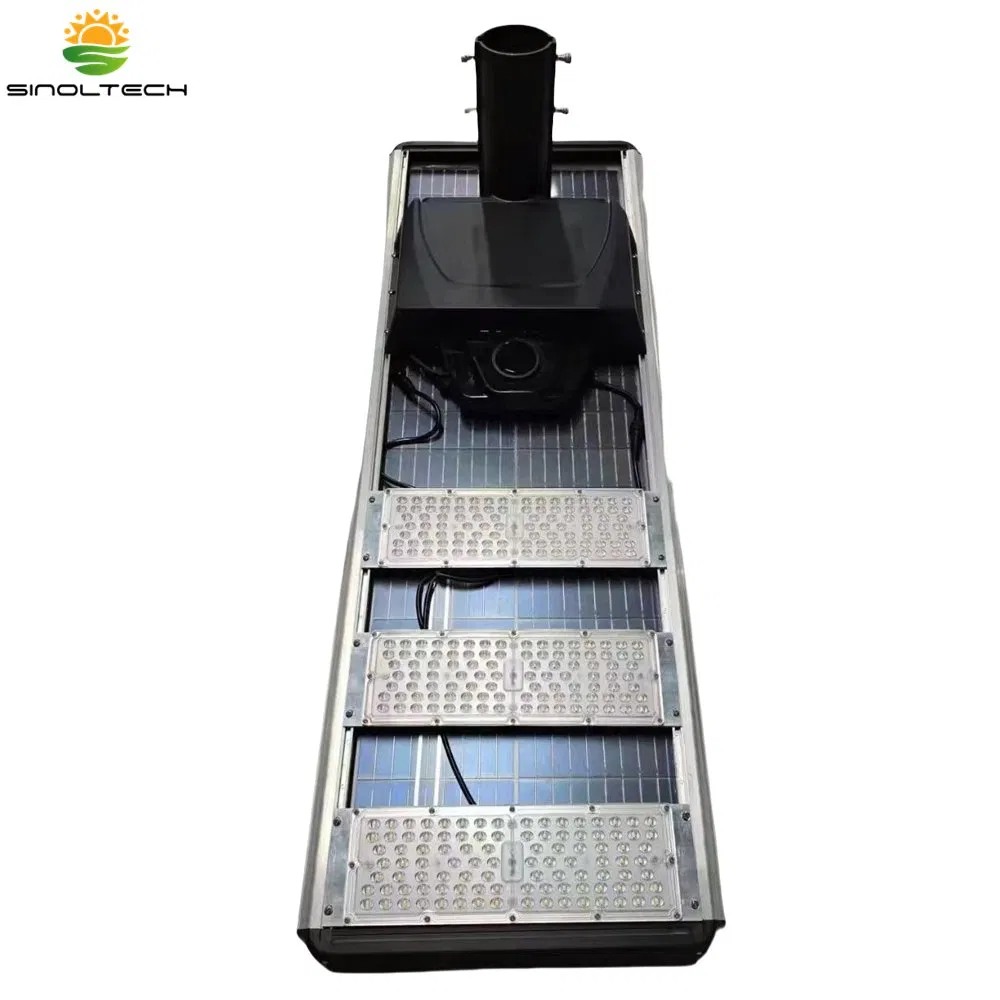

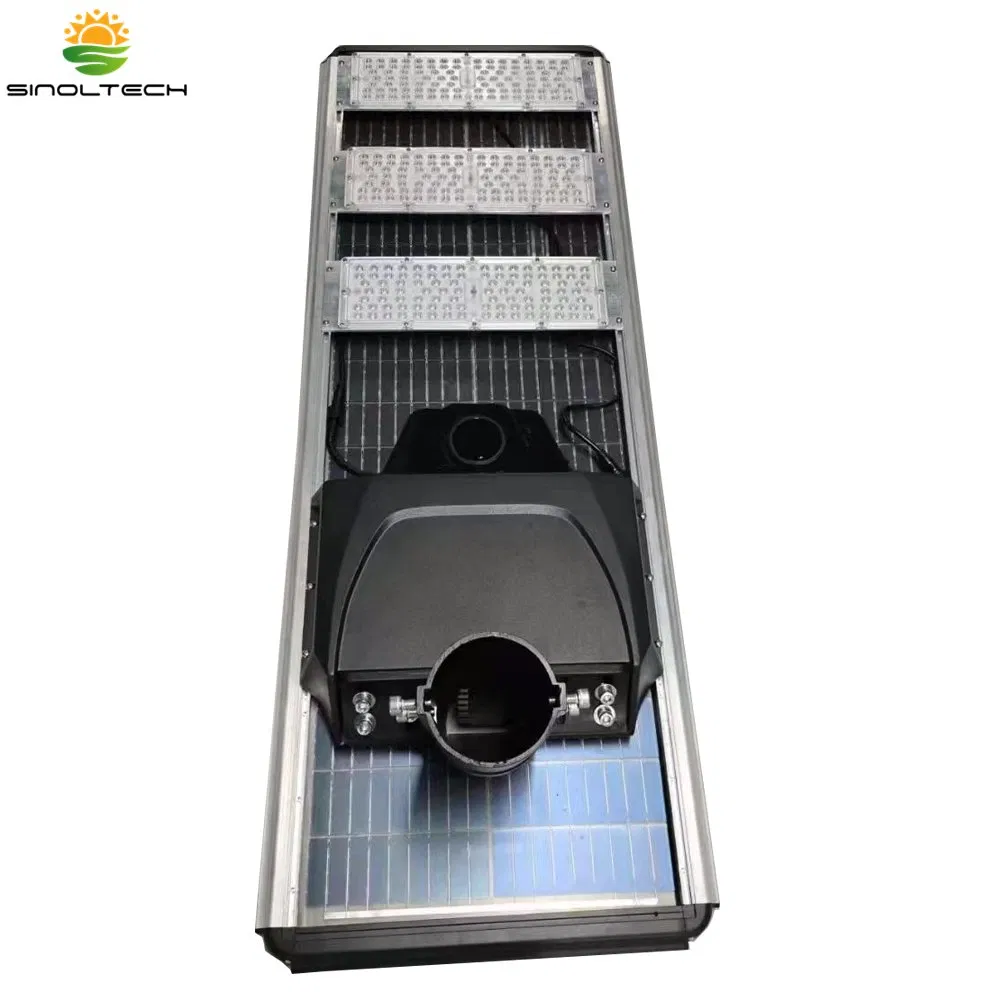

40W All in One Integrated Solar LED Street Lamp Dg-40s

1 / 5

40W All in One Integrated Solar LED Street Lamp Dg-40s

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

DG-40S

Light Source

LED Lamp

Body Material

Aluminum Alloy

Light Type

Solar

Color Temp

Pure White

Power Range

21W-30W

Illumination Time

Cell Type

Lithium Battery

IP Rating

IP67

Voltage

12/24V

Product Series

Double Glass

Working Temp

-25c ~+65c

📝 Product Overview

40W All in One Integrated Solar LED Street Lamp DG-40S

The double-glass modules have good light transmittance, allowing more light to reach the solar cells and improving the photoelectric conversion efficiency. Under the same installation area, they can generate more electricity, thus reducing the levelized cost of electricity.

On the principle of eco-friendly and intelligent application, this integrated solar LED street light was born to solve the problem of high-expense electricity or lacking electricity in some areas. The super-thin body design of 26mm thickness, detachable battery storeroom, and RGB indicator make it more artistic and easier to operate.

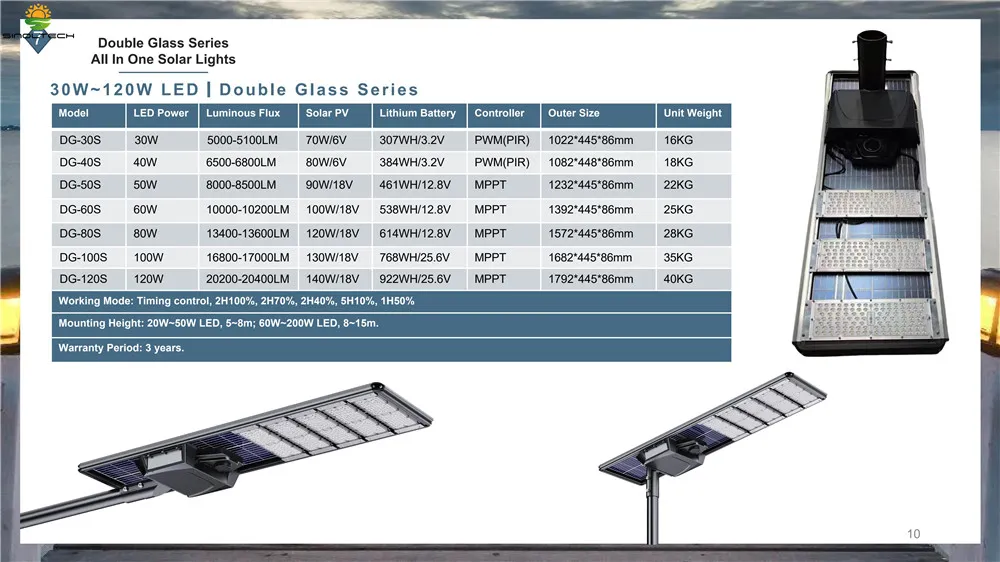

📊 Technical Parameters

Model	LED Power	Luminous Flux	Solar PV	Lithium Battery	Controller	Outer Size	Weight
DG-30S	30W	5000-5100LM	70W/6V	307WH/3.2V	PWM(PIR)	102244586mm	16KG
DG-40S	40W	6500-6800LM	80W/6V	384WH/3.2V	PWM(PIR)	108244886mm	18KG
DG-50S	50W	8000-8500LM	90W/18V	461WH/12.8V	MPPT	123244586mm	22KG
DG-60S	60W	10000-10200LM	100W/18V	538WH/12.8V	MPPT	139244586mm	25KG
DG-80S	80W	13400-13600LM	120W/18V	614WH/12.8V	MPPT	157244586mm	28KG
DG-100S	100W	16800-17000LM	130W/18V	768WH/25.6V	MPPT	168244586mm	35KG
DG-120S	120W	20200-20400LM	140W/18V	922WH/25.6V	MPPT	179244586mm	40KG

Working Mode: Timing control, 2H100%, 2H70%, 2H40%, 5H10%, 1H50%
Mounting Height: 20W~50W LED: 5~8m; 60W~200W LED: 8~15m.

⭐ Product Advantages

Supplied by solar power energy, eco-friendly and no electricity charges.
DC12V power supply system, safer than commercial electricity.
Easier installation with no buried cables required.
Lower maintenance cost with smartphone APP monitoring.
Independent light units ensure system reliability.
Self-designed exclusive private mold with high-quality Bridgelux components.
Detachable battery storeroom for easy replacement.

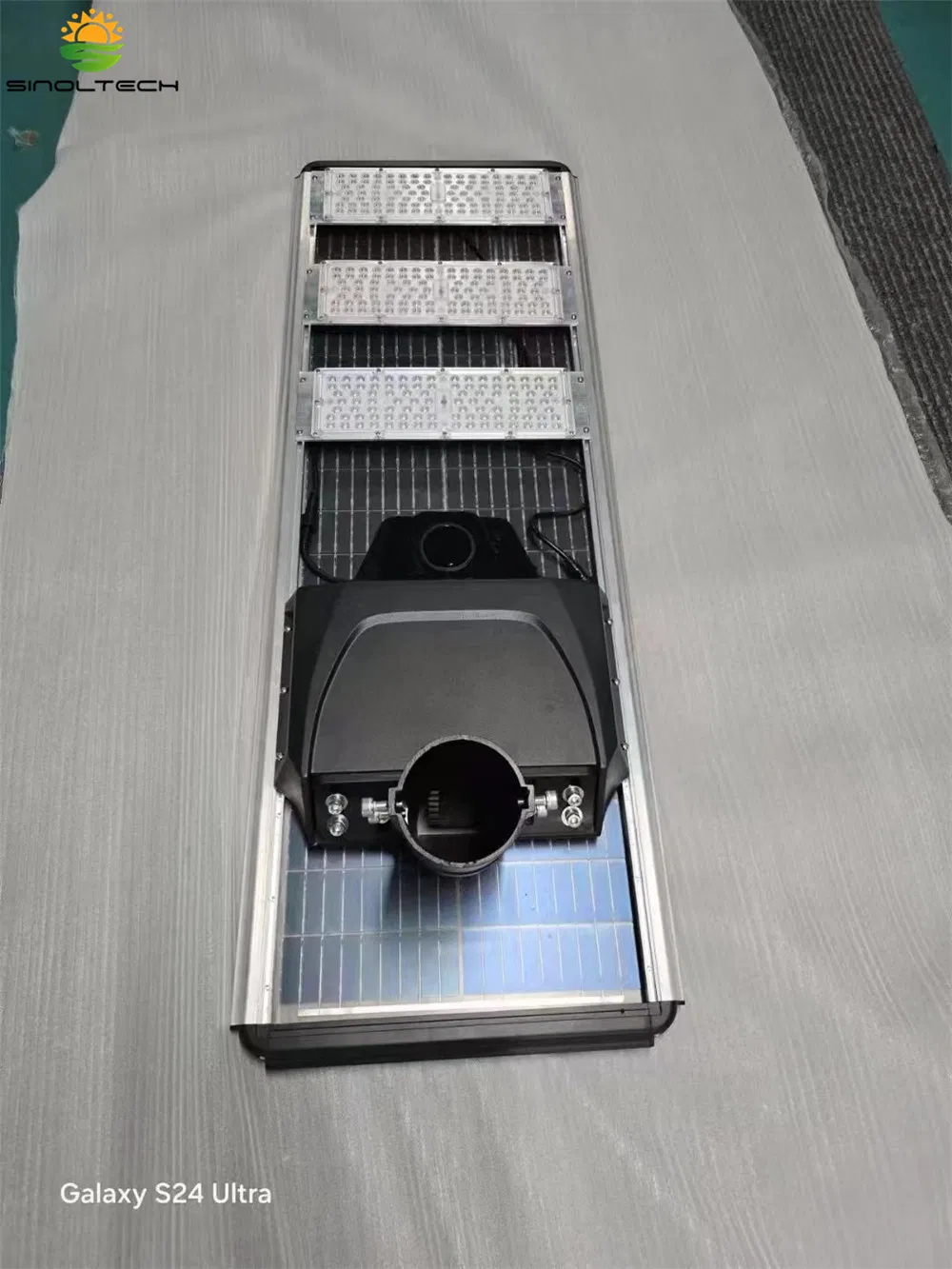

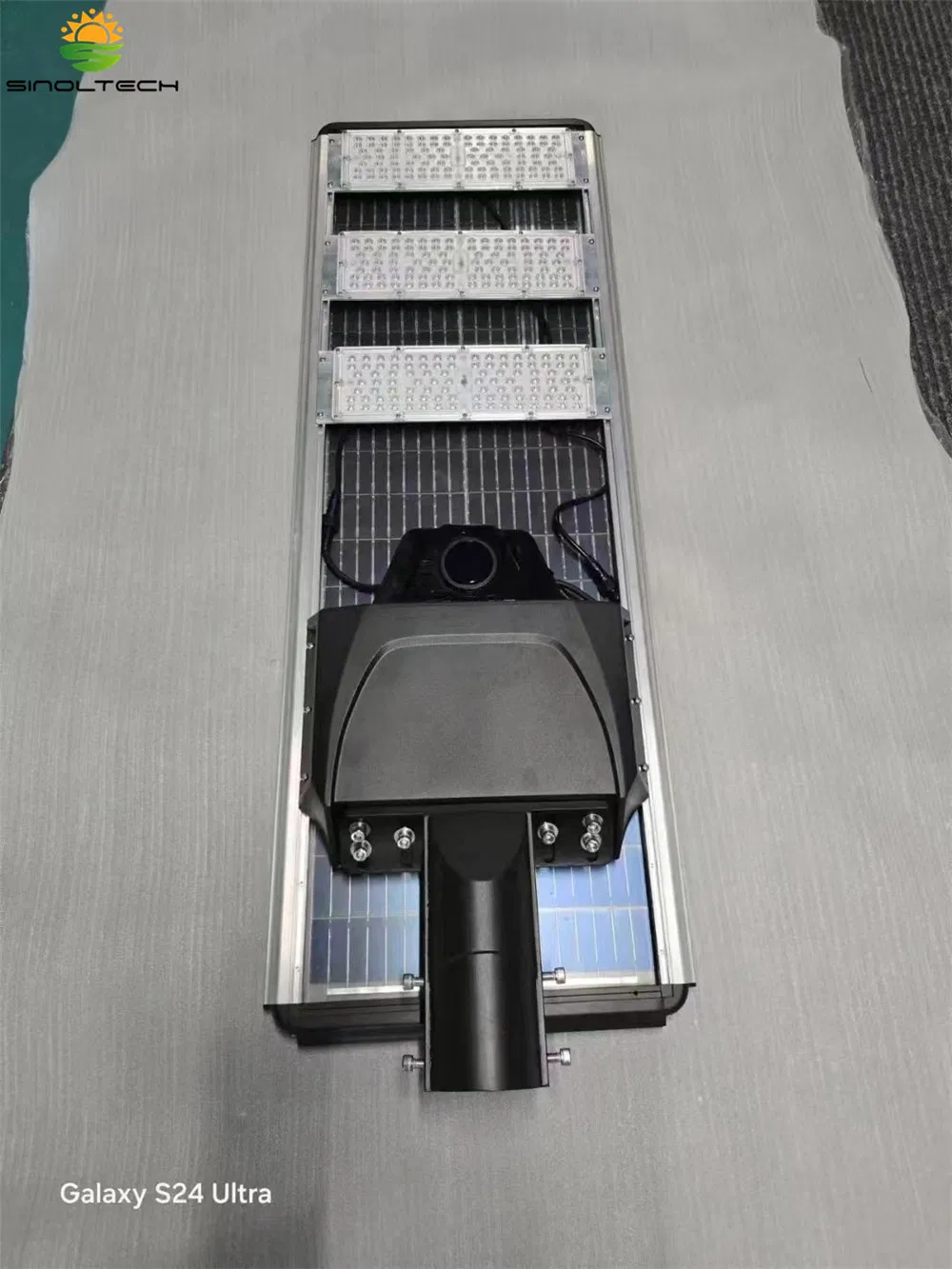

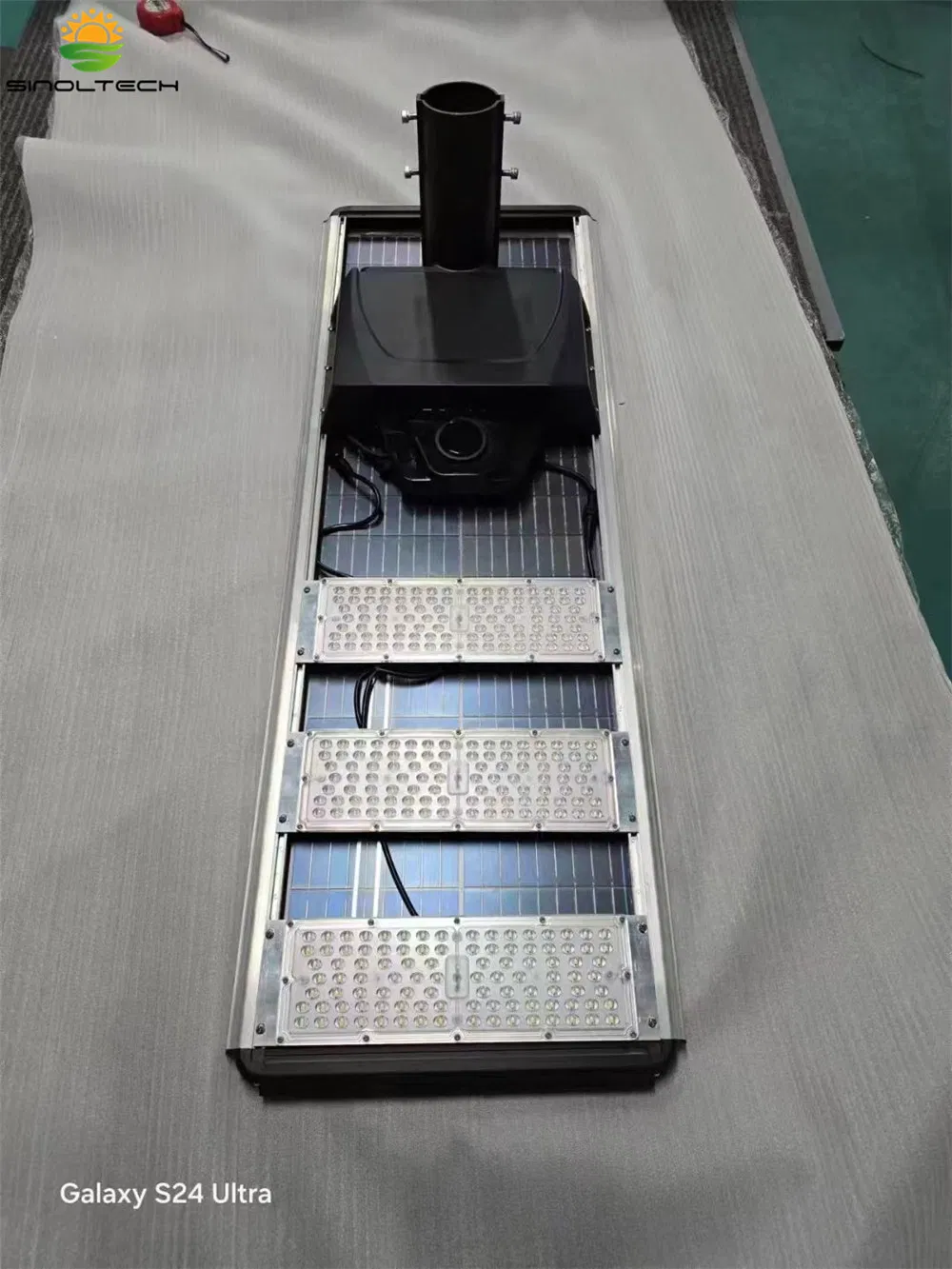

📷 Detailed Photos

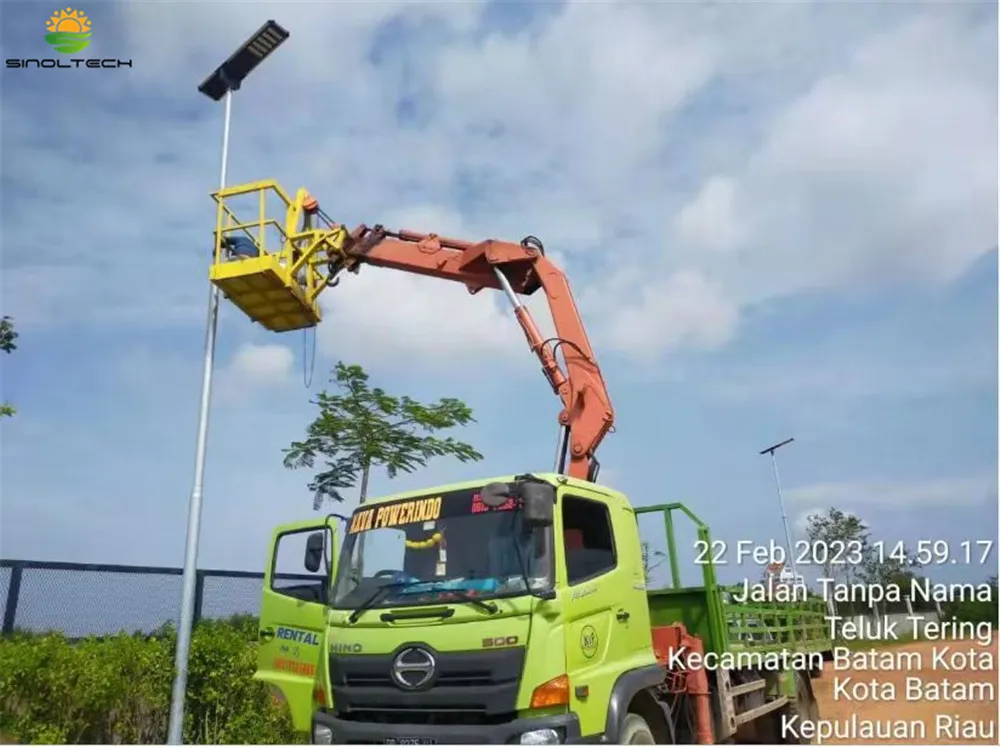

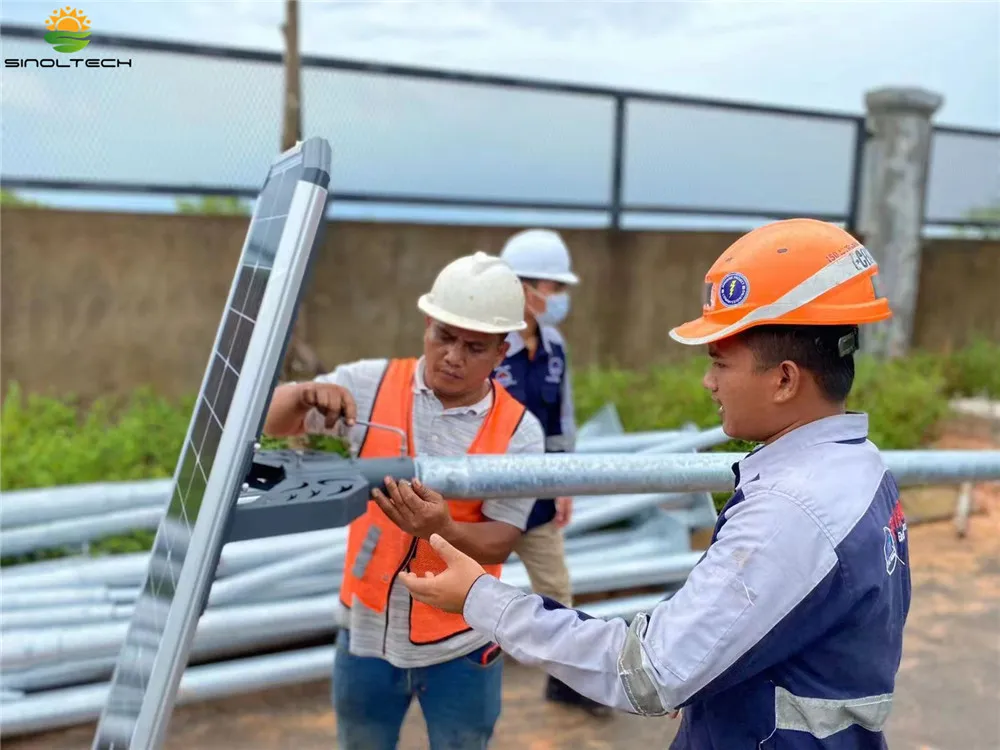

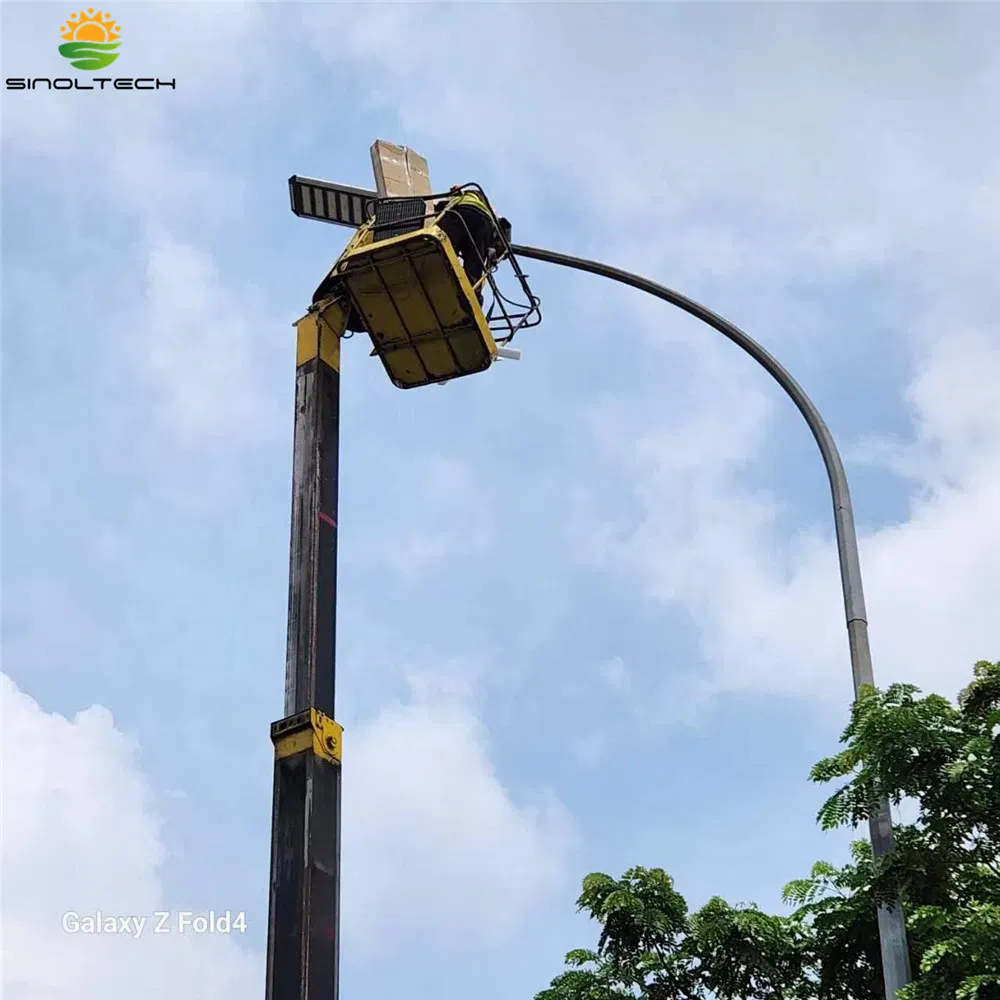

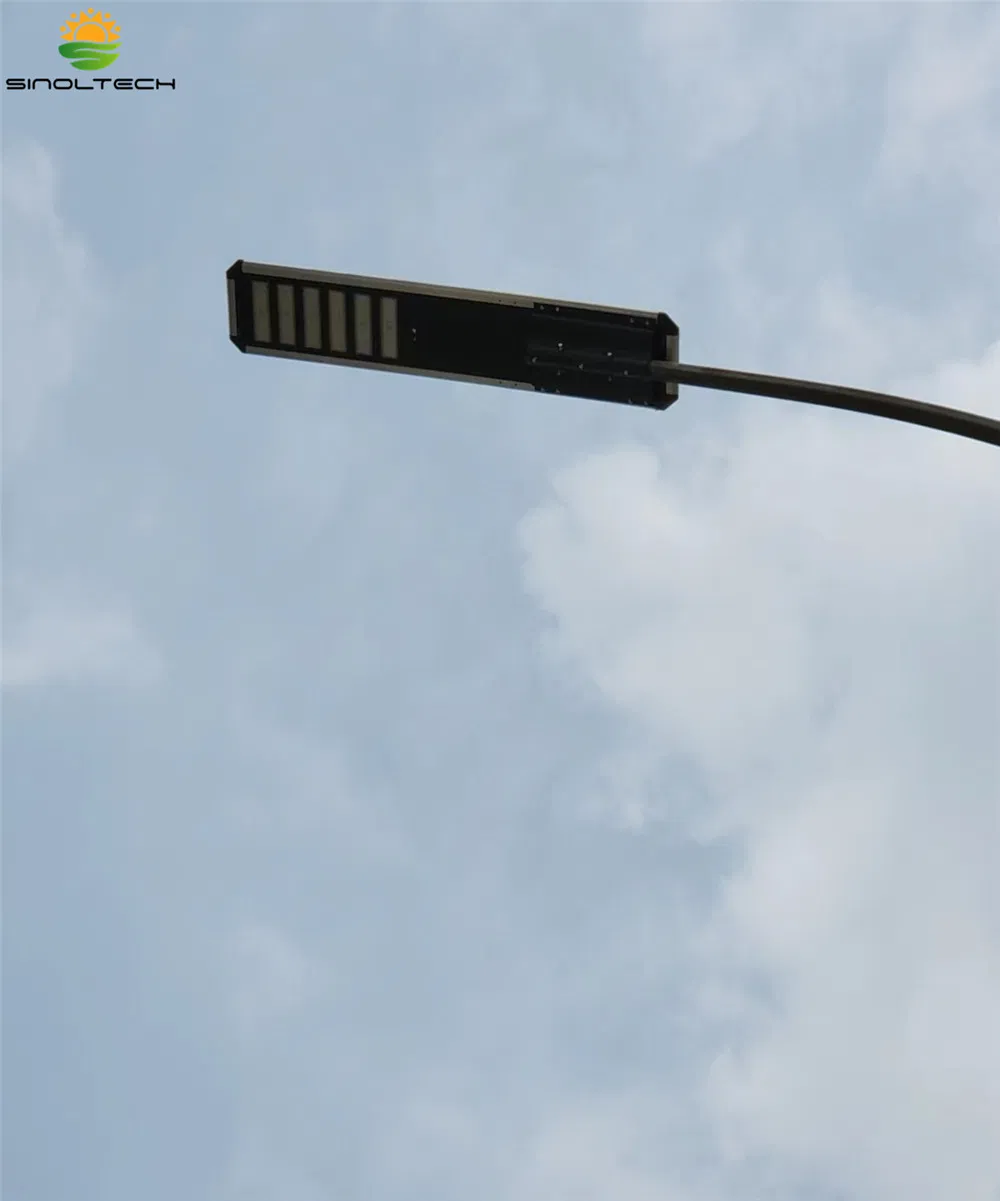

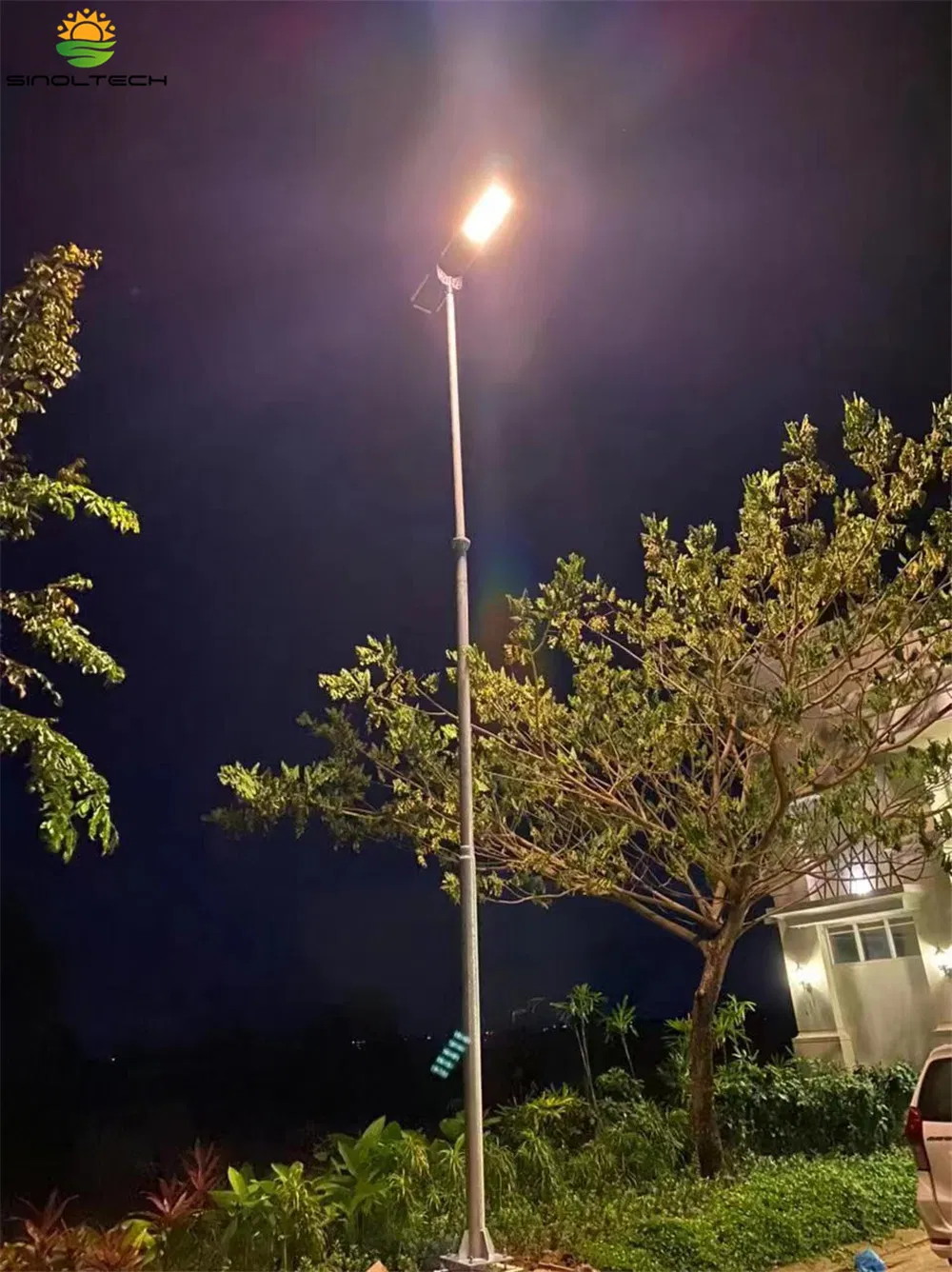

🏗️ Applications

🏭 Production Facility

Frequently Asked Questions

What are the benefits of double-glass solar modules?

Double-glass modules offer superior light transmittance and improved photoelectric conversion efficiency, allowing the unit to generate more electricity within the same installation area.

How does the intelligent control system work?

The light features timing and light control. It automatically turns on/off based on the environment and follows a pre-set brightness schedule (e.g., 100% power for the first 2 hours, then decreasing) to save energy.

Is the battery easy to maintain?

Yes, the light is designed with a detachable battery storeroom. This allows for quick replacement of the battery or controller without needing to disassemble the entire fixture.

What is the waterproof rating and durability?

The product has an IP67 rating, making it highly resistant to water and dust. It is constructed from high-quality aluminum alloy and can operate in temperatures ranging from -25°C to +65°C.

How long does it take to charge and how long will it stay lit?

It typically requires 6-8 hours of sunlight for a full charge, providing over 36 hours of discharging time depending on the working mode.

Can I monitor the light using my phone?

Yes, the system includes a patent Bluetooth APP that allows you to turn the light on/off, read performance data, and perform troubleshooting directly from your smartphone.
