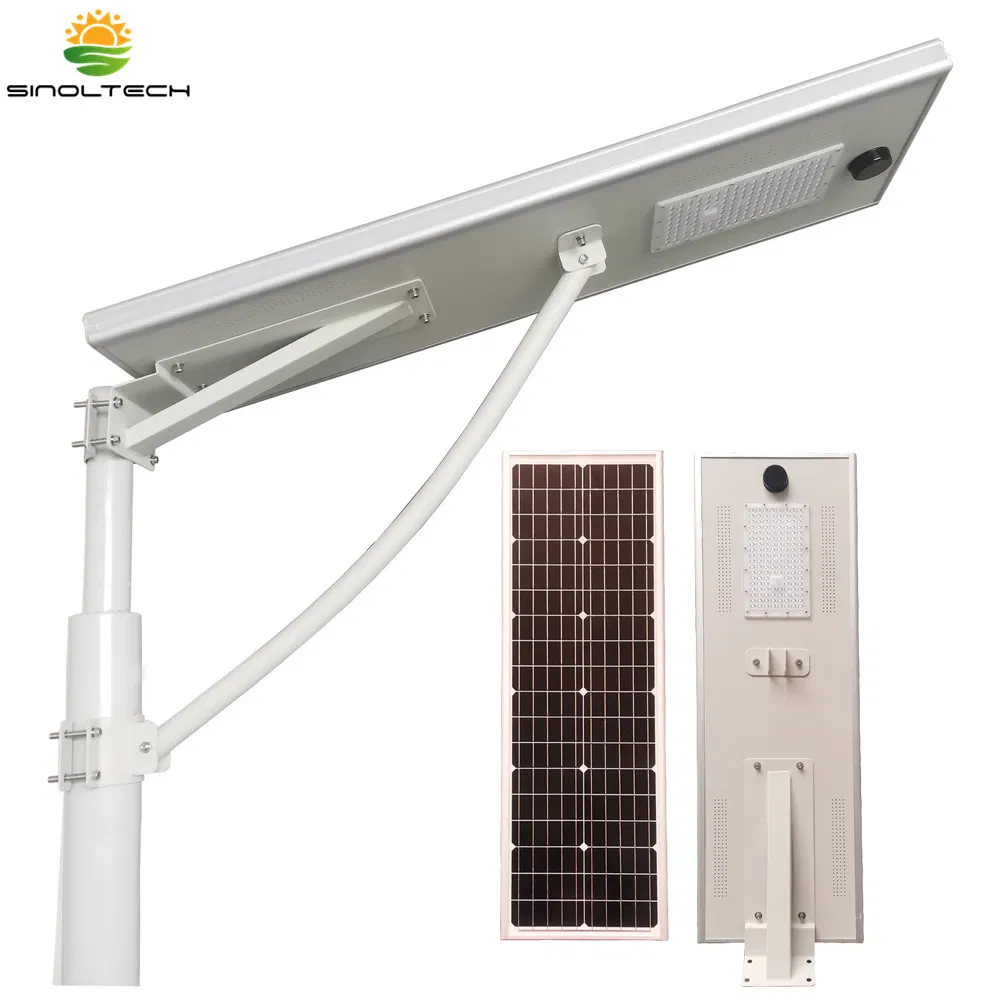

30W LED Integrated All in One Solar Powered Street Lamp (SNSTY-230)

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
SNSTY-230
Light Source
LED Lamp
Material
Galvanized Iron
Light Type
Solar
Color Temp
Pure White
Power
21W-30W
Illumination
8h
Cell Type
Lithium Battery
Charging Time
7 hours
IP Rating
IP65
Certification
CE, RoHS
LED Power
30W
Solar PV Power
60W
Lumen
4500-4800lm
Unit Weight
15kg
Product Description

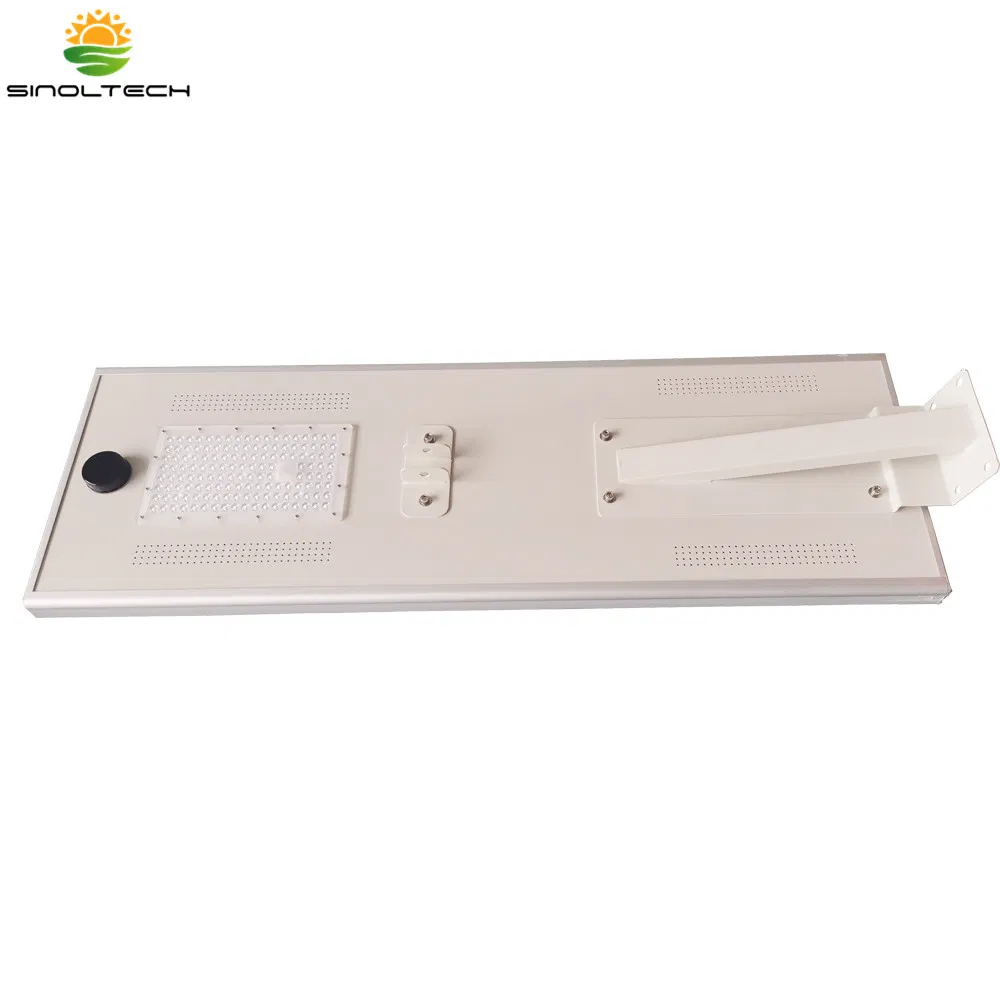

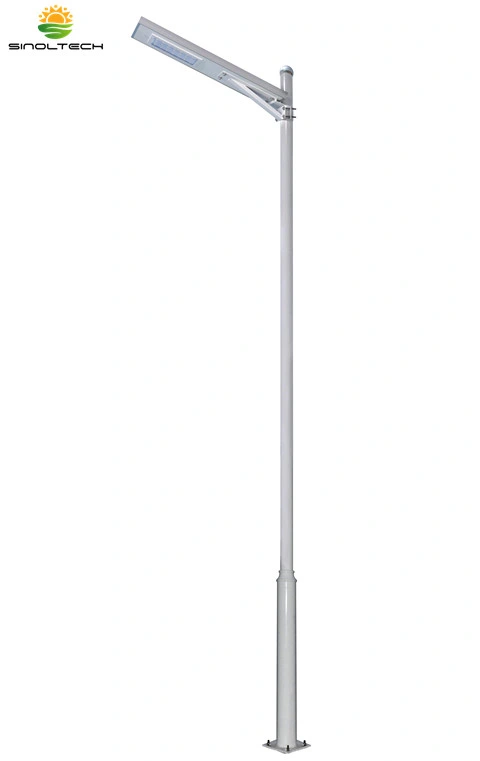

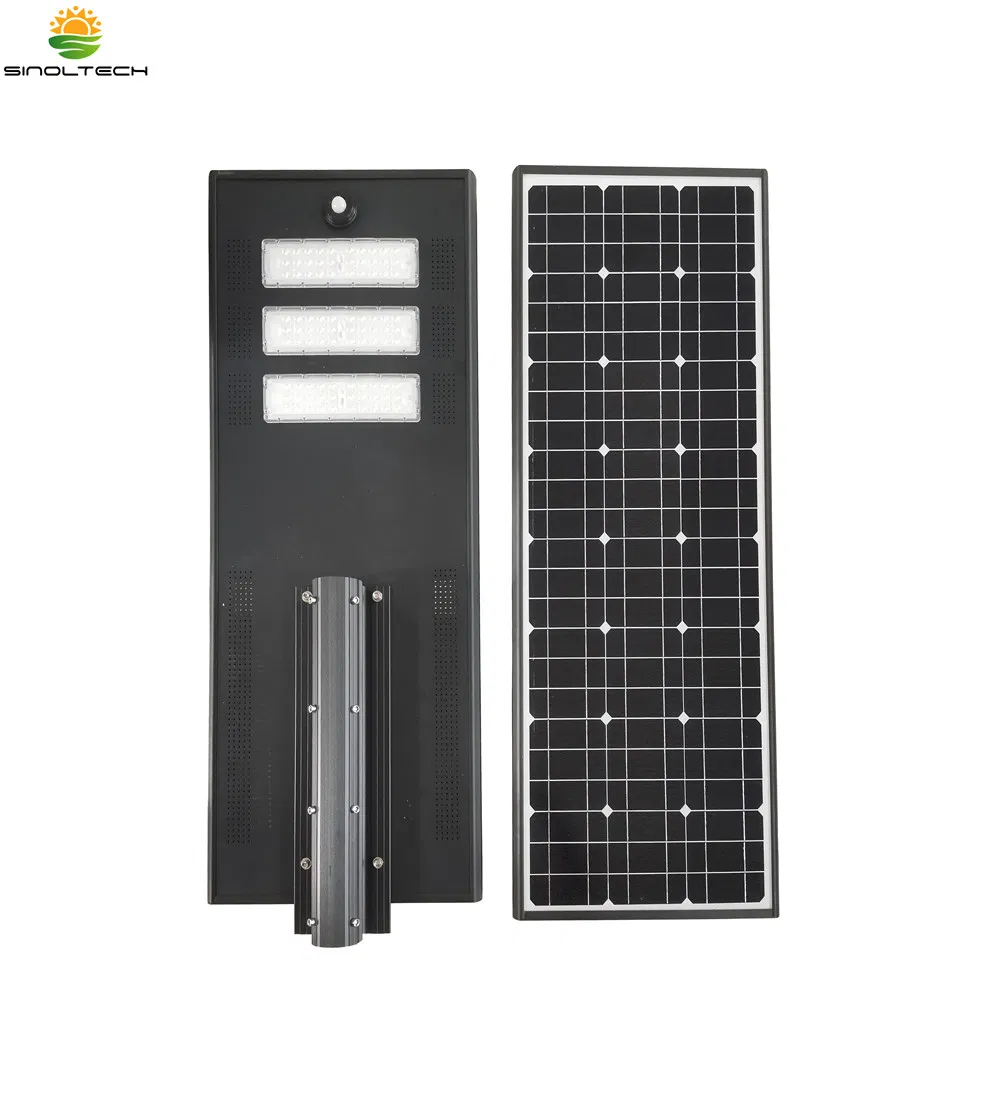

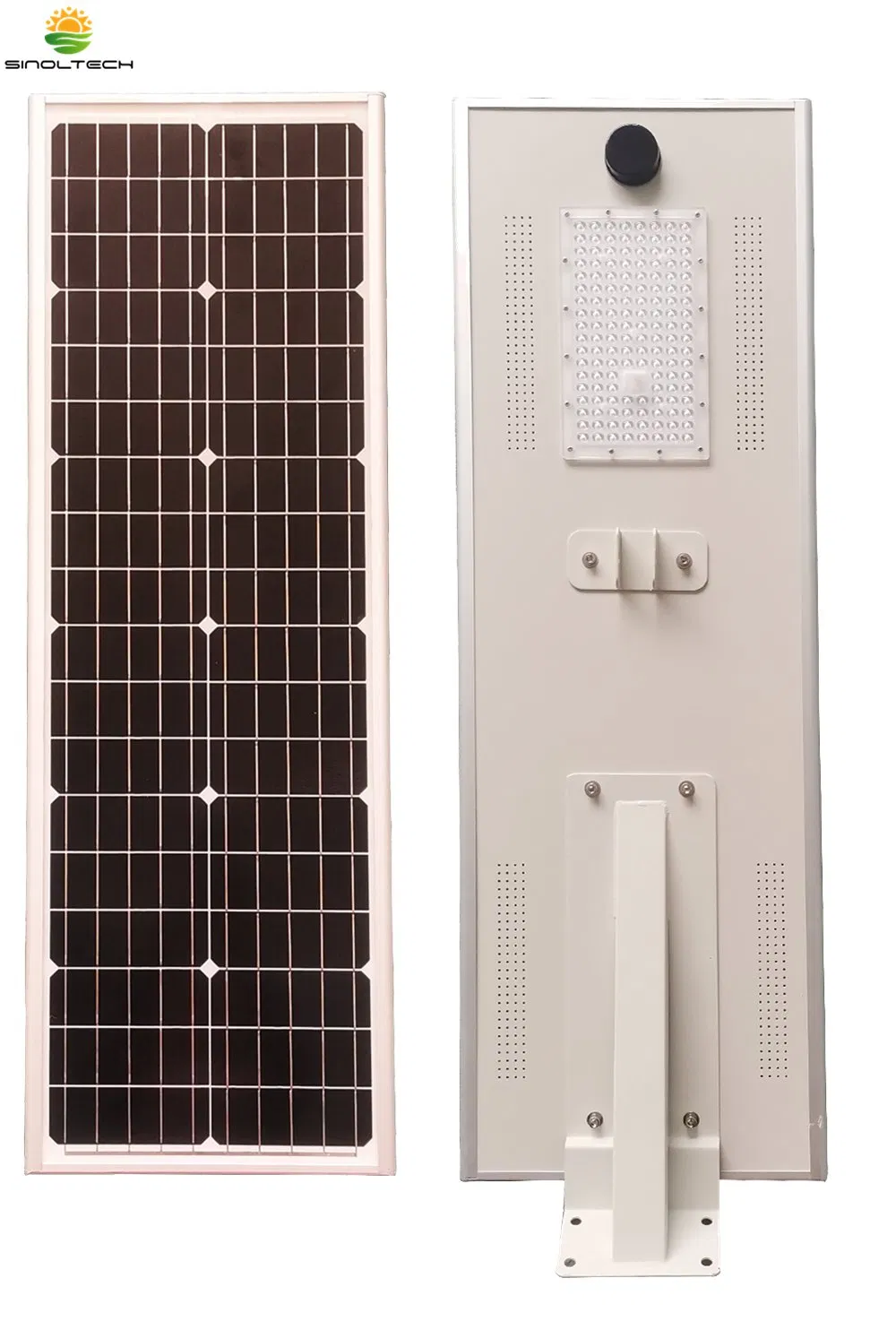

30W LED Integrated All in One Solar Powered Street Lamp (SNSTY-230)

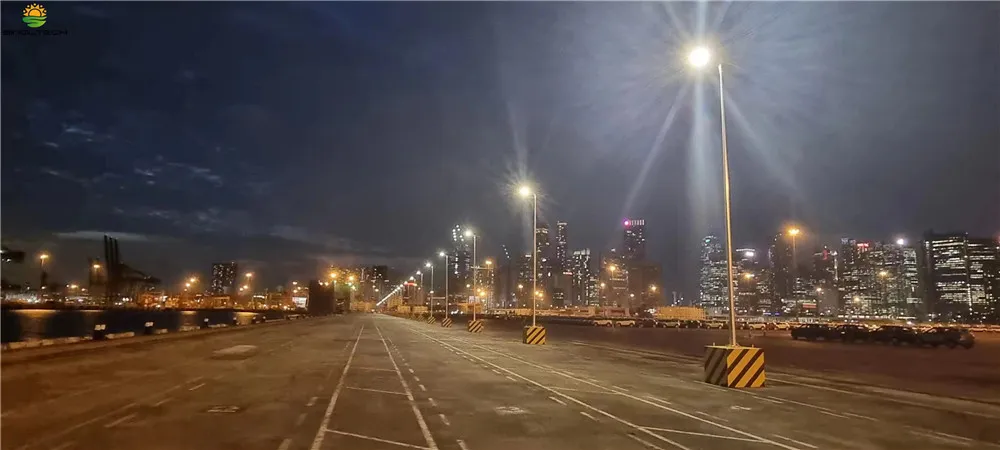

This intelligent outdoor lighting system integrates high-efficiency solar panels, LED lamps, motion sensors, controllers, and lithium batteries into a single compact unit. It is ideal for public squares, gardens, parks, roadways, and perimeter security.

How it works:

During the day, the solar panel collects sun energy and stores it in the advanced lithium battery. At night, the LED turns on automatically. When motion is detected, brightness increases; it returns to energy-saving mode after 20 seconds of no movement.

Core Features
  • Integrated Design: Combines light source, lithium battery, solar modules, and automatic controller in one.
  • Easy Maintenance: No cables required, modular design for quick installation.
  • Green Energy: Utilizes inexhaustible solar power for environmental protection.
  • High Capacity Battery: Long-life lithium-ion batteries provide reliable performance without harmful substances.

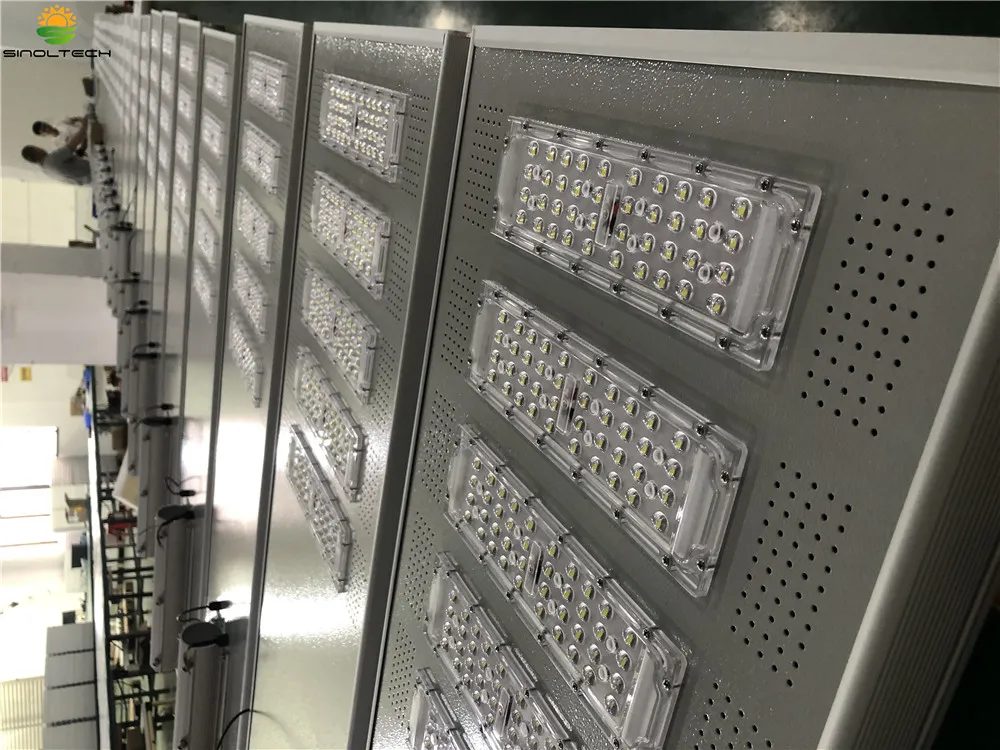

  • Advanced LED Optics: Secondary optical design ensures wider exposure and uniform light color.
  • Durable Shell: Aluminum material offers corrosion and abrasion resistance for harsh environments.
Technical Specifications
Model LED Power Luminous Flux Solar PV Lithium Battery Controller Size (mm) Weight
SNSTY-22020W3000-3200LM50W/6V154WH/3.2VPWM1120*300*13513KG
SNSTY-23030W4500-4800LM60W/6V230WH/3.2VPWM1040*360*13515KG
SNSTY-24040W6000-6400LM70W/6V307WH/3.2VPWM1120*360*13517KG
SNSTY-25050W7500-8000LM80W/18V384WH/3.2VMPPT1080*430*27019KG
SNSTY-26060W9000-9600LM90W/18V460WH/3.2VMPPT1000*530*27022KG
SNSTY-2100100W15000-16000LM140W/36V768WH/25.6VMPPT1350*610*32032KG
SNSTY-2200200W30000-32000LM300W/36V1536WH/25.6VMPPT1840*850*32050KG
Selection Guide

Height 7-10M: Choose models SNSTY-230 to 260 (30W-60W) for high brightness in sports docks or 15-25m roads.

Height 5-7M: Choose models SNSTY-215 to 225 (15W-25W) for residential areas and parks.

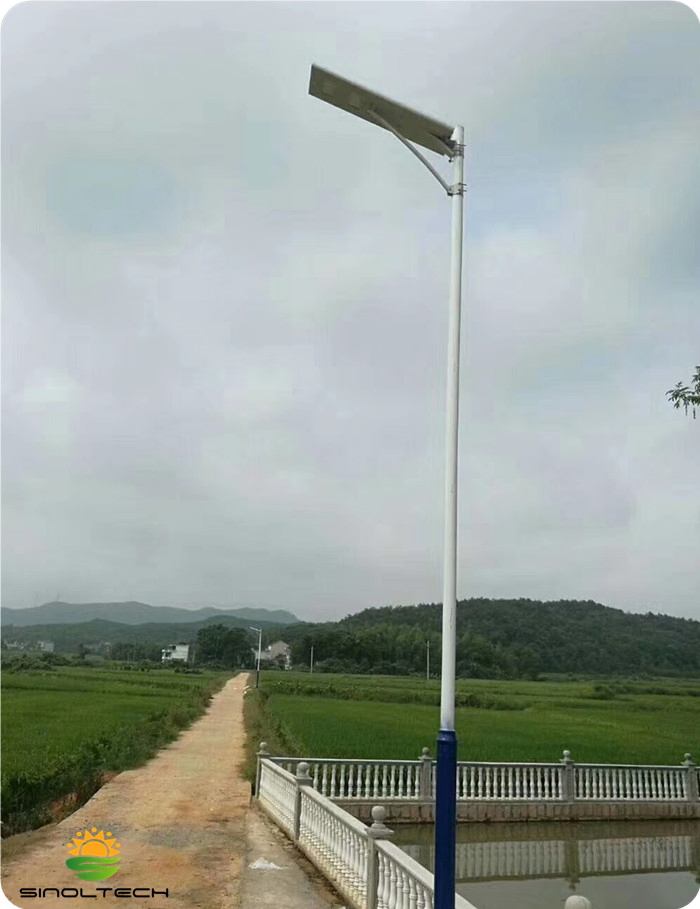

Height 3-5M: Choose models SNSTY-208 to 212 (8W-12W) for rural roads and gardens.

Mobile APP Connectivity

The system features Bluetooth APP connectivity for mutual data exchange:

  • Real-time display of battery capacity, voltage, and charging status.
  • Remote Turn ON/OFF functionality.
  • Seasonal brightness adjustments (Spring/Summer/Autumn/Winter).
  • Cloudy/Rainy day settings to optimize battery life.
  • Optional Infrared sensor and Camera integration.
Frequently Asked Questions
What are the advantages of the all-in-one integrated design?
The integrated design combines all components (panel, battery, LED, sensor) into one unit, making it compact, lightweight, and extremely easy to install without complex wiring.
How long does the battery last and what is the warranty?
The lithium iron phosphate power battery has a service life of up to 5 years. The overall product comes with a 3-year warranty covering components like the LED, controller, and battery.
Does the light work during rainy or cloudy days?
Yes, the intelligent controller and high-capacity lithium battery are designed to manage power efficiently, allowing the light to operate through multiple rainy or cloudy days by adjusting brightness.
What is the role of the motion sensor?
The motion sensor helps conserve power. It keeps the light at a lower brightness when no one is around and boosts it to 100% when motion is detected, ensuring long run times.
How can I control the light settings?
You can use a dedicated Mobile Bluetooth APP to connect with the build-in controller to adjust brightness, set lighting durations, and monitor the battery status in real-time.
Is the solar panel durable?
Yes, it uses high-efficiency solar cells with a 5-year product warranty and a 25-year 80% power output guarantee.
