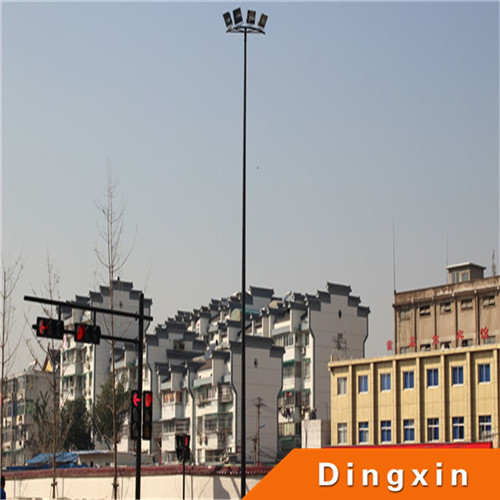

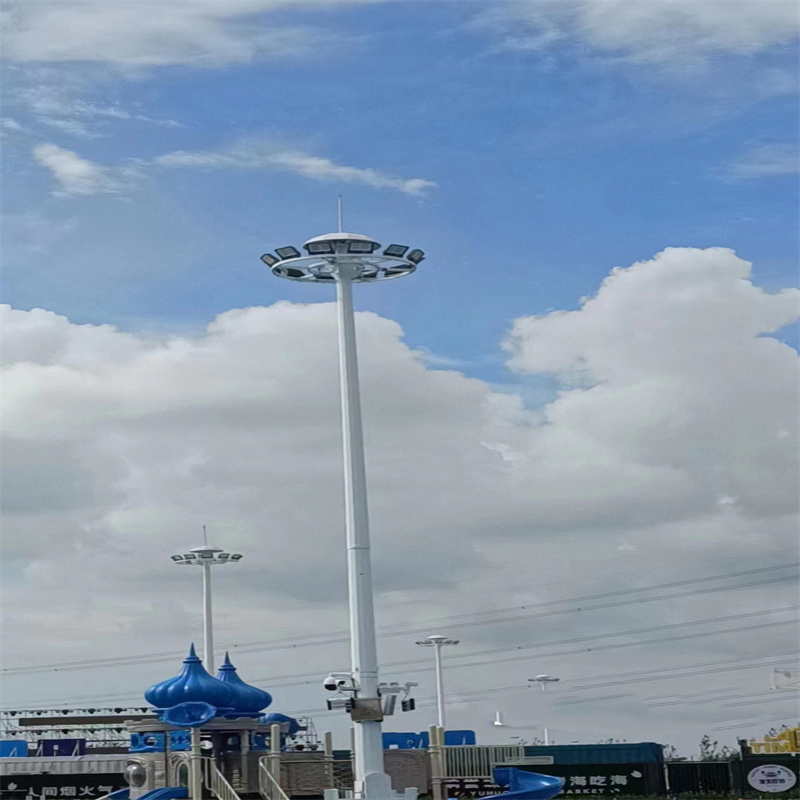

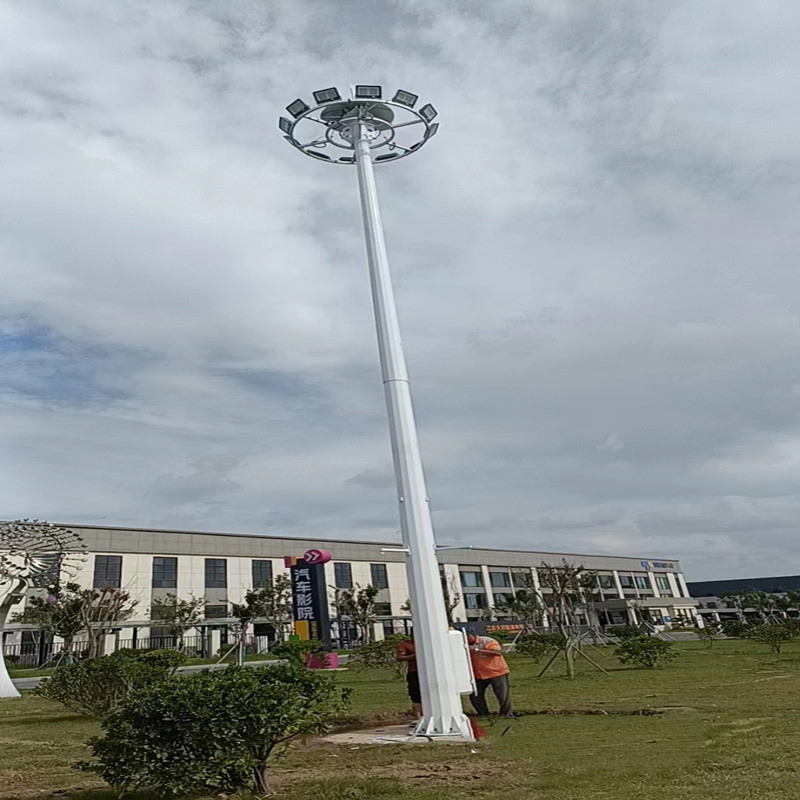

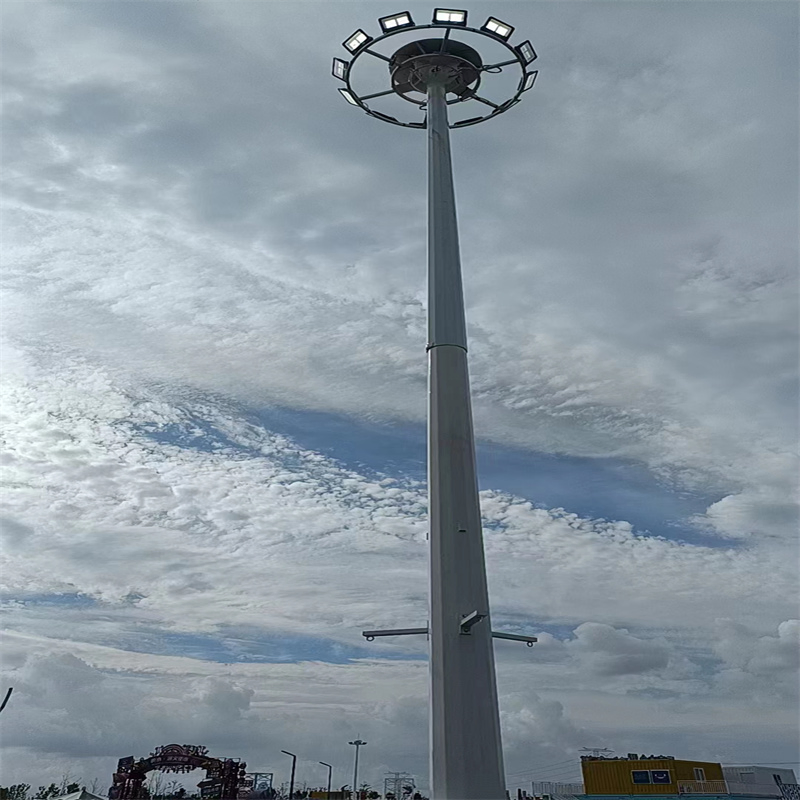

20m Stadium High Mast Light Pole Tower with Lifting System

Customization:	Available
Color Temperature:	Warm White
Lamp Body Material:	Aluminum

Technical Specifications

Model NO.

DX-0013

Pole Height

15-35m

Power Range

400W to 2000W

Projection Distance

80m

Usage

High Way/Airport/Stadium

IP Rating

IP66

Certification

CCC, CQC, FCC, SASO

Input Voltage

220V

Lamp Source

LED / Sodium / Metal Halide

Shape

Round / Conical / Polygonal

Metal Protection

Hot Dipped Galvanized

Production Capacity

50,000 PCS/Month

Product Gallery & Features

✓

Height Options: 15m, 18m, 20m, 25m, 30m, 35m up to 50m customizable poles.

✓

Manufacturing Excellence: Over 14 years of professional experience in galvanized street light poles.

✓

High Capacity: Monthly production of 20,000 to 50,000 poles with integrated vertical production lines.

✓

Advanced Treatment: Hot dip galvanizing and powder painting for superior corrosion resistance (≥20 years).

Detailed Parameters

Material	High-quality steel Q235/SS400 or Q345B/A572
Welding	Automatic submerged arc welding, GB11345 Grade II
Wind Resistance	Up to 36.9m/s (80 Km/Hour)

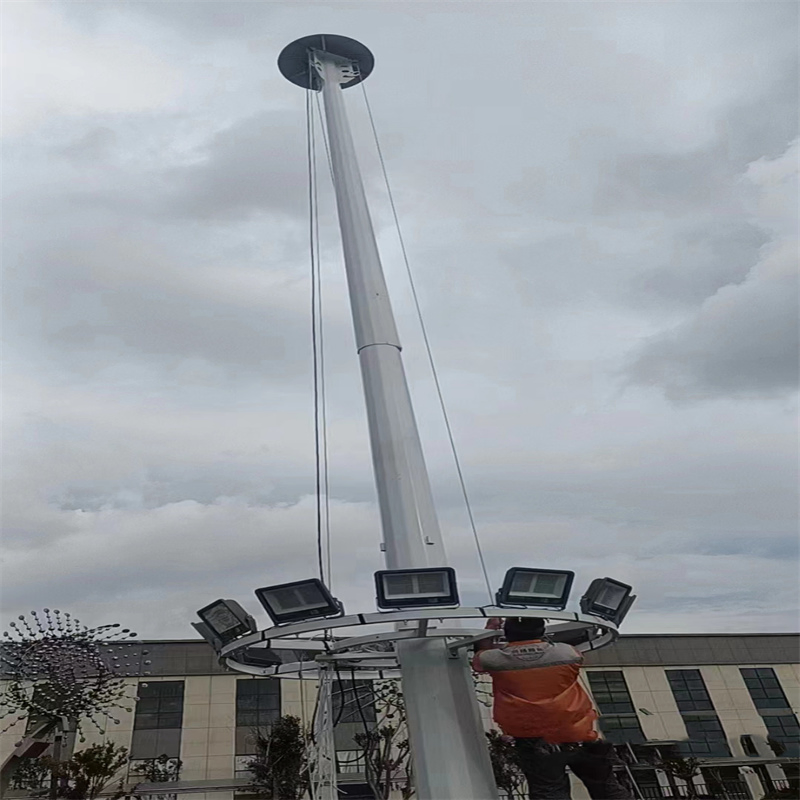

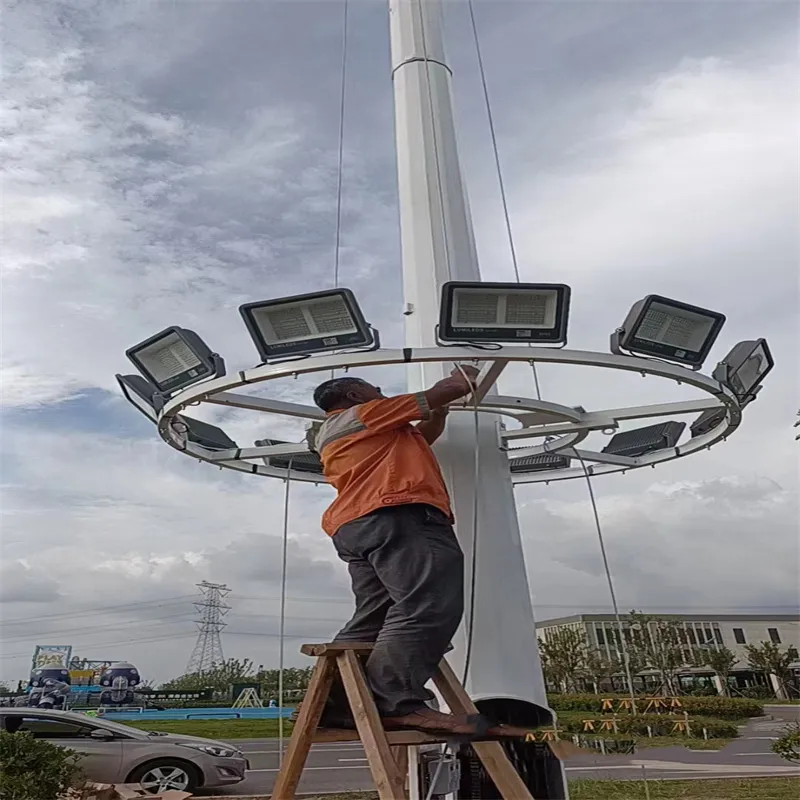

Lifting System	Fixed inner lifter, 3~5 m/min speed, anti-break & manual override

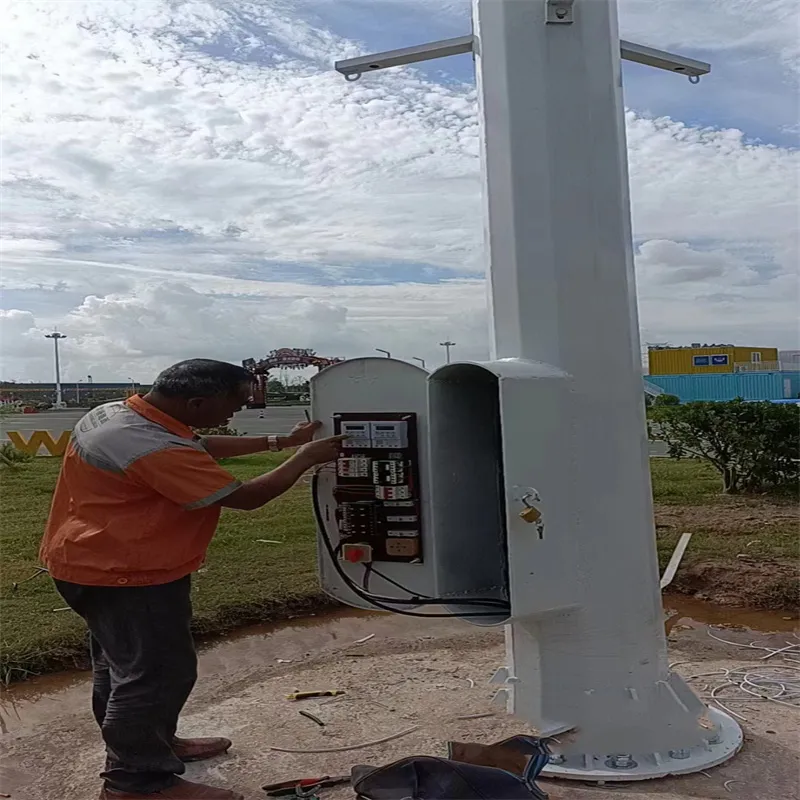

Control Device	Electric box with wire-remote (5m), time and light control supported
Zinc Coating	Thickness ≥ 86um; Adhesive force follows GB2694-88
Application	Airport, seaport, plaza, stadium, highway station
Joint Mode	Insert mode, inner flange mode, or face to face joint

Frequently Asked Questions

What materials are used for the high mast poles?

The poles are constructed from high-quality steel such as Q235, SS400, or Q345B, ensuring high yield strength and durability for various environments.

How is the corrosion resistance of the poles?

All poles undergo hot-dip galvanization (ASTM A 123) and optional powder coating, providing an anti-corrosion lifetime of 20 years or more.

What is the safety mechanism for the lifting system?

The lifting system is equipped with an anti-ferromagnetism brake and break-proof device. It also supports manual operation during power outages.

Can these poles withstand high wind speeds?

Yes, our poles are designed to withstand wind speeds of up to 36.9m/s (approximately 80 Km/Hour) and can be designed against Grade 8 earthquakes.

What is the typical delivery time for an order?

For a standard order of 100 sets of galvanized steel light poles, the typical delivery time is approximately 20 working days.

What certifications do your products hold?

Our products meet several international standards including CCC, CQC, FCC, SASO, CE, SGS, and ISO certifications.
