Usage
Highway / Airport / Stadium
Certification
CCC, CQC, FCC, SASO
Lamp Source
LED / Sodium / Metal Halide
Pole Shape
Round / Conical / Polygonal
Protection
Hot Dipped Galvanized
Capacity
50,000 PCS / Month
● High mast lighting pole options: 15m, 18m, 20m, 25m, 30m, 35m.
● Manufacturer expertise with production experience since 2000.
● High production capacity of 20,000 poles per month for various projects.
● Integrated vertical production lines for superior quality and cost control.
● Durable packaging: Bulb wrappings for FCL and felt wrapping for LCL goods.
| Parameter |
Specification Details |
| Height Range | From 18m to 50m |
| Suitable Applications | Airport, Seaport, Plaza, Stadium, Square, Highway, etc. |
| Material | Q345B/A572 (Yield Strength ≥ 345n/mm²), Q235B/A36 |
| Lighting Source | 400W - 5000W High pressure sodium or Flood light |
| Lifting System | Internal lifter; speed 3~5 m/min; equipped with safety brakes |
| Surface Treatment | Hot dip galvanized (ASTM A 123), optional powder coating |
| Wind Resistance | Up to 36.9 m/s (80 Km/Hour) |
| Anti-corrosion Life | ≥ 20 Years |
| Design Standard | Against earthquake of 8 grade |

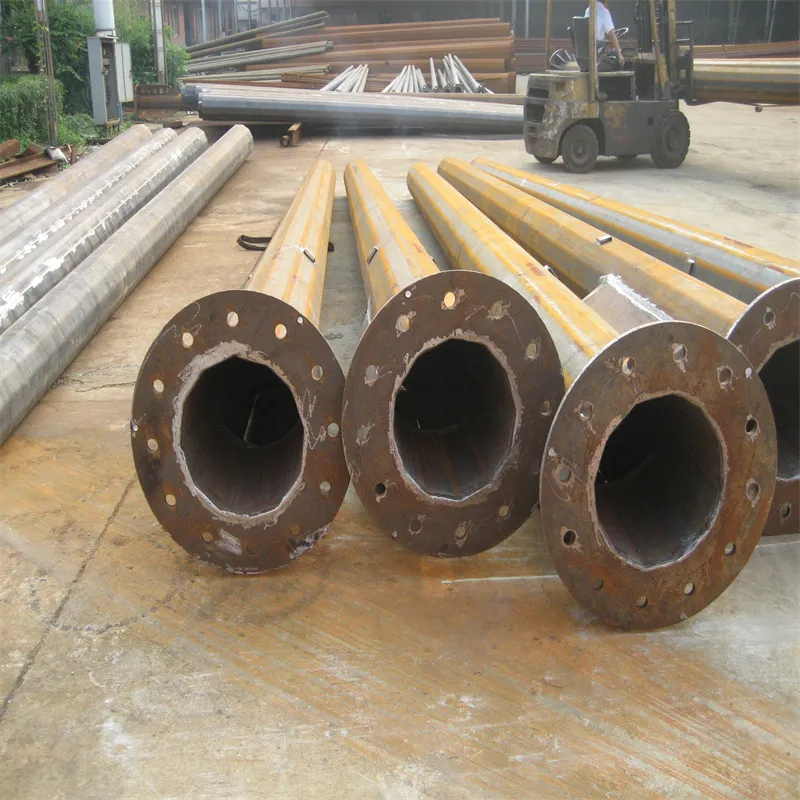

Production Flow: Raw material test → Cutting → Molding/Bending → Longitudinal Welding → Dimension Verification → Flange Welding → Hole Drilling → Calibration → Galvanization → Recalibration → Packaging.
Delivery Time: Generally 20 working days for standard 100 sets order.
Frequently Asked Questions
1. What is the standard height range for these high mast poles?
We offer poles ranging from 15 meters to 50 meters, suitable for large-scale area lighting like airports and stadiums.
2. How long do these poles last in outdoor environments?
Thanks to the hot-dip galvanization treatment (following ASTM A 123), the poles have an anti-corrosion lifetime of 20 years or more.
3. Is the lifting system safe to operate?
Yes, our lifting system is fixed inside the pole with a speed of 3~5 meters per minute and is equipped with an anti-ferromagnetism brake and break-proof device.
4. What wind speeds can these high mast towers withstand?
The design is calculated to withstand wind speeds up to 36.9m/s (approximately 80 Km/Hour) and is earthquake-resistant up to grade 8.
5. Can the poles be customized with specific colors?
Yes, after the hot-dip galvanizing process, we can apply a polyester powder coating in any color specified by the client.
6. What materials are used in construction?
We use high-quality steel such as Q235B and Q345B, ensuring a minimum yield strength of up to 345n/mm² for maximum structural integrity.
