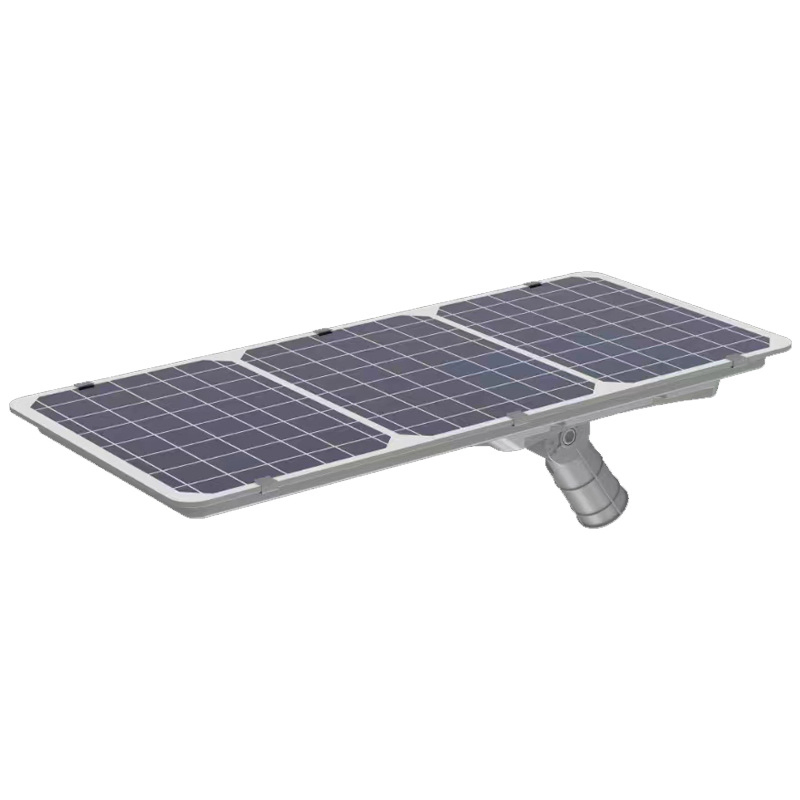

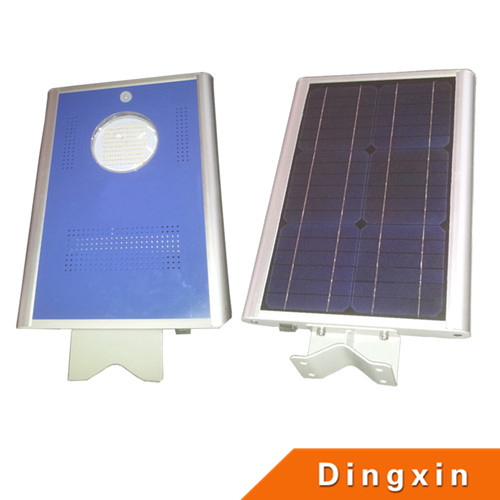

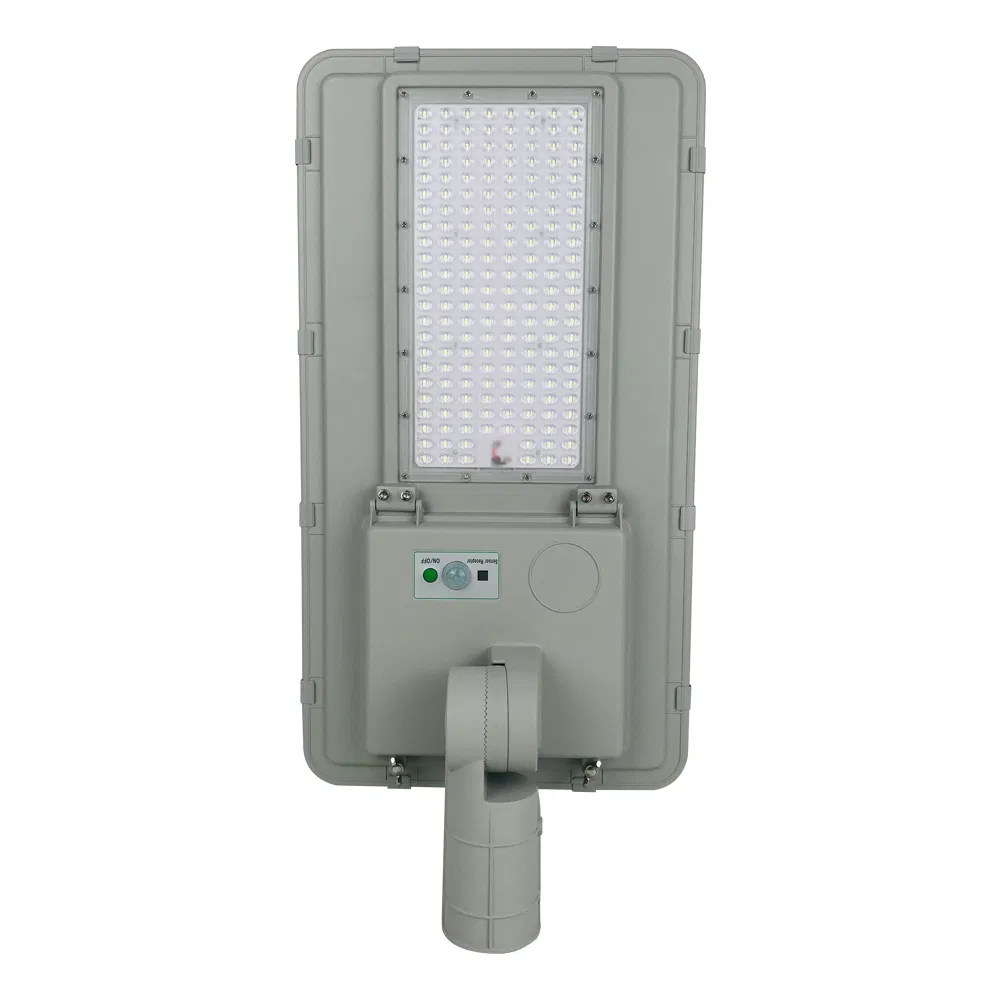

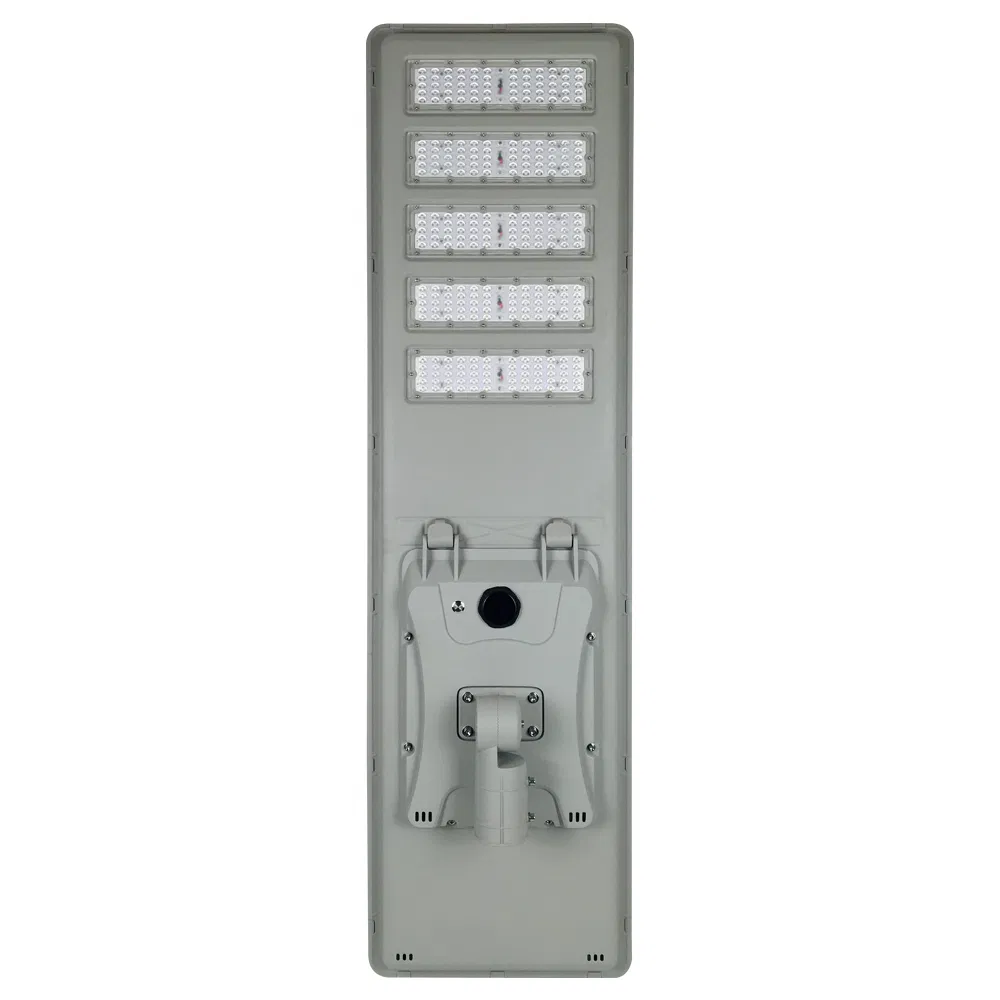

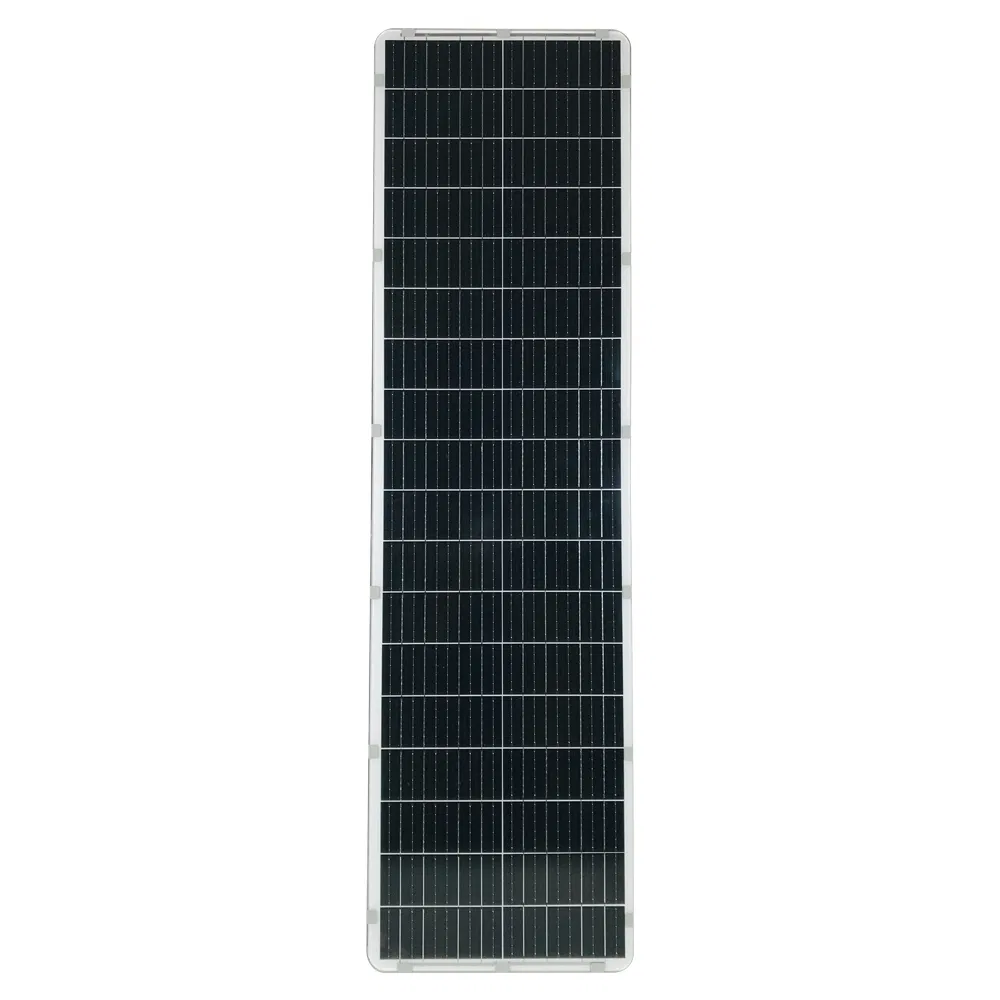

12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
1 / 5
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp
12W LED Integrated All in One Sensor Solar Street Lamp

12W LED Integrated All in One Sensor Solar Street Lamp

Customization: Available
Light Source: LED Lamp
Lamp Body Material: Aluminum
Send Inquiry

Product Description

📋Basic Information
Model NO.
DX-0013
Light Type
Solar
Color Temperature
Warm White
Power
≥30W
Technics
Painted Matte
Illumination Time
8h
Cell Type
Li
Charging Time (H)
8
Usage
Garden, Street
IP Rating
IP67
Certification
CE, RoHS
Voltage
12/24V
With Light Source
Included
Pole's Height
5m - 7m
LED Light Power
18W - 40W
Capacity
50,000 PCS/Month
💡Product Introduction

All-in-One Solar Street Light Instruction Manual (18W, 20W, 25W, 30W, 40W)

The design of this integrated solar street light combines the best energy-saving components: solar panel, LED lamp, and specialized battery. With an intelligent controller and PIR sensor, it achieves high brightness with low energy consumption, long lifespan, and maintenance-free operation. Its compact design makes it highly convenient for shipping and installation.

📊Technical Specifications
Light Source 18W 20W 25W 30W 40W
Solar Panel (Mono) 40W 50W 50W 60W 60W
Human Body Sensing Yes Yes Yes Yes Yes
Dimension (mm) 955*385*210 1130X390X210 1190X390X210 1190X390X210 1190X390X210
Luminous (Full Load) 1800lm 2100lm 2500lm 3200lm 4300lm
Visual Angle 120° 120° 120° 120° 120°
Work Time (Saving Mode) ≥20Hr ≥20Hr ≥20Hr ≥20Hr ≥20Hr
Install Height 5~6m 5~6m 5~6m 6~7m 6~7m
Important Note: Working time data is measured at latitude 22°, 113° East longitude on sunny days. Actual performance may be affected by the surrounding environment.
🛠️Installation & Tips
  • Sunshine Requirement: Select the suitable model based on local solar radiation. In areas with long rainy seasons, consider AC/DC charging hybrid models.
  • Temperature Range: Charging and discharging temperature range is -30°C to +60°C. Below -30°C, the system will auto-protect the battery.
  • Storage: Fully charged batteries can be stored for 6 months. Examine and charge periodically during long-term storage.
  • Orientation: In the Northern Hemisphere, face the solar panel South; in the Southern Hemisphere, face North. Avoid shadows from trees or buildings.
  • Maintenance: Clean the surface regularly with normal detergent to remove dust, leaves, or grease for maximum power generation.
  • Activation: Use the fuse or switch located at the rear end of the light before installation.

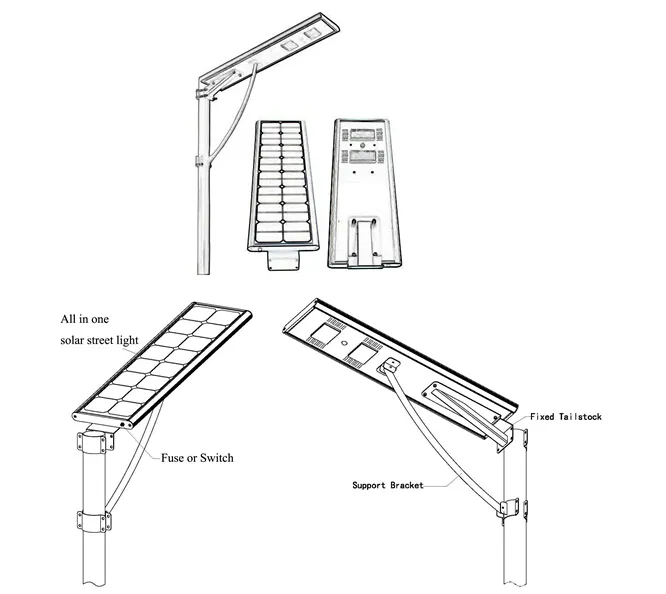

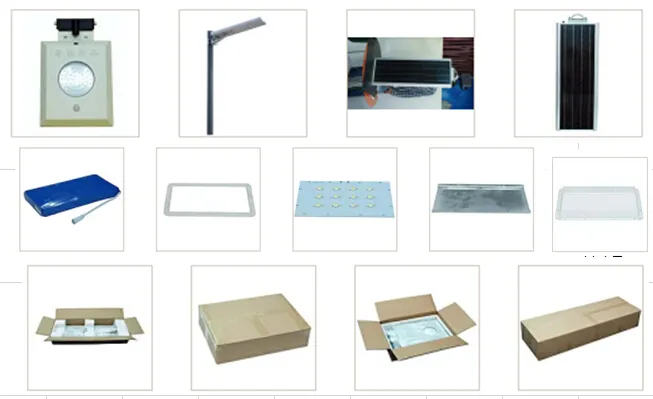

Integrated Solar Street Lamp Design Solar Lamp Components Installation Guide
❓Frequently Asked Questions
What is the recommended pole specification for installation?
The light pole should be 5-7m long, 2.0mm thick, made of iron or steel, with a diameter of 80-110mm.

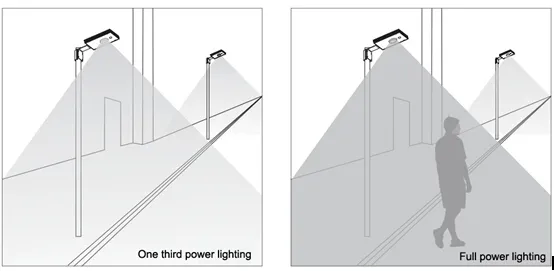

How does the human body sensing (PIR) work?
The light operates at full brightness (Full Load) when motion is detected and switches to saving mode (Less Load) when no motion is present to conserve energy.
Can the light withstand harsh seaside or desert environments?
Yes, the housing is made of aluminum alloy and the unit is rated IP65/IP67, designed to survive in coastal and desert conditions.
What should I do if it's been stored for more than 6 months?
You should examine the battery and perform a full charge cycle to prevent battery damage before final installation.
How do I activate the light for the first time?
Check the rear end of the light for a fuse knob or a switch. Insert the fuse or flip the switch to "On" to start the system.
