📋 Basic Information
Color Temperature
2700~6500K
Illumination Time
>13 Hours
🚀 Features & Advantages
✓
14,400 LM Max lamp lumen high brightness
✓
100,000+ Hours Long LED lifespan with professional heat dissipation
✓
25 Years Long-term product lifespan design
✓
3,000+ Cycles LiFePO4 batteries with Micro-BMS technology
✓
99.9% Efficiency MPPT solar charge controller efficiency
✓
5+ Days Autonomy Continued operation during cloudy/rainy days
📍 Applications

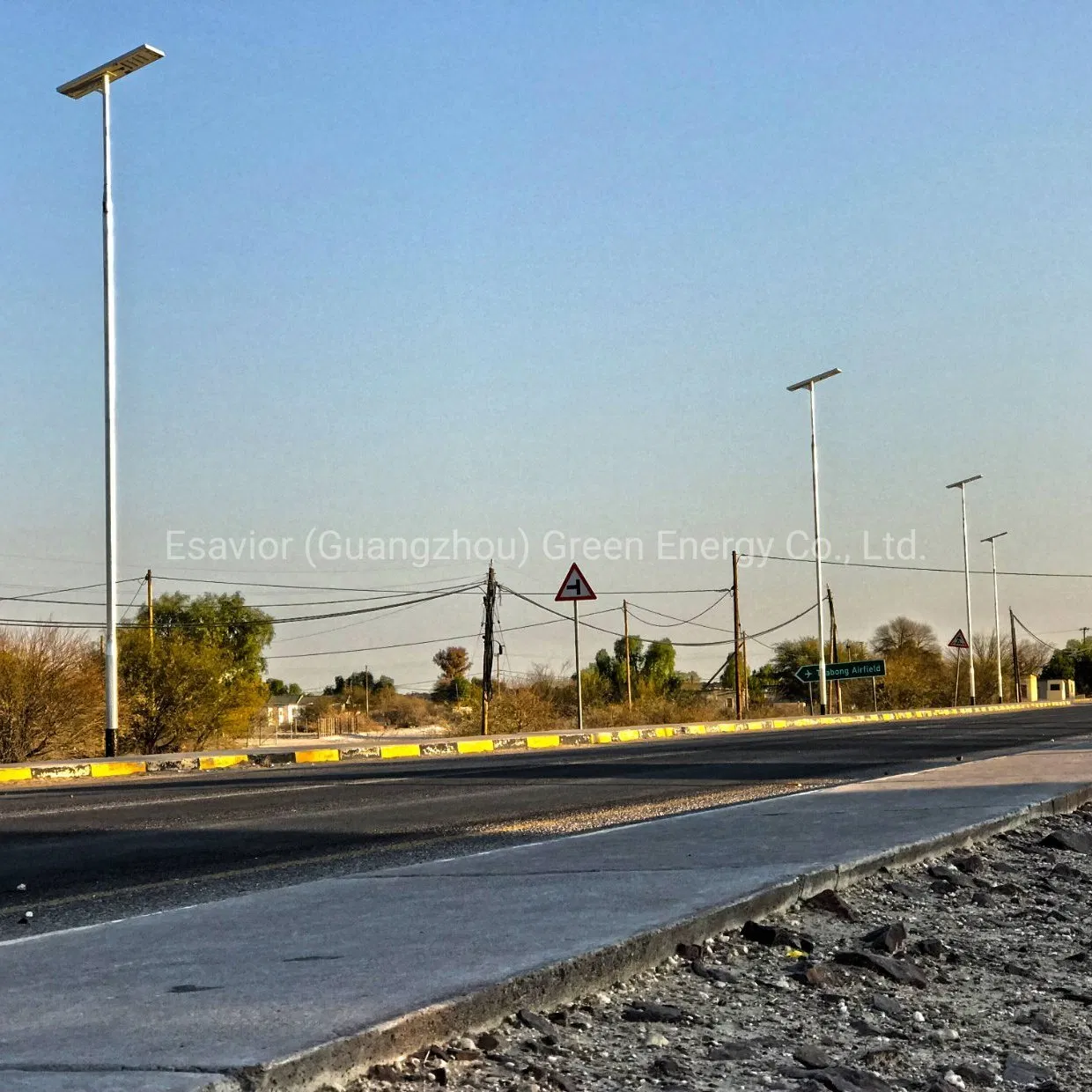

- Highway and Expressway lighting
- Main Street and Roadway lighting
- Public Areas (squares, theme parks)
- Commercial Parking Lots
- Industrial Site Lighting
⚙️ Technical Specifications
| Superior Series |

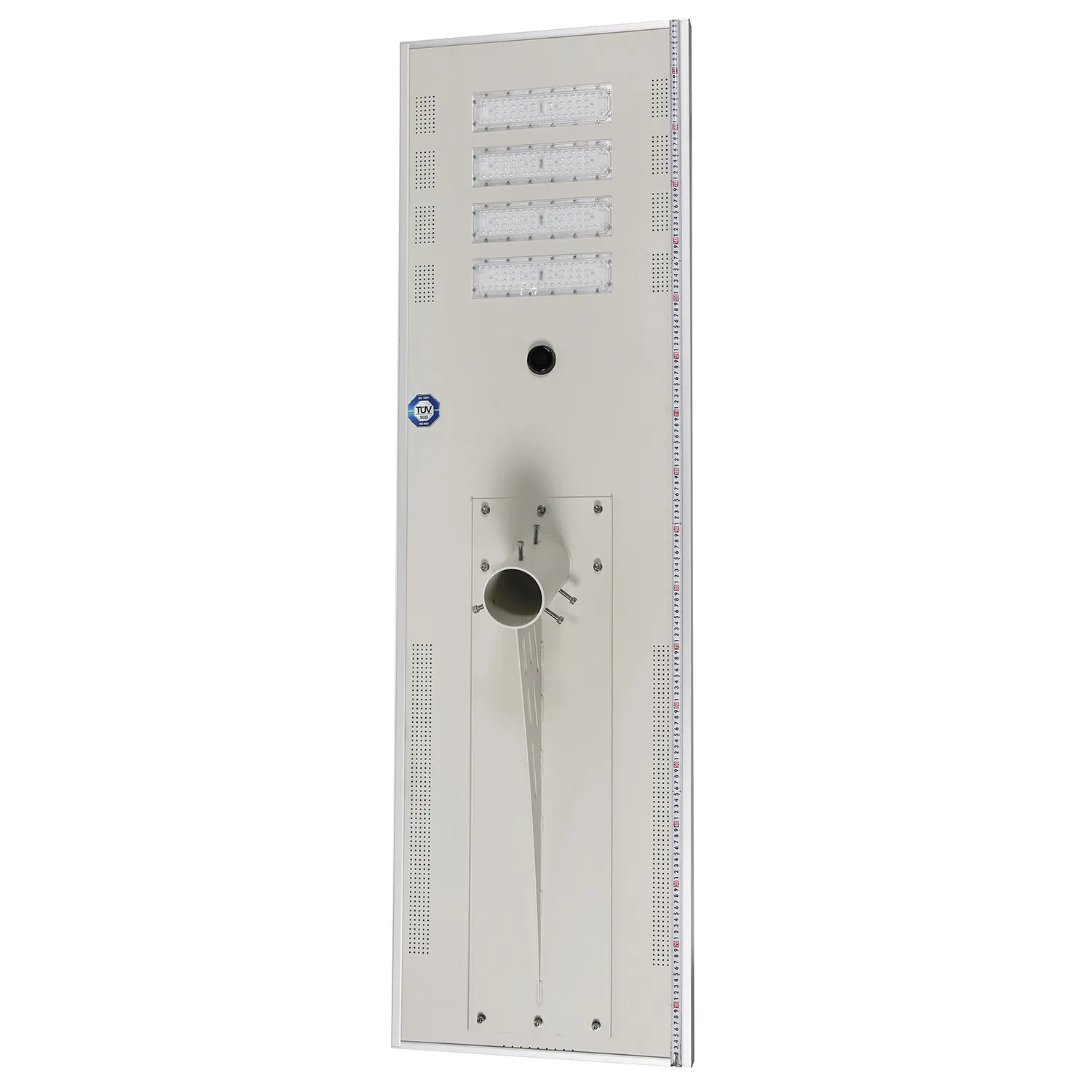

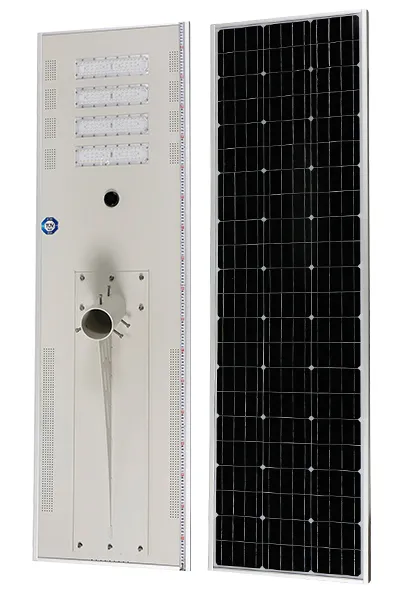

Model No. ISSL-SPR-120C |
| LED Source |
Rated Power |

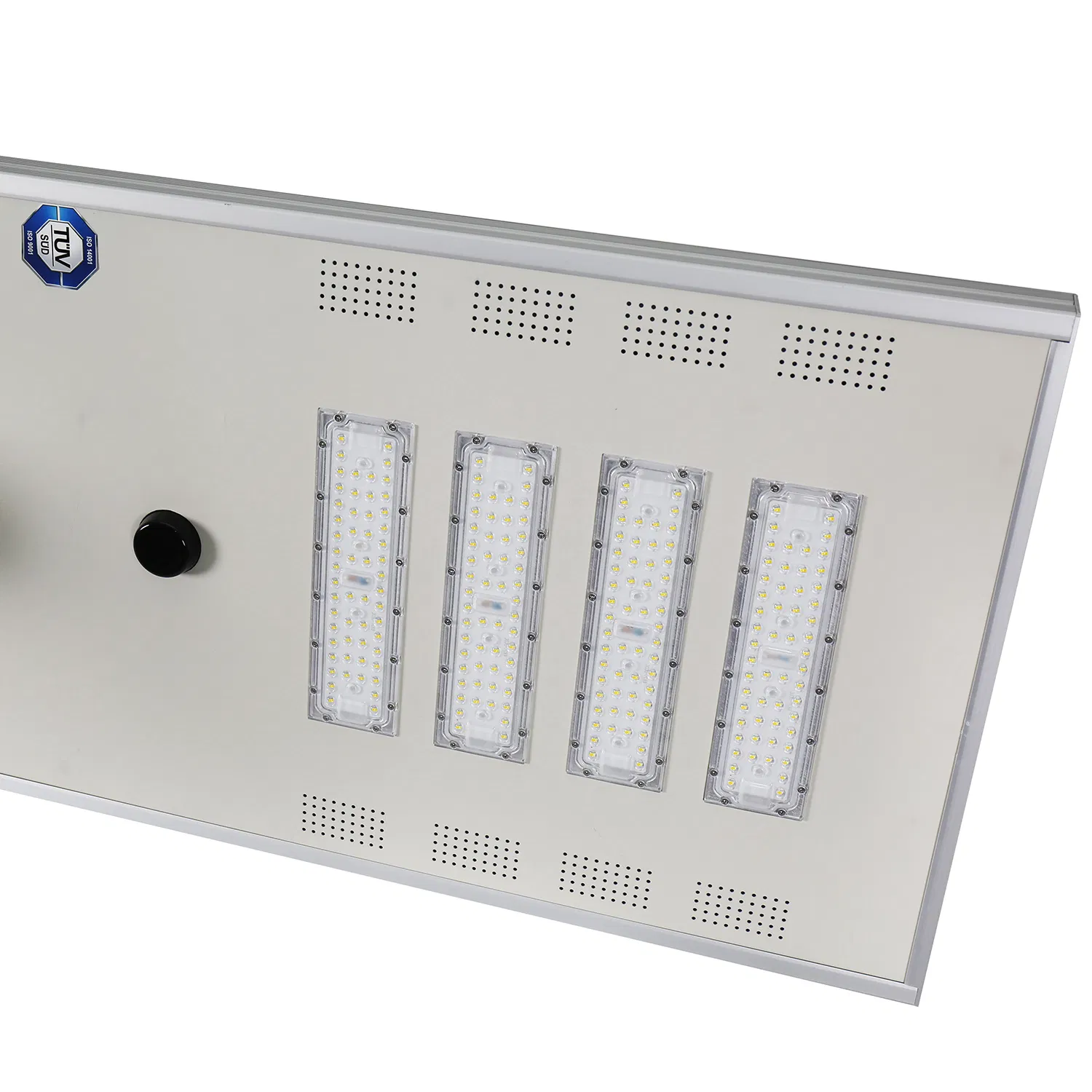

24V/ 120W (56LEDs x 4 modules) |
|
| Lumens |
12000 - 14400lm |
| Viewing Angle |
140° (Customized IES Types Available) |
| Solar Panel |
Power |

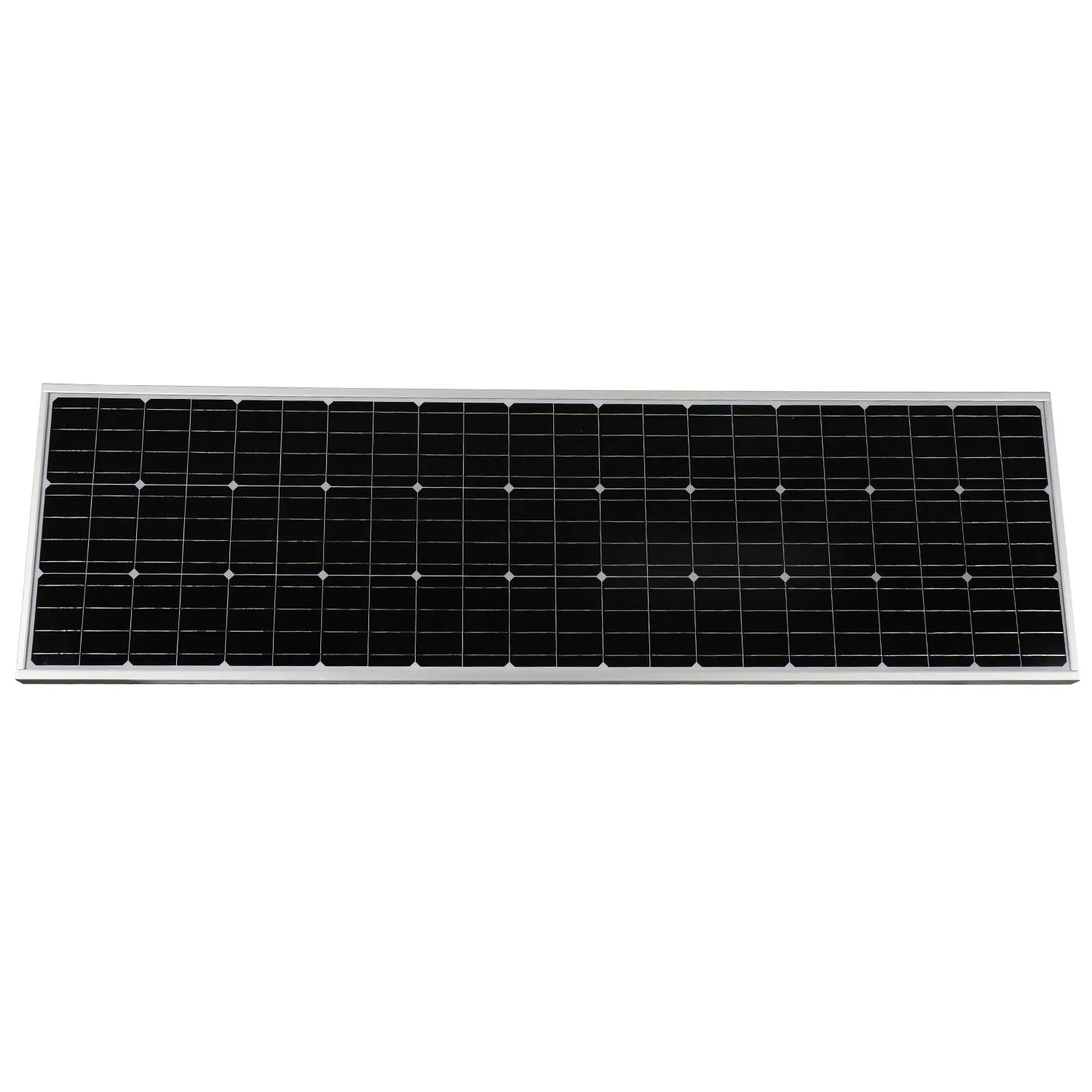

36V/160Wp (High Efficiency Mono) |
| Battery |
Capacity/Type |
25.6V/36AH (921.60WH) LiFePO4 |
| Controller |
Type |
MPPT / IP68 / IoT Online Optional |
| Charging |
Full Charge Time |
6 Hours (STC) |
| Discharge |

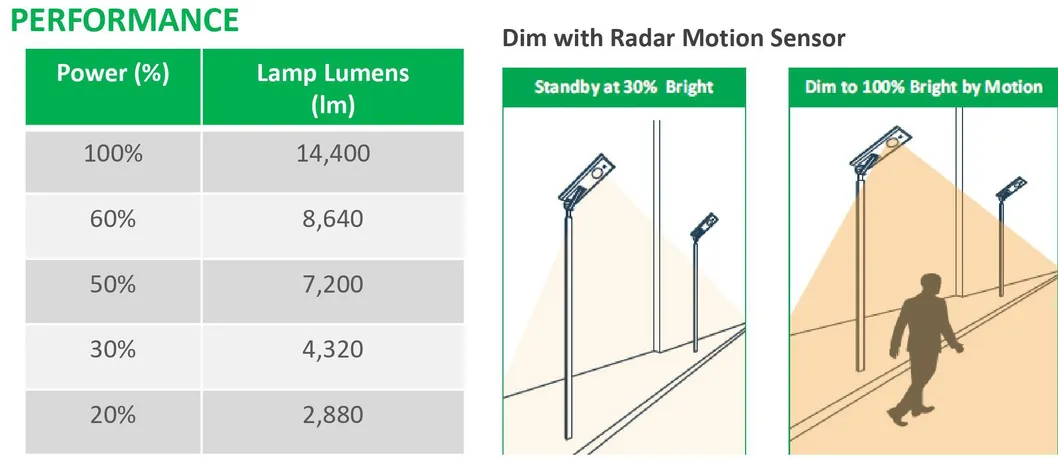

Dim Mode |
>65 hours |
| Bright Mode |
>13 hours |
| Materials |
Chassis |

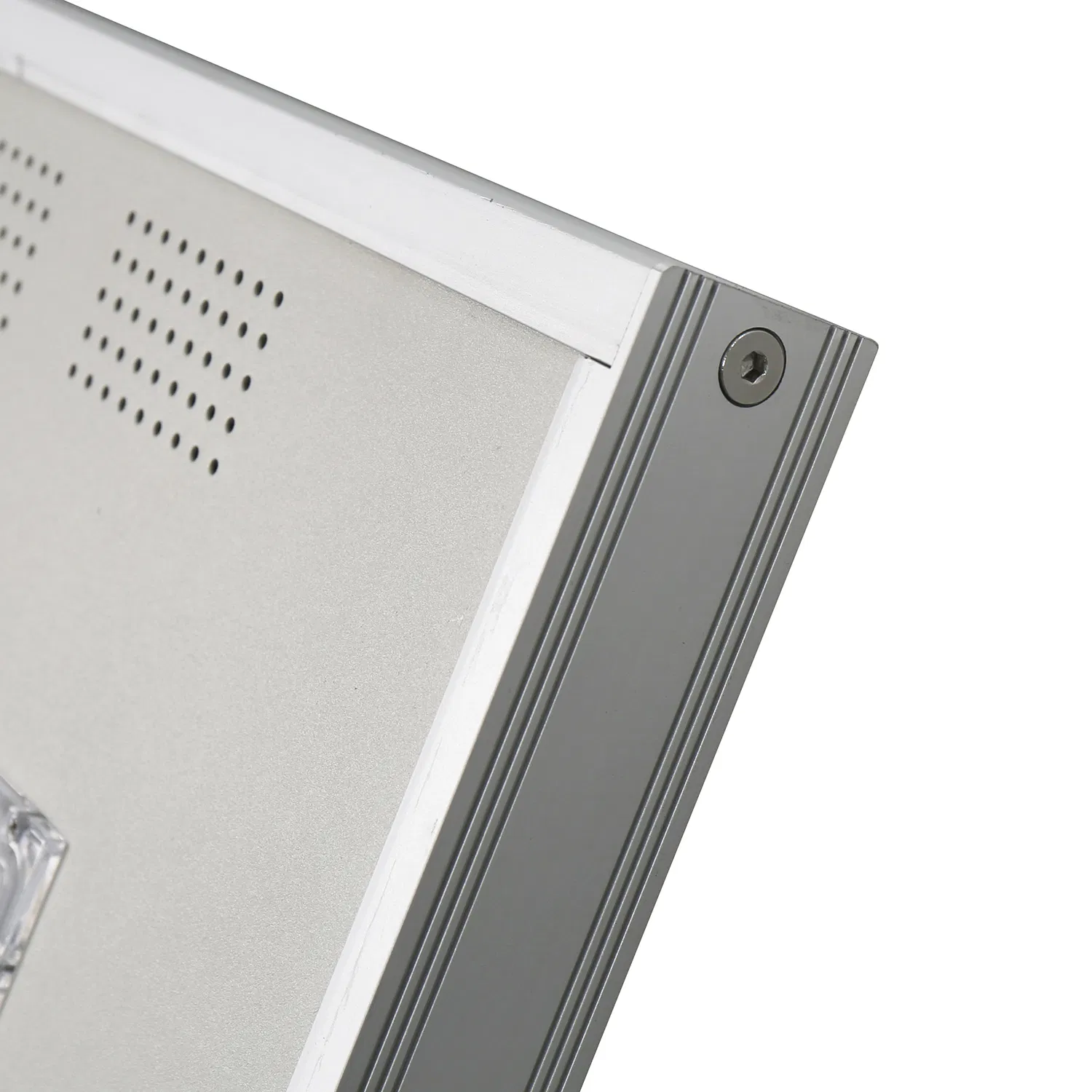

Aluminium Alloy |
📊 Distribution & Performance

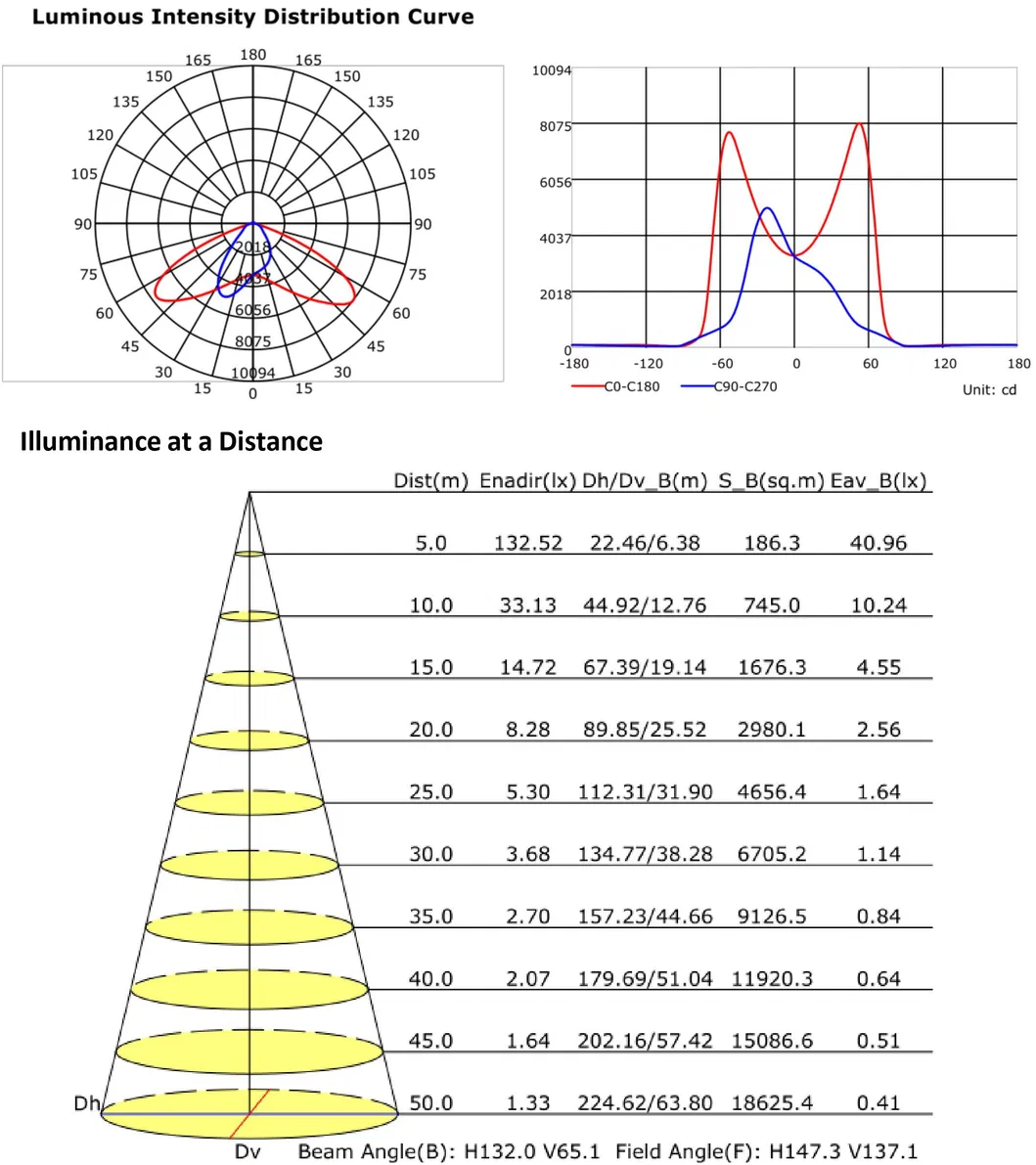

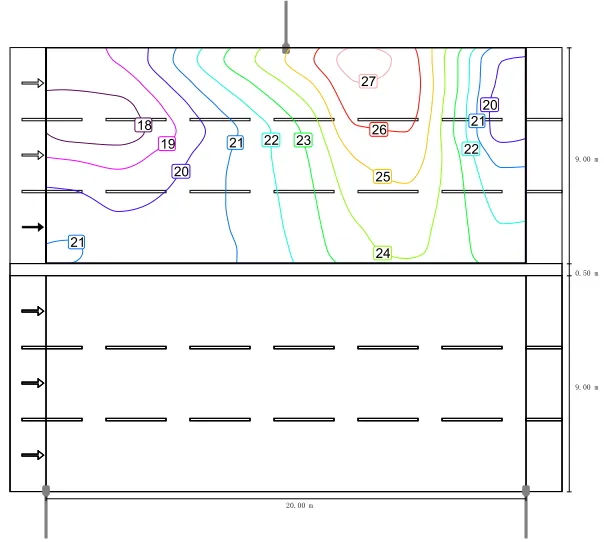

IES Type II distribution is standard. Dialux simulations show optimal performance at 12m pole height with 40m spacing for 6-lane roadways.
🛡️ Why Choose Our Solutions?

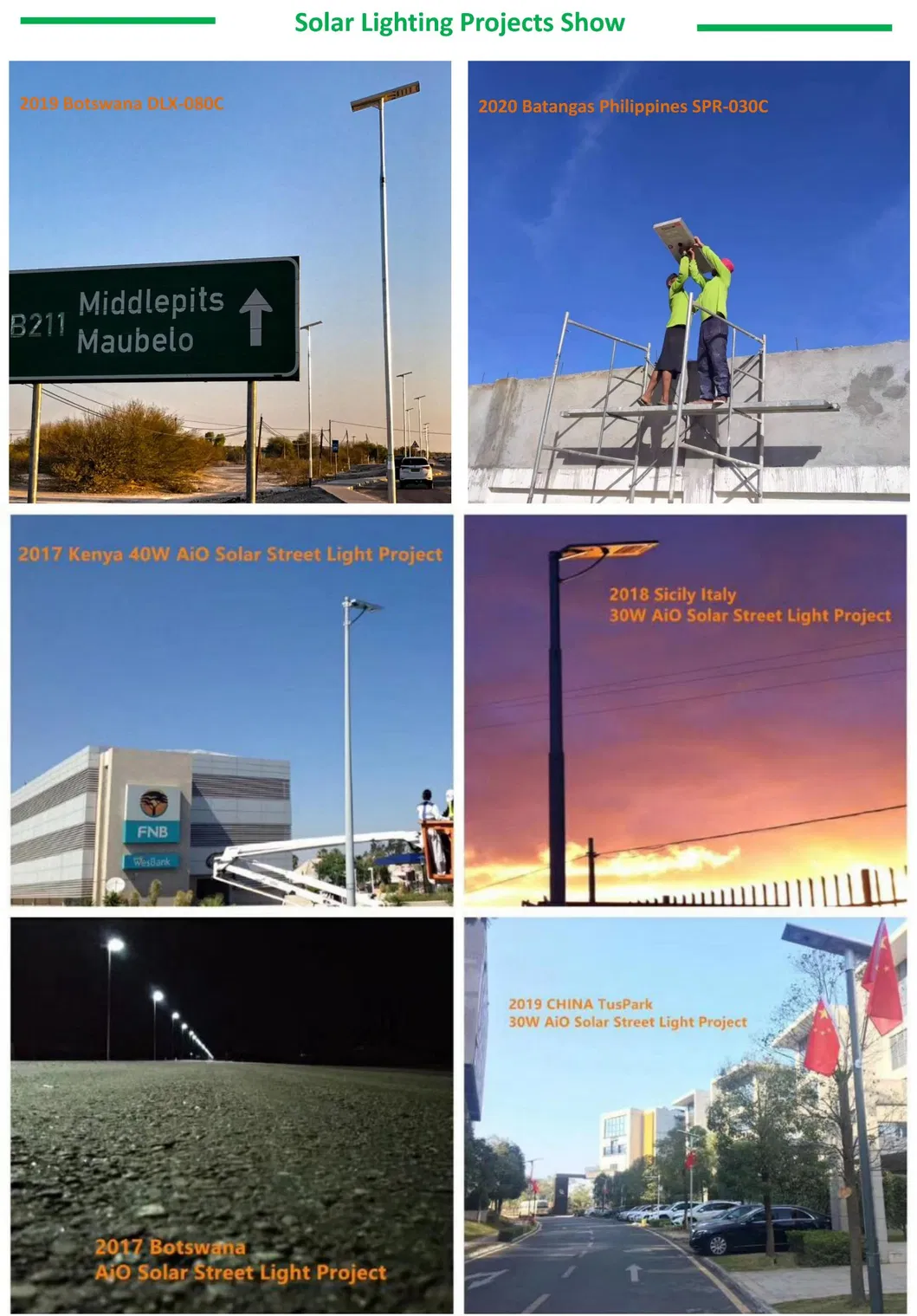

Global Expertise 12 years of experience in solar lighting projects worldwide.
Patented Tech 13 core technologies in solar street lighting and IoT systems.
Certified Quality ISO 9001/14001, TUV-SUD, CE, RoHS, and IP66 rated.
International Trust Products utilized by government agencies and global NGOs.
❓ Frequently Asked Questions
Does the lamp light on automatically?
Yes, it will light on automatically at darkness in all operating modes except "OFF".
Can I order samples for testing?
Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
What is the warranty period?
We offer a standard 3 to 5-year warranty on our solar street lighting products.
Can these lamps withstand strong winds?
Yes, the lamps use a solid Aluminum-alloy holder with zinc plating for anti-rust corrosion and high stability.
What's the difference between Motion and PIR sensors?
Motion (radar) sensors emit electric waves and reach up to 10 meters with high accuracy. PIR sensors detect temperature changes and typically reach 3-5 meters.
How are faulty units handled?
During the guarantee period, we send replacements for small quantities. Our products maintain a defective rate of less than 0.5%.
